Chloroquine-induced renal phospholipidosis

Fosfolipidosis renal inducida por cloroquina

Chloroquine is an antimalarial drug, but due to its immunomodulating effect, it is also useful in autoimmune diseases. It has few side effects, but renal complications have been reported. We describe the case of a patient with impaired renal function in whom phospholipidosis with podocyte zebra bodies was found on kidney biopsy. This finding initially oriented the diagnosis toward Fabry disease, but she did not have clinical signs and symptoms or a family history of the disease. Since the patient was female, genetic studies were ordered, which did not show alpha-galactosidase A (GLA) gene mutations, and the serum levels of alpha-galactosidase enzyme were normal. Due to the length of time she had been on chloroquine, and in the absence of clinical findings which would indicate another disease, she was diagnosed with chloroquine-induced renal phospholipidosis, a finding which has already been reported by other authors.

A 73-year-old woman from a city in Colombia, South America, was being followed by nephrology for chronic kidney disease (CKD) secondary to hypertensive nephrosclerosis. She had a 10-year history of rheumatoid arthritis (RA), long-standing hypertension, dyslipidemia, and severe osteoporosis with L2-L4 compression fractures, and was being treated with chloroquine, methotrexate, losartan, hydrochlorothiazide and atorvastatin. On her first nephrology consult, her laboratory tests showed creatinine at 1.67 mg/dL, and a CKD-EPI estimated glomerular filtration rate (GFR) of 26 mL/min, with the expected GFR for her age being 70 mL/min. The urine tests showed no protein, acellular sediment, and a 24-hour urine protein of 79.5 mg.

Three months later, rheumatology requested a repeat nephrology evaluation, with the following findings on the follow up tests: elevated creatinine at 2.01 mg/dL, with normal calcium and phosphorus, and low PTH. Anti-HIV, hepatitis B and hepatitis C antibodies were negative, C3 and C4 were not consumed, and protein electrophoresis did not have a monoclonal peak. Renal ultrasound reported mildly shrunken kidneys (explainable due to her age) with no corticomedullary differentiation disorders, and a normal renal artery Doppler. Since the source of the renal impairment was unclear, a percutaneous kidney biopsy was ordered.

The biopsy report stated that 20 glomeruli were obtained; there was global sclerosis in five, with no mesangial or glomerular basement membrane abnormalities nor inflammatory changes in the glomeruli (Figures 1 and 2). There was 5% tubular atrophy, with no interstitial inflammation, myointimal thickening of the blood vessels and hyaline changes of the muscular wall with slight narrowing of the lumen (compatible with hypertensive nephrosclerosis). Immunofluorescence was negative for immune complex, complement (C3, C4, C1q), fibrin and light-chain immunoglobulin deposition. The main findings of electron microscopy or ultrastructural analysis were in the podocytes, with a loss of pedicels (their feet) in 70% of the capillary surface, and numerous zebra or lamellar bodies corresponding to lysosomal inclusions within them (Figures 3 and 4).

Figure 1
10x light microscopy. Normal glomeruli, one sclerosed. Normal tubules and interstitium.

Figure 2
40x light microscopy. Normal glomerulus.

Figure 3
Electron or ultrastructure microscopy: Podocytes with multiple "Zebra Bodies" corresponding to cytoplasmic phospholipids.

Figure 4
Electron or ultrastructure microscopy: a podocyte with "Zebra Bodies."

In light of the histological findings, the first diagnostic possibility proposed was Fabry disease. Since she was female, sequence analysis was ordered for her and her daughters to determine if there were mutations of the gene coding for the alpha galactosidase (GLA) enzyme. No pathogenic findings suggestive of Fabry disease were found in the patient nor her daughters in this study. The serum alpha-galactosidase A levels reported were 7.5 nmol/mL/ hour (normal controls 2.0 to 21.8 nmol/mL/hour), concluding that she did not have Fabry disease. Since there were no clinical findings suggestive of other diseases which would explain the histological findings, it was concluded that this was drug-induced phospholipidosis and, of the medications the patient was taking, the only possibility was chloroquine, which she had been taking for many years, reaching a cumulative dose of 810 grams.

Three months after the biopsy, the patient was seen by rheumatology as an outpatient and showed general deterioration. She had lost four kilograms of weight and had hyporexia, dysphagia for solids and liquids, muscular atrophy, marked difficulty walking, herpes zoster-like lesions on the chest, leukopenia and further renal function impairment. She was hospitalized and another nephrology consult was requested.

On her new tests, the creatinine had risen to 8.18 mg/ dL, the CKD-EPI estimated GFR was 4 mL/min, 24-hour proteinuria was 390 mg, the urine test showed 75 mg/dL of protein, and the urine sediment included three eumorphic red blood cells per high-power field. Acute interstitial nephritis was suspected, but steroids or cytostatic agents were not begun due to her herpes zoster and the risk of viral systemic complications. Nephrology confirmed that she was still receiving 250 mg of chloroquine from Monday through Friday, which they discontinued along with the proton pump inhibitor (esomeprazole), adjusting the prescribed dose of acyclovir to her glomerular filtration rate. With these measures and hydration, her creatinine decreased to 5.0 mg/dL.

Due to her neuromuscular symptoms, a simple brain magnetic resonance was ordered which was reported as normal. Upper GI endoscopy showed a giant hiatal hernia. Chloroquine-induced myopathy was suspected, and electromyography plus nerve conduction was ordered. The patient developed marked dyspnea, requiring oxygen therapy due to desaturation, and an acute pulmonary thromboembolism was suspected. A transthoracic echocardiogram detected a slight decrease in the ejection fraction, which was still preserved (58%), and a slight increase in pulmonary systolic arterial pressure, but with no signs of right ventricular dysfunction. A chest CAT reported multiple segmental parenchymal opacities probably related to multilobar opportunistic pneumonia.

The patient deteriorated rapidly and neither she nor her family accepted a transfer to the intensive care unit or advanced measures like orotracheal intubation; she therefore remained on the general ward and died. The family also refused an autopsy.

The renal complications which accompany rheumatoid arthritis may be triggered by poor disease control or be related to its pharmacological treatment ¹. In our case report, the kidney biopsy mainly reported podocyte involvement with pedicel loss in 70% of the capillary surface, and numerous zebra or lamellar bodies corresponding to lysosomal inclusions. The diagnosis was renal lipidosis, a group of diseases characterized by abnormal lipid storage in the kidney. They are classified as primary when there are specific hereditary enzyme deficits, or secondary to other disorders such as liver cirrhosis, nephrotic syndrome, Alport syndrome, Alagille syndrome, or even toxic agents or medications, the latter being known as drug-induced phospholipidosis (DIP) ^2-5.

Drug-induced phospholipidosis due to antimalarial medications like chloroquine or hydroxychloroquine (HCQ) has been rarely described, always in the context of autoimmune diseases like Sjögren syndrome, systemic lupus erythematosus (SLE), RA and connective tissue disease, rather than in malaria treatment, possibly due its short treatment course in which the cumulative dose is small. To date, 12 cases of chloroquine and HCQ-induced phospholipidosis have been reported (Table 1), as well as one case in a renal transplant patient with underlying SLE, in whom graft rejection was suspected due to kidney function impairment, but phospholipidosis was found on the kidney biopsy, requiring hydroxychloroquine withdrawal, with resulting improvement ^3-4,6-16.

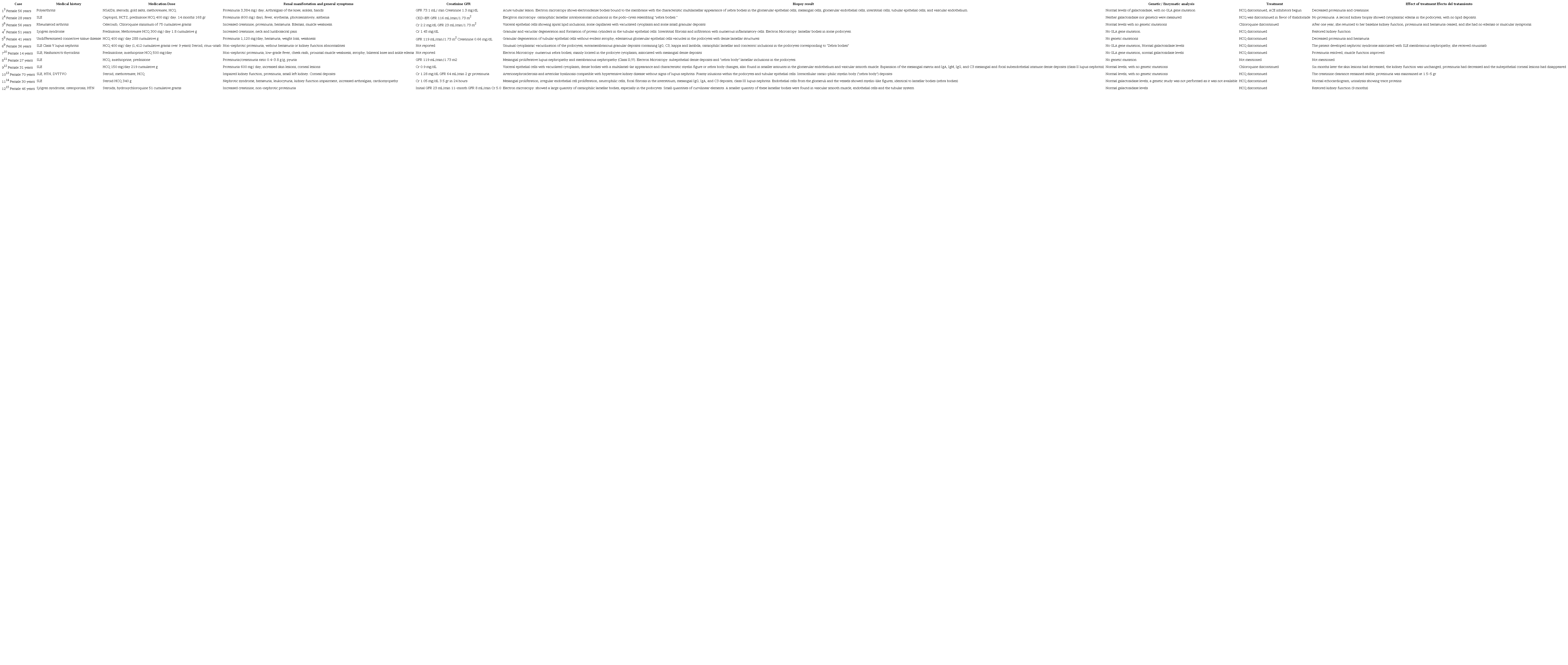

Table 1
Case reports to date of chloroquine and hydroxychloroquine-induced renal phospholipidosis.

In the reported studies, all the cases occurred in women with ages ranging from 14-70 years, 10 of whom were on HCQ, with the most common disease being SLE. The cumulative doses of the two patients who were on chloroquine were 75 and 51 grams, while in our case it was close to 810 grams ^3,4,6-15.

The predominant site of lipid accumulation can guide the clinician in the differential diagnosis of the diseases which cause it. Deposition mainly in the podocytes, with lysosomal inclusions, is found in Fabry disease, nephrosialidosis, GM1 gangliosidosis, type 2 mucolipidosis, Hurler syndrome, Niemann-Pick disease and Farber disease. Renal tubular cell involvement occurs in metachromatic leukodystrophy, adult Refsum disease, and Sandhoff disease. Accumulations in mesangial and glomerular endothelial cells are found in lecithin cholesterol acyltransferase deficiency, Gaucher disease and Niemann Pick disease ^2,3,4. Zebra or myeloid bodies in the podocytes are more characteristic of Fabry disease. They have occasionally been described in Niemann Pick; however, this disease also has glomerular and mesangial endothelial damage and large vacuolated cells known as Niemann Pick cells ^2-4.

In Fabry disease, despite being an X-linked disorder, heterozygous women may develop systemic organ involvement. In our patient, the lack of other clinical findings, normal enzyme levels and lack of genetic mutations ruled out this diagnosis, with the most probable diagnosis being drug-induced phospholipidosis, in this case caused be chloroquine ^17-19.

Drug-induced phospholipidosis is a condition in which some cationic drugs with lysosomal affinity can easily enter this organelle and form a drug-phospholipid complex with subsequent accumulation, aided by lysosomal enzyme activity inhibition and resistance to digestion due to increased lysosomal pH. The reversible inhibition of lysosomal phospholipases A and C is thought to be dose dependent ²⁰. Some drugs with a documented ability to cause DIP include chloroquine, hydroxychloroquine, amiodarone, azithromycin, gentamicin, fluoxetine, sertraline and clozapine ²¹.

Histopathological findings have been used to try to distinguish Fabry disease from DIP. The presence of curvilinear bodies (microtubular structures in vascular smooth muscle cells and podocytes) and small, round granular inclusions in the mitochondria of mesangial, tubular, and endothelial cells may favor DIP. Meanwhile, a greater number of intra-lysosomal inclusions are found in Fabry disease. ⁵.

During the patient's final hospitalization, when she was still receiving chloroquine, important developments included neurological and muscular involvement, worsening kidney function and the onset of proteinuria without significant urine sediment findings. The cumulative dose of chloroquine was greater, and the fact that her kidney function improved when it was discontinued suggests exacerbated chronic kidney disease, and worsening podocytopathy evidenced by proteinuria, events which could be explained by chloroquine toxicity ²². Several case reports have described a similar behavior ^3,8.

The patient also exhibited dysphagia and symmetrical proximal muscle weakness symptoms, with marked difficulty in walking. Chloroquine toxicity has been reported to cause neuromyopathy and myopathy, as it can accumulate in these tissues; thus, in this case, the patient may have developed chloroquine-induced myopathy ^{6,20,23,24,25}. These findings have been reported to improve when the medication is discontinued ²⁶, and with a prevalence of 6.7% and incidence of 1.2%, it is not such a rare condition ²⁷.

We report a patient being treated with chloroquine for an approximately 10-year history of rheumatoid arthritis, with a significant cumulative dose, who developed progressive deterioration of her kidney function, non-nephrotic-range proteinuria and proximal muscle weakness in the extremities. The kidney biopsy showed zebra bodies in the podocytes. Fabry disease was ruled out. The final diagnosis was drug-induced phospholipidosis, in this case caused by chloroquine. This case report reminds us of the importance of being aware of the possible side effects of medications.
