Introduction

The side effects of doxorubicin limit its use in treatment of numerous types of cancer¹. Carbonic anhydrase enzymes IX & XII are described as being a predictive marker of doxorubicin resistance. The acidic extracellular environment can decrease the uptake of anthracyclins by cells, because these drugs are weak bases, which ionize at low pH². CA IX is inhibited by several main classes of inhibitors: inorganic anions, sulfonamides and their isosteres (sulfamates and sulfamides), phenols³, coumarins⁴ and antibodies⁵. Primary sulfonamides are the most important and largely used zinc binding group for the design of new CA inhibitors (CAIs) that have been shown to reverse the effect of tumor acidification and to inhibit the growth of cancer cells in low concentration⁶. Many reports recently confirmed the antitumor activity of Ureido-/ thioureido-substituted benezensulfonamides. These compounds were shown to be good human CAIs and to possess a good selectivity profile for inhibiting human (CA IX & XII) over human (CA I & II)^7,8. As shown in figure 1, some novel molecules such as fluorescent thioureido-sulfonamide (CAI17) and ureido-sulfonamide (U-104) are reported to be selective CA IX inhibitors and more potent in the inhibition the growth of both primary tumors and metastases in a mice model of breast cancer^9-11. Indisulam (IND) with powerful anticancer activity was shown to act as a nanomolar inhibitor of CA IX, which reached the clinical evaluation trials (phase II in Europe and the United States) as potential drug for the treatment of several types of cancers¹².

Prodrug is inactive bioreversible structure derived from active drug molecule, which undergoes enzymatic or chemical biotransformation before eliciting its pharmacological effect¹³. Carbamate prodrug shows high stability with minimal drug release at neutral pH, and faster hydrolysis at acidic pH¹⁴.

The presence of acid-labile linkages between drugs and conjugated molecules allows drug release in the mild acidic environment of a tumor^15,16.

Thus, we synthesize compounds in which the anticancer drug (doxorubicin) has been conjugated with ureido-sulfanilamide and thio-ureido sulfanilamide via carbamate for minimizing the dose-related toxic side effects of doxorubicin and targeting to the tumor cell.

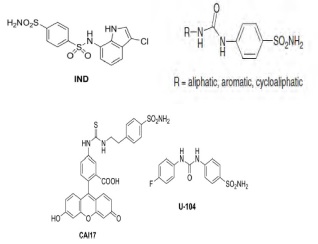

Fig.1.
Chemical structures for carbonic anhydrase inhibitors

Experimental Procedure

Synthesis of 4-((phenoxycarbonyl) amino) phenylacetate (Intermediate 1a)¹⁷:

A suspension of 4-aminophenylacetate (9.5mmole, 1.43g) in (20 ml) of dry tetrahydrofuran was cooled to 0⁰C then pyridine (12mmole, 1ml) and phenylchloroformate (9.5mmole, 1.2ml) were added. The resulting mixture was stirred at 0⁰C for 5 min, and warmed to room temperature for 1hr. Ethyl acetate (60ml) was added and the suspension was washed with 1M HCL (10ml), H2O (10ml), saturated aqueous NaHCO3 (20ml), brine (10ml), and dried MgSO₄ respectively. The solvent was evaporated to dryness under vacuum and triturated with diethyl ether/ hexane (hot) to get the crude solid product.

As white powder (92% yield), m.p. 185⁰C, ¹H-NMR (500MHZ, DMSO-d6):10.19 (1H, s, NH* of NHCOO-), 7.52 – 6.49(9H, m, Ar-H*), 3.5 (3H, s, COCH3), ¹³C-NMR (125 MHZ, DMSO-d6): 173.47, 152.39, 144, 136.29, 130.9, 129.84, 127.69, 122.41, 119.26,115.7, 112.9,43.43.

Synthesis of 4-((phenoxycarbonothioyl) amino) phenyl acetate (Intermediate 1b)¹⁸

4- aminophenylacetate (4.0mmol, 0.605g), phenylchlorothionoformate (2.0mmol, 0.276 ml), and water (15 ml) were added respectively. The reaction mixture was stirred at room temperature for 1 hr. After the reaction was ended; the solid was filtered off, washed twice with 10% HCl (20 ml) and deionised water (20 ml), and dried under vacuum to give the product.

As white powder (85% yield), m.p. 177⁰C, ¹H-NMR (500MHZ, DMSO-d6):7.68 (1H, s, NH* of NHCSO-), 7.42 – 7.17 (9H, m, Ar-H*), 3.56 (3H, s, COCH₃), ¹³C-NMR (125 MHZ, DMSO-d6): 173.08, 153.11, 144.76, 132.73, 130.43, 129.85, 129.74, 128.29, 123.67, 123.49, 123.12,122.98, 122.67, 43.74.

Synthesis of 4-(3-(4-sulfamoylphenyl) ureido) phenyl acetate (Intermediate 2a)¹⁷:

Intermediate (1a) (1.0mmole, 0.271g) was dissolved in pyridine (3ml) Then 4-aminobenzenesulfonamide (1.05mmole, 0.181g) in pyridine (3ml) was added slowly to the mixture. The resulting mixture was stirred at room temperature for 2.5hr. Ethyl acetate (30ml) was added and the suspension was washed with H₂O (2 x 10ml), 1M HCL (10ml), H2O (10ml), 1M NaOH (10ml), brine (10ml), and dried (MgSO4) respectively. The solvent was evaporated to dryness under vacuum and triturated with diethyl ether/ hexane to get the solid product

As white powder (70% yield), m.p. 140⁰C, ¹H-NMR (500MHZ, DMSO-d6): 7.52 – 6.86 (8H, m, Ar-H*), 6.56 (1H, s, NH* of NHCONH), 6.47 (1H, s, NH* of NHCONH),5.8 (2H,s, SO₂NH₂), 3.48 (3H, s, COCH₃), ¹³C-NMR (125 MHZ, DMSO-d6): 173.08, 153.13, 137.37, 136.58, 135.2, 132.73, 130,129.74, 126.47, 126.29, 123.67, 123.23, ,122.99, 122.42, ,43.8.

Synthesis of 4-(3-(4-sulfamoylphenyl) thioureido) phenyl acetate (Intermediate 2b)¹⁸:

Intermediate (1b) (1.0mmol, 0.287g) and 4-aminobenzenesulfonamide (1.0mmol, 0.172g) were added to water (15 ml) respectively. The reaction mixture was stirred at 100 °C for 1hr. The reaction mixture was allowed to cool to room temperature. The solid was filtered off, washed twice with 10% HCl (20 ml) and deionised water (20 ml), and dried under vacuum to give the pure product. As white powder (72% yield), m.p. 192⁰C, ¹H-NMR (500MHZ, DMSO-d6): 7.96(1H, s, NH* of NHCSNH), 7.83(1H, s, NH* of NHCSNH), 7.68-7.15 (10H, m Ar-H*and SO₂NH₂), 3.56 (3H, s, COCH3),¹³C-NMR (125 MHZ, DMSO-d6): 173.25, 169.58, 152.19, 151.01, 147.46, 138.25, 130.18, 129.88, 125.87, 122.42, 122.42, 119.53, 118.96, 115.69, 114.39, 43.08.

Synthesis of intermediate (3a)¹⁷

A suspension of doxorubicin HCl (1mmole, 0.58g) in (20 ml) of dry methanol was cooled to 0 0C then triethylamine (2mmole, 0.28ml) and phenylchloroformate (1mmole, 0.125ml) were added. Then complete the procedure as mentioned in the synthesis of (intermediate 1a). As red powder (88% yield), m.p. 150^oC, ¹H-NMR (500MHZ, DMSO-d6): 7.84 (2H, s, the aromatic protons of DOX), 7.57 (1H, s, NHCOO-), 7.45 (1H, m, the aromatic proton of DOX), 7.3-7.07 (5H,m, Ar-H*) and peaks at (13.89ppm, 13.19ppm) due to H-bond occur when the sample run at room temperature in addition to doxorubicin peaks.

Synthesis of compound (II)¹⁹

Intermediate (2a) (0.05mmole, 0.018g) was added in 1N NaOH 18⁰ C for 1 hr. Then intermediate (3a) (0.05mmole, 0.033g) in DMSO was added slowly to the mixture. The resulting mixture was stirred at room temperature for 2 hr. Ethyl acetate (20ml) was added and the suspension was washed with H₂O (10ml),1M HCL (10ml), H₂O (10ml), 1M NaOH (10ml), brine (10ml), and dried (MgSO₄) respectively.

As reddish black powder (65% yields), m.p.125^oC.¹H-NMR (500MHZ, DMSO-d6):8.58 (1H, s, NHCOO-), 7.9 (2H, s, the aromatic protons of DOX), 7.79-7.64 (4H, d, Ar-H*), 7.45 (1H, m, the aromatic proton of DOX), 7.31-6.75 (6H,m, Ar-H*and SO₂NH₂), 6.58 (2H, s, NH* of NHCSNH), and peaks at (14.04ppm , 13.26ppm) due to H-bond occur when the sample run at room temperature in addition to doxorubicin peaks as shown in table 1 and figure 2.

figure 2

Synthesis of compound (IV)¹⁹

Intermediate (2b) (0.05mmole, 0.0198g) was added in 1N NaOH 18⁰ C for 1 hr. Then intermediate (3a) (0.05mmole, 0.033g) in DMSO was added to the mixture. Then complete the procedure as mentioned in the synthesis of (compound (II)).

As reddish black powder (58% yields), m.p.130^oC.¹H-NMR (500MHZ, DMSO-d6):8.58 (1H, s, NHCOO-), 7.91 (2H, s, the aromatic protons of DOX), 7.79-7.64 (4H, d, Ar-H*), 7.45 (1H, m, the aromatic proton of DOX), 7.31-6.75 (6H,m, Ar-H*and SO₂NH₂), 6.58 (2H, s, NH* of NHCSNH), and peaks at (14.04ppm , 13.26ppm) due to H-bond occur when the sample run at room temperature in addition to doxorubicin peaks as shown in table 1 and figure(2as shown in figure 3.

Chemical Hydrolysis²⁰

The hydrolysis of doxorubicin derivative (IV) was studied in aqueous phosphate buffer (pH 5, pH 6.5 & pH 7.4) incubated at 37°C. The total buffer concentration was 0.1 M and the ionic strength (μ) 1.0 was maintained for each buffer by addition of calculated amount of NaCl. The rate of hydrolysis was followed spectrophotometrically (UV method) by recording the decreases in the absorbance of doxorubicin derivative accompanying the hydrolysis at the lmax of . (480nm). The reaction was initiated by adding 1 mL of stock solution (1mg mL) of the derivative in methanol to preheated buffer solution at 37°C to give final concentration of derivative (0.02mg mL). The solution was kept in a water bath at 37°C and samples (3mL) were withdrawn at appropriate time interval (15, 30, 60,120, and 240 min.) and the absorbencies were recorded. The observed first rate constants were determined from the slopes of the linear plots of log concentration remaining versus time.

In vitro cytotoxicity study^21-23

To determine the cytotoxic effect of compounds (II & IV) and doxorubicin on MCF-7, the MTT assay was done using 96-well plates. Cell lines were seeded at 1 × 10⁴ cells/well. After 24 hrs, cells were treated with tested compounds at different concentration. Cell viability was measured after 72 hrs of treatment by removing the medium, adding 28 µL of 2 mg/mL solution of MTT and incubating the cells for 2.5 h at 37 °C. After removing the MTT solution, the crystals remaining in the wells were solubilized by the addition of 130 µL of DMSO followed by 37 °C incubation for 15 min with shaking. The absorbency was determined on a microplate reader at 492 nm.

Results and Discussion

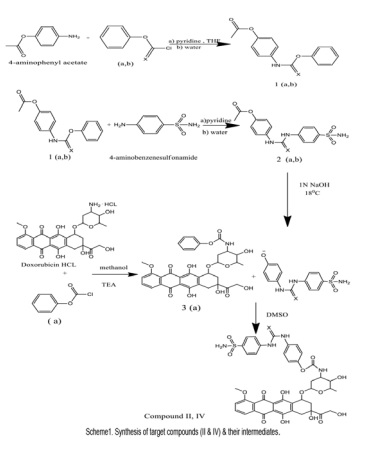

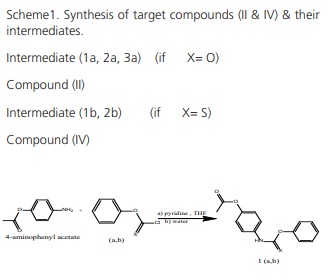

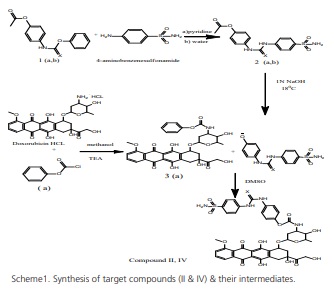

The synthetic pathways for the designed target compounds (II & IV) are illustrated in (scheme 1)

Fig. 2.

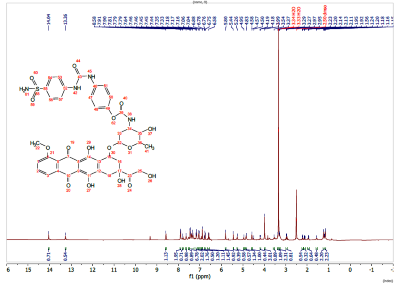

Fig. 2. 1H-NMR spectrum of compound (II)

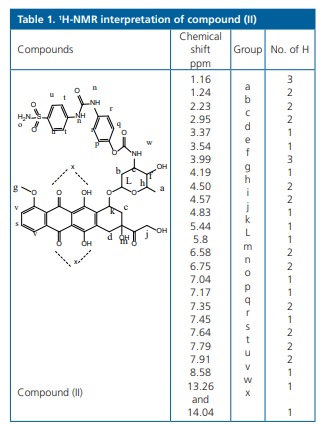

Table 1

1HNMR interpretation of compound II

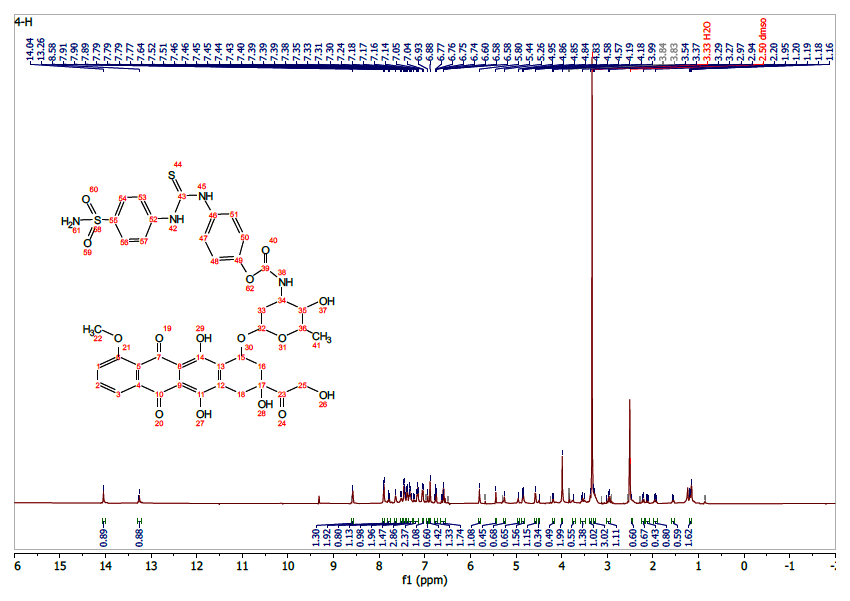

Fig. 3.
Fig. 3. 1H-NMR spectrum of compound (IV)

Hydrolysis study of doxorubicin derivatives in aqueous buffer solution²⁴.

The lmax of compounds IV at (480 nm) was differs from lmax of doxorubicin (477nm) and shows disappearance of (288nm) from the UV spectrum in addition to preserved peaks at (233nm & 252nm) as shown in figure 4 & figure 5. Thus making UV method applicable for studying the hydrolysis of these compounds.

Under experimental conditions used the hydrolysis of the doxorubicin derivatives followed first order kinetics, since plots of log. Concentration of compounds vs. time resulted in straight lines, from their slopes; the observed rate constants of hydrolysis were calculated.

Figure 6 is represented graph for pH-stability profile of the compound IV; while table 2 shows the pH values, the corresponding K_obs and half-life of the hydrolysis of doxorubicin conjugate. The half-life was calculated using equation (2), which derives from the first order kinetic law [equation (1)].

log. C = log. C_o – k t /2.303 -------- equation (1)

t _1/2 = 0.693 / K_obs -------- equation (2)

From the data above, compound IV shows a good stability at pH 7.4 and require more acidic conditions to hydrolyze.

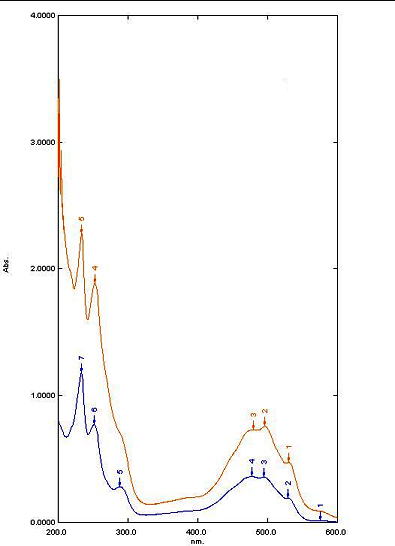

Fig. 4.

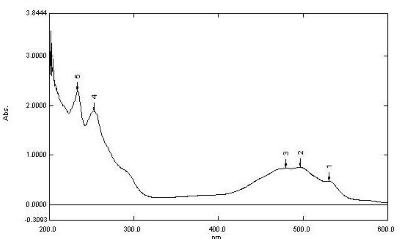

Fig. 4. UV spectrum of compound IV

Fig. 5.
Fig. 5. UV spectrum of compound IV (orange), UV spectrum of doxorubicin (blue)

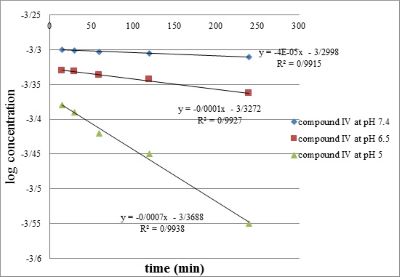

Fig. 6.
Fig. 6. Hydrolysis of compound IV in phosphate buffer solution (pH 5), (pH 6.5) and (pH 7.4) at 37°C

In Vitro Cytotoxicity Study

The cytotoxic effect of compounds (II & IV) and doxorubicin against cancer cells was studied. The antitumor activity of these compounds was tested by studying their ability to inhibit the proliferation of cancer cells.

The results of this study showed highly significant cytotoxic activity of compounds (II & IV) compared to doxorubicin against the human cancer cell lines as showed in Figures below [(7) – (12)].

The results suggest the ability of compounds (II & IV) to suppress the growth of cell lines and this effect is concentration dependent manner.

The IC₅₀ values for compound II & IV were measured to be 9.57 and 10.28 respectively as shown in (Table 3). However, free doxorubicin shows 11.14.

The data was compatible with high stability of carbamates and required more acidic conditions to hydrolyze to (urea or thiourea) of 4-aminobenzene sulfonamide and free doxorubicin, thus compound II & IV shows significant cytotoxicity differ from free doxorubicin alone against MCF-7.

Fig. 7

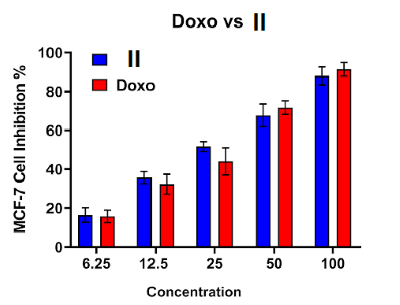

Cytotoxicity of free doxorubicin and compound II against MCF-7 cells after 72 h of treatment using MTT assay

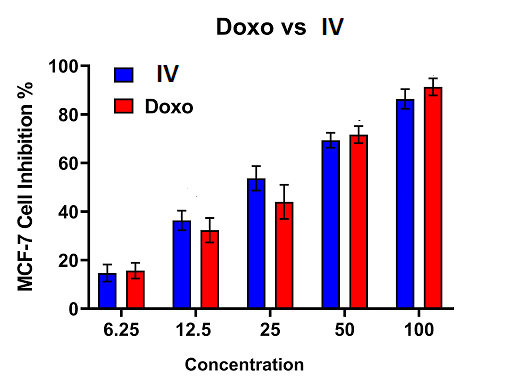

Fig. 8.
Cytotoxicity of free doxorubicin and compound IV against MCF-7 cells after 72 h of treatment using MTT assay

Fig. 9.

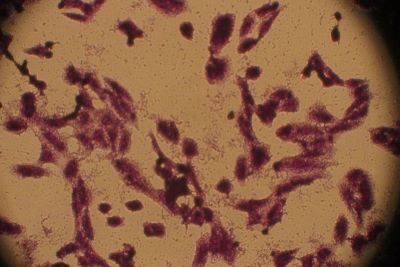

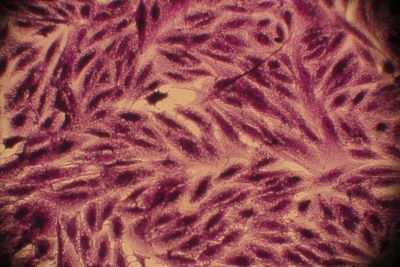

. Normal untreated MCF-7 Cells

Fig. 10.
Morphological changes in MCF-7 cells after treated with DOX

Fig. 11.
Morphological changes in MCF-7 cells after treated with compound II

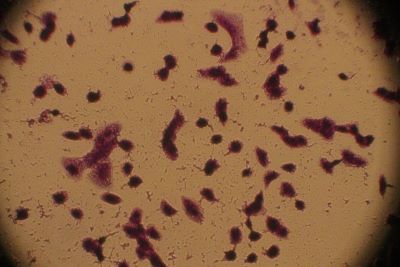

Fig.12.

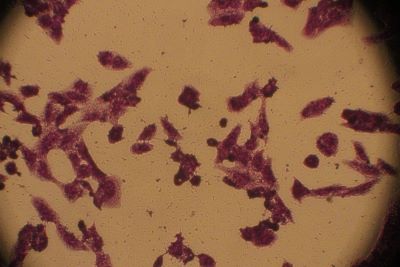

Morphological changes in MCF-7 cells after treated with compound IV

Conclusion

In this work, the synthetic procedure for the designed target compound was successfully achieved and the structural formula for the synthetic compound was characterized using ¹H-NMR, ¹³C-NMR, UV and melting points. Chemical hydrolysis study has been done & In vitro cytotoxicity study against MCF-7, for compounds II & IV show highly significant cytotoxicity.
