Carboniferous deposits of northern Sierra de Tecka, central-western Patagonia, Argentina: paleontology, biostratigraphy and correlations

Los depósitos carboníferos del norte de la Sierra de Tecka, centro-oeste de Patagonia, Argentina: paleontología, bioestratigrafía y correlaciones

A narrow ENE-WNW-trending upper Paleozoic belt crops out in the northern tip of Sierra de Tecka (central-west Patagonia, Argentina). This belt has a maximum width of nearly two kilometers, and extends for about eight kilometers by the High Tension Line that stretches from the Futaleufú Hydroelectric Station in the Patagonian Andes to Puerto Madryn City on the Atlantic coast (Fig. 1). Outcrops include black shales with marine fossil invertebrates that were previously referred to the “Levipustula fauna” (Sabattini in Alberti, 1988; Vizán et al., 1996). Although this material was not originally described in detail, it enabled Vizán et al. (1996) (see also Alberti, 1988; Revol, 1988) to assign these rocks to the Pampa de Tepuel Formation (Lesta and Ferello, 1972; emend. Page et al., 1984).

Field-work carried out by different working groups at different times (C.R. González, A.C. Taboada and M.A. Aredes in 1992; J. Hlebszevitsch and M.A. Pagani in 1999; A.C. Taboada, M.A. Pagani and M.K. Pinilla in 2015) allowed to recover hundreds of samples from the Quebrada de Güera-Peña locality (Fig. 2). Fossils include, in order of abundance, gastropods, bivalves, conulariids, brachiopods, trilobites, cephalopods and corals. The aim of this work is to carry out a systematic study of this material and some related taxa in order to refine the knowledge of the paleontology and biostratigraphy of the northern Sierra de Tecka. On the basis of the studied fauna, the current biostratigraphic scheme of the upper Paleozoic of central-west Patagonia is updated. Also, correlations of this Carboniferous belt with other well-known sections of the Tepuel-Genoa Basin are discussed, testing in particular stratigraphic ties previously made at other northern outcrops such as those of the Esquel and Arroyo Pescado areas.

The Upper Paleozoic deposits of central-west Patagonia infilled the Tepuel-Genoa Basin, which extends between 43º-44º 20’ S and 69º 30’-71º W for approximately 250 km in central-western Chubut Province. Patagonia was located at the southwestern margin of Gondwana and was possibly separated from southern South America as an independent block that collided with the continental margin during late Paleozoic times (Ramos, 1984, 2008; Pankhurst et al., 2006). Upper Paleozoic rocks of the basin are widely exposed in the north-south arranged Sierras de Tepuel, Tecka, Languiñeo, Cerro Excursión and Valle Chico (near the town of Esquel), Valle del Río Genoa, El Molle and Pampa de Agnia regions (Fig. 2). After the pioneer studies of Keidel (1922) and Piatnitzky (1933, 1936), Suero (1948, 1953, 1958) first outlined the general stratigraphy of the basin and determined the Late Paleozoic age of these deposits, based mainly on preliminary identifications of plants and marine invertebrates remains. Many subsequent studies allowed a better understanding of the stratigraphy, paleoenvironment and paleontological content of the basin (Pagani and Taboada, 2010 and references therein). The most commonly used stratigraphic nomenclature was proposed by Page et al. (1984), who identified a tripartite succession that includes the Jaramillo, Pampa de Tepuel and Mojón de Hierro formations (Freytes in Lesta and Ferello, 1972; emend. Page et al., 1984). The Río Genoa Formation (Lesta and Ferello, 1972; emend. Andreis et al., 1986) assembles the southernmost outcrops of the basin, and is interpreted as partially equivalent to the Mojón de Hierro Formation (Lesta and Ferello, 1972; Page et al., 1984; Andreis et al., 1986; Hlebszebitsch and Sabattini, 2005). Recently, Taboada and Pagani (2010) and Pagani and Taboada (2011) suggested a possible minor lateral interfingering between the uppermost part of the Mojón de Hierro Formation and the lowermost part of the Río Genoa Formation. These formations constitute the Tepuel Group, a major lithostratigraphic unit with its type section in the Sierra de Tepuel (Suero, 1948; nom. subs. Borrello, 1969; emend. Page et al., 1984). The Tepuel Group is a late Tournaisian-Artinskian glacial-influenced siliciclastic sequence nearly 6,000 m thick that unconformably overlies the Catreleo Devonian granite (Robbiano, 1971) and underlies Lower Jurassic marine strata.

Upper Paleozoic strata are also exposed in the northeast corner of the basin, in the Sierra de Languiñeo, where they are assigned to the Las Salinas Formation (González, 1972), and in a region close to Esquel City, where the Esquel (Feruglio, 1941; nom. subs. Cazau, 1972; emend. Cucchi, 1980) and Valle Chico (Cucchi, 1980) formations crop out. These units were correlated to the lower and middle parts of the Tepuel Group (González, 1972; López Gamundi, 1980; Cucchi, 1980; Andreis et al., 1986; Carrizo and Azcuy, 2006; Taboada and Shi, 2011).

A few kilometers east the northern tip of Sierra de Tecka, near the Arroyo Pescado/Estancia Ap Iwan, there is another area with Upper Paleozoic deposits (González et al., 1995 and references therein) (Fig. 2). The stratigraphy of this region was compiled by Vizán et al. (1996), and is further discussed below.

The studied section was mapped near the northwestern corner of the “Geological Chart 44c Tecka” by Turner (1982), although it was not segregated from the Jurassic Lepá Formation until Vizán et al. (1996) regarded it as a fossiliferous Carboniferous succession. An E-W stratigraphic section of unknown base near Puesto Güera is about 700 m thick and unconformably underlies the Jurassic marine Lepá Formation at both sides of the Quebrada de Güera- Peña. Alternations of sandstones and conglomerates with intercalations of shales characterize the lower half of the section, while black shales with fossiliferous concretions dominate the upper half (Alberti, 1988; Vizán et al., 1996) (Fig. 4A).

Sabattini (in Alberti, 1988) provided a preliminary list of the faunas of northern Sierra de Tecka (see also Vizán et al., 1996), including the brachiopod Beecheria patagonica Amos, 1958, the conulariid Paraconularia sp., the trilobite Australosutura gardneri (Mitchell, 1922), and the gastropods Glabrocingulum argentinum (Reed, 1927) and Mourlonia.Pseudobaylea. poperimensis (Maxwell, 1964). This association was referred to the currently Lanipustula Zone, which at that time was regarded as middle Carboniferous in age (Amos, 1964; Amos and Rolleri, 1965; Riccardi and Sabattini, 1975; González, 1985; Archangelsky et al., 1980).

The material described herein allows us to confirm the presence of Beecheria patagonica Amos, Paraconularia cf. P. ugartei Cúneo and Sabattini, 1987, Australosutura argentinensis Hahn and Hahn, 1969, Glabrocingulum (Glabrocingulum) poperimense (Maxwell, 1964) and Glabrocingulum (Stenozone) argentinum (Reed, 1927). New records include the brachiopods Amosia sueroi Simanauskas, 1996 and Languigneotus laevicaudatum (Amos, 1960); the gastropods Peruvispira teckaensis sp. nov., Ananias riccardii Pinilla, 2012 and Glabrocingulum.Stenozone) sp. 1; the bivalves Nuculopsis (Nuculopsis) patagoniensis González, 1969, Phestia tepuelensis González, Streblochondria sueroi González, 1969, and Streblopteria sp.; the cephalopods Sueroceras? sp., Mitorthoceras? sp. and Pseudoorthoceratidae indet; and the rugose coral-? Lophophyllidiidae indet. In addition, the brachiopods Languigneotus dammanorum gen. et sp. nov. and Tuberculatella waterhousei sp. nov. from younger beds at the top of the Pampa de Tepuel Formation and the upper part of the Mojón de Hierro Formation, respectively, are here proposed in order to discuss and clarify the generic and specific relationships of these key taxa.

The black shales of the Pampa de Tepuel Formation at northern Sierra de Tecka (Quebrada de Güera-Peña) contain diverse fossil assemblages previously listed as belonging to the “Levipustula” fauna. The studied material comprises gastropods [Glabrocingulum ] Glabrocingulum. poperimense (Maxwell), G. .Stenozone. argentinum (Reed), G. .Stenozone) sp., Peruvispira teckaensis sp. nov., Ananias riccardii Pinilla], bivalves [Nuculopsis (Nuculopsis) patagoniensis González, Phestia tepuelensis González, Streblochondria sueroi González, Streblopteriasp.], conulariids [Paraconularia cf. ugartei Cúneo and Sabattini], brachiopods [Amosia sueroi Simanauskas, Languigneotus laevicaudatum (Amos), Beecheria patagonica Amos], trilobites [Australosutura argentinensis Hahn and Hahn], cephalopods [Pseudoorthoceratidae Flower and Caster, Sueroceras? sp., Mitorthoceras? sp.], and rugose corals [?Lophophyllidiidae Moore and Jeffords].

In addition, the key brachiopods Languigneotus dammanorum gen. et sp. nov. and Tuberculatella waterhousei sp. nov., from the top of the Pampa de Tepuel Formation and the upper part of the Mojón de Hierro Formation, respectively, are proposed herein.

The Languigneotus laevicaudatum and Languigneotus-Verchojania subzones (late Pennsylvanian) replace the former Tuberculatella Zone. The L. laevicaudatumSubzone would be no older than late Kasimovian?-Ghzelian in age, while the younger Languigneotus-Verchojania Subzone would be no younger than Asselian.

The fauna from northern Sierra de Tecka allows expand further north the Languigneotus laevicaudatum Subzone, a stratigraphic unit that has previously been reported from the Pampa de Tepuel Formation at Sierra de Tepuel, Puesto La Carlota and Sierra de Languiñeo near Colan Conhue Town.

A stratigraphic section cropping out at Estancia Ap Iwan, which was entirely assigned to the Carboniferous by González et al. (1995), includes conglomeradic beds (intervals A-C of González et al., 1995) that are reinterpreted herein as early Jurassic in age, and glacimarine levels (intervals D-H) that are partially equivalent to the Pampa de Tepuel Formation but older than those of Quebrada de Güera-Peña.

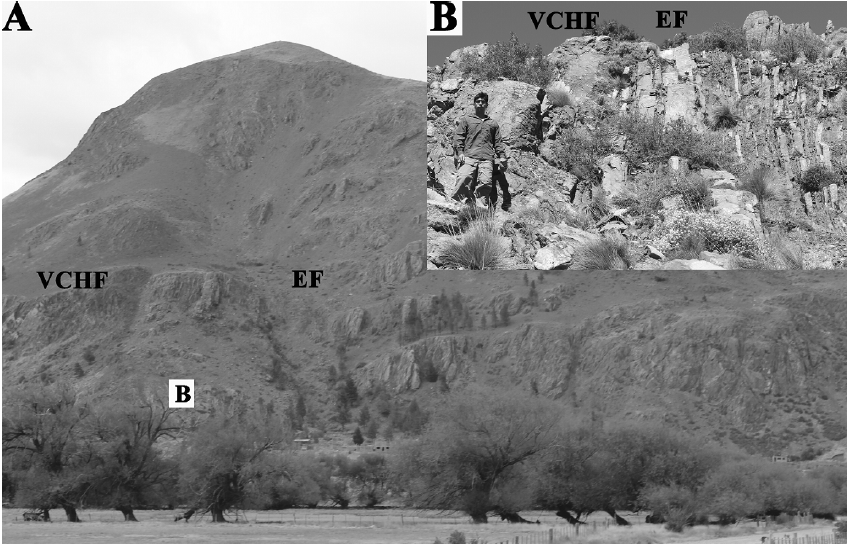

On the other hand, a correlation of the Esquel Formation with the Arroyo Pescado Formation and other contemporaneous units (Devonian- Carboniferous?) on the paleopacific margin such as the Bahía de la Lancha and Río Lacteo formations, as well as the metamorphic Llanquihue Complex, is assessed (Fig. 4), implying that the Esquel Formation should be segregated from the Tepuel Group. The Esquel and Arroyo Pescado formations can be regarded as the basement of the glaciomarine column of the Tepuel-Genoa Basin.

The material studied herein is housed in the Invertebrate Paleontology collections of the Museo Paleontológico Egidio Feruglio, Trelew, Chubut (MPEF-PI); the Laboratorio de Investigaciones en Evolución y Biodiversidad, Esquel, Chubut (LIEB- PI); and the Instituto de Paleontología, Fundación Miguel Lillo, San Miguel de Tucumán (FML-IPI). The fossil material was prepared according to standard paleontological procedures (Feldmann et al., 1989). The samples were examined with a stereomicroscope and photographed with a digital camera. The material was coated with magnesium oxide vapors before photographing. Linear measurements were made with Vernier calipers to an accuracy of 0.1 mm.

Several aspects of the suprageneric classification adopted here were discussed by Fortey (1997, 2001) for trilobites (MFT); Van Iten et al. (2006) and Leme et al. (2008) for conulariids (CAT); Bouchet and Rocroi (2010) and Carter et al. (2011) for bivalves; Sweet (1964) and Shevyrev (2006) for nautiloids; Hill (1981) for rugose corals (MAP); Bouchet and Rocroi (2005) for gastropods (MKP); and Lee et al. (2007) and Waterhouse (2013) for brachiopod terebratulids and productids, respectively (ACT). Synonymy lists follow the recommendations of Matthews (1973).

Phylum Brachiopoda Duméril, 1806

Order Productida Sarycheva and Sokolskaya, 1959

Suborder Productidina Waagen, 1883

Superfamily Echinoconchoidea Stehli, 1954

Family Sentosiidae McKellar, 1970

Subfamily Tubersulculinae Waterhouse, 1971 (in Bamber and Waterhouse, 1971)

Tribe Lethamiini Waterhouse, 2001

Genus AmosiaSimanauskas, 1996

Type species. Amosia sueroiSimanauskas, 1996, from shales north 260º of “Casa Roelse” (currently main house of Estancia Entresierras) of Pampa de Tepuel Formation, Sierra de Languiñeo (upper section of the lower part of the “Tepuel System” of Suero, 1948) (late Pennsylvanian), by original designation.

Remarks: Amosia Simanauskas (1996) was originally placed in the Family Overtoniidae and Subfamily Overtoniinae Muir-Wood and Cooper, 1960. However, Overtoniidae was not used in Brunton et al. (2000), and the genus was relocated in the Tribe Lethamiini Waterhouse, 2001 by Brunton (2007). Amosia was also included in Lethamiini by Waterhouse (2013), although Waterhouse’s supratribal hierarchy differs from that used in Brunton (2007). Lethamiini was interpreted as having echinoconchid affinities by the possession of numerous and evenly spaced spines on both valves, and by lacking a special hinge row and a high postero-lateral internal dorsal ridge (Waterhouse, 2013); a criterion that is followed herein.

Amosia sueroi Simanauskas, 1996

Figure 6, A-F

v1960 Productella aff. bifaria (Stainbrock), Amos, p. 91-92, Pl. II, Figs. 7, 8a and 8b

1979 Productella aff. bifaria (Stainbrock), Amos, p. 75-76 (copy from Amos, 1960, Figs. 7 and 8a)

v*1996 Amosia sueroi Simanauskas, p. 378-380, Figs. 1, 2A-2H

v.2013 Amosia sueroi Simanauskas; Waterhouse, p. 193, Figs. 6.16 A-D

Material: Twelve samples, one dorsal valve internal mold, two dorsal valve external molds, one ventral valve internal mold, four ventral valve external molds and four fragmentary articulate specimens.

Geographic and stratigraphic provenance: Specimens LIEB-PI 431-435, from fossil-site 1; MPEF-PI 6194, 6326 from fossil-site 2; LIEB-PI 436-437; LIEB-PI 438-440, from fossil-site 3; LIEB-. PI 441-443 from fossil-site 4; MPEF-PI 6351 from fossil-site 5. All fossil-sites located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka (Figs. 2, 4). Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone. Description: Shell with strongly concave-convex profile, transverse subelliptical outline and average-size for the genus. Maximum width up 24 mm, maximum length up 17 mm, with a 1.42 W/L ratio and a hinge line that is equal or slightly shorter than the maximum shell width. Ventral valve strongly convex, with well differentiated ears and margins at right angles. Ornamentation of fine growth lines which are usually sinuous, broad lamellae toward antero-lateral margins and weak rugae on ears. Small slightly prostrate spines irregularly arranged over the whole valve (4-5/5 mm on the venter) although less densely grouped anteriorly of two concentric rows in a single lamellae close to a short geniculation (Figs. 6D-E). Ears exhibit 2-3 halteroid spines (nearly twice in diameter than venter spines) up 2 mm length or somewhat longer (Fig. 6C). Ventral valve interior of a juvenile specimen (LIEB-PI 431) with a weak and short median septum laterally bounded at each side by slightly rised diductor scars of drop shape and one third of valve length. Aductor scars unconspicuous. Dorsal valve strongly concave, ornamented with concentric growth lines and weak lamellae anteriorly. Spines are smaller and erected when compared to those of the ventral valve. Few or no spines on the disk, increasing in density (4-7/ 5 mm) toward anterior and lateral margins with concentric arrangement up two rows in a single lamellae close to the genicule.

Discussion: The profile, outline, dimensions, ornamentation and ventral valve internal features of the studied material collectively indicate affinities with Amosia sueroi Simanauskas, 1996; a species previously described from the Pampa de Tepuel Formation at Sierra de Languiñeo (Simanauskas, 1996) and Sierra de Tepuel (Amos, 1960; Waterhouse, 2013).

Dorsal spine density in the specimens from northern Sierra de Tecka is a little higher than that observed by Simanauskas (1996) in specimens from Sierra de Languiñeo (4-5 spines/5 mm). Likewise, the length/width ratio is comparable to that observed in the material from Puesto La Carlota (northern Sierra de Tepuel) by Amos (1960), although higher than the average obtained by Simanauskas (1996) in specimens from Sierra de Languiñeo. Anyway, these values are within the range of variability of the species.

Superfamily Overtonioidea Muir-Wood and Cooper, 1960

Family Overtoniidae Muir-Wood and Cooper, 1960

Subfamily Overtoniinae Muir-Wood and Cooper, 1960

Genus Languigneotus gen. nov.

Type species. Geniculifera laevicaudataAmos, 1960, from the upper half of Pampa de Tepuel

Formation at Cerro Mina (late Pennsylvanian), Sierra de Languiñeo, southwest of Colan

Conhué town, by original designation.

Etymology: Combined word derived from the latinized Languiñeo Department, Chubut province, Argentina, and Productus.

Diagnosis: Small to medium-sized shell with a concave-convex profile and a subcircular to subelliptical transverse outline. Hinge line shorter than maximum width of shell. Umbo slightly incurved. Ornamentation of weak irregular concentric rugae, fine growth lines and spines with subcircular slightly swollen bases (2- 5/2 mm), roughly in quincunx arrangement. Dorsal valve with short abrupt geniculation. Ornamentation of concentric irregular rugae stronger than those of ventral valve, fine growth lines, minute subprostrate spines (4-5/2 mm) and subcircular and short elongate dimples. Geniculation with faint growth lines, without spines or constrictions. Cardinal process bilobed externally. Ventral interior with smooth elongate adductors and large diductors striated posteriorly. Dorsal interior with short median septum, smooth adductors and two orders of endospines.

Discussion: The type species of Languigneotusgen. nov. was originally placed in Geniculifera Muir-Wood and Cooper, 1960, based mainly on shell shape and dimensions (Amos, 1960). Nevertheless, doubts on this generic assignment were consigned by Amos (1960), who noted that the type species G. laevicaudata lacks irregular ribs on the geniculation and exhibits dorsal spines. Roberts et al. (1976) indicated that G. laevicaudata may belong to Bulahdelia Roberts, 1976 (in Roberts et al., 1976) by having a comparable shape, quincuncially arranged spine bases on the venter of the ventral valve and corresponding dimples on the dorsal valve, and a dorsal valve which is anteriorly geniculate and possesses a similar style of median septum and lateral ridges. Major differences are the smaller ears, the presence of 4 to 5 large erect spines on the auricles, and the apparent absence of rows of suberect spines on the lamellae at the front of both valves of G. laevicaudata (Roberts et al., 1976). Later, Amos (1979) accepted the reassignment of G. laevicaudata to Bulahdelia. Finally, Simanauskas (1996) provided a complementary description of the Patagonian species and agreed that G. laevicaudata should be excluded from Geniculifera by the presence of dorsal spines and a smooth geniculation, but rejected its assignment to Bulahdelia by the absence of lamination, and differences in the arrangement of spines and the shell shape. Simanauskas (1996) reassigned G. laevicaudata to TuberculatellaWaterhouse, 1982, though G. laevicaudata slightly differs from the type species T. tubertella Waterhouse, 1982 in shell-size and spine bases, and is clearly distinguished by lacking sinus and having a higher width/length ratio (Simanauskas, 1996). Besides these differences, others of generic significance are related to the geniculation. The material studied herein exhibits a short abrupt geniculation ornamented with just faint concentric lines, and the dorsal valve has an external bifid cardinal process. Because Tuberculatellapossesses an external trifid cardinal process, and is ornamented with uneven concentric growth lines disrupted by longitudinal constrictions as anterior ridge-like projections and erect spines on swollen bases, a generic distinction is sustained. The particular combination of characters of the Patagonian material allows propose Languigneotus, a new endemic genus just recorded in the Tepuel- Genoa Basin. The diagnosis of Languigneotus gen. nov. includes internal characters described for the type species by Simanauskas (1996).

Languigneotus laevicaudatum (Amos, 1960)

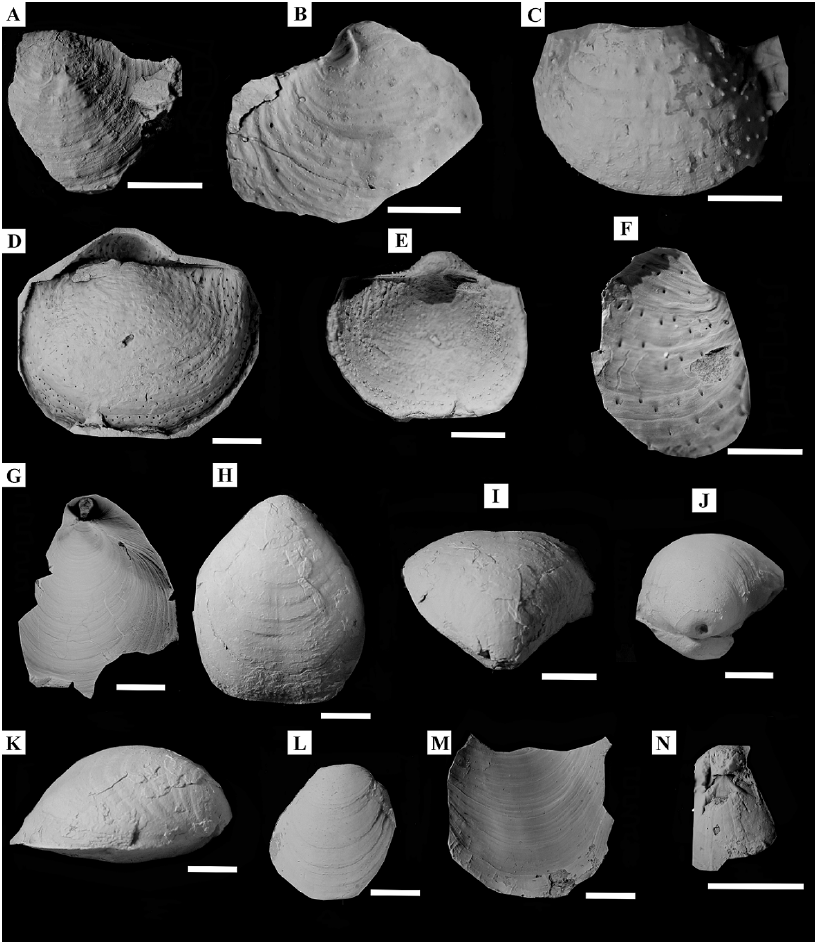

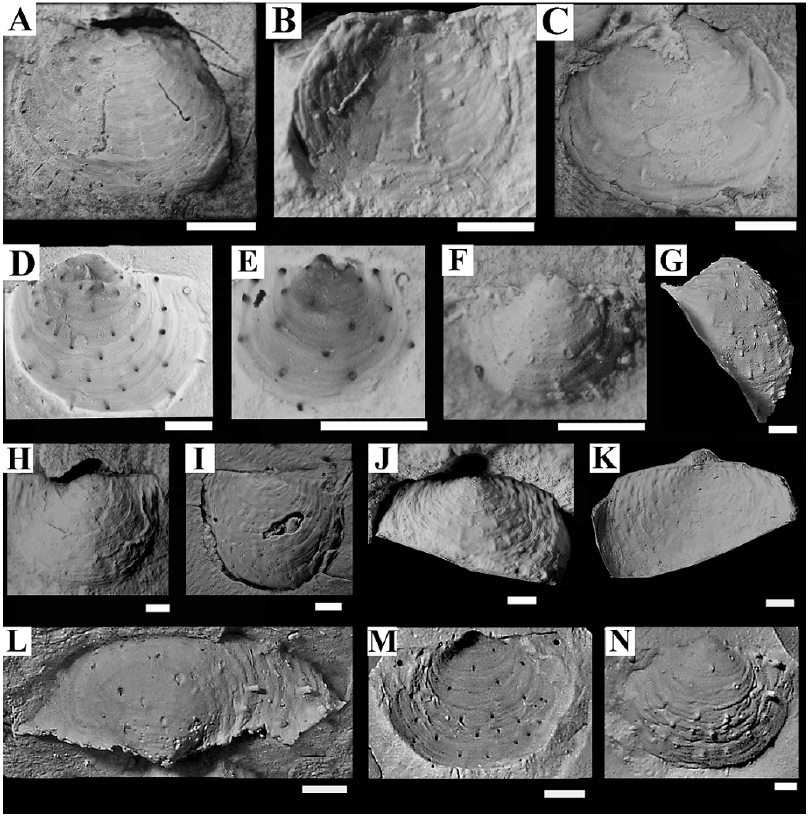

Figure 7, A-N

v*1960 Geniculifera laevicaudata Amos, pp. 92- 94, pl. 2, figs. 1-6

1979 Bulahdelia laevicaudata (Amos), Amos, p. 78, figs. a-c (copy Amos, 1960, figs. 3, 5-6)

v.1996 Tuberculatella laevicaudata (Amos), Simanauskas, pp. 381-383, figs. 3a-g

Material: Fourteen specimens, four dorsal valve external molds, five ventral valve external molds, one exterior of ventral valve and fragmentary samples.

Geographic and stratigraphic provenance: Specimens MPEF-PI 6372 from fossil site-1; MPEF- PI 2299 from fossil site-2; MPEF-PI 6324, 6371, from fossil site-3; located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka. Specimens LIEB-PI 23a, 23b, 24, 26-27, 29, 132-133, 314, 316, from fossil-site 7, located in a concretionary fossiliferous horizon (= level 4 of Suero, 1948) at 900 m ENE of Puesto La Carlota, upper half of Pampa de Tepuel Formation (late Pennsylvanian) (Figs. 2, 4). Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone.

Description: Shell of concave-convex and subcircular to slightly transverse subelliptical outline with its maximum width at the posterior third length. Maximun width up to 14.5 mm and maximum length up to 10.5 mm with W/L ratio varying between 1.18-1.28. Ventral valve moderately convex with maximum convexity in the posterior third of the valve. Auricles flattened and well differentiated from flanks. Umbo slightly incurved over hinge line. Ornamentation of weak irregular concentric rugae, fine growth lines and spines with subcircular slightly swollen bases. Spines (3-5/2 mm) erect to suberect on auricles and postero-lateral flanks, subpostrate anteriorly, roughly in quincunx arrangement, more abundant toward the anterior half of the valve. With two hinge spines on each side of the umbo (up to 4 mm length) and other two larger ones on the auricles. Dorsal valve weak to moderately concave with short geniculation at ~90º. Ornamentation of concentric irregular rugae stronger than those of ventral valve, fine growth lines, minute spines and subcircular to short elongate dimples. Spines (4-5/2 mm) located between dimples in a roughly concentric pattern, subprostrated to prostrated anteriorly. Geniculation with faint growth lines, without spines or constrictions. Cardinal process bilobed, externally bifid. Internal characters unknown.

Discussion: Specimens from Quebrada de Güera- Peña and Puesto La Carlota colectivelly show all the diagnostic characters first described by Amos (1960) for L. laevicaudatum (Amos) and later reviewed by Simanauskas (1996). They share a concave-convex and subcircular to slightly transversely subelliptical outline with its maximum width at the posterior third of the shell, and strong geniculation. The ventral valve exhibits ornamentation of weak irregular concentric rugae, as well as fine growth lines and spines with subcircular slightly swollen bases, roughly in quincunx arrangement. The dorsal valve is ornamentated with concentric irregular rugae that are stronger than those of the ventral valve, fine growth lines, minute spines and subcircular to short elongate dimples.

Some specimens from Quebrada de Güera- Peña exhibit more concave dorsal valves which are attributed to intraspecific variations. Simanauskas (1996) reported material of L. laevicaudatum from Puesto La Carlota locality but it was not described nor figured.

Languigneotus dammanorum gen. et sp. nov.

Figure 8, A-E

Material: Three specimens, two dorsal valve external molds and one ventral valve external mold.

Holotype: FML-IPI 3879

Paratypes: FML-IPI 3877, 3880

Geographic and stratigraphic provenance: Specimens FML-IPI 3877, 3879 and 3880 from fossil-site 9, located in a pebbly sandstone bed overlying glaciomarine deposits of the upper part of Pampa de Tepuel Formation at El Molle area, 1 km to the east of Puesto Lefiú (Fig. 2). Pampa de Tepuel Formation, Languigneotus.Verchojania Subzone (early? Asselian).

Etymology: Combined three first letters of the last names of the outstanding paleontologists Professors Susana Damborenea and Miguel Manceñido (University of La Plata, Argentina).

Diagnosis: Medium-sized shell of weakly concave-convex profile and slightly elongate subcircular outline. Hinge line shorter than maximum width of shell. Umbo incurved over hinge line. Ornamentation of concentric rugae, fine growth lines, subprostrate to prostrate spines (2-3/2 mm) and dimples on dorsal valve.

Description: Shell of weakly concave-convex profile and slightly elongate subcircular outline. Maximum width up 15mm and maximum length up 14 mm with W/L ratio between 1.07-1.16. Hinge line of ¾ of maximum width which is located at mid-length of the shell. Umbo incurved over hinge line. Ventral valve moderately convex with maximum convexity at the posterior third of the valve. Ornamentation of regular concentric rugae, fine growth lines, subprostrate spines of flanks and auricles and prostrate spines anteriorly. Spines on slightly swollen elongate bases (2-3/2 mm) arranged in a roughly quincuncial pattern. Dorsal valve weakly concave, flattened toward auricles and laterally, with obtuse cardinal angles and short geniculation at ~80º (Figs. 8C-D). Ornamentation of weak concentric rugae on auricles and laterally (almost imperceptible on disc), fine growth lines, minute subprostrate spines and elongate dimples. Spines with a roughly quincuncial arrangement located between dimples, with a density of 2-3/2 mm.

Discussion: Languigneotus dammanorum gen. et sp. nov. is close to L. laevicaudatum (Amos), but the shell of the former exhibits a less transverse shape, a shorter hinge line, a weakly concave to flattened dorsal valve, an umbo which is located above the hinge line, and a lower spine density. Taboada (2008) and Pagani and Taboada (2010) mentioned the presence of “Tuberculatella?" laevicaudata (Amos), here classified as Languigneotus dammanorum sp. nov., in association with Verchojania archboldi characterizing the top of the “Tuberculatella” Biozone, here the Languigneotus-VerchojaniaSubzone.

Family Avoniidae Sarytcheva, 1960

Subfamily Avoniinae Sarytcheva, 1960

Genus Tuberculatella Waterhouse, 1982

Type species: Tuberculatella tubertella

Waterhouse, 1982, from Luak Formation (Moscovian), Huai Bun Nak, Loei, north Thailand, by original designation.

Tuberculatella waterhousei sp. nov.

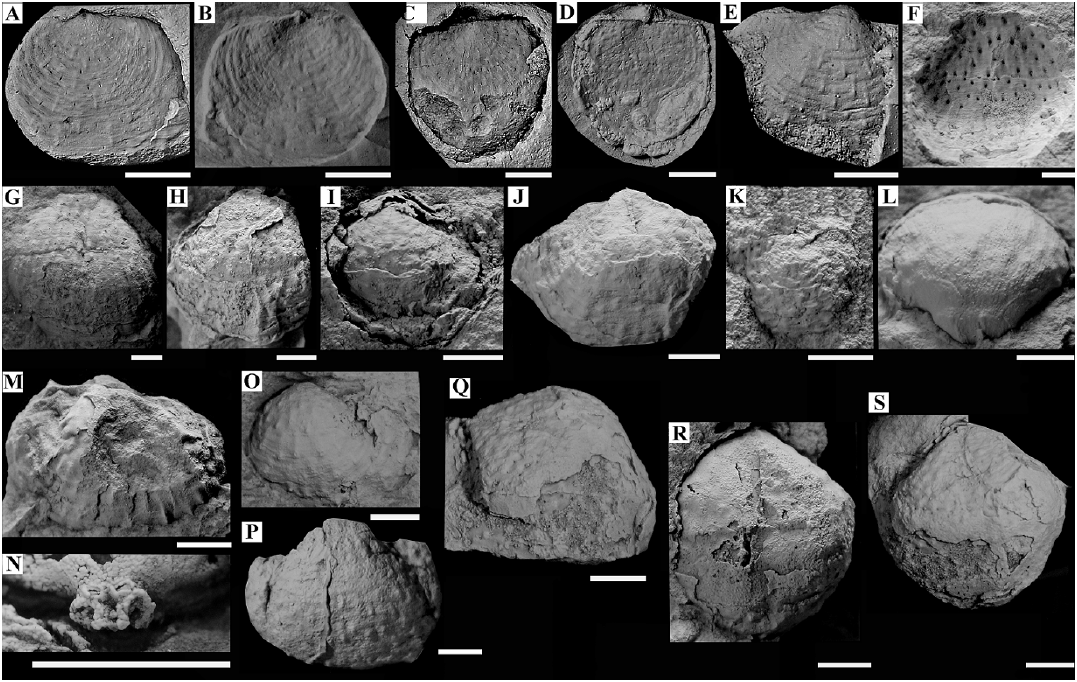

Figure 8, F-S

Material: Thirteen specimens, four ventral valve external molds, seven dorsal valve external molds and two ventral valve internal molds.

Holotype: LIEB-PI 302a

Paratypes: LIEB-PI 302b, 307, 309

Additional material: LIEB-PI 303-306, 308, 310-312

Geographic and stratigraphic provenance: Specimens LIEB-PI 302-312, from fossil-site 8, located 4 km to the east of Puesto Tres Lagunas, Sierra de Tepuel, upper part of Mojón de Hierro Formation (level 6 of Taboada, 2001) (Fig. 2), Cimmeriella-Costaumulus Zone (late Sakmarian).

Etymology: In honor of the New Zealand Professor Bruce Waterhouse, outstanding paleontologist and expert on biostratigraphy.

Diagnosis: Average to large-sized shell of strong concave-convex profile and subelliptical transverse outline. Ventral valve with long trail. Hinge line shorter than maximum width of shell. Ornamentation of concentric growth lines, suberect spines on swollen oval bases on venter and flanks, and erect spines on auricles and trail. Dorsal valve gently concave in the visceral disc, with relatively long geniculation. Ornamentation of weak concentric rugae, uneven growth lines, deep dimples, and among them, small erect spines over the whole valve. Concentric uneven growth lines disrupted by longitudinal constrictions on trail. Cardinal process bilobed, externally trifid.

Description: Average to large-sized shell for the genus, with maximum width and length exceeding 29 mm and 26 mm, respectively. Shell of strong concave- convex profile and subelliptical transverse outline, with a W/L ratio average of 1.25. Ventral valve of moderate convexity on venter, with long trail near the geniculation (~60º). Hinge line shorter than maximum width which is located at valve mid-length. Umbonal angle close to 90º, auricles slightly convex and well differentiated from flanks. Median sinus variably developed, narrow, shallow anteriorly, not reaching the commissure. Ornamentation of concentric growth lines (less regular anteriorly), suberect spines on swollen oval bases on venter and flanks, and erect spines on auricles and trail. Spines in quincuncial arrangement, in number of 4-5/5 mm on venter increasing to 5-6/ 5 mm on trail. Maximum diameter average of spine bases near 1 mm on venter, decreasing to half on trail. Irregular growth constrictions on trail rise as ridge-like longitudinal proyections disrupting well-marked concentric ornamentation. Ventral interior with smooth oval adductors (4 mm length and 2.5 mm width) separated by a thin myophragm. Diductor scars (5.5 mm length) drop-shaped, weakly radially grooved, reaching 2/5 of valve length. Rest of valve surface with small, radially aligned pustules. Dorsal valve gently concave on the disc, with a relatively long geniculation at ~60º. Dorsal fold variably developed, shallow or absent. Ornamentation of weak concentric rugae, uneven growth lines, deep dimples, and among them, small erect spines over the whole valve (~15/5 mm) in roughly quincuncial arrangement. Concentric uneven growth lines disrupted by longitudinal constrictions on trail. Cardinal process bilobed, externally trifid.

Discussion: Some specimens described herein were preliminary assigned to Tuberculatella by Dr. B. Waterhouse during an international workshop in Patagonia in 2009 (see Taboada et al., 2009). The shell shape and diagnostic ornamentation of this genus are herein confirmed, while the dimensions, shell outline, geniculation, and density and characteristcs of the spines, allow us to propose a new species. Although the type species, T. tubertella was originally described as having a bifid cardinal process (Waterhouse, 1982), this character, like in the Patagonian species, seems to be trifid, as shown in the illustrations of the holotype (Waterhouse, 1982, 2013; Brunton, 2007). T. waterhousei sp. nov. also resembles T. tubertella in sharing a transverse shell outline, a similar spine pattern, and irregular longitudinal ridge-like projections anteriorly, but the former species is differentiated mainly by the presence of more elongate spine bases on the ventral valve and more numerous spines on both valves.

Avonia karpinskiana (Yanischevsky) (Sarytcheva, 1968), from the middle to late Carboniferous of the Urals, Verchojan (Russia) and Kazhakstan regions, was included in Tuberculatella by Waterhouse (1982). The Russian species exhibits a hinge line that is coincident with the maximum width of the shell, and prominent ventral spine bases, unlike T. waterhousei sp. nov. Another species assigned to Tuberculatella by Waterhouse (2013) is Maemia archboldi Martínez Chacón and Winkler Prins (2008) from the Valdejeta Formation (Bashkirian) of Asturias, northern Spain. Nevertheless, the presence of a slightly elongate shell profile, ribs which are weak and restricted to the anterior part of the trail or absent, short spine bases, lamellose irregular rugae on both valves, and an externally bifid cardinal process, prevent an assignment to Tuberculatella.

Specimens from central-western Argentina (Uspallata-Iglesia Basin) were ascribed to Tuberculatellaby Simanauskas and Cisterna (2001). These authors referred Productus (Marginifera) spinulo-costatus Abich var. peregrina Reed (1927), from the Pituil Formation (=Esquina Gris Formation, in part, Taboada, 1997), to Tuberculatella, together with specimens from the lower fossil-bearing interval of the El Paso Formation (Simanauskas and Cisterna, 2001). Furthermore, Simanauskas and Cisterna (2001) included Bulahdelia cf. B. myallensis Roberts of Taboada (1989; see also Taboada et al., 2009; Taboada, 2010) in the synonymy of “Tuberculatella peregrina (Reed, 1927)”. Although this concept of “Tuberculatella peregrina (Reed, 1927)” was followed until recently by Cisterna and Sterren (2016) and Cisterna et al. (2017), a different taxonomic viewpoint was suggested by Taboada (1997, 2006). Material of P. (M.) spinulo-costatus var. peregrina from the Pituil Formation has a ventral valve that is moderately convex, transversely subelliptical in outline with a hinge line equal or nearly equal to the maximum width, without geniculation. It is ornamented with concentric growth lines and weak, low, rounded ribs which are somewhat discontinuous mainly due to the presence of regular radially elongate recumbent stout spines arranged in a roughly quincunx style. Auricles bear 2-3 spines and other 3-5 aligned at the junction of the auricles and the flanks (Reed, 1927). All these characters indicate that this material is conspecific with Maemia tenuiscostata (formerly Geniculifera tenuiscostata of Taboada, 1997; see also Taboada et al., 2009; Taboada, 2006, 2010).

On the other hand, specimens from the El Paso Formation ascribed to “Tuberculatella peregrina” by Simanauskas and Cisterna (2001) exhibit a smooth geniculation in both valves or faint growth lines (Cisterna et al., 2017). This character contrasts with Reed’s var. peregrina which lacks ventral geniculation, as well as with Tuberculatella which shows irregular longitudinal constrictions on dorsal and ventral genicule, and with B. cf. B. myallensis which has a spinose tuberculate trail. The general morphology of the El Paso’s specimens is comparable to that of Languigneotus gen. nov., but the presence of strong irregular lamellose rugae and a conspicuous geniculation on both valves, coupled with robust grooved diductors and dorsal rised adductors, may justify the erection of a new genus.

Order Terebratulida Waagen, 1883

Suborder Terebratulidina Waagen, 1883

Superfamily Dielasmatoidea Schuchert, 1913

Family Beecheridae Smirnova, 2004

Genus Beecheria Hall and Clarke, 1893

Type species. Beecheria davidsoni Hall and Clarke, 1893, from the Viséan Windsor Group, Nova Scotia, Canada.

Beecheria patagonicaAmos, 1958

Figure 6, G-N

*1958 Beecheria patagonica Amos, pp. 104-106, fig. 2, 1-8

1979 Beecheria patagonica Amos; Amos, p. 95, figs. a-c (copy Amos, 1958, only Figs. 6-7).

2016 Beecheria patagonica Amos; Cisterna and Sterren, figs. 5, R-S

2017 Beecheria patagonica Amos; Cisterna, Sterren, López Gamundi and Vergel, pp.

15-16, figs. 5, D-F (copy Cisterna and Sterren, 2016, Figs. 5, only R-S)

Material: Twelve samples, one articulate specimen, two external molds of articulate specimens, four external molds of ventral valves and fragmentary remains.

Geographic and stratigraphic provenance: Specimens MPEF-PI 3064, 3067, 6221, 6250, 6252, 6254, 6257, 6259, 6312, 6352 from fossil-site 2; MPEF-PI 6182, 6256, 6258, 6317, 6319, 6323, 6325 from fossil-site 3. All fossil-sites located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka. (Figs. 2, 4). Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: Medium-size shell up 22 mm in length, 19.5 mm in width and 11 mm in thickness. Shell unequally biconvex with a slightly elongate subelliptical outline and maximum width at valve mid-length. Ventral valve more convex than dorsal valve, umbo nearly straight to suberect and umbonal angle near 95º. Ventral valve with a weak shallow depression on anterior half. Commissure rectimarginate. Shell smooth with concentric growth lines and lamellae. Foramen subpermesothyrid. Dental plates slightly divergent, anterior- and ventrally. Punctae densely and regularly arranged.

Discussion: According to the above description, the specimens studied are confidently assigned to Beecheria patagonicaAmos, 1958. This species was originally described from the Languigneotus laevicaudatum Subzone of the Pampa de Tepuel Formation at Languiñeo and Tepuel hills (Amos, 1958). Beecheria patagonica was also reported from several localities of central-western Argentina (Uspallata-Iglesia Basin) (Amos, 1958, 1979 and references therein) and eastern Australia (Yarrol Basin) (Beecheria aff. patagonica of Campbell and McKellar, 1969), but was only discussed and illustrated from the El Paso Formation (Cisterna and Sterren, 2016; Cisterna et al., 2017). Beecheria sp. from the Hoyada Verde Formation (Uspallata-Iglesia Basin) (Cisterna and Sterren, 2016), as well as Beecheria boranelensis and Beecheria subrotundatusPeou and Engel, 1979, from the Faulkland Formation, New South Wales, Australia, have a well- developed dorsal median septum, unlike Beecheria patagonica Amos.

Class Gastropoda Cuvier, 1795

Clade Vetigastropoda Salvini-Plawen, 1980

Superfamily Eotomarioidea Wenz, 1938

Family Eotomariidae Wenz, 1938

Subfamily Eotomariinae Wenz, 1938

Tribe Glabrocingulini Gordon and Yochelson, 1987

Genus GlabrocingulumThomas, 1940

Subgenus Glabrocingulum (Glabrocingulum) Thomas, 1940

Type species. Glabrocingulum beggi Thomas, 1940, from the Viséan of Scotland, by original designation.

Remarks: The genus Glabrocingulum was originally described by Thomas (1940) and has a total stratigraphic range from the Carboniferous to the Permian. It is known from Europe, North America, South America, Australia and Asia. Sloan (1955) divided the genus and regarded the subgenus G. .Glabrocingulum) as an eotomariid having a turbinate shell; a straight upper surface; a convex outer lower face; a concave peripheric selenizone; and spiral and transverse lines on upper and lower surfaces, with small nodes or pustules at the intersections of both systems of lines. The pleural angle varies from 70˚ to 120˚, and the base is convex and phaneronphalous.

Glabrocingulum (Glabrocingulum) poperimense (Maxwell, 1964)

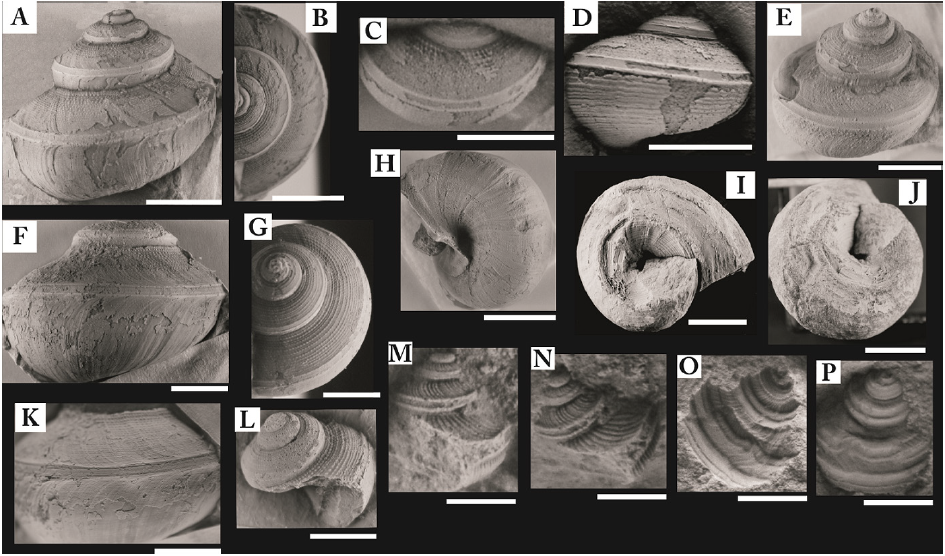

Figure 9, A-B, E

*1964 Pseudobaylea poperimensis sp. nov.

Maxwell, p. 21-22, Pl. 4, figs. 12-17

v1969 Mourlonia (Pseudobaylea) poperimensis Maxwell; Sabattini and Noirat, p. 101-102, Pl. 1, figs. 3-4

Material: Twenty-one fragmentary external and internal molds in concretionary samples.

Geographic and stratigraphic provenance: MPEF-PI 6261, 6263, 6265, 6266, 6268 and 6269 from fossil site-2; MPEF-PI 6286-6288, 6272, 6274, 6277, 6290, 6291, 6297, 6298, 6301, 6303, 6304 and 6315 from fossil site-3; MPEF-PI 6308, 6311, 6333, 6360-6362, 6366-6367 and 6369 from fossil site-5. All fossil-sites located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka (Figs. 2, 4), Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: The specimens examined are characterized by having a turbiniform shell with a pleural angle of 93˚ to 100˚, and an inclined and flat upper whorl surface. The selenizone is concave in profile, narrow (0.3- 1.0 mm width), and has a peripheric position; it is bounded by two spiral cords, and shows numerous, fine lunulae. The outer whorl face is convex. The ornamentation consists of spiral and transverse elements bearing small nodes at crossing points. The spiral lirae are well marked, with 11 to 16 nodose elements on the upper whorl face. The outer face below the selenizone, and the base have 20 spiral elements. The base is convex and phaneromphalous, and spiral nodose elements rise over the growth lines.

Discussion: These specimens fit with material from the Tepuel-Genoa Basin (La Carlota, Tres Lagunas, El Molle, Quebrada Honda, Salar de Ferrarotti and Languiñeo Hills) that was previously assigned to Mourlonia .Pseudobaylea. poperimensis by Sabattini and Noirat (1969). Based mainly on the presence of a turbiniform shell, a transverse and revolving ornamentation, and a concave, narrow and peripheric selenizone, this species is reassigned herein to G. (Glabrocingulum).

G. (G.) poperimense closely resembles two North American species, G. (G.) granulosum Gordon and Yochelson (1987) and G. (G.) quadrignatum Sadlick and Nielsen (Gordon and Yochelson, 1987) from the Mississippian of Utah, USA. However, G. (G.) granulosum differs by having spiral nodose lirae of two sizes on the body whorl, whereas G. (G.) quadrignatumexhibits 5-7 spiral nodose elements on the upper whorl surface (versus 11-16).

G. (G.) poperimense also shows similarities with G. (G.) amotapense Thomas (Newell et al., 1953), from the middle Pennsylvanian of the Tarma Group, Peru, which possesses a similar pleural angle, a flat upper whorl face, and a convex outer whorl face. The Peruvian species hardly differs by having a smaller number of spiral cords on the body whorl.

G. (Glabrocingulum) poperimenseand G. (G.) hosei Gordon and Yochelson (1987), from the late Mississippian (Paracravenoceras barnettense Zone and Cravenoceras hesperium Zone) of Utah, USA, share a similar prominence of the spiral sculpture and a concave, peripheric selenizone; however, G. (G) hosei differs by having a pleural angle of 88˚ (versus 93˚-100˚) and an anonphalous shell base.

Subgenus Glabrocingulum (Stenozone) Batten, 1972

Type species: Glabrocingulum (Stenozone) nodosuturalaBatten, 1972, from the lower

Permian of Malaysia, by original designation.

Glabrocingulum (Stenozone) argentinum (Reed, 1927)

Figure 9, C-D, G, L

*1927 Pleurotomaria argentina Reed (in Du Toit, p. 144, pl. 15, figs. 3 a-c)

1955 Glabrocingulum argentinus (Reed), Sloan, p. 278

v1969 Glabrocingulum argentinus (Reed), Sabattini and Noirat, p. 102-112, pl. 1, fig. 5

1972 Glabrocingulum (Stenozone) argentinus (Reed), Batten, p. 21

1978 Glabrocingulum (Stenozone) argentinus (Reed), Sabattini, p. 49-51

1979 Glabrocingulum (Stenozone) argentinus (Reed), Amos, p 149, fig. 1 (copy Sabattini and Noirat, 1969, pl. 1, fig. 5)

1980 Glabrocingulum (Stenozone) argentinus (Reed), Sabattini, p. 112

1987 Glabrocingulum (Stenozone) argentinus (Reed), Cúneo and Sabattini, p. 292

Material: Three external molds.

Geographic and stratigraphic provenance: MPEF- PI 6260, 6267 from fossil site-1; MPEF-PI 6299 from fossil site-4; all fossil-sites located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka (Figs. 2, 4), Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: The specimens studied show a turbiniform shell with five whorls, a pleural angle of 91˚-120˚, and an inclined and flat upper whorl surface. The ornamentation consists of 11-13 well- marked spiral nodose elements which are intersected by prosocline growth lines. The selenizone is narrow (0.4-0.8 mm width) and concave, peripheral in position. The outer whorl face is gently convex and the base is rounded, phaneronphalous, with prominent spiral nodose elements and faint growth lines.

Remarks: According to the revision of Sabattini and Noirat (1969), these specimens are assignable to Glabrocingulum .Stenozone. argentinum (Reed, 1927); a species known from classic localities from the Tepuel-Genoa Basin (Tres Lagunas, El Molle, Quebrada Honda, Languiñeo Hills and La Carlota), as well as from the Calingasta-Uspallata Basin, western Argentina (Sabattini, 1980).

G. (S.) argentinum (Reed, 1927) strongly resembles G. (S.) elegans Swart (1998), from the Kungurian of the Carnavon Basin, West Australia, by sharing spiral lirae intersecting collabral growth lines making a characteristic pattern of nodes, and a pleural angle of 124˚; however, the Australian species bears a selenizone which is not bounded by spiral elements, so it is perceptible only by the deflection of growth lines.

Glabrocingulum (Stenozone) sp. 1

Figure 9, I-J

Material: Six fragmentary external molds.

Geographic and stratigraphic provenance: MPEF-PI 6309 from fossil site-1; MPEF-PI 6264, 6270 from fossil site-2; MPEF-PI 6273, 6278, 6289 from fossil site-3. All fossil-sites located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka (Figs. 2, 4), Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: External molds of the shell with five whorls; upper whorl surface flattened, inclined, bearing nodose spiral lirae; selenizone peripheric, narrow (0.7- 0.9 mm width) and concave, bounded by two spiral treads; outer whorl face with opistocline growth lines below selenizone; base convex, phaneronphalous.

Discussion: The material described above closely resembles Glabrocingulum .Stenozone. brennensisReed (Batten, 1972), from the early Permian of Malasya, in sharing nodose spiral elements on the upper whorl surface, but the Patagonian specimens differ by having a pleural angle of 100˚ (versus 85˚). G. (Stenozone) argentinum Reed (Sabattini and Noirat, 1969), from the Tepuel-Genoa and Calingasta-Uspallata basins, shows a similar nodose spiral pattern on the upper whorl face, but it is distinguished by having a pleural angle of 100˚ (versus120˚), and only growth lines on the outer whorl surface.

This material may represent a new species; however, because it consists only of fragmentary external molds, it is provisionally left in open nomenclature.

Genus Ananias Knight, 1945

Type species: Phanerotrema? welleri Newell, 1935, from the upper Pennssylvanian of USA, by original designation.

Ananias riccardii Pinilla, 2012

Figure 9, F, H, K

v.1978 Glabrocingulum (Ananias) sp. Sabattini, p. 48-49, pl. 2, fig. 15

*2012 Ananias riccardii Pinilla, p. 360-363, figs. 5 a-b, 6 a-b

Material: Twenty-three external molds in concretionary samples.

Geographic and stratigraphic provenance: MPEF-PI 6305-6307, 6310 from fossil site-1; MPEF-PI 2298, 3063, 3068, 3069, 6262 from fossil site-2; MPEF-PI 6271, 6276, 6279-6284; 6292-6296, 6300, 6322, 6327, 6329, 6334 from fossil site-3; MPEF-PI 6356-6359; 6363-6365 and 6370 from fossil site-5. All fossil-sites located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka (Figs. 2, 4), Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: The specimens studied have faint spiral lirae on the selenizone. In addition, external molds of the last whorl show a well-developed turbinate shell. The upper whorl surface is inclined and flat, with 17-20 faint nodose spiral lirae by intersection with growth lines. The pleural angle ranges from 83° to 89°. The outer whorl profile is convex and exhibits delicate spiral lirae and growth lines. The selenizone is narrow, 0.6-1 mm in width, slightly concave, with faint lunulae and 5 spiral lirae. The base is convex, rounded and phaneronphalous, with numerous closely spaced nodose spiral elements.

Discussion: The presence of faint spiral lirae on the selenizone is a distinctive feature of Ananias. Following the diagnosis of Pinilla (2012), the material is assigned to A. riccardii, which was originally described from the classic locality of Cerro Mina (Sierra de Languiñeo, Tepuel-Genoa Basin).

Ananias riccardii is closely similar to the type species, A. welleri Newell, 1935, from the Moskovian of USA (Newell, 1935; Hoare, 1961), in having a similar pleural angle (85˚ versus 83˚), 10-14 spiral lirae on the upper whorl surface (versus 17-20), and a convex, phaneronphalous base. However, the North American species differs by having a vertical outer whorl face.

Subfamily Neilsoniinae Knight, 1956

Genus Peruvispira Chronic, 1949

Type species: Peruvispira delicataChronic, 1949, from the upper Pennsylvanian-lower Permian of Peru, by original designation.

Peruvispira teckaensis sp. nov. Figure 9, M-P

Material: Two external molds preserved in concretionary samples.

Etymology: Refers to the Sierra de Tecka, Chubut Province, Argentina.

Holotype: MPEF-PI 6275

Paratype: MPEF-PI 6285

Geographic and stratigraphic provenance: MPEF- PI 6275 and 6285 from fossil site-3. Fossil-site located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka (Figs. 2, 4), Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Diagnosis: Shell small, turbiniform, with four whorls; pleural angle of 58˚; upper whorl surface straight; outer whorl surface slightly concave, with a narrow selenizone bounded by two spiral cords; alveozone concave above a peripheric peribasal carina; ornamentation consisting of collabral lirae; base convex, anonphalous.

Description: Shell small and gradate, with four whorls and a height of 5.5 mm. Pleural angle of 58˚. Upper whorl surface inclined and flattened. Ornamentation consisting of closely spaced (8 per mm) collabral threads. The outer whorl surface bears a concave selenizone (width=0.4 mm) which is bounded by two spiral cords that occupy about one-third of the surface. Below the selenizone, a concave alveozone precedes a faint peribasal carina. This carina limits the base of the shell, which is convex and anonphalous. Discussion:Peruvispira teckaensis sp. nov. mostly resembles the type species, P. delicata Chronic, 1949, from the Bashkirian-Moskovian of the Parana Basin, Brasil (Rocha Campos, 1966), in having a similar pleural angle (56˚ versus 58˚) and ornamention pattern (collabral lirae 7 per mm versus 8), but differs by showing a broad selenizone with well-marked lunulae, and a slightly convex upper whorl surface. Peruvispira sueroi Sabattini and Noirat (1969), from the Bashkirian-Artinskian of the Tepuel-Genoa Basin, has similar dimensions (5 mm in height) and collabral threads (8 per mm), but differs by having a higher pleural angle (70˚-76˚ versus 58˚).

Peruvispira canningensis Taboada et al., 2015, from the Sakmarian of the Canning Basin, Western Australia, possesses a similar number of collabral elements (10 versus 8), but differs from Peruvispira teckaensis sp. nov. by having a pleural angle of 40˚ (versus 58˚). Peruvispira kuttungensisCampbell, 1961, from the Bashkirian-Moskovian of New South Wales, is distinguished by having a flat to convex upper whorl surface, and a rounded to convex outer surface.

Class Bivalvia Linnaeus, 1758

Clade Eubivalvia Carter et al., 2011

Subclass Protobranchia Pelseneer, 1889

Superorder Nuculiformii Dall, 1889

Order Nuculida Dall, 1889

Superfamily Nuculoidea Gray, 1854

Family Nucuculidae Gray, 1854

Subfamily Nuculinae Gray, 1854

Genus Nuculopsis Girty, 1911

Type species: Nucula ventricosaHall, 1858 from the Upper Carboniferous of Iowa, USA, by original designation.

Subgenus Nuculopsis (Nuculopsis)Dickins, 1963

Nuculopsis (Nuculopsis) patagoniensis González, 1969

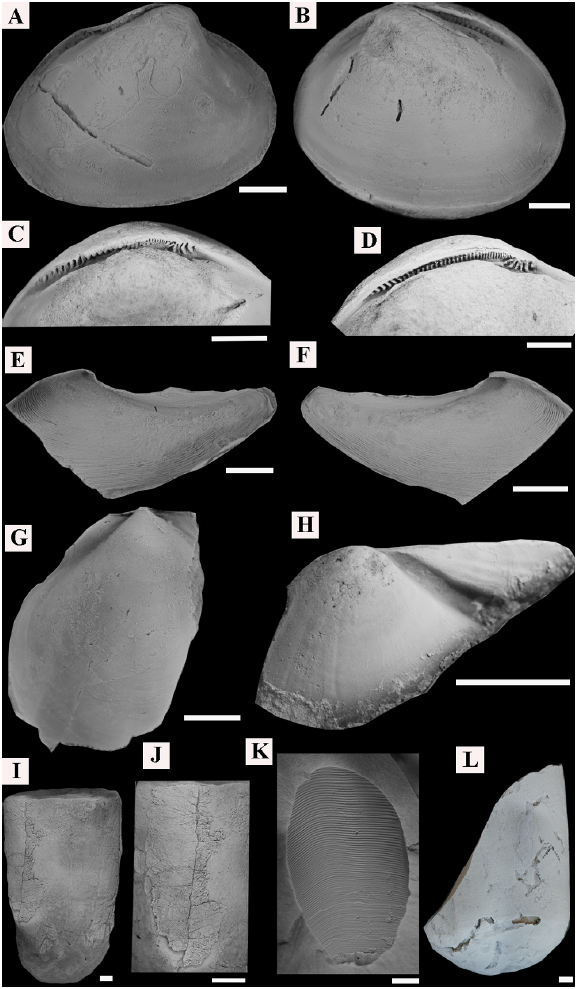

Figure 10, A-D

v*1969 Nuculopsis (Nuculopsis) patagoniensis nov. sp., González, pp. 237-238, pl. I, figs. 1-5.

1979 Nuculopsis (Nuculopsis) patagoniensis González, Amos, p. 104 (copy González, 1969, Fig. 5)

Material: Nineteen internal and external molds.

Geographic and stratigraphic provenance: MPEF-PI 6330, 6331, 6335, 6336 from fossil site-1; MPEF-PI6247-6249, 6251, 6332 from fossil site-2; MPEF-PI 6183-6186, 6188, 6189, 6200 and 6318 from fossil site-3. All fossil-sites located upstream at right bank of Quebrada de los puestos Güera- Peña, northern Sierra de Tecka (Figs. 2, 4), Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: Nuculiform, medium- to large-sized suboval shell, inequilateral slightly extended toward anteroventral margin, valves inflated, longer than high. Umbos incurved above dorsal margin toward the back of the shell, opisthogyrate, placed posteriorly to mid-length, at about 1/3 of total length from posterior end. Margins are convex and continuous, without angles. No distinct lunule or escutcheon. Hinge gradidentate with convexodont teeth. Anterior part of hinge longer than posterior part, with chevron-shaped teeth and sockets decreasing in size toward umbo. Posterior teeth also decreasing in size toward umbo. Anterior and posterior teeth narrow, tall and triangular. Muscle scars weakly impressed. External surface ornamented with regular concentric ridges. Inner margin smooth.

Discussion: N. (Nuculopsis) darlingensis Dickins, 1963, from the Lower Permian of Western Australia, is closely related to N. (Nuculopsis) patagoniensis González, but the Australian species differs by having a more conspicuous umbo in a less posterior position. Pagani (2004) described two other species of Nuculopsis (Nuculopsis) from the Carboniferous- Permian of Patagonia. Nuculopsis (N.) teckaensis Pagani is suboval to subtriangular in outline, has a medially positioned umbo, and exhibits teeth of different shape and size; whereas Nuculopsis (Nuculopsis) sp. has a truncate posterior margin, the umbo is in a medial position, and the anterior faces of the teeth are weakly striate.

Superorder Nuculaniformii Carter, Campbell and Campbell, 2000

Order Nuculanida Carter, Campbell and Campbell, 2000

Superfamily Nuculanoidea Adams and Adams, 1858

Family Polidevciidae Kumpera,et al., 1960

Genus Phestia Chernyshev, 1951

Type species: Leda inflatiformisChernyshev, 1939 from the Carboniferous of Russia, by original designation.

Phestia tepuelensis González, 1969

Figure 10, E-F

v*1969 Phestia tepuelensis González, pp. 239- 243, pl. I, figs. 6-9.

v1977 Phestia tepuelensis González, González, p. 114, pl. 1, fig. 8.

1979 Phestia tepuelensis González, Amos, p. 106 (copy González, 1969, pl. I, fig. 6)

v1987 Phestia sp., Cúneo and Sabattini, p. 293, pl. I, fig. 18.

2002 Phestia tepuelensis González, Pagani, p. 37-43, pl. 5, figs. a-k, pl. 6, figs. a-j.

2004 Phestia tepuelensis González, Pagani, p. 276-280, pl. 7, figs. A-L.

2010 Waterhouseus tepuelensis (González, 1969); González, p. 67-69, pl. 5, figs. A-B.

Material: One external mold of both valves and one fragmentary external mold.

Geographic and stratigraphic provenance: MPEF- PI 6314; 6187 from fossil site-3. Fossil site located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka (Figs. 2, 4), Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: Shell inequilateral, with a long posterior rostrum. Anterior, antero-ventral and postero-ventral margins regularly rounded. Umbo placed anteriorly, opisthogyrous, moderately projected dorsally. Shell densely covered with thin comarginal ribs and finer radial riblets, which conform a cancellate ornamentation. With small nodules at intersection of comarginal and radial ribs.

Discussion: The ornament pattern of the studied material is diagnostic of Phestia tepuelensis González, 1969. González (2010) proposed the new genus Waterhouseus to include this species, but the diagnosis of Waterhouseus is not accurate and the differences with Phestia and other close taxa such as Polidevcia are not properly discussed. Thus we provisionally keep the original generic name for the Patagonian species. A revision of these genera is necessary, but it exceeds the scope of this paper and will be the subject of future research.

Subclass Autobranchia Grobben, 1894

Superorder Pteriomorphia Beurlen, 1944

Order Pectinida Gray, 1854

Superfamily Chaenocardioidea Miller, 1889

Family Streblochondriidae Newell, 1938

Subfamily Streblochondriinae Newell, 1938

Genus StreblochondriaNewell, 1938

Type species: Aviculopecten sculptilisMiller, 1891 from the Upper Carboniferous of Missouri, USA, by original designation.

Streblochondria sueroi González, 1969, Figure 10, H

v*1969 Streblochondria sueroi González, p. 245-246, pl. I, figs. 10-15.

1979 Streblochondria sueroi González, Amos, p. 108 (copy González, 1969, pl. I, Fig. 15).

v2002 Streblochondria sueroi González, Pagani, pp. 123-127, pl. 17, figs. a-k.

v2005 Streblochondria sueroi González, Pagani, pp. 591-593, pl. 5, figs. A-H.

Material: Three external molds.

Geographic and stratigraphic provenance: MPEF- PI 2300 from fossil site-2; MPEF-PI 6218 and 6328 from fossil site-3. All fossil sites located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka (Figs. 2, 4), Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: Right valve with cardinal line shorter than total shell width. Anterior auricle long, rounded, trigonal, with a marked bysal sinus. Posterior auricle small, triangular. Umbo orthogyrous. Apical angle of 90º. Shell ornamented with wavy radial ribs crossed by regular concentric ribs to produce a cancellate pattern, with small nodes at intersection points.

Remarks: This species has previously been reported from many Carboniferous-Permian localities of the Tepuel-Genoa Basin. Streblochondria sueroi closely resembles Streblochondria sculptilis (Miller), from the Upper Paleozoic of USA (Newell and Boyd, 1995), but the latter shows stronger nodes or scales at the intersections of the concentric and radial ribs. For a complete comparison see Pagani (2005).

Subfamily Streblopteriinae Waterhouse, 2008

Genus StreblopteriaMcCoy, 1851

Type species: Meleagrina laevigataMcCoy, 1844 from Carboniferous of Ireland, by subsequent designation of Meek and Worthen, 1866.

Streblopteria sp. Figure 10, G

Material: One external mold and three internal molds, left valves.

Geographic and stratigraphic provenance: MPEF- PI 6220, 6253, 6255 from fossil site-2. Fossil site located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka (Figs. 2, 4), Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: Shell orbicular, acline. Anterior, ventral and posterior margins of disc regularly rounded. Cardinal margin straight, shorter than maximun width of shell. Umbo orthocline. Beak slightly projected above hinge margin. Anterior auricle slightly larger than posterior one. Left anterior auricle flat and subquadrate; posterior auricle triangular. Ligament area triangular, elongate, without a distinct chondrophore. External surface with inconspicuous comarginal growth-lines.

Remarks: Streblopteria sp. closely resembles Streblopteria lagunensis Pagani, 2006, from other localities of the Tepuel-Genoa Basin. However, because the specimens from Güera-Peña are fragmentary, they are provisionally left under open nomenclature.

Class Cephalopoda Leach, 1817

Subclass Nautiloidea Agassiz, 1847

Order Orthocerida Kuhn, 1940

Family Pseudortoceratidae Flower and Caster, 1935 Gen. et sp. indet Figure 10, L

Material: One fragmentary internal mold.

Geographic and stratigraphic provenance: MPEF-PI 6353 from fossil site 3, located upstream at right bank of Quebrada de los puestos Güera- Peña, northern Sierra de Tecka (Figs. 2, 4), Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: Phragmacone orthoconic, 47.8 mm long; cross section subcircular, 29.6 mm in diameter. Sutures straight. Siphuncule with a central position and a diameter of 4.3 mm.

Genus SuerocerasRiccardi and Sabattini, 1975

Type species: Sueroceras irregulareRiccardi and Sabattini, 1975, p. 124; original designation.

Sueroceras? sp. Figure 10, I-J

Material: One fragmentary internal mold and shell preserved.

Geographic and stratigraphic provenance: MPEF- PI 6354, 6368 from fossil site-5. Located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka (Figs. 2, 4), Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: Phragmacone orthoconic, 84.7 mm long; cross section subcircular, with a diameter of 51.1 mm. Sutures straight. Exoskeletal surface ornamented with transverse and longitudinal lirae forming a reticulate pattern.

Genus MitorthocerasGordon, 1960

Type specie: Mitorthoceras perfilosum Gordon, 1960 by original designation.

Mitorthoceras? sp. Figure 10, K

Material: Two fragmentary external molds.

Geographic and stratigraphic provenance: MPEF-PI3065 from fossil site-2; MPEF-PI 6355 from fossil site-4. All fossil site located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka (Figs. 2, 4), Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: Phragmacone orthoconic, 51 mm long; cross section circular, with a diameter of 51.1 m. Exoskeletal surface ornamented with fine, transverse ribs averaging 3 per mm.

Phylum Cnidaria Hatschek, 1888

Subphylum Medusozoa Petersen, 1979

Class Scyphozoa Götte, 1887

Subclass Conulata Moore and Harrington 1956

Order Conulariida Miller and Gurley, 1896

Family Conulariidae Walcott, 1886

Genus ParaconulariaSinclair, 1940

Type species. Conularia inaequicostata Koninck, 1883, from the Tournaisian of Belgium, by original designation.

Discussion: ParaconulariaSinclair, 1940 hardly differs from Calloconularia Sinclair, 1952 because the latter has a smaller-sized shell, crowding transverse ribs and well-marked longitudinal bars in the interspaces (Campbell, 1962); characters that may lack generic significance (Leme, 2006; Leme et al., 2008; this paper). Adesmoconularia Driscoll, 1963 was also regarded as a junior synonym of Paraconularia by Babcock and Feldman (1986a, b), although this affirmation was questioned by Sendino (2007).

In Patagonia, five species of conulariids were described by Mariñelarena (1970) and Cúneo and Sabbattini (1987) mainly on the basis of biometric characters. However, because some of these features could be of taphonomic origin (Feldman and Babcock, 1986; Simöes et al., 2003), a comprehensive systematic revision is necessary and will be the subject of a future paper.

Paraconularia cf. P. ugarteiCúneo and Sabattini, 1987

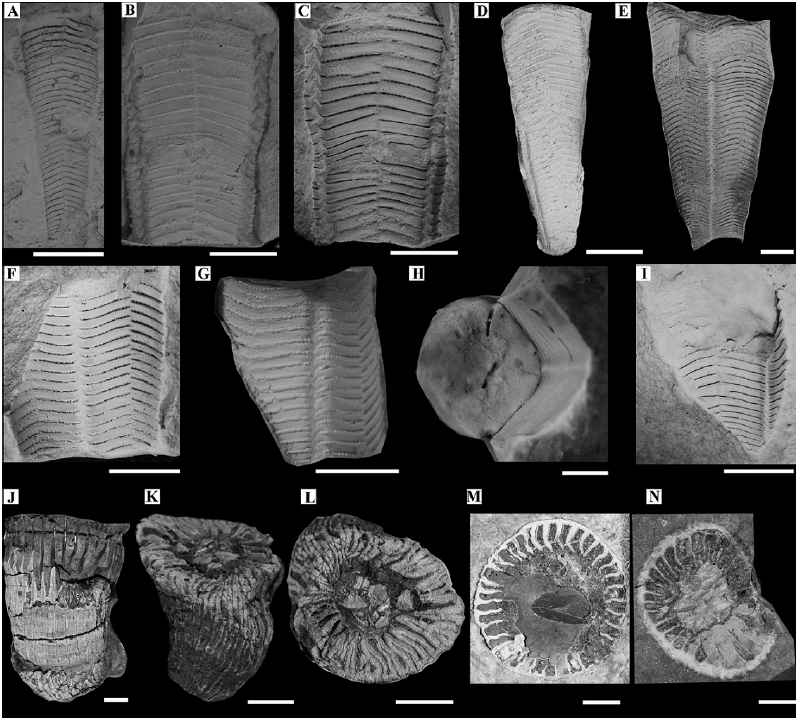

Figure 11, A-I

*1987 Paraconularia ugartei Cúneo and Sabattini, pp. 289-290, pl. I, figs. 1-3. p.2004 Paraconularia ugartei Cúneo and Sabattini; Sabattini and Hlevszevitsch, pp. 400-401, figs. 1, A-F; figs. 2, A-E.

Material: Fifty-one external molds and six internal molds.

Geographic and stratigraphic provenance: MPEF-PI 3066, 3070-3072, 3281, 6190- 6193, 6195, 6215,6216 from fossil-site 2; MPEF-PI 6196, 6197, 6198, 6201-6214, 6217; 6222-6246 from fossil-site 3; MPEF-PI 6337-6339 from fossil-site 5. All fossil-sites located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka (Figs. 2, 4). Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: Medium size shell, straight, tapering, subquadrate in cross section, with faces that are approximately equal in width. Maximum shell length of 35 mm and width of 11 mm. Apical angle between 10° and 15°. Periderm ornamented with trochoidal transverse ribs which are straight adapically to slightly curved adaperturally, in a number of 2-3/mm. In the mid facial line, ribs are alternate, opposite or continuous, always inflected adaperturally. Ribs exhibit numerous subcircular tubercles, 4-6/mm in average, reaching up to 9/ mm toward the adapical region in some specimens. Tubercles, as well as ribs, are more numerous toward the adapical region of the shell. Corner grooves transversely angulate, with the ends of the ribs from one face alternating with the ends of the ribs from the other face and showing an adapertural flexion. Interspaces concave, two or three times wider than ribs, usually smooth, although oblique bars close to the facial edges or the facial mid lines are present in some specimens. Facial mid-lines defined by an inflection, interruption and/or alternation of the ribs. Ridge articulation (= connection of Sendino, 2007) of both gothic arch style and inflected gothic style, can be present in the same specimen. Some specimens exhibit an internal septum on the inner side of the mid-line region.

Discussion: The specimens studied resemble P. ugartei Cúneo and Sabattini (1987) by sharing a similar number of ribs and tubercles per millimeter, although the latter shows a wider apical angle (14°- 22°). Paraconularia pulcheria Mariñelarena, 1970 has a similar size and a similar number of transverse ribs, but the ridges are sinuous adapically, the corner grooves are rounded and the apical angle is wider (22º). P. acuminata Mariñelarena, 1970 exhibits a similar ornamentation and a narrow apical angle (15º); nevertheless, its shell is bigger than that of P. cf. ugartei, and has an adapertural furrow on the mid-facial line.

Paraconularia tuberculata (Fletcher, 1938) (see also Campbell, 1962), from the middle Carboniferous of New South Wales, Australia, differs from P. cf. P. ugartei by having sinuous ribs, conspicuous longitudinal grooves, and a rectangular cross section. Paraconularia nefarious Campbell, 1962, from the Pennsylvanian of Australia, is distinguished because it has interspaces ornamented with longitudinal bars which correspond exactly in position with the rows of pustules. P. cf. P. ugartei and Calloconularia minima Campbell, 1961, from the Booral Formation (Pennsylvanian) of Australia, have similar ridge articulations and numbers of ribs per millimeter, but the latter exhibits a wider apical angle (20°-26°) and a distinct longitudinal ridge across the midline of each face.

Subphylum Anthozoaria Petersen, 1979

Class Anthozoa Ehrenberg, 1831

Subclass Rugosa Milne-Edwards and Haime, 1850

Order Stauriida Verrill, 1865

?Family Lophophyllidiidae Moore and Jeffords, 1945

Figure 11, J-N

Material: Six specimens preserved as internal molds and transverse sections.

Geographic and stratigraphic provenance: MPEF- PI 6345 from fossil-site 4; MPEF-PI 6341-6344 from fossil-site 5. All fossil-sites located upstream at right bank of Quebrada de los puestos Güera- Peña, northern Sierra de Tecka (Figs. 2, 4). Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Discussion: The specimens are fragmented and poorly preserved. They consist of solitary medium-sized, curved corals of conical to conical-cylindrical shape. In transverse section, the corallia are circular and the wall is proportionately thin. Septa are arranged radially; tabulae and dissepimentarium are not observed. The external surface of the wall is marked by wrinkles and fine growth lines, with longitudinal furrows matching the internal septa.

Phylum Arthropoda

Class Trilobita Walch, 1771

Order Proetida Fortey and Owens, 1975

Family Brachymetopidae Prantl and Přibyl, 1950

Genus Australosutura Campbell and Goldring in Amos et al., 1960

Type species: Cordania gardneriMitchell, 1922, from the Upper Carboniferous of Australia, by original designation.

Australosutura argentinensis Hahn and Hahn, 1969

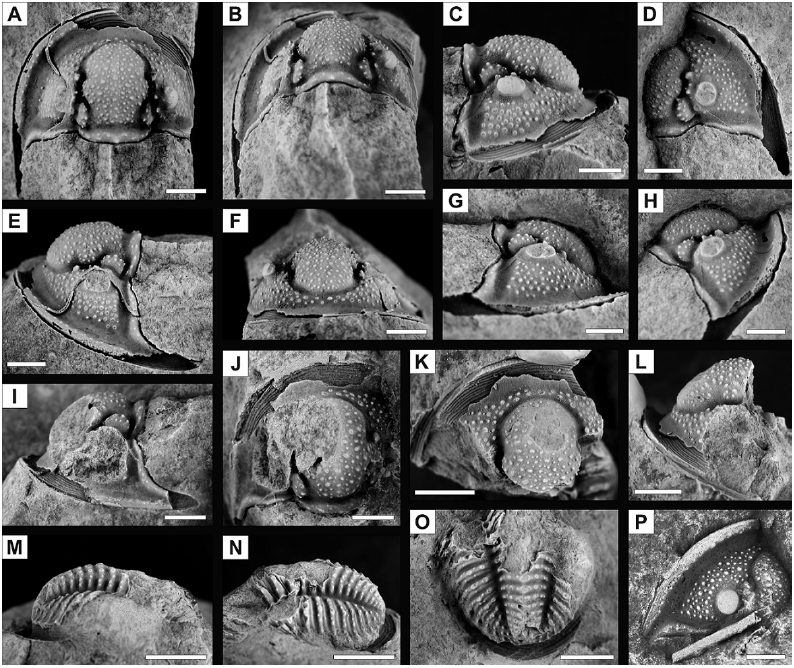

Figure 12, A-P

v1960 Australosutura gardneri (Mitchell), Amos, Campbell and Goldring, p. 231-234, Pl. 39, Figs. 1-11 (only)

1960 Australosutura gardneri (Mitchell), Amos, p. 99

1964 Australosutura gardneri (Mitchell), Amos, p. 62

1969 Australosutura argentinensis Hahn and Hahn, p. 14-15

1973 Australosutura gardneri (Mitchell), Amos et al., p. 7

1978 Australosutura gardneri (Mitchell), Polanski, pl. 2, Fig. 1

1980 Australosutura gardneri (Mitchell), Archangelsky et al., p. 267

1986 Australosutura gardneri (Mitchell), Andreis et al., p. 176, 177

1997 Australosutura argentinensis Hahn and Hahn, Simanauskas and Sabattini, p. 54

Material: Five cephala, two pygidia and two exoskeletal fragments.

Geographic and stratigraphic provenance: FML 4007a-b, 4008; MPEF-PI 3073, 6375 from fossil site-2; MPEF-PI 6373, 6374 from fossil site-3. All fossil-sites located upstream at right bank of Quebrada de los puestos Güera-Peña, northern Sierra de Tecka (Figs. 2, 4), Pampa de Tepuel Formation, Languigneotus laevicaudatum Subzone (late Pennsylvanian).

Description: Exoskeletal surface with numerous tubercles of different sizes. Cephalon semicircular in outline, strongly convex. Anterior margin of cranidium well rounded; glabella large, strongly inflated, surrounded by well defined axial furrows, subparallel-sided to subconical in outline and broadly rounded anteriorly, occupying 74-78% of the total cranidial length; with one to two pairs of glabellar furrows, of which the S1 is deepest and isolating subtriangular L1; occipital furrow straight to slightly bowed backwards, marked throughout, delimiting a short (sag.) and convex occipital ring. Preglabellar field very short (sag.); cephalic border furrow broad and concave; anterior border convex; anterior branches of facial sutures divergent forward; palpebral lobe prominent, elevated above surface of fixed cheek, situated close to the glabella and opposite S1; posterior branches oblique backwards; free cheek with a moderately long genal spine; cephalic doublure carrying 10-12 terrace lines. Pygidium semielliptical in outline, strongly convex; pygidial axis well defined, inflated, very long, tapered backwards, with 15 rings and a terminal piece; pleural fields large, with conspicuous pleural furrows and longitudinally arranged rows of tubercles of variable size.

Discussion: Suero (1948, 1953, 1958,1961) first cited the occurrence of trilobites in the upper Paleozoic of the Tepuel-Genoa Basin and pointed out its biostratigraphic value. The trilobites collected by Suero were described in great detail by Amos et al. (1960) and assigned to Australosutura gardneri (Mitchell, 1922); a brachymetopid previously reported from the Westphalian (middle Pennsylvanian) of eastern Australia (Mitchell, 1922, 1924; Amos et al., 1960). However, the presence of slight differences between the morphology of the Australian and the Argentinean specimens (see Amos et al., 1960; Campbell and Engel, 1963; Ormiston, 1966) led Hahn and Hahn (1969) to erect the new species A. argentinensis. The latter differs from A. gardneri mainly in having a more inflated glabella, distinctive tubercules on the cephalic borders and the occipital ring, and a strongly arched pygidium with pleural fields that occupy, in side view, more than half of the total pygidial height (cf. Amos et al., 1960; Hahn and Hahn, 1969). Australosutura argentinensis is a rare member of the cold-water Lanipustula and Languigneotus faunas, which characterize the upper part of the Pampa de Tepuel Formation (e.g., Amos, 1960, 1964; Amos et al., 1973; Archangelsky et al., 1980; Andreis et al., 1986; Simanauskas and Sabattini, 1997; Pagani and Taboada, 2011; Taboada and Shi, 2011).

Trilobites from Sierra de Tecka are reported herein for the first time. The specimens studied represent an Australosutura species with coarse, widely-distributed tubercules on the exoskeleton, a subcylindrical, very inflated glabella, a short preglabellar field, an elongate (sag.), strongly arched pygidium, and large pleural fields, so they are confidently assigned to A. argentinensis Hahn and Hahn. The fixed-cheeks exhibit a pair of conspicuous tubercles opposite S2 (e.g., Fig. 12A, E), and the cephalic border furrow is either smooth (Fig. 12A, B, D, E, H, K) or pitted (Fig. 12P). In order to complement the systematic descriptions furnished by Amos et al. (1960) and Hahn and Hahn (1969), updated comparisons of A. argentinensis with other species of Australosuturaare provided below.

Australosutura georgiana Rich, from the Osagean of the Appalachians, USA (Rich, 1966; Brezinski, 2009), differs from A. argentinensis mainly by having a longer (sag.) preglabellar field. Australosutura strattonporterae (Rowley), from the Louisiana Limestone (lowest Carboniferous) of Missouri, USA (Rowley, 1908; Williams, 1943; Hahn and Hahn, 1969) has, in addition, a shorter and somewhat conical glabella, with a more expanded (tr.) glabellar lobe L1. Similarly, Australosutura lodiensis (Meek, 1875), from the Lower Mississippean of western USA (Brezinski, 2009), is distinguished from A. argentinensis by its forward tapering glabella.

Australosutura argentinensis and A. llanoensis Brezinski, from the Tournaisian of the southern United States (Brezinski, 1998), share a cranidium with a cylindrical glabella. However, the glabella of A. llanoensis is less inflated, whereas the pygidium is clearly distinguished from that of A. argentinensis by its low profile and its less prominent tubercles (Brezinski, 1998). Australosutura asiatica Yuan and Xiang, from the lowest Carboniferous of China (Yuan and Xiang, 1998), differs by having coarser tubercles on the librigenae.

Australosutura campbelli Engel and Morris, from the Lower Carboniferous of eastern Australia (Engel and Morris, 1992), is distinguished from A. argentinensis by having more delicate nodes on the cephalon, a less convex glabella, a much longer (sag.) frontal area, and a much shorter (sag.) cephalic border furrow. Australosuturaaff. A. gardneri, from the Mississippian (Viséan) of Oklahoma, USA (Ormiston, 1966), differs by its less inflated cephalon and its longer (sag.) preglabellar field (cf. Ormiston, 1966). As stated by Campbell and Engel (1963), Australosutura sp. from the Viséan of New South Wales, Australia (Campbell and Engel, 1963), differs from A. argentinensis mainly by the relatively greater width/length ratio of the pygidium.

Australosutura osagensis Brezinski, from the Mississippian (Osagean) of Missouri and New Mexico, USA, was described only on the basis of pygidia (Brezinski, 2000, 2007). It differs from A. argentinensisby having a wider (tr.) axis, as well as a smaller number of axial rings. Australosutura elegans (Girty), from the Lower Mississippian of Arkansas, USA (Girty, 1915), is easily differentiated by its strongly tapered posterior pygidial axis, its straight pleural furrows, and its distinctive postaxial region.

We thank Dr. C.R. González, Dr. G.A. Cisterna and an anonymous reviewer, as well as the Andean Geology editor Dr. W. Vivallo, for their helpful comments and thorough review of the manuscript. L. Reiner, L.Canessa and E. Ruigomez provided technical assistance. Lic. A. Robles Vilches and Lic. C. Pardo are thanked for their help during field work. We also want to thank Dr. A. Riccardi for making collections of the División Paleozoología Invertebrados (Museo de La Plata) available for study. M. Campaña produced figure 4. This research was supported by the CONICET and ANPCyT (Argentina) with Projects PICT 2011- 1589 and PICT 2013-0584. CIEMEP (Esquel), MEF (Trelew) and UNLP (La Plata) supplied laboratory facilities.
