Introduction

Rosemary (Rosmarinus officinalis L.) is a species member of the Lamiaceae family, is a woody herb (Avila et al., 2011) cultivated mainly for essential oil production; in Colombia the commercialization of this product is performed through exporting trade, this activity had a growth of 6.5% between 2000 and 2006 (Conpes, 2008) due to the low internal demand of aromatic herbs either the lack of fresh consume or essential oil production, about 5 t per year (Barrientos et al., 2012).

Aromatic crop area (basil, thyme, rosemary, chives, oregano, mint, tarragon, marjoram, sage, calendula, chamomile, peppermint) in Colombia was about 1200 ha by 2008 and it had a production of 72.8 t year^-1, being Cundinamarca department the most productive department with 62.8% of the total volume produced (MADR et al., 2009). Actually, the commercial and academic interest on rosemary (R. officinalis L.) oil, lays on its antioxidant and liposoluble capacity, cosmetic and pharmaceutic use, and food industry potential (Peng et al, 2005; Commission Regulation (EU), 2011; Yang et al., 2016).

By the above, the investigation in this species has increased, with the objective of know more about the agronomic requirements to improve the yield in this crop. Otherwise, it has been state that the production of secondary metabolites is highly related to genetic and environmental conditions, been affected by several abiotic factors as types of soil, water availability, nutrients solubility, light, UV radiation, among others (Hamilton et al., 2001; Ormeño et al., 2008; Pavarini et al., 2012; Nogués et al., 2015).

Actually, new alternatives for agriculture fertilization has been developed and researched, leading to the use of bio-stimulants with several benefits, among which are, tolerance to stress caused by biotic and abiotic factors, easy nutrient assimilation, efficient water use. The substance correspond to microorganisms, humic acids, fulvic acids, hydrolyzed proteins, amino acids and algae (Calvo et al., 2014); the application of these substances has been converted into an important strategy for agriculture sustainability, since its properly use allow the combination of either pesticides and/or fertilizers of chemical synthesis without decreasing the crops yield (Cordovilla et al., 1999; Aseri et al., 2008; Ambrosini et al., 2015).

Associated rhizosphere microorganisms play an important role over soil biodiversity, since they can influence positively the plants growth due to the provision of nutrients, antibiotics and phytohormones around the roots (Vrieze, 2015). Actually associated rhizosphere microorganisms are used frequently to solubilize compounds, to enhance element fixation, to promote growth through secondary metabolites or phytohormones induction, and to induce systematic resistance in plants of interest (Aseriet al., 2008). This activity is a product of microbial decomposition, humic substances (humic and fulvic acids) (Asli y Neumann, 2010) wich play an important role in soil, through nutrient availability, soil/atmosphere oxygen and carbon interchange and toxic chemical transport and transformation (Piccolo and Spiteller, 2003).

Humic acids present in soils affect plant physiology and the composition and function of rhizosphere microorganism (Varnini and Pinton, 2001), additionally these substances comprise more than 60% of organic matter of the soil and are the lead component of organic fertilizers with a high nutrient content (Stevenson, 1994). However it cannot be recommended as the only source of nutrients, as the plant response to these substances is associated to interactions between membrane transportations responsible of nutrient absorption from humic and fulvic acids (Canellas et al., 2015).

Bacteria inoculation can generate a plant growth increase, germination percentage increase, benefic response to external stress factors and protection of plant diseases (Lugtenberf et al., 2002). The most used fungi and bacteria as bio-stimulants are Glomus (mycorrhizae), Azotobacter, Pseudomonas, Bacillus, Azospirrilum (Wu et al., 2005; Egamberdiyeva, 2007; Aseri et al., 2008; Cappellari et al., 2013).

Azotobacter, is a genus of aerobic bacteria which fixate atmosphere nitrogen (Kizilkaya, 2008), decreasing the nitrogen loss by natural biochemical process and increasing its availability to the crop, several species of this genus are reported to be employed as biofertilizers, been the most recognized A. chroococcum, as being a plant growth promoting rhizobacteria (PGPR) through phytohormone production like auxins and gibberellins, It is recognized by its relations with other microorganisms like mycorrhizal fungi (Kilam et al., 2015).

Other commonly used bacteria is Pseudomonas fluores-censes, species reported as growth promotor, responsible for iron consumption increase and plant growth stimulator under drought conditions (Sharma et al., 2013; Calvo et al., 2014; Gopalakrishnan et al., 2015).

The objective of this research was evaluate the effect of solubilizing bacteria and humic substances on rosemary (Rosmarinus officinalis L.) essential oil yield and production, with the end of stablish the best option of organic fertilization to rosemary production in Guasca Cundina-marca municipality.

Materials and methods

Cultivar of rosemary (Rosmarinus officinalis L.) plants known as Israeli were used as vegetal material , at the beginning of the experimental period plants with one year after seeding and seetled with drip irrigation tape system were employed. This assay was located in Guasca-Cundinamarca municipality (4°51'57.624" N and 73°52'9.919" W) at an altitude of2,962 m a.s.l. average temperature of 20.9°C and relative humidity of 83% (IDEAM, 2016), the research was carried out in an area of 500 m² and the soil was clasified to the taxonomic subgroup Typic Dystrudepts (IGAC, 2000).

A completely randomized design (CRD) was followed with four treatments and 6 repetitions, the experimental units correspond to a single plant. The four treatments correspond to: T0, organic soil conditioner (total N: 1%; P₂O₅: 1%; K₂O: 1.5%; CaO: 3%; MgO: 1.3%; C/N 11%; pH 8; CE: 5 dS m^-1; CIC: 70 meq/100 g); T1, organic soil conditioner + Azotobacter chroococcum (7 χ 105 CFU); T2; organic soil conditioner + Pseudomonasfluorescens (9 χ 105 CFU); T3, organic soil conditioner + humic and fulvic acids (1%).

Organic soil conditioner was applied in crown shape at the base of the plant accordingly to the fertilization used previously in the allotment, the treatments were applied four times every two weeks, using drench application with bug bomb leading the spear directly to the plant root, seeking homogeneity in the application.

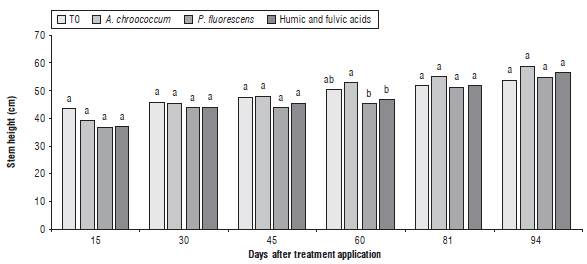

Data were taken 15, 30, 45, 60, 81 and 94 d after beginning the treatment application, considering variables like height (measured with a measuring tape ±1 cm) and stem number per plant, at 94 d after treatment application a 20-25 cm stem cuttings harvest was realized, to extract essential oils and evaluate the effect of treatments, For the steam distillation method, 266 g of R. officinalis L. fresh vegetal material was used, making the distillation during 120 min after obtaining the first distillate drop (Cassel et al., 2009; Yahya and Mohd, 2013), after the oil extraction procedure the sample was retired with a Pasteur pipette and left to decant during 2 d to eliminate the hydrolates of the sample and finally it was weighted with a Denver scale (±0.1 mg), accomplishing percentages of oil yielding, Finally, humidity data were taken founding vegetal material humidity of T0, 52.15%; T1, 53.834%; T2, 50.829%; T3, 52.494%.

Data analysis were analyzed with the statistical software SAS 9.1.6, to ensure data normality and homogeneity and finally we use the Tukey's range test to conclude significant differences.

Results and discussion

In general aromatic herbs have culinary, medicine, cosmetic and decorative uses, they are used in fresh, dehydrated and in some cases its essential oil is extracted (Cardona and Barrientos, 2011), for all those uses the aerial component of the plant (leafs) are very important. This is why during crop lifespan, management focused to reach plant vigor, aiming to achieve the most number of new branches for the next harvest. It was observed that plants presented a positive response to treatments 1, 2 and 23. The height of the plants was evaluated during the sampling observing significant differences only 60 d after treatment was applied, being the application of A. chroococcum the one that presented the best response with respect the other treatments (Fig. 1.), however, there were not contrasting differences with control test.

Maheshwari et al. (2012) in researches conducted with Sesamum indicum L., showed how the applications of A. chroococcum present results comparable with chemical synthesis substances fertilization, in parameters like, protein content and the essential oil yield and content. However Abdel et al. (2014) reports how microbial colonization by A. chroococcum is significantly affected by factors like nitrogenous fertilization, plant growth state and soil moisture content, among others. For P. flourescens it is reported how its application increases the roots elongation and the aerial component of canola, lettuce and tomato (Hall et al., 1996; Dadrasan et al., 2015), however the results of this research allow to conclude that for the R. officinalis var. Israeli species at this agroclimatic and edaphic conditions, the treatments did not contribute to increase the plant height.

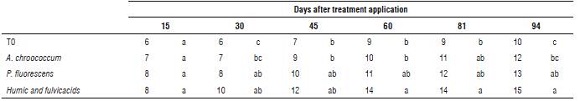

Referring the number of stems, the evaluation of plant branching as consequence of hormone production for A. chroococcum and P. fluorescens and how it affects the number of branchesis recorded in table 1, 30 d after treatment apply the effects of the applications can be observable, at the end of the experimental cycle the treatment with humic and fulvic present an increment in the number of stems per plant of 55.5 % compared to control.

This response can be related with the effects that humic and fulvic acids in the soil, on characteristics as nutrient bioavailability (principally phosphorus) and microbial population (Delgado et al., 2002; Canellas et al., 2015). Puglisi et al. (2008) report an increase on the exudate productions through plant roots, as a consequence of substances application including humic and fulvic acids and the use of soil conditioner as compost, increasing the activity of some beneficial microorganism present naturally in cultivated soil.

Also it have been reported that an application effect of this substances is the production of phytohormones which promotes the growing (Smolen et al., 2014), all this due to the capacity of this substances to generate soil aggregates, proteins, carbohydrates, aliphatic biopolymers and lignin content, thus favoring the microbial activity, improving soil structure and the development of several beneficial microorganism (Calvo et al., 2014).

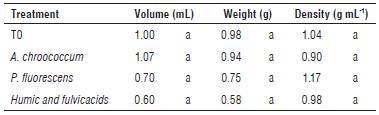

Chemical analysis conducted on rosemary plants show the presences of terpens and terpenoids, including components as camphor, 1,8-cineole, α-pinene, camphene, α-terpineol and borneol, with an average density of 0.877 g cm^-3 (Atti-Santos et al., 2005; Moncada et al., 2016), secondary metabolites production in plants occur principally through the Shikimate pathway (Narwal and Sampietro, 2009); the biosynthesis of terpenes occur through two pathways, Mevalonate pathway and the non-mevalonate pathway also called the MEP/DOXP pathway (Zuzarte and Salgueiro, 2015), having as precursors compounds like isopentenyl pyrophosphate (IPP) and dimethylallyl pyrophosphate (DMAPP), These compounds are originated from metabolic pathways in the plant that occurred in cell organelles as chloroplast, cytoplasm and mitochondria. However this results (Tab. 2) don't show the effect of treatments on the production of rosemary oil.

It is how the photosynthesis and nutrient efficiency absorption by plants are the first characteristic to accomplish an adequate working of the other metabolic pathways, where the availability and movement of the elements can activate and increase yield.

Conclusions

The application of humic and fulvic acids did not show a positive effect in the increase of the height of the plants, however, we observed an increase of rosemary yield, due to the increase in the number of stems per plant, additionally changes were not observed regarding physical characteristics of the essential oil related to the fertilization treatments used conventionally, for which it is considered useful for the production of this aromatic plant.

The health of the soil and the fertility base, depends of the food web in which the bacteria, micro-fauna (nematodes and protozoa) and earthworms plays a major role in the nutrient cycle (Warldeet al., 2004), it is why the application of biofertilizers isn't enough to a sustainable management of aromatic crops, it's necessary the implementation of integral management plans that allow gradually reactivate such food web and allows the fertility and health of the soil.

Literature cited

Ávila, R., A. Navarro, O. Vera, R. Davila, N. Melgoza, and R. Meza. 2011. Romero (Rosmarinus officinalis L.) un revisión de sus usos no culinarios. Rev. Cienc. Mar. 43, 23-36.

Abdel, S., W. Eweda, M. Girgis, and B. Abdel. 2014. Improving the productivity and quality of black cumin (Nigella sativa) by using Azotobacter as N₂ biofertilizer. Ann. Agric. Sci. 59(1), 95-108. Doi: 10.1016/j.aoas.2014.06.014.

Ambrosini, A., R. de Souza, and L. Passaglia, L. 2015. Ecological role of bacterial inoculants and their potential impact on soil microbial diversity. Plant Soil 400(1-2), 193-207 Doi: 10.1007/s11104-015-2727-7.

Aseri, G., N. Jain, J. Panwar, A. Rao, and P. Meghwal. 2008. Biofertilizers improve plant growth, fruit yield, nutrition, metabolism and rhizosphere enzyme activities of Pomegranate (Punicagranatum L.) in Indian Thar Desert. Sci. Hortic. 117(2), 130-135. Doi: 10.1016/j.scienta.2008.03.014.

Asli, S. and P. Neumann. 2010. Rhizosphere humic acid interacts with root cell walls to reduce hydraulic conductivity and plant development. Plant Soil 336(1-2), 313-322. Doi: 10.1007/s11104-010-0483-2.

Atti-Santos, A., M. Rossato, G. Fernandes, L. Duarte, J. Ciro, M. Pansera, F. Agostini, L. Atti, and P. Moyna. 2005. Physicochemical evaluation of Rosmatinus officinalis L. Essential Oils. Braz. Arch. Biol. Technol. 48(6), 1035-1039. Doi: 10.1590/S1516-89132005000800020.

Barrientos, J., M. Reina, and M. Chacón. 2012. Potencial económico de cuatro especies aromáticas promisorias para producir aceites esenciales en Colombia. Rev. Colomb. Cienc. Hortic. 6(2), 225-237. Doi: 10.17584/rcch.2012v6i2.1979.

Canellas, L., F. Olivares, N. Aguiar, D. Jones, A. Nebbioso, P. Mazzei, and A. Piccolo. 2015. Review: Humic and fulvic acids as biostimulants in horticulture. Sci. Hortic. 196, 15-27. Doi: 10.1016/j.scienta.2015.09.013.

Cassel, E., R. Vargas, N. Martinez, D. Lorenzo, and E. Dellacassa. 2009. Steam distillation modeling for essential oil extraction process. Ind. Crops Prod. 29, 171-176. Doi: 10.1016/j.indcrop.2008.04.017.

Calvo, P., L. Nelson, and J. Kloepper. 2014. Agricultural uses of plant biostimulants. Plant Soil 383(1-2), 3-41. Doi: 10.1007/s11104-014-2131-8.

Caperalli, L., M. Santoro, F. Nievas, W. Giordano, and E. Banchio. 2013. Increase of secondary metabolite content in marigold by inoculation with plant growth-promoting rhizobactera. Appl. Soil Ecol. 70, 16-22. Doi: 10.1016/j.apsoil.2013.04.001.

Commision regulation EU. 2011. No. 1130 of11 November 2011. Brussels, Belgium.

Conpes. 2008. Política nacional fitosanitaria y de inocuidad para las cadenas de frutas y de otros vegetales. Retrieved from: Retrieved from: https://www.minambiente.gov.co/images/normativa/conpes/2008/Conpes_3514_2008.pdf; consulted: June, 2017.

Abdel, S ., W. Eweda, M. Girgis, and B. Abdel. 2014. Improving the productivity and quality of black cumin (Nigella sativa) by using Azotobacter as N₂ biofertilizer. Ann. Agric. Sci. 59(1), 95-108. Doi: 10.1016/j.aoas.2014.06.014.

Dadrasan, M., M. Chaichi, A. Pourbabaee, D. Yazdani, and R. Keshavarsz-Afshar. 2015. Deficit Irrigation and biological fertilizer influence on yield and trigonelline production of fenugreek. Ind. Crops Prod. 77, 156-162. Doi: 10.1016/j.indcrop.2015.08.040.

Delgado, A., A. Madrid, S. Kassem, L. Andreu, and M. Campillo. 2002. Phosphorus fertilizer recovery from calcareous soils amended with humic and fulvic acids. Plant Soil 245(2), 277-286. Doi: 10.1023/A:1020445710584.

Egamberdiyeva, D. 2007. The effect of plant growth promoting bacteria on growth and nutrient uptake of maize in two different soils. Appl. Soil Ecol. 36(2-3), 184-189. Doi: 10.1016/j.apsoil.2007.02.005.

Gopalakrshnan, S., A. Sathya, R. Vijayabharathi, R. Varshney, C. Gowda, and L. Krishnamurthy. 2015. Plant growth promoting rhizobia: challenges and opportunities. Biotech. 5(4), 355-377. Doi: 10.1007/s13205-014-0241-x.

Hall, J., D. Pierson, S. Ghosh, and B. Glick. 1996. Root elongation in various agronomic crops by the plant growth promoting rhizobacteriaPseudomonas putida GR12-2. Isr. J. Plant Sci. 44, 37-42. Doi: 10.1080/07929978.1996.10676631.

Hamilton, J., A. Zangerl, E. Delucia, and M. Berenbaum. 2001. The carbon nutrient balance hypothesis: its rise and fall. Ecol. Lett. 4(1), 86-95. Doi: 10.1046/j.1461-0248.2001.00192.x.

IDEAM. 2016. Datos históricos climáticos estación climatológica completa 2120570 Guasca. Instituto de Hidrología, Meteorología y Estudios Ambientales de Colombia, Bogotá, Colombia.

IGAC. 2000. Estudio general de suelos y zonificación de tierras del departamento de Cundinamarca. Instituto Geográfico Agustin Codazzi, Subdirección de Agrología, Bogotá, Colombia.

Kilam, D., M. Saifi, M. Abdin, A. Agnihotri, and A. Varma. 2015. Combined effects of Piriformospora indica and Azotobacter chroococcum enhance plant growth, antioxidant potential and steviol glycoside content in Stevia rebaudiana. Symbiosis 66(3), 149-156. Doi: 10.1007/s13199-015-0347-x.

Kizilkaya, R. 2008. Yield response and nitrogen concentrations of spring wheat (Triticumaestivum) inoculated with Azoto-bacter chroococcum. Ecol. Eng. 33(2), 150-156. Doi: 10.1016/j.ecoleng.2008.02.011.

Maheshwari, D., R. Dubey, A. Aeron, B. Kumar, S. Kumar, S. Tewari, and N. Kumar. 2012. Integrated approach for disease management and growth enhancement of Sesamumindicum L. utilizing Azotobacter chroococcum TRA2 and chemical fertilizer. J. Micro. Biotech. 28(10), 3015-3024. Doi: 10.1007/s11274-012-1112-4.

MADR. 2009. Agenda prospectiva de investigación y desarrollo tecnológico para la cadena productiva de plantas aromáticas, medicinales, condimentarías y afines con énfasis en ingredientes naturales para la industria cosmética en Colombia. Ministerio de Agricultura y Desarrollo Rural, Universidad Nacional de Colombia, Cámara de Comercio de Bogotá. Bogotá, Colombia.

Moncada, J., J. Tamayo, and C. Cardona. 2016. Techno-economic and environmental assessment of essential oil extraction from Oregano (Origanum vulgare) and Rosemary (Rosmarinus officinalis) in Colombia. J. Cleaner Prod. 112(1), 172-181. Doi: 10.1016/j.jclepro.2015.09.067.

Narwal, S. and D. Sampietro. 2009. Allelopathy and allelochemicals. pp. 3-5. In: Sampietro, D.A., C.A.N. Catalan, M.A. Vattuone, and S.S. Narwal (eds.). Isolation, identification and characterización of allelochemicals / Natural products. Science Publishers. Doi: 10.1201/b10195-3.

Nogués, I., V. Muzzini, F. Loreto, and M. Bustamante. 2015. Drought and soil amendment effects on monoterpene emission in rosemary plants. Sci. Total Environ. 538, 768-778. Doi: 10.1016/j.scitotenv.2015.08.080.

Ormeño, E., V. Baldy, C. Ballini, and C. Fernandez. 2008. Production and diversity of volatile terpenes from plants on calcareous and siliceous soils: Effect of soil nutrients. J. Chem. Eco. 34, 1219-1229. Doi: 10.1007/s10886-008-9515-2.

Pavarini, D., S. Pavarini, M. Niehues, and N. Lopes. 2012. Exogenous influences on plant secondary metabolite levels. Animal Feed Sci. Technol. 176(1-4), 5-16. Doi: 10.1016/j.anifeedsci.2012.07.002.

Peng, Y., J. Yuan, F. Liu, and J. Ye. 2005. Determination of active components in Rosemary by capillary electrophoresis with electrochemical detection. J. Pharm. Biomed. Anal. 39(3-4), 431-437. Doi: 10.1016/j.jpba.2005.03.033.

Piccolo, A. and M. Spiteller. 2003. Electrospray ionization mass spectrometry of terrestrial humic substances and their size fractions. Anal. Bioanal. Chem. 377(6), 1047-1059. Doi: 10.1007/s00216-003-2186-5.

Puglisi, E., G. Fragoulis, A. Del Re, R. Spaccini, A. Piccolo, G. Gigliotti, D. Said, and M. Trevisan. 2008. Carbon deposition in soil rhizosphere following amenments with compost and its soluble fractions, as evaluated by combined soil-plant rhizobox and reporter gene systems. Chemosphere 73(8), 1292-1299. Doi: 10.1016/j.chemosphere.2008.07.008.

Smolen, S., I. Ledwozy, and W. Sady. 2016. The role of exogenous humic and fulvic acids in iodine biofortification in spinach (Spinacia oleracea L.). Plant Soil 402(1-2), 129-143. Doi: 10.1007/s11104-015-2785-x.

Sharma, S., G. Lyons, C. McRoberts, D. McCall, E. Carmichael, F. Andrews, R. Swan, R. McCormack, and R. Mellon. 2012. Biostimulant activity of brown seaweed species from Strangford Lough: compositional analyses ofpolysaccharides and bioassay of extracts using mung bean (Vigno mungo L.) and pakchoi (Brassica rapachinensis L.). J. Appl. Phycol. 24(5), 1081-1091. Doi: 10.1007/s10811-011-9737-5.

Yang, Y., X. Song, X. Sui, B. Qi, Z. Wang, Y. Li, and L. Jiang. 2016. Rosemary extract can be used as a synthetic antioxidant to improve vegetable oil oxidative stability. Ind. Crop Prod. 80, 141-147. Doi: 10.1016/j.indcrop.2015.11.044.

Valadabadi, S. and H. Farahani. 2011. Investigation of biofertilizers influence on quantity and quality characteristics in Nigella sativa L. J. Hort. For. 3(3), 88-92.

Varanini, Z. and R. Pinton. 2001. Direct versus indirect effects of soil humic substances on plant growth and nutrition. pp. 3-41 In: Calvo, P ., L. Nelson, and J. Kloepper (eds.). Agricultural uses of plant biostimulants. Marcel Dekker, New York, USA.

Vrieze, J. 2015. The littlest farmhands. Sci. 349(6249), 680-683. Doi: 10.1126/science.349.6249.680.

Wardle, D., R. Bardgett, J. Klironomos, H. Setálá, W. van Der Putten, and D. Wall. 2004. Ecological linkages between aboveg-round and belowground biota. Sci. 304(5677), 1629-1633. Doi: 10.1126/science.1094875.

Wu, S., Z. Cao, Z. Li, K. Cheung, and M. Wong. 2005. Effects of biofertilizer containing N-fixer, P and K solubilizers and AM fungi on maize growth: a greenhouse trial. Geoderma 125(1-2), 155-166. Doi: 10.1016/j.geoderma.2004.07.003.

Yahya, A. and R. Mohd. 2013. Influence of simple preparation and extraction time on chemical composition of steam distillation derived patchouli oil. Procedia Eng. 53, 1-6. Doi: 10.1016/j.proeng.2013.02.001.

Zuzarte, M. and L. Salgueiro. 2015. Essential oils chemistry. pp. 1961. In: De Sousa, D. (ed.). Bioactive essential oils and cancer. Springer. Doi: 10.1007/978-3-319-19144-7_2.
