Influence of manure concentration as inoculum in anaerobic digestion of vinasse

Influência da concentração de esterco como inóculo na digestão anaeróbia da vinhaça

Brazil is the largest producer of sugarcane (Saccharum spp.) in the world, followed by India and Australia. On average, 55% sugarcane produced in Brazil is transformed into ethanol and 45% into sugar (Bebé, Rolim, Pedrosa, Silva, & Oliveira, 2009). The expansion of this crop in the state of Alagoas occurred through an adaptation to the natural conditions, becoming the main agribusiness economic activity. In the national scenario, in the 2015/2016 growing season, the state of Alagoas ranked seven in bioethanol production (União dos Produtores de Bioenergia [UDOP], 2016).

In the last decade, there has been a significant increase in ethanol production, reflecting the growth in ethanol production in the United States from corn and the Brazilian supply, as well as the greater demand for renewable fuel (Brasil, 2004, Silva & Bertucco, 2016). Vinasse is the main residue of the sugar and alcohol industry, characterized as an effluent from the alcohol production after the must fermentation and wine distillation, being usual its application in the fertigation of sugarcane itself.

At the same time that it has a high fertilizing value, has a high polluting power, around one hundred times greater than domestic sewage, due to its organic matter content, low pH, elevated corrosivity and biochemical oxygen demand (BOD), ranging from 20 to 35 g L^-1. This polluting power makes it highly harmful to the fauna, flora, microfauna and microflora of freshwater, as well as frighten the marine fauna that comes to the Brazilian coast for breeding (Freire & Cortez, 2000, Moraes et al., 2014), while the high fertilizing value can be used in the cultivation of traditional crops. Due to this, the environmental perspective has been emphasized and, in some cases, the application of vinasse has been challenged by its effects on the soil in places close to groundwater, although several works show increased productivity due to its application as fertilizer, especially as a source of potassium (Paula, Holanda, Mesquita, & Carvalho, 1999, Brito, Rolim, & Pedrosa, 2005, Barbosa, Arruda, Pires, Silva, & Sakai, 2012, Silva & Abud, 2016).

The alternative forms of biomass conversion into secondary energy include the anaerobic biodigestion of waste, whose emergence occurred with the first oil crisis and with the pressure of sanitarians for cleaner production and more appropriate effluent treatment. The process leads to BOD reduction, biofertilizer production, small sludge or biomass production, consuming only 10% of the required by an aerobic process, low operating and investment costs, as well as the possibility of decentralized treatment systems (Chernicharo, 1997, Cortez, Silva, Lucas Junior, Jordan, & Castro, 2007). The study on biodegradable substrates is essential for a selection of suitable substrates, propitious to higher yield of the process, as well as the residue used (Yusuf, Debora, & Ogheneruona, 2011).

Anaerobic conversion takes place in a biodigestor, a closed chamber where biomass is placed, which can be any effluent rich in organic matter, and the inoculum, that contains methanogenic anaerobic bacteria, such as manure. Biomass provides the substrate and the biodigestor provides the anaerobic condition for bacterial proliferation, resulting in the metabolism of biogas and, what is left of the substrate, a biofertilizer, richer in NPK mineralized nutrients, essential to plants. According to Sganzerla (1983), the main reason for the great fertilizing capacity of the biofertilizer lies in the fact that the biomass digestion drastically reduces the carbon content present in the biomass, almost exclusively losing carbon in the methane form (CH₄). The concentration of inoculum is important for the process and varies according to the material used to achieve an active and adequate microbial population (Raposo, De La Rubia, Fernandez-Cegri, & Borja, 2012). According to De Vrieze et al. (2015), the type of inoculum affects the microbial population in the process and can influence the physicochemical biofertilizer composition and the capacity and quality of biogas production.

However, in several situations, it is not enough to have in hand data regarding the amount of biogas produced. It is also essential to know the quality of this biogas, referring to parameters that can be submitted to the process, that is, to have the exact notion of the components variation influencing the biogas production during the fermentation process, since, based on these data, it is possible to verify and characterize its variation in the fermentation and to suggest the quality control of the gas to be purified and stored (Galbiatti, Caramelo, Silva, Gerardi, & Chiconato, 2010, Moraes, Zaiat, & Bonomi, 2015).

The present study aimed to evaluate the use of bovine manure as inoculum in the vinasse biodigestion process, using 0.5, 3.0 and 5.5% of manure. The whole process was characterized, controlling the pH in the acidogenic phase and following the chemical oxygen demand, besides the formation and composition of the biogas formed. At the end of the process, the biofertilizer was characterized and the sludge formed was microbiologically investigated.

The hydraulic retention time (HRT), which may vary between 20 and 50 days, depending on the substrate and the manure used, was 20 days. For bovine manure, the range is usually between 30 and 45 days, with an average of 35 days (Diesel et al., 2002, Arruda, Amaral, Pires, & Barufi, 2002). In biogas production with swine manure, the HRT range is around 15 and 36 days, and it was observed by Orrico Junior, Amorim, and Lucas Junior (2009) that within 36 days, there is a greater removal of COD, about 60 to 80%. Amaral et al. (2004) examined the biogas production from dairy cattle waste, and found that between 20, 30 and 40 days of HRT the major total solids reduction was achieved in 40 days. Quadros et al. (2010), using goat and sheep manure, indicated 45 days as the ideal HRT. In all these studies, based on animal waste as inoculum, prevails the characteristics of the effluent, which is what will be decomposed and will result in biogas.

Results of physicochemical analyses are listed in Table 1 and show that vinasse has all of the harmful characteristics to the environment, as cited by Freire and Cortez (2000) and Lora and Andrade (2009), as high COD, low pH and high total solids content.

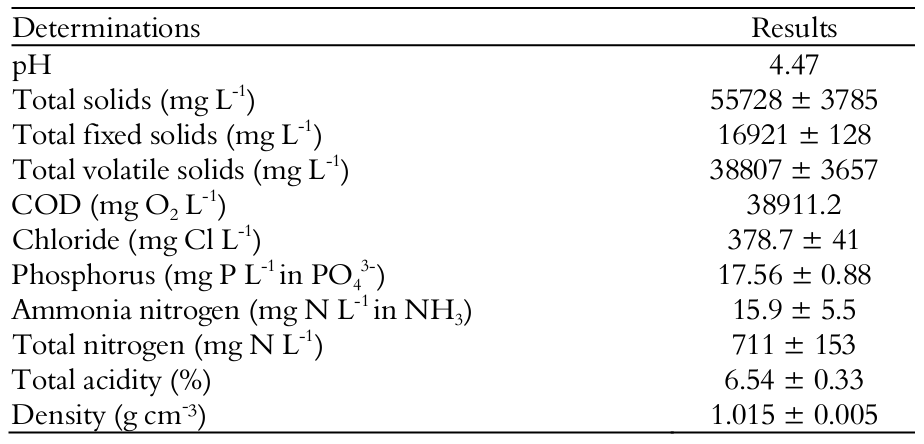

Table 1.
Physicochemical characterization of sugarcane vinasse.

It was possible to collect gas and the biodigestion was interrupted only when gas formation was constant, at an HRT of 20 days. The results of COD monitoring over time are illustrated in Figure 1.

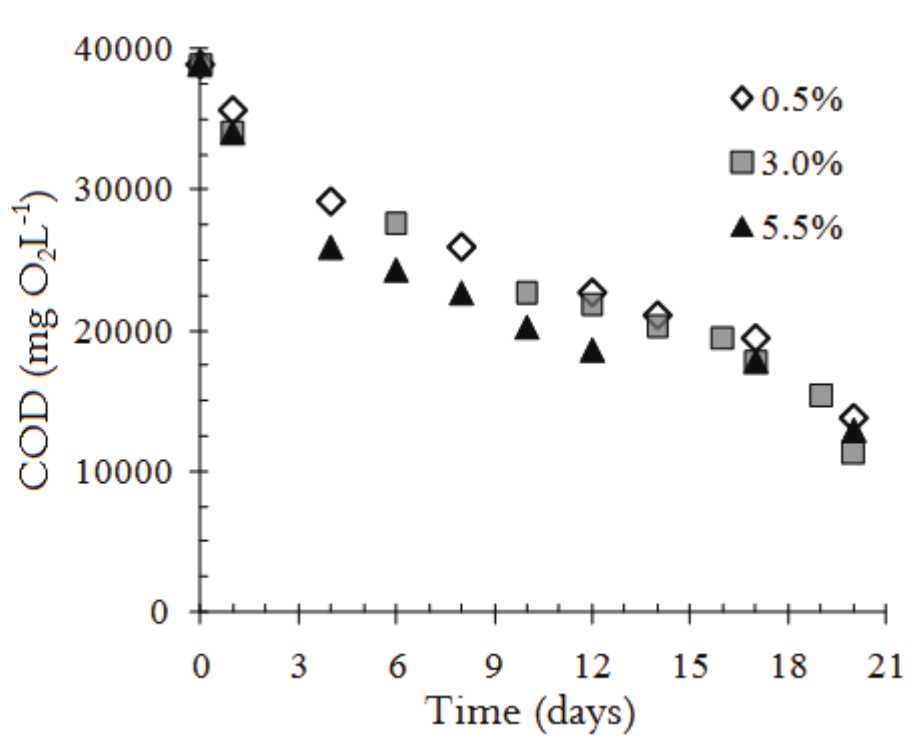

Figure 1.
COD analytical monitoring during the biodigestion.

There was no significant difference in COD reduction between the three inoculum concentrations used, reaching a mean of 68 ± 3%, with COD reducing a little between the 5^th and 12^th day. According to Von Sperling (2007), the reductions in vinasse BOD must be around 70%, a value close to that found for COD reduction of the effluent that underwent microbial degradation, indicating reduction, in its majority, of the biodegradable part.

The control pH was 7.0 ± 0.5 and a negative variation (ΔpH < 0) indicated a drop, making the environment more acidic. Anaerobic digestion can be summarized in four phases: hydrolysis, acidogenesis, acetogenesis and methanogenesis (Patil et al., 2012, Costa, Barbosa Filho, & Giordano, 2014), where acidogenesis is the process in which there is the formation of organic acids that cause a sharp decline in the pH of the medium, helping to promote then the acetogenesis, which forms the main quantities of substrates necessary to the last step, the methanogenic, of methane production. Acidogenesis ceased after the 3rd day. Biogas production started from the 6th day, just after the end of the acidogenesis, being the production almost similar in the three concentrations studied, as shown in Figure 2.

Biogas production, around 175 mL of biogas L^-1vinasse, was practically similar in all three trials. The theoretical values for methane production per g of COD depend on the substrate used. For bovine manure, the values turn around 0.025 to 0.1 L g^-1 CODremoved (Amaral et al., 2004, Oliver, Neto, Quadros, & Valladares, 2008); for pig farming, around 0.061 to 0.45 L g^-1 CODremoved (Lamo, 1991), and for vinasse from 0.3 to 0.365 L g^-1 CODremoved (Lamo, 1991, Salomon, & Lora, 2009).

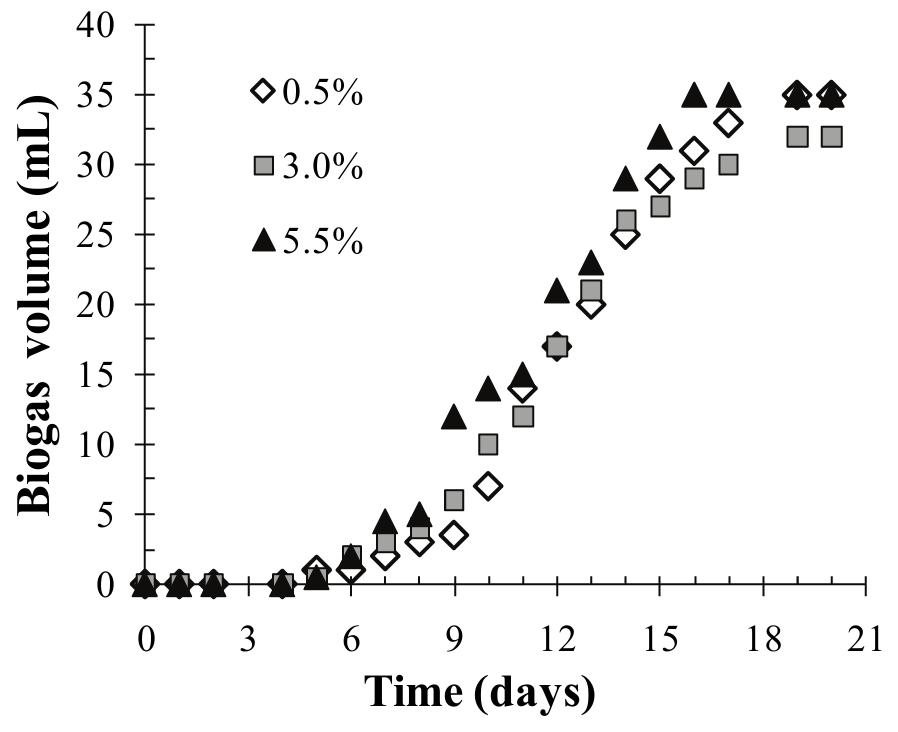

Figure 2.
Biogas collection along the biodigestion process.

The characterization of the biogas formed can be visualized in Table 2. It should be noted that the Alfakit biogas kit performs the quantification of CO₂ and does a 100% subtraction to find the value of CH₄, disregarding the 5% relative to other components, such as ammonia, hydrogen sulfide, hydrogen, water, oxygen, among others (Oliver et al., 2008, Salomon, & Lora, 2009, Patil et al., 2012, Costa et al., 2014). The values found are not far from those mentioned in the literature, especially regarding the CO₂ content. There was a statistically significant difference between the trials with the lowest and the highest (5.5%) concentrations of manure. Differences associated with biogas production, as well as composition may occur when using a very low or very high substrate/inoculum ratio (De Vrieze et al., 2015).

Considering the COD removed (Table 3) and using for the vinasse employed the relation 0.365 L g^-1 CODremoved, the biogas collected in the trials represented only about 10% of the theoretical value. The removal of COD/BOD is a combination of the demand for biogas formation with the required demand for cell proliferation and the retained demand in biofertilizer and final sludge. Therefore, given the batch production, low conversion efficiency was reached, indicating the need to use a greater part of the organic matter for cell proliferation. As it has been commonly used continuous or semi-continuous biodigesters, the cultures established by the proliferation of the first stage are more active in the next digestions, achieving greater efficiencies.

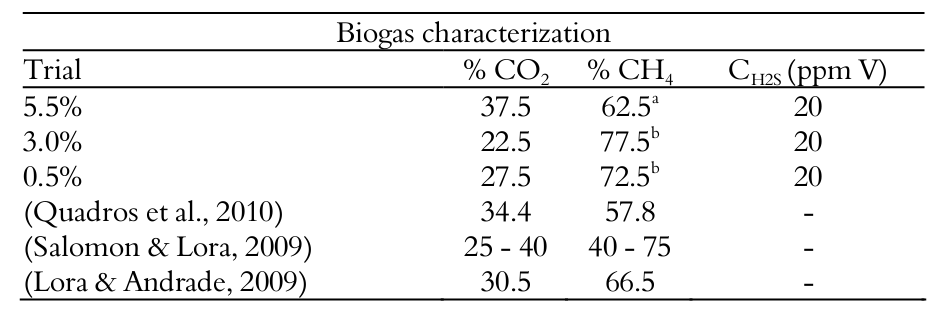

Table 2.
Characterization of biogas collected during biodigestion.

Different letters between the tests indicate significant differences by Tukey’s test at 5% level.

In the physicochemical characterization of fresh and biodigested vinasse (Table 3), similar values were detected for parameters analyzed between the three inoculum concentrations at the end of biodigestion, a fact also validated by the statistical analysis ofTukey test, where the inoculated trials did not differ statistically from each other at the 5% probability level, except for the phosphorus content.

The total solids concentration used was between 6 and 11%, suitable for the anaerobic digestion process. For Rajendran, Aslanzadeh, and Taherzadeh (2012), this value should be between 7 and 9%, while Amaral et al. (2004) cites 8% and Arruda et al. (2002), 10%.

During the anaerobic fermentation process, carbon of the organic matter is transformed into methane (CH₄), corroborating the results obtained. For nutrients such as nitrogen, phosphorus and potassium, however, there is greater preservation, with concentration due to the low or no de-assimilation of these nutrients in gaseous form. The total nitrogen present was concentrated around 80 ± 5% and, for total phosphorus, 16 ± 7% in the biofertilizer collected, in a similar way for the trials, except for the total phosphorus content in 5.5% of manure.

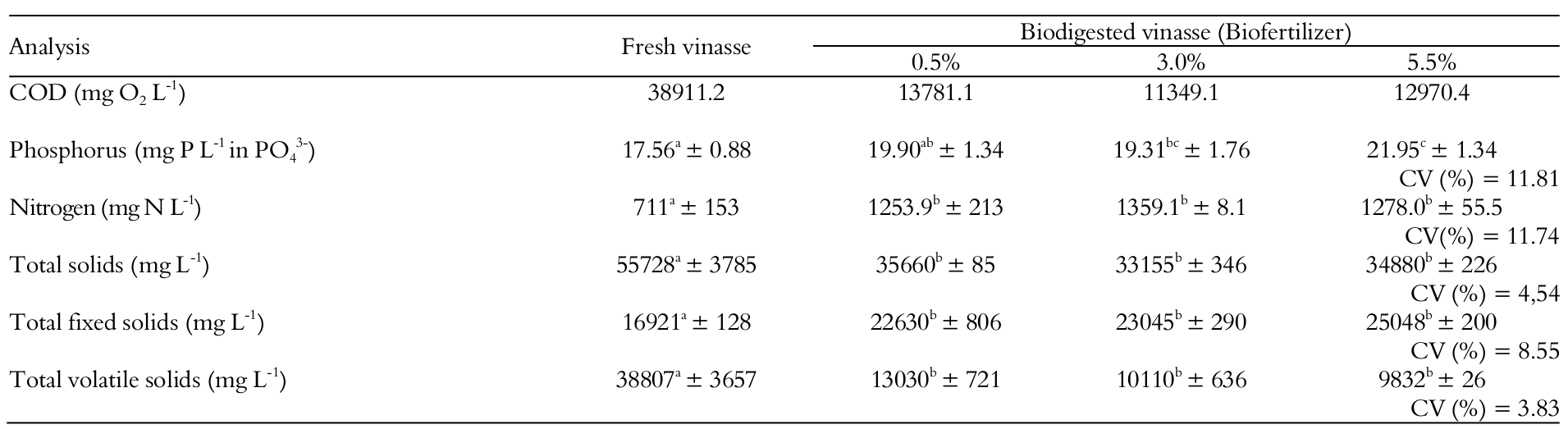

Table 3.
Physicochemical characterization of biodigestion process.

CV (%) – coefficient of variation between the means of the studied variables. The letters a, b, and c indicate the statistical analysis performed by Tukey's test using Assistat Software version 7.6. Means followed by different letters are significantly different at the 5% probability level.

The levels of coliforms in the biodigested effluents (Table 4), compared to the literature data, show homogeneity, presenting a 90-95% reduction in the amount of total and fecal coliforms. The Environmental Protection Agency (Environmental Protection Agency [EPA], 1985) states that the survival time of pathogens, such as Escherichia coli, in fecal coliforms, is from 4 to 55 days, evidencing the concern with the resulting microbial load in the biofertilizer and its ability to contaminate soils and surface water.

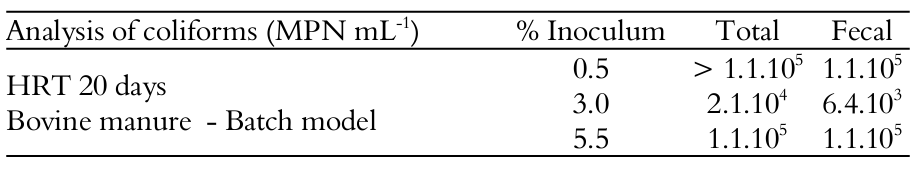

Table 4.
Microbiological analysis of total and fecal coliforms in biofertilizer.

Amaral et al. (2004) used bovine manure in a Chinese digester and observed in a 20 day-HRT, 2.4.104 MPN mL^-1 total coliforms and 4.7.103 MPN mL^-1 fecal coliforms in the biofertilizer. Orrico Junior et al. (2009), in a 22 day-HRT with swine manure in an Indian model, verified 4.6.104 to 1.1.105 MPN mL^-1 total coliforms and 1.5.104 to 1.1.105 MPN mL^-1 of fecal coliforms in the biofertilizer. Quadros et al. (2010), in an ongoing process using a Canadian biodigestor with sheep and goat manure, reached above 98% reduction in 20 day-HRT.

Table 5 lists the results obtained from the plate counts for the sludge sample on the surface of the biodigested effluent, indicating that the behavior of the three tests did not diverge. In the nutrient agar medium, the dilutions of the order of 10-6 were insufficient to make a plate count, and the maximum value was extrapolated. For both MacConkey and Sabourard agar, results were obtained at 10-6 dilutions. This information can be important, since an analysis of the population diversity was not possible, at least, the concentration of groups (total heterotrophic mesophilic, Gram-negative bacteria and yeast and molds) is presented.

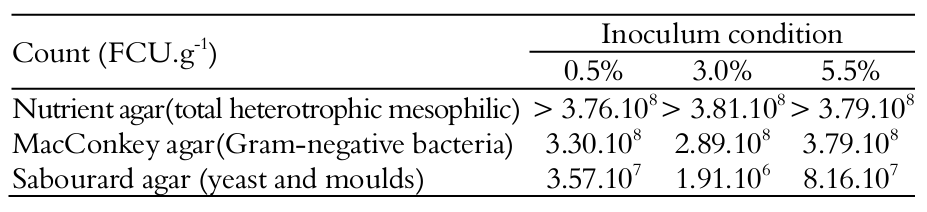

Table 5.
Plate count of microorganisms from the surface sludge of the biodigester.

The regression of the modified Gompertz equation modeled efficiently the biogas production during biodigestion, providing the parameters of the equation and coefficients of determination (r²) and contingency (Chi²), as shown in Table 6.

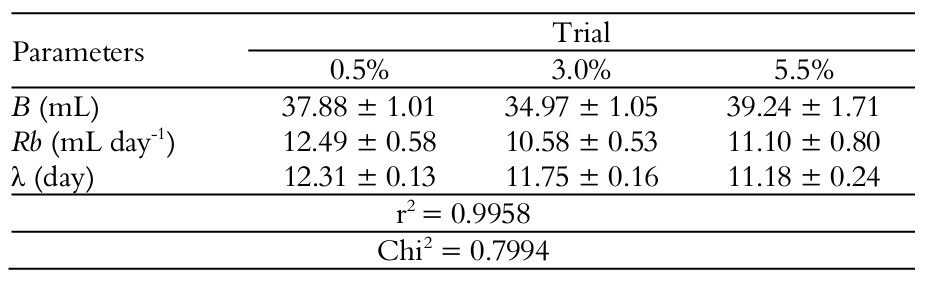

Table 6.
Parameters of the non-linear regression B(t).

The coefficient of determination (r²) was close to 1, indicating a good regression of the process, and the contingency coefficient (Chi²), was 0.8, suggesting dependence between the studied variables in the regression, that is, biogas production (B) and time (t). The maximum production predicted by the model was not reached by the experimental data, which was between 7 and 8 mL day^-1.

Also, the parameters of biogas production did not differ significantly between the three tests, as well as in the physicochemical parameters for the biofertilizers and for the microbiological analyses of the sludge formed, indicating that under the three conditions studied, there is no advantage in using a larger amount of manure, although the use of inoculum anticipates the biogas production peak and increases the effective biomass potential. The highest amount of inoculum in this case did not cause an increase in efficiency of the process, negatively influencing the biogas production, since it was not elevated, and occupied a volume that could be filled by the substrate to be treated.

Our findings indicated the use of bovine manure as an inoculum for the anaerobic biodigestion of vinasse where, in low amounts (0.5 to 3%), it was possible to treat around 80% of the chemical oxygen demand, producing biogas, which can be used to generate energy, in addition to producing a biofertilizer with excellent characteristics for the nutrients nitrogen and phosphorus (NP) and with very low amount of coliforms.

It is important to mention that the use of anaerobic biodigestion in sugarcane biorefineries is of utmost importance because, besides the environmental factor associated with the removal of organic matter and its mineralization, facilitating the absorption by the plants when the biofertilizer is applied, it also has the energy factor of biogas generation, which increases the process self-sufficiency (Moraes et al., 2014, Silva & Abud, 2016). Many types of inoculum can be used, where each has a specific microbial population that can influence the process. Because of this, the study of each source is necessary and, as can be seen with bovine manure, the same desired characteristics were obtained in an anaerobic biodigestion process. This efficiency is usually measured by the removal of chemical oxygen demand (COD), between 60-80%, and by the percentage of methane production, 60-70% (Moraes et al., 2015), range of values found in this research. The biofertilizer obtained from anaerobic biodigestion has excellent properties for vegetable fertilization, drastically minimizing the polluting impact caused when fresh vinasse is used (Silva & Abud, 2014).

Biodigestion occurred with an HRT of 20 days, reducing the content of chemical oxygen demand and total solids by 67 and 40%, respectively. The nitrogen and total phosphorus contents were preserved and were concentrated because there is little or no gas adsorption of these components, making the biofertilizer suitable for use. The acidogenic phase was verified between 5 and 7 days, with a drop in pH, followed by the production and collection of biogas, which provided an average of 70% methane in its composition. After analyzing all the parameters and comparing the obtained means,

we noticed no increase in the efficiency of biogas production caused by the amount of inoculum added. The results allow to recommend the use of the lowest values of inoculum [0.5 to 3.0% (m v^-1)], which can afford a greater amount of effluent to be treated within the biodigester. The anaerobic biodigestor, operating in batch mode, stored about 50 to 60% of the effluent COD in the form of sludge, probably due to microbial proliferation.
