Introduction

Because of rapid pace of life, the manual preparation of fruit juices has become an inconvenience to daily life. Thus, the world consumption of processed juices has tripled in the last twenty years, which strengthened the attachment of various trademarks in domestic and international market of processed fruit juices ready for consumption (Biral, Taddei, Passoni, & Palma, 2013, Longo-Silva et al., 2015). In addition to the convenience in consumption, ready juices have excellent sensory properties such as color, odor and attractive flavor, are available in various fruit flavors and sold in compact packages, which facilitates storage (Ferrarezi, Santos, & Monteiro, 2010).

However, in order to achieve the organoleptic properties currently offered, the composition of these beverages has undergone several changes over nearly two decades, among which the significant incorporation of food synthetic additives or micro ingredients with acidifying, antioxidant, flavoring, coloring, anti-wetting, acidity regulators, foaming and sweetening actions (Ferrarezi et al., 2010, Longo-Silva et al., 2015). These changes were approved and standardized by the Ministry of Agriculture, Livestock and Supply and the National Health Surveillance Agency (Anvisa) through Ordinance 544 of November 16th, 1998 approving the technical regulations for setting of identity and quality standards of processed juices and refreshments marketed in liquid form (Brasil, 2000, Ferrarezi et al., 2010).

Meanwhile, there are studies that relate the micro ingredients to harmful effects to the health of consumers, especially to children. The consequences described include the development or enhancement of chronic allergies and changes in the functioning of the digestive tract (Gomes, Oliveira, Carvalho, Menezes, & Peron, 2013, Oliveira, Alves, Lima, Castro, & Peron, 2013, Moura, Santana, Ferreira, Sousa, & Peron, 2016). Thus, food surveillance agencies, such as the European Food Safety Authority (EFSA) and Anvisa, point out in their technical regulations the constant need for cytotoxicological studies on the acute effect of food additives in general and especially processed food containing such substances. They also emphasize that the results of these analyzes are the basis of preparation or modification of strategies of food safety agencies and, consequently, the work of professionals responsible for food and nutrition surveillance of the population (Brasil, 2007, Moura et al., 2016, Carvalho, Sales, & Peron, 2017). However, a comprehensive analysis of the scientific literature indicated the lack of studies on the toxicity of processed juices sold in liquid form.

The meristem tissue of roots of Allium cepa L. (onion) is regarded in the scientific community as an effective bioassay for the assessment of acute toxicity at the cellular level of chemical compounds, due to low chromosome number (2n = 16), which facilitates the detection of chromosomal abnormalities and mitotic spindle changes (Neves, Ferreira, Lima, & Peron, 2014, Bianchi, Mantovani, & Marin-Morales, 2015). This test system is internationally accepted by research agencies as an assessment tool with accurate sensitivity for initial analysis of cytotoxicity, genotoxicity and mutagenicity of the substance of interest, as the results obtained show satisfactory similarity to those observed with animal test systems and cell cultures (Türkoğlu, 2007, Herrero et al., 2011, Tabrez et al., 2011, Gomes et al., 2013, Oliveira et al., 2013, Lacerda, Malaquias, & Peron, 2014, Campos-Ventura & Marin-Morales, 2016, Moura et al., 2016, Santana et al., 2016, Campus-Pereira, Gonçalves, Hara, & Marin-Morales, 2016).

As described by Zilifdar et al. (2014) and Valavanidis, Vlachogianni, Fiotakis, and Loridas (2013), cytotoxic, genotoxic and mutagenic substances can damage vital cellular mechanisms, such as gene duplication and transcription, changing dramatically the cell division of tissue through cellular aberrations, such as mitotic spindle changes and chromosome breaks, which can trigger and/or potentiate cancerous processes. According to Zaineddin et al. (2012), the development of the most common types of cancer results from the interaction between endogenous and environmental factors, remarkably the diet, especially when made of processed foods in excess.

Based on the discussed context, the goal of this study was to evaluate cytotoxicity, genotoxicity and mutagenicity of processed liquid preparations ready for consumption, Orange and Grape flavors, of five relevant food companies in the Brazilian market, through the meristematic cells of A. cepa roots. The Orange and Grape juices were selected for analysis based on studies conducted by Ferrarezi et al. (2010) and Pontes, Santiago, Szabo, Toledo, and Gollucke (2010), which point them as the most appreciated by the population.

Material and methods

Study samples

Samples of processed juices ready for consumption, Orange and Grape flavors, from five different food companies - referred to in this study as A, B, C, D and E- were acquired in the retail market in the city of Picos, state of Piauí, Brazil. We were careful to check whether the samples were within the shelf life and the packaging were intact. Analyses of toxicity were carried out directly with the marketed solutions.

Obtaining root meristem cells of A. cepa and cytogenetic analysis

Onion bulbs were placed in aerated bottles with distilled water at room temperature (± 27°C) to obtain 2.0 cm long roots. For analysis of each treatment group, we established an experimental group with five onion bulbs. Before placing the roots in contact with their respective samples of juices (treatments), some roots were collected and fixed to serve as control of the bulb it self. The remaining roots were placed in their respective solutions for 24 hours, a procedure called exposure time of 24 hours.

After 24 hours, some roots were collected and fixed. The remaining roots of each bulb were returned to their respective solutions, where they remained for more 24 hours, which is termed exposure time of 48 hours. Subsequently, again, roots were collected and fixed. The exposure times 24 and 48 hours were chosen to evaluate the effect of treatments on more than one cell cycle. Roots were fixed in Carnoy 3: 1 (ethanol: acetic acid) for 24 hours. We collected on average three roots per bulb in each collection. In all exposure times considered, the bottles with the treatments under study remained under gentle and constant stirring. This procedure was carried out to prevent the precipitation of solutions.

Slide preparation and analysis, and statistical analysis

On average, 3 slides per bulb were prepared following the protocol proposed by Guerra and Souza (2002), and analyzed under an optical microscope at 400x magnification. For each onion bulb, we analyzed 1,000 cells, totaling 5,000 cells for each control, exposure time 24 and 48 hours of each treatment group. Cells were observed in interphase, prophase, metaphase, anaphase and telophase. For calculation of the mitotic index (MI), we used the following equation: (total number of cells in mitosis ÷ total number of cells analyzed) x 100.

It was also assessed the action of juice samples by the frequency of micronuclei, colchicine metaphase, anaphase and telophase bridges, gene amplifications, cells with adhesions, nuclear buds and multipolar anaphases. For statistical analysis, we used the chi-square test (χ2) at a probability level < 0.05.

Results and discussion

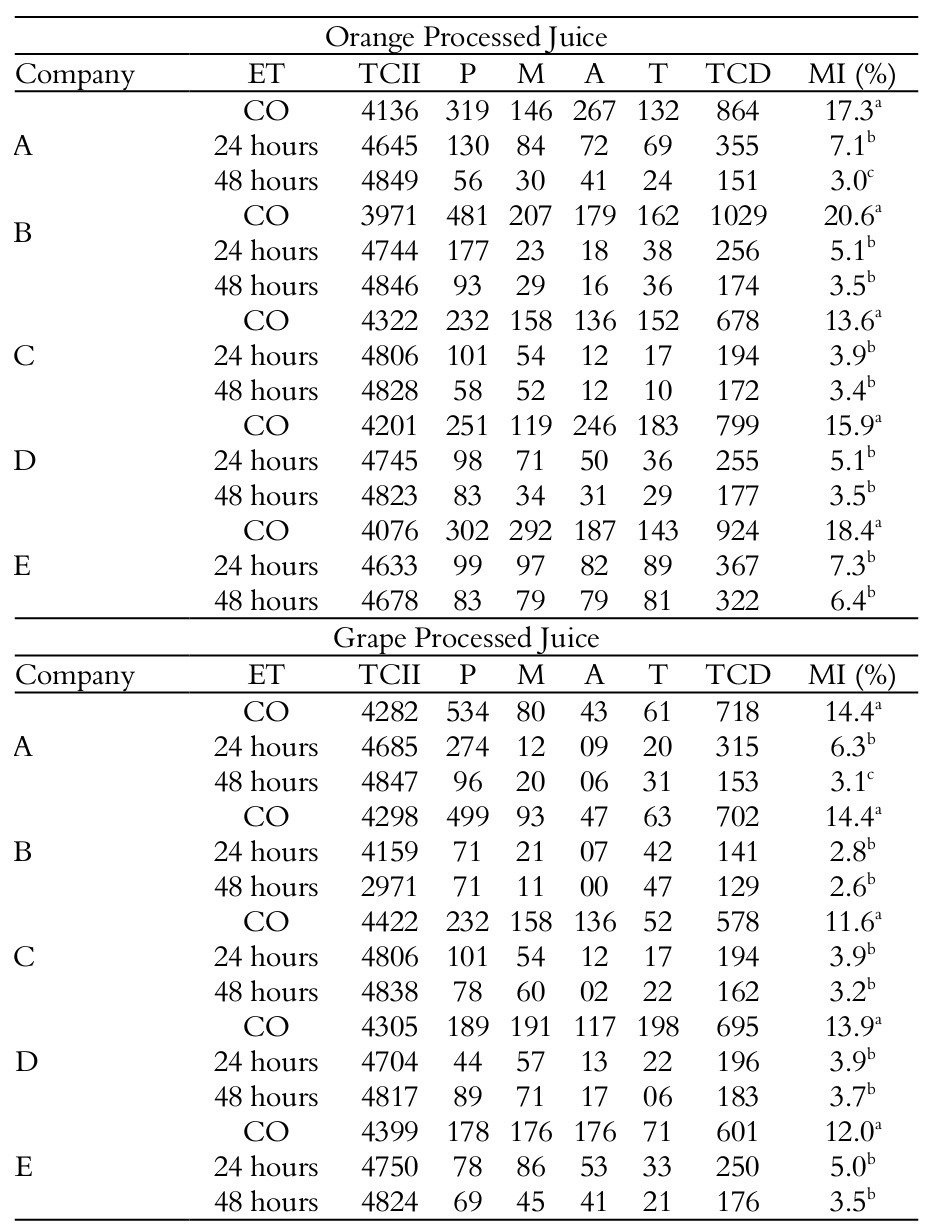

Considering the results in Table 1, it was observed that the Orange and Grape juices of the company A significantly reduced the cell division index at the 24 hours exposure time compared to the mitotic index observed for its respective control. This result is more pronounced at the 48 hours exposure time, in which the cell division index was statistically lower than those observed for the respective controls and 24 hours exposure time. In turn, Orange and Grape juices of the companies B, C, D and E caused a significant reduction in cell division of the meristem tissue, in both exposure times considered, compared to the mitotic index observed for the respective controls. However, there were no significant differences in the cell division index between the respective exposure times of 24 and 48 hours.

These results show that all juice samples tested, under the conditions established, were cytotoxic to root meristem cells of Allium cepa, because they have caused marked anti proliferative effect to root meristems. According to Gomes et al. (2013), Moura et al. (2016) and Carvalho et al. (2017), the reduction in mitotic index caused by chemical compounds in tissues without any mutation and/or cellular change is harmful to the organism in which they occur, as it does not allow or limit the replacement of cells, altering the production of proteins and therefore resulting in malfunction of the organ where it is located.

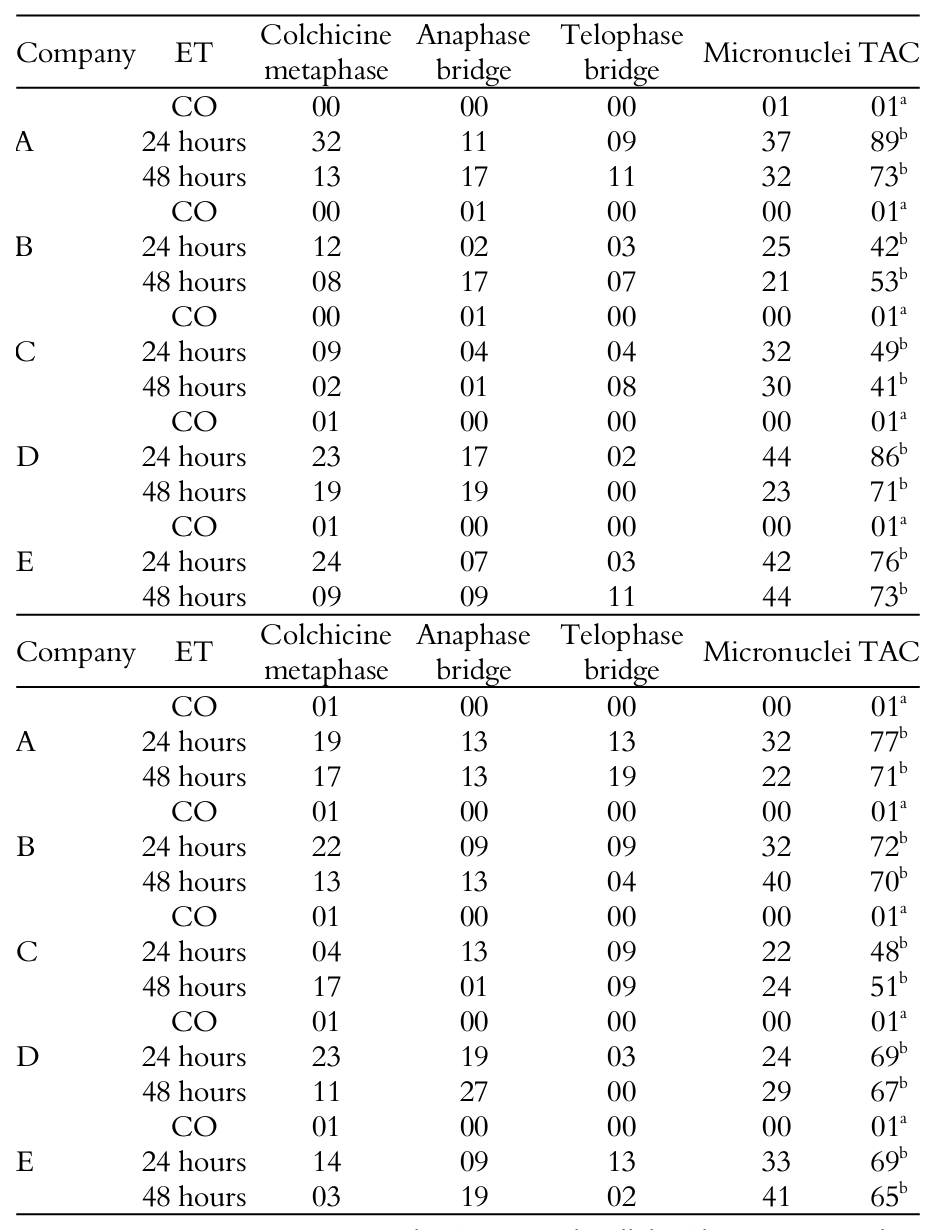

With respect to the results listed in Table 2, the orange and grape juices of the five food companies, at both exposure times considered, induced significant formation of mitotic spindle changes, represented in this study by colchicine metaphase and anaphase and telophase bridges, proving to be genotoxic, and chromosome breaks, characterized by the formation of micronuclei.

Mitotic spindle changes, at significant frequency, provoke nuclear instability by inducing structural chromosome damage, giving rise to acentric fragments, which therefore form micronuclei at the end of cell division. The significant presence of micro nucleated cells, as observed herein with ready juices, classifies substances, compounds or solutions tested as mutagenic (Corcuera et al., 2015). This condition with the liquid preparations indicates that they should be evaluated in animal test systems, since, according to Queiroz, Matias, Cunha and Schwarz (2013), the occurrence of cell changes, though not considered a carcinogenicity measurement, are often associated with the appearance of cancer, as there is a positive correlation between increased mitotic spindle aberrations, as well as micro nucleated cells, and detection of neoplasms.

Also, the frequency of cell changes observed in Table 2 confirms the results of reduced cell division in Table 1. Aissa et al. (2012) report that metaphases with misalignment of chromosomes on the equatorial plate or colchicine metaphase, as well as delayed chromosomes in anaphase and/or telophase, or anaphase and telophase bridges, result in formation of cells with different chromosome numbers, and chromosome structural changes. Whereas the principle of the cell cycle is the formation of identical cells, cells with discrepant variations in structure and in chromosome number tend to be eliminated in tissues with normal functioning.

As mentioned above, there is no toxicological evaluation in the scientific literature to date, at the cellular level regarding processed juices sold in liquid form. However, there are cytotoxicity assessments of some of the chemical constituents of the food additive classes in the formulation of these beverages, as described in the technical document that regulates these liquid preparations (Brasil, 2007). Nevertheless, it is very important to mention that the chemical composition of processed fruit juices ready for consumption, such as those from the five companies evaluated here in, is allowed and guaranteed by Brazilian law (Brasil, 2007, Ferrarezi et al., 2010; Pontes et al., 2010).

Artificial food dyes found in orange juice ready for consumption are the Twilight Yellow and Tartrazine. As for the grape, one of the dyes used is the Red 40. The dyes Sunset Yellow, Tartrazine and Red 40 are classified as azo food additives, because they have an azo group in their formulation, which is a nitrous derivative property to produce aromatic amine and sulfanilic acid (Sardi et al., 2010). These color additives have the potential to alter the turnover of cells during interphase and the regenerative hyperplasia process, contributing significantly to the development of digestive tract cancers in rodents (Polônio & Peres, 2009, Mpountoukas et al., 2010). These three azo dyes were also significantly cytotoxic, mutagenic and genotoxic to meristematic cells of Allium cepa roots (Gomes et al., 2013).

The diluents present in taste and flavor additives include benzoic alcohol and diacetyl (2,3-butadione), compounds which promote significant changes in the mitotic spindle and cell division of human peripheral blood cells (Demir, Kocaoglu, & Kaya, 2010) and significant damage to the chromosome 11 locus of rodents, causing loss of expression of essential genes controlling cell division (Whittaker, Clarke, San, Begley, & Dunkel, 2008), respectively. Furthermore, More, Raza, and Vince (2012) found that the diluent diacetyl had the potential to replace thymine with guanine in euchromatin regions, resulting in the disruption of hydrogen and disulfide bonds in the tertiary structure of enzymes important for mitosis. Among the preservatives stand out potassium benzoate, sodium benzoate, potassium nitrate, cytotoxic and genotoxic effects to normal cells of human peripheral blood (Mpountoukas et al., 2010, Zequin, Yüzbaşioğlu, Unal, Yilmaz, & Aksoy, 2011), boric acid, citric acid, potassium citrate and sodium citrate, cytotoxic and genotoxic to root meristem cells of A. cepa (Türkoğlu, 2007).

The sweeteners used in liquid preparations ready to drink comprise aspartame, sodium cyclamate, acesulfame potassium and sodium saccharin, with the exception of juices ready for consumption of Ambev, which have no sweeteners in their chemical composition, according to the site of presentation of the products. Van Eyk (2015) found that, through the cell lines Caco-2 (colon cells), HT-29 (colon cells) and HEK-293 (kidney cells), these sweeteners were cytotoxic, genotoxic and mutagenic to the studied cells. Corroborating the results of these researchers, Sasaki et al. (2002), using the comet assay, observed that sodium saccharin and sodium cyclamate were genotoxic and mutagenic to rodent colonic cells.

Conclusion

All juice samples analyzed were cytotoxic, genotoxic and mutagenic to root meristematic cells of A. cepa.

The results of this study, combined with the toxicity data at the cellular level of some of the food additives present in the basic formulation of juices ready to drink, signal the need for more detailed assessments, intest systems with higher complexity, to then safely establish the toxicity at the cellular level of these foods.

References

Aissa, A. F., Bianchi, M. L. P., Ribeiro, J. C., Hernandes, L. C., Faria, A. F., Mercadante, A. Z., & Antunes L. M. G. (2012). Comparative study of β-carotene and micro encapsulated β-carotene: Evaluation of their genotoxic and antigenotoxic effects. Food Chemical and Toxicology, 50(5), 1418-1424.

Bianchi, J., Mantovani, M. S., & Marin-Morales, M. A. (2015). Analysis of the genotoxic potential of low concentrations of Malathion on the Allium cepa cells and rat hepatoma tissue culture. Journal of Environmental Sciences, 36(1), 102-111.

Biral, A. M., Taddei, J. A., Passoni, D. F., & Palma, D. (2013). Dental caries and food practices among children attending daycare centers in the city of São Paulo. Revista Brasileira de Nutrição, 26(1), 37-48.

Brasil. (2000). Ministério da Agricultura, Pecuária e Abastecimento/Agência Nacional de Vigilância Sanitária. Normativa nº 01, de 7 de janeiro de 2000. Regulamento técnico geral para fixação dos padrões de identidade e qualidade para suco de fruta. Diário Oficial da União, Brasília, DF.

Brasil. (2007). Ministério da Agricultura, Pecuária e Abastecimento/Agência Nacional de Vigilância Sanitária. Normativa nº 05, de 15 de janeiro de 2007. Regulamento técnico sobre Aditivos Aromatizantes. Diário Oficial da União, Brasília, DF.

Campos-Ventura, B., Marin-Morales, M. A., & Desk, S. (2016). Micronuclei and chromosome aberrations derived from the action of Atrazine herbicide in Allium cepa meristematic cells. SDRP. Journal of Earth Sciences & Environmental Studies, 1(1), 1-5.

Campus-Pereira, F. D., Gonçalves, L., Hara, R. V., & Marin-Morales, M. A. (2016). Action of a polyamine putrescine in genetic material of Allium cepa. Toxicology Letters, 238(2), 120-121.

Carvalho, B. L., Sales, I. M. S., & Peron, A. P. (2017). Cytotoxic, genotoxic and mutagenic potential of UHT whole milk. Ciência e Tecnologia de Alimentos, 37(1), 13.

Corcuera, L. A., Vettorazzi, A., Arbillaga, L., Pérez, N., Gil, A. G., Azqueta, A., & Cerain, A. L. (2015). Genotoxicity of aflatox in B1 and ochratoxin A after simultaneous application of the in vivo micronucleus and comet assay. Food Chemical and Toxicology, 76(1), 116-124.

Demir, E., Kocaoglu, S., & Kaya, R. (2010). Assessment genotoxic effects of benzyl derivatives by comet assay. Food Chemical and Toxicology, 48(5), 1239-1242.

Ferrarezi, A. C., Santos, K. O. D., & Monteiro, M. (2010). Avaliação crítica da legislação brasileira de sucos de fruta, com ênfase no suco de fruta pronto para beber. Revista de Nutrição, 23(4), 667-677.

Gomes, K. M. S., Oliveira, M. V. G. A., Carvalho, F. R. S., Menezes, C. C., & Peron, A. P. (2013). Citotoxicity of food dyes sunset yellow (E-110), bordeax red (E-123), and tatrazine yellow (E-102) on Alliumcepa L. root meristematic cells. Food Science and Technology, 33(1), 218-223.

Guerra, M., & Souza, M. J. (2002). Como observar os cromossomos: um guia de técnicas em citogenética vegetal, animal e humana. Ribeirão Preto, SP: Funpec.

Herrero, O., Martín, J. P., Freire, P. F., López, L. C., Peropadre, A., & Hazen, M. J. (2011). Toxicological evaluation of three contaminant of emerging concern by use of Allium cepa test. Mutation Research, 743(1), 24-34.

Lacerda, L. P., Malaquias, G., & Peron, A. P. (2014). Antiproliferative action of aqueous extracts of Hymenaea stigonocarpa Mart. (Fabaceae) on the cell cycle of Allium cepa L. Anais da Academia Brasileira de Ciências, 89(3), 1147-1150.

Longo-Silva, G., Toloni, M. H., Menezes, R. C. E., Asakura, L., Oliveira, M. A. A., & Taddei, J. A. D. A. C. (2015). Introdução de refrigerantes e sucos industrializados na dieta de lactentes que frequentam creches públicas. Revista Paulista de Pediatria, 33(1), 34-41.

More, S. S., Raza, A., & Vince, R. (2012). The butter flavorant, diacetyl, forms a covalent adduct with 2-deoxyguanosine, uncoils DNA, and leads to cell death. Journal of Agricultural and Food Chemistry, 60(12), 3311-3317.

Moura, A. G., Santana, G. M., Ferreira, P. M. P., Sousa, J. M. C., & Peron, A. P. (2016). Cytotoxicity of cheese and cheddar cheese food flavorings on Allim cepa L root meristems. Brazilian Journal Biology, 76(2), 439-443.

Mpountoukas, P., Pantazaki, A., Kostareli, E., Christodoulou, P., Kareli, D., Poliliou, S., & Lialiaris, T. (2010). Cytogenetic evaluation and DNA interaction studies of the food colorants amaranth, erythrosine and tartrazine. Food Chemical and Toxicology, 48(10), 2934-2944.

Neves, E. S., Ferreira, P. M. P., Lima, L. H., & Peron, A. P. (2014). Action of aqueous extracts of Phyllanthusniruri L. (Euphorbiaceae) leaves on meristematic root cells of Allium cepa L. Anais da Academia Brasileira de Ciências, 86(3),1131-1137.

Oliveira, M. V. A., Alves, D. D. L., Lima, L. H. G. M., Castro, J. M. C., & Peron, A. P (2013). Cytotoxicity of erytrosine (E-127), brilliant blue (E-133) and red 40 (E-129) food dyes plant test system. Acta Scientiarum. Biological Science, 35(4), 557-562.

Polônio, M. L. T., & Peres, F. (2009). Consumo de aditivos alimentares e efeitos à saúde: desafios para a saúde pública brasileira. Caderno de Saúde Pública, 25(8), 1653-1666.

Pontes, P. R. B., Santiago, S. S., Szabo, T. N., Toledo, L. P., & Gollucke, A. (2010). Atributos sensoriais e aceitação de sucos de uva comerciais. Ciência e Tecnologia de Alimentos, 30(2), 313-318.

Queiroz, F. M. D., Matias, K. W. D. O., Cunha, M. M. F. D., & Schwarz, A. (2013). Evaluation of (anti) genotoxic activities of Phyllanthusniruri L. in rat bone marrow using the micronucleus test. Brazilian Journal of Pharmaceutical Sciences, 49(1), 135-148.

Santana, G. M., Deus, M. S. M., Sousa, J. M. C., Ferreira, P. M. P., Fernandes, H. B., & Peron, A. P. (2016). Antimitotic and antimutagenic action of the Hymenaea stigonocarpa bark on dividing cells. Brazilian Journal of Biology, 76(1), 520-525.

Sardi, M., Haldemann, Y., Nordmann, H., Bottex, B., Safford, B., Smith, B., … Jast, P. R. (2010). Use of retailer fidelity card schemes in the assessment of food additive intake: sunset yellow a case study. Food Additives and Contaminants, 27(11), 1507-1515.

Sasaki, Y. F., Kawaguchi, S., Kamaya, A., Ohshita, M., Kabasawa, K., Iwama, K., … Tsuda, S. (2002). The comet assay with 8 mouse organs: results with 39 currently used food additives. Mutation Research, 519(1), 103-119.

Tabrez, S., Sahkil, S., Urooj, M., Damanhori, G. A., Abuzenadah, A. M., & Ahmad, D. (2011). Genotoxicity testing and biomarker studies on surface water: an over view of the techniques and their efficacies. Journal of Environmental Environ Science and Health, Part C, 29(3), 250-275.

Türkoğlu, Ş. (2007). Genotoxicity of five food preservatives tested on root tips of Allium cepa L. Mutation Research, 626(1), 4-14.

Valavanidis, A., Vlachogianni, T., Fiotakis, K., & Loridas, S. (2013). Pulmonary oxidative stress, inflammation and cancer: respirable particulate matter, fibrous dusts and ozone as major causes of lung carcinogenesis through reactive oxygen species mechanisms. International Journal of Environmental Research and Public Health, 10(9), 3886-3907.

Van Eyk, A. D. (2015). The effect of five artificial sweeteners on Caco-2, HT-29 and HEK-293 cells. Drug and Chemical Toxicology, 38(9), 318-327.

Whittaker, P., Clarke. J. J., San, R. H., Begley, T. H., & Dunkel, V. C. (2008). Evaluation of the butter flavoring chemical diacetyl and a fluoro chemical paper additive for mutagenicity and toxicity using the mammalian cell gene mutation assay in L5178Y mouse lymphoma cells. Food Chemical and Toxicology, 48(8), 2928-2933.

Zaineddin, A. K., Buck, K., Vrieling, A., Heinz, J., Flesch-Janys, D., Linseisen, J., & Chang-Claude, J. (2012). The association between dietary lignans, phytoestrogen-rich foods, and fiber intake and postmenopausal breast cancer risk: a German case-control study. Nutrition and Cancer, 64(5), 652-665.

Zequin, N., Yüzbaşioğlu, D., Unal, F., Yilmaz, S., & Aksoy, H. (2011). The evaluation of the genotoxicity of two food preservatives: sodium benzoate and potassium benzoate. Food Chemical and Toxicology, 49(4), 763-769.

Zilifdar, F., Alper-Hayta, S., Yilmaz, S., Kaplan-Özen, Ç., Foto, E., Aydoğan, Z., … Diril, N. (2014). Genotoxic potentials and eukaryotic DNA topoisomerase I inhibitory effects of some benzoxazine derivatives. Medical Chemistry Research, 23(1), 480-486.
