Introduction

Amazon Forest constitutes the primary dispersion center of Protium Burm f., the main gender of Burseraceae, with its species spread over tropical and subtropical regions in South America, part of Europe, Asia and Oceania (Fine, Daly, Muñoz, Mesones, & Cameron, 2005). This gender has large distribution in South America, with a great great history of use and many species adapted to each type of environment. These species are generally difficult to be identified in field and many of them are frequently reclassified, mainly for being described using untrustworthy characters (Daly, 1987).

Protium species, commonly known as breus, are found scattered across almost the whole State of Amapá, according to a survey conducted at the Amapá Herbarium (Hamab). The largest records of occurrence of these species are located at the southern end of the state. They are usually large trees (10 to 31 m high), which present cylindrical trunk, with buttresses or not, and exude a clear, sticky, aromatic, volatile resin used in the varnish industry, boat caulking and as insect repellent (Daly, 1987; Otuki, Vieira-Lima, Malheiros, Yunes, & Calixto, 2004). Moreover, in popular medicine the gum and resin oils of Protium ssp. are used for many purposes, such as in stimulants, anti-ulcers and anti-inflammatories (Siani et al., 1999). Its leaves are alternate and rarely opposite, compodes and odd pinnate and the flowers small and unissexual, of cream, yellow green or red colour; the fruits are drupe and more rarely capsules (Souza & Lorenzi, 2008).

The community of São Francisco do Iratapuru, located around the Iratapuru river Sustainable Development Reserve (SDR), live off the sustainable exploitation of Bertholletia excelsa Bonpl., Lecythidaceae, (Brazil nut); Copaifera duckei Dwyer, Fabaceae, (copaiba) and Protium ssp. (white breu) (resin); besides the creation of small animals and artisanal fishing for subsistence. They are old residents located in the extreme south of the conservation unit, who develop their extractive activities within the latter, where they established ‘colocations’ that serve as exploration units. Most of these areas are certified.

In this sense, this work aims to determine the spatial distribution pattern of Protium species and the diametric structure of these species in stretches of dense tropical submontane rainforest along the Iratapuru river Sustainable Development Reserve (SDR), and then propose solutions for the sustainable use and management of this natural resource.

Material and methods

Area of study

The Iratapuru river SDR, which covers 806,184 hectares, was created by the Decree-Law n. 392, from December 11th, 1997 and is located in the Southeast region of Amapá state, covering the municipalities of Laranjal do Jari, Mazagão and Pedra Branca do Amapari, being limited by Waiãpi Indigenous Land to the North, Jari river's course to the West and part of Jari Ecologic Station to the South (Figure 1) (Rabelo, 2004). It is positioned in a region of great importance to Amapá Biodiversity Corridor, because strategically connect Tumucumaque National Mountain Park to Cajari river Extractive Reserve (Pereira, Pinto Sobrinho, & Costa Neto, 2011).

Physical aspects

In the municipality of Laranjal do Jari, the weather is mostly tropical, being characterized by temperatures which vary between 24.5ºC (April) and 28.2ºC (October), the coldest quarter happening from February to April and the hottest quarter in the period from September to November. The rainfall presents values between 1,998.2 and 2,347.7 mm, with an average of the total accumulated of 2,158.8 mm. The rainiest quarter happens between March and May. September to November show the lowest rainfall indexes (Rabelo, 2004).

According to characterization developed by (Zoneamento Ecológico Econômico [ZEE], 2008), the SDR region is on the domain of Guiana Shield, constituted by crystalline rocks from Precambrian, and the North boarder of Amazon basin, composed by Paleozoic sedimentary rocks. The terrain is dissected, many times in the shape of hills.

Under SDR forests, sandy and clay latosols are predominant, which are very weathered. The hydrographic network is constituted by the Iratapuru river basin, tributary of the left bank of the Jari river, which is characterized for being a plateau river (Carim, Guimarães, Tostes, Takiyama, & Wittmann, 2015).

Vegetation

The dominant vegetation is the Dense Ombrophilous Submontane Forest of ‘Terra Firme’ and Alluvial. The Terra Firme Forest corresponds to the highest proportion in the SDR, being remarkable for its individuals of high size and diversity of species with great economic value as Bertholletia excelsa; Copaifera duckei; Diniza excelsa Ducke - Fabaceae (angelim), Dipteryx odorata (Aubl.) Willd. - Fabaceae (cumaru) and others. The alluvial forest, better known as the flooded forest of ‘igapó’, borders the main clear watercourse formed by the Iratapuru River, with its origin in the Guinean shields. They are forests of low size, particularly Carapa guianensis Aubl. - Meliaceae (andiroba), Virola surinamensis (Role ex Rottb.) Warb. - Myristicaceae (virola), Bombax paraensis Ducke - Malvaceae (Mamorana) and Pentaclethra macroloba Willd. O. Kuntze-Fabaceae (pracaxi) (Carim et al., 2015).

Population structure

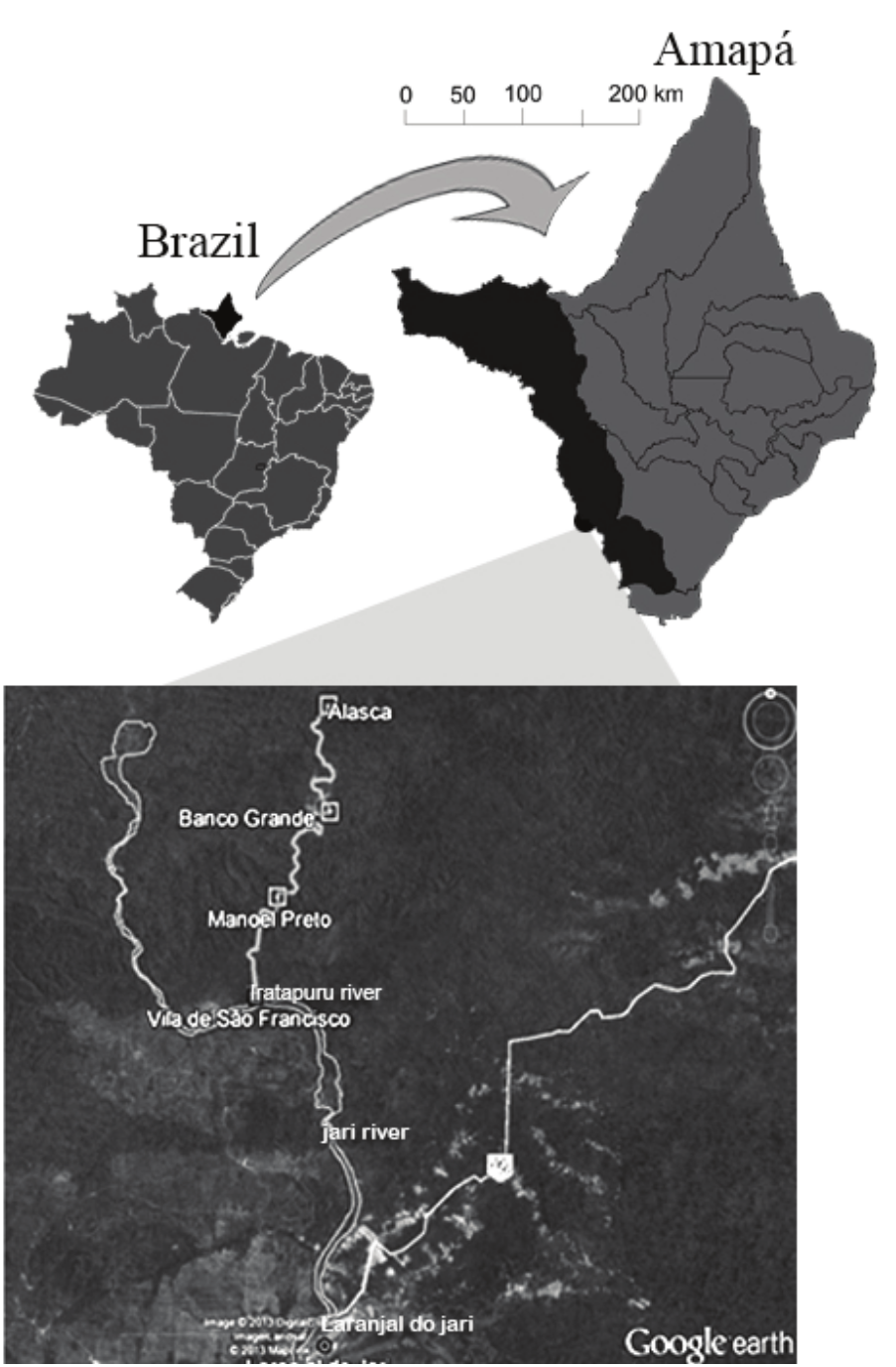

There were realized three field campaigns between 2012 and 2013. The area was divided into three compartments in North-South direction bordering Iratapuru river. The plateau areas were identified according to their local names, which are: Anani/Mane Preto Sierra (MP), 9 km away from San Francisco village on waterways and inland routes; Banco Grande Sierra (BG), 18 km away and Alaska Sierra (A), 26 km away. All of them are placed in altitudes between 200 and 300 m.

For the quantitative survey regarding the structural description of Protium population in the area, in each plateau compartment it was settled a single area transect with 1000 x 20 m (2 hectares), where there were sampled live individuals and taken height data and DBH (diameter at breast height) ≥ 10 cm. For the measurement of individuals it was used a metric tape and the total height was estimated with a 6 m rod marked in every meter. There were used wooden stakes to mark the parcels, and its limits were set with cotton strings, all of them being georeferenced with a GPS Garmim, using the UTM datum SAD`69 coordinate system.

Spatial distributions

Payandeh Index (Pi): Estimating this index, it is obtained the species's aggregation degree through the relationship between the variance of the number of trees per parcel and the average of the number of trees (Payandeh, 1970), according Equation 1:

where:

Pi = ‘Payandeh index’ for the i-th species;

Si2 = variance of the number of trees of the i-th species;

Mi = average of the number of trees of the i-th species;

Classif. Pi = Spatial Distribution Pattern Classification of species individuals, which obeys the following scale:

Pi < 1: random distribution or no grouping;

1 <= Pi <= 1,5: tendency to grouping;

Pi > 1,5: aggregated distribution or grouped.

Species identification and characterization

The identification and morphological study were made based on photographic registry of fruit and flowering branches of these species individuals identified by the Burseraceae specialist, Dr. Douglas Daly from the New York Botanical Garden, USA, and incorporated to the Hamab in the Amapá Scientific and Technological Research Institute (Iepa). Through the vouchers (Protium altsonii Sandwith - 510; Protium polybotryum (Turez) Engl. subst. blackii (Swart) Daly - 513; Protium paniculatum var. riedelianum (Engl.) Daly - 512 and Protium tenuifolium (Engl.) Engl. - 511). The data collected in field was digitized in Excel to be processed in the specific Mata Nativa 2 software for evaluation of diametric and spatial distribution.

Results and discussion

There were collected and identified four species from Protium, which were: Protium altsonii Sandwith; Protium polybotryum (Turez) Engl. subst. blackii (Swart) Daly; Protium paniculatum var. riedelianum (Engl.) Daly and Protium tenuifolium (Engl.) Engl.

There were sampled 721 live Protium individuals, from which P. tenuifolium presented the highest number of individuals, 481, distributed in all areas, with density of 80.1 ind ha-1, average of 21.21 DBH, reaching the total basal area of 22.41 m2; followed by P. altsonii, with 143 individuals, registered in Mane Preto and Banco Grande complex, with density of 23.3 ind ha-1 and average of 22.67 DBH, totaling a basal area of 7.01 m2. P. paniculatum var. riedelianum occurred with 93 individuals distributed in all areas, with density of 15.5 ind ha-1, average of 21.07 DBH, reaching a basal area of 3.84 m2. Only P. polybotryum subst. Blackii, with 4 individuals, occurred in only one area, Mane Preto complex, with average of 13.85 DBH and total basal area of 0.07 m2 (Table 1).

For the gender, it was registered absolute density of 121 ind ha-1 and total basal area of 33.32 m2, approximately. Figure 2 shows the individuals distribution in different height classes, with expressive concentration of individuals until 10 m high, reaching around 70% of the total sampled. Only 44 sampled individuals (6%) exceeded 20 m of height. It is verified that most individuals are grouped until 15 m of height, with approximately 86% of the total. Approximately 13% of individuals were positioned between 15 and 25 m of height and only nine individuals are higher than 25 m, approximately 1% of the total sampled.

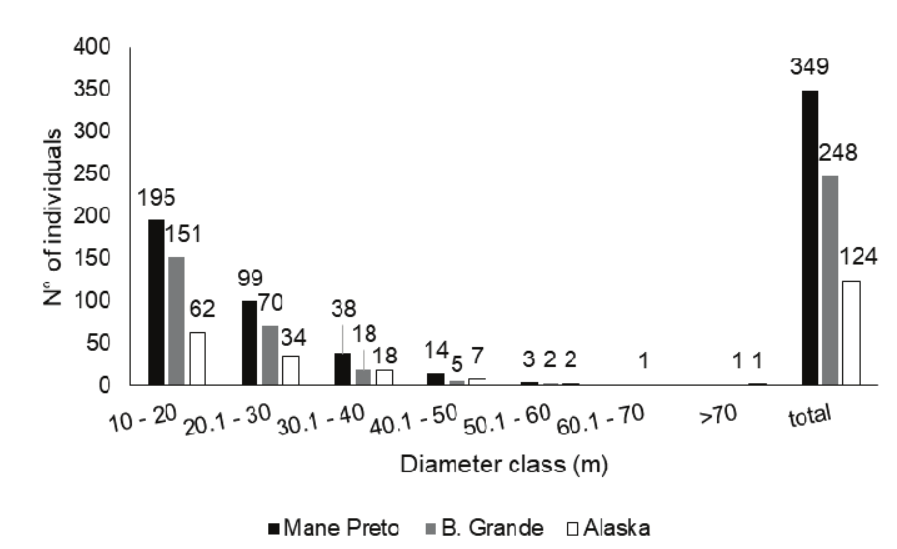

The diametric distribution of the sampled population presented an inverted ‘J’ shape. Most individuals concentrated in smaller diametric classes, decreasing progressively to a lesser extent in larger classes (Figure 3), highlighting the typical pattern for mature forests in natural regeneration (Blanc, Maury-Lechon, & Pascal, 2000).

Among trees, the individual growth is usually evaluated, among other variables, mainly for the diametric increase or for the basal area, being these reliable param to indicate the state of conservation of a forest. The study of these param points the growth and the changes occurred in its composition and structure.

In general, it was registered a high density in the gender population, predominating the Protium altsonii and P. tenuifolium species. Possibly, this finding must be related to the phytophysiognomy itself and the conservation degree of the environment. Thus, the high population of the gender in the SDR can be a result of the relative absence of anthropic activities. The specialized morphology and the great competitive ability of P. tenuifolium favor its adaption to non-disturbed environments (Daly, 1987).

The constant number of trees with the same structure by class interval would be economically better. However, this is an uncommon situation in tropical forests. From a biological point of view, the structure of an uneven-aged forest tends to respond to a pattern in an inverted ‘J’ (Leuschner, 1984), typical of forests in dynamic balance, where most individuals take the first diameter classes. This is a fact that was confirmed by Carim et al. (2015), considering the same area of study.

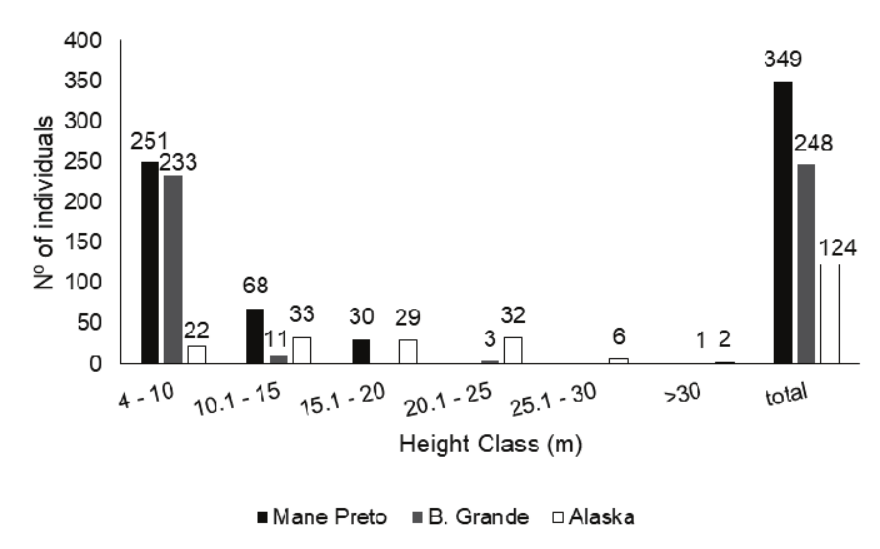

In a general sense, the studied population can be considered to be medium-sized, with a minimum of 4 m and maximum of 35 m. In the same region, Carim et al. (2015) registered in his study a vegetation of high size with well-stratified and emergent individuals above 35 m.

The Protium species are well distributed in the forest profile. Nonetheless, they contribute differently when it comes to the number of individuals and sociological position they occupy. P. alttsonii and P. tenuifolium presented individuals in all classes, being the only ones to present individuals higher than 35 m. P. paniculatum var. riedelianum registered individuals with 25 m of height. P. polybotryum subst. blackii placed its four individuals between 5 and 11 m of height.

The diametric distribution of the sampled population presented the same pattern found in study developed with Protium pallidum Cuatrec in a Terra Firme Tropical Forest in Resex Cajari, in Amapá (Rudiger, Siani, & Veiga Junior, 2007) and in Monu, Pará State (Daly, 1987) Balanced diametric distributions, where the ability to recruit compensates mortality throughout time, is the greatest guarantee for the species existence and survival. This distribution ensures that, in the dynamic process of the forest, the species renews itself, ensuring the dynamic balance of the population (Lamprecht, 1962; Felfili, 1997).

Protium species present high importance values in tropical forests. This is directly related to the large basal area and/or density of its individuals, influencing the management for commercial purposes, being able to be worked on individually or along with other species (Assis, Pereira, & Thomaz, 2004; Pereira, Cordeiro, & Araújo, 2004; Carim, Guimarães, & Tostes, 2013). Certainly, there seems to exist a strong tendency for the individual distribution curve to vary along South-North axis, decreasing the amount of individuals as it advances towards the upwind of Iratapuru river heading North. Anyhow, the species tend to assume different proportions along the analyzed stretch, possibly influenced by its own adaptive characteristics, what favors its large distribution and therefore its status in phytocenoses.

Abiotic factors

Possibly, factors connected to physical aspects in the SDR are influencing the Protium species distribution. Aspects related to height and lithological characteristics differences may be interfering in the adaptation of these species.

It is verified a mosaic of different lithological groups, occupying different gradients in South-North way in the SDR. In the Southern stretch of Mane Preto complex, siltstone from Trombetas Formation of Silurian age is predominant. In the North flank of Banco Grand complex, it emerges shales interspersed with siltstones and sandstones of Curuá Formation (Devonian). In Alaska complex, located in the Northern portion of the area, sandstones from the basal portion of Trombetas formation are predominantly found.

In eastern Amazon, the substrates derive mainly from stones formed in Archean (Amazon craton), which are extremely weathered and nutrient-poor. These factors cannot be analyzed individually, certainly, the low fertility in soils is common and responds in the same way for plants communities. Therefore, other factors contribute for the predominance of determined groups, associated or not to anthropic action. Preliminary data of the soil of the Submontane Forest in Iratapuru river SDR points soils with high to medium phosphorus concentration, high organic matter content, very high acidity level and aluminum saturation, high cation exchange capacity and macro nutrients poverty.

In this sense, more detailed studies on the influence of physical and chemical factors of the soil must be considered for a more concrete answer about the operating mechanisms which influence in the distribution of Protium species and if its effects are limiting. There is an increasing evidence that the distribution of floristic communities of Amazon region is very heterogeneous and related to soil conditions (Salovaara, Thesslerb, Malikc, & Tuomisto, 2005). The variations on the chemical composition of soils found in different analyzed plateaus indicates the low demand of Protium species regarding this characteristic. In a certain way, populations keep themselves balanced along the analyzed axis, with progressive increase in North direction.

Spatial distribution

Using the Payandeh index, it was verified that the distribution pattern to all species in the studied area tended to grouping, contrary to study developed by (Rudiger et al., 2007) in which it was considered a random distribution for P. pallidum, applying the Morisita index (MI).

Environmental differences, bio-ecological factors (predation, mortality, dispersion and birth rate) and soil and climate conditions are the main responsible for the random distribution pattern of species (Carvalho, 2002). Whereas, the grouping characteristic of the species is possibly related to its high annual seeding production, to the dispersion pattern of its species and to the absence of specific predators for them.

A plant species, although it presents a great occurrence in a determined area, its spatial distribution in different size classes can be very irregular. The grouping degree can present different values, with plants from lower size classes presenting tendency to grouping and plants from the higher size classes possibly occurring in a strongly grouped form (Carvalho, 1983).

To Kanieski et al. (2009), the spatial distribution inside the community is an important characteristic for the planning of management measures and conservation of forest formations. Anjos, Mazza, Santos, and Delfini (2004) also confirm that the knowledge regarding the spatial distribution pattern can give information on ecology, subsidize the definition of management and/or conservation strategies, help in sampling processes or simply clarify the spatial structure of a species. In this work, it was verified that Protium species are established throughout a geomorphological gradient and lithologically different. However, it does not reflect in a limiting way for the establishment of these species to varied environmental conditions. These are species which adapt to variations, even coming to assume dominant patterns in the environment.

More profound studies on species autoecology, including its phenophases and reproductive biology and its abiotic relations must offer more profound answers on the operating mechanisms for the success of these species in tropical environments.

Conclusion

Protium populations present medium size and its vertical structure is characterized by the presence of three strata, however, its phytocenoses is defined by two very clear constants; the first groups individuals with 15 m high and forms the uniform and dominant stratum, the second is composed by emergent with up to 35 m of height.

The diameter structure highlights a population in dynamic balance, where the recruitment ability compensates mortality, proven by the diametric distribution curve of individuals. The Protium population is distributed by the Payandeh index tending to grouping in the Iratapuru river SDR.

References

Anjos, A., Mazza, M. C. M., Santos, A. C. M. C., & Delfini, L. T. (2004). Análise do padrão de distribuição espacial da araucária (Araucaria angustifolia) em algumas áreas do estado do Paraná, utilizando a função K de Ripley. Revista Scientia Forestalis, 66, 38-45.

Assis, A. M., Pereira, O. J., & Thomaz, L. D. (2004). Fitossociologia de uma floresta de restinga no Parque Estadual Paulo César Vinha, Setiba, município de Guarapari (ES). Revista Brasileira de Botânica, 27(2), 349-361. doi: 10.1590/S0100-84042004000200014

Blanc, L., Maury-Lechon, G., & Pascal, J. P. (2000). Structure, floristic composition and natural regeneration in the forests of Cat Tien National Park, Vietnam: an analysis of the successional trends. Journal of Biogeography, 27(1), 141-157. doi: 10.1046/j.1365-2699.2000.00347.x

Carim, M. J. V., Guimarães, J. R. S., & Tostes, L. C. L. (2013). Composição e estrutura de floresta ombrófila densa do extremo norte do estado do Amapá, Brasil. Biota Amazônia, 3(2), 1-10. doi: 10.18561/2179-5746/biotaamazonia.v3n2p1-10

Carim, M. J. V., Guimarães, J. R. S., Tostes, L. C. L., Takiyama, L. R., & Wittmann, F. (2015). Composition, structure and floristic diversity in dense rain forest in the Eastern Amazon, Amapá, Brazil. Acta Scientiarum. Biological Sciences, 37(4), 419-426. doi 10.4025/actascibiolsci.v37i4.27536

Carvalho, J. O. P. (1983). Abundância, frequência e grau de agregação de Pau-rosa (Aniba duckei) na Floresta Nacional do Tapajós. Belém, PA: Embrapa-Cpatu.

Carvalho, J. O. P. (2002). Changes in the spatial distribution of tree species in a terra firme raio Forest in brasilian amazônica after logging. Revista de Ciências Agrárias, 37, 53-70.

Daly, D. C. B. (1987). A taxonomic revision of protium (Burseraceae) in eastern Amazonia and the Guianas. New York, NY. City University of New York.

Felfili, J. M. (1997). Diameter and height distributions in a gallery forest tree community and its main species in central Brazil over a six-year period (1985-1991). Revista Brasileira de Botânica, 20(2), 155-162. doi: 10.1590/S0100-84041997000200006

Fine, P. V., Daly, D. C., Muñoz, G. V., Mesones, I., & Cameron, K. M. (2005). The contribution of edaphic heterogeneity to the evolution and diversity of Burseraceae trees in the western Amazon. Evolution, 59(7), 1464-1478. doi: 10.1111/j.0014-3820.2005. tb01796.x

Kanieski, M. R., Araujo, A. C. B., Gracioli, C. R., Soares, P. R. C., Callegaro, R. M., & Longhi, S. J. (2009). Padrão de distribuição da Araucaria angustifolia (Bertol.) Kuntze na Floresta Nacional de São Francisco de Paula, Rio Grande do Sul. AUGM Ambiente 2009. Recuperado de http://www.ambiente-augm.ufscar.br/uploads/AI-019.pdf

Lamprecht, H. (1962). Ensayo sobre unos métodos para el Análisis Estructural de los bosques tropicales. Acta Cientifica Venezolana, 13(2), 57-65.

Leuschner, W. A. (1984). Introduction to forest resource management. New York, NY: John Wiley & Sons.

Otuki, M. F., Lima, F. V., Malheiros, A., Yunes, R. A., & Calixto, J. B. (2004). Tropical antiinflammatory effects of the ether extract from Protium kleinii and [alpha]-amyrin pentacyclic triterpene. European Journal of Pharmacology, 507(1-3), 253-259. doi: 10.1016/j.ejphar.2004.11.012

Payandeh, B. A. (1970). Comparison of methods for assessing spatial distribution of trees. Forest Science, 16(3), 312-317. doi: 10.1093/forestscience/16.3.312

Pereira, L. A., Pinto Sobrinho, F. A., & Costa Neto, S. V. (2011). Florística e estrutura de uma mata de terra firme na reserva de desenvolvimento sustentável Rio Iratapuru, Amapá, Amazônia Oriental, Brasil. Floresta, 41(1), 113-122. doi: 10.5380/rf.v41i1.21191

Pereira, M. C. A., Cordeiro, S. Z., & Araújo, D. S. D. (2004). Estrutura do estrato herbáceo na formação aberta de Clusia do Parque Nacional da Restinga de Jurubatiba, RJ, Brasil. Acta Botanica Brasilica, 18(3), 677-687. doi: 10.1590/S0102-33062004000300025

Rabelo, B. V. (2004). Laranjal do Jari: Realidades que devem ser conhecidas. Macapá, AP: Iepa.

Rudiger, A. L., Siani, A. C., & Veiga Junior, V. F. (2007). The chemistry and pharmacology of the South America genus Protium Burm. f. (Burseraceae). Plan Review, 1(1), 93-104.

Salovaara, K. J., Thesslerb, S., Malikc, R. N., & Tuomisto, H. (2005). Classification of Amazonian primary rain forest vegetation using Landsat ETM + satellite imagery. Remote Sensing of Environment, 97(1), 39-51. doi: 10.1016/j.rse.2005.04.013

Siani, A. C., Ramos, M. F., Lima, O. Jr. M., Santos, R. R., Ferreira, E. F., Soares, R. O., … Henriques, M. G. (1999). Evaluation of anti-inflammatory-related activity of essential oils from the leaves and resin of species of Protium. Journal of Ethnopharmacology, 66(1), 57-69. doi: 10.1016/S0378-8741(98)00148-2

Souza, V. C., & Lorenzi, H. (2008). Botânica sistemática guia ilustrado para identificação das famílias de angiospermas da flora brasileira, baseado em APG II. Nova Odessa, SP: Instituto Plantarum.

Zoneamento Ecológico Econômico [ZEE]. (2008). Macrodiagnóstico do Estado do Amapá: primeira aproximação do ZEE (3 ed. rev. ampl.). Macapá, AP: Iepa.
