Introduction

Since ancient times in Asia seaweeds have been recognized as nutritional and functional food Sources because of their health benefits (Cardozo et al., 2007; Wang, Wang, Wu & Liu, 2014). They have intrinsic components without toxicity and with multifunctionality in many commercially-important food and pharmaceutical products, taking advantage of clinically-used drugs that have systemic complications (Cardozo et al., 2007; Pomin & Mourão, 2008; Mourão, 2015). One particularly interesting feature of seaweeds is their alternative as anticoagulants, a property proved by their mucilaginous matrix sulfated polysaccharides (SPs), which can be extracted by different protocols (Athukorala, Jung, Vasanthan, & Jeon, 2006; Fidelis et al., 2014; Imjongjairak et al., 2016; Rodrigues, Torres, Alencar, Sampaio, & Farias, 2009; Rodrigues et al., 2016a).

Cell-wall SPs vary among algal species and polymeric identity (Cardozo et al., 2007; Thomas & Kim, 2013), having strongly charged nature with certain structural features conserved among phyla (Pomin & Mourão, 2008). Structurally, these polyanionics are classified into three major chemical classes: 1) sulfated galactans (mainly carrageenans and agarans) are the hydrocolloids expressed in Rhodophyceae (Cardozo et al., 2007; Mourão, 2015; Rodrigues et al., 2009; Rodrigues et al., 2016a); 2) fucans or fucoidans are synthesized in Phaeophyceae, owing to the presence of sulfated fucose (Pomin & Mourão, 2008); and 3) sulfated hetepolysaccharides naturally occur in Chlorophyceae as dominant polymers, but little are known about their highly complex structural and physical-chemical features and biotechnological properties (Rodrigues et al., 2014; Wang et al., 2014; Yaich et al., 2014). SPs from seaweeds have high molecular weights (usually > 100 kDa) and variable sulfation (-SO^-3) on their chains making them as modulators on coagulation (Rodrigues et al., 2009; Pomin, 2012; Fidelis et al., 2014) and inflammation (Rodrigues et al., 2012; Pomin, 2012; Thomas & Kim, 2013) by interacting with health/disease-associated proteins.

Although being the initial treatment in cardiovascular or thromboembolic diseases, unfractionated heparin (UHEP) systemic therapy can induce bleeding complications and thrombocytopenia. Its anticoagulant mechanism is proved by antithrombin (AT)-binding specific pentasaccharide sequence, which it is not found in other natural sources (Pomin, 2012; Mourão, 2015). The main targets of the algal anticoagulants are the thrombin (Rodrigues et al., 2013; Mourão, 2015), the final enzyme that converts fibrinogen into fibrin clot (Castoldi & Rosing, 2011), and the factor Xa (Athukorala et al., 2006; Glauser et al., 2009; Mourão, 2015), a coagulation protease that generates thrombin (Zavyalova & Kopylov, 2016), and/or by independent effect of serpins (Quinderé et al., 2014), preventing thrombosis without producing hemorrhage (Rodrigues et al., 2011; Quinderé et al., 2014; Mourão, 2015). However, at high dose, SPs from seaweeds may lead to thrombosis due to activation of factor XII in the intrinsic coagulation system (Rodrigues et al., 2011; Quinderé et al., 2014; Mourão, 2015).

The anticoagulant effects of the seaweeds SPs are routinely measured by two tests: 1) the activated partial thromboplastin time (APTT); and 2) the prothrombin time (PT), which distinguish the anti-clotting potential on both intrinsic/extrinsic coagulation pathways, respectively (Rodrigues et al., 2009; Mourão, 2015); but, they do not indicate the normal function status and thrombin generation (TG)-based coagulation assays have been introduced to develop more accurately antithrombotic drugs (Jung et al., 2014; Zavyalova & Kopylov, 2016) and for clinical prognostics (bleeding disorders and surgical procedures), and epidemiology of thrombosis (Castoldi & Rosing, 2011; Duarte et al., 2017).

Some species of tropical seaweeds have been revealed as promising sources of SPs displaying in vitro TG inhibition/activation. SPs isolated from the Phaeophyceae Ecklonia kurome (Nishino, Fukuda, Nagumo, Fujihara, & Kaji, 1999) and from the Rhodophyceae Botryocladia occidentalis (Glauser et al., 2009), Acanthophora muscoides (Rodrigues et al., 2016b) and Gracilaria birdiae (Rodrigues et al., 2017a) revealed as modulators of TG by blocking both blood coagulation pathways. Contrasting result was found for the SP isolated from the brown seaweed Fucus vesiculosus that acted as activator of TG by tissue factor pathway using calibrated automated thrombography (Zhang et al., 2014). However, studies on the biological role of the SPs isolated from the Chlorophyta species on in vitro TG inhibition assays are lacking in the literature (Rodrigues et al., 2017b; Rodrigues, Benevides, Tovar, & Mourão, 2017c; Rodrigues et al., 2018).

Species of the algal order Ulvales (Chlorophyta) usually overgrow as "green tides" in eutrophicated coastal waters, causing ecological and economical problems (Fletcher, 1996). Ulva lactuca Linnaeus (known as sea lettuce) represents an available biomass with very low added-value and opportunities to use it have emerged as an alternative source of nutritional components (Tabarsa, Rezaei, Ramezanpour, & Waaland, 2012) and ulvan-type SP consisting of rhamnose, xylose, glucose and uronic acid (Shanmugam, Ramavat, Mody, Oza, & Tewari, 2001; Siddhanta, Goswami, Ramavat, Mody, & Mairh, 2001; Wang et al., 2014; Yaich et al., 2014). This SP has shown as a natural protector against experimentally-induced renal toxicity in rats (Mahmoud & Hussein, 2014; Sathivel, Balavinayagamani, Rao, & Devaki, 2014), besides of surfactant (Tian, Yin, Zeng, Zhu, & Chen, 2015) and analgesic/anti-inflammatory agent devoid of systemic damage in mice (Araújo et al., 2016). On this ulvan polysaccharide opens a versatility of potential applications in different fields as a novel renewable biomaterial to be explored extensively regarding its chemical/functional nature (Lahaye & Robic, 2007; Li et al., 2018; Wang et al., 2014).

The scope of the present study was to analyze the structural features from SPs samples of U. lactuca collected on the coast of Ceará/Brazil using NMR technique and to characterize by agarose/polyacrylamide gels electrophoreses by sequential staining employing toluidine blue and stains-all regarding their physical-chemical properties; also, in vitro assessments were conducted with respect to its SPs on classical coagulation tests (APTT and PT) and TG assay in 60-fold diluted human plasma using a continuous detection system.

Material and methods

Ulva lactuca samples and physical-chemical analyses of their SPs

Specimens of the Chlorophyceae U. lactuva were collected in natural bed from the Northwestern coastline of Brazil (Flecheiras beach, Trairí-Ceará). All the samples were placed in plastic bags and conducted to the Carbohydrates and Lectins laboratory (CarboLec), Universidade Federal do Ceará. After collection, the material was cleaned and removed from macroscopic epiphytes, followed by washing with distilled water and stored at -20°C until further use (Araújo et al., 2016). A voucher specimen (#4978) was deposited in the Herbarium Prisco Bezerra of the Department of Biological Sciences, Universidade Federal do Ceará, Brazil. The experimental analyses of the U. lactuca SPs were performed at the Connective Tissue laboratory, Universidade Federal do Rio de Janero (UFRJ), Brazil.

A five grams sample of dehydrated algal tissue was cut into small pieces and subjected to papain digestion (60°C, 24 hours) in 100 mM sodium acetate buffer (pH 5.0) containing cysteine and EDTA (both 5 mM) (all Sigma Aldrich). Percent yield (%) was determined as based on the dehydrated weight of the algae obtained for papain extraction (Araújo et al., 2016). Crude SP extract (20 mg) was dissolved in 10 mL of 50 mM sodium acetate buffer (pH 5.0) and applied to a DEAE-cellulose column (1.2 × 12 cm) equilibrated with the same buffer (all Sigma Aldrich).

Fractionation was conducted using a stepwise of NaCl from 0 to 1.5 M NaCl in the same buffer, with intervals of 0.25 M between each concentration. Fractions of 2.5 mL were collected and analyzed for SPs using the metachromasy assay (A_{525 nm}) containing dimethymethylene blue (Sigma Aldrich) with an Amersham Bioscience Ultrospec 3100 spectrophotometer at 525 nm (Farndale, Buttle, & Barrett, 1986). Extract and fractions Ul-SP1 and Ul-SP2 (eluted with 0.5 and 0.75 M NaCl, respectively) were examined for their contents of sulfate (Dodgson & Price, 1962), total sugars (Dubois, Gilles, Hamilton, Rebers, & Smith, 1956) and proteins (Bradford, 1976) according to the respective quantitative assays. SPs present in extract and fractions were checked by 0.5% agarose gel electrophoresis procedure (Dietrich & Dietrich, 1976). All these experiments were also conducted as described (Araújo et al., 2016). Next, polyacrylamide gel electrophoresis (6%) was carried out to estimate the molecular size of SPs by comparison with the electrophoretic mobility of standard compounds dextran sulfate (̴ 8 kDa), chondroitin-4-sulfate (̴ 40 kDa) and chondroitin-6-sulfate (̴ 60 kDa) (all Sigma Aldrich) (Rodrigues et al., 2013; Rodrigues et al., 2017a). After electrophoretic experiments, both gels were subjected to sequential staining with toluidine blue and stains-all (both Sigma Aldrich) to reveal nonSPs from the polymer samples (Volpi & Maccari, 2002; Rodrigues et al., 2017a; Rodrigues et al., 2017b; Rodrigues et al., 2017c).

Structural analysis by NMR spectroscopy

¹H and ¹³C, one-dimensional and two-dimensional spectra, of the crude SP extract (U. lactuca) was recorded using a Bruker DRX 600 MHz apparatus with a triple resonance probe. About 5 mg sample were dissolved in 0.6 mL of 99.9% deuterium oxide (Cambridge Isotope Laboratory, Cambridge, MA). All spectra were recorded at 25ºC with HOD suppression by presaturation. 1D ¹H-NMR spectrum was recorded with 32768 points and 8 scans and inter-scan delay set to 1 s (Tian et al., 2015; Rodrigues et al., 2014). Regarding the two dimension NMR experiment, the ¹H/¹³C edited-HSQC spectrum (64 scans, 1024 × 512 points) was run and globally optimized alternating phase rectangular pulses (GARP) for decoupling (Quinderé et al., 2014). Chemical shifts are displayed relative to external trimethylsilylpropionic acid at 0 ppm for ¹H and relative to methanol for ¹³C. All spectra were processed using the SpinWorks 3.1.8 software package (Quinderé et al., 2014; Rodrigues et al., 2016a).

In vitro experimental coagulation models

Blood samples

Coagulation analyses were conducted using venous blood samples collected in citrated vacutainer tubes containing 3.2% sodium citrate from 10 different donors (University Hospital Clementino Fraga Filho, UFRJ), followed by centrifugation (2000 × g, 15 min.) prior to tests. Normal citrated human plasma aliquots of 1 mL were frozen and stored at - 70°C until use (Rodrigues et al., 2017a).

APTT and PT assays

Fractions were assessed by both in vitro APTT and PT tests based on manufacturers’ specifications, for measuring anti-clotting effect in a coagulometer Amelung KC4A before the in vitro TG assay. For APTT assay, a mixture of 100 μL of plasma and concentration of SPs (1 mg mL^-1) was incubated with 100 μL of APTT reagent (kaolin bovine phospholipid reagent) (Sigma Aldrich). After 2 min of incubation at 37°C, 100 μL of 25 mM CaCl₂ was added to the mixtures, and the clotting time was recorded. Regarding the PT assay, a mixture of 100 μL plasma and concentration of SPs (1 mg mL^-1) was incubated at 37°C for 1 min. After that, 100 μL of PT reagent (Sigma Aldrich) were added to the mixtures, and the clotting time was recorded using the same coagulation equipment. UHEP from the National Institute for Biological Standards and Control, Potters Bar, Hertfordshire, UK (193 international units per mg (IU mg^-1) of polysaccharide) was used as the standard in both tests. Data were expressed as mean ± S.E.M. (n = 3).

TG assay in 60-fold diluted human plasma

This assay was performed in a microplate format as described (Rodrigues et al., 2016b). For this, microplate containing: 10 µL cephalin (contact-activator system) or thromboplastin (830 µg well-plate^-1, factor tissue-activator system) + 30 µL 0.02 M Tris HCl/PEG-buffer (pH 7.4) + 10 μL SPs (U. lactuca fractions: 0, 4.1, 8.3, 41.6 or 83.3 µg well-plate^-1 or UHEP: 2 or 4 µg well-plate^-1) + 60 μL 20 mM CaCl₂ and 0.33 mM chromogenic substrate S2238 (10:50 ratio, v/v), was used. The in vitro reaction was triggered at 37°C by addition of diluted plasma (10 μL), and the absorbance (405 nm) was continually recorded for 60 min. (Molecular Devices, Menlo Park, CA, USA). The inhibitory response of TG by SPs was determined by lag phase, peak thrombin (PTh) and/or time to peak (TPeak). Graphics were processed using Statistical Analysis Software version 8.0 Origin Program.

Results and discussion

Wall matrix SPs from the green seaweed Ulva lactuca (popularly known as sea lettuce) were extracted with papain to examine their structure, and then fractionated by DEAE-cellulose anion-exchange chromatography to analyze their physical-chemical features and in vitro effects on the coagulation.

The yield of crude SP (13.13%) was about 5.95-fold higher than that of the overall extract (2.21%) from the same algal species, applying the papain method (Araújo et al., 2016). This comparative examination of the total yield with a previous investigation also reflected highest levels of 20.43 and 65.72% for sulfate and total sugars, respectively, from the analytical assays of the samples, and could be the result of the drying (60°C, 24 hours) for obtaining crude SP extracted from the dehydrated raw biomass in comparison with the lyophilization procedure employed by Araújo et al. (2016), who previously examined the U. lactuca crude SP extract composition (15.10% sulfate and 54.72% total sugars).

Studies on the algal order Ulvales demonstrated variability for sulfate (12-26.8%) and yield (3.04-29%) using different protocols (Siddhanta et al., 2011; Yaich et al., 2014; Wang et al., 2014; Tian et al., 2015). Such variations could also be determined by algae collected from different regions and ecophysiological growth conditions (Cardozo et al., 2007; Wang et al., 2014;Rodrigues et al., 2016aand 2017a), as already reported for SPs from Ulva species (Siddhanta et al., 2001).

Carbohydrates-bound matrix' proteins (like glycoproteins) (Wang et al., 2014) were removed by protease treatment (Rodrigues et al., 2011; Araújo et al., 2016) as an essential step to commercially-important biomaterial production (Cardozo et al., 2007). This was important because species of the genus Ulva Linnaeus contain high protein levels (17-33%) (Siddhanta et al., 2001; Tabarsa et al., 2012; Wang et al., 2014).

NMR analyses reveal characteristics of ulvan

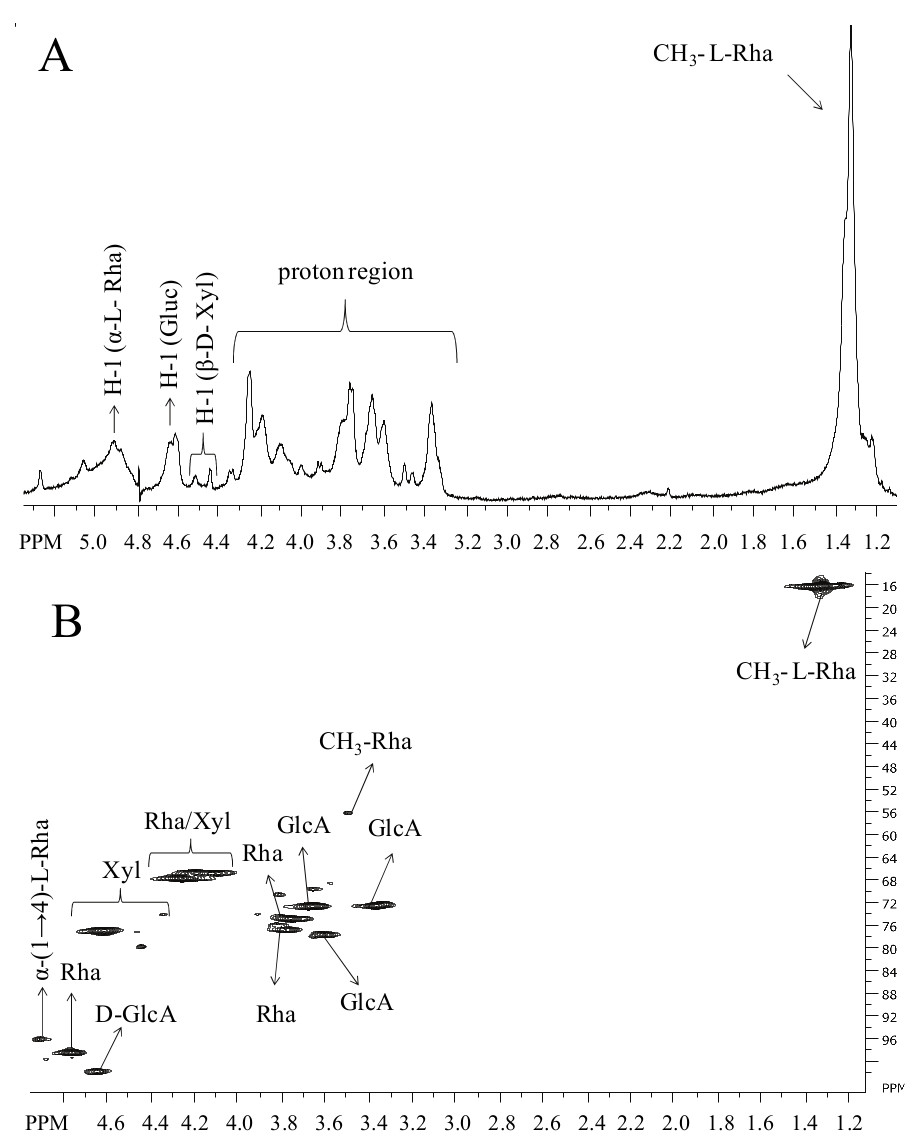

The structural nature of the U. lactuca crude SPs extract was further investigated by NMR (both 1D ¹H and 2D ¹H-¹³C edited-HSQC experiments) (Quinderé et al., 2014) and the spectra of raw sample were recorded in D₂O solution at 25°C (Figure 1) (Tian et al., 2015) to offer information on the native molecule with other studies (Cardozo et al., 2007; Rodrigues et al., 2014; Wang et al., 2014). ¹H NMR spectrum revealed some unresolved resonance peaks at spectral window of expansion δ_H 5.4-1.3 ppm (Quinderé et al., 2014; Rodrigues et al., 2014) since heterogeneous composition (Figure 1A) is typical for SPs from seaweeds (Pomin & Mourão, 2008; Mourão, 2015; Rodrigues et al., 2016a).

Signals of anomeric H-1 suggested both α-type and β-type glycosidic bonds as also recorded in the spectrum for a crude SP from U. lactuca, when obtained by ultrasonic-assisted extraction (Tian et al., 2015). Low-field signals (δH > 5) in the ¹H NMR spectrum of the glycan confirmed the presence of α-pyranoses (Tian et al., 2015) of the protons directly linked to carbons involved in glycosidic linkages (Pomin & Mourão, 2008; Rodrigues et al., 2014; Wang et al., 2014). The chemical shift at δH 5.23 and 5.05 ppm revealed minor amounts of α-rhamnopyranosil units and possibly starch (Li et al., 2012), and at δH 4.92 ppm indicated C-1 of α-L-rhamnose (α-L-Rha) (Tian et al., 2015). Notably, β-D-xylose (β-D-Xyl) (at δH 4.42-4.55 ppm) linked to C-1/C-2 and glucose (Gluc) (at δH 4.66 ppm) appeared as considerably highest identities than those spectral values observed previously for these sugar residues co-extracted with native polymer (Tian et al., 2015).

Our observations could support the high content of total sugars prior measured these respective residues making part of the same molecule (Rodrigues et al., 2014) since enzymes help to obtain highest sugar yield and contents (Athukorala et al., 2006). Siddhanta et al. (2001) examined crude SPs extracts from Ulva species, when obtained by cold and hot water procedures. Those extracted with cold water showed to be enriched with high levels of hexose sugars, whereas the hot water extracts were rich in Rha, Xly and Gluc as parts of the structural polysaccharide. By contrast, this question deserve to be better analyzed because the Dubois, Gilles, Hamilton, Rebers, & Smith (1956)’ method measures small chains of polysaccharides.

Anomeric signals located at the high-field region ranging from δH ̴ 3.35 to 4.26 ppm could correspond to protons of the C-2˗C-5 of sugar residues; of uronic acid at δH ̴ 3.70 (COO-); and peaks assigned to δH ̴ 4.5 to 4.8 ppm would be of sulfated sugar residues and/or of uronic acid in polymeric blocks (Rodrigues et al., 2014; Wang et al., 2014). The spectral datum attributable to methyl of L-Rha was recorded at δH 1.33 ppm (Rodrigues et al., 2014; Tian et al., 2015).

Analysis by 2D ¹H-¹³C edited-HSQC of the U. lactuca crude SP allowed to assign spin systems (δ_H/C 5.4-1.3/106-16 ppm) (Quinderé et al., 2014; Rodrigues et al., 2016a) and some rhamnose, xylose, glucose and glucuronic acid residues were tentatively identified (Figure 1B), as also previously demonstrated from the 1H NMR analysis (Figure 1A). The spectrum revealed at δH/C 4.66/101.0 and 5.12/94.2 ppm resonances to the C-1 of D-glucuronic acid (GlcA) and α-(1→4)-L-Rha), respectively (Tian et al., 2015). β-Gluc residue could also occur on GlcA signal; therefore, in the amorphous cellulose co-extracted with polymer (Wang et al., 2014). GlucA (at δ_H/C 3.69/77.6 and 3.38/72.6 ppm assigned to the C-4 and C-2,3, respectively) and Rha/Xyl (at δ_H/C 3.78/76.0, 4-4.4/66-68.0 and 4.3-4.7/73-77.0 ppm) were also identified, except for Xyl to C-5 that did not appear in the complex spectrum contrasting with the study of Tian et al. (2015), but characteristic values of C-6 of Rha (Li et al., 2012;Rodrigues et al., 2014) and CH3-Rha (Li et al., 2012) were recorded (at δ_H/C 1.33/15.60 and 3.6/56.1 ppm, respectively). Sugar residues not assigned here were derived from Xyl and Gluc (Tian et al., 2015). Ulvan is formed of aldobiouronic acid and 4-O-α-D-glucuronosyl-L-Rha (Lahaye & Robic, 2007; Wang et al., 2014).

Collectively, our findings supported ulvan as characterized by infrared analysis from a more recent study (Araújo et al., 2016). On the basis of these comparative structural analyses, the current investigation suggested that the use of papain to obtain polysaccharides from the Brazilian samples of U. lactuca could also be useful as a bioprospecting strategy during comparison with others studies (Rodrigues et al., 2014; Rodrigues et al., 2016a).

Electrophoretic analyses reveal physical-chemical homogeneity of complex glycans

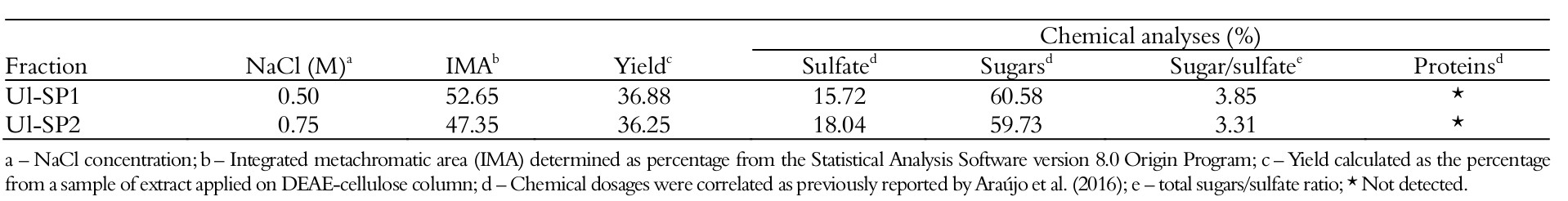

The profile of DEAE-cellulose anion-exchange chromatography of the crude SP confirmed the separation into two SPs fractions (Ul-SP1 and Ul-SP2) at 0.50 and 0.75 M NaCl, respectively (Figure 2A), as documented by Araújo et al. (2016), who formerly reported U. lactuca cell wall SPs isolation.

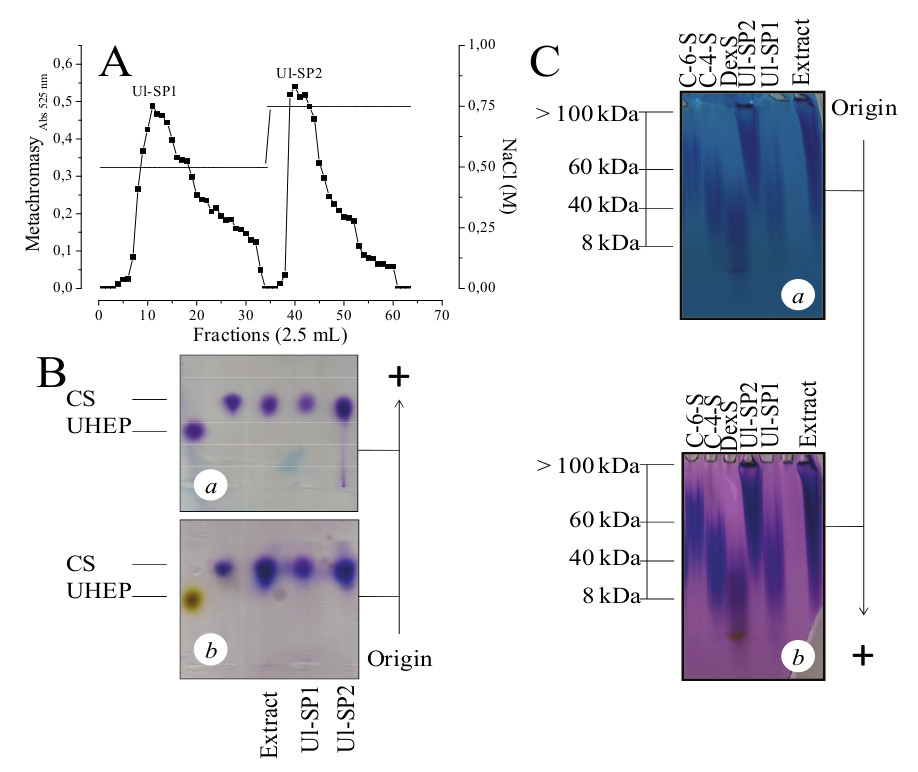

However, as observed in Figure 1A, DEAE-cellulose column-bound SPs were eluted with increasing molarity of NaCl and produced similar metachromasy between fractions, accounting the material recovered from the column almost equal between them, as also supported by their respective integrated metachromatic areas (IMAs) estimated from the chromatogram (Table 1). Siddhanta et al. (2001) extracted SPs from U. lactuca by cold and hot water and noted an important difference in the number of fractions eluted with NaCl on DEAE-cellulose column.

Total fraction yield was about 6.8-fold greater than that obtained for this same algal species (Araújo et al., 2016). Similar tendency of the fractions in this study was noted for their high contents of both sulfate (15.72 and 18.04%) and total sugars (60.58 and 59.73%) and no protein contamination from the analyzed polymer samples. This compositional profile also showed to be distinct than that found by Araújo et al. (2016), who revealed 0.75 M NaCl fraction (Ul-SP2) with levels of 9.73- and 1.75-fold higher for sulfate and total sugars, respectively, than 0.5 M NaCl fraction (Ul-SP1); therefore, heterogeneous composition of the SPs as commonly isolated from seaweeds (Athukorala et al., 2006; Pomin & Mourão, 2008; Wang et al., 2014) and/or when different methods are used, when using various algal species (Siddhanta et al., 2001).

The physical-chemical characteristics of the SPs from U. lactuca were further analyzed by two electrophoretic techniques. For agarose gel analysis (Figure 2Ba), extract and fractions exhibited single, homogeneous and coincident metachromasy bands co-migrating as CS, but not as UHEP, suggesting SPs with same structural conformation and total sugars/sulfate ratio (Table 1) based on their interactions with the diamine (Dietrich & Dietrich, 1976) that showed similar eletrophoretic mobilities on gel, after toluidine blue treatment (Volpi & Maccari, 2002; Fidelis et al., 2014; Rodrigues et al., 2016a; Salles et al., 2017). This presumed certain regularity on their chains of ordered helical conformation of the U. lactuca SPs as described, but more refined studies are required (Wang et al., 2014; Yaich et al., 2014). Previous report from Araújo et al. (2016) described polydispersive SPs using the same procedure. On this view, results postulated that U. lactuca could perhaps biochemically change its matrix polysaccharide composition based on collection period (Cardozo et al., 2007; Wang et al., 2014; Rodrigues et al., 2016a).

The molecular distribution of the SPs from U. lactuca was clearly determined by stepwise of NaCl (DEAE-cellulose). The characterization by polyacrylamide gel analysis evidenced 0.5 M NaCl fraction (Ul-SP1) of low molecular weights SPs as C-4-S (ca. 40 kDa) (Figure 2Ca) and similar to a SPs subfraction obtained from Caulerpa cupressoides (Chlorophyta) (Rodrigues et al., 2013), while a wide dispersion in the molecular masses (> 100 kDa) was noted for extract and fraction Ul-SP2 (0.75 M NaCl) as usually described for SPs from seaweeds (Pomin, 2012; Fidelis et al., 2014; Rodrigues et al., 2016aand 2017a). Ulvales contains two major SPs populations (500-800 kDa and 150-200 kDa) (Wang et al., 2014). However, our observations did not support Yaich et al. (2014), who previously reported that enzymatic extraction does not induce a decrease in the molecular size of the SPs from U. lactuca in comparison with the acid extraction (HCl, pH 1.5, 90°C); therefore, without impacting on the structure of the algal SPs. More refined studies using chromatographic methods are needed (Yaich et al., 2014; Mourão, 2015), since similar polyanionic characters between fractions were visualized (Figure 2Ba).

Although SPs were detected in extract and fractions by treatment with toluidine blue (Figure 2Ba), our investigations were also conducted to more precisely examine all the SPs preparations, when associated with the use of stains-all, to improve the sensitivity of the complex glycans (Figure 2Bb). This combined strategy resulted not only in a strong increase of the staining for standards and samples (especially fraction Ul-SP1) similar to sulfated glycosaminoglycans from animal tissues (Volpi & Maccari, 2002), but also suggesting the presence of non-sulfated sugar residues from the examined material (Rodrigues et al., 2017a, b and c), reinforcing the solution NMR experiments which revealed acidic sugars residues, such as GlcA (Figure 1), a highly conserved structural identity in Ulvaceae (Wang et al., 2014; Tian et al., 2015). Rodrigues et al. (2016) isolated and compared three crude SPs extracts obtained from the red seaweed Acanthophora muscoides. Procedures of agarose gel electrophoresis and NMR revealed charge density and structural homogeneities, respectively, of sulfated glycans extracted along the algal extracellular matrix.

In this study, such interpretations were also extended to the SPs stained with toluidine blue and stains-all from the polyacrylamide gel analysis (Figure 2Cb) (Rodrigues et al., 2017), as observed for glycosaminoglycans (Andrade, Oliveira, Tovar, Mourãos, & Vilanova, 2017). On this basis, it was also hypothesized that the elimination of minerals (like cadmium and calcium ions) associated with the algal matrix by means of protease extraction could perhaps affect the molecular weight of the U. lactuca SPs or only deducing their molecular nature, when obtained by papain protocol, as reported in Ulvales (Wang et al., 2014; Yaich et al., 2014). Further studies should be conducted to clarify this supposition (Siddhanta et al., 2001; Wang et al., 2014).

Overall, these approaches would allow to analyze the course of extraction of matrix polysaccharides for the quality control (Volpi & Maccari, 2002; Salles et al., 2017), at least on initial level (Andrade, Oliveira, Tovar, Mourãos, & Vilanova, 2017), of complex carbohydrates-based products (Cardozo et al., 2007;Wang et al., 2014) in the detection of polymeric contaminants, as already reported for sulfated glycans from animals (Volpi & Maccari, 2002; Salles et al., 2017).

Anticoagulant-active U. lactuca SPs are displayed on TG model compared with the APTT and PT tests

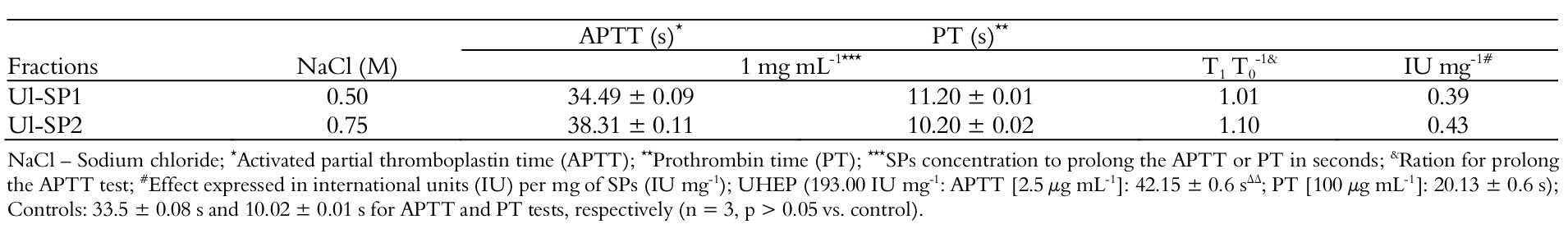

Evaluation of the U. lactuca SPs on both APTT and PT classical coagulation tests is shown in table 2, and their possible in vitro effects were compared with UHEP (193 IU mg-1, 14 kDa) as plasma anticoagulant (Shanmugam et al., 2001).

Human plasma treated with the fractions (1 mg mL^-1) discreetly delayed (0.39-0.43 IU) the normal APPT (33.5 ± 0.08 s), but did not affect the PT; therefore, without displaying both intrinsic/extrinsic pathway factor inhibitions (Rodrigues et al., 2016a; Rodrigues et al., 2017). UHEP still extended the coagulation at 2.5 (42.15 ± 0.6 s) and 100 µg mL-1 (20.13 ± 0.6 s) using APTT and PT assays, respectively.

These preliminary results on the coagulation were consistent with those found by Shanmugam et al. (2001), who noticed uronic acid-rich low molecular masses SPs (U. lactuca) devoid of anticoagulation according to both APTT and PT models. In fact, the presence of acid sugar residues revealed by NMR analysis in the U. lactuca SPs composition (Figure 1) had no impact on the routine clotting assays, although soluble SPs extracted with papain and highly charged fractions (Table 1 and Figure 2A). Athukorala et al. (2006) obtained an enzymatic hydrolysate containing SPs from the brown seaweed Ecklonia cava and found strong anticoagulation dependently of their high degree of sulfation in detriment to low uronic acid content. Structural variability of the seaweeds SPs may reveal different anticoagulant mechanisms making analogies with that of UHEP (Pomin, 2012; Fidelis et al., 2014; Quinderé et al., 2014), which has thrombin inactivation by AT (Pomin & Mourão, 2008; Pomin, 2012; Mourão, 2015).

The limited values proved by classical coagulation models on the amount of thrombin generated (Castoldi & Rosing, 2011; Duarte et al., 2017) to measure plasma anticoagulants (Table 2) (Jung et al., 2014; Rodrigues et al., 2017a; Rodrigues et al., 2017c) led us to further evaluate possible effects of SPs from U. lactuca on an in vitro TG system. In this assay, different concentrations (4.1, 8.3, 41.6 and 83.3 µg well-plate-1) (Rodrigues et al., 2016b; Rodrigues et al., 2017a; Rodrigues et al., 2017b; Rodrigues et al., 2017c; Rodrigues et al., 2018) of both fractions Ul-SP1 and Ul-SP2 added to 60-fold diluted human plasma attenuated TG in contact-activated system (intrinsic pathway) and thromboplastin-activated system (extrinsic pathway) (Nishino et al., 1999; Glauser et al., 2009), when the amidolytic activity of thrombin was continually measured at 37°C for 60 min., using in parallel UHEP as standard anticoagulant. No activator response of TG in plasma in the absence of cephalin or thromboplastin (negative controls) was observed in vitro for 60 min. (Rodrigues et al., 2016b; Salles et al., 2017; Rodrigues et al.,2018) (Figure 3).

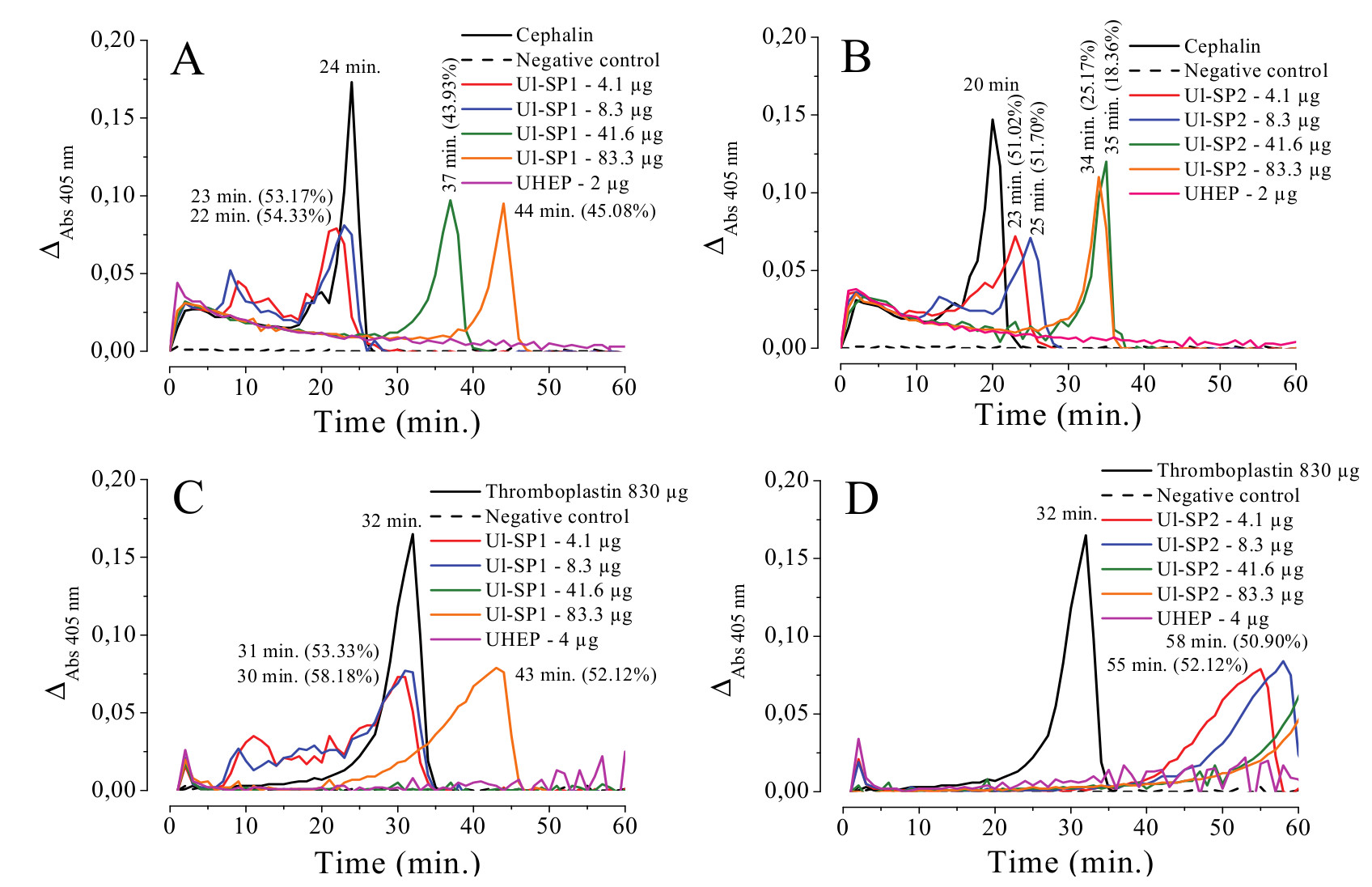

Interestingly, under the conditions of our study, increasing concentrations of the SPs fractions samples of U. lactuca decreased the in vitro anticoagulant response on TG induced by cephalin vs. control without SPs (Figures 3A and B). Ul-SP1 and Ul-SP2 at 4.1 and 8.3 µg well-plate-1 more drastically attenuated TG as analyzed by the PTh and TPeak parameters, inducing more than 50% inhibition of PTh (51.02 →54.33%) compared with the positive control (TPeak: 20 and 24 min.), whereas the lag phase time (14→17 min.) remained almost unchanged. The required amount of the algal SPs was at least 4.15-fold greater than UHEP, which abolished TG at 2 µg well-plate-1 (Rodrigues et al., 2016b) as a result of its AT-dependent specific mechanism absence to others SPs-rich marine organisms (Glauser et al., 2009; Pomin, 2012; Mourão, 2015).

TG in diluted plasma treated with 41.6 and 83.3 µg well-plate-1 of the samples only inhibited the intrinsic system by 18.36→45.08% (PTh) (Figures 3A and B). This also indicated that the U. lactuca SPs increased the PTh as a suggestion of plasma hypercoagulability in vitro (Zhang et al., 2014) as demonstrated by direct thrombin inhibitors (Furufohri & Morshima, 2015) and similar to the in vivo experiments of venous thrombosis, in which algae SPs stimulated prothrombotic actions in rats (Rodrigues et al., 2011; Pomin, 2012; Quinderé et al., 2014) due to activation of factor XII involved in physiological formation of bradykinin, a vasoactive amine (Mourão, 2015). These observations could be connected with the analgesic and anti-inflammatory profiles on bradykinin pathway of Ul-SP2 (Araújo et al., 2016) and structure-function relationships deserve to be further examined (Pomin, 2012). Herein, SPs from U. lactuca also prolonged lag phase time (26→37 min.) from the controls, possibly predicting risk of bleeding on a prognostic view (Castoldi & Rosing, 2011), but animal studies must be conducted since seaweeds SPs do not manifest extensive bleeding effects based on those effects of UHEP inducing hemorrhage in its administration in rats (Rodrigues et al., 2011; Quinderé et al., 2014; Mourão, 2015).

TG in extrinsic pathway-activated plasma in the presence of the fractions Ul-SP1 and Ul-SP2 to evaluate their anticoagulant potential was also evaluated (Figures 3C and D). The capacity of TG was markedly reduced in plasma treated with low concentrations of the algal SPs (4.1 and 8.3 µg well-plate-1) as verified by the PTh (50.90→58.18% inhibition) and TPeak (30→58 min.) parameters; but, with the lag phase time longer in Ul-SP2 (39 min.) (Figure 3D) (Rodrigues et al., 2017c). No hypercoagulant stimulus at high doses of SPs was recorded for 60 min. based on total inhibition achieved at 83.3 µg well-plate^-1.

In fact, the similar effects of the SPs fractions on the TG response were supported by their respective total sugar and sulfate contents (Table 1), being almost equal with the increasing molarity of the salt eluents, but these combined results were not expected (Araújo et al., 2016). Furthermore, the SPs fractions samples of U. lactuca added in water did not produce viscosity in the presence of chloride calcium to display the coagulation in vitro (Table 2 and Figure 3) since that the gel formation is described as a function of pH, association between borate and free hydroxyl groups of the polysaccharide, as well as the chelation of calcium ion with borate, and sulfation pattern (Wang et al., 2014). The papain would play an important role in the solubility of these polymers in water to experimentation (Araújo et al., 2016).

Seaweeds have various chemical components (Cardozo et al., 2007; Thomas & Kim, 2013), including the possible existence of phenolic compounds as suggested for water extracts containing SPs obtained from the red seaweed Gracilaria fisheri. These findings revealed a positive correlation between the in vitro antioxidant effect and the phenolic compound content (Imjongjairak et al., 2016). However, to the best our knowledge, phenolic compounds have been widely described in higher plant showing antimalarial effect (Gadetskaya et al., 2015).

Although some phenolic compounds may influence the thrombin response (Bijak et al., 2014), it is still very premature to infer effects of these compounds derived from seaweeds on the TG system because no studies have also been done. Furthermore, the use of the papain method as mentioned above results in purity and enhanced yield of biologically active SPs for biotechnology (Athukorala et al., 2006; Mourão, 2015; Araújo et al., 2016) displaying in vitro TG inhibition (Glauser et al., 2009; Rodrigues et al., 2016b; Rodrigues et al., 2017a; Rodrigues et al., 2017b; Rodrigues et al., 2017c). The structural features revealed by NMR analysis supported the presence of ulvan-type polysaccharide in the crude SP extract (Figure 1) (Lahaye & Robic, 2007; Wang et al., 2014).

Therefore, it was observed in the present study that the U. lactuca SPs displayed their inhibitory effects more in the extrinsic pathway than in the intrinsic one, as an opposite behavior compared with a fucoidan isolated from the brown seaweed Ecklonia kurome (Nishino et al., 1999); and for the SPs isolated from the Rhodophyta Gracilaria birdiae (Rodrigues et al., 2017a); and Chlorophyta Caulerpa racemosa (Rodrigues et al., 2017c); besides of skin of Nile tilapia Oreochromis niloticus (Salles et al., 2017) on the basis of TG parameters and intrinsic inhibitory efficacy by UHEP at 2-fold higher. This peculiar role of the U. lactuca SPs fractions corroborated as activators of the intrinsic coagulation at high concentrations because UHEP only acted as a potent inhibitor of the coagulation in vitro (Figures 3A and B) (Mourão, 2015). Collectively, our results seemed to be of practical use because in vivo models of thrombosis in experimental animals are always a laborious assay (Pomin & Mourão, 2008; Mourão, 2015), although TG in vitro no reflecting the physiological environment (Pomin & Mourão, 2008).

Overall, SPs from U. lactuca had no actions on the classical coagulation models (Table 2), but were clearly apparent using in vitro TG assay (Figure 3) (Castoldi & Rosing, 2011; Zhang et al., 2014; Rodrigues et al., 2016b; Salles et al., 2017). The degree of inactivation on TG by algal SPs excluded a positive correlation of sulfation and molecular size (Figure 2) on these biological processes, and seemed by dependence on their stereospecific features, as also suggested for other SPs from seaweeds (Rodrigues et al., 2016b; Rodrigues et al., 2017a). SPs from seaweeds have various bioactivities (Cardozo et al., 2007; Rodrigues et al., 2012; Wang et al., 2014) and have traditionally been used in food products as thickening and gelling agents for hydrocolloid industry worldwide (Cardozo et al., 2007; Wang et al., 2014), and recently in diets for hens (Li et al., 2018). Excessive consumption of U. lactuca as raw or semi-processed material could perhaps lead to physiological reactions associated with thrombosis and bioavailability studies regarding dietary fibers have yet been scarce (Wang et al., 2014).

Regarding U. lactuca food safety, elucidation of molecular mechanisms behind the biological effects on the coagulation in vitro (Pomin, 2012; Mourão, 2015) is still needed as a critical step to antithrombotic drug formulation (Zavyalova & Kopylov, 2016).

Conclusion

The green seaweed Ulva lactuca contains ulvan-type polysulfated polysaccharides with low molecular sizes (ca. 40 and > 100 kDa) and non-sulfated glycans with experimental thrombosis inhibition by both intrinsic and extrinsic pathways independently of charge and molecular size, when in 60-fold diluted human plasma using continuous method of thrombin generation in vitro, but with lower efficacies than heparin. Low amounts reveal as potent inhibitors of contact-activated thrombin generation, whereas a tendency of plasma hypercoagulability is manifested with increasing concentrations, arousing the attention of their physiological risks linked to thrombosis.

Acknowledgements

We would like to thank CNPq (Conselho Nacional de Desenvolvimento Científico e Tecnológico, Brasília, DF, Brazil), Capes/PNPD (Coordenação de Aperfeiçoamento de Pessoal de Nível Superior, Brasília, DF, Brazil) and Faperj (Fundação de Amparo à Pesquisa do Estado do Rio de Janeiro, Rio de Janeiro, RJ, Brazil) for providing scholarship and financial support. Benevides, N. M. B. and Mourão, P. A. S. are senior investigators of CNPq/Brazil.

References

Araújo, I. W. F., Rodrigues, J. A. G., Quinderé, A. L. G., Silva, J. F. T., Maciel, G. F., Ribeiro, N. A., ... Benevides, N. M. B. (2016). Analgesic and anti-inflammatory actions on bradykinin route of a polysulfated fraction from alga Ulva lactuca. International Journal of Biological Macromolecules, 92(1), 820-830. doi: 10.1016/j.ijbiomac.2016.07.094

Andrade, J. P. S., Oliveira, C. P., Tovar, A. M. F., Mourão, P. A. S., & Vilanova, E. (2017). A color-code for glycosaminoglycans identification by means of polyacrylamide gel eletroforesis stained with the cationic carbocyanine dye Stains-all. Electrophoresis, 39(4), 666-669. doi: 10.1002/elps.201700391

Athukorala,Y., Jung, W. K., Vasanthan, T., & Jeon, Y. J. (2006). An anticoagulative polysaccharide from an enzymatic hydrolysate of Ecklonia cava. Carbohydrate Polymers, 66(2), 184-191. doi: 10.1016/j.carbpol.2006. 03.002

Bijak, M., Ziewiecki, R., Saluk, J., Ponczek, M., Pawlaczvk, I., Krotkiewski, H., ... Nowak, P. (2014). Thrombin inhibitory activity of some polyphenolic compounds. Medical Chemical Research, 23(5), 2324-2337. doi: 10.1007/s00044-013-0829-4

Bradford, M. M. (1976). A rapid and sensitive method for the quantification of microgram quantities of protein utilizing the principle of protein-dye binding. Analytical Biochemistry, 72(1-2), 248-254. doi: 10.1016/ 0003-2697(76)90527-3

Cardozo, K. H. M., Guaratini, T., Barros, M. P., Falcão, V. R., Tonon, A. P., Lopes, N. P., ... Pinto, E. (2007). Metabolites from algae with economical impact. Comparative Biochemistry and Physiology - Part C, 146(1-2), 60-78. doi: 10.1016/j.cbpc.2006.05.007

Castoldi, E, & Rosing J. (2011). Thrombin generation tests. Thrombosis Research, 127(suppl.3), S21-S25. doi: 10.1016/S0049-3848(11)70007-X

Dietrich, C. P., & Dietrich, S. M. C. (1976). Electrophoretic behaviour of acidic mucopolysaccharides in diamine buffers. Analytical Biochemistry, 70(2), 645-647. doi: 10.10 16/0003-2697(76)90496-6

Dodgson, K. S., & Price, R. G. (1962). A note on the determination of the ester sulfate content of sulfated polysaccharides. Biochemistry Journal, 84(1), 106-110. doi: 10.1042/bj0840106

Duarte, R. C. F., Ferreira, C. N., Rios, D. R. A., Reis, H. J., & Carvalho, M. G. (2017). Thrombin generation assays for global evaluation of the hemostatic system: perspectives and limitations. Brazilian Journal of Hematology and Hemotherapy, 39(3), 259-265. doi: 10.1016/j.bjhh.2017.03.009

Dubois, M., Gilles, K. A., Hamilton, J. K., Rebers, P. A., & Smith, F. (1956). Colorimetric method for determination of sugars and related substances. Analytical Chemistry, 28(3), 350-356. doi: 10.1021/ac601 11a017

Farndale, R. W., Buttle, D. J., & Barrett, A. J. (1986). Improved quantitation and discrimination of sulphated glycosaminoglycans by use of dimethylmethylene blue. Biochimica et Biophysica Acta, 883(2), 173-177. doi: 10.1016/0304-4165(86)90306-5

Fidelis, G. P., Camara, R. B. G., Queiroz, M. F., Costa, M. S. S. P., Santos, P. C., Rocha, H. A. O., ... Costa, L. S. (2014). Proteolysis, NaOH and ultrasound-enhanced extraction of anticoagulant and antioxidant sulfated polysaccharides from the edible seaweed, Gracilaria birdiae. Molecules, 19(11), 18511-18526. doi: 10.3390/molecules191118511

Fletcher, R. L. (1996). Recent changes and the effects of eutrophication. In: W. Schramm, & P. H. Nienhuis (Eds.), Marine benthic vegetation (p. 7-43). Berlin, GER: Springer.

Furufohri, T., & Morshima, Y. (2015). Paradoxical enhancement of the intrinsic pathway-induced thrombin generation in human plama by melagatran, a direct thrombin inhibitor, but edoxaban, a direct factor Xa inhibitor, or heparin. Thrombosis Research, 136(3), 658-662. doi: 10.1016/j.thromres.2015.06.034

Gadetskaya, A. V., Tarawneh, A. H., Zhusupova, G. E., Cantreli, C. L., Cutler, S. J., & Ross, S. A. (2015). Sulfated phenolic compounds from Limonium caspium: Isolation, structural elucidation, and biological evaluation. Fitoterapia, 104(1), 80-85. doi: 10.1016/j.fitote.2015.05.017

Glauser, B. F., Rezende, R. M., Melo, F. R., Pereira, M. S., Fransischetti, I. M. B., Monteiro, R. Q., ... Mourão, P. A. S. (2009). Anticoagulant activity of a sulfated: Serpin-independent effect and specific interaction with factor Xa. Thrombosis and Haemostasis, 102(6), 1183-1193. doi: 10.1160/TH09-04-0273

Imjongjairak, S., Ratanakhanokchai, K., Laohakunjit, N., Tachaapaikoon, C., Pason, P., & Waeonukul, R. (2016). Biochemical characteristics and antioxidant activity of crude and purified sulfated polysaccharides from Gracilaria fisheri. Bioscience, Biotechnology, and Biochemistry, 80(3), 524-532. doi: 10.1080/09168451. 2015.1101334

Jung, W., Ru, Z. H., Ying, Z. H., Ling, G. Y., Shuang, Q., Jie, Z., ... Song, L. S. (2014). Thrombin generation increasing with age and decreasing with use of heparin indicated by calibrated automated thrombogram conducted in Chinese. Biomedical and Environmental Sciences, 27(5), 378384. doi: 10.3967/bes2014.063

Lahaye, M. & Robic, A. (2007). Structure and functional properties of ulvan, a polysaccharide from green seaweeds. Biomacromolecules, 8(6), 1765-1774. doi: 10. 1021/bm061185q

Li, H., Mao, W., Chen, Y., Ren, S., Qi, X., Chen, Y., … Shan, J. (2012). Sequence analysis of the sulfated rhamno-oligosaccharides derived from a sulfated rhamnan. Carbohydrate Polymers, 90(3), 1299-1304

Li, Q., Luo, J., Wang, C., Tai, W., Wang, H., Zhang, X., … He, H. (2018). Ulvan extracted from green seaweeds as new natural additives in diets for laying hens. Journal of Applied Phycology, 30(2), 2017-2027. doi: 10.1007/s10811-017-1365-2

Mahmoud, H. M., & Hussein, U. L. (2014). Protective effect of sulphated polysaccharides and aqueous extract of Ulva lactuca on N-nitrosodiethylamine and phenobarbital induced nephrotoxicity in rats. International Journal of Advanced Research, 2(8), 869-878.

Mourão, P. A. S. (2015). Perspective on the use of sulfated polysaccharides from marine organisms as a source of new antithrombotic drugs. Marine Drugs, 13(5), 2770-2784. doi: 10.3390/md13052770

Nishino, T., Fukuda, A., Nagumo, T., Fujihara, M., & Kaji, E. (1999). Inhibition of the generation of thrombin and factor Xa by a fucoidan from the brown seaweed Ecklonia kurome. Thrombosis Research, 96(1), 37-49. doi: 10.1016/S0049-3848(99)00060-2

Pomin, V. H., & Mourão, P. A. S. (2008). Structure, biology, evolution, and medical importance of sulfated fucans and galactans. Glycobiology, 18(12), 1016-1027. doi: 10.1093/glycob/cwn085

Pomin, V. H. (2012). Fucanomis and galactanomics: Current status in drug discovery, mechanisms of action and role of the well-defined structures. Biochimica et Biophysica Acta, 1820(12), 1971-1979. doi: 10.1016/j.bbagen.2012.08.022

Quinderé, A. L. G., Santos, G. R. C., Oliveira, N. M. C. G., Glauser, B. F., Fontes, B. P., Queiroz, I. N. L., ... Mourão, P. A. S. (2014). Is the antithrombotic effect of sulfated galactans independent of serpins? Journal of Thrombosis and Haemostasis, 12(1), 43-53. doi: 10.1111/ jth.12448

Rodrigues, J. A. G., Torres, V. M., Alencar, D. B., Sampaio, A. H., & Farias, W. R. L. (2009). Extração e atividade anticoagulante dos polissacarídeos sulfatados da alga marinha vermelha Halymenia pseudofloresia. Revista Ciência Agronômica, 40(2), 224-231.

Rodrigues, J. A. G., Queiroz, I. N. L., Quinderé, A. L. G., Vairo, B. C., Mourão, P. A. S., & Benevides, N. M. B. (2011). An antithrombin-dependent sulfated polysaccharide isolated from the green alga Caulerpa cupressoides has in vivo anti- and prothrombotic effects. Ciência Rural, 41(4), 634-639. doi: 10.1590/S0103-84782011000400014

Rodrigues, J. A. G., Vanderlei, E. S. O., Silva, L. M. C. M., Araújo, I. W. F., Queiroz, I. N. L., Paula, G. A., ... Benevides, N. M. B. (2012). Antinociceptive and anti-inflammatory activities of a sulfated polysaccharide isolated from the green seaweed Caulerpa cupressoides. Pharmacological Reports, 64(2), 282-292. doi: 10.1016/ S1734-1140(12)70766-1

Rodrigues, J. A. G., Neto, E. M., Teixeira, L. A. C., Paula, R. C. M., Mourão, P. A. S., & Benevides, N. M. B. (2013). Structural features and inactivation of coagulation proteases of a sulfated polysaccharidic fraction from Caulerpa cupressoides var. lycopodium (Caulerpaceae, Chlorophyta). Acta Scientiarum. Technology, 35(4), 611-619. doi: 10.4025/actascitechnol. v35i4.16709

Rodrigues, J. A. G., Neto, E. M., Santos, G. R. C., Paula, R. C. M.; Mourão, P. A. S., & Benevides, N. M. B. (2014). Structural analysis of a polysaccharidic fraction obtained from the coenocytic green seaweed Caulerpa cupressoides var. lycopodium. Acta Scientiarum. Technology, 36(23), 203-210. doi: 10.4025/actascitechnol.v36 i2.17866

Rodrigues, J. A. G., Queiroz, I. N. L., Quinderé, A. L. G., Benevides, N. M. B., Tovar, A. M. F., & Mourão, P. A. S. (2016a). Extraction and structural properties of Acanthophora muscoides (Rhodophyceae) extracellular matrix sulfated polysaccharides and their effects on coagulation. Acta Science Tehcnology, 38(3), 273-282. doi: 10.4025/actascitechnol.v38i3.26146

Rodrigues, J. A. G., Queiroz, I. N. L., Quinderé, A. L. G., Benevides, N. M. B., Tovar, A. M. F., & Mourão, P. A. S. (2016b). Mild-acid hydrolysis of a native polysulfated fraction from Acanthophora muscoides generates sulfated oligosaccharides displaying in vitro thrombin generation inhibition. Acta Scientiarum. Biological Sciences, 38(1), 7-15. doi:10.4025/actasci biolsci.v38i1.28257

Rodrigues, J. A. G., Barcellos, P. G., Salles, T. C., Benevides, N. M. B., Tovar, A. M. F., & Mourão, P. A. S. (2017a). In vitro inhibition of thrombin generation by sulfated polysaccharides from the tropical red seaweed Gracilaria birdiae Plastino & Oliveira. Acta of Fisheries and Aquatic Resources, 5(1), 22-32. doi: 10.2312/ActaFish.2017.5.1.22-32

Rodrigues, J. A. G., Eloy, Y. R. G., Vanderlei, E. S. O., Cavalcante, J. F., Romanos, M. T. V., & Benevides, N. M. B. (2017b). An anti-dengue and anti-herpetic polysulfated fraction isolated from the coenocytic green seaweed Caulerpa cupressoides inhibits thrombin generation in vitro. Acta Scientiarum. Biological Sciences, 39(2), 149-159. doi: 10.4025/actascibiolsci.v39i2.28081

Rodrigues, J. A. G., Benevides, N. M. B., Tovar, A. M. F., & Mourão, P. A. S. (2017c). In vitro inactivation of thrombin generation by polysulfated fractions isolated from the tropical coenocytic green seaweed Caulerpa racemosa (Caulerpaceae, Bryopsidales). Acta Scientiarum. Biological Sciences, 39(3), 283-292. doi: 10.4025/actasci biolsci.v39i3.32095

Rodrigues, J. A. G., Barcellos, P. G., Glauser, B. F., Quinderé, A. L. G., Benevides, N. M. B., Tovar, A. M. F., & Mourão, P. A. S. (2018). Extraction, physical-chemical characterization and in vitro inhibitory potential of thrombin generation of crude sulfated polysaccharides from Brazilian tropical seaweeds. Acta Scientiarum. Biological Sciences, 40(1), e34463. doi: 10.4025/actascibiolsci.v40i1.34463

Salles, T. C., Rodrigues, J. A. G., Barcellos, P. G., Amaral, G. F., Araújo, I. W. F., & Mourão, P. A. S. (2017). Inhibition of thrombin generation by dermatan sulfate isolated from the skin of Oreochromis niloticus, Agrária - Revista Brasileira de Ciências Agrárias, 12(1), 98-104. 10.5039/agraria.v12i1a5412

Sathivel, A., Balavinayagamani, Rao, B. R. H., & Devaki, T. (2014). Sulfated polysaccharide isolated from Ulva lactuca attenuates D-galactosamine induced DNA fragmentation and necrosis during liver damage in rats. Pharmaceutical Biology, 52(4), 498-505. 10.3109/13880209.2013.846915

Shanmugam, M., Ramavat, B. K., Mody, K. H., Oza, R. M, & Tewari, A. (2001). Distribution of heparinoid-active sulphated polysaccharides in some Indian marine green algae. Indian Journal of Marine Sciences, 30(4), 222-227.

Siddhanta, A. K., Goswami, A. M., Ramavat, B. K., Mody, K. H., & Mairh, O. P. (2001). Water soluble polysaccharides of marine algal species of Ulva (Ulvales, Chlorophyta) of Indian waters. Indian Journal of Marine Sciences, 30(3), 166-172.

Tian, H., Yin, X., Zeng, Q., Zhu, L., & Chen, J. (2015). Isolation, structure, and surfactant properties of polysaccharides from Ulva lactuca L. from South China Sea. International Journal of Biological Macromolecules, 79(1), 577-582. doi:10.1016/j.ijbiomac.2015.05.031

Volpi, N., & Maccari, F. (2002). Detection of submicrogram quantities of glycosaminoglycans on agarose gels by sequential staining with toluidine blue and Stains-All. Electrophoresis, 23(24), 4060-4066. doi: 10.1002/elps.200290021

Tabarsa, M., Rezaei, M., Ramezanpour, Z., & Waaland, J. R. (2012). Chemical compositions of the marine algae Gracilaria salicornia (Rhodophyta) and Ulva lactuca (Chlorophyta) as a potential food source. Journal of Science and Food Agriculture, 92(12), 2500-2506. doi: 10.1002/jsfa.5659

Thomas, N. V., & Kim, S. K. (2013). Beneficial effects of marine algal compounds in cosmeceuticals. Marine Drugs, 11(1), 146-164. doi: 10.3390/md11010146

Wang, L., Wang, X., Wu, H., & Liu, R. (2014). Overview on biological activities and molecular characteristics of sulfated polysaccharides from marine green algae in recent years. Marine Drugs, 12(9), 4984-5020. doi: 10.3390/md12094984

Yaich, H., Garna, H., Besbes, S., Barthélemy, J. P., Paquot, M., Blecker, C., ... Attia, H. (2014). Impact of extraction procedures on the chemical, rheological and textural properties of ulvan from Ulva lactuca of Tunisia coast. Food Hydrocolloids, 40(1), 53-63. doi: 10.1016/j.foodhyd.2014.02.002

Zhang, Z., Till, S., Jiang, C., Knappe, S., Reutte, S., Scheiflinger, F., … Dockai, M. (2014). Structure-activity relationship of the pro- and anticoagulant effects of Fucus vesiculosus fucoidan. Thrombosis and Haemostasis, 111(3), 429-437. doi: l0.1160fTHI3-08-0635

Zavyalova, E., & Kopylov, A. (2016). Exploring potential anticoagulant drug formulations using thrombin generation test. Biochemistry and Biophysics Reports, 5(1), 111-119. doi: 10.1016/j.bbrep.2015.11.011
