Biotecnologia

In vitro cytotoxic and genotoxic effects of Cissus verticillata and Sphagneticola trilobata used for treatment of Diabetes Mellitus in Brazilian folk medicine

Ana Paula Schmitz
Universidade Feevale, Brasil
Patrícia Weimer
Universidade do Vale do Rio dos Sinos, Brasil
Universidade Federal do Rio Grande do Sul, Brasil
Aline Maria Weschenfelder
Universidade Feevale, Brasil
Alana Witt Hansen
Universidade Feevale, Brasil
Rage Weidner Maluf
Universidade Feevale, Brasil
Rochele Cassanta Rossi
Universidade do Vale do Rio dos Sinos,, Brasil
Universidade do Vale do Rio dos Sinos, Brasil
Luciano da Silva Basso
Universidade Feevale, Brasil
Ana Luiza Ziulkoski
Universidade Feevale, Brasil
Magda Susana Perassolo
Universidade Feevale, Brasil
Edna Sayuri Suyenaga
Universidade Feevale, Brasil
Universidade do Vale do Rio dos Sinos, Brasil

In vitro cytotoxic and genotoxic effects of Cissus verticillata and Sphagneticola trilobata used for treatment of Diabetes Mellitus in Brazilian folk medicine

Acta Scientiarum. Biological Sciences, vol. 43, e56549, 2021

Universidade Estadual de Maringá

Recepción: 06 Noviembre 2020

Aprobación: 12 Enero 2021

Abstract: Cissus verticillata and Sphagneticola trilobata have been used in Brazilian folk medicine for Diabetes Mellitus treatment, although their pharmacological and toxicological profile has not been clearly established. Thus, the aim of this study was to evaluate the preclinical toxicity of the aqueous extracts of C. verticillata and S. trilobata. The main groups of secondary metabolites were investigated, and the species differed by the presence of coumarins in C. verticillata and by tannins in S. trilobata extracts. The highest contents of phenolic compounds and flavonoids were quantified in C. verticillata infusion with 2.594 ± 0.04 mg equivalents of gallic acid g-1 of extract and 1.301 ± 0.015 mg equivalents of catechin g-1 of extract, respectively. While the extract of S. trilobata showed minimum values of these compounds, with 0.002 ± 0.001 mg equivalents of gallic acid g-1 extract and 0.005 ± 0.0004 mg equivalents of catechin g-1 of extract, respectively. These differences implied the results of in vitro antioxidant activity evaluated using ferric reducing antioxidant power (FRAP), in which the sample of C. verticillata at 5 mg mL-1 showed a value of 122 µM ferrous sulfate equivalents (FSE), while S. trilobata showed 0.93 µM FSE at the same concentration. With respect to cytotoxic assay with murine fibroblast cell line (3T3) only S. trilobata exhibited cytotoxic effects measured by MTT and Sulforhodamine B assays, evidenced by the cell viability value of approximately 16%, in both tests after 24 and 72 hours of exposure of the cells to 5 mg mL-1 of the extract. Comparatively, at 5 mg mL-1 the C. verticillata extract showed cell viability of 142% and 95%, respectively, after 24 hours of cell exposure. On the other hand, both species showed genotoxic profiles evidenced by chromosomal aberrations by Allium cepa bioassay, observed by the higher percentage values of chromosome bridges, chromosome loss, and disturbed anaphase for all concentrations of both extracts than those of the negative control. The results support the characterization of the toxicological profile for both species and create an alert regarding the use of S. trilobata, which should be avoided.

Keywords: Wedelia paludosa, Cissus sicyoides, Phytochemistry, Cytotoxicity, Cytogenotoxicity, Medicinal plants.

Introduction

Medicinal plants, until the 20th century, were the main way to treat and prevent diseases (Dutra, Campos, Santos, & Calixto, 2016). Although the drug development and new health technologies have been observed, about 80% of the world’s population still uses plant species for therapeutic purposes (Corrêa, Rodrigues, & Barbano, 2016). In this way, the Ministry of Health in Brazil has encouraged the use of medicinal plants and herbal medicines in the Unified Health System (SUS), through the implementation of the National Policy on Integrative and Complementary Practices (PNPIC) (Corrêa, Rodrigues, & Barbano, 2016). Therefore, in 2017, it was instituted the State List of Medicinal Plants of interest of the Unified Health System and its Complementary List (REPLAME) in Rio Grande do Sul in the south of Brazil. Among their assignments, is the State Guide of Health Research Priorities, focusing on the use of native species of regional flora.

In this sense, Campos, Mineto, Raasch, Suyenaga, & Perassolo (2018) conducted a study about the use of medicinal plants in the adjuvant treatment of chronic diseases, in the integrated health center of a Brazilian Institution. “Insulin”, that is a common name attributed to Cissus verticillata and Sphagneticolatrilobata species, was among the medicinal plants mentioned as complementary to the conventional treatment of chronic disease.

Cissus verticillata (L) Nicolson & C.E. Jarvis (Syn = C. sicyoides) is a climbing plant of the Vitaceae family that can be easily found in several regions of Brazil and is popularly known as “Insulin, Anil-trepador, Cortina-japonesa, and Uva-brava”. Different effects have already been scientifically attributed to this species such as antitumor, anxiolytic, anticonvulsant, antilipemic, anti-inflammatory, and antidiarrheal (Almeida, Rafael, Couto, & Ishigami, 2009; Beserra, et al. 2016; Almeida, Oliveira, Lucena, Soares, & Couto, 2016; Lucena, et al. 2010).

On the other hand, Sphagneticola trilobata (L.) Pruski (Syn = Acmela brasiliensis, Wedelia paludosa), is a native species from the Brazilian flora that belongs to the Asteraceae family. This plant is popularly known as “Pseudo-arnica, Margaridão, Pingo-de-ouro, Arnica-do-mato, Picão-da-praia, and Vedélia” and can be found in many regions of Brazil. Despite being considered an ornamental plant owing to the presence of yellow flowers, it has been used in the folk medicine (Batista, Brandão, Braga, & Oliveira, 2009). Some studies have demonstrated different activities for S. trilobata extracts, such as anti-inflammatory, antifungal, trypanosomicidal, antimicrobial, and hypoglycemic (Chiari, et al. 1996; Block, Scheidt, Quintão, Santos, & Cechinel-Filho, 1998; Block, et al. 1998; Bresciani, et al. 2004).

However, the acute and chronic toxicological effects of both species are still unclear and do not support its safe use. In this sense, the investigation of the toxicological potential of medicinal plants contributes to ensuring the health of the population who use them. In addition, the cytotoxic and genotoxic potentials of plant species and xenobiotics should be checked in the preclinical stage, ensuring safety for subsequent stages such as a clinical trial. Therefore, the aim of this study was to perform the phytochemical screening and evaluate the in vitro antioxidant capacity of C. verticillata and S. trilobata aqueous extract, as well as to investigate their in vitro cytotoxicity and genotoxicity.

Material and methods

Solvents, reagents, and reference substances

In this study were utilized the P.A. grade solvents: acid glacial, ethyl alcohol absolute, ethyl acetate, dimethyl sulfoxide, formic acid, and hexane from Merck (Darmstadt, Germany) or Synth (Diadema, SP, Brazil). The reagents buffer phosphate saline (PBS), Dulbecco´s Modified Eagle Medium, fetal bovine serum (FBS), orcein-acetic, sodium hydroxide, sodium nitrite, aluminum chloride, Folin-Ciocalteu reagent, MTT (3-[4,5-dimethylthiazol-2-yl]-2,5-diphenyltetrazolium bromide, sodium carbonate, sulforhodamine B, trichloroacetic acid (TCA), and Tris buffer were purchased from Sigma Chemical Co. (St. Louis, MO, USA). The reference substances catechin, gallic acid, kaempferol, luteolin, quercetin, and rutin were also purchased from Sigma.

Plant material

Aerial parts of C. verticillata and S. trilobata were collected in Novo Hamburgo, RS (South of Brazil) in 2018 (27º35’08.78’’ S and 48º31’16.26’’ W). Botanical identification was carried out at Herbarium of Universidade Feevale by an expert botanist and the voucher specimens were deposited under the numbers HEFE 454 and HEFE 456, respectively. The scientific names were checked in The Plant List database (http://www.theplantlist.org/, accessed in November 2018).

Preparation of extracts

For analysis on Thin Layer Chromatography (TLC), determination of total phenolic compounds, total content of flavonoids, and kaempferol, extracts from each species were obtained by maceration process, at 25%, for 3 days, with hydroalcoholic solution (80% v/v). The plant: solvent ratio was 1:1 and the extracts were kept protected from light until analysis.

For the investigation of the potential antioxidant effect and in vitro toxicological evaluation, were obtained infusions of each species at 80 ºC, for 15 minutes. For the analyzes, serial dilutions were obtained from the infusions, according to the work concentrations described in the in the following in vitro methods (Agência Nacional de Vigilância Sanitária [ANVISA], 2019).

Phytochemical screening

Presence of the main groups of secondary metabolites was investigated: total phenolic compounds, tannins, flavonoids, cardiotonic heterosides, saponins, alkaloids, coumarins, anthraquinones, and anthocyanins (Costa, 2001).

Based on qualitative colorimetric reactions, the phenolic compounds were determined by reaction with ferric chloride, flavonoids with metal magnesium, in acid medium and anthocyanins in the presence of alkaline and acid substances. In addition, the presence of anthraquinones was verified with toluene and potassium hydroxide and cardiotonic heterosides through Keller-Kiliani (deoxyglucose), Kedde (lactonic ring), and Salkowsky reaction (steroid nucleus).

Determination of tannins and alkaloids was based on the principle of reactions with precipitate formation, with application of gelatin solution for tannins and reagents of Bertrand, Mayer, Dragendorff, and Bouchardat for alkaloids. Saponin research was based on the afrogenic property of this group, therefore, its determination was evaluated through the capacity of foam formation by the sample. Then coumarins were evaluated for their characteristic of fluorescence in alkaline medium and observed under ultraviolet light (365 nm) (Costa, 2001).

Determination of total content of phenolics compounds in hydroalcoholic extract

Total content of phenolics compounds was determined by Folin-Ciocalteu spectrophotometric method, according to Meda, Lamien, Romito, Millogo, and Nacoulma (2005) and Singleton, Orthofer, and Lamuela-Raventós (1999). Briefly, 500 µL of the extracts or standard solutions were added to 2.5 mL of 0.2 M Folin–Ciocalteu reagent. The solution was vortexed and equilibrated for 6 min. Then, 2 mL of sodium carbonate solution (75.0 g L-1) were added. After 2 hours of incubation in the dark at room temperature, the absorbance was measured at 760 nm using a UV/Vis spectrophotometer (Shimadzu 2600, Japan). The phenolic content was expressed as mg of gallic acid equivalent (GAE) g-1 d.w. from the calibration curve of gallic acid standard solutions. All determinations were carried out in triplicate.

Determination of total flavonoids content in hydroalcoholic extract

Total flavonoids content was measured following the methodology described by Zhishen, Mengcheng, and Jianming (1999). In a 10 mL volumetric flask was added 1 mL of the hydroalcoholic extract, 2 mL of ultrapure water, 300 μL of 5% sodium nitrite and allowed to stand for 5 min. Then 300 μL of 10% aluminum chloride was added and allowed to stand for 6 min. Subsequently, 2 mL of 1 M sodium hydroxide was added, and the volume was made up with ultrapure water. Analyzes were carried out in a spectrophotometer at a wavelength of 510 nm. Total flavonoids content was expressed in mg catechin equivalent (CE) g-1 d.w. All experiments were performed in triplicate.

Thin Layer Chromatography

For the analyses in TCL, silica gel GF254 plates (Merck) were used as stationary phase. The solvent systems consisted of ethyl acetate: hexane (3:1 v: v); hexane: ethyl acetate (1:1 v: v), and hexane: ethyl acetate (3:1 v: v) (Beltrame, et al. 2001). Flavonoids (kaempferol, luteolin, quercetin, and rutin) were used as reference substances. Spots were applied to the plate using a thin glass capillary enough to apply a neat spot. After the sample separation in chromatography vessel, nebulization with aluminum chloride in methanol was performed for visualization of the bands by ultraviolet light at 365 nm. Finally, the retention factors were calculated (Rf).

Determination of kaempferol content in hydroalcoholic extract

High Performance Liquid Chromatography (HPLC) analysis was performed on a Shimadzu UFLC system, equipped with LC 20A quaternary gradient pump using SPD-M20A PDA diode array detector (DAD). The data was acquired on the liquid chromatography solution administrator data system using BETASIL C18 column (150 x 4.6 mm, 3 μm) and an isocratic mixture of methanol HPLC. and water containing 0.1% v/v formic acid in the ratio of 80:20. Always before used, the mobile phase was filtered through a 0.22 μm Millipore filter and degassed by sonication for 30 min. The flow rate was adjusted to 0.4 mL min-1. Injection volume was adjusted to 5 μL and detection was made at wavelength 258 nm (Al-Rifai, Aqel, Awaad, & ALOthman, 2015).

Determination of total antioxidant activity using FRAP (Ferric Reducing Antioxidant Power) assay in aqueous extract

Aqueous extracts were obtained at concentrations of 2.5, 5.0 and 10.0 mg mL-1 by infusion previously described in Preparationextract Section. Ferric reducing antioxidant power assay (FRAP) was measured according method described by Benzie and Strain (1996) in infusions of C. sicyoides and S. trilobata. The results were expressed as µM of ferrous sulfate equivalents (FSE), based in a standard curve elaborated with FeSO4 solutions.

Evaluation of cytotoxicity, mutagenicity, and genotoxicity using Allium cepa bioassay in aqueous extract

For the preliminary evaluation of cytotoxicity, genotoxicity, and mutagenicity the A. cepa bioassay was performed based on Fiskesjo (1985). Infusions were previously obtained (Preparation extract Section) from leaves of C. verticillata and S. trilobata at concentrations 2.5, 5.0 and 10.0 mg mL-1. Thirty small bulbs of A. cepa were immersed in distilled water for 24 hours to stimulate the root growth of the meristem. Then, the roots were exposed at three concentrations of infusions, the negative control (distilled water) and the positive control (acetaminophen 800.0 mg L-1) for 48 hours. After exposure period, root growth was evaluated by measuring the length of three roots of each bulb to calculate the general cytotoxicity index by the inhibitory effect of the extract. Subsequently, several root tips were removed from the bulbs, fixed in 3:1 (v/v) ethyl alcohol: glacial acid acetic PA. Roots were stored overnight at 4 °C. Then the roots were placed in ethanol 70% and refrigerated until use. For slide preparation, the roots were hydrolyzed in HCl 1 N for 5-6 minutes at 60 ºC and rinsed in distilled water. Afterwards, the portion of the root with cell division were washed again in distilled water, stained with 1% orcein-acetic solution on microcopy slides for 1 hour. For macroscopic evaluation of cytotoxicity, the root length predicting the general cytotoxicity index was evaluated for the inhibitory effect caused by the extract. Identification parameters of (a) cytotoxicity, (b) mutagenicity, and (c) genotoxicity were: (a) Mitotic Index (MI); (b) Micronuclei (MN) per 1000 cells and presence of (c) Chromosomal Aberrations (CA) was evaluated in 200 anaphases and telophases respectively. CA were classified such as: anaphase with chromosome bridge and chromosome loss, disturbed anaphase, telophase with bridge and chromosome loss. Cells were analyzed by optical microscopy 100x.

Evaluation of cytotoxicity in cell culture

Cell culture and exposure medium

Fibroblasts Balb/c 3T3 cell line (purchased from the Rio de Janeiro Cell Bank, Brazil) were seeded in DMEM (Dulbecco’s Modified Eagle Medium) with 10% v/v of fetal bovine serum and maintained at 37 °C in a humid atmosphere at 5% of CO2. For cytotoxicity assays, the cells were seeded at a rate of 2 x 104 cells/well in a 96-well polystyrene microplate with 100 µL of low glucose DMEM. Then, the microplates were maintained for 24 hours, at same atmosphere conditions until exposure.

Aqueous extracts (S. trilobata and C. verticillata) prepared by infusion were used as an Exposure Medium (EM). Bicarbonate, Hepes, DMEM, and 1% FBS reagents were added to each extract. EM were filtered by filter 0.22 µm and the extracts were diluted with DMEM medium to obtain the different concentrations: for S. trilobata were tested 0.5 mg mL-1, 1.0 mg mL-1, 2.0 mg mL-1, 3.0 mg mL-1, 3.5 mg mL-1, 4.0 mg mL-1, 5.0 mg mL-1, and 6.0 mg mL-1, and for C. verticillata were tested 1.0 mg mL-1, 5.0 mg mL-1, 10.0 mg mL-1, 15.0 mg mL-1, and 30.0 mg mL-1. These concentrations were determined based on the results of Allium cepa bioassay. The EM were exchanged each 24 hours. The evaluation times were 24 and 72 hours, corresponding to acute and chronic cytotoxicity, respectively. For negative controls, the cells were maintained only with DMEM 1% FBS, while for positive control, the cultures were exposed to H2O2 1% for 1 hour before the cytotoxicity assays.

Cytotoxicity assay using MTT reduction and Sulforhodamine B

In order, to evaluate the acute and chronic cytotoxicity using the mitochondrial activity parameter, a 3-[4,5-dimethylthiazol-2-yl]-2,5-diphenyltetrazolium bromide (MTT) assay was used as described by Mosmann (1983). After exposure for 24 hours, the medium was discarded and the well was rinsed with buffer phosphate saline pH 7.4 (PBS), 8 µL of MTT (5 mg mL-1) in 200 µL of DMEM was add to the well and the plates are incubated for two hours at 37ºC. After incubation, the medium was removed and 200 μL of dimethyl sulfoxide (DMSO) was added to each well for formazan crystals solubilization. All samples were transferred to a 96-well plate and the absorbance was measured at 570 nm with a microplate spectrophotometer Spectramax M3 (Molecular Devices®), using 200 µL of DMSO for the blank. The same assay was performed after 72 hours of exposure.

Sulforhodamine B (SRB) assay was performed according Skehan et al. (1990), and this method is based on the ability of the dye to bind on the cell proteins that were fixed with trichloroacetic acid (TCA). After 24 hours of exposure, the exposure medium was discarded, and the cells were rinsed with 100 µL PBS. After, 50 µL of 1% trichloroacetic acid were added to the wells and maintained for 1 hour at 10ºC. Then, the contents were discarded, and 5 rinses were performed with ultrapure water. Subsequently, 50 µL of SRB was added and incubated for 30 minutes at room temperature (25 ºC). SRB was discarded and 4 rinses with 1% acetic acid were performed. Finally, 200 µL of Tris pH 10.8 buffer was add in each well and the content was transferred to the reading plate. The absorbance was measured by microplate spectrophotometer at 564 nm, using. 200 µL of Tris buffer for the blank. The same assay was performed after 72 hours of exposure.

For each test, two independent studies were performed, all of them in quadruplicates. Data obtained were expressed as mean and standard deviation.

Statistical analyses

Statistical analyses were performed by GraphPad Prism software (version 6.0), with Kruskal-Wallis followed by Dunn post hoc test and ANOVA-two way followed by Bonferroni post hoc test. The significance level was set at 5.00%.

Results and discussion

Phytochemical screening, thin layer chromatography, and determination of total phenolics compounds and total flavonoids in hydroalcoholic extracts

In the phytochemical screening of C. verticillata extract flavonoids, phenolic compounds, coumarins, saponins, and alkaloids were identified. And in the S. trilobata flavonoids, phenolic compounds, tannins, saponins, and alkaloids were identified. Therefore, both species showed similarity in phytochemical screening with moderate presence of phenolic compounds and flavonoids, differing by the presence of tannins in S. trilobata and coumarins in C. verticillata. In the same way, Viana et al. (2004) and Dias et al. (2017) identified steroids, tannins, phenolic compounds, coumarins, flavonoids, and saponins in the extract of C. verticillata leaves. And previous studies reported the presence of terpenic compounds, steroidal compounds, flavonoids, and absence of alkaloids in S. trilobata (Novaes, et al., 2001; Batista, et al., 2009).

Three eluent systems of different degrees of polarity were utilized for quercetin, rutin, luteolin and kaempferol reference substances. Through this analysis, no bands corresponding to these substances were observed in the S. trilobata extract. Kaempferol was characterized only in the extract of C. verticillata, observed through the bands that presented the same retention factors (Rf) in relation to the kaempferol reference substance, according to what is presented in Table 1. An HPLC method was performed to quantify the kaempferol content in C. verticillata, confirming the presence of 45.8 µg mL-1. In addition, other flavonoids (lutein, quercetin and rutin) were not characterized in the sample of C. verticillata in these eluent systems used (Table 1).

With regards to the moderate presence of phenolic compounds and flavonoids in both extracts, the total contents of these compounds were measured, and the results are shown in Table 2. In both assays, the extract of C. verticillata exhibited higher concentrations of phenolic compounds and flavonoids than S. trilobata, superior to 1000-fold and 260-fold, respectively. Phenolic compounds have high antioxidant activity, being responsible for capturing reactive oxygen species and preventing cellular damage caused by oxidative stress in humans, thus preventing the development of diseases (Kasote, Katyare, Hegde, & Bae, 2015; Lin et al., 2016; Tungmunnithum, Thongboonyou, Pholboon, & Yangsabai, 2018).

Sulphur homeopathic medicine showed potential to inhibit S. sclerotiorum growth in all dynamizations, as shown in Figure 1. In the first evaluation - day 4 - it was possible to verify that the growth of the control treatment was greater than the fungus submitted to treatment with Sulphur, and statistically significant with Sulphur 200CH and 1000CH. The best suppressive effect over the fungus was observed with the dynamization of 1000CH, which has inhibited more efficiently the S. sclerotiorum growth during the experiments compared to control treatment.

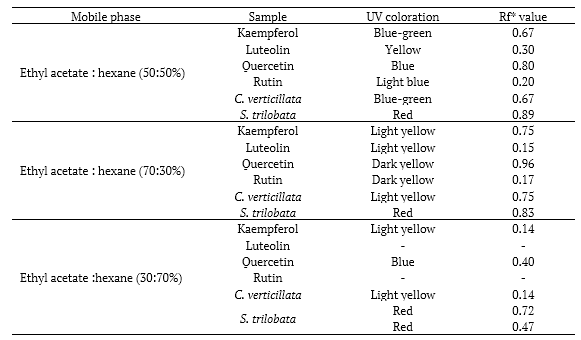

Table 1. Results of Thin Layer Chromatography.
Table 1. Results of Thin Layer Chromatography.
(-): not applicable; *Retention factor.

Table 2. Quantification of total phenolic compounds and flavonoids in the hydroalcoholic extracts of Cissus verticillate and Sphagneticola trilobata leaves
Table 2. Quantification of total phenolic compounds and flavonoids in the hydroalcoholic extracts of Cissus verticillate and Sphagneticola trilobata leaves
Values expressed as mean ± standard deviation; GAE: gallic acid equivalents; CE: catechin equivalents.

Antioxidant activity using FRAP assay of aqueous extracts

Antioxidant activity for both plant species is presented in Table 3. As it is shown, both extracts at concentrations of 2.5 mg mL-1, 5.0 mg mL-1, and 10.0 mg mL-1 implied a proportional increase in antioxidant potential. Cissus verticillata showed higher antioxidant capacity than S. trilobata. Additionally, the presence of coumarins in C. verticillata infusion could contribute to the antioxidant effect of this species owing to their electronegative groups (Borges Bubols et al., 2013; Al-Majedy, Al-Amiery, Kadhum, & BakarMohamad, 2017).

Table 3. Evaluation of in vitro antioxidant activity of aqueous extracts of Cissus verticillate and Sphagneticola trilobata by FRAP assay
Table 3. Evaluation of in vitro antioxidant activity of aqueous extracts of Cissus verticillate and Sphagneticola trilobata by FRAP assay
FSE: ferrous sulfate equivalent.

Studies have shown that the concentration of phenolic compounds and flavonoids is related to their antioxidant capacity. Song et al. (2010) observed a positive correlation between the antioxidant capacity and the total polyphenol content in 56 plant species. In addition, important antidiabetic properties have been attributed to these metabolites, performed by normalizing blood glucose levels, glucose uptake, insulin secretion, and immune function modulation DM (Lin et al., 2016; Panche, Diwan, & Chandra, 2016) . Some reviews, which summarize the beneficial effects of antioxidants in DM, highlight the ability to reduce the oxidative stress and inflammation process generated by this chronic metabolic disease. By stabilizing free radicals, antioxidant compounds help to reduce complications of DM, such as vascular ones (Bajaj & Khan, 2012; Rajendiran, Packirisamy, & Gunasekaran, 2018). Among flavonoids, it has been reported that kaempferol reduces glucose levels, glycated hemoglobin, and improves insulin resistance. This information supports the antidiabetic effect of C. verticillata in a preliminary study (Viana et al., 2004).

Cytotoxicity, mutagenicity, and genotoxicity of aqueous extracts using Allium cepa bioassay

Regarding toxicity, tests using the Allium cepa bioassay have been used as a platform to test different plant species. According to Tedesco and Laughinghouse IV (2012), A. cepa bioassay is an excellent indicator of chromosomal alterations caused by exposure to agents such as plants extracts. In addition, Fiskesjo (1985) defined this bioassay as an important parameter for the identification of cytotoxicity and cytogenetic damages in the cell cycle by evaluation of the parameters root length, mitotic index (MI), micronuclei, and chromosomal aberrations.

Table 4 shows the results of micronuclei frequency, mitotic index, and root length at different concentrations of aqueous extracts of C. verticillata and S. trilobata leaves. No reduction was observed in root length between treatments (p>0.05). On the other hand, the positive control group was significantly different from the other treatments for micronuclei parameter. The MI results showed a significant reduction (p<0.001) by exposure to 10.0 mg mL-1 de C. verticillata when compared with other treatments. This result predicts a cytotoxic effect for C. verticillate infusion at 10.0 mg mL-1. Based in mutagenicity analysis by A. cepa, the different extracts concentration of C. verticillata did not show micronuclei (MN).

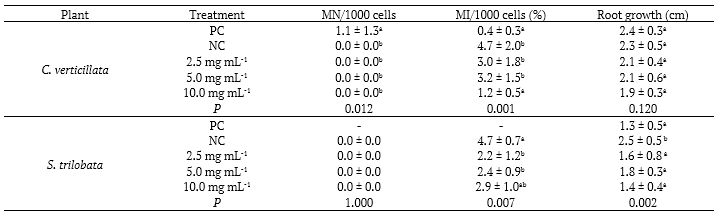

Table 4. Results of aqueous extracts of Cissus verticillate and Sphagneticola trilobata leaves to the bioassay in Allium cepa in relation to micronuclei frequency, mitotic index, and root growth
Table 4. Results of aqueous extracts of Cissus verticillate and Sphagneticola trilobata leaves to the bioassay in Allium cepa in relation to micronuclei frequency, mitotic index, and root growth
Negative Control (NC): distilled water; Positive Control (PC): acetaminophen 800 mg L-1; (MN): Micronuclei; (MI): Mitotic Index. Values with different letters (ab) shows significant difference (Kruskal-Wallis followed by Dunn post hoc test, p<0.05); (-) Analyzed cells were not enough for the statistic.

For S. trilobata, MI values was lower than that of the negative control group, indicating decreased cell division. The average root length for all replicas was greater than the negative control. In contrast to the results found for the aqueous extract of C. verticillata in the A. cepa bioassay, the extract of S. trilobata showed an effect of cytotoxicity evidenced by the reduction of MI in the concentrations of 2.5 mg mL-1, 5.0 mg mL-1 and 10.0 mg L-1 (p=0.007). In addition, the root length of A. cepa was shorter after application of the three concentrations, compared to the negative control (p=0.002).

The results of chromosomal aberrations in A. cepa root after exposure to infusions of C. verticillata and S. trilobata are shown in Table 5. With respect to C. verticillata infusion there was no statistical difference for chromosomes with bridges (p=0.190) and chromosomes with loss (p=0.200) presented in anaphases and telophases. However, at 5.0 mg mL-1 and 10.0 mg mL-1 it was possible to observe a high percentage of disturbed anaphases, characteristic of genotoxic effect.

Likewise, in the study conducted by Vicentini, Camparoto, Teixeira, & Mantovani (2001), to evaluate the cytotoxicity of extract C. verticillata at 0.07 and 0.70 mg mL-1 over 24 hours did not evidence alterations in the meristematic cells using the A. cepa bioassay. In another study, Sáenz, Garcia, Quilez, & Ahumada (2000) demonstrated that the aqueous extracts from Agave intermixta (0.5 g mL-1) and C. verticillata (0.5 g mL-1), in combination showed a mitodepressive effect on the rate of cell division in Allium cepa root meristems and no chromosomal aberrations was observed.

Allium cepa bioassay also showed a pronounced toxic effect caused by S. trilobata extract when compared with the negative control owing to large occurrence of chromosomal aberrations such as anaphases and telophases with chromosome bridge, anaphases, and telophases with chromosome loss as well as disturbed anaphases. This result suggests a genotoxic effect of S. trilobata extract at all concentrations tested. The Figure 1 illustrates some of the chromosomal aberrations after exposing the roots to the extracts.

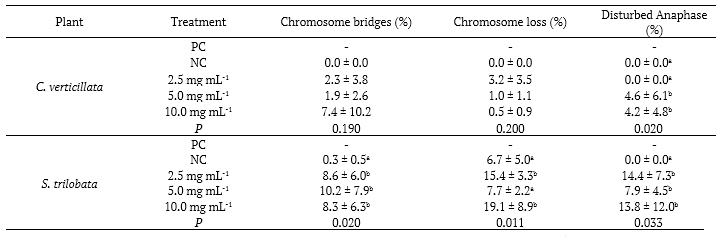

Table 5. Results of chromosomal aberrations of infusions of Cissus verticillate and Sphagneticola trilobata by Allium cepa bioassay.
Table 5. Results of chromosomal aberrations of infusions of Cissus verticillate and Sphagneticola trilobata by Allium cepa bioassay.
Negative Control (NC): distilled water; Positive Control (PC): acetaminophen 800 mg L-1. Values with different letters (ab) shows significant difference (Kruskal-Wallis followed by Dunn post hoc test, p<0.05). (-) Analyzed cells were not enough for the statistic. Analysis in 200 cells.

Figure 1. Chromosomal aberrations visualized in the meristem root of Allium cepa exposed to Cissus. verticillata aqueous extract: (A) anaphase with chromosome loss; (B) telophase with chromosome loss; (C) anaphase with chromosome bridge; (D) disturbed anaphase; and exposed to Sphagneticola trilobata aqueous extract: (E) anaphase with chromosome loss; (F) disturbed anaphase; (G) anaphase with chromosome bridge. The arrows indicate the respective chromosomal aberrations.
Figure 1. Chromosomal aberrations visualized in the meristem root of Allium cepa exposed to Cissus. verticillata aqueous extract: (A) anaphase with chromosome loss; (B) telophase with chromosome loss; (C) anaphase with chromosome bridge; (D) disturbed anaphase; and exposed to Sphagneticola trilobata aqueous extract: (E) anaphase with chromosome loss; (F) disturbed anaphase; (G) anaphase with chromosome bridge. The arrows indicate the respective chromosomal aberrations.

Cytotoxicity assay using MTT reduction and Sulforhodamine B

Results of cytotoxicity assay presented in Figure 2 demonstrated a dose-dependent increase in the cell viability in 3T3 cells treated to C. verticillata. Comparing acute (24 hours) and chronic (72 hours) cytotoxicity of C. verticillata, mitochondrial activity (MTT assay) was above negative control, indicating cell proliferation (Figure 2 A). Corroborating these results, it was verified by Sulforhodamine B (SRB) assay an increase in the cell protein density (Figure 2 B) and analyzes of the images from microscope also indicate an increase in the number of cells. This result suggests a possibility of cell proliferation of 3T3 cells in the presence of the extract. None of the concentrations of this species showed cytotoxic profile for this cell line in MTT and SRB assays after exposure period of 24 and 72 hours.

However, in the same comparison for S. trilobata a significant reduction started between concentrations 1.0 and 2.0 mg mL-1 at 72 hours. The cytotoxic effect resulted in mitochondrial activity below 70% of negative control representing a cytotoxic profile. In MTT assay (Figure 2 C) there was a significant difference in concentrations 2.0 mg mL-1 (p<0.01), 4.0 mg mL-1 (p<0.01) and negative control (p<0.5) when comparing exposure between 24 and 72 hours at different concentrations. Similarly, the SRB assay (Figure 2 D) showed statistical difference in concentrations 0.5 mg mL-1 and 2.0 mg mL-1 (p<0.01) by analyzing the same variables. For MTT and SRB assay, S. trilobata exhibits a dose-dependent cytotoxicity profile beginning in 2.0 mg mL-1 at 72 hours of exposure when concentrations showed a cell viability rate equal or inferior to 70%. The same toxicity profile is not present at concentrations 0.5 mg mL-1, 1.0 mg mL-1, and 2.0 mg mL-1 for 24 hours of the extract exposure suggesting no toxicity at these concentrations in 3T3 cells.

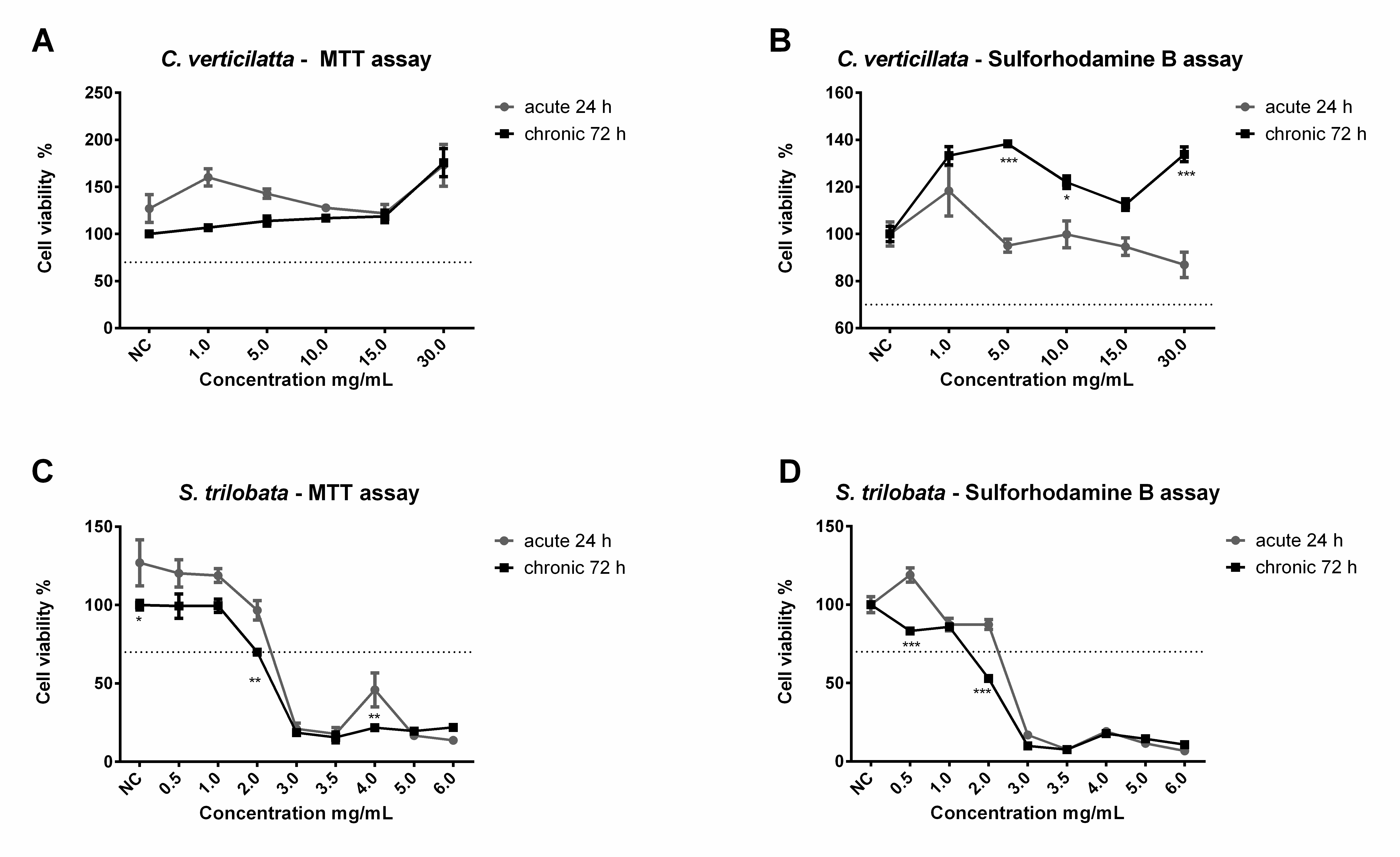

Figure 2. Cytotoxicity of leaves of Cissus verticillata (A, B) and Sphagneticola trilobata (C, D) in 3T3 cells. The dashed line presents 70% of the control value (NC – negative control). Values below the dashed line are considered cytotoxic. Two-way ANOVA followed by Bonferroni post hoc test, comparing cell exposure for 24 and 72 hours under the same concentrations as the extracts (***p<0.001; ** p<0.01; * p<0.05).
Figure 2. Cytotoxicity of leaves of Cissus verticillata (A, B) and Sphagneticola trilobata (C, D) in 3T3 cells. The dashed line presents 70% of the control value (NC – negative control). Values below the dashed line are considered cytotoxic. Two-way ANOVA followed by Bonferroni post hoc test, comparing cell exposure for 24 and 72 hours under the same concentrations as the extracts (***p<0.001; ** p<0.01; * p<0.05).

In both assays, 3.0 mg mL-1 of S. trilobata showed high cytotoxicity characterized by cell viability percentage below 20% of negative control. A reduction in protein expression can be observed in the cells exposed at 24 hours and 72 hours to S. trilobata extract. Exposure time is directly correlated to the cell damage and this is reproduced in cell viability percentages shown in SRB assay.

Qualitative evaluation performed through microscopic observation after 24, 48, and 72 hours of exposure showed dose-dependent morphological alterations in all concentrations of S. trilobata extract. The evaluation revealed retraction, cellular detachment, rounding of cell border, and intercellular spaces increase as shown in Figure 3.

Figure 3. Cytotoxic effect of Sphagneticola trilobata extract (2.0 mg mL-1) on morphology of 3T3 cells comparing: (A) Negative Control - 0 h; (B) acute exposure (24 hours); (C) chronic exposure (72 hours) exposure. The arrows indicate morphological alterations and cell death.
Figure 3. Cytotoxic effect of Sphagneticola trilobata extract (2.0 mg mL-1) on morphology of 3T3 cells comparing: (A) Negative Control - 0 h; (B) acute exposure (24 hours); (C) chronic exposure (72 hours) exposure. The arrows indicate morphological alterations and cell death.

Few studies support the toxicological potential of S. trilobata. Batista et al. (2009), found cytotoxic activity of S. trilobata aerial parts demonstrated by kaurenoic acid and grandiflorenic acid isolated from the organic fraction of its extract by Artemia salina assay. However, this effect was not evidenced in the aqueous fraction. Another study carried out by Bürger et al. (2005) evaluated the toxicity of a hydroalcoholic extract of S. trilobata aerial parts in Swiss mice after extract administration (500.0, 1000.0, 2000.0, and 4000.0 mg kg-1) by protocols of acute and subacute toxicity. In the first protocol, it was obtained a LD50 (lethal dose 50 %) higher than 4000 mg kg-1. Whereas, in subacute treatment, alterations in body weight and hematological parameters were not observed, suggesting the plant was free from toxic effects. Toxic effects may be suggested by the presence of tannins in aqueous extract of S. trilobata leaves.

Tannins are part of the phenolic compounds group, because they are highly hydroxylated, differing from the other compounds by their reactivity with proteins and enzymes. This affinity is related to the hydrogen bonds that occur between the phenols of the tannins and the carbonyl group of the peptide of proteins (Field & Lettinga, 1992). Among related effects, mutagenic and carcinogenic were observed (Chung, Wong, Wei, Huang, & Lin, 1998). Another study conducted by Eck-Varanka et al. (2015) demonstrated the toxic effect of tannins by micronuclei assay.

Conclusion

The results suggest the in vitro toxicity of S. trilobata infusion using A. cepa bioassay and cytotoxic assay. In this regard, patients and the population should be advised of the risks associated with the use of this medicinal plant. In contrast, C. verticillata despite exhibiting genotoxic potential at high concentrations, showed relevant and promising antioxidant potential for the management of diabetic patients. Future experiments will be conducted to identify the compounds related to the toxicological and hypoglycemic effects of both species.

Acknowledgements

The authors are thankful to Universidade Feevale for the infrastructure and financial support.

References

Agência Nacional de Vigilância Sanitária (ANVISA). (2019). Farmacopeia Brasileira (Vol. 1, 6th ed.) Brasília, DF: ANVISA

Al-Majedy, Y., Al-Amiery, A., Kadhum, A. A., & BakarMohamad, A. (2017). Antioxidant activity of coumarins. Systematic Reviews in Pharmacy, 8(1), 24-30. DOI: http://dx.doi.org/10.5530/srp.2017.1.6

Almeida, E. R., Oliveira, J. R. G., Lucena, F. F. R., Soares, R. P. F., & Couto, G. B. L. (2016). The action of extract of the dry leaves of Cissus sicyoides L. in pregnant rats. Acta Farmacéutica Bonaerense, 25(3), 421-424.

Almeida, E. R., Rafael, K. R. O., Couto, G.B. L., & Ishigami, A. B. M. (2009). Anxiolytic and anticonvulsant effects on mice of flavonoids, linalool, and α-tocopherol presents in the extract of leaves of Cissus sicyoides L. (Vitaceae). Journal of Biomedicine and Biotechnology, 2009,1-7. DOI: http://dx.doi.org/10.1155/2009/274740

Al-Rifai, A., Aqel, A., Awaad, A., & ALOthman, Z. A. (2015). Analysis of quercetin and kaempferol in an alcoholic extract of Convolvulus pilosellifolius using HPLC. Communications in Soil Science and Plant Analysis, 46(11),1411-1418. DOI: http://dx.doi.org/10.1080/00103624.2015.1043454

Bajaj, S., & Khan, A. (2012). Antioxidants and diabetes. Indian Journal of Endocrinology and Metabolism, 16(Suppl 2), S267-71. DOI: http://dx.doi.org/10.4103/2230-8210.104057

Batista, R., Brandão, G. C., Braga, F. C., & Oliveira, A. B. (2009). Cytotoxicity of Wedelia paludosa D.C. extracts and constituents. Brazilian Journal Pharmacognosy, 19(1 A), 36-40. DOI: http://dx.doi.org/10.1590/S0102-695X2009000100009

Beltrame, F. L., Sartoretto, J. L., Bazotte, R. B., Cuman, R. N., Cortez, D. A. G., Fernandes, L. C., & Tchaikovski, O. (2001). Estudo fitoquímico e avaliação do potencial antidiabético do Cissus sicyoides L. (Vitaceae). Química Nova, 24(6), 783-785. DOI: http://dx.doi.org/10.1590/S0100-40422001000600014

Benzie, I. F. F., & Strain, J. J. (1996). The ferric reducing ability of plasma (FRAP) as a measure of “Antioxidant power”: The FRAP assay. Analytical Biochemistry, 239(1), 70-76. DOI: http://dx.doi.org/10.1006/abio.1996.0292

Beserra, F. P., Santos, R. C., Périco, L. L., Rodrigues, V. P., Kiguti, L. R. A., Saldanha, L. L., ... Lima, C. A. H. (2016). Cissus sicyoides: Pharmacological mechanisms involved in the anti-inflammatory and antidiarrheal activities. International Journal of Molecular Sciences, 17(2), 149. DOI: http://dx.doi.org/10.3390/ijms17020149

Block, L. C., Santos, A. R., Souza, M. M., Scheidt, C., Yunes, R. A., Santos, M. A., ... Cechiel-Filho, V. (1998). Chemical and pharmacological examination of antinociceptive constituents of Wedelia paludosa. Journal of Ethnopharmacology. 61(1), 85-89. DOI: http://dx.doi.org/10.1016/S0378-8741(98)00019-1

Block, L. C., Scheidt, C., Quintão, N. L., Santos, A. R., & Cechinel-Filho, V. (1998). Phytochemical and pharmacological analysis of different parts of Wedelia paludosa DC. (Compositae). Pharmazie, 53(10), 716-718.

Bresciani, L. F. V., Yunes, R. A., Bürger, C., Oliveira, L. E., Bóf, K. L., & Cechinel-Filho, V. (2004). Seasonal variation of kaurenoic acid, a hypoglycemic diterpene present in Wedelia paludosa .Acmela brasiliensis) (Asteraceae). Zeitschrift für Naturforschung C, 59(3-4), 229-232. DOI: http://dx.doi.org/10.1515/znc-2004-3-419

Bubols, G. B., Vianna, D. R., Medina-Remón, A., von Poser, G., Lamuela-Raventos, R. M., Eifler-Lima, V. L., & Garcia, S. C. (2013). The antioxidant activity of coumarins and flavonoids. Mini Reviews in Medicinal Chemistry, 13(3), 318-334. DOI: http://dx.doi.org/10.2174/138955713804999775

Bürger, C., Fischer, D.R., Cordenunzzi, D. A., Batschauer, A. P. B., Cechinel Filho, V. C., & Soares, A. R. S. (2005). Acute and subacute toxicity of the hydroalcoholic extract from Wedelia paludosa (Acmela brasiliensis) (Asteracea) in mice. Journal of Pharmacy & Pharmaceutical Sciences, 8(2), 370-373.

Campos, C. A. M., Mineto, D. R., Raasch, J. R., Suyenaga, E. S., & Perassolo, M. S. (2018). Evaluation of pharmacodynamic interactions between medicinal plants and drugs in patients with chronic diseases in south Brazil. Latin American Journal of Pharmacy, 37(8), 1551-1557.

Chiari, E., Duarte, D. S., Raslan, D. S., Saúde, D. A., Perry, K. S. P., Boaventura, M. A. D., ... Oliveira, A. B. (1996). In vitro screening of Asteraceae plant species against Trypanosoma cruzi. Phytotherapy Research, 10(7), 636-638. DOI: http://dx.doi.org/10.1002/(SICI)1099-1573(199611)10:7<636::AID-PTR921>3.0.CO;2-6

Chung, K. T., Wong, T. Y., Wei, C. I., Huang, Y. W., & Lin, Y. (1998). Tannins and human health: a review. Critical Reviews in Food Science and Nutrition, 38(6), 421-464. DOI: http://dx.doi.org/10.1080/10408699891274273

Corrêa, A. P. R., Rodrigues, A. G., & Barbano, D. B. A. (2016). Política Nacional de Plantas Medicinais e Fitoterápicos (Série B. Textos Básicos de Saúde). Brasilia, DF: Ministério da Saúde.

Costa, A. F. (2001). Farmacognosia (3a ed., Vol. 3) Lisboa: Portugal: Fundação Calouste Gulbenkian.

Dias, G. T., Lima, C. M. B. L., Lira, A. B., Ramalho, J. A., Oliveira, K. M., & Diniz, M. F. F. M. (2017). Toxicidade do extrato hidroalcoólico das folhas de Cissus sicyoides. Acta Brasiliensis, 1(1), 8-12. DOI: http://dx.doi.org/10.22571/Actabra1120178

Dutra, R. C., Campos, M. M., Santos, A. R. S., & Calixto, J. B. (2016). Medicinal plants in Brazil: Pharmacological studies, drug discovery, challenges and perspectives. Pharmacological Research, 112, 4-29. DOI: http://dx.doi.org/10.1016/j.phrs.2016.01.021

Eck-Varanka, B., Kováts, N., Hubai, K., Paulovits, G., Ferincz, Á., & Horváth, E. (2015). Genotoxic effect of Lythrum salicaria extract determined by the mussel micronucleus test. Acta Biologica Hungarica, 66(4), 460-463. DOI: http://dx.doi.org/10.1556/018.66.2015.4.10

Field, J. A., & Lettinga, G. (1992). Toxicity of tannic compounds to microorganisms. In R. W. Hemingway, & P. E. Laks (Eds.), Plant polyphenols, synthesis, properties, significance (pp. 673-692). New York/London: Plenum Press.

Fiskesjö, G. (1985). The Allium test as a standard in environmental monitoring. Hereditas, 102(1), 99-112. DOI: http://dx.doi.org/10.1111/j.1601-5223.1985.tb00471.x

Kasote, D. M., Katyare, S. S., Hegde, M. V., & Bae, H. (2015). Significance of antioxidant potential of plants and its relevance to therapeutic applications. International Journal of Biolological Sciences, 11(8):982-991. DOI: http://dx.doi.org/10.7150/ijbs.12096

Lin, D., Xiao, M., Zhao, J., Li, Z., Xing, B., Li, X., ... Chen, S. (2016). An overview of plant phenolic compounds and their importance in human nutrition and management of type 2 diabetes. Molecules, 21(10), 1374. DOI: http://dx.doi.org/10.3390/molecules21101374

Lucena, F. R. S., Almeida, E. R., Aguiar, J. S., Silva, T. G., Souza, V. M. O., & Nascimento, S. C. (2010). Cytotoxic, antitumor and leukocyte migration activities of resveratrol and sitosterol present in the hidroalcoholic extract of Cissus sicyoides L., Vitaceae, leaves. Brazilian Journal Pharmacognosy, 20(5), 729-733. DOI: http://dx.doi.org/10.1590/S0102-695X2010005000002

Meda, A., Lamien, C. E., Romito, M., Millogo, J., & Nacoulma, O. G. (2005). Determination of the total phenolic, flavonoid and proline contents in Burkina Fasan honey, as well as their radical scavenging activity. Food Chemistry, 91(3), 571-577. DOI: http://dx.doi.org/10.1016/j.foodchem.2004.10.006

Mosmann, T. (1983). Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. Journal of Immunological Methods, 65(1–2), 55-63. DOI: http://dx.doi.org/10.1016/0022-1759(83)90303-4

Novaes, A. P., Rossi, C., Poffo, C., Pretti Júnior, E., Oliveira, A. E., Schlemper, V., ... Bürger, C. (2001) Preliminary evaluation of the hypoglycemic effect of some Brazilian medicinal plants. Therapie, 56(4), 427-430.

Panche, A. N., Diwan, A. D., & Chandra, S. R. (2016). Flavonoids: An overview. Journal of Nutritional Sciences, 5, e47. DOI: http://dx.doi.org/10.1017/jns.2016.41

Rajendiran, D., Packirisamy, S., & Gunasekaran, K. (2018). A review on role of antioxidants in diabetes. Asian Journal of Pharmaceutical and Clinical Research, 11(2), 48-53. DOI: http://dx.doi.org/10.22159/ajpcr.2018.v11i2.23241

Sáenz, M. T., Garcia, M. D., Quilez, A., & Ahumada, M. C. (2000). Cytotoxic activity of Agave intermixta L. (Agavaceae) and Cissus sicyoides L. (Vitaceae). Phytotherapy Research, 14(7), 552-554. DOI: http://dx.doi.org/10.1002/1099-1573(200011)14:7<552::aid-ptr639>3.0.co;2-u

Singleton, V. L., Orthofer, R., & Lamuela-Raventós, R. M. (1999). Analysis of total phenols and other oxidation substrates and antioxidants by means of folin-ciocalteu reagent. Methods Enzymology, 299, 152-178. DOI: http://dx.doi.org/10.1016/S0076-6879(99)99017-1

Skehan, P., Storeng, R., Scudiero, D., Monks, A., McMahon, J., Vistica, D., ... Boyd, M. R. (1990). New colorimetric cytotoxicity assay for anticancer-drug screening. Journal of the National Cancer Institute, 82(13), 1107-1112. DOI: http://dx.doi.org/10.1093/jnci/82.13.1107

Song, F. L., Gan, R. Y., Zhang, Y., Xiao, Q., Kuang, L., & Li, H. B. (2010). Total phenolic contents and antioxidant capacities of selected chinese medicinal plants. International Journal of Molecular Sciences, 11(6), 2362-2372. DOI: http://dx.doi.org/10.3390/ijms11062362

Tedesco, S. B., & Laughinghouse IV, H. D. (2012). Bioindicator of genotoxicity: The Allium cepa test. In J. Srivastava (Ed.), Environmental Contamination (1st ed., p. 138-154). Shanghai, China: InTech. DOI: http://dx.doi.org/10.5772/31371

Tungmunnithum, D., Thongboonyou, A., Pholboon, A., & Yangsabai, A. (2018). Flavonoids and other phenolic compounds from medicinal plants for pharmaceutical and medical aspects: An overview. Medicines, 5(3), 93. DOI: http://dx.doi.org/10.3390/medicines5030093

Viana, G. S. B., Medeiros, A. C. C., Lacerda, A. M. R., Leal, K. A. M., Vale, T. G., & Matos, F. J. D. A. (2004). Hypoglycemic and anti-lipemic effects of the aqueous extract from Cissus sicyoides. BMC Pharmacology, 4(9), 1-7. DOI: http://dx.doi.org/10.1186/1471-2210-4-9

Vicentini, V. E. P., Camparoto, M. L., Teixeira, R. O., & Mantovani, M. S. (2001). Averrhoa carambola L., Syzygium cumini (L.) Skeels and Cissus sicyoides L.: medicinal herbal tea effects on vegetal and animal test systems. Acta Scientiarum. Biological Sciences, 23(2), 593-598. DOI: http://doi.org/10.4025/actascibiolsci.v23i0.2716

Zhishen, J., Mengcheng, T., & Jianming, W. (1999). The determination of flavonoid contents in mulberry and their scavenging. Food Chemistry, 64(4), 555-559. DOI: http://dx.doi.org/10.1016/S0308-8146(98)00102-2
