Abstract: Urban expansion and densification have resulted in phenomena related to the degradation of watersheds. This work evaluated the influence of increased anthropic pressure on the imbalances involving erosive processes and the consequent degradation of the river plain of a hydrographic basin in Aparecida de Goiânia - GO. The methodology analyses the spatial-temporal correlation between reduced concentration time, increased runoff estimates, and the consequent degradation of the plain in 1992, 2005, and 2016. The results indicate an increase in erosion in segments of channel convergence, with a low altimetric gradient and the occurrence of Fluvent Entisol, stemming from the increase in volume and flow peaks arising from areas with significant densification processes in the last twenty-four years. Thus, the importance of using indicators of increased anthropic pressure to understand the impacts related to urban density.
Keywords:Urban DensityUrban Density,Surface runoffSurface runoff,River ErosionRiver Erosion.
Resumo: A expansão e o adensamento urbano vêm implicando em fenômenos relacionados à degradação de bacias hidrográficas. O objetivo deste trabalho é avaliar a influência do aumento da pressão antrópica nos desequilíbrios envolvendo processos erosivos e a consequente degradação da planície fluvial de uma bacia hidrográfica em Aparecida de Goiânia – GO. A metodologia compreendeu a correlação espaço-temporal entre redução do tempo de concentração, aumento das estimativas de escoamento superficial e a consequente degradação da planície em 1992, 2005 e 2016. Os resultados indicam aumento de erosões em segmentos de convergência de canais, de baixo gradiente altimétrico e ocorrência de Neossolo Flúvico, resultantes do aumento do volume e picos de vazão advindos de áreas com significativo processo de adensamento nos últimos 24 anos. Assim, destaca-se a importância do uso de indicadores de aumento da pressão antrópica na compreensão de impactos relacionados ao adensamento urbano.
Palavras-chave: Adensamento Urbano, Escoamento Superficial, Erosão Fluvial.
Resumen: La expansión y la densificación urbana han dado lugar a fenómenos relacionados con la degradación de las cuencas hidrográficas. El objetivo de este trabajo es evaluar la influencia del aumento de la presión antrópica sobre los desequilibrios que involucran procesos de erosión y la consecuente degradación de la llanura aluvial de una cuenca hidrográfica en Aparecida de Goiânia - GO. La metodología comprendió la correlación espacio-temporal entre la reducción del tiempo de concentración, el aumento de las estimaciones de escorrentía y la consiguiente degradación de la llanura en 1992, 2005 y 2016. Los resultados indican un aumento de erosiones en los segmentos de convergencia del cauce, con un gradiente altimétrico bajo y presencia de Neosuelo Flúvico, como resultado del aumento del volumen y de los picos del caudal que surgen de las áreas con un proceso de densificación significativo en los últimos 24 años. Así, se destaca la importancia del uso de indicadores de aumento de la presión antrópica para comprender los impactos relacionados con la densificación urbana.
Palabras clave: Densificación Urbana, Escorrentía Superficial, Erosión Fluvial.
Artigos
COMPACTION AND WATERPROOFING OF THE SOIL IN THE URBAN FLUVIAL CHANNELS
COMPACTAÇÃO E IMPERMEABILIZAÇÃO DO SOLO E IMPLICAÇÕES NOS CANAIS FLUVIAIS URBANOS
COMPACTACIÓN E IMPERMEABILIZACIÓN DEL SUELO E IMPLICACIONES EN CANALES FLUVIALES URBANOS
Universidade Federal do Ceará
Received: 27 March 2020
Accepted: 10 August 2020
In recent decades, urban expansion and densification have led to a series of changes, especially inthe rate of environmental processes, resulting in phenomena related to the increase in an thropic pressure in river basins. These alterations have led to the degradation of these natural systems, especially in largecities, where the increase in each house hold’s built area has contributed to the general reduction ofplaces destined for infiltration, preventing the soil from performing its hydrological functions efficiently (NUNES, L. 2015;TUCCI, 2018). Among the main impacts arising from this scenario are the removalof vegetation cover from environmentally sensitive areas and the consequent change in the functioningof ecosystems, leading to a loss of biodiversity and a change in the pace of physical processes (HAMMOND et al., 2013; LIN et al., 2017; GUZHA et al., 2018).
Hydrological processes, which result from the interaction of rain water with the properties of the terrain and soil, are the most prominent of these. On a daily basis, they create adverse situations that produce harmful effects. On the whole, these effects are caused by the occurrence of long-term, mainlyintense rains, combined with absent or in efficient infrastructures, such as drainage systems and poorly planned streets that, associated with compaction and water proofing, reduce the capacity of soils todevelop their hydrological functions. Inefficient infiltration and water retention processes in the subsurface are the most significant, as they influence the increase in surface runoff, alter the flows between the water table and drainage channels, causing overflow in rainy periods and consequently,impair the system’s continuity during droughts (SU et al., 2014; MOHAJERI et al., 2015).
Another factor that influences the concentration and increased volume of flow is the form of urban expansion and densification, which tends to start at the highest and widest parts of the basins and,in most cases, extends to the lowest segments closest to the flood plains. As a result, the run off has ahigher volume and speed, converging and affecting smaller areas. Furthermore, the reduction in the concentration time implies an increase in intensity and, therefore, greater pressure in the lower areas. For geometric reasons, they tend to decrease exponentially as they approach the springs and river channels,increasing the difference between producing areas and areas receiving flows. Given the heavy and fleeting rains, especially in large Brazilian urban centers (WOLLMANN, 2015), the number andfrequency of floods have risen in recent years (LIMA; AMORIM, 2014; KOCORNIK-MINA et al.,2015; MUKHERJEE, 2016; GRIFFITHS et al., 2018).
In Brazil, this phenomenon was more apparent after the 1960s, when most of the population moved to the cities at the expense of the countryside (OJIMA, 2008; TUCCI, 2016;PASQUALOTTO;SENA, 2017). The demand for new housing in urban environments influenced the expansion of adjacentareas and led to the densification of existing urbanized central regions, as well as the occupation of less satisfactory areas. The result was an increased and more intense modification, especially of the soilcover and, consequently, greater interference in the balance of natural systems (CAMARGO;AMORIM, 2005; SANTOS et al., 2017). In this context, Tripathi et al. (2014) and Rubinato et al. (2018) take into account global social, economic, climatic, and urban expansion trends and suggest that the frequency, magnitude, and, above all, the costs related to these events will tend to rise.
Nevertheless, given all these implications, currently, there is still a lack of established relevantand safe indicators to guide more harmonious occupations and, thus, ensure a lower-impact urbangrowth (SILVA; TRAVASSOS, 2008; WEBBER et al., 2018). Clearly, the solution is to find a better equation between the factors influencing the modified areas that produce greater energy inputs and the subsequent effects in the receiving areas that still have natural characteristics, to mitigate the imbalancesin urban hydrographic systems.
This article aims to evaluate the effects of urban density on the increase of effective precipitation,as well as on the spatial-temporal concentration of the runoff volume estimates and their impact on the balance of river channels in the years 1992, 2005, and 2016 in the hydrographic basin of the Tamanduá stream in the municipality of Aparecida de Goiânia – GO, Brazil. The research is pertinent as in the Metropolitan Region of Goiânia, the number of river channels affected and the intensity of their degradation in areas that have undergone urban densification in the last decades have been growing.
The study area is a river basin located in the urban area of Aparecida de Goiânia, as shown inFigure 1, where population growth has intensified since the 1980s due to urban expansion. New neighborhoods have emerged in adjacent areas and the densification of buildings in partially urbanizedareas or close to the major traffic routes have occurred. This area is representative of the urbanexpansion and densification process, especially over the last three decades and which has resulted, aboveall, in the municipality’s conurbation with the capital of Goiás (FERREIRA, 2013; BORGES; CUNHA,2015). Consequently, there has been a gradual process of compaction and water proofing of the soil,which is spatially and temporally correlated to changes in the hydrological regime, resulting in erosiveincisions along the slopes and the plain with the ensuing degradation of the river channels.

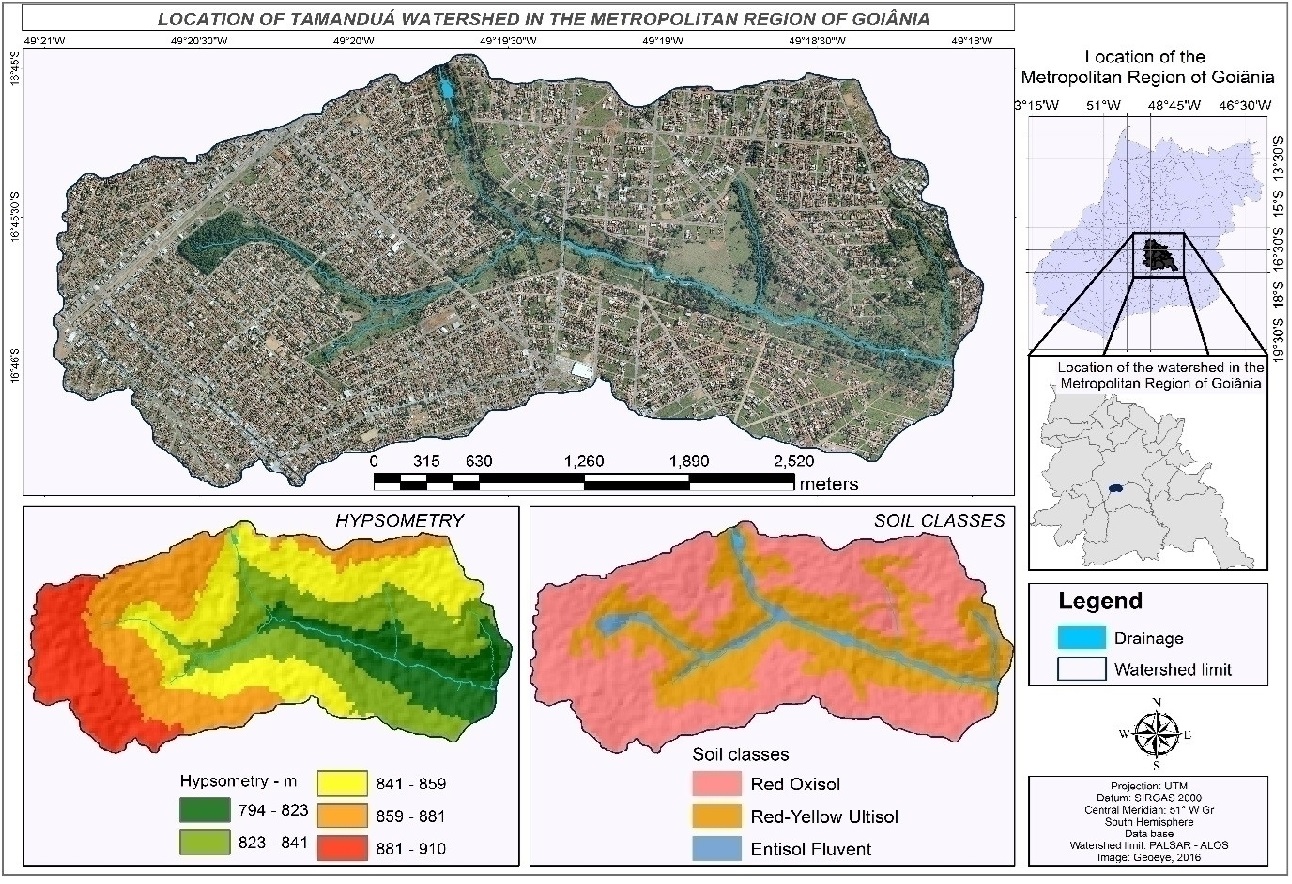

Figure 1
Location, hypsometry, and soil classes of the Tamanduá stream basin in the city of Aparecidade Goiânia.
The area’s geology is composed of metamorphic rocks belonging to the Araxá Sul de Goiásgroup, with a predominance of schist that occupies a large part of the basin and outcrops along the mainchannel. Quartzites rich in quartz and variable concentrations of micas also occur (LACERDA FILHO et al., 1999; FUCK et al., 2000). This geology means the main channel has a strong resistance to deepening, giving it a low altimetric gradient, which promotes the occurrence of alluvial and hydromorphic soils. A declivity of 5% predominates in the higher segments of the slopes, with apreponderance of Dystrophic Red Oxisol and clay texture (RODRIGUES et al., 2005). These were thefirst areas to undergo the soil compaction and water proofing process due to the construction of the first groups of buildings and the first compacted roads in the 1970s and 1980s (PINTO, 2009). In the transition area from high to medium slopes, the declivity rises to 11%, with a predominance of Red-Yellow Ultisol with a medium to clay texture. In 1980 these areas were still occupied by pasture, asthe building process was still restricted to the highest and flattest areas. Finally, in the vicinity of the river channels, the declivity rises to about 28% before decreasing again when it reaches the plain, remaining around 3% along the entire river channel. On this low slope, Entisol Fluvent with sandy texture predominates, sometimes overlying the Dystrophic Alfisol and clay texture. Overall, in terms of geomorphological processes and forms, it is a basin with mainly convex slopes and not much concavity,even close to the floodplain.
The climate is semi-humid tropical, with two distinct seasons and marked climatic seasonality (MONTEIRO, 1951; LUIZ; ROMÃO, 2019). The warm and rainy period, with average temperaturesbetween 29°C and 32°C, is from the end of September to the beginning of April, with January andDecember having the highest accumulated average precipitation with 268 mm. The dry and mild period,with average temperatures between 18°C and 21.5°C, lasts from May to the beginning of September,with the average of the lowest accumulated precipitation values, 8 mm, occurring in June and July. Theaverage annual precipitation is 1,572 mm, and in years of less rainfall, this can fall to 1236 mm, while inyears with greater accumulated precipitation it reaches around 1900, and can exceptionally peak at 2,080 accumulated mm (OLIVEIRA et al., 2014; INMET, 2017).
The methodology covered the spatial-temporal correlation between the increased volume and the reduced concentration time of surface run off in the river basin area and the degradation by edge erosion throughout the river plain from 1992 to 2016. The runoff estimates were determined using the Rational Method hydrological model, whose first systematized records were produced by Pierre Parrault in the seventeenth century. These principles were subsequently adapted by Mulvaney (1851) and Kuichling(1889). One of the most well-known formulas is expressed by the following equation:
Equation
Equation 1
where Qmax = maximum runoff flow, estimated in m³/s; C = runoff coefficient or the ratiobetween the drained volume and the precipitated total, adimensional; i = average of the maximumintensities of precipitation, in mm/h, to estimate the maximum flow in the outlet in question, theduration of the rainfall event must be equal to or greater than the time necessary for the entire basin to contribute with runoff; A = watershed area, in km²; and 3.6 = conversion factor between units.
The runoff coefficients were determined based on the proposal of the Soil Conservation Service(SCS) of the United States Department of Agriculture (1971). This proposal was reviewed and appliedby the Federal Highway Administration (FHA) - US Department of Transportation (2013), and is theratio between the effective precipitation, or volume converted to surface runoff, and the total precipitation during the event in question, as presented in the following equation:
Equation
Equation 2
When Ç = runoff coefficient, dimensionless; P = rainfall or pluviometric height in mm; s =coefficient or potential for water storage in the soil, in mm; and Ia => 0.2 s = initial abstraction or loss considered. As observed in the first part of Equation 2, for effective precipitation an initial loss of about 20% of the precipitated volume is considered due to interception and retention in depressions. This implies that rainfall with an accumulated volume below 20% of the storage coefficient does not make surface runoff available.
The values of s were estimated based on the CN values (flow number), according to the NaturalResources Conservation Service (NRCS) - USDA (1997), as expressed in equation 3:
Equation
Equation 3
Therefore, the CN values were determined based on the assessment of hydrological groups (GH),resulting from the assessment of soil types, in particular, texture and depth, the coverage and use conditions, and the antecedent humidity. In this method, the CN values range from 0 (low flow capacity) to 100 (high flow capacity). It is noteworthy that the calculation also considered intermediate humiditysoil conditions, with the accumulated precipitation varying between 13 and 53 mm in the previous fivedays.
The land cover and use maps were elaborated using the sequential and logical evaluation of aerial photographs from 1992 in shades of gray and a spatial resolution of 33 cm, and colored images from the QUICKBIRD and GEOEYE satellites, from 2005 and 2016 respectively, with 50 cm spatial resolution.Supervised classification was adopted by grouping adjacent pixels and those with similar spectral characteristics, spectral detail of 18 and spatial detail of 8, both on a scale from 1 to 20, and a minimumsegment or grouping of 4 pixels. The field validations took place through visits to representative sites ofeach class and in areas that had remained unchanged throughout the period. The erosive processes were mapped through visual inspection, based on the same images. The use of extremely high spatialresolution images is especially efficient in determining classes with different coverage and useconditions and, consequently, has a better detailing of the water proofing levels, as verified by Lechiu etal. (2012).
The averages of the maximum precipitation intensities were estimated according to Vilela and Mattos (1975) proposal, which relates the intensity - duration - frequency (IDF) of the meteorological events. To this end, the equation proposed by Oliveira et al. (2005) was used, which results from the systematized rainfall history for the Goiânia region through the following relationship:
Equation
Equation 4
Where Im = average of the maximum precipitation intensities, in mm/h, K, a, b and c = specificparameters for the climatological station; T = time of return, in years for an extreme event; and t = timeof concentration of runoff which must be less than or equal to the duration of precipitation in the basinarea, in minutes. The present work considers a return time of 12 years, compatible with commercial areas and arterial traffic routes (PORTO et al., 2004). The duration times of the precipitation resulted from the time of concentration of the runoff, for the entire basin, estimated for the years 1992, 2005, and 2016. These were determined by the Cinematic Method, according to the SCS-USDA (1971) using thefollowing equation:
Equation
Equation 5
Where Tc = Time of concentration of runoff, in min; 1/60 transformation factor from seconds tominutes; Li = flow length in the considered segment, in m; and Vi = Runoff speed, in m/s.
The runoff speed was estimated based on the evaluation of the K coefficients and the declivity,using the following equation (PORTO, 1995):
Equation
Equation 6
Where Vi = runoff speed, in m/s; K = coefficient, according to the Manning roughness coefficientn and hydraulic radius, adimensional; and Si = declivity, in m/m, raised to the exponent 0.5.
As the basin’s area is greater than 3 km², the results of the Rational Method were applied with adelay coefficient as a function of its area, resulting in what is known as the Modified Rational Method,as proposed by Euclydes (1987), whose formula is:
Equation
Equation 7
Where θ = delay coefficient as a function of the basin area; 0.278 and 0.00034 are constant and S= area of the basin in km².
The slope, flow length, and basin area models were created using the ALOS - PALSAR Elevation Model (MDE), corrected and with a spatial resolution of 12.5 meters. The basin’s variable area was used cumulatively, that is, the volume of cells upstream was transferred to those downstream, resulting in the accumulation of surface runoff as a function of the specific contribution area (NUNES; BORBA, 2018).This enabled the application of all the equations and, consequently, all the calculations for each of the 65,894 12.5 m² cells of the basin’s MDE, which were used to create a spatially distributed model, withthe highest value flow estimate corresponding to the river mouth. Otherwise, there would only havebeen one calculation and the resulting value would represent the entire area of the basin, and the spatialvariability of runoff volumes would not be represented.
To calculate the pressure on the river plain and the consequent erosion of the edges of the channels during rainfall, the formula for the concept of kinetic energy or energy of a given mass inmotion was applied using the following equation:
Equation
Equation 8
Where Ec = kinetic energy of the flow, in j; m = mass represented by the volume of runoff andconsidering the water density equal to 1; and v = speed of runoff, in m/s.
The results, especially from the application of Equations 2 and 3, and considering a precipitation intensity of 73.37 mm / h for 32.42 minutes for the year 2016, are shown in Table 1. It presents the relationship between the mapped classes of land cover and use, the hydrological groups (GH), and the CN values. The results are the values of the infiltration coefficients (s), Effective Precipitation, and Runoff Coefficients. It is significant that in addition to the conditions of coverage and use, the last two values depend on the duration time, as well as the precipitation intensity considered in relation to theinfiltration coefficients.

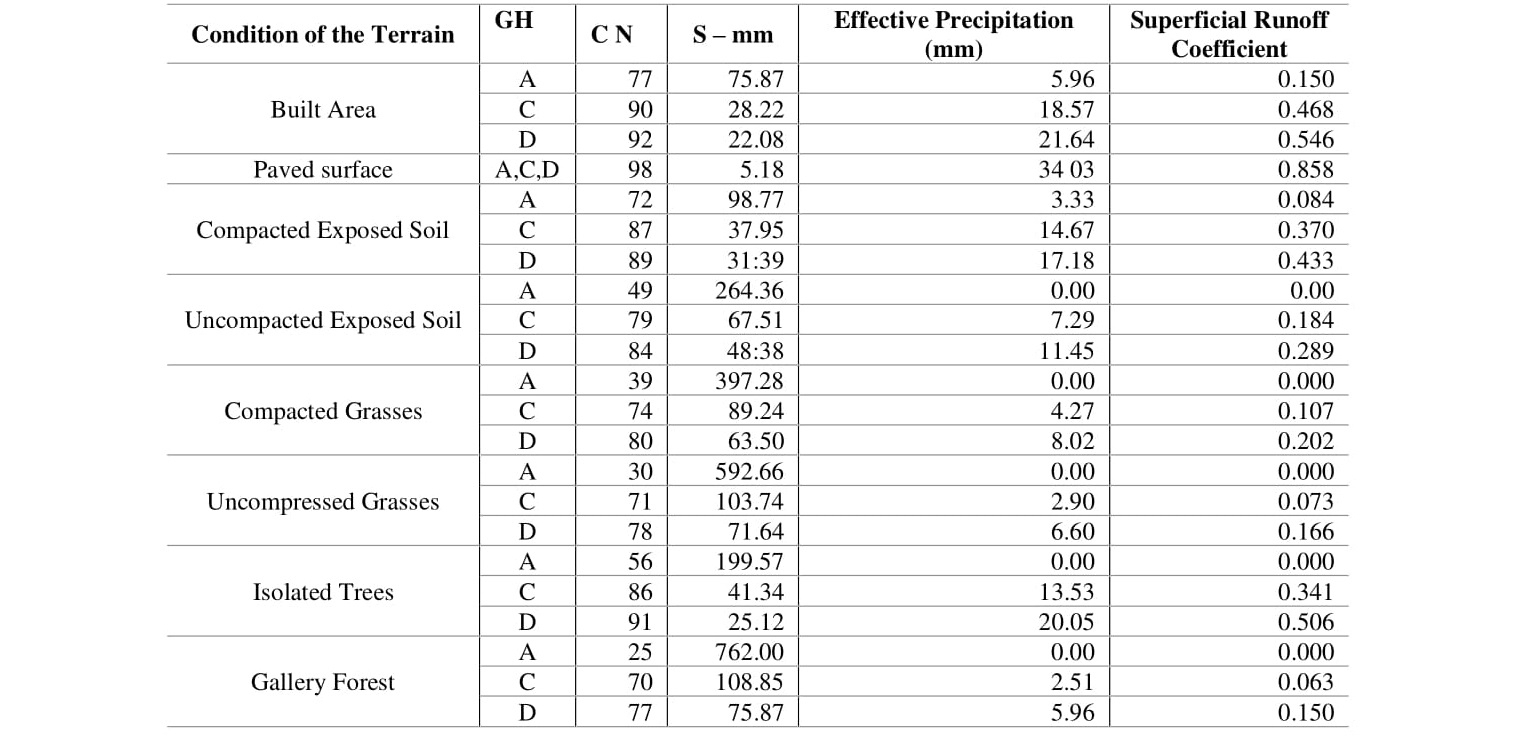

Table 1
Classes of land use and occupation, hydrological groups and respective infiltrationcoefficients, effective precipitation, and runoff.
Prepared by the authors based on constant CNdata in Tucci and Marques (2001), using Equations 2 and 3.
The results of the multitemporal mapping of land cover and use classes indicate a basin undergoing an increasing process of expansion of urbanization, especially in its lower portions and closeto the main channel, as well as densification of buildings in the higher and flatter areas. The pace of this process has led to a substantial increase in areas with high runoff coefficients and, consequently, higheffective precipitation. Uncompressed grasses, uncompacted exposed soil, and Galley Forest were prominent among the classes where the area was reduced. The first two contributed to the increase in the Built Area, while the latter gave way to the expansion of buildings in the vicinity of the drainage channels. In both cases the Built Area increased from 16.49% in 1992 to 28.46% in 2005, reaching56.02% in 2016. The Compacted Exposed Soil class changed mainly to Paved Surfaces, which rosefrom 0% in 1992 to 9.6% in 2005, and then to 14.08% in 2016, as shown in Figure 2.

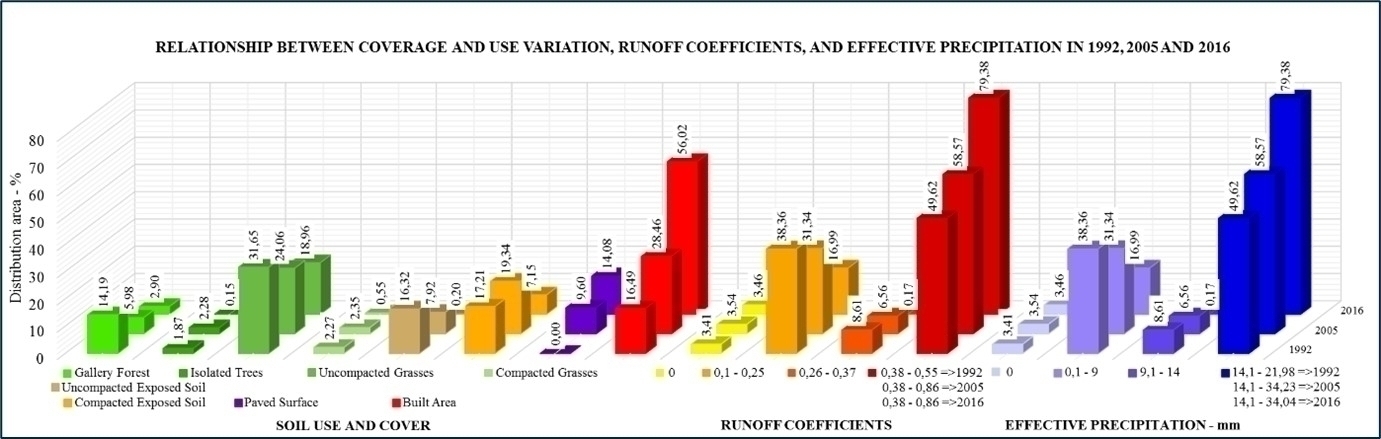

Figure 2
Areas - % - of each class of cover and land use, runoff coefficients, and effective precipitationin the years 1992, 2005 and 2016.
Considering the effects of expansion and urban density due to rainfall, the general trend was are duction in areas with low flow coefficients and a consequent increase in those with values above 0.37.This is a direct reflection of the growth in built-up areas and, mainly, the emergence of paved surfacesthat raised the extreme coefficient value, from 0.55 in 1992, to 0.86 in 2005. Taking into account thes cenarios of rainfall events for 1992, 2005, and 2016, the general trend was to reduce areas with runoff coefficients of 0.1 to 0.25 and increase those with runoff coefficients of 0.38 to 0.86, as well as thoseareas with high effective precipitation.
Thus, in 1992, the intensity of rainfall was 72.47 mm/h, during an estimated concentration time of 33.13 minutes, resulting in a pluviometric height of 40.03 mm. In these conditions, it is clear that around3.41% of the basin area did not provide effective precipitation; 38.36% had a flow sheet 0.1 to 9 mmthick, 8.61% between 9.1 and 14 mm, and 49.62% an excess rainfall column that could reach up to 21.98 mm, as presented in Figure 2. In 2005, based on the same figure and considering a rainfallintensity of 72.87 mm/h for 32.81 minutes, the estimated pluviometric height was 39.85 mm. Faced witha more advanced stage of compaction and water proofing of the soil, it is evident that the area withouteffective precipitation remained almost unchanged; 31.34% had effective precipitation between 0.1 and 9 mm; 6.56% between 9.1 and 14 mm; and 58.57% between 14.1 and 34.23 mm. Considering anintensity of 73.37 mm/h during a concentration period of 32.42 minutes, the estimated rainfall in 2016 was 39.64 mm. In these conditions, about 17% of the basin had effective precipitation between 0.1 and 9mm; 0.17% between 9.1 and 14 mm; and 79.38% between 14.1 and 34.04 mm, which means the soil’sfunction in infiltrating and storing water, a well as regulating water flows has been severely limited.
Regarding the spatial distribution of the conditioners and the respective effects of the urban expansion and densification process, it is apparent that the increase in built areas and the appearance of paved surfaces intensified from the higher to the lower areas and closer to the drainage channels, as shown in Figure 3. For the year 1992, it is possible to verify that the high flow coefficients and their correspondence in high effective precipitation were restricted to the built and higher parts of the basin,allowing lower portions that still had low flow coefficients to cushion the effects resulting from the accumulated upstream flow. However, in the following years, the trend was for built areas to expandinto the medium and low-slope segments, resulting in an exponential increase in areas with high flow coefficients and, therefore, flow generators that gradually converge.

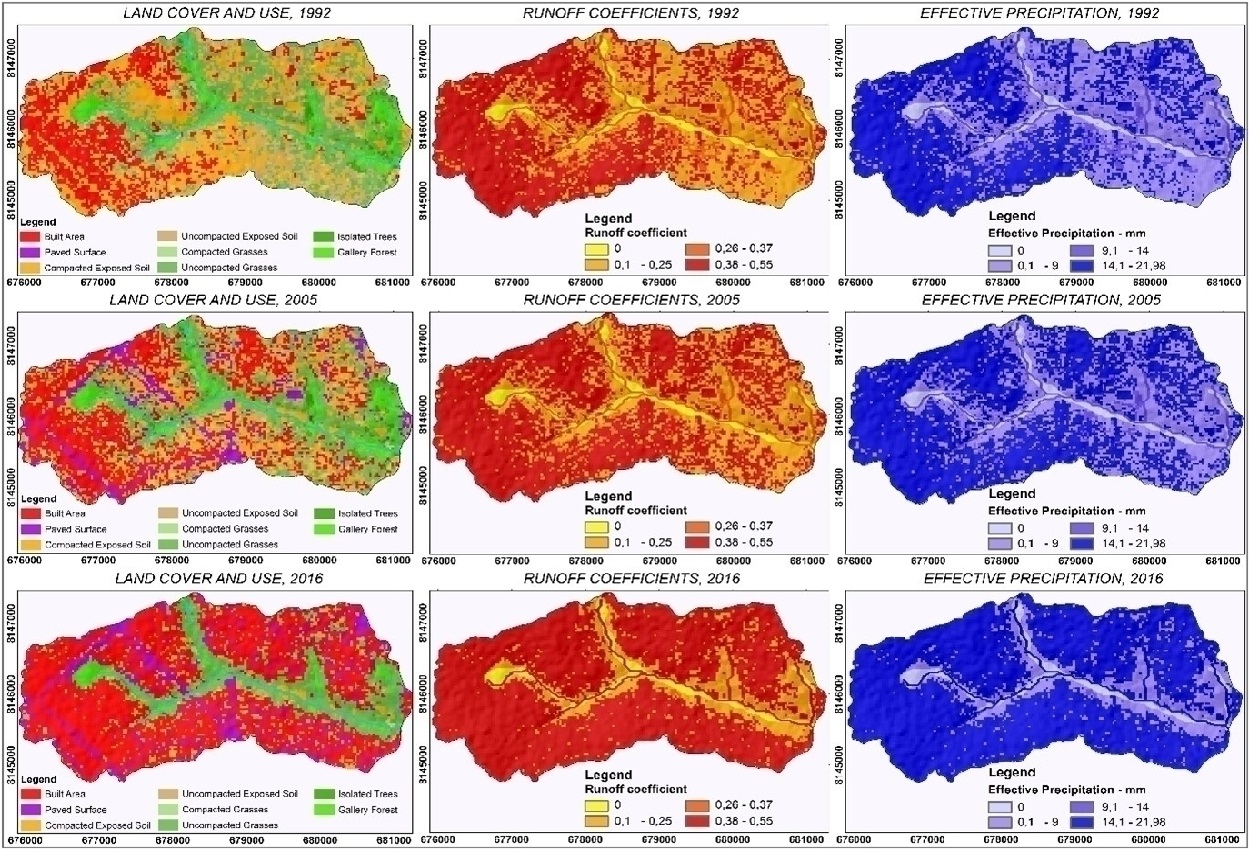

Figure 3
Maps of land cover and use and the respective runoff and effective precipitation coefficientsin 1992, 2005, and 2016.
It is worth noting that the effects of densification are not exclusively due to the increase in areas with high effective precipitation. They also result from the arrangement, both radial and immediately around the head waters and drainage channels, of this high percentage of paved and built areas, which cause high runoff. The tendency to flow convergence causes the kinetic energy resulting from the volume and the speed and shorter flow concentration time to concentrate in smaller and mainly fragile areas, such as unprotected plains with sandy textured soils, which substantially increases the potential for impacts, especially in the form of erosion processes.
The rise in soil waterproofing has impacted directly on hydrological dynamics. Specifically, the increases in effective precipitation, speed, and consequently reduced concentration times, as well as agrowth in run off volumes, lead to an intensity apparent in environments with a greater flowconvergence, such as headlands and drainage channels. As can be seen in Figure 4, in 1992, in most ofthe basin (41.68%), speeds of up to 0.56 m/s predominated, with the maximum reaching 3.26 m/s. Since2005, the classes above 0.56 m/s have been prominent, with estimates that 31.25% of the basin hasspeeds of 1.36 m/s and 3.29 m/s. For 2016, the estimates of flow velocity above 1.36 m/s covered about42.75% of the basin and could reach up to 3.33 m/s. A direct consequence of this increase, including the area covered by the highest velocity classes, has been the reduction of the concentration time and theensuing rise in the intensity or flow of the surface runoff.

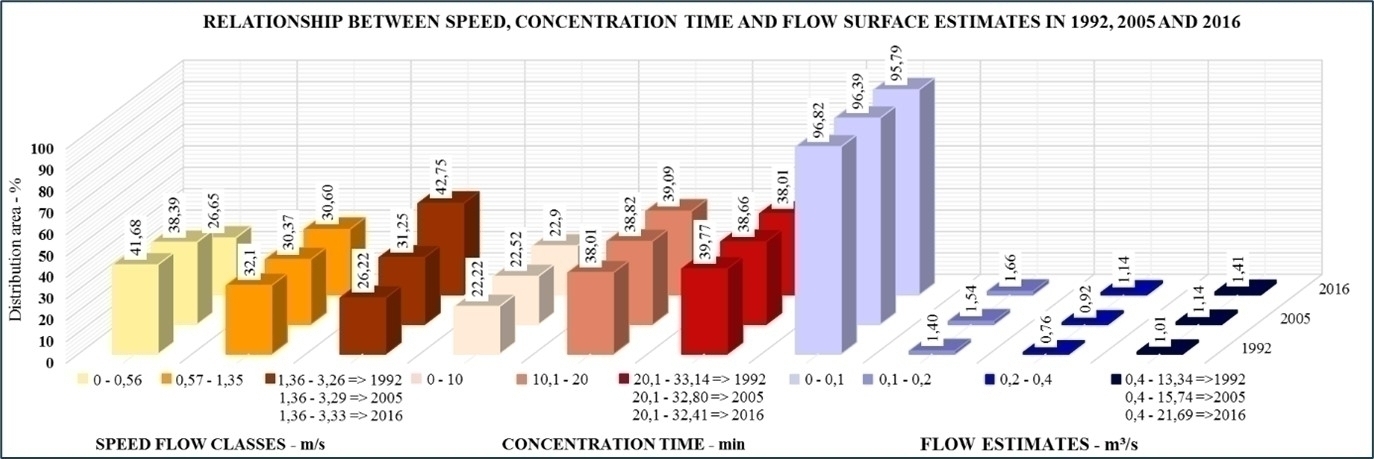

Figure 4
Speed flow classes, concentration time, flow estimates, and respective area percentagesin 1992, 2005, and 2016.
Under the conditions of land coverage and use in 1992, 33.14 minutes were required for the entirebasin to contribute to the flow at the mouth. With the advance and densification of urbanization, the time for this process was reduced to 32.8 minutes in 2005 and 32.41 minutes in 2016. Considering the growthin areas with high effective precipitation, the increase in speeds, and the consequent reduction in the time of concentration of run off, the main result has been the considerable rise in flow estimates duringrain events throughout the period considered. Thus, given the conditions of land coverage and use in 1992, because of the intensity and duration of extreme rainfall events, the maximum flow estimates were13.34 m³/s at the river mouth. Under the conditions in force in 2005, the estimates rose to 15.74 m³/s.The estimates continued to rise over the next 11 years, reaching 21.69 m³/s, as systematized in Figure 4.
The spatial expression of these changes, the resulting drops in concentration times, and the subsequent increase in velocity and runoff volume over the period are shown in Figure 5.

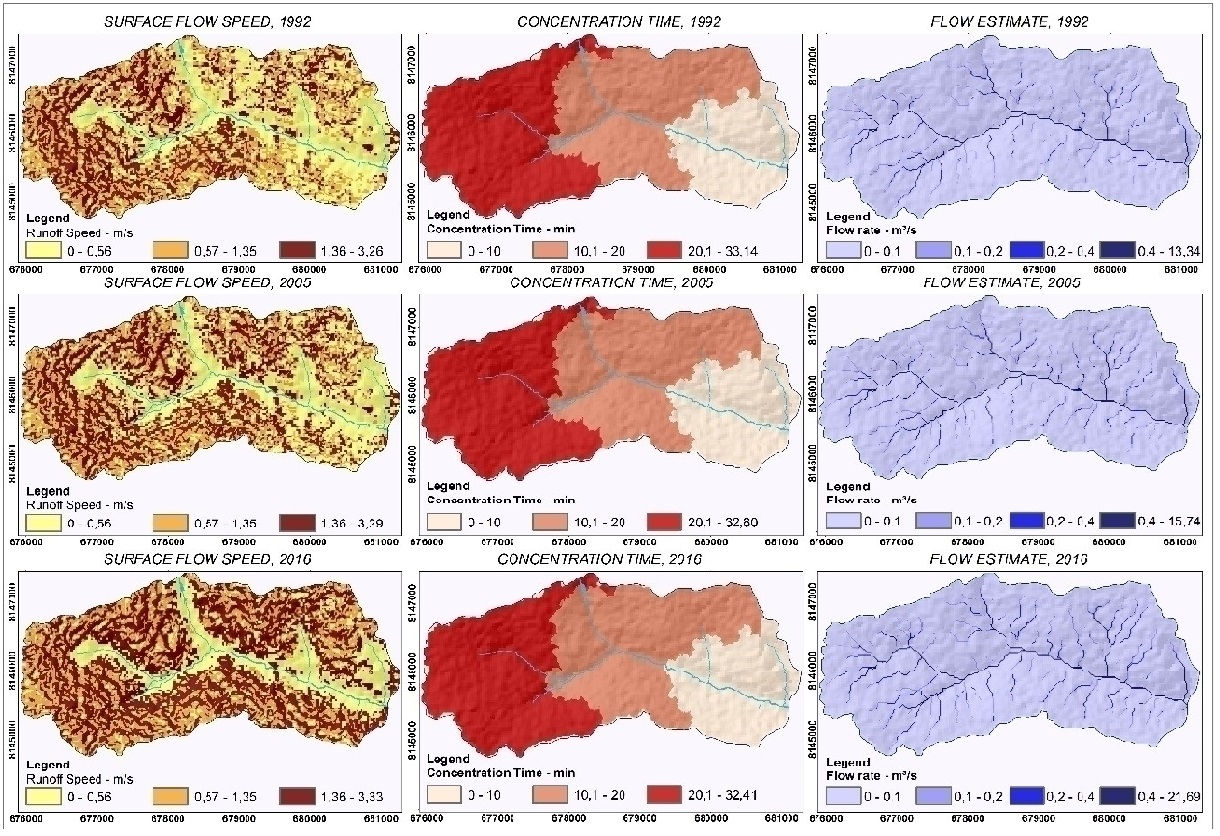

Figure 5
Maps of velocity estimates; concentration times, and runoff volumes for 1992, 2005, and2016.
It is important to note that in the study period, the greatest increases in velocity occurred in the medium to low slope segments, demonstrating the influence of urban density on surfaces with greaterdeclivity in the basin’s hydrological dynamics. It is also evident that the interruption of volumes over 0.2m³/s in the vicinity of the channels is due to the existence of non-compacted grasses and some remnantsof Gallery Forest. However, considering the prevalence of grasses to the detriment of natural vegetation,it is understood that the impact caused by high speeds, as well as the runoff volume were decisive in the degradation of the banks and the resulting increase in the width of the main channel.
Given the urban transformations and the hydrological dynamics over the years 1992, 2005, and 2016, it is clear that the hydrographic basin has undergone a sharp increase in volume, space-time concentration of surface flows, and the consequent degradation of the river plain. This situation isevidenced by the ever-increasing estimates of velocity and runoff volume, which lead to peak flows inareas of convergence, such as drainage head waters and principally along the main channels.
As shown in Figure 6, the maximum energy estimate resulting from the volume of the runoffspeed rose from 20.8 Mg.m².s-² in 1992, to 32.2 Mg.m².s-² in 2005 and then 44.2 Mg.m².s-² in 2016.Similarly, the main channel had an average width of 7.08m in 1992, 18.58m in 2005, and 71.13m in2016. From the relationship between the two quantities, it can be seen that for estimates of up to 0.2 Mg.m².s-², there was no evidence of associated erosive processes throughout the study period. However,for estimates above 0.2 Mg.m².s-², especially for the years 2005 and 2016, the relationship between the increase in the flow energy estimate and the average channel width is apparent, since 2005 it has alwaysbeen over 18 m.

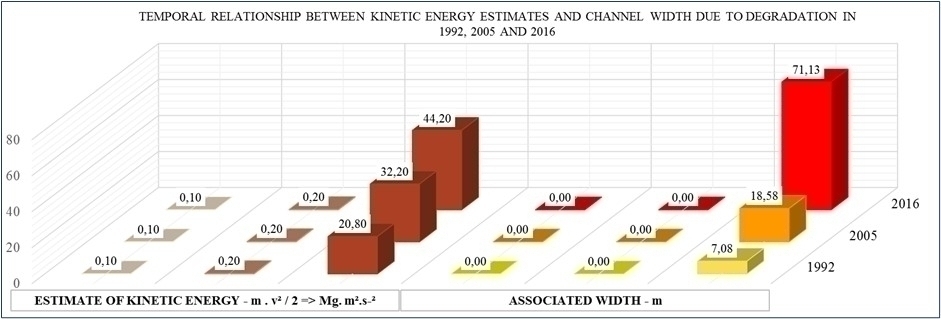

Figure 6
Temporal relationship between the estimates of kinetic energy and the mean width of thedrainage channel in the years 1992, 2005 and 2016.
The spatial distribution of the kinetic energy classes and their relationship with erosion along themain channels show that over the study period the lowest estimates gradually gave way to ones greaterthan 0.2 Mg.m².s-², which also started to predominate in other environments, that is, along with thedrainage channels, as can be seen in Figure 7. So, in 1992, classes below 0.1 Mg.m².s-² occurred in flatareas, whereas those between 0.1 and 0.2 Mg.m².s-² were found on the steeper slopes, transitioning tothe steepest ones, reaching up to 20.8 Mg.m².s-² along the main channel. In this situation, the width exceptionally exceeded 7.08m in concave segments with evidence of more pronounced erosion.
In 2005, the class of 0.1 to 0.2 Mg.m².s-² started to dominate along the steepest slopes and drainage headwaters, indicating a strong increase in erosive power, even in areas preceding the riverplain. However, with estimates of up to 32.2 Mg.m².s-², it was along the river plain that the increase inkinetic energy was determined in the increase of erosive processes, resulting in an average width of18.58m. As for 2016, there was a gradual increase in areas with estimates of up to 0.2 Mg.m².s-²,especially associated with paved areas that drain directly into the main channels, as shown in Figure 7.As a result of this flow convergence at high speeds, energy estimates reached 44.2 Mg.m².s-², resultingin erosive processes that resulted in an average width of 71.13 m.

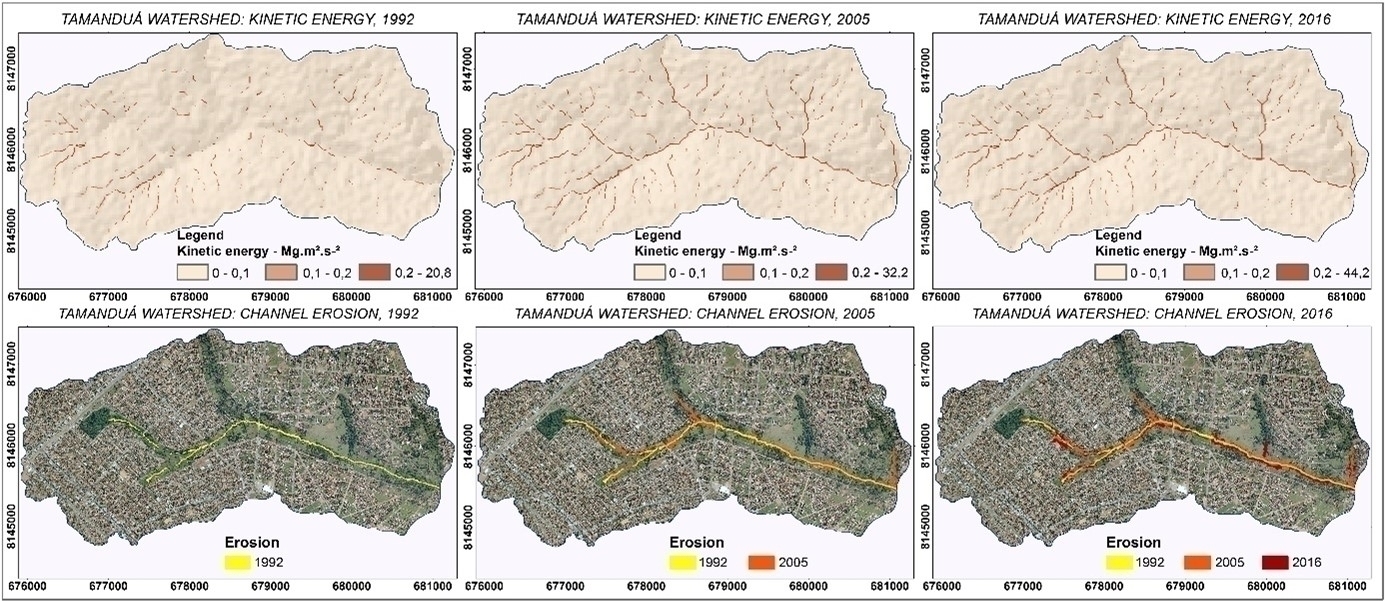

Figure 7
the evolution of erosion by undermined banks and the consequent widening of the channeland degradation of the plain of the Tamanduá stream in the years 1992, 2005, and 2016.
A detailed analysis of the locations without river bank vegetation that did not have established infrastructure, showed that they were the most affected by erosion processes. It is also note worthy that these were formerly areas of specific contributions that have undergone an increase in run off coefficients and, consequently, an escalation in flow in recent years. In these environments, erosiveprocesses have advanced by mechanisms that undermine or erode the banks in sandy texture soils, such as Alluvial Neossol, sometimes overlying the clayey Alfisol. There is further deterioration in segmentswhere erosive processes are evolving in soils such as Ultisol, that had not customarily been in contact with water flow in the channel, thus deepening the slopes. This process takes place through the erosion of the concave banks and the subsequent advance of the edges, reaching land that had not been part of the process in the past.
The process of channel degradation by erosive processes indicates that the highest rates of degradation have segments with different natural conditions in the face of anthropic changes. Thus, inpart a of Figure 8, it is clear that in 1992 the channel was remarkably sinuous in the middle of the plain.However, given the tendency of the flow to increase in peak situations this morphology is not conduciveto the flow of large volumes of water in increasingly shorter intervals, which necessarily leads the channel to adapt to the new conditions. This adaptation undergoes an erosive process of the concavemargins and the subsequent partial deposition of the material on the convex banks. Therefore, besides becoming wider, it starts to acquire a more rectilinear character, allowing larger and larger volumes toflow in shorter intervals of time. Consequently, the segment observed in 1992 had deteriorated by 2005,as can be seen in part b of the same figure. In 2016, the same segment was already very degraded, with anotable involvement of part of the land adjacent to the channel.
In natural conditions, the predominance of metamorphic rocks such as mica schists and quartzites along the channel contributes to a lower altimetric gradient and, consequently, is conducive to the occurrence of hydromorphic soils, such as Alfisol, and alluvial soils such as the Alluvial Neossol. As aresult, over almost all the segments with a low altimetric gradient, there was a significant widening dueto the lower resistance of the prevailing soils. Due to its sandy character and easy disintegration and transport, the Alluvial Neossol contributed significantly to the widening of the channel and the ensuing degradation of the plain.

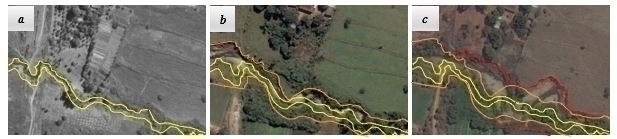

Figure 8
Situation of a segment with a low altimetric gradient of the drainage channel in 1992 ( a );2005 ( b ), and 2016 (c ).
In addition to the low gradient segments, others also proved to be conducive to erosive processes.This occurred at the confluence of channels, the edges of which were intercepted by lineaments of flows from areas that underwent major changes in coverage and use during the period considered, as illustratedin Figure 9. So, in part a there was a convergence point of channels that was still very preserved in 1992,with a low flow estimate, as well as the absence of any peak flow. In 2005, the flow estimate had risensharply and there was already a noticeable indentation or edge concavity due to the flow interceptionand consequent undermining of the sides. In 2016, the flow interception continued, and the bank becamemore concave as the edge retreat progressed, significantly widening the segment in question.

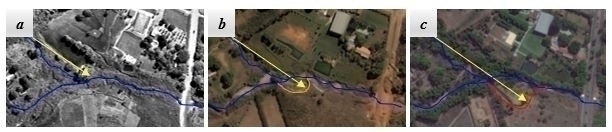

Figure 9
The point of confluence of two drainage channels in 1992 (a), in 2005 (b); and 2016 (c).
The accentuated process of urban density over the last twenty-four years can be highlighted as the main factor potentializing the process, as is evident in the maps of land coverage and use and there spective flow coefficients and effective precipitation presented in Figure 3.
The cumulative effect of these changes, such as increased precipitation intensity, increased flow coefficients, increased speeds, and flow volume, as well as the resulting reduction in concentration time along a hydrographic basin, implies an intensification in the surface hydrological processes. These processes occur in the form of increased pressure on the sides of the slopes at peak flow times and canbe considered as the spatial and temporal expression of the increase in anthropic pressure, especially intimes of rain. After the pluviometric events, the pressure on the channels is relieved and they are then exposed to the full regime of the banks, which involves more lateral erosion due to the undermining ofthe edges.
This dynamic of rising and falling pressure necessarily leads the river system to adapt to the new pattern of behavior of the water flow. A priori, such an adaptation means changes, especially in the width destined to the water flow in peak flow situations. Consequently, it implies imbalances along themain channels in the form of degradation of the floodplain. However, it is understood that the seimbalances can be reduced by installing retention basins, as well as barriers, both flow regulators, alongthe slopes and main tributary channels, respectively, to preserve part of the pre-occupation concentrationtime, especially along the slopes
The urban expansion and densification process is an inherent evolution in the growth of cities,especially those in large metropolitan regions. This expansion necessarily means changes in the pace of physical processes, especially hydrological ones. However, there is criticism of the lack of rigorous studies that enable more accurate prognoses about the possible impacts regarding the implantation of subdivisions and the resulting alteration of the properties of the soil and terrain, their interaction withrainfall events and their relationship with the behavior of surface water.
Given the above, we highlight the possibility of applying this methodology in geographic studies focused on urban planning to measure the likely impacts resulting from the urban expansion and densification process more accurately. Considering that it involves the main variables that evaluate the functioning of the hydrological system, it is possible to assess the effects of soil compaction and waterproofing and, consequently, define the most appropriate mitigating or remedial measures. These include the containment of the spatial-temporal convergence of superficial water flows, new laws thatallocate an adequate percentage of area for infiltration in each household, as well as the definition of structures designed to receive high rainfall volumes.
As observed in recent years, cities have grown through urban expansion and/or densification.Thus, the existence of increasingly accurate and precise cartographic materials, as well as constantly improving methodologies, make it possible to dimension the impacts of this process with considerableprecision.
