Original article

Clinical value of Hospital Admission Risk Profile (HARP) and the Identification of Seniors at Risk (ISAR) scales to predict hospital-associated functional decline in an acute geriatric unit in Colombia

Valor clínico de las escalas Hospital Admission Risk Profile (HARP) e Identification of Seniors at Risk (ISAR) para predecir el deterioro funcional asociado al ingreso hospitalario en una unidad geriátrica de agudos en Colombia

Diego Andrés Chavarro-Carvajal
Pontificia Universidad Javeriana, Colombia
Hospital Universitario San Ignacio, Colombia
Damaris Catherine Sánchez
Pontificia Universidad Javeriana, Colombia
Maria Paula Vargas-Beltran
Pontificia Universidad Javeriana, Colombia
Hospital Universitario San Ignacio, Colombia
Luis Carlos Venegas-Sanabria
Universidad del Rosario, Colombia
Hospital Universitario Mayor - Méderi, Colombia
Oscar Mauricio Muñoz
Pontificia Universidad Javeriana, Colombia
Hospital Universitario San Ignacio, Colombia

Clinical value of Hospital Admission Risk Profile (HARP) and the Identification of Seniors at Risk (ISAR) scales to predict hospital-associated functional decline in an acute geriatric unit in Colombia

Colombia Médica, vol. 54, no. 1, pp. 1-10, 2023

Universidad del Valle

Received: 15 June 2022

Revised document received: 02 March 2023

Accepted: 30 March 2023

Published: 30 March 2023

Abstract

Background: Older adults admitted to a hospital for acute illness are at higher risk of hospital-associated functional decline during stays and after discharge.

Objective: This study aimed to assess the calibration and discriminative abilities of the Hospital Admission Risk Profile (HARP) and the Identification of Seniors at Risk (ISAR) scales as predictors of hospital-associated functional decline at discharge in a cohort of patients older than age 65 receiving management in an acute geriatric care unit in Colombia.

Methods: This study is an external validation of ISAR and HARP prediction models in a cohort of patients over 65 years managed in an acute geriatric care unit. The study included patients with Barthel index measured at admission and discharge. The evaluation discriminate ability and calibration, two fundamental aspects of the scales.

Results: Of 833 patients evaluated, 363 (43.6%) presented hospital-associated functional decline at discharge. The HARP underestimated the risk of hospital-associated functional decline for patients in low- and intermediate-risk categories (relation between observed/expected events (ROE) 1.82 and 1.51, respectively). The HARP overestimated the risk of hospital-associated functional decline for patients in the high-risk category (ROE 0.91). The ISAR underestimated the risk of hospital-associated functional decline for patients in low- and high-risk categories (ROE 1.59 and 1.11). Both scales showed poor discriminative ability, with an area under the curve (AUC) between 0.55 and 0.60.

Conclusions: This study found that HARP and ISAR scales have limited discriminative ability to predict HAFD at discharge. The HARP and ISAR scales should be used cautiously in the Colombian population since they underestimate the risk of hospital-associated functional decline and have low discriminative ability.

Key words: Elderly+ hospital functional deterioration+ harp+ isar patient discharge+ patient readmission+ activities of daily living+ polypharmacy+ hospitalization+ delirium.

Resumen

Antecedentes: los adultos mayores ingresados en un hospital por una enfermedad aguda tienen un mayor riesgo de deterioro functional hospitalario durante su estancia y después del alta.

Objetivo: este estudio tuvo como objetivo evaluar las capacidades de calibración y discriminación de las escalas Hospital Admission Risk Profile (HARP) e Identification of Seniors at Risk (ISAR) como predictores de deterioro funcional hospitalario al alta en una cohorte de pacientes mayores de 65 años que recibieron manejo en una unidad geriátrica de agudos en Colombia.

Métodos: este estudio es una validación externa de los modelos de predicción ISAR y HARP en una cohorte de pacientes mayores de 65 años atendidos en una unidad geriátrica de agudos. El estudio incluyó pacientes con índice de Barthel medido al ingreso y al alta y la evaluación de la capacidad de discriminación y calibración, dos aspectos fundamentales para esta medición.

Resultados: de 833 pacientes evaluados, 363 (43.6%) presentaron deterioro funcional hospitalario al momento del alta. La escala HARP subestimó el riesgo de deterioro funcional hospitalario para los pacientes en las categorías de riesgo bajo e intermedio (relación entre eventos observados /esperados (ROE) 1.82 y 1.51, respectivamente). El HARP sobrestimó el riesgo de deterioro funcional hospitalario para pacientes en la categoría de alto riesgo (ROE 0.91). El ISAR subestimó el riesgo de deterioro hospitalario para pacientes en categorías de bajo y alto riesgo (ROE 1.59 y 1.11). Ambas escalas mostraron una pobre capacidad de discriminación, con un área bajo la curva (AUC) entre 0.55 y 0.60.

Conclusiones: este estudio encontró que las escalas HARP e ISAR tienen una capacidad de discriminación limitada para predecir deterioro funcional hospitalario al alta. Las escalas HARP e ISAR deben usarse con cautela en la población colombiana ya que subestiman el riesgo de deterioro funcional hospitalario y tienen baja capacidad de discriminación.

Palabras clave: Anciano, deterioro funcional hospitalario, harp, isar, alta del paciente, readmisión del paciente, actividades de la vida diaria, polifarmacia, hospitalización, delirium.

Remark


Introduction

Older adults admitted to the hospital for acute illness are at higher risk of hospital-associated functional decline (HAFD) during stay and after discharge 1. For example, rent literature shows that three months after discharge, approximately 30% of older people treated for an acute illness lose the ability to perform some activity of daily living held before hospitalization 2. This can result in readmissions, new hospitalization, admission to a nursing home, increased mortality, and greater reliance on health resources 3.

The hospital-associated functional decline (HAFD) has two stages, pre-hospital and intra-hospital. Identifying at-risk patients and adopting early interventions (such as promoting mobility, preventing delirium, and maintaining a good nutritional status) may prevent permanent hospital-associated functional decline and reduce the risk of complications 4.

Several scales aim to identify patients at risk for hospital-associated functional decline 5. The most widely used are Hospital Admission Risk Profile (HARP) 6 and Identification of Seniors at Risk (ISAR) 7. The HARP is a practical, easy-to-apply instrument that stratifies hospital-associated functional decline risk at discharge and for three months in three risk categories: low-, intermediate-, or high- 6. This scale includes age, the Instrumental Activities of Daily Living (IADL), and an abbreviated Folstein Mini-Mental State Examination (MMSE). The ISAR scale detects older adults at risk for adverse clinical outcomes 90 and 180 days after visiting an emergency room. Such adverse results include death, institutionalization, readmission, and hospitalization. Also, ISAR english to has been proposed as a predictor of hospital-associated functional decline after three months of discharge 8. The ISAR classifies patients in low- or high-risk categories using six questions on functional and cognitive deficits, polypharmacy, visual impairment, and previous hospitalizations 7.

Colombia's life expectancy and social support differ significantly from other countries, so these scales need to be validated 9. Therefore, this study assesses the calibration and discriminative abilities of the ISAR and HARP scales as predictors of hospital-associated functional decline at discharge in a cohort of patients managed in a Colombian acute geriatric care unit.

Materials and Methods

The authors designed a study to validate a clinical prediction model (External validation) 10. We evaluated the calibration and discrimination ability of the HARP and ISAR scales to predict hospital-associated functional decline at discharge in a cohort of patients older than age 65 managed at the acute geriatric care unit of the Hospital Universitario San Ignacio in Bogotá D.C., Colombia. Data were collected from patients' clinical records between January 2018 and April 2020. The ethics committee of the Hospital Universitario San Ignacio in Bogota D.C., Colombia, approved this study (act No. 18- 2017).

We reported the study following the recommendations of the PROBAST tool, specifically designed to assess and report studies aimed at designing, validating, or updating prognostic models 11,12.

Participants

The study included patients with a Barthel index measured at admission and discharge. The study excluded patients hospitalized for exacerbated psychiatric conditions, those who requested voluntary discharge, those referred to another institution, and those with a basal high-dependence state at admission (Barthel score <10).

Predictors

We used the scales HARP 6 and ISAR 7 as described in the original studies published by Sager and McCusker, respectively. Without considering ethnicity, comorbidities, and diagnosis at admission

Outcomes

The study defined HAFD as a decrease of five or more points in the Barthel index at discharge compared to the basal score 13. The Barthel index assessed at admission and discharge relied on the 10-item Activities of Daily Living (ADL) questionnaire 14.

On admission, the calculation of IADL relied on the modified Lawton scale. The question: "Can you perform the following activities without help from anyone?"; assessed capabilities for 1) Managing her/his finances; 2) Making daily purchases (especially food); 3) Preparing food; 4) Doing daily home chores; 5) Doing her/his laundry; 6) Managing her/his medications; 7) Using public transportation or a taxi; 8) Using a telephone. Answer options were binary, scoring a 1 when the individual could perform a task alone (with or without difficulty); and 0 when the individual could not perform the task alone. Scores ranged between 0 and 8, with lower scores reflecting a more significant impairment in IADL 15.

The study defined:

Analysis

Comparison between patients with and without hospital-associated functional decline used a Ji2 test for categorical variables and a Mann-Whitney U test or a t-test, according to the distribution of variables. Validation of scales considered two fundamental aspects: Discriminative abilities and calibration.

The statistical analysis used the STATA 15.0 program.

Results

Of 1,581 eligible patients, seven hundred forty-eight were excluded due to various reasons (missing data (512), voluntary discharge (9), referred to another institution (14), Barthel score <10 (213)). The study finally included 833 patients (Figure 1), 473 female (56.9%), the majority older than 85 years (52.5%), mean age of 85.71 (SD 4.53). Of these, 363 (43.6%) presented hospital-associated functional decline at discharge. Table 1 shows the characteristics of patients, comparing groups with and without hospital-associated functional decline at discharge. The Median Barthel index at admission was 85 for both groups. However, the hospital length of stay was higher in the hospital-associated functional decline group (6 vs. 4, p-value <0.001). Likewise, delirium presented on admission in 201 patients, more commonly in the group with hospital-associated functional decline (18.3 vs. 31.7%, p-value <0.001).

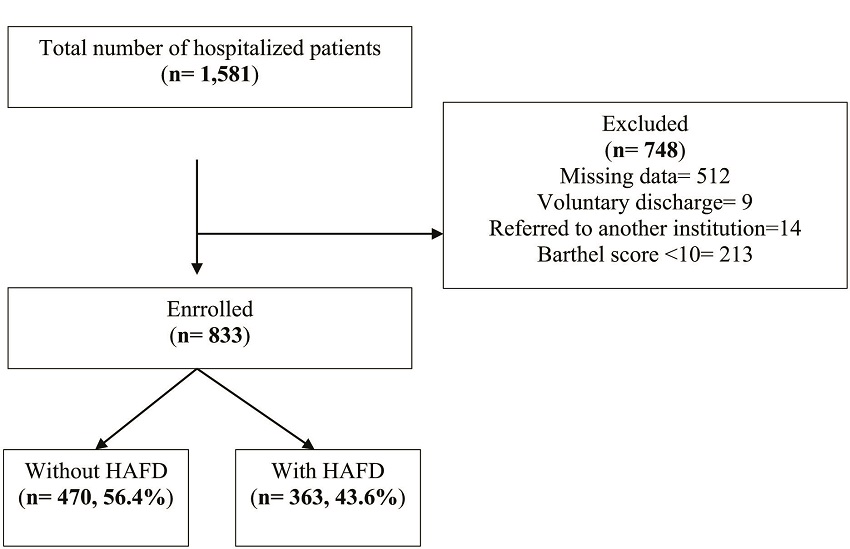

Flow chart of the study samples (source: Author own elaboration).
Figure 1
Flow chart of the study samples (source: Author own elaboration).

Table 1
Comparison between patients with or without hospital associated functional decline (HAFD)
Comparison between patients with or without hospital associated functional decline (HAFD)
IQR: interquartile range, SD: Standard deviation

A previous diagnosis of dementia was more common in patients with hospital-associated functional decline (37.0% vs 28.3%, p= 0.008). Also, physical therapy during hospital stay was more common in the group without hospital-associated functional decline (43.4% vs. 25.1%, p <0.001).

HARP scale

Table 2 reports the HARP scale calibration using the ROE for each risk category. The HARP scale underestimated the risk of hospital-associated functional decline for patients in low-risk (ROE 1.82) and intermediate-risk (ROE 1.51) categories. The HARP overestimated the risk of hospital-associated functional decline for patients in the high-risk category (ROE 0.91). The H.L. was 55.96 with a p <0.0001.

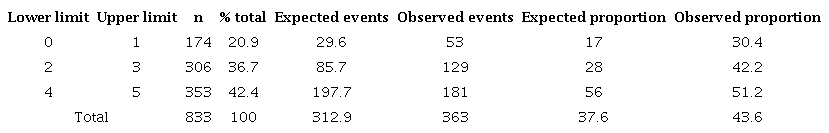

Table 2
Calibration of HARP scale, observed vs expected events of hospital associated functional decline (HAFD)
Calibration of HARP scale, observed vs expected events of hospital associated functional decline (HAFD)
Expected proportion obtained from original study of HARP scale *Hosmer-Lemeshow = 55.96p<0.0001

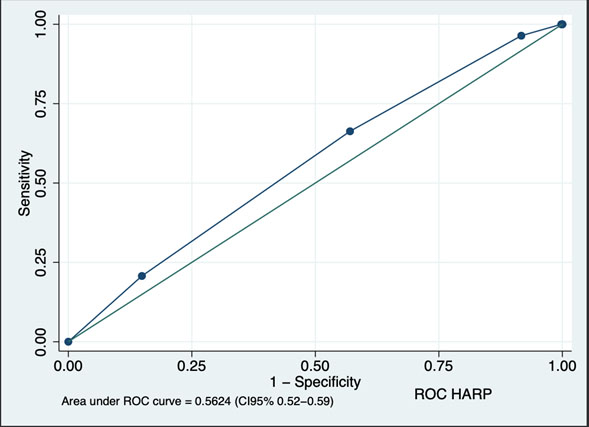

Figure 2 presents the assessment of HARP discriminative ability. The area under the curve (AUC) was 0.5624 (CI 0.52-0.59), well below the discrimination ability considered acceptable (0.7).

Receiver-operator characteristic (ROC) plot and the area under the ROC curve (AUC) of HARP scale as predictor of HAFD at discharge. HARP: Hospital Admission Risk Profile; HAFD: Hospital associated functional decline.
Figure 2
Receiver-operator characteristic (ROC) plot and the area under the ROC curve (AUC) of HARP scale as predictor of HAFD at discharge. HARP: Hospital Admission Risk Profile; HAFD: Hospital associated functional decline.

ISAR scale

Table 3 reports the ISAR scale calibration. The scale underestimated the risk of hospital-associated functional decline in both categories. The ROE was 1.59 in the low-risk category and 1.11 in the high-risk category. The H.L. was 30.15,p<0.0001.

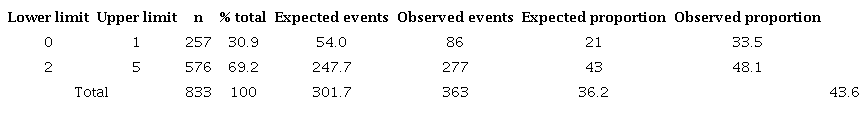

Table 3
Calibration of ISAR scale, observed vs expected events of hospital associated functional decline (HAFD)
Calibration of ISAR scale, observed vs expected events of hospital associated functional decline (HAFD)
Expected proportion obtained from original study of ISAR scale *Hosmer-Lemeshow = 30.15,p<0.0001

Figure 3 presents the assessment of ISAR discrimination ability. Again, the ROC curve showed a poor discrimination ability with an AUC of 0.587 (CI 0.55 - 0.62).

Receiver-operator characteristic (ROC) plot and the area under the ROC curve (AUC) of ISAR scale as predictor of HAFD at discharge. ISAR: The Identification of Seniors at Risk; HAFD: Hospital associated functional decline
Figure 3
Receiver-operator characteristic (ROC) plot and the area under the ROC curve (AUC) of ISAR scale as predictor of HAFD at discharge. ISAR: The Identification of Seniors at Risk; HAFD: Hospital associated functional decline

Discussion

The present study found a high proportion of hospital-associated functional decline at discharge (43.6%). This percentage was similar to previous studies, where the incidence fell between 35-70% 2-4.

In Colombia, Torres et al. (21, described that as many as 50% of patients aged 65 or older had an intermediate or high risk of hospital-associated functional decline, according to the HARP scale measured at admission. Such a proportion increased to 93.5% in patients older than age 85. Results in this study are similar, considering that most patients were older than age 85, with 79% in the intermediate- and high-risk categories.

Along with its ability to predict hospital-associated functional decline, the HARP scale is a good predictor of mortality. In a study following 474 patients, Liu described a significant increase in mortality risk at 30, 90, and 365 days in those with high HARP scores. In fully adjusted Cox proportional models, mortality odds in those patients was 3.5 times higher compared to patients with low HARP scores. This finding suggests that HARP allows for identifying patients with a high risk of hospital-associated functional decline and mortality after discharge 22. In addition, the same authors reported that the scale measured at admission could identify patients with a higher risk of requiring a skilled nursing or acute rehabilitation facility at discharge. After adjustment, the probability of being transferred to a facility was more than four times higher in participants with high HARP scores than in those with low scores (odds ratio= 4.58, 95% CI= 2.42-8.66) 23.

A systematic literature review searched for evidence of ISAR predictive value for adverse outcomes in older adults 8. The review included 32 studies with 12,939 patients and used a score ≥2 to identify patients at risk of functional decline. It found that ISAR had a modest predictive accuracy for emergency room return, hospitalization, or mortality. The scale had consistently high sensitivity (≥80%) and moderate to low specificity for all outcomes. That report considered ISAR a decision-making adjunct when determining which older adults might be safely discharged.

The present validation study found that HARP and ISAR have limited discrimination ability in predicting hospital-associated functional decline at discharge. Also, both scales may underestimate or overestimate the risk of hospital-associated functional decline. In other words, predicting hospital-associated functional decline with exclusive use of either scale may lead to underestimation of risk for patients categorized with low and intermediate risk. This could prevent those patients from receiving the necessary care to avoid deterioration during hospitalization.

The underestimation of the probability of developing HAFD in the low-risk categories observed in the ISAR and HARP scales may be due to the differences in our population compared to the studies in which the scales were initially described and in other populations in which that has been validated 24. In our population we found high rates of malnutrition, and older age, which predisposes our patients to worse outcomes. New studies should formally test this hypothesis.

Calibration was better for patients in the high-risk category of HARP, but the scale might slightly overestimate risk in some groups. This may lead to unnecessary interventions during hospitalization, increasing the cost of attendance. This is why these scales should be used as a complement to a thorough physical exam and tools that have already been validated. The comprehensive geriatric assessment (CGA), for instance, is a validated tool that assesses functionality as an expression of health in the elderly 25. Use of complementary tools helps to plan necessary interventions and treatments.

In this study, the use of physical therapy during a hospital stay was more common in the group without hospital-associated functional decline 26,27. The implementation of in-hospital physical therapy has advantages in multiple domains, such as physical, cognitive and functional. These findings are similar to that described in previous research, where it has even been shown that a multimodal exercise program is capable of reversing the changes associated with hospital-associated functional decline 13.

It is important to highlight that this is the first study with a large sample size that validates HARP and ISAR in a South American population.

This study has some limitations. It assessed the risk of hospital-associated functional decline at discharge but not at 30, 90, or 365 days. New studies are necessary to validate HARP and ISAR for long-term outcomes. This study did not measure variables that were part of the original validation, such as ethnicity. Our population corresponds mainly to white and mestizo patients, with a low representation of blacks or indigenous people, which makes it difficult to extrapolate results to these populations. New studies are required in these specific populations. Similarly, we did not record the admission diagnosis; however, previous observations have shown that the main reason for hospitalization in our population is a medical condition, with the most common discharge diagnoses being acute decompensation of cardiovascular, respiratory, and gastrointestinal diseases, similar to the populations in which the scales were designed

Conclusions

This study found that HARP and ISAR scales have limited discriminative ability to predict HAFD at discharge. The HARP and ISAR scales should be used cautiously in the Colombian population since they underestimate the risk of hospital-associated functional decline and have low discriminative ability.

References

Yoo HW, Kim MG, Oh DN, Hwang JH, Lee KS. Factors associated with functional decline in older adults after discharge from an acute-care hospital. Asian Nurs Res (Korean Soc Nurs Sci). 2019; 13(3): 192-9. Doi: 10.1016/j.anr.2019.05.001

Aubert CE, Folly A, Mancinetti M, Hayoz D, Donzé JD. Performance-based functional impairment and readmission and death: a prospective study. BMJ Open. 2017; 7(6): e016207. Doi: 10.1136/bmjopen-2017-016207

Glans M, Kragh EA, Jakobsson U, Bondesson Å, Midlöv P. Risk factors for hospital readmission in older adults within 30 days of discharge - a comparative retrospective study. BMC Geriatr. 2020; 20(1): 1-12. Doi: 10.1186/s12877-020-01867-3

Castelblanco-Toro SM, Suárez-Acosta AM, Sánchez-Plazas D, Coca-León DJ, Chavarro-Carvajal DA. Prevalence of hospital functional impairment in a colombian elderly population at the san ignacio university hospital. Rev Cien Salud. 2019; 17(3): 20-30. Doi: 10.12804/revistas.urosario.edu.co/revsalud/a.8354

Dent E, Perez-Zepeda M. Comparison of five indices for prediction of adverse outcomes in hospitalised Mexican older adults: A cohort study. Arch Gerontol Geriatr. 2015; 60(1): 89-95. doi: 10.1016/j.archger.2014.09.011

Sager MA, Rudberg MA, Jalaluddin M, Franke T, Inouye SK, Seth Landefeld C, et al. Hospital Admission Risk Profile (HARP): identifying older patients at risk for functional decline following acute medical illness and hospitalization. J Am Geriatr Soc. 1996; 44(3): 251-7. Doi: 10.1111/j.1532-5415.1996.tb00910.x

McCusker J, Bellavance F, Cardin S, Trépanier S, Verdon J, Ardman O. Detection of older people at increased risk of adverse health outcomes after an emergency visit: The ISAR screening tool. J Am Geriatr Soc. 1999; 47(10): 1229-37. Doi: 10.1111/j.1532-5415.1999.tb05204.x

Galvin R, Gilleit Y, Wallace E, Cousins G, Bolmer M, Rainer T, et al. Adverse outcomes in older adults attending emergency departments: a systematic review and meta-analysis of the Identification of Seniors At Risk (ISAR) screening tool. Age Ageing. 2017; 46(2): 179-86. Doi: 10.1093/ageing/afw233

Boateng GO, Neilands TB, Frongillo EA, Melgar-Quiñonez HR, Young SL. Best practices for developing and validating scales for health, social, and behavioral research: a primer. Front Public Health. 2018; 6: 149. Doi: 10.3389/fpubh.2018.00149

Altman DG, Vergouwe Y, Royston P, Moons KGM. Prognosis and prognostic research: validating a prognostic model. BMJ. 2009; 338(7708): 1432-5. Doi: 10.1136/bmj.b605

Moons KGM, Wolff RF, Riley RD, Whiting PF, Westwood M, Collins GS, et al. PROBAST: A tool to assess risk of bias and applicability of prediction model studies: Explanation and elaboration. Ann Intern Med. 2019; 170(1): W1-33. oi: 10.7326/M18-1377

Wolff RF, Moons KGM, Riley RD, Whiting PF, Westwood M, Collins GS, et al. PROBAST: A tool to assess the risk of bias and applicability of prediction model studies. Ann Intern Med. 2019; 170(1): 51-8. Doi: 10.7326/M18-1376

Izquierdo M, Martínez-Velilla N, Casas-Herrero A, Zambom-Ferraresi F, Sáez AML, Lucia A, et al. Effect of exercise intervention on functional decline in very elderly patients during acute hospitalization: a randomized clinical trial. JAMA Intern Med. 2019; 179(1): 28-36. doi:10.1001/jamainternmed.2018.4869

Mahoney FI, Barthel DW. Functional evaluation: the Barthel Index. Md State Med J. 1965; 14: 61-5.

Lawton MP BEM. Assessment of older people: self-maintaining and instrumental activities of daily living. Gerontologist. 1969; 9(3): 179-86.

Rubenstein LZ, Harker JO, Salvà A, Guigoz Y, Vellas B. Screening for Undernutrition in Geriatric PracticeDeveloping the Short-Form Mini-Nutritional Assessment (MNA-SF). J Gerontol: Series A. 2001; 56(6): M366-72. Doi: 10.1093/gerona/56.6.M366

Tobar E, Romero C, Galleguillos T, Fuentes P, Cornejo R, Lira MT, et al. Confusion assessment method for diagnosing delirium in ICU patients (CAM-ICU): Cultural adaptation and validation of the Spanish version. Med Intensiva. 2010; 4(1): 4-13. Doi: 10.1016/j.medin.2009.04.003

Rosselli D, Ardila A, Pradilla G, Morillo L, Bautista L, Rey O, et al. El examen mental abreviado (Mini-Mental State Examination) como prueba de selección para el diagnóstico de demencia: estudio poblacional colombiano. Rev Neurol. 2000; 30(5): 428-32.

Royston P, Moons KGM, Altman DG, Vergouwe Y. Prognosis and prognostic research: Developing a prognostic model. BMJ 2009; 338: b604. Doi: 10.1136/bmj.b604

Hosmer DW, Lemeshow S. Assessing the Fit of the Model. Applied Logistic Regression; New Jersey: Wiley Online Library, 2005. pp 143-202. Doi: 10.1002/0471722146.ch5

Torres LA, Rivera SM, Mendivelso FO, Yomayusa N, Cardenas HM, Hernandez C. Análisis del riesgo de deterioro funcional y sociofamiliar en el adulto mayor hospitalizado. Revista Médica Sanitas. 2019; 22(1): 6-16. DOI: 10.26852/01234250.30

Liu SK, Ward M, Montgomery J, Mecchella JN, Masutani R, Bartels SJ, et al. Association of hospital admission risk profile score with mortality in hospitalized older adults. Innov Aging. 2017; 1(1):1-9. Doi: 10.1093/geroni/igx007

Liu SK, Montgomery J, Yan Y, Mecchella JN, Bartels SJ, Masutani R, et al. Association between hospital admission risk profile score and skilled nursing or acute rehabilitation facility discharges in hospitalized older adults. J Am Geriatr Soc. 2016; 64(10): 2095-100. Doi: 10.1111/jgs.14345

Hoogerduijn JG, Schuurmans MJ, Korevaar JC, Buurman BM, de Rooij SE. Identification of older hospitalised patients at risk for functional decline, a study to compare the predictive values of three screening instruments. J Clin Nurs. 2010; 19(9-10): 1219-1225. DOI: 10.1111/j.1365-2702.2009.03035.x

García-Pérez L, Linertová R, Lorenzo-Riera A, Vázquez-Díaz JR, Duque-González B, Sarría-Santamera A. Risk factors for hospital readmissions in elderly patients: a systematic review. QJM. 2011; 104(8): 639-51. Doi: 10.1093/qjmed/hcr070

Sáez de Asteasu ML, Martínez-Velilla N, Zambom-Ferraresi F, Casas-Herrero Á, Cadore EL, Galbete A, et al. Assessing the impact of physical exercise on cognitive function in older medical patients during acute hospitalization: Secondary analysis of a randomized trial. PLoS Med. 2019; 16(7): e1002852. DOI: 10.1371/journal.pmed.1002852.

De Morton NA, Keating JL, Jeffs K. Exercise for acutely hospitalised older medical patients. Cochrane Database of Systematic Reviews. New Jersey: John Wiley and Sons Ltd; 2007. DOI: 10.1002/14651858.CD005955.pub2

Conflict of interest declaration

Conflicts of interest: The authors declare no conflicts of interest.
