Harvest growth stages in soybean cultivars intended for silage

Estádios fenológicos de colheita em cultivares de soja destinada à ensilagem

Soybean [Glycine max (L.) Merrill] belongs to the family Fabaceae. The grain contains about 40% protein, 20% oil, 35% soluble carbohydrates (sucrose, raffinose, stachyose etc.) and insoluble (fiber) carbohydrates and 5% ash, with approximately 14% moisture when in natura (Jooyandeh, 2011). Soybean cultivation has great socio-economic interest, due to the high protein content, high grain yield and the possibility of adaptation to different environments (Rocha, Silva, Neves, Sediyama, & Teixeira, 2011).

Given the high protein content, soybean has high potential for animal feed. To this end, the cultivation follows the recommendations for the purpose of producing grain (Dias et al., 2010). The authors also show that for the use of soybean as silage, it is necessary to observe the best harvest stage to get the highest yield and quality, which had already been determined in the 80's by Santos and Vieira (1982). A study conducted by Spanghero et al. (2015) on the effects of stages of soybean plants on mineral composition of silage indicated that the favorable stages for harvesting whole plants are from R4 to R6, because they present high nutritional value for the animal diet.

The use of soybean as silage for animal feed reduces the costs of feedlot production, as it constitutes a viable source of protein, freeing farmers from dependence on unstable prices in the grain market (Gobetti, Neumann, Oliveira, & Oliboni, 2011). In addition, soybean has characteristics that favor the silage production, such as the ability to be grown in various climates, erect, and high content of protein (Rigueira, Pereira, Ribeiro, Garcia, & Cezário, 2015). Stella, Peripolli, Prates, and Barcellos (2016) also claim that the use of soybean silage in ruminant feed is a viable alternative for reducing costs in protein compounds and promote the provision of a balanced diet for a better animal response.

In Brazil and in the state of Piauí, area cultivated with soybean is around 32 million and 637,000 hectares, respectively (CONAB, 2015) and is common the use in animal feed, especially in the Northeast region (Leite, Aguiar, Holanda, & Aureliano, 2014). In case of shortage of forage, farmers can direct soybean crop to produce silage from whole plant (Kawamoto, Touno, Uchino, & Uozumi, 2013), because uneven rainfall has impeded the production of soybean for grains, decreasing productivity. Thus production can be directed to use the whole plant for silage production for animal feed (Gobetti, et al., 2011). For higher production and yield in soybeans, it must be considered the cultivars used, the fertility of the soil and sowing time (Kuss et al., 2008).

Especially because soybean has an intrinsic sensitivity to photoperiod, each genotype of the plant has limitations on the number of hours of light. For this reason, the adaptability of each cultivar changes according to the latitude. The closer to the equator the shorter is the photoperiod throughout the year. The best solution is insertion of cultivars with long juvenile period (EMBRAPA, 2010). In the state of Piauí, distribution takes place as follows: early, up to 110 days, medium, from 111 to 125 days, and late, more than 115 days (Sediyama, Silva, & Borém, 2015). In this way, it is necessary to find cultivars adapted to the region, once these factors define the major development of the plant, in the vegetative stage, and provides the accumulation of dry mass (Craufurd, Vadez, Jagadish, Prasad, & Zaman-Allah, 2013). Given the above, this study aimed to characterize the harvest phenological stages of soybean cultivars intended for ensiling.

The experiment was conducted from December 2014 to April 2015 in the experimental area of the Federal University of Piauí (UFPI Professora Cinobelina Elvas (CPCE), in the municipality of Bom Jesus, state of Piauí, at geographical coordinates 09°04'28" S, 44°21'31" W and 277 m altitude. According to the Köppen and Geiger (1928) classification, the region has Tropical Savana climate (Aw), with two well-defined seasons, the dry season, from May to October; and the rainy season, from November to April. The rainfall varies from 800 to 1200 mm per year; the average temperature is between 26 and 27ºC and the average relative humidity between 55 and 65% (Brito, Raabe, Sousa, Melo, & Pedrosa, 2012).

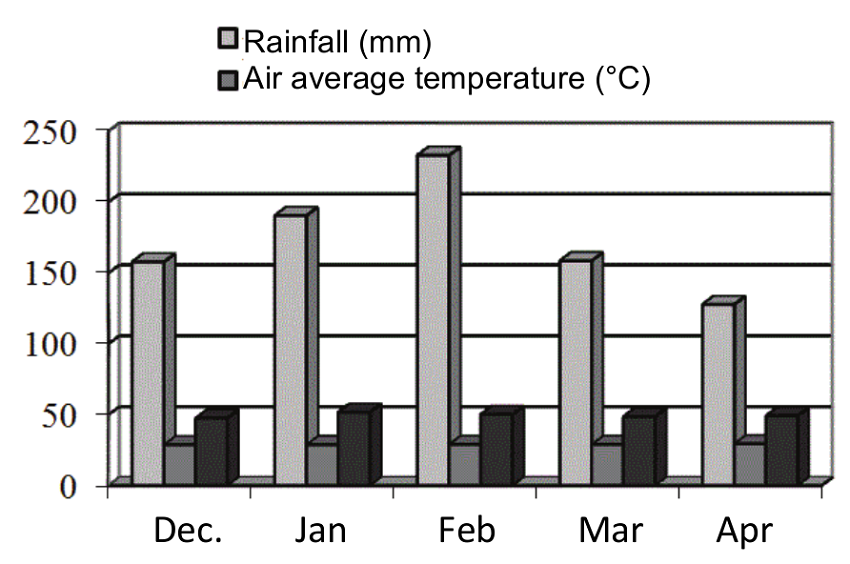

During the experimental period, we collected daily data on average temperature (°C), average relative humidity (%) and rainfall (mm), as illustrated in Figure 1.

This experiment was a 3 x 2 factorial randomized block design, consisting of three harvest stages (R4, R5 and R6) and two soybean cultivars, named cultivar 1 (C1) and cultivar 2 (C2), with four replications. Both cultivars have an indeterminate growth habit; C1 shows maturity group 8.0, wide adaptation to planting and good composition of the ramifications; C2 has maturity group 8.1, high yield potential and optimal plant structure, allowing a better phytosanitary management.

Sowing was made on January 10^th, 2015. Each plot consisted of 4 rows, 3 m long, spaced 0.5 m apart; the two side rows and 0.5 m from the ends of the rows were the borders. To obtain a population of 16 plants per linear meter for each cultivar, the determination of the number of seeds sown was made according to the correction of the germination percentage of the batch. At the time of sowing, the seeds were inoculated and treated with 5 x 10⁹ colony forming units (CFU) mL ha^-1 + 140 mL ha^-1 Fipronil (25 g L^-1), methyl thiophanate (225 g L^-1) and pyraclostrobin (250 g L^-1). Basal fertilization consisted of 125 g superphosphate and 125 g potassium chloride per linear meter, calculated according to the soil analysis (Table 1).

Harvests were performed from March 26^th, 2015, respecting the growth stages R4, R5 and R6, when 95% of the plants were at their respective harvest stages. Five plants were taken at random from each plot for analyses of dry matter and number of leaves, pods and branches. Remaining plants in the plots were ground in a stationary shredder to 2 cm average particle size and then ensiled in a 100 mm-PVC pipe 30 cm in length, to a density of 600 kg m^-3. Then, the silo was sealed with a polyethylene bag and adhesive tape to prevent gas exchange with the atmosphere.

After each harvest, 5 plants of each plot were separated into branches, leaves and pods for weighing and determining the wet mass of each component (WMB; WML; WMP); then the plants of the plot were ground to obtain the ground natural matter (GNM). After this, the material was dried in a forced air circulation oven at 60°C to determine the dry weight of branches, leaves and pods and the dry weight of the composite sample (DWB; DWL; DWP; DWCS) according to the methodologies used by Neumann et al. (2011); Calvo, Simoneti, and Brancalião (2010) and Cavalieri, Velini, Silva, São José, and Andrade (2012).

The data were transformed using the formula (5 and tested by analysis of variance using Assistat 7.7 beta and means were compared by Tukey's test (p < 0.05).

Results and discussion

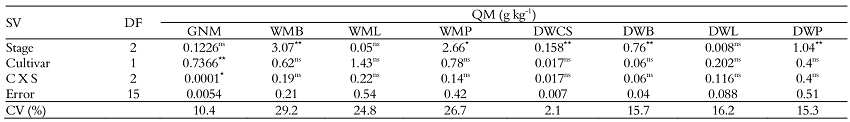

The results of analysis of variance evidenced a significant effect (p < 0.01) for the factor cultivar (C) on traits of ground natural matter (GNM). For the factor harvest stage (S), there was significant effect (p < 0.01) on wet mass of branches (WMB), dry weight of the composite sample (DWCS), dry weight of branches (DWB) and dry weight of pods (DWP) and on the wet mass of pods (WMP). It was also observed interaction C x E (p < 0.05) for GNM (Table 2).

The wet and dry weight of leaves (DWL and WML) showed no significant values, which may be related be because cultivars have close maturity groups 8.0 and 8.1, and differ little in the number of days/cycle. In addition, cultivars exhibit good adaptation and optimal structure, which may have contributed to non-significance of this trait. Between the harvest stages, there were no significant differences, probably for the translocation of solutes to the reproductive organs, as the assimilates are translocated from the production area, called sources (organs capable of producing photosynthesis) to areas of metabolism or storage of the plant, called sinks (non-photosynthetic organs which do not produce photosynthates) (Taiz & Zeiger, 2013).

For the growth stages of the plants, it was observed that the R6 stage showed the highest percentage of mass in all parameters analyzed (Table 3). Confirming that reported by Rezende, Gris, Passos, Evangelista, and Botrel (2011), who found that yields of soybean mass increased as the cuts were made at more advanced stages.

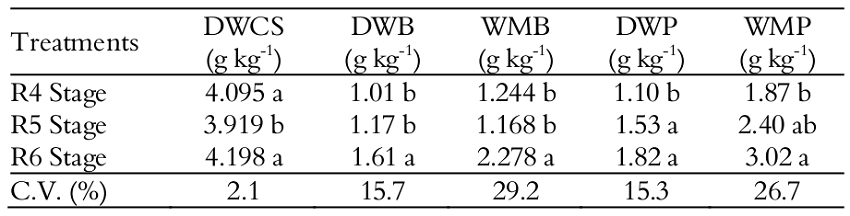

The breakdown of the factor harvest growth stage was performed and indicated that the R6 stage (Table 4) stood out for most variables, probably because plants, at this stage, have completely filled pods and fully developed seeds (Sediyama, Silva, & Borém, 2015).

The dry weight of the composite sample showed higher means in R4 and R6, which is because R4 plants possessed well-developed leaves and pods, and R6 plants exhibited full and heavy seeds. Unlike R5 plants that showed lower weight possibly because they are at the grain filling period and, at this stage, the photoassimilates are translocated from leaves through the phloem to seed formation (Taiz & Zeiger, 2013), therefore the plant enters senescence and decreases the mass of some structures. In soybean, Rezende et al. (2011) studied the best harvest stage to achieve higher protein yield and found that R4 and R5 stages showed better results, but the cutting at the R4 stage enabled a greater advantage because of the better use of the area when compared to other crops, due to the shorter permanence of soybean in the field. This can also be applied in this work, since R4 showed good performance in the DWCS values.

The dry and wet mass of branches reached higher values in R6, which can be attributed to the growth habit of the cultivars, as the plant architecture continues to evolve during the reproductive phase (Souza et al., 2014), a fact that has promoted differences between growth stages, resulting in growth and branching of soybean plant. It is extremely important to know the best time to harvest soybean for the production of silage, since advancement of reproductive stage implies changes in the composition of silage of soybean plants (Dias et al., 2010).

The dry weight of the pods showed higher results in R5 and R6, this may be attributed to the grain, the grain filling process, which shapes the size and length of the pods according to the need of the seed shape, reaching larger and heavier pods than at the R4 stage. A similar result was found in the wet mass of pods, the highest mean values were also observed in R5 and R6. This result is seen in Table 3, which shows a higher percentage of DWP and WMP in the last two stages. This is because, at the R4 stage, the pods are fully developed with 20 mm length but without containing seeds, and at R5 and R6, pods increase the weight for containing seeds that are generated within the cavities (Sediyama et al., 2015), thus promoting a greater mass at those stages. Spanghero et al. (2015) considered that the harvest of soybean at advanced maturity stage (R4 to R6), which has high content of protein and neutral detergent fiber, provide quality to ensiled forage. Thus, soybean silage increases the nutritional value and reduces the production of waste (Ribeiro et al., 2009).

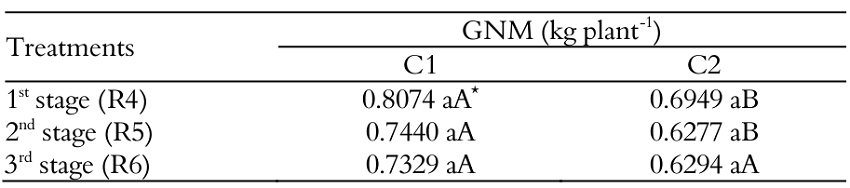

As for the ground natural matter, the breakdown of the interaction between harvest stage x cultivars pointed a higher value for C1 at the second harvest stage (Table 5), which is associated with the different cycles of cultivars that promote different behavior of plants (Majee, Shaver, Coors, Sapienza, & Lauer, 2008). There was no significant difference, depending on the harvest stage between the evaluated cultivars.

In relation to the breakdown of the factor cultivar, there was a significant difference only in the wet mass of the ground matter, which presented the highest mean value for C1 cultivar (0.701 kg plant^-1). This can be because C1 cultivar had larger development than C2 (0.606 kg plant^-1), due to the better adaptation to soil and climatic conditions of the region, where it can be observed the occurrence of short dry periods (Petter et al., 2012), as shown in Figure 1. The months of March and April showed lower rainfall associated with increasing temperature, which may have contributed to the smaller growth of plants and pod formation. Another reason would be related to the maturity group, as C1 with shorter cycle, had been exposed for a shorter period to conditions of water stress. In this sense, C2 may have suffered major negative influence of climatic elements, interfering with growth and development (Setiyono et al., 2011) and, consequently, with the weight of the wet mass.

The R6 growth stage of soybean plants showed better performance for variables analyzed. Cultivar 1 with maturity group 8.0 exhibited superior results in natural matter and in ground wet mass.
