Introduction

The release of toxic elements into the environment is often caused by impacts of different agricultural and industrial activities. Metals originating from human activities are frequently detected in the environmental compartments; such as sediment, rivers, lakes, among others, causing severe contamination in water bodies (Schiller et al., 2019). The metal contamination in aquatic environments is worrisome because of its toxicity, abundance, permanence in the environment, and subsequent accumulation in aquatic habitats, microorganisms, aquatic flora and fauna, can enter the food chain and cause significant effects on human health in the long term (Conradi Jr. et al., 2019).

According to Schwantes et al. (2019), the efficient removal of metal ions and pesticides from wastewater has become an important issue. Some methods, such as precipitation, followed by coagulation and membrane filtration, have been used to remove metals from water. However, these processes become unfeasible due to the production of sludge, low metals removal, and high cost, thus limiting the practical use. Among the various methods, the adsorption process is an effective method used to remove toxic metals from aqueous solution (Conradi Jr. et al., 2019). The search for new adsorbents has been focused on biomaterials, because they are economically viable, biodegradable, and

derived from renewable resources. In general, these materials are locally and easily available at large amounts; also, they are inexpensive and have little economic value (Cutillas-Barreiro et al., 2014; Quintáns-Fondo et al., 2016).

The agribusiness is one of the main generators of waste with adsorbing potential for various contaminants. Among the diversity of crops in Brazil that can be used for this purpose, stands out the E. oleracea crop, a native Brazilian tropical palm tree, found in the North and Northeast of the country. The main production of E. oleracea is for juices, and in this process, approximately 80% of the total volume of waste consists of endocarp or seed of E. oleracea (Pacheco-Palencia, Duncan, & Talcott, 2009; Nascimento, Cicero, & Novembre, 2010).

Several studies demonstrate promising results in using biosorbents for removal or adsorption of metals. Such as Moringa oleifera Lam. (Gonçalves Jr. et al., 2013a;Meneghel et al., 2013), Crambe abyssinica Hochst (Gonçalves Jr. et al., 2013b;Rubio et al., 2013a;2013b), cassava industry waste (Schwantes, Gonçalves Jr., Strey, Schwantes, & Nacke, 2013), Jatropha curcas biomass (Nacke et al., 2016), pinus barks (Schwantes et al., 2018a) and cashew nut shell (Coelho et al., 2014).

However, according to Schwantes et al. (2018a), in order to increase the sorption potential of natural adsorbents, through the formation of new functional groups on the surface of the adsorbent, several studies report the use of chemical alterations in adsorbents, especially those of plant origin (Schwantes et al., 2015; 2016).

The removal of metals from contaminated waters using E. Oleracea wastes has been already studied by Gonçalves Jr. et al. (2016) with good results and perspectives, but only as a biosorbent. But we do not know very much about the effectiveness in this material after chemical modifications yet. Besides, any attempt to technify or improve the productive chain of an Amazon fruit is mostly welcome, because this may represent a possibility of sustainable development to the Amazon Region, helping to simultaneously develop and preserve the biodiversity and the tropical forest.

Thus, this study aimed (i) to evaluate the efficiency of chemically modified E. Oleracea endocarp in the removal of Cd2+, Pb2+ and Cr3+ from contaminated solutions, and (ii) to study the adsorption mechanism of interaction between the E. Oleracea based adsorbents and the evaluated metal ions.

Material and methods

Preparation of modified adsorbents

The Euterpe oleracea M. endocarps were obtained in the city of Curinópolis, Pará State, located in the North region of Brazil (Amazonia). As one of the main common names for this fruit in Brazil is Açaí, and the common name for its solid wastes is Cascas de Açaí or açaí barks, so, we named the biosorbent from Euterpe oleracea M. as CA.

The experiment was conducted in the Laboratory of Environmental and Instrumental Chemistry of the State University of Western Paraná - Unioeste, campus Marechal Cândido Rondon.

The waste material was dried at 60°C for 48 hours. After drying, the wastes were sieved through 14 and 65 mesh aimed standardizing the size of particles to 0.212-1.40 mm and obtaining the fresh material (biosorbent). The chemical modifications were carried out by immersing the fresh adsorbent in solutions of 1.0 mol L-1 H2O2, H2SO4 and NaOH, 1:10 (m v-1) under constant stirring at 150 rpm at 60°C for 6 hours. Then, the modified adsorbents were washed in ultrapure water to remove the excess of the modifying solution and, after that, they were dried at 60°C until constant weight.

Material characterization

he concentration of total elements (K, Ca, Mg, Cu, Fe, Mn, Zn, Cd, Pb and Cr) was determined by nitroperchloric digestion (Latimer, 2012), with latter concentration determination by means of flame atomic absorption spectrometry (FAAS), using curves with certified standards for all metals (GBC 932 AA). The surface morphology of the material was evaluated by scanning electron microscopy (SEM) using a JEO JSM 6360-LV microscope, equipped with dispersive energy microscopy.

The main functional groups in the adsorbents were also determined by infrared spectroscopy (IR), in a FTIR-8300 Fourier Transform spectrometer (Shimadzu Infrared Spectrophotometer) in the region between 400 to 4000 cm-1, with 4 cm-1 resolution, whose transmittance spectra was obtained using KBr pellets. The determination of the zero-charge point (pHPZC) of the adsorbent was conducted using the methodology adapted from Mimura, Vieira, Martelli, and Gorgulho (2010). In order to verify the thermal stability of the adsorbent mass, thermal analyses were carried out using a thermogravimetric analyzer (TGA 4000 Perkin Elmer), where the samples were heated from 30 to 900˚C at a heating rate of 10°C min.-1 under N2 atmosphere. Aiming to check the accessibility of adsorbates inside the adsorbents, the specific surface area (SSA), volume and size of pore of the adsorbent materials were determined by using the equipment Quantachrome Nova 1200e. To this end, 500 mg material were heated to 200°C under vacuum for approximately 4 hours, followed by adsorption and desorption of nitrogen. The SSA and pore volume were calculated using a method adapted from the standard Brunauer, Emmett, and Teller (1938) and the pore size was obtained using a method adapted from Barrett, Joyner, and Halenda (1951).

Multivariate analysis for adsorbent dose and pH influence

The ideal conditions of adsorption were defined with the use of a Central Composite Design (CCD), testing five levels of mass (adsorbent doses) and pH levels using real values, coded, and three repetitions in the central value. Tests of adsorbent mass and pH were performed with five increasing values (250.0, 396.4, 750.0, 1103.6, 1250.0 mg) and five conditions of pH (3.0, 3.6, 5.0, 6.4 and 7.0), adjusted with HCl or NaOH solutions (0.1 mol L-1) (Table 3). These values of mass and pH are combined with fixed volumes of 50 mL containing 10 mg L-1 monoelementar water solutions of Cd2+, Pb2+ and Cr3+, prepared from cadmium nitrate salts [Cd(NO3)24H2O], lead nitrate [Pb(NO3)2], and nitrate of chromium (III) [Cr(NO3)3 9H2O]. Following, they were stirred in thermostatic shaker (200 rpm at 25°C) for 90 min.

With the values obtained for final concentration, response surface graphics were constructed using the amount adsorbed of metals, calculated by Equation 1.

where:

Qads is the amount of metal ions adsorbed per gram of adsorbent at equilibrium (mg g-1);

m is the mass of adsorbent (g);

C0 represents the initial concentration of ions in solution (mg L-1);

Cf is the concentration of ion in solution (mg L-1) and;

V is the volume of used solution (L).

Adsorption kinetic mechanism

With the obtained results of adsorbent dose and pH from the previous tests, we determined the optimal time of sorption of metals. Thus, 200 mg of adsorbents were stirred for 12 different time intervals (5, 20, 30, 40, 50, 60, 80, 100, 120, 140, 160 and 180 min.) containing 50 mL monoelementar water solutions with 10 mg L-1 of metal at pH 5.0. Solutions were filtered through qualitative filter paper and the equilibrium concentration was determined by FAAS, which was used to estimate the kinetic mechanism that controls the adsorption process. The pseudo-first order (Lagergren, 1898) pseudo-second order (Ho & Mckay, 1999), Elovich (Roginski, 1948) and intraparticle diffusion (Weber & Morris, 1963) models were applied.

Adsorption and desorption efficiency, and the capacity of reusing the CA adsorbents

The experimental conditions of this step were based on the aforementioned results of dose, pH and equilibrium time obtained in the previous tests. Thus, 200 mg adsorbents containing 50 mL of 10 levels of monoelementar solutions of Cd2+, Pb2+ and Cr3+ (5, 20, 40, 60, 80, 100, 120, 140, 160 and 200 mg) at pH 5.0, were stirred at 25°C and 200 rpm for 40 min. The solutions were filtered through qualitative filter paper and the equilibrium concentration was determined by FAAS. The Qads was calculated according to Equation 1 and the percentage of removal of metals was calculated by Equation 2.

where:

%R is the percentage of removal of ion by adsorbent, and;

Ceq is the concentration of ion (mg L-1) adsorbed.

In order to check the reuse capacity of the materials, the adsorbents used in the process were separated from the aqueous solution by filtration and oven-dried at 60°C for 24 hours. The mass of the adsorbent obtained after drying was disposed with 50 mL HCl solution (0.1 mol L-1) and stirred for 40 min. (200 rpm at 25°C) to determine the final concentrations. Desorption percentage was calculated using Equation 3:

where:

Ceq(des) (mg L-1) and Ceq(ads) (mg L-1) are concentration desorbed, and the concentration adsorbed at equilibrium, respectively.

Adsorption isotherms

From the results obtained by the aforementioned studies, adsorption isotherms were determined by non-linear mathematical models of Langmuir, Freundlich and linear model Dubinin-Radushkevich (D-R), respectively presented in Equation 4, 5, 6, and 7.

where:

q is the amount of solute adsorbed per unit of adsorbent mass (mg g-1);

qm is a constant which represents the total number of available sites in the biosorbent material;

C is the equilibrium concentration of solute in the solution volume (mg L-1);

b is a constant that indicates the affinity of ion for sites in the adsorbent material (Langmuir, 1916).

where:

Ce is the concentration at equilibrium and Qe is the adsorbed amount at equilibrium per unit of adsorbent mass; KF and n are the two parameters of Freundlich (1906).

where:

Qeq is the amount of ion adsorbed per unit of adsorbent mass (mol g-1);

Qd is the adsorption capacity (mol L-1);

Bd is a coefficient related to sorption energy (mol2 J-2) and ‘ε’ is the Polanyi potential.

where:

R is the universal gas constant (kJ mol-1 K-1);

T is temperature (K) and Ceq is the equilibrium concentration in the liquid phase (mol L-1) (Dubinin & Radushkevich, 1947).

Temperature influence

In order to check the influence of the temperature on adsorption, thermodynamic studies were performed. For this purpose, 200 mg of adsorbent material was added in 50 mL of solution containing 50 mg L-1 of Cd2+, Pb2+ and Cr3+, at pH 5.0, then shaken at 200 rpm at different temperatures (15, 25, 35, 45 and 55ºC).

From the obtained results the Gibbs free energy (ΔG), enthalpy (ΔH) and entropy (ΔS) were estimated, in order to evaluate the adsorption thermodynamics and investigate the nature of the process (Farghali, Bahgat, El Rouby, & Khedr, 2013).

Results and discussion

Characterization of the adsorbent materials

Total elements composition

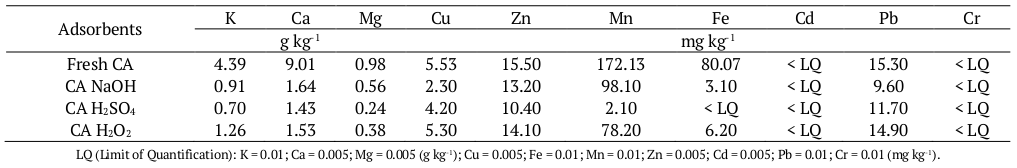

The chemical characterization of the CA adsorbents is shown in Table 1, where it is possible to observe a reduction on the concentration of K (79%), Ca (82%), Mg (43%), Cu (58%), Zn (15%), Mn (43%), Fe (96%) and Pb (37%), for CA modified with NaOH.

Also it is observed a reduction of K (84%), Ca (84%), Mg (75%), Cu (24%), Zn (33%), Mn (99%), Fe (100%) and Pb (23%), for CA modified with H2SO4; and a reduction of K (71%), Ca (83%), Mg (61%), Cu (4%), Zn (9%), Mn (54%), Fe (92%) and Pb (3%), for CA modified with H2O2.

These changes/reductions are mostly caused by the contact/chemical reactions between the modifying agents (NaOH, H2SO4 and H2O2) and the structures and chemical composition of the lingo-cellulosic materials of açaí. It is important to point out that Cd and Cr were only detected in levels below the limits of quantification (LQ) of the used method.

As observed, the simple activation with NaOH can modify the surface of the fresh CA. As it is well known, sodium hydroxide when dissociated in water releases hydroxyl ions (OH-), constituting a strong base with high corrosive power. That corrosion can destroy and/or modify the surface of the materials that is in contact with the base (Chazin, 2012).

Such results are perfectly understandable according to Bohli, Ouederni, Fiol, and Villaescusa (2015), because, as observed, the activating material significantly influences the characteristics of the final product. In addition, authors such as Schwantes et al. (2018a) brought up changes observed in the chemical composition after chemical modifications with H2SO4, NaOH and H2O2, in different vegetable biomass. Moreover, washing the material to neutral pH after the whole process may have contributed to the variation in the chemical composition of the adsorbents (Nacke et al., 2017;Schwantes, Gonçalves, Varennes, & Braccini, 2018b).

Scanning Electron Microscopy (SEM)

The microstructure of the fresh CA is observed under amplifications of 160x, 1200x and 12000x and the modified adsorbents under resolutions of 50x, 400x and 1600x (Figure 1). The surface of fresh CA, according to the Figure (1a, b, c), has fibrous and rough appearance with voids.

It is also possible to identify a laminar structure with crevices and pores in the surface, which are favorable characteristics for the adsorption of metal ions (Gonçalves Jr. et al., 2016). For CA modified with H2O2 (Figure 1d, e, f), it can be observed heterogeneity on the adsorbent surface in sponge shape, with pore-shaped fissures created by the oxidizing power of H2O2.

The dehydrating action of H2SO4 (1.0 mol L-1) configured an irregular and heterogeneous surface, with many fissures (Figure 1g, h, i). As NaOH is a strong base of high solubility, it possibly caused irregular, heterogeneous surface and cavities (Figure 1j, k, l).

In fact, these characteristics assist in the adsorption of metals by increasing the surface area of the adsorbent. Some studies have already been conducted, such as described by Schwantes et al. (2016), which evidence the efficiency of metals adsorption using chemical pre-treatment of plant adsorbents from the agribusiness.

Infrared Spectroscopy (IS)

The infrared spectra for fresh CA adsorbent was obtained from previous studies (Gonçalves Jr. et al., 2016), which showed vibrational stretches in regions of 3442, 2923, 1735, 1631, 1517, 1440, 1380, 1247, 771 and 667 cm-1. These vibrational stretches assigned to the presence of O-H bonds of hydroxyl groups (cellulose, lignin) and water adsorbed on the adsorbent surface, C-H of alkane groups and carbonyl groups (lignin and holocellulose), C-O bonds (amides and carboxylic groups), C-O stretch of phenols and the C-N bonds, respectively. According to Gonçalves Jr. et al. (2016), these groups favor the adsorption of metal ions.

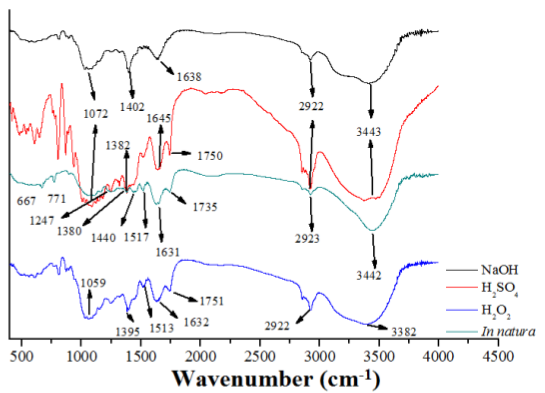

The infrared spectra in the range 500-4000 cm-1 for the adsorbents modified with H2O2, H2SO4 and NaOH showed the presence of functional groups on the adsorbent surface (Figure 2).

In Figure 2, it is observed that materials modified with solutions of H2O2, H2SO4 and NaOH showed vibrational stretches in the region of 3382 and 3443 cm-1, attributed to O-H bonds from primary amines and amides, carboxylic and hydroxylic acids found in lignin, cellulose and water (Pavia, Lampman, Kriz, & Vyvyan, 2010). The spectra in the region of 2922 cm-1, attributed to C-H bonds of alkanes groups, aliphatic acids and aldehydes were also found in the three modified adsorbents. These groups have already been registered in other plant waste from agribusiness, such as cashew nut shell (Coelho et al., 2014), Crambe abyssnica H. meal (Rubio et al., 2013a;2013b), Jatropha curcas L. meal (Nacke et al., 2016).

The region of 1750 and 1751 cm-1 in modification with H2O2 and H2SO4, and stretch of 1632, 1645 and 1638 cm-1 for H2O2, H2SO4 and NaOH, may be related to the C=O bonds of aldehydes, ketones, carbonyls, amides and esters, respectively (Smidt & Meissl, 2007;Pavia et al., 2010). The stretch 1513 cm-1 for the modification with H2O2 refers to the presence of the aromatic skeleton of lignin (Smidt & Meissl, 2007).

The spectra in the regions 1395, 1382 and 1402 cm-1 for CA H2O2, H2SO4 and NaOH may be related to N-H bonds of amines (Smidt & Meissl, 2007; Pavia et al., 2010). The stretches in the region 1059 cm-1 for CA H2O2 and 1072 cm-1 for CA H2SO4 and NaOH, may be related to sulfoxides of S=O, C-OH bonds of oligosaccharides (Smidt & Meissl, 2007;Movasaghi, Rehman, & Rehman, 2008).

The adsorption of metal ions is related to the presence of functional groups, such as lignin, alcohols, carboxylic groups, proteins and carbohydrates. Various functional groups of fresh CA remained after the treatment with the modifying solutions indicating the presence of cellulose and lignin, which provide active sites for the adsorption process (Figure 2). However, other groups were also detected, such as sulfoxides and oligosaccharides, and thus alterations in the surface of the adsorbent have occurred in function of the modifying agents NaOH, H2SO4 and H2O2.

In general, the infrared spectra evidenced that the fresh CA and modified have in its surface, functional groups such hydroxyl, aliphatic, phenolic, carboxylic, which are the most likely to interact with the Cd, Pb and Cr in solution by physical interactions.

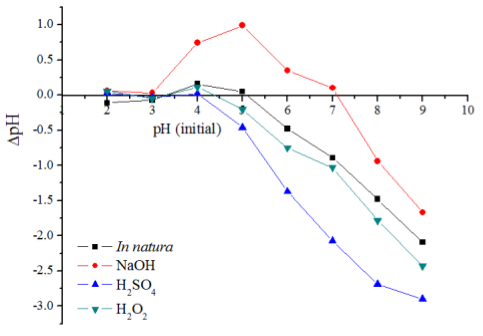

Point of zero charge (pHPZC)

Studies developed by Gonçalves Jr. et al. (2016) reported that the pHPZC of fresh CA is 5.09. However, according to Figure 3, the results obtained by pHPZC tests after treatment with the modifying solutions indicated that the point of zero charge for CA H2O2, H2SO4 and NaOH, changed to 4.41, 4.02 and 7.10, respectively. These changes were expected since the variation in pHPZC occurred according to acidification or alkalinization power of each modifying solution, resulting in protonation, deprotonation or hydroxylation of chemical groups of CA.

When the pH > pHPZC, the surface of the adsorbent is predominantly electronegative, favoring the adsorption of metal cations, such as Cd2+, Pb2+ and Cr3+. If the pH < pHPZC, the adsorbent surface is predominantly electropositive, in which H+ ions effectively compete with metal cations repelling them from the surface, and reducing the efficiency of adsorption.

In the studies conducted by Ribeiro et al. (2017), the authors observed that at higher pH dye adsorption was reduced, and at lower pH values, higher protonation occurred on the adsorbent surfaces, and that this favored the removal of the anion in solution (dye). Khandaker, Toyohara, Kamida, and Kuba (2018), who produced O2-oxidized bamboo activated carbon, found that the pHPZC of the activated carbon was 9.80, the authors state that this result suggests that the adsorbent surface is characterized by positive charges at pH’s below of pHPZC.

Thermogravimetric analysis

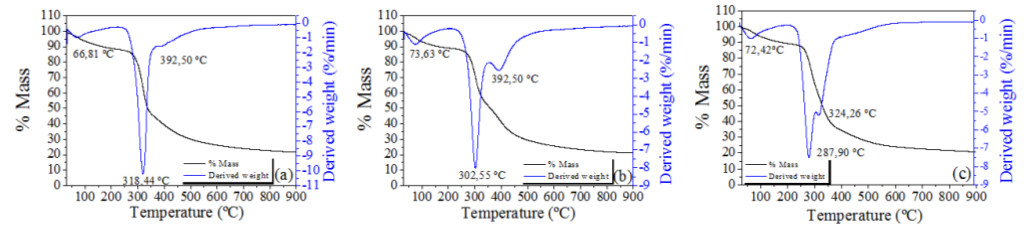

The thermogravimetric analyses were performed to verify the dynamics of weight loss and thermal stability after the treatment with H2O2, H2SO4 and NaOH. The TG and DTG curves are illustrated in Figure 4 for CA adsorbents modified with H2O2 (Figure 4a), H2SO4 (Figure 4b) and NaOH (Figure 4c). The first loss of mass is related to the release of moisture absorbed by the adsorbents, as well as the adsorption of water delimited by the surface tension began at lower temperature for CA H2O2 (66.81 to 100°C), CA H2SO4 (73.63 to 110ºC) and CA NaOH (72.42 to 100ºC). This fact can be explained by the oxidizing power of this modifying agent.

The DTG curve related to decomposition of hemicellulose starts from 250, 250 and 230°C, for CA H2O2, CA H2SO4 and CA NaOH, respectively. However, the main cellulose loss for CA H2O2, CA H2SO4 occurred at 318.44 and 302.55°C, while for CA NaOH this step occurs at a lower temperature (287.90ºC). The decomposition of the lignin matrix and other compounds occurs above 392.50°C for CA H2O2 and CA H2SO4, and above 324.26°C for CA NaOH. The total loss of mass for CA H2O2 was 75 and 80% for CA H2SO4 and CA NaOH (Melzer, Blin, Bensakhria, Valette, & Broust, 2013;Moreira, Orsini, Vaz, Penteado, & Spinacé, 2016).

BET isotherms

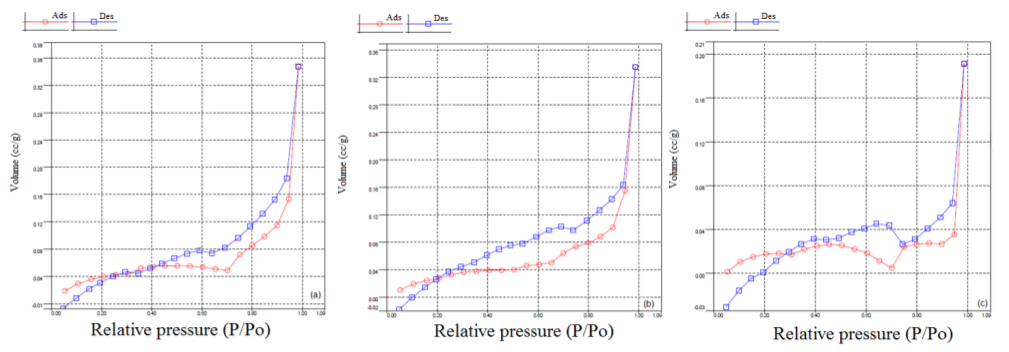

The adsorption and desorption isotherms of BET for CA modified with NaOH, H2SO4 and H2O2, which are used for determining the specific surface area of the modified adsorbents as well as pore volume and diameter are presented in Figure 5.

It is possible to identify Type II BET isotherms, characteristic of non-porous or slightly porous systems. The modified adsorbents indicate an adsorption with negative concavity, representing the formation of monolayer. In this step high amounts of energy (Figure 5) are needed. A second convex segment refers to multilayer adsorption, involving low energy levels (Conradi Jr. et al., 2019). The parameters of specific surface area, pore volume and pore diameter are listed in Table 2.

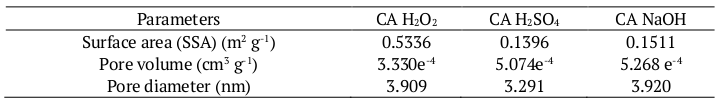

According to Table 2, the specific surface area of adsorbents followed the sequence CA H2O2 > CA NaOH > CA H2SO4, and its values were, 0.5336, 0.1511 and 0.1396 m2 g-1, respectively, The pore volume in cm3 g-1 observed was 5.268 e-4, 5.074 e-4 and, 3.330 e-4 for the sequence CA NaOH > CA H2SO4 > CA H2O2. The pore diameter was larger for CA NaOH (3.920 nm) > CA H2O2 (3.909 nm) > CA H2SO4 (3.291 nm). These results demonstrate that adsorption can occurs predominantly superficially, and it is low the possibility for intraparticle diffusion.

It is observed that the surface area found for adsorbents derived from fresh CA (0.53 m2 g-1 for CA H2O2; 0.13 m2 g-1 for CA H2SO4; and 0.15 m2 g-1 for CA NaOH) are very similar to other adsorbents found in the literature, as found by Penha et al. (2016) 1.13 m2 g-1 in rice husk and by Oliveira and Franca (2011) 0.46 m2 g-1 in rice bran.

Thus, the results demonstrate that the CA adsorbents have characteristics similar to other adsorbents derived from distinct biomasses, which have already proved potential to remediate waters and other compartments. Thus the CA adsorbents may also be favorable to adsorption of metallic ions such as Cd, Pb and Cr.

Multivariate analysis for adsorbent dose and pH influence

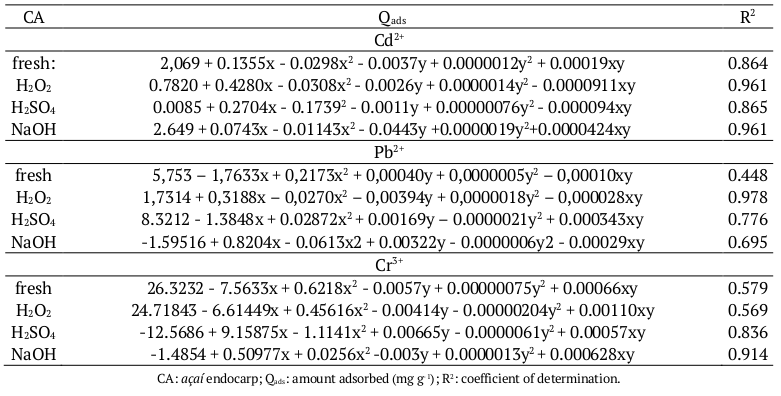

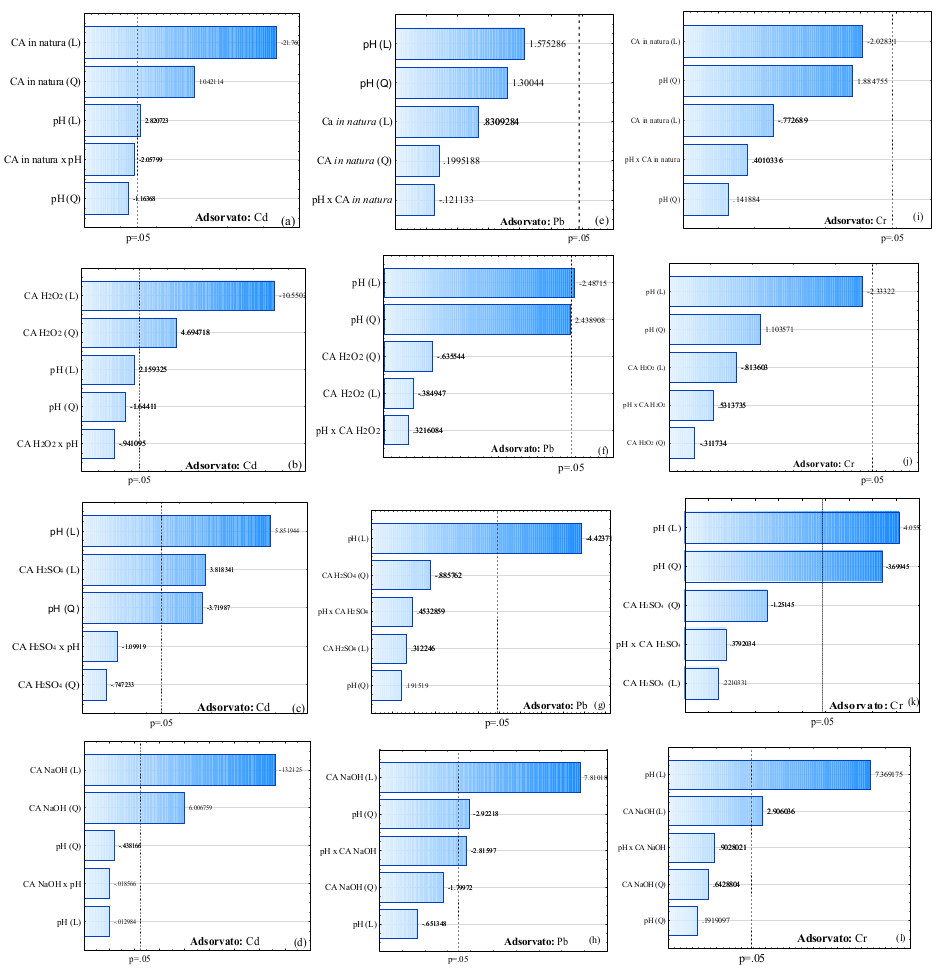

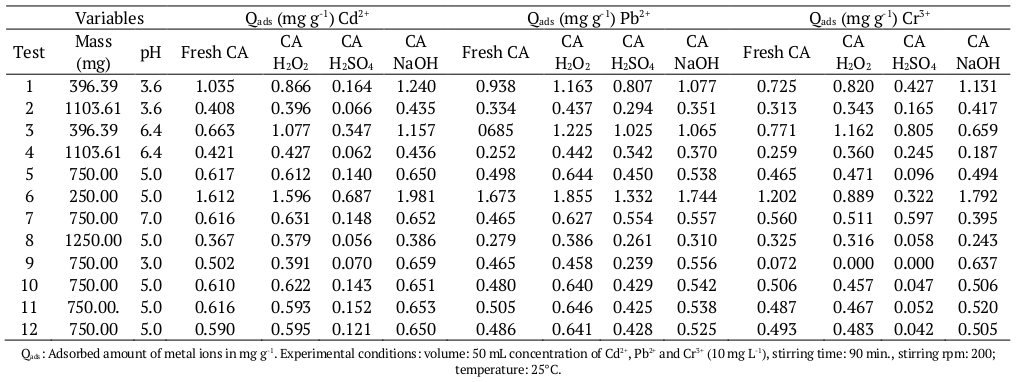

The results of the multivariate analysis by CCD are listed in Table 3, whose results were evaluated by an ANOVA (Table 4 and 5).

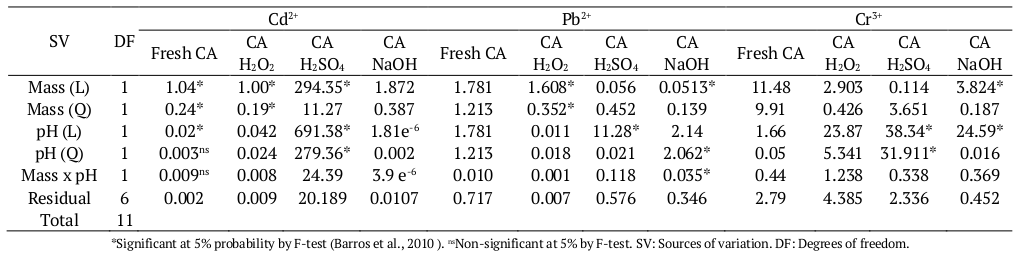

According to Table 4, there was a significant difference at 5% of significance for all adsorbents among studied variables, except for Pb2+ and Cr3+ when adsorbed by fresh CA and CA H2O2. The same can observed in Pareto graphs (Figure 6e, i, j). In some isolated cases, there was significant difference in pH and dose, such as for ions Cd2+ for fresh CA (Figure 6a), CA H2SO4 (Figure 6c), and Cr3+ by CA NaOH (Figure 6j). In other cases, there was difference only for the adsorbent dose, such as Cd2+ by CA H2O2 (Figure 6b) and Pb2+ by CA H2O2 (Figure 6f) or only among the studied pH values, such as Cr3+ for CA H2SO4 (Figure 6k). These results demonstrate that the adsorption capacity of the fresh and modified materials depends in great part on the adsorbent dose, and in small part on the solution pH.

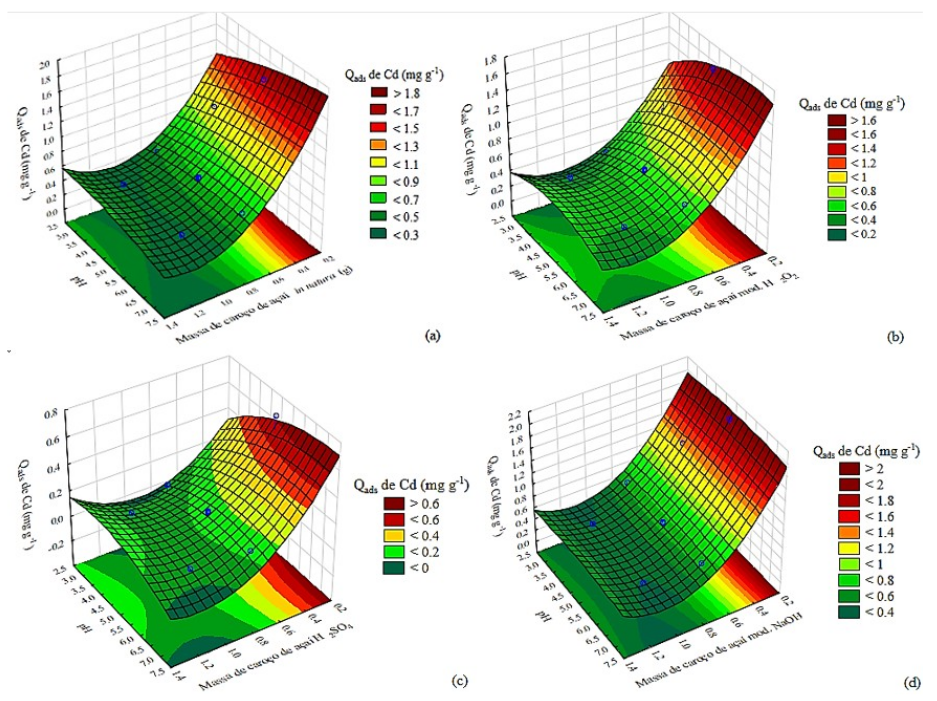

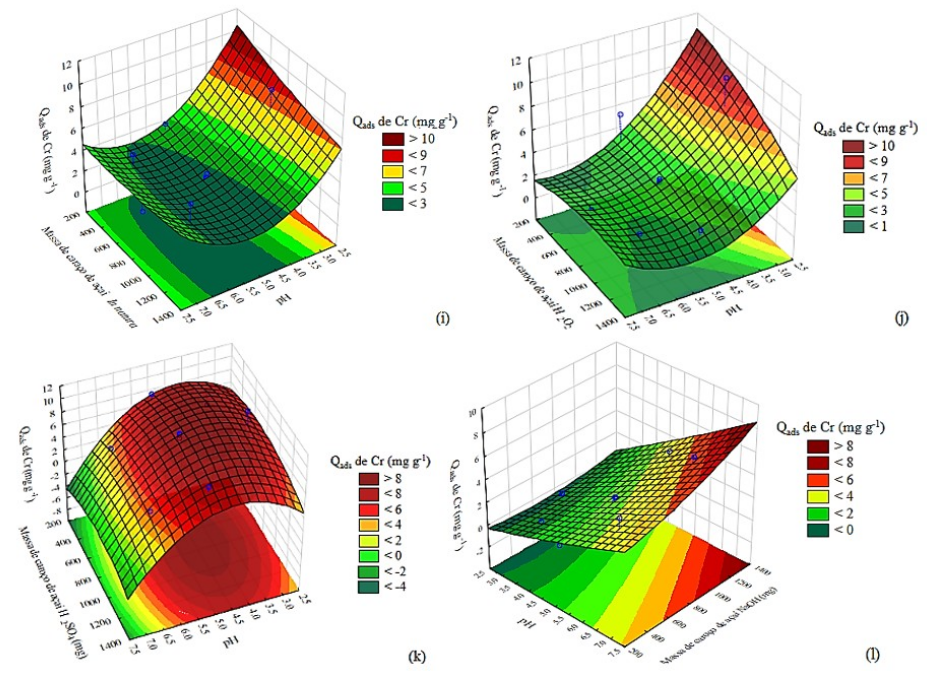

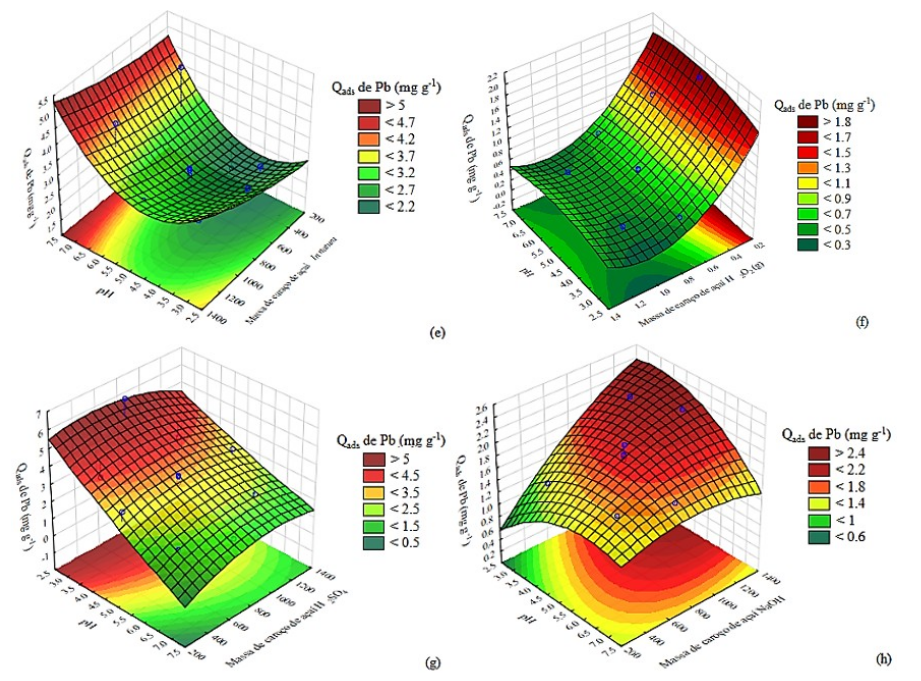

The response surfaces graphs for Cd2+, Pb2+ and Cr3+ adsorption by fresh CA, CA H2O2, CA H2SO4 and CA NaOH shown in Figure 7 (a, b and c) are also expressed by the equations exhibited in Table 5. According to the obtained results, the higher Qeq were obtained with reduced availability of adsorbent material in solution, i.e., 200 mg of fresh and chemically modified adsorbents, i.e., 4 g L-1 are required for obtaining the highest adsorption efficiency.

Even in certain cases, there may be a decrease in the amount adsorbed due to formation of agglomerates, which will reduce the total surface area and thus the number of active sites available for the adsorption process (Rubio et al., 2013a;2013b; Kiran, Srikantaswamy, Pallavi, Manoj, & Tasneem, 2013;Coelho et al., 2014).

Nacke et al. (2016) and Gonçalves Jr. et al. (2016) investigated the influence of the dose of fresh Jatropha curcas L. and fresh CA in the removal of Cu2+ and Zn2+, and found that 8 g L-1 was enough for removing these metal ions in contaminated solution. Schwantes et al. (2015; 2016) performed chemical changes in crambe meal and cassava peels with H2O2, H2SO4 and NaOH and obtained 200 mg per 50 mL (4 g L-1) as the optimum amount for removal of Cd2+, Pb2+ and Cr3+ at pH 5.0.

Ercan and Aydin (2013) recommend that adsorption tests should be conducted at a maximum pH of 5.0. According to these authors, at pH above of 6.0, precipitation of ions Cd2+, Pb2+ and Cr3+ may occurs, making them unavailable for adsorption. Conradi Jr. et al. (2019) reported that Pb is present in free form (Pb2+) until pH 6.0. In alkaline conditions above 6.0, hydroxyl species can be formed and they are insoluble, influencing the results by causing a decrease in the adsorbed amount. In this way, for adsorption testing purposes, pH 5.0 was considered as the best for the removal process. This value tends to favor the CA H2O2 and CA H2SO4 adsorbents, because pH is above pHPZC (Figure 3) of these materials, increasing the proportion of superficial negative charges that favors for the adsorption of cations.

Influence of the contact time

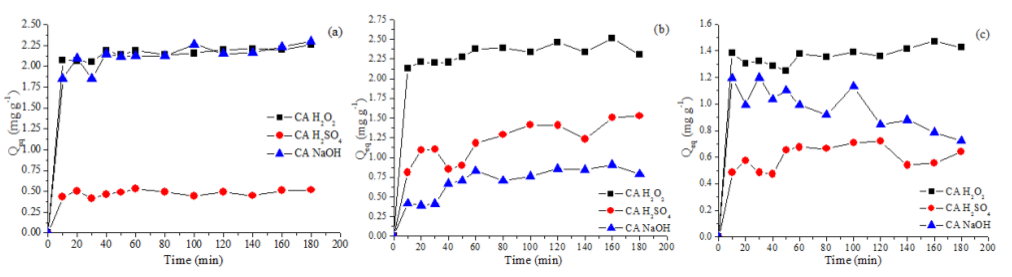

The effect of the contact time of Cd2+, Pb2+ and Cr3+ on CA H2O2, CA H2SO4 and CA NaOH adsorbents is exhibited in Figure 8. The results evidence that the sorption of toxic metals by Euterpe Oleracea based adsorbents is a fast process, occurring in the first moments and with a slight decrease over time. In approximately 40 min. the process reaches the equilibrium. After that, the active sites of the adsorbent are depleted, and Qads of Cd2+, Pb2+ and Cr3+ started to be controlled by the transport rate from the outside to the inside of the active sites of the particles of adsorbents (Nacke et al., 2017). This also mean that periods of contact time longer than 40 min. can be ineffective in the removal of metals on a large scale. Only Cr3+ achieved a reduction of Qads on CA NaOH after equilibrium time.

Assessment of the adsorption kinetic mechanism

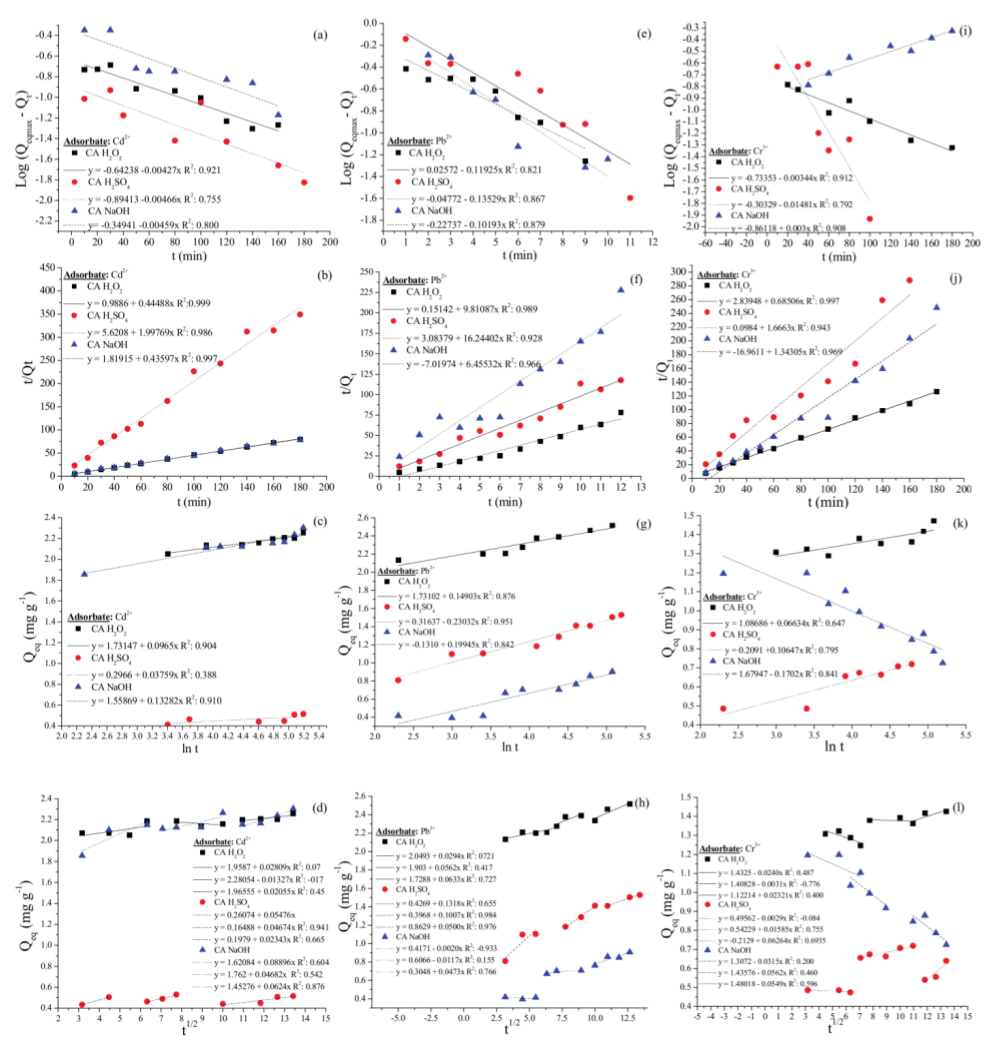

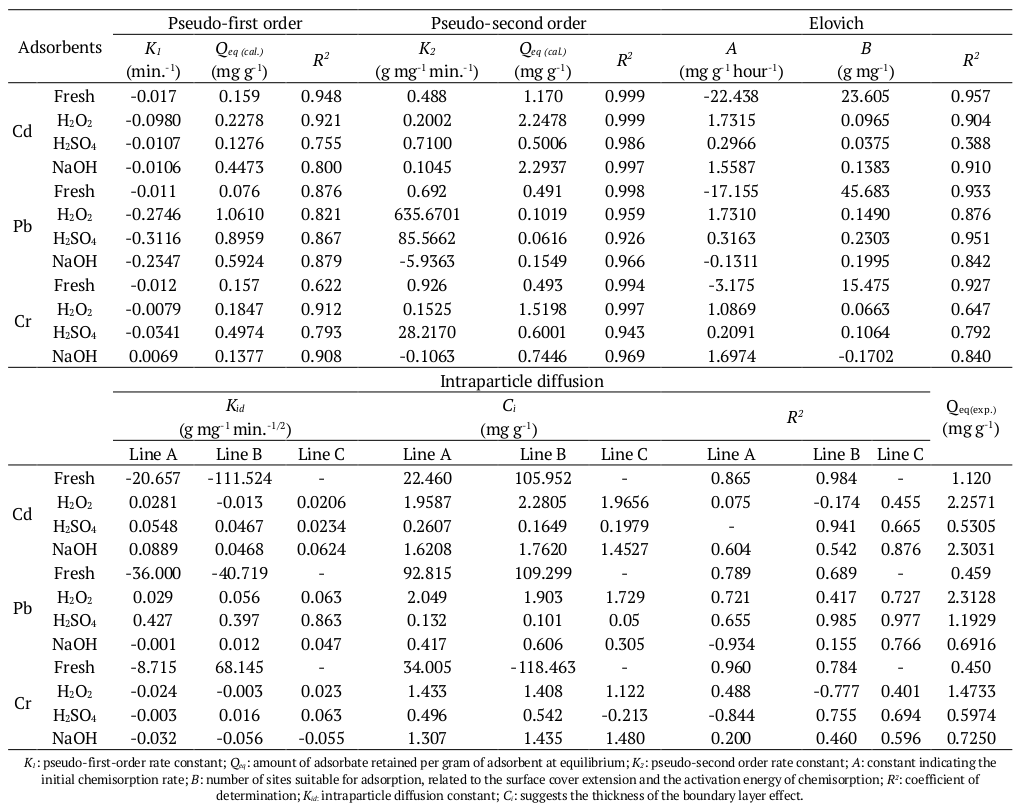

The adsorption kinetics for Cd2+, Pb2+ and Cr3+ in the adsorbents modified with H2O2, H2SO4 and NaOH was evaluated by the pseudo-first order, pseudo-second order, Elovich and intraparticle diffusion models (Table 6 and Figure 9).

According to Table 6, the pseudo-first order, Elovich and intraparticle diffusion models did not achieve good fitting to the experimental data, with values of Qeq(exp.) and Qeq(calc.) far from each other. Gonçalves Jr. et al. (2016), Nacke et al. (2016) and Coelho et al. (2014) investigated the adsorption kinetics of fresh CA, Jatropha curcas and cashew nut shell, and found the best adjustments for pseudo-second-order model for Cu2+, Zn2+, Cd2+, Pb2+ and Cr3+, respectively. The similar situation was observed for chemically modified adsorbents of crambe meal and cassava peel studied by Schwantes et al. (2015) and Schwantes et al. (2016).

In this research, by performing chemical changes, the pseudo-second order model showed better adjustments for adsorption of Cd2+ and Cr3+ by Euterpe Oleracea based adsorbents. Also, the Qeq(exp.) and Qeq(calc.) values for Euterpe Oleracea modified adsorbents are closer. However, for Pb2+ the same dynamic was not verified. Thus, it is suggested that the adsorption kinetics of Cd2+ and Cr3+ follows the pseudo-second order model, which, according to Conradi Jr. et al. (2019), in these cases the chemisorption may be a limiting factor of the process because will involve the sharing of electrons among metals and the modified adsorbents.

Adsorption and desorption efficiency, and the possibility of reusing the CA adsorbents

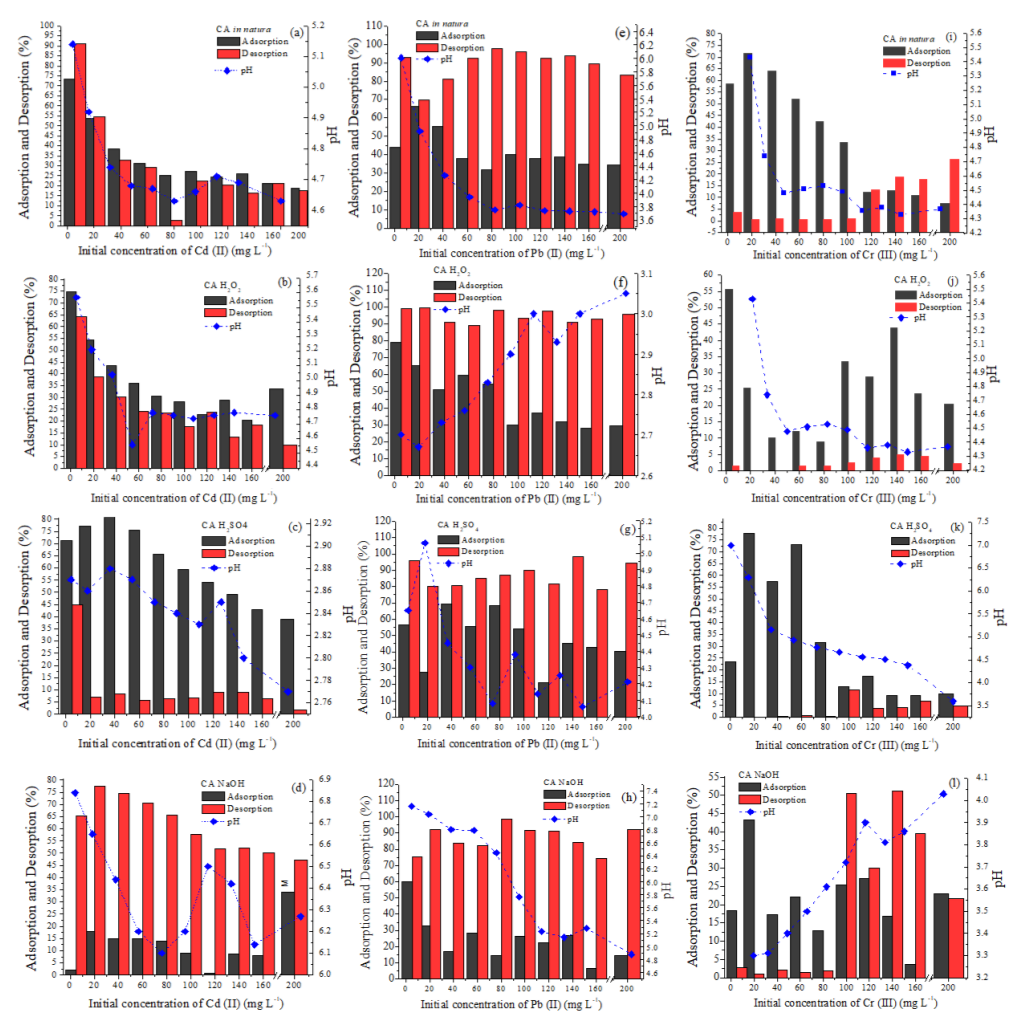

From the isotherms studies, it was possible to evaluate the efficiency of adsorption (%) and desorption (%) of Cd2+, Pb2+ and Cr3+ on fresh CA, CA H2O2, CA H2SO4 and CA NaOH (Figure 10).

The dynamic of the removal of toxic metals was influenced by its initial concentration in solution. According to Figure 10, the adsorption efficiency, in general, decreases with the increasing initial concentration. In agreement with Bohli et al. (2015), this dynamic involves the metal ion/adsorbent ratio, when this ratio is low, the adsorption occurs preferentially in higher energy sites. After that, the sites with higher energy become saturated as this ratio increases, and finally, the adsorption of the ions may occur involving sites with lower energy, thus resulting in the decrease of absorption efficiency.

In the case of Cd2+ for fresh CA, CA H2O2 and CA H2SO4, and in the case of Pb2+ for CA H2O2, the adsorption efficiency was 73.2, 74.7, 71.2 and 78.8%, respectively, in initial concentrations. The highest percentages of desorption were achieved for Cd2+ in fresh CA and for Pb2+ for fresh CA, CA H2O2 and CA H2SO4, with efficiency of 90.9, 92.9, 98.9 and 95.7%, respectively, in initial concentrations.

Cr3+ showed the lowest desorption rates by studied adsorbents (Figure 10i, j, k, l). Similar results were obtained by Moringa oleifera L. meal (Meneghel et al., 2013), meal of Crambe abyssinica H. (Rubio et al., 2013b), cashew nut shell (Coelho et al., 2014), fresh cassava peel (Schwantes et al., 2015).

According to these aforementioned authors, low desorption values are a strong indication that this metal is adsorbed by chemical bonds (chemisorption), which prevents its reuse in new sorption cycles. In general, modified adsorbents, when compared to fresh adsorbents, show higher adsorption efficiency, which is positive because it is a simple treatment, with low-cost, and can raise the adsorption capacity of adsorbents produced by agribusiness that also have high availability (Coelho et al., 2014;Schwantes et al., 2016).

According to Figure 10, in most of the cases it was observed an acidification of the pH after adsorption of Cd2+, Pb2+ and Cr+3; also, the adsorbents modified with H2SO4 showed the highest acidification of the solution. Exception for the adsorption of Pb2+ on CA H2O2 and Cr3+ on CA NaOH, a slight solution alkalization was shown.

This first observation is usually related to ion exchange (physical) and the second, to chemisorption. Data showed that the mechanisms acting on the adsorption process are complex. The pH change can occur due to the interaction of ion exchange in the solution. The biosorbents surface have a negative charge because of the presence of organic functional groups, such as carboxylic or hydroxyl (Bartczak et al., 2018), which are able to participate in ion exchange as presented in Equation 8 and 9.

Adsorption isotherms

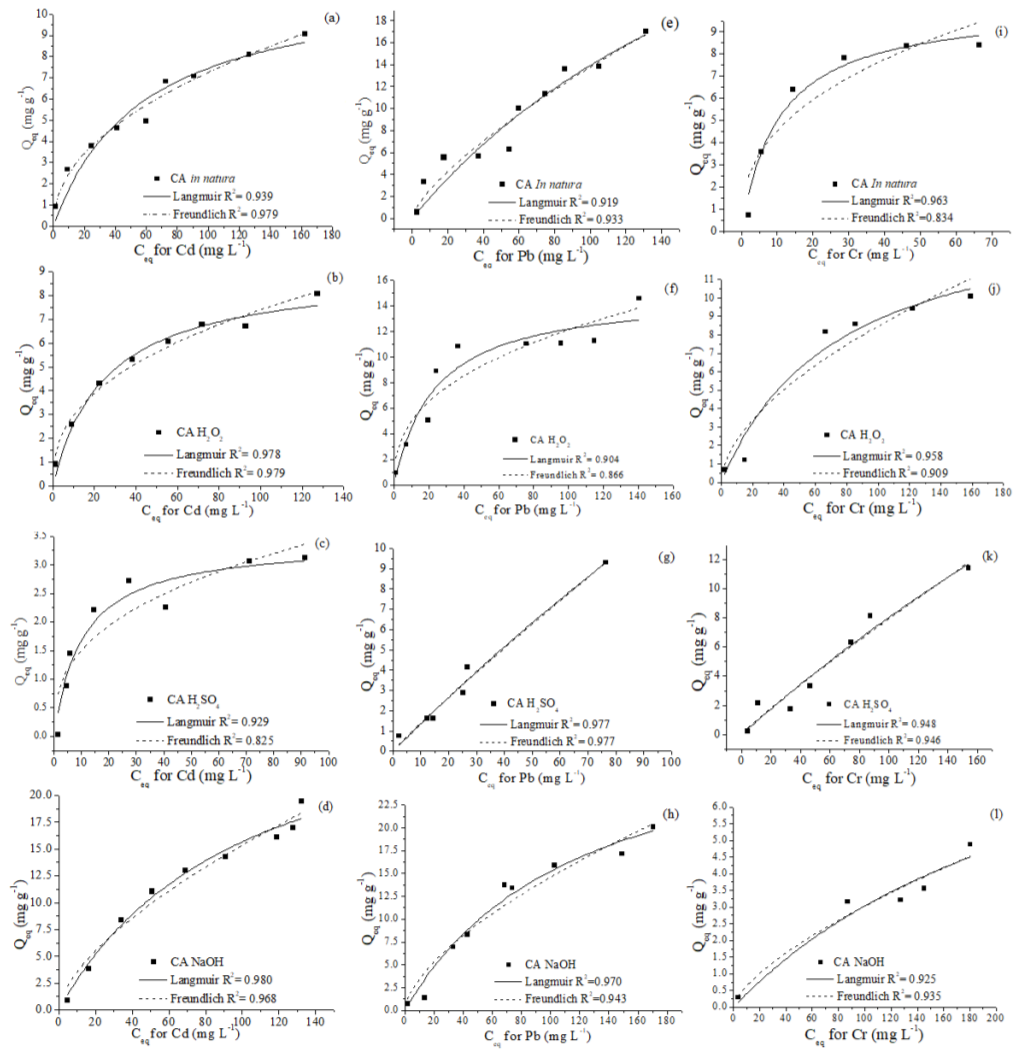

Adsorption isotherms can be classified into classes and subgroups as proposed by Giles, MacEwan, Nakhwa, and Smith (1960). Thus, the isotherms of metal ions Cd2+, Pb2+ and Cr3+ by CA modified with H2O2, H2SO4 and NaOH (Figure 11) could be classified in the class ‘L’ because their dynamics suggest the decrease of the availability of active sites with increased concentration (Giles et al., 1960).

The convex shape displayed by adsorption isotherms is favorable, showing a tendency to equilibrium by saturation of the adsorbent active sites, corroborating to the monolayer theory of Langmuir, which allows us to infer the maximum adsorption capacity (Conradi Jr. et al., 2019).

For Pb2+ and Cr3+ adsorbed by CA H2SO4 (Figure 10g and k), it is observed an isotherm specific of the subgroup 2 of class ‘L’, indicating the saturation of the surface in which Cr3+ ions have a higher preference for the adsorbent surface than for the already adsorbed molecules (Giles et al., 1960).

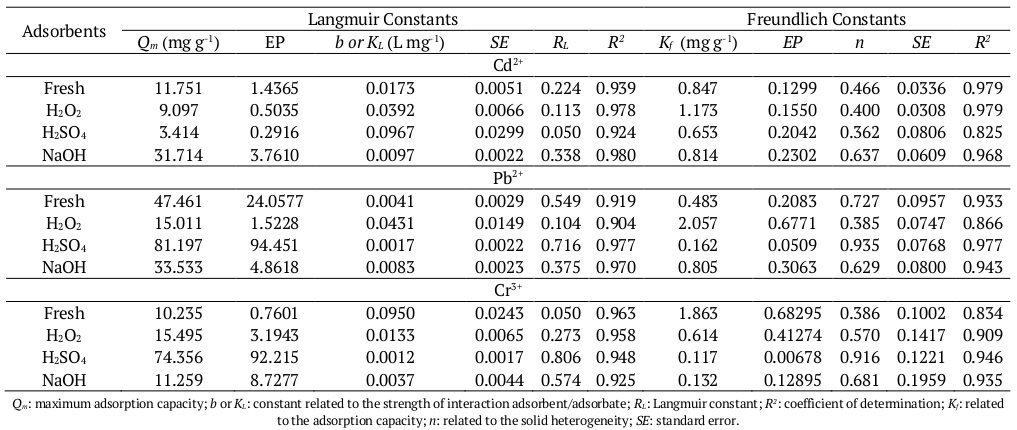

The parameters of Langmuir and Freundlich (Table 7) were obtained by nonlinear models (Figure 11) and Dubinin-Radushkevich (D-R) (Table 8) by linear models of adsorption isotherms.

For adsorption of Cd2+, Pb2+ and Cr3+ by CA fresh and chemically modified with H2O2, H2SO4 and NaOH, Langmuir and Freundlich adjustments proved to be satisfactory, as can be seen by R2 values (Table 7).

According to Gonçalves Jr. et al. (2016), in this case, there are more than one type of adsorption site, resulting in the occurrence of adsorption in both mono and multilayer. The RL of Langmuir considers favorable for adsorption the values greater than zero and minors than one (Sun, Sun, & Sun, 2013), as observed in this study (Table 7).

The Qm for Cd2+ adsorption followed the sequence CA NaOH > fresh CA > CA H2O2 > H2SO4, with values of 31.714, 11.751, 9.097, and 3.414 mg g-1, respectively. These results corroborate to those found by isotherms (Figure 10). The high adsorption of Pb2+ on CA fresh and chemically modified followed the sequence: CA H2SO4 (81.197 mg g-1) > fresh CA (47.461 mg g-1) > CA NaOH (33.533 mg g-1) > CA H2O2 (15.011 mg g-1), but these values exceed those found by isotherms graphs (Figure 10).

According to Conradi Jr. et al. (2019) Pb2+ has strong affinity with carboxyl groups in the adsorbent surface which may explain the high Qm value obtained in relation to other ions. The sequence of Qm for Cr3+ was greater for CA H2SO4 > CA H2O2 > CA NaOH > fresh CA, being, respectively, 74.356, 15.495, 11.259 and 10.235 mg g-1.

The parameter b or KL expresses the strength of interaction between adsorbent and adsorbate, in this case, low values of b (Table 7) show low binding energy among ions of Cd2+, Pb2+ and Cr3+ and CA fresh and chemically modified with H2O2, H2SO4 and NaOH, i.e., low affinity/selectivity of the metal-ligand interaction, suggesting that these ions could be readily released in solution.

The reactivity of active sites of the adsorbent can be expressed by the parameter n of Freundlich, which is related to the solid heterogeneity. In this study, these values were below one. When the n values are close to one, there is a strong indication of the presence of high-energy sites, as observed by Pb2+ and Cr3+ on CA H2SO4. These values can also suggest the occurrence of cooperative adsorption, which involves strong interactions among the molecules of the adsorbate (Schwantes et al., 2018a).

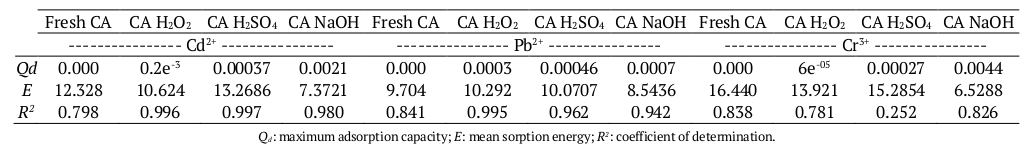

The linear model of D-R describes the adsorption isotherms of systems with individual ions and it was applied in this study (Table 8) to determine the nature of the adsorption process, chemical or physical (Schwantes et al., 2018b).

According to Conradi Jr. et al. (2019), the mean sorption energy (E) and D-R is involved in the transfer of 1 mol solute from the solution to the surface of the adsorbent. If the E value > 8 kJ mol-1, there is a predominance of chemical adsorption, however, if E < 8 kJ mol-1, the nature of the process is physical. In this case, Table 8 indicates that there was predominance of chemical adsorption of Cd2+ on the CA H2O2 and CA H2SO4 modified adsorbents, and for Pb2+ on the adsorbents CA H2O2, CA H2SO4 and CA NaOH. Also, it is observed physical adsorption for Cd2+ on CA NaOH. The ion Cr3+ showed poor adjustments for the modified adsorbents.

Thermodynamics of adsorption

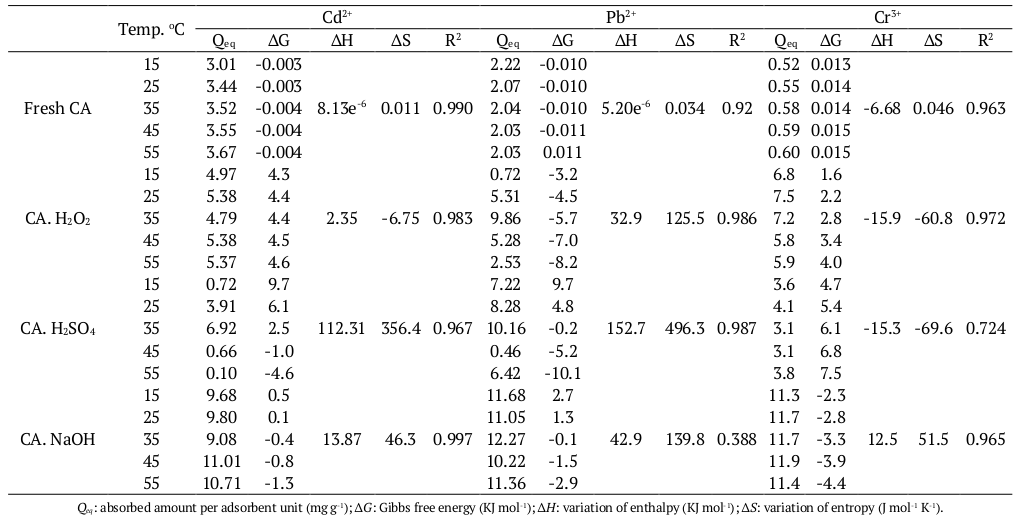

The nature of the adsorption process can be evaluated by thermodynamic parameters (Gonçalves Jr. et al., 2016). As can be seen in Table 9, the ΔG value for Cd2+ on CA H2O2, Cr3+ on CA H2O2 and CA H2SO4 was positive for all studied temperatures, suggesting that the process, in this case, is spontaneous and favorable.

The opposite was observed for Pb2+ on CA H2O2 and Cr+3 on CA NaOH. For Cd2+ on CA NaOH and for Pb2+ on CA H2O2 and CA NaOH, the system was spontaneous at temperatures of 15 to 25 °C becoming negative at higher temperatures.

In accordance with Gonçalves Jr. (2013a), when the enthalpy values (ΔH) are positive the system is endothermic, as observed for ions Cd2+ and Pb2+. In turn, the negative values of ΔH for Cr3+ show that the process was exothermic (Table 9).

The results in Table 9 still show ΔH values greater than 40 kJ mol-1. These results suggest possible chemisorption for Cd2+ on CA H2SO4 (112.31 KJ mol-1), and for Pb2+ on CA H2SO4 (152.7 KJ mol-1) and CA NaOH (42.9 KJ mol-1), and physisorption for Cd2+ on CA H2O2 and CA NaOH, Pb2+ on CA H2O2 and Cr3+ on all modified adsorbents.

In case of positive entropy values (ΔS), as observed for Cd2+ on H2SO4 and CA NaOH, for Pb2+ on all modified adsorbents and Cr3+ on CA NaOH (Table 9), it is suggested an increase on system disorder. In these cases, according to Farghali et al. (2013), there is an increasing disorder of the solid-solution interface, indicating an increased randomness at the solid/solution interface, which may occur due to the substitution of water molecules of the solution previously adsorbed by ion metals.

Conclusion

In general, the adsorbents from Euterpe Oleracea endocarp chemically modified with NaOH, H2SO4 and H2O2 showed differences in structure, morphology, porosity, point of zero charge and thermal stability. The pH had little influence on the adsorption tests and 200 mg (4 g L-1) of adsorbent dose present the highest rates of adsorption. The equilibrium time observed was 40 min, indicating that the adsorption process is fast and can be feasible in larger scale.

The adsorption of toxic metals by Euterpe Oleracea based adsorbents proved to be a complex process, occurring both in mono and multilayer, with predominance of monolayer adsorption, and with physical and chemical adsorption. The chemical modification of Euterpe Oleracea endocarp with NaOH, H2SO4 and H2O2 increased the efficiency of this adsorbent in removing Cd2+, Pb2+ and Cr3+ from aqueous solutions.
