Classification of environmental fragility in watershed using Fuzzy logic and AHP method

Classificação de fragilidade ambiental em bacia hidrográfica usando lógica Fuzzy e método AHP

Karen Carrilho da Silva Lira karenc@utfpr.edu.br

Universidade Estadual do Oeste do Paraná, Brazil

Humberto Rodrigues Francisco humberto.francisco@uffs.edu.br

Universidade Federal da Fronteira Sul, Brazil

Aldi Feiden aldi.feiden@unioeste.br

Universidade Estadual do Oeste do Paraná, Brazil

Watersheds constitute a balanced natural system where any change may compromise their functionality (CHRISTOFOLETTI, 1980; REGGIANI AND HASSANIZADEH, 2016). As an example, the removal of vegetation cover can affect temperature, soil structure, resistance to rainfall erosion, and water regime (TRICART, 1977). In this context, environmental fragility embodies the vulnerability of the environment that can suffer erosive processes, silting, and floods (SPÖRL, 2007).

Tricart (1977) noted that the environment remains in dynamic equilibrium through its natural relations of exchange, and he suggested a model to assess the degree of instability using information about pedogenesis and morphogenesis. Ross (1994) adapted this model with information about human intervention, geomorphology, soils, vegetation cover, and climate by establishing different importance for each of these variables. Crepani (2001) used variables such as relief dissection index, rock, soil, and vegetation cover and established an equal weighting for environmental variables in the fragility study. Different results for fragility were obtained by each of these models. Dalla Corte et al. (2015) researched weighting variables and concluded that the methodology of environmental fragility analysis is highly dependent on the choice of weighting factors and is related to the context in which it is performed.

Recent studies point to the importance of analyzing environmental fragility in watershed such as dos Santos and Nascimento (2021) for the Rio de Janeiro watershed in Bahia, Albuquerque and de Medeiros (2017) in Ceará, dos Santos et al. (2021) for the Piracuruca River watershed in Piauí, in the northeast region of Brazil, and Abrão and Bacani (2018) for the Santo Antônio River watershed in Mato Grosso do Sul, in the midwest region of Brazil.

In this work, fuzzy logic was used with the objective of better representing the variation of environmental characteristics. With the mathematical structure and the property of inaccuracy of boundaries between objects, fuzzy logic can treat problems that have imprecision and abstraction in their models and concepts. Fuzzy logic can represent the variation and relative importance of each criterion in the phenomenon being studied, allowing more reliable results (BURROUGH ,1992; BURROUGH; MCDONNELL, 1998; ROSENDO, 2019). Fuzzy set theory began to be applied using geographic data in the 1980s and 1990s in the works of Burrough (1989), Kollias and Voliotis (1991), and Burrough et al. (1992), as it has become useful for data where the classification of a certain element is a matter of interpretation (BANAI, 1993). Recent research involving fuzzy logic and geographic data can be found in the Cornwell et al. (2020), Parsian et al. (2021) and Madhu et al. (2021) studies.

A multicriteria analysis method, Analytic Hierarchy Process (AHP) developed by Thomas L. Saaty, was used to support the study. AHP is a method of choice based on pairwise comparison and a predefined scale to express the importance of one criterion over the other in relation to decision-making (SAATY, 1990; SAATY, 1991; SAATY E VARGAS, 2012). In addition, it is concerned with the level of consistency of the calculations and can be applied to quantitative or qualitative information (SAATY, 1987).

In this work, characteristics such as slope, altitude, soil type, and land use/occupation were considered for the analysis of environmental fragility using the Marreco River watershed as a case study. The watershed is in western Paraná, Brazil, in a region with high grain, pig, and fish production and belongs to the Paraná 3 watershed, whose effluents release water at the Itaipu Hydroelectric Power Plant (SEAB, 2018; PMRH, 2017; PLANO DA BACIA HIDROGRÁFICA DO PARANÁ 3, 2014). Therefore, a study on the fragility of this environment is necessary to provide information for proper management.

The data obtained were processed using a Geographic Information System (GIS). GIS was developed in the 1980s and its main feature is the ability to integrate and transform spatial data with applications in several areas (SILVA, 2003; MIRANDA, 2005).

Hence, this study aimed to use fuzzy logic and the AHP method to classify environmental fragility using the Marreco River watershed as a base. Furthermore, to present the importance of using fuzzy logic to represent the variation of environmental characteristics and verify its influence on the final fragility map, a comparison was made between three different forms of weighing elements of the map with the higher weight.

The Marreco River watershed lies in the municipalities of Toledo, Quatro Pontes, Marechal Cândido Rondon, and Pato Bragado (Figure 1) in western Paraná, in the southern region of Brazil, and is approximately 338.8 $k{m}^2$ in area. The source of the Marreco River is in the urban area of Toledo and its mouth is on the São Francisco River located on the border between the municipalities of Pato Bragado and Marechal Cândido Rondon. According to Köppen’s climate classification system, the basin is in a region of Cfa climate, i.e., subtropical climate with hot summer (IAPAR, 2020).

Figure 1
Geographic location of the Marreco River watershed.
Source: The authors (2021).

The analysis methodology included the following steps (Figure 2):

• Define the environmental criteria, the fragility intensity scale, acquisition of data, and processing in a GIS;

• Weigh the elements and classes within maps based on scientific literature and using fuzzy logic;

• Weigh each criterion using the AHP method;

• Weigh overlay of criteria;

• Compare three different ways of weighting elements from the most important map in the fragility calculation.

Figure 2

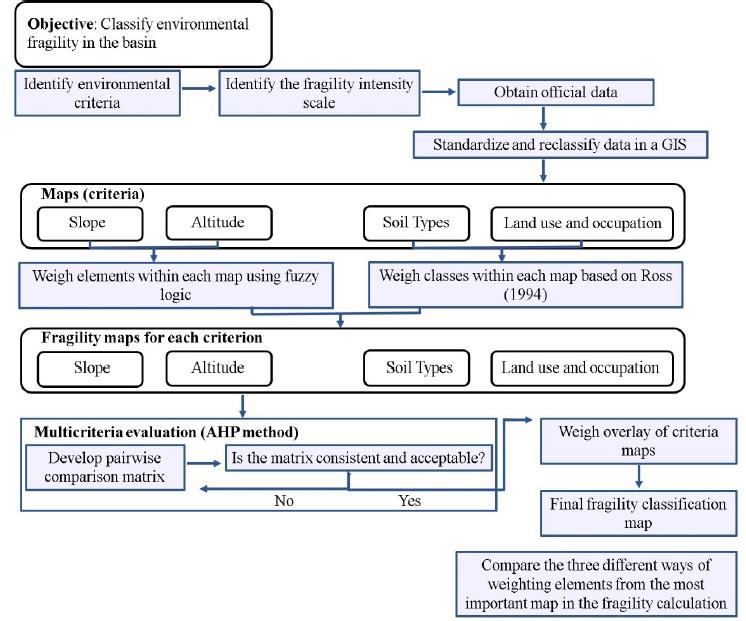

Workflow representing data manipulation.
Source: The authors (2021).

Determining weights using fuzzy modeling

The information plans used were slope, soil type, land use and occupation, and altitude maps. To facilitate the calculations, we decided to use the interval $\left[0.10\right]$ instead of $\left[0.1\right]$ for the membership function.

Each point $x$ represents an environmental element or class in a certain space on the map. A value (weight) in the interval $\left[0.10\right]$ was assigned for the soil and land use and occupation classes; for the slope and altitude elements, continuous membership functions were used. This weighting was empirically performed based on Crepani et al. (2001), Ross (1994), and Spörl (2001).

The degree of fragility was adapted to fuzzy modeling based on Crepani et al. (2001) and Ross (1994) with five intensities: very low, low, average, high, and very high fragility, expressed by values in the interval $\left[0.10\right]$ (Table 1). Therefore, the closer to 10, the greater environmental vulnerability.

Table 1
Degrees of fragility.

Source: Adapted from Ross (1994).

Environmental fragility in terms of soil type and land use and occupation

The classification of environmental fragility of different soil types and land use/occupation was based on Ross (1994) (Table 2). For soil classification, this author considered the diffuse and concentrated surface runoff of rainwater. To classify land use and occupation, he considered the protection capacity they offer to the soil. To apply the weights, a reclassification of the raster data was performed using the r.reclass algorithm in the QGIS software according to Westervelt and Shapiro(2022).

Table 2

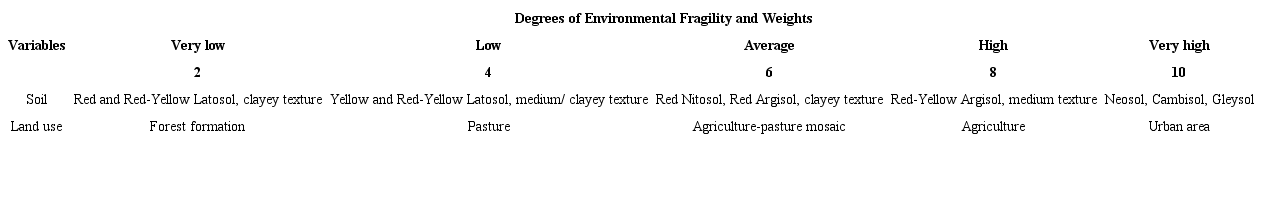

Classes in the soil and land use maps, degrees of environmental fragility and weights.

Source: Adapted from Ross (1994).

Environmental fragility in terms of slope

The term slope is defined as the degree of inclination of the relief in relation to the horizontal plane; the greater the slope of the terrain, the greater the speed and transport capacity of rainwater, contributing to the soil erosion process (CREPANI et al., 2001; GEMITZI et al., 2011; WU, 2014). In this work, the slope value was treated in terms of percentage.

The distribution of slope values in the fragility scale was based on Crepani et al. (2001) and Ross (1994). Fragility values closer to 0 (zero) were associated with lower slope, i.e., regions where soil-forming processes predominate. Values closer to 10 were associated with greater slope, i.e., regions where erosive and landslide processes predominate.

To elaborate the membership function $f\left(x\right)$ that attributed weights to the elements of the slope map, the minimum and maximum slope (51.46%) values found in the basin, the limits of the hierarchical categories of Ross (1994), and a linear interpolation of these limits were used (Figure 3):

$f\left(x\right)=\{\begin{array}{c}\begin{array}{c}0.325x+0.1;0\le x\le 12\\ 0.25x+1;12<x\le 20\end{array}\\ \begin{array}{c}0.2x+2;20<x\le 30\\ \frac{20x+1120}{215};30<x\le 51.4609\end{array}\end{array}$(1)

Figure 3

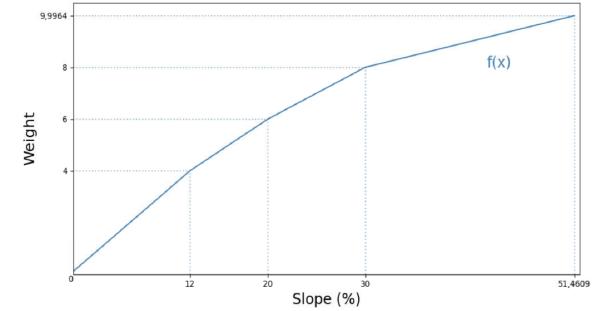

Graph of the function $f\left(x\right)$ applied to the elements of the slope map.
Source: The authors (2021).

To apply the function to each element of the slope map, the raster calculator from QGIS software was used according to QGIS Project (2019).

Environmental fragility in terms of altitude

Signs of changes in certain altitudes, such as temperature and precipitation patterns, are clear (LÓPEZ et al., 2011). Fritzons et al. (2008), through a regression analysis between temperature and altitude for the entire set of stations in Paraná, concluded that 74% of the temperature variation can be explained by the altitude difference. Ávila et al. (2016) presented a relationship between precipitation and altitude in the South region, Brazil. Wischmeier (1959) related the amount of soil loss and energy of rains, and dos Santos and Nascimento (2021) used rainfall as one of the factors to estimate soil loss in a watershed. In addition, de Mello et al. (2020) connected rainfall erosivity and altitude.

Waltrick et al. (2015) calculated an estimated rainfall erosivity in the state of Paraná and observed that the highest values occurred in the period of planting the summer crop and in the winter when there is less vegetation cover on the soil in the western and southwestern regions of the state. This result indicates the importance of using this feature in environmental studies in the region.

De Mello et al. (2013), through multivariate models, concluded that the erosivity can be explained by geographic coordinates and altitude and, in the South and Southeast regions of Brazil, the higher the altitude the lower the average annual rainfall erosivity. Studies such as those by Nel et al. (2010) and Hoyos et al. (2005) presented similar relationship in other countries with different environmental characteristics.

Based on this information, a linear membership function with negative angular coefficient was used to distribute weights to the elements in the altitude map. The fragility values closer to 0 (zero) were associated with maximum altitude (596 m), in regions with lower erosivity caused by rainfall. Fragility values closer to 10 were associated with the minimum altitude (216 m), according to$g\left(x\right)$ function (Figure 4).

$g\left(x\right)=-0.025x+15.4$(2)

Figure 4

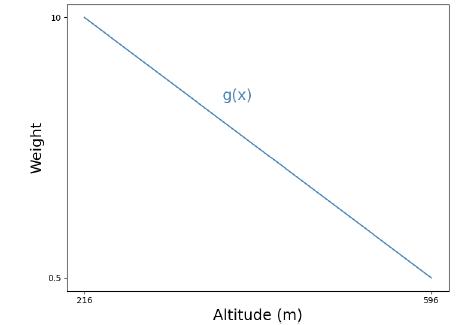

Graph of function $g\left(x\right)$ for weighting elements of the altitude map.
Source: The authors (2021).

To apply the function to each element of the altitude map, the raster calculator from QGIS software was used according to QGIS Project (2019).

Determining weights using AHP

In the judgment stage, a paired comparison of the criteria was performed resulting in the weight of each, representing its importance in the classification map of environmental fragility. This importance was attributed based on the professional opinion of the authors and the scientific literature, including Tricart (1977), Ross (1994), Crepani (2001), Leandro (2013), Cereda Junior and Röhm (2014), Pinese Júnior and Rodrigues (2012), and Spörl (2001). For this comparison, the scale of relative importance developed by Saaty (1977) was used (Table 3). The comparison square matrix of reciprocal values and unit diagonal was constructed through the pairwise comparison.

Table 3

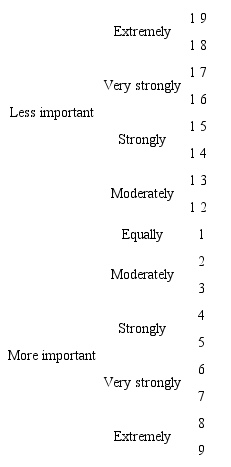

Scale of relative importance between two criteria.

Source: Adapted from Hossain and Daz (2010).

The subjectivity of judgments based on researchers’ experiences can result in inconsistencies in the final matrix. The inconsistency is measured through the consistency ratio (CR) that relates the consistency index (CI) of the matrix in question with the consistency index obtained from the $n$-order reciprocal matrix with non-negative elements randomly generated (RI) (Table 4). The value of CR must be less than 0.1 or 10% for satisfactory consistency and for the experts’ judgment to be considered reliable. (SAATY, 1990).

Table 4
Random Consistency Index (RI).

Source: Saaty (1990).

To compare each of the criteria (slope, altitude, soil, and land use/ occupation), the AHP method was combined with GIS technology using the Easy AHP complement of the QGIS software to perform a weighted linear combination according to Malczewski (2000).

Comparison of methods

A comparison was made between three different forms of weighing elements of the map with the higher weight (slope) to verify its influence on the final fragility map. The first technique is described throughout the work and determined only by the application of the continuous membership function $f\left(x\right)$; the second is determined using the function $f\left(x\right)$ and subsequent reclassification of the resulting raster file; the third is determined by the reclassification of the raster file using the hierarchical categories of Ross (1994) (Figure 5). The three ways are called Fuzzy (FZ), Modified Fuzzy (ModifiedFZ), and Modified Ross (ModifiedR), respectively.

Figure 5

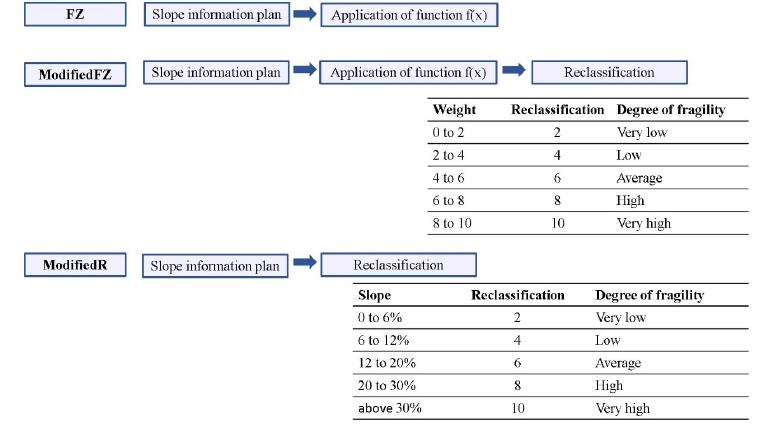

Implementation flowchart of the three ways to attribute weights to the elements of a slope map.
Source: The authors (2021).

The results of each of the three techniques were used together with the other three maps (altitude, soil, and land use/ occupation) and their respective weights for the generation of fragility maps.

In each fragility map, sampling points were distributed equally spaced (30 m) using the QGIS Regular Points tool. Subsequently, the points were determined in relation to the boundary layer of the Marreco River watershed, concentrating the points within the polygon. The Point Sampling tool algorithm was used to extract the values contained in each of the fragility maps at the specified sampling points. The extracted values resulting from each method were put into a spreadsheet and then statistical analysis was performed (Analysis of Variance of Main Effects) using the R software (RCORE TEAM, 2020).

In the first step, the characteristics of the region of the Marreco River basin were analyzed. Thematic maps were generated for slope, altitude, soil type, and land use/occupation, (Figure 6, a - d). The predominant slopes of the basin are classified as slightly wavy and wavy (Figure 6a). The lowest altitude is located near Marechal Cândido Rondon city, and the beginning of the basin in Toledo city has an altitude of 596 m (Figure 6b). The soil types found are Red Latosol, Red Nitosol, and Neosol (Figure 6c). The studied area is widely used for agriculture (Figure 6d).

Figures 6 e - h present reclassified maps according to the degree of fragility provided in Tables 1 and 2 and the membership functions $f\left(x\right)$ and $g\left(x\right)$. The soil types in the basin mostly have average fragility regions (54.5%) with the Red Nitosol. Land use and occupation mostly contain high fragility regions (57.1%) represented by agriculture (Table 5). According to slope and altitude, the predominant degree of fragility is low, with 50.4% and 25.7%, respectively (Table 6).

Figure 6
Thematic maps of the Marreco River watershed: a) Slope; b) Altitude; (c) Soil types; d) Land use and occupation; Fragility scale maps: e - h, respectively.
Source: The authors (2021).

Table 5

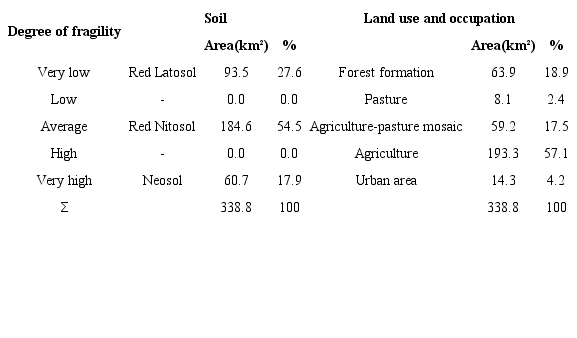

Degrees of environmental fragility related to soil types as well as land use and occupation found in the Marreco River watershed.

Source: The authors (2021).

Table 6

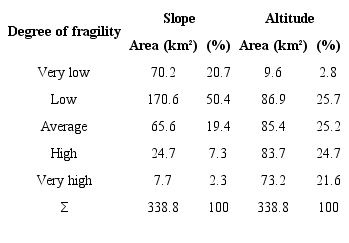

Degrees of environmental fragility in the Marreco River watershed calculated for slope and altitude using the membership functions $f(x)$ and $g\left(x\right)$, respectively.

Source: The authors (2021).

The most important parameter through the AHP method was slope (51.42%), followed by land use and occupation (29.55%), soil (12.14%), and altitude (6.89%) (Table 7).

Table 7

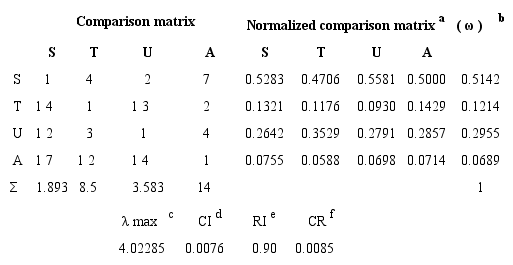

Paired comparison matrix used to evaluate the relative importance of each criterion in relation to environmental fragility.

S=slope; T=soil type; U=land use/occupation; A=altitude. ª The normalized comparison matrix is obtained by dividing each element of the comparison matrix by the sum of all elements in its column. ^b The eigenvector $\left(\omega \right)$ is the weights of each criterion and is obtained by averaging values of each row of the normalized comparison matrix. ^c $\lambda \max$ is the highest eigenvalue of the comparison matrix. ^d The CI consistency index is calculated as $\frac{\lambda \max -n}{n-1}$ , where $n$ is the matrix order. ^e The RI random consistency index is 0.90 for $n=4.$ ^f The consistency ratio is defined by $CR=CI/RI$. Source: The authors (2021).

Environmental fragility was calculated by weighted overlay of the four fragility maps (result of using Table 2 and functions $f\left(x\right)$ and $g\left(x\right)$) using Easy AHP and equation 3 in QGIS.

The result of this calculation indicates that 71.3% of the basin area was considered to have average fragility, followed by 15.1% with low fragility, and 13.2% with high fragility (Figure 7 and Table 8).

Figure 7

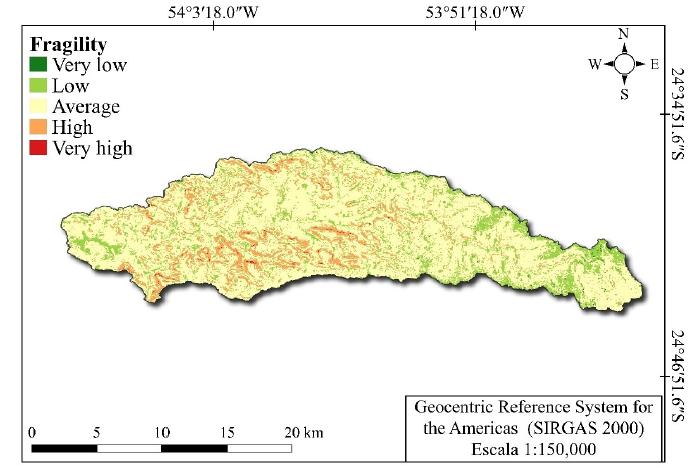

Environmental fragility classification map for the Marreco River watershed.
Source: The authors (2021).

Table 8
Area of the different degrees of environmental fragility in the Marreco River watershed.

Source: The authors (2021).

The comparison of three different forms of weighing the elements of the slope map indicated that the basin mostly has average environmental fragility (Table 9). The FZ method classified a larger area as very low (0.2%) and low (15.1%) fragility than the ModifiedFZ (0% and 3.4%, respectively) and ModifiedR method (0% and 4.6%, respectively). This difference can be explained by the variation of weights according to variation of the elements on the slope map in the FZ method in contrast to the other two that classified different elements with the same weight (Figure 5).

The extraction fragility map values from each method resulted in three spreadsheets with each having 845,209 data, totaling 2,535,627 data. To compare the results, the R software was used to calculate 999 analyses of variance of the main effects, each performed for a sampling of 999 points in each spreadsheet. The analysis was performed based on the mean of the values found, considering a significance level of 5%. Thus, it was possible to infer that there is a significant difference between the methods and the geographical position. The method used to apply the weights on the slope map influences the degree of environmental fragility calculated ($F_{position}=\mathrm{8.807,}p-valu{e}_{position}=1.383\cdot {10}^{-310}$and $F_{method}=\mathrm{484.015,}p-valu{e}_{method}=1.391\cdot {10}^{-146}$; $p-valor$= statistical significance and $F$= F statistic).

Table 9

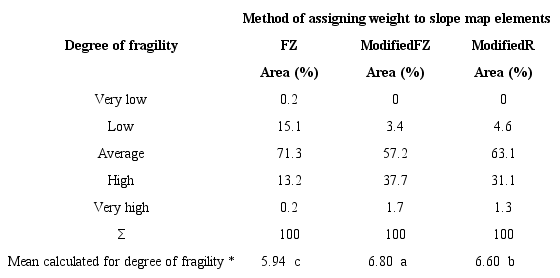

Effect of methods to assign weight to the elements on the slope map on the degree of environmental fragility.

*Different letters on the same line indicate a significant difference between the means by the Tukey test at 5% of significance. Source: The authors (2021).

The theory of fuzzy sets has been important for geographic data since the 1980s to deal with imprecision and abstraction in classifications (BANAI, 1993).

The conventional classification through fixed values assigned to an area may propagate errors in landscape modeling. Geotechnologies and multicriteria analysis with fuzzy logic have played an important role in environmental studies because they allow representation of the variation and relative importance of each environmental characteristic in the phenomenon studied. (MEIRELLES, 1997; ROSENDO, 2019).

Examples of studies include Junior et al. (2016), who used data such as soil, slope, population, altitude, and landforms to study the susceptibility to landslides in watersheds and concluded that fuzzy logic and AHP are essential for solving problems related to the empirical knowledge of experts. Cereda Junior and Röhm (2014) used the fuzzy model to determine environmental fragility employing variables such as soil, vegetation cover, and rainfall behavior, presenting satisfactory results compared to field research and previous studies. Miara and Oka-Fiori (2007) studied environmental fragility through AHP and fuzzy standardization with the erosivity, geology, soils, and slope variables; their results correlated with the reality on the ground. Guerrero et al. (2021) elaborated a natural vulnerability chart using fuzzy inference and AHP employing relief, geology, rainfall, land use, and slope variables, and they considered the method effective, with satisfactory results. Cheng et al. (2020) analyzed the health of the ecosystem of a desert using the fuzzy concept, physiological, ecological, and environmental criteria, and they obtained precision, objectivity, and reliability in the results. Rosendo (2019) analyzed socio-environmental vulnerability to drought in Brazilian regions using fuzzy sets and environmental variables such as rainfall anomaly index, crop areas, and degraded areas. Therefore, several variables can be added to the model to cover the proposed objectives.

In this work, the weights of the elements within the slope and altitude maps using fuzzy logic through the functions $f\left(x\right)$ and $g\left(x\right)$, respectively, considered the potentials for landslides and erosivity caused by the rains. The function $f\left(x\right)$ classified 50.4% of the basin with low fragility in terms of slope, and the function $g\left(x\right)$ classified approximately 25% of the basin for each degree of low, average, and high fragility in terms of altitude (Table 6). Linear interpolation was used to construct the functions due to the simplicity of execution and easy adaptation in other areas and contexts. The functions chosen depend on the dataset and in what context these data are treated (BURROUGH et al., 1992; KANDEL, 1986).

The AHP method resulted in the slope as the most important criterion, followed by land use and occupation, soil, and altitude (Table 7). Spörl (2001) compared models and indicated the most detailed map supported by the slope map. Our analyses found the predominant degree of environmental fragility is average (71.3%) in the Marreco River watershed (Table 8).

The ways of weighting the elements of the slope map elucidated a statistical difference, but all indicated that the basin under study has mostly average environmental fragility, although the FZ method classified a larger area with a lower degree of fragility (Table 9). This can be explained by the fact that the FZ method allows representation of the variation of map elements while FZmodified and Rmodified assign fixed values to regions with different characteristics.

This work considered the slope, soil type, altitude, land use and occupation to classify and analyze environmental fragility in the Marreco River watershed, located in western Paraná, Brazil.

The use of fuzzy logic allowed representing the variation of environmental characteristics and their degree of importance in the analysis of fragility. Moreover, the AHP method established hierarchical levels for the criteria through consistent calculations.

The analysis found that the basin mostly has average environmental fragility, indicating that the region requires adequate planning of actions. The discussions confirm that the combination of fuzzy logic, AHP method, and geotechnologies can be a promising tool to assist in decision making and adequate management of anthropic activities in watershed areas. The further deepening and exploration of fuzzy logic in analyzes at the level of environmental planning are suggested.

To the Unioeste and GEMAq for the structure for the development of the research. To the doctoral student Jhony Ferry Mendonça da Silva for the collaborations related to the use of the QGIS software.
