1. Introduction

Forecasting the evolution of an infectious disease has been the main motivation for the construction of mathematical epidemiological models. This is because knowing the evolution of the infectious disease allows the design of public health strategies to control or eradicate the disease. In this sense, it is essential to know the existence of threshold values that predict whether the disease will be spread or if it can be controlled. Classically, the basic reproduction number, denoted by R₀, is a threshold value that can describe two scenarios: a disease is persistent if R₀ is greater than one, and it dies out if R₀ is smaller than one. R₀ can be defined as the expected average number of new infected individuals produced by a single infective individual, in a completely susceptible population, during its infective period. For those reasons, R₀ can be associated to a forward bifurcation in R₀ = 1. In that case, the endemic equilibrium exists only for R₀ > 1. Then, there is not an endemic state when R₀ < 1 (see Figure 1). In recent years, backward bifurcation phenomenon has attracted interest in mathematical epidemiology (see Figure 2). This is due to the fact than when a backward bifurcation appears, reducing R₀ below 1 would not eradicate the disease, if the initial infective population size is sufficiently large. In this case, a bistability phenomenon occurs when R₀ is less than 1. There will be two locally asymptotically stable equilibrium points, one with no disease (disease-free equilibrium) and other one with a positive endemic level. In order to eradicate the disease, one must further reduce R₀ so far that it passes a so-called saddle-node bifurcation that exists for values of R₀ < 1 and enters into the region where no endemic equilibrium points exist. In that case, the disease-free equilibrium is globally asymptotically stable (see Figure 2 A)). The basic reproduction number does not provide a description of the necessary elimination effort; rather the description of the effort is provided through the value of the critical parameter at the turning point. Furthermore, if a backward bifurcation appears in R₀ = 1, then an (stable) endemic equilibrium exists for R₀ just above 1. This endemic state has a large infectious population. So the result of R₀ rising above 1 would be a sudden and dramatic jump in the number of infectious individuals. (see Figure 2 A)). In contrast, a backward bifurcation can exist when R₀ is bigger than 1. This bifurcation emerges from an endemic state that is an equilibrium point which belongs to a forward bifurcation. This forward bifurcation emerges from the disease-free equilibrium when R₀ = 1. In this scenario, a bistability phenomenon can occur in a neighborhood of R₀ = 1 in two ways. There will be either two locally asymptotically stable equilibrium points, one with no disease and other with a positive endemic level for R₀ < 1 (see Figure 2 B)), or two locally asymptotically stable endemic equilibrium points for R₀ > 1 (see Figure 2 C)). Thus, it is important to identify backward bifurcation in order to obtain thresholds for the disease control. Again, in order to eradicate the disease, one must further reduce R₀ until it passes a so-called saddle-node bifurcation that exists for values of R₀ < 1 and enters into the region where no endemic equilibrium points exist. In such case the disease-free equilibrium is globally asymptotically stable. To sum up, the bistability phenomenon may be due to either a backward bifurcation in the disease-free equilibrium (see Figure 2 A)) or a backward bifurcation in an endemic equilibrium (see Figure 2 B) and C)).

Models with backward bifurcations have been studied in an epidemiological context. For example, in generic compartmental models [2], [15], [18], [20], in models describing the spread of specific diseases like tuberculosis [12], dengue [1], [2] and sexually transmitted diseases [4], [5], [13]. Also, vaccine-preventable diseases [2], [4], [6], [7], [14], [16], and the acquired immunity is a debated cause for its occurrence [11]. There can be no doubt that existence of a backward bifurcation can be associated with nonlinear forces of infection [4], [10] or treatment rates of the disease [17]. However, in each epidemic model analyzed in literature, if a backward bifurcation appears, the origin of the backward bifurcation is unique. That is, a backward bifurcation might emerge from either the disease-free equilibrium when R₀ = 1 (see Figure 2 A)) or from an endemic state for R₀ > 1 (see Figure 2 B) and C)).

On the other hand, in the literature many forms of the per-capita treatment function T (I) appears, for example, or piecewise linear functions for the treatment rate (see [3], [8], [9], [17], [18], [19], [21]).

Particularly, Zheng et al. [21], analyzed an SIR model with a per-capita treatment rate given by

They proved the existence of a backward bifurcation in the disease-free equilibrium point and bistability phenomenon for some conditions over the parameters as it is shown in the Figure 2 A).

Meanwhile, Wang [18], analyzed an SIR model with a per-capita treatment rate given by

The author proved the existence of a backward bifurcation in a non trivial equilibrium point and the bistability phenomenon for some values on the parameters in a neighborhood of R₀ < 1, as is shown in Figure 2B).

Observe that, in each case showed above, the derivative of the per-capita treatment rate T (I) is different. This observation leads us to assume that the velocity (shape) of the percapita treatment rate may explain the nature of the point where a backward bifurcation emerges. That is, if the backward bifurcation comes from either a trivial equilibrium point or from a non trivial equilibrium point.

In this work we present an SIR model which describes an infectious curable disease and a per-capita treatment rate given by , where δ is a density-dependent factor of the treatment. This election of the treatment rate catches the impact of the infection in the treatment. Particularly, for some values on the parameters, the model shows a bistability phenomenon, which is associated to either the existence of a backward bifurcation, in the trivial equilibrium point, when R₀ = 1, or to the existence of a backward bifurcation, in an endemic equilibrium point, when R₀ > 1. That is, there are stable endemic states in a neighborhood of R₀ = 1. In summary, this election of T (I) captures two possible scenarios for the existence of a backward bifurcation in function of the velocity of the per-capita rate for some values of the model parameters.

The structure of the work is described as follows: in section 2 we introduce the model and calculate its basic reproductive number R₀. In section 3 the direction of the bifurcation in R₀ = 1 is analyzed. Furthermore, existence of multiple steady states for R₀ < 1 as well as for R₀ > 1 are shown. From here, it will be possible to find threshold values for existence of equilibrium points and a criterion of stability of the equilibrium points is given. Also, in this section, numerical simulations of the results are shown. Finally, in section 4 we present some conclusions and provide an explanation of the results.

2. The model

Let us consider an SIR model: Let N(t) be the total population. The population N(t) is divided into three classes; a susceptible class S(t), an infectious class I(t), and a recovery class R(t). So N(t) = S(t) + I(t) + R(t).

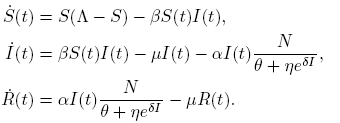

The compartmental epidemic model is given by

All parameters are positive constants, with the following interpretation; Λ is the carrying capacity in the absence of disease, μ is the birth-death rate, β is the infection coefficient. In the per-capita treatment rate, , α is the treatment rate, δ is a densitydependent factor for the treatment. Furthermore, η and θ measure the extent of the effect for the infectious being delayed because of the treatment. In this case, the per-capita treatment rate T (I) has an unique inflection point in . Note that for values of I < I* the function is concave and for values of I > I* the function is convex.

Note that is the average number of infectious individuals where the velocity of the per-capita treatment rate has a maximum, and in this point the response of the strategy changes velocity. This changes may be due to numerous factors involving treatments, for example, number of hospitals, number of doctors or nurses, cost of public health policies, etc. This critical value of I can be related to the maximum value of the total treatment rate, .

Before going into further detail, we simplify the model. Since the first two equations of (3) are independent of the third one and their dynamic behavior is trivial when I(0) = 0 for t > 0, it suffices to consider the first two equations with I > 0, which are independent of R(t).

Thus, we restrict our attention to the following reduced model:

It is easy to verify that model (4) admits the equilibria E_e = (0, 0) and E₀ = (Λ, 0). The Jacobian matrix associated to model (4) is given by

The Jacobian matrix (5) evaluated in the trivial equilibrium point E_e (which is the extinction scenario) is given by

So, the eigenvalues associated to (6) are λ₁ = Λ and . The equilibrium E_e is always unstable for all values of the parameters. This result is consistent with the fact that there is a constant recruitment rate in the model proposed.

Now, the Jacobian matrix (5) evaluated in the disease-free equilibrium point, E₀, is

So, the eigenvalues associated to (7) are λ₁ = −Λ and .

The basic reproductive number is defined as . Observe that R₀ is independent of the dense-dependent factor, δ. From our previous discussion we arrive to the following result.

Lemma 2.1.The equilibrium point E₀is locally asymptotically stable if and only if R₀ < 1.

The next step is to investigate the nature of the direction of the bifurcation in the trivial equilibrium E₀ when R₀ = 1. To do this, we will use Theorem 1 in [12], which is based on the use of the center manifold theory.

3. Endemic equilibria and bifurcations

3.1. Direction of the bifurcation

Let a and b be the coefficients of the normal form representing the dynamics of the system in the central manifold. Theorem 1 in [12], describes the role of such coefficients in deciding the direction of the transcritical bifurcation occurring at Φ = 0.

We apply Theorem 1 to describe the direction of the bifurcation at R₀ = 1 associated to system (4) in the trivial equilibrium E₀. Let us define , such that R₀(β*) = 1, which is denoted by R*₀.

Observe that the eigenvalues of the matrix

are given by λ₁ = −Λ and λ₂ = 0.

Thus, λ₂ = 0 is a simple zero eigenvalue and the other eigenvalue is real and negative. Hence, when R₀ = R*₀ the disease-free equilibrium E₀ is a non hyperbolic equilibrium: the assumption (A1) of Theorem 1 in [12] is then verified.

The right eigenvector associated with the zero eigenvalue λ₂ is given by w = [−β*, 1], and the left eigenvector associated to the zero eigenvalue λ₂ is given by v = [0, 1]. Observe that v · w = 1. The coefficients a and b defined in the Theorem 1 are

Computing explicitly taking into account the system (4), it follows that:

and

The coefficient b = Λ is always positive, so that, according to Theorem 1 [12], the local dynamics around the disease-free equilibrium for R*₀ is determined by the sign of the coefficient a. As a consequence, the following condition ensures the occurrence of a backward bifurcation at R₀ = R*₀:

If the inequality (13) is reversed,

a forward bifurcation at R₀ = R*₀ is followed.

All these considerations allow us to state the following lemma:

Lemma 3.1.Let R*₀be:

1. i) If , then a backward bifurcation occurs for the system (4).

2. ii) If, then a forward bifurcation occurs for the system (4).

Next, existence of endemic equilibrium points is showed.

3.2. Existence of endemic equilibria

The nullclines of system (4) are given by

Note that V₁(0) = Λ and . Also, R₀ > 1 if and only if V₁(0) > V₂(0). And .

Deriving twice the nullclines we have

and

Observe that V₁(I) and V₂(I) are decreasing functions for all values of I for δ > 0. Also, is an inflection point of V₂(I). We defined this value of I as .

Note that if δ < 0, then an unique equilibrium point exists. This case is related to a forward bifurcation in R₀ = 1.

Lemma 3.2.Let , δ > 0, θ > η. If, then (I^m, S^m) is an equilibrium point of the system (4).

Lemma 3.3.Let (I^m, S^m) be an equilibrium point of system (4).

1. i) IfR₀ > 1, then there are three positive equilibrium points of system (4).

2. ii) If R₀ < 1, then there are two positive equilibrium points of systems (4).

Proof. The derivatives of the nullclines evaluated in the inflection point are given by

Thus, the slope at the inflection point in the nullcline V₂ is greater than the slope at the inflection point of the nullcline V₁ if 4β²θ > δαN; then, nullclines intersect transversely and V₂(I) > V₁(I) in a neighborhood of the inflection point, which is a coordinate of the equilibrium point. On the other hand, V₁(0) > V₂(0) if and only if R₀ > 1. By continuity of V₁(I) and V₂(I), the system (4) has three equilibrium points if R₀ > 1, and two equilibrium points if R₀ < 1. ☑

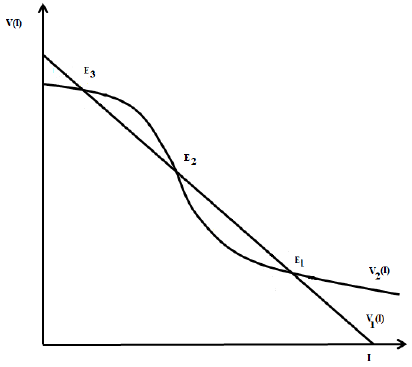

Case i) is shown in Figure (3).

We can summarize the above results in the following theorem.

Theorem 3.4.For the model (4). Let (I^m, S^m) be an equilibrium point of the system (4).

a) Ifand R₀ < 1, there is a saddle equilibrium point, which bifurcates into two positive equilibrium points (Backward Bifurcation on the trivial equilibrium (seeFigure 2 A))).

b) Ifand R₀ > 1, there are two saddle equilibrium points which bifurcate into two positive equilibrium points each one (Backward Bifurcation on the non trivial equilibrium, seeFigure 2 B) and C)).

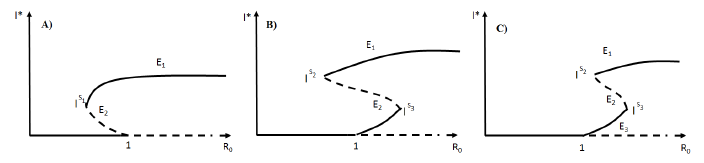

Observing Figure (2) we can conclude that there are saddle equilibrium points associated to system (4). This cases are analyzed in what follows.

First, note that points on the nullclines, where the nullclines have the same derivatives, satisfy the equation

where y = e^δI , A = β²η², B = 2β²θη − ηδαN and C = β²θ².

The solutions of the equation (18) are given by

where ρ = αδN(αδN − 4β²θ).

Observe that ρ > 0 if 4β²θ < αδN, ρ = 0 if 4β²θ = δαN and ρ < 0 if 4β²θ > δαN. So, we have the following results about saddle points of the system.

Lemma 3.5.For system (4):

a) If ρ > 0, there are two values I where the nullclines have the same derivative.

b) If ρ = 0, there exists a unique value I where the nullclines have the same derivative.

c) If ρ < 0, there are not values I where the nullclines have the same derivative.

Lemma 3.6.For system (4):

a)is an equilibrium point of the model (4) if and only ifand ρ = 0.

b)andare equilibrium points of the model (4) if and only ifand ρ > 0.

In the next section we will deal with the stability of these equilibria.

3.3. Stability analysis

The criterion of determinant and trace is used to find conditions over the stability of the equilibrium points.

The Jacobian matrix (5) evaluated in the equilibrium point (S*, I*) is given by

Note that

and

where G(y) = (A₁y² + B₁y + C₁), y = e^δI , A₁ = β²η²S, B₁ = η(2β²θS + αδΛN − 2αδNS − αδβNI) and C₁ = β²θ²S.

Observe that G(0) > 0 and .

Particularly, Det(J(I^s1 )) = Det(J(I^s2 ))) = Det(J(I^s3 )) = 0 can be proved. So, there exists values of

such that Det(J(I*)) < 0. On the other hand, if the Trace(J(S*, I*)) is analyzed, the following result can be written using the Trace-Determinant criterion using the definitions of I^s1 , I^s2 and I^s3 as in Lemma 3.6.

Lemma 3.7.Ifand I* < I^s3or I* > I^s2, the equilibrium point (I*, S*) is locally asymptotically stable.

On the other hand,

Lemma 3.8.If I^s3 < I < I^s2 , then the non trivial equilibrium point (I*, S*) is unstable.

An analogous analysis can obtained for I^s1 defined in Lemma 3.6.

Lemma 3.9.Ifand I* > I^s1the equilibrium point (I*, S*) is locally asymptotically stable.

3.4. Simulations

In this section, we present some numerical simulations using XPPAUT 7.0 and Mathematica 11 to show different bifurcation diagrams and phase portraits corresponding to distinct treatment scenarios for the system 3. Also, The bifurcation diagram associated to simulations illustrates the bifurcation to multiple equilibria. Simulations show existence of a backward bifurcation emerging from either the disease-free equilibrium point when R₀ = 1, or from an endemic equilibrium point when R₀ > 1 (see Figure 2).

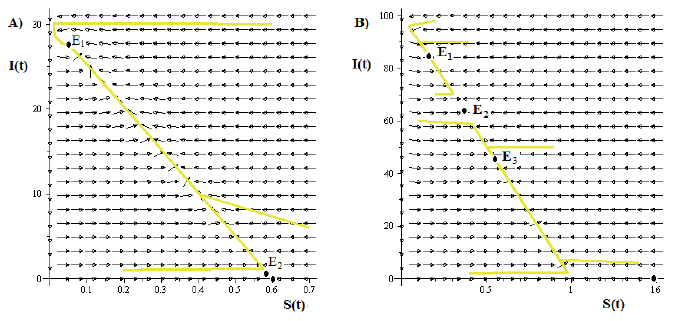

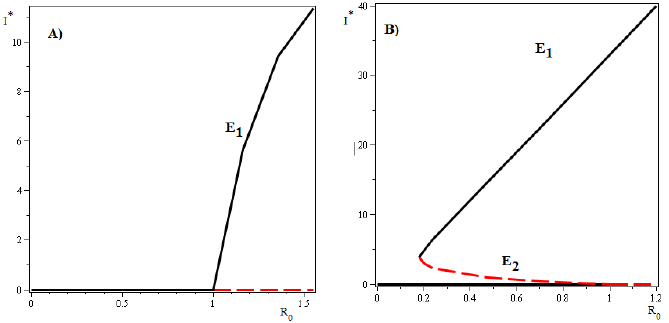

For the case where there are two endemic equilibrium points (backward bifurcation), typical dynamical behavior is the following: the stable manifolds of the saddle point E₂ split the feasible region in two parts. Positive orbits in the lower part approach to trivial equilibrium point E₀ and positive orbits in the upper part approach to endemic equilibrium point E₁. So, the model shows a bistability phenomenon for values of R₀ < 1 (see Figure 4 B)).

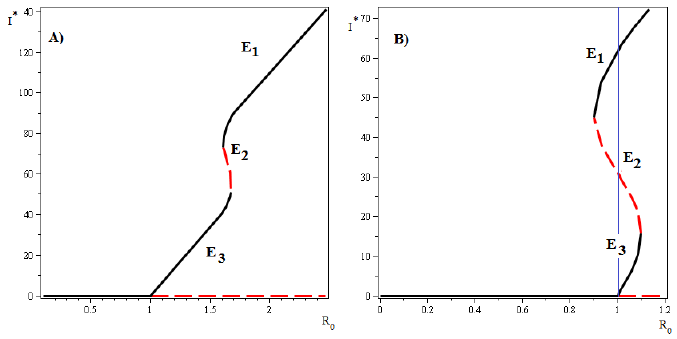

On the other hand, if three endemic equilibrium points exist, the model shows a forward bifurcation in R₀ = 1, and a backward bifurcation in an endemic equilibrium for R₀ > 1. In this case, for different values of the parameters the model can show two different scenarios.

In the first scenario, the saddle point I^s2 appears when R₀ is bigger than 1. In this case, the stable manifold of the saddle point E₂ split the feasible region in two parts. Positive orbits in the lower part approach the endemic equilibrium point E₃ and positive orbits in the upper part approach the endemic equilibrium point E₁, which only exist for values of R₀ > 1. In the second scenario, the saddle point I^s2 appears when R₀ is less than 1. In this case, the stable manifold of the saddle point E₂ splits the feasible region in two parts: positive orbits in the lower part approach either the endemic equilibrium point E₃ or disease-free equilibrium point E₀, and positive orbits in the upper part approach the endemic equilibrium E₁, which exists for values of R₀ < 1 as well as for values of R₀ > 1. (see Figure 5 B)). The phase portrait and the vector field of directions around the fixed equilibria for both cases are shown in Figure 6.

4. Conclusions

In this paper we have considered an SIR epidemic model, which incorporates a percapita treatment function T (I). This model exhibits a backward bifurcation emerging from either a disease-free equilibrium point or from an endemic equilibrium point when some conditions over the parameters are satisfied. For some values of the parameters, in the two previous cases, a bistability phenomenon occurs. Particularly, observe that, when T (I) is an increasing function (this is the case when δ < 0), the forward bifurcation occurs independently of the values of the other parameters, and existence of a backward bifurcation is excluded (see Figure 4 A)). On the other hand, if the per-capita treatment rate, T (I), is a monotone decreasing function (δ > 0), then the model (4) exhibits two possible scenarios with a backward bifurcation for some values of the parameters. First scenario is a backward bifurcation arising from the disease-free equilibrium (R₀ = 1) (see Figure 4 B)). The second case is associated to a forward bifurcation in R₀ = 1 and a backward bifurcation emerging from an endemic equilibrium point for R₀ > 1 (see Figure 5 A) and B)).

The biological consequences of this result are far-reaching, since it shows that a way to avoid the undesirable bistability phenomenon is applying an efficient and effective treatment (δ < 0), specially for those diseases that respond to treatment and for which there is no spontaneous recovery, that means, it is sufficient take an unbounded total treatment rate. This means, the total treatment rate, IT (I), does not have a maximum. Otherwise, if an inefficient treatment strategy is applied (the total treatment rate reaches its maximum and decreases), multiple endemic states could appear together with a bistability phenomenon. From here it follows that if the treatment application was inefficient from the beginning, improving it can worsen the epidemic outbreak. Since in this case there would be a point of inflection that could generate the existence of three endemic equilibrium states. That is, the model suggests that applying the treatment inefficiently forever and carrying R0 below the saddle point would lead solutions to disease-free equilibrium. An important consequence of the results is the following: an epidemic control strategy associated to a forward bifurcation in R₀ = 1 can be worse that the control strategy associated to a backward bifurcation in R₀ = 1. This is due to the endemic equilibrium point E₁ in the first scenario may be bigger than E₁ in the second when R₀ is less than 1. Hence, it is very important to understand the mechanisms that can induce this peculiar bifurcation and its point of origin.

In further work, existence of a Hopf bifurcation as function of the total treatment rate, IT (I), will be analyzed. Particularly, when IT (I) has a maximum value.

Acknowledgements

The authors would like to thank the anonymous referees for their helpful comments.

References

[1] Abu Bakar M.R., Garba A.M. and Gumel A.B.,“Backward bifurcation in dengue transmission dynamics”, Math. Biosci. 215 (2008), No. 1, 11–25.

[2] Brauer F., “Backward bifurcations in simple vaccination models”, J. Math. Anal. Appl. 298 (2004), No. 2, 418–431.

[3] Ghosh M., Li X. and Li W., “Stability and bifurcation of an epidemic model with nonlinear incidence and treatment”, Appl. Math. Comput. 210 (2009), No. 1, 141–150.

[4] Gumel A.B., Elbasha E.H., Watmough J., Sharom O. and Podder C.N., “Role of incidence function in vaccine-induced backward bifurcation in some HIV models”, Math. Biosci. 210 (2007), No. 2, 436–463.

[5] Gumel A.B. and Sharomi O., “Re-infection-induced backward bifurcation in the transmission dynamics of chlamydia trachomatis”, J. Math. Anal. Appl. 356 (2009), No. 1, 96–118.

[6] Hethcote H., “The mathematics of infectious diseases”, SIAM Rev. 42 (2000), No. 4, 599–653.

[7] Lacitignola D. and Buonomo B., “On the backward bifurcation of a vaccination model with nonlinear incidence”, Nonlinear Anal. Model. Control 16 (2011), No. 1, 30–46.

[8] Liu X. and Zhang X., “Backward bifurcation of an epidemic model with saturated treatment function”, J. Math. Anal. Appl. 348 (2008), No. 1, 433–443.

[9] Lou J., Song B. and and Du W., “Different types of backward bifurcation due to densitydependent treatments”, Math. Biosci. Eng. 10 (2013), No. 5-6, 1651–1668.

[10] Moghadas S.M. and Alexander M.E., “Bifurcation analysis of an sirs epidemic model with generalized incidence”, SIAM J. Appl. Math. 65 (2005), No. 5, 1794–1816.

[11] Perelson A.S., Reluga T.C. and Medlock J., “Backward bifurcations and multiple equilibria in epidemic models with structured immunity”, J. Theor. Biol. 252 (2008), No. 1, 155–165.

[12] Song B. and Castillo-Chávez C., “Dynamical models of tuberculosis and their applications”, Math. Biosci. Eng. 1 (2004), No. 2, 361–404.

[13] Sun Z. and Liu Y., “Backward bifurcation in an hiv model with two target cells”, in Proceedings of the 29th Chinese Control Conference, Beijing, China, 1397–1400, July, 2010.

[14] Van den Driessche P., Arino J. and McCluskey C.C., “Global results for an epidemic model with vaccination that exhibits backward bifurcation”, SIAM J. Appl. Math. 64 (2003), No. 1, 260–276.

[15] Van den Driessche P. and Hadeler K.P., “Backward bifurcation in epidemic control”, Math. Biosci. 146 (1997), No. 1, 15–35.

[16] Velasco-Hernandez J.X. and Kribs-Zaleta C.M., “A simple vaccination model with multiple endemic states”, Math. Biosci. 164 (2000), No. 2, 183–201.

[17] Wan H., Cui J. and Mu X., “Saturation recovery leads to multiple endemic equilibria and backward bifurcation”, J. Theor. Biol. 254 (2008), No. 2, 275–283.

[18] Wang W., “Backward bifurcation of an epidemic model with treatment”, Math. Biosci. 201 (2006), No. 1-2, 58–71.

[19] Wang H., Hu Z. and Liu S., “Backward bifurcation of an epidemic model with standard incidence rate and treatment rate”, Nonlinear Anal. 9 (2008), No. 5, 2302–2312.

[20] Watmough J. and Van den Driessche P., “A simple sis epidemic model with a backward bifurcation”, J. Math. Biol. 40 (2000), No. 6, 525–540.

[21] Zheng B., Takeuchi Y., Wang J. and Liu S., “Qualitative and bifurcation analysis using an sir model with a saturated treatment function”, Mathematical and Computer Modelling 55 (2012), No. 3, 710–720.
