INTRODUCTION

Bifacial modules can increase the energy generation in relation to monofacial ones¹. That increase depends on the specific characteristics of the site, the layout and the technological system, among other factors. The decreasing production cost of bifacial moduleshas determined that its proportion in the world market of modules has been growing since 2018. Some theoretical studies have been carried out and others based on empirical results, but due to the complexity of factors affecting bifacial gains in generation, more research is needed, mainly in large-scale photovoltaic parks.

Yusufoglua U.A., Leea T.H. y Pletzer T.M², carried out a test with a tilted module (SAF) towards the South in Oslo (latitude 60⁰) and Cairo (latitude 30.1⁰). They concluded that with an albedo value of0,2 and a module elevation (space between the module and the ground) of 2 meters, in both cities, the optimum tilt for bifacial modules is slightly higher than that of monofacial ones. However, when the albedo increases to 0,5 this difference between optimal tilts is significantly reduced.In addition, they observed that with the optimal tilts and different albedos, the energy production is more sensitive to the elevation in Cairo. Any albedo increases augments energy gains at both latitudes.

LG Electronics, in its Bifacial Design Guide, lists the main factors affecting the bifacial generation in SAF: albedo, elevation, distance between the beginning of the first row and the beginning of the next (pitch), the shading by the module mounting structure on the backside of modules, and the number of rows (the lesser rows number, the higher the energy gain). That paper shows the results of simulations, using, PVsyst of six sites around the world with SAF and with single axis tracking system (SAT).These simulations were performed with combinations of albedos(15%, 30%, 50%, 70% and 85%) and elevations (0,3 m, 0,5 m, 0,8 m, 1 m and 1,5 m) for SAF, and axis heights from ground (1 m, 1,5 m, 2 m, 2,5 m and 3 m) for SAT.

Stein J.S, Riley D., Lave M., et al.^{1, 3},after conducting field tests with small SAF, conclude that total energy production seems to be maximized when the orientation of bifacial panels is the same as that of monofacial ones.

Guerrero-Pérez J. and Chaouki-Almagro S.(4),define that the main factors affecting the bifacial gains in tracking systems are the albedo, the distance between axes (pitch), the height of the axis and the mounting structure of the module. They refer that during September, October and November 2018 at BITEC (Bifacial Tracker Evaluation Center, United States) facilities, albedo was measured for three types of surfaces: seasonal soil, gravel and a white cover. The energy output of two Jolywood JW-D72N-355 bifacial modules located on a bifacial tracker was measured for each albedo condition with a 10-meter distance between axes. With albedos of 19%, 32% and 63% the energy gains were 7,9%, 11,9% and 19,2%, respectively, taking as a reference the generation of monofacial modules.

H. Park, S. Chang, S. Park and W. Kyoung Kim⁵, evaluated the outdoor performance of modules and string systems was evaluated for two different albedo (ground reflection) conditions, ( 21% and 79%) in Gumi-Si, South Korea. In the first set of tests, output of the bifacial PV systemwas compared with the monofacial PV system installed on a grey concrete floor with an albedoof ~21% for approximately one year (June 2016-May 2017). In the second test, the gain of the bifacialPV system installed on a white membrane floor with an albedo of ~79% was evaluatedfor approximately ten months (November 2016-August 2017). During the second test, the energy production by an equivalent monofacial module installed on a horizontal solar tracker was alsomonitored.An increase ofthe ground albedo to 79% improved the bifacial gain to 33.3%. During the same period, the horizontalsingle-axis tracker yielded an energy gain of 15.8%.

I. Adolfsson, K. Boman and S.Ekbring⁶,compared the energy gains of two roof parks in Upsala and Enköping. A bifacial PV module with frame, installed in Uppsala with a “normalized” tilt angle of 15°, results in 5.2% and 3.6% higher power output during summer and winter conditions, respectively, compared to a traditional monofacial module (with frame). The corresponding value for the frameless, more tilted and elevated bifacial PV module, installed in Enköping, Sweden, resulted in a 58% and 68% higher power output during summer and winter conditions, respectively, given the conditions of the study. The result of this study, therefore, indicates that a bifacial PV system is more advantageous than a traditional monofacial PV system in a Nordic climate.

Sun X., Ryyan Khan M., Deline C. et al⁷, introduce another element that is the azimuth in the case of bifacial SAF. According to their conclusions, derived from simulations, when the latitude of the site is lower than the critical latitude Lat_cri the East-West orientation produces more electricity under the assumptions of absence of shading by nearby objects and infinite size of the terrain, and viceversa. They warn, however, that the regression equations found are for ideal conditions, and results may change under practical conditions.Equation (1).

(1)

Where:

R_A: Albedo (fraction)

E: Module elevation (m)

H: Receiving band width (m)

Guari Borrull M.⁸, calculated the percentage contribution of the most important factors in the dispersion of energy gains for SAF with bifacial modules. She carries out simulations with PVsyst for a 766 kWp park in Germany. This is a useful approach as it takes into account the interdependence between various factors, and the analysis is more comprehensive. However, the measure of the relative contribution by the variance or the sum of the squares, although valid, has some limitations as it depends on the absolute ranges that have been taken for the variations of each factor. In addition, it does not allow to distinguish the sign of the contributions nor to evaluate the absolute impact of each factor. According her study, the relative contribution of factors on the variance were: albedo (54,47%), tilt (33,79%) and ground coverage ratio (14,07%). Unexpectedly, the contribution of the elevation was negligible (0,67%).

J. E. Castillo-Aguilella and P.S. Hauser⁹, developed an empirical model for SAF. Seven bifacial test conditions, one in New Yorkand six in Arizona, were realized; these results were showas a function of three factors: the module elevation, tilt angle, and the ground albedo. Foreach of these variables, the bifacial energy yield increasedas each of variables was increased. Five of the experimentalconditions presented ran for at least a year and the one in NYfor 2.5 years. The following equation was obtained by a best-fit algorithm.Equation (2).

Where:

Total Bifacial Energy Yield (%): Total bifacial energy yield of the bifacial module, when compared to an equivalent STC rated monofacial one.

θ: Tilt angle (degrees)

h: Elevation of module (meters)

α: Albedo (%)

According these authors, that model could be used under for prediction under the following conditions: systems in which the Bifacial Ratio (BR) is largerthan 70%, the minimum module elevation variesfrom 0,15m to 0,8m, the module tilt angle varies from7,5 ° to 35 °, in which the ground albedo (α) varies from 10%to 90%,in which the latitude range is from 21 to51 degrees from the equator, and systems which use non-hybrid bifacial cell technology.

For Cuba, this issue is relatively new. Almost all papers reviewed mention or sort out some factors. One of them measures comprehensively the variations of energy due to influential factors, using the variance as a criterion. As explained before, it has some limitations. The last one developed an empirical model to estimate the bifacial gain taking into account the albedo, the elevation and the tilt angle. This approach is much closer to the method used by the authors of the present paper, who have tried to quantify the marginal influence of the most important factors explaining the energy gains of bifacial modules in the Cuban latitude range, both for SAF and HSAT, using a multiple linear regression model.

MATERIALS AND METHODS

The authors have reviewed the international literature on the factors that influence the radiation and generation gains of the bifacial modules. Meteorological databases of the Centro de Física de la Atmósfera from three different sites were used in the analysis. Performing 321 simulations using the PVsyst software, for both SAF and HSAT derived the regression equations that allowed quantifying the marginal contributions of these factors for the sites with both technologies.

Sites and meteorological databases from the Centro de Física de la Atmósfera

Two sites in extreme latitudes of Cuba and one in the middle latitude were selected (Fig 1). The monthly average data of horizontal global radiation and daily temperature, according to the latitude and longitude of each location in Cuba, were obtained from the Excel book "Interp" (table 1). This file is one of the results of the project "Determination of the distribution of solar radiation on the national territory from the information provided by the heliographic network", from the Centro de Física de la Atmósfera, InstitutodeMeteorología de Cuba.

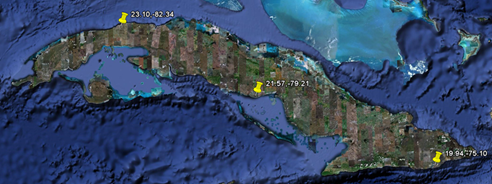

Fig. 1
Selected sites.

Three sites were selected: in the west, in the center and in the east, two of them with extreme latitudes and one in the middle latitude of Cuba.

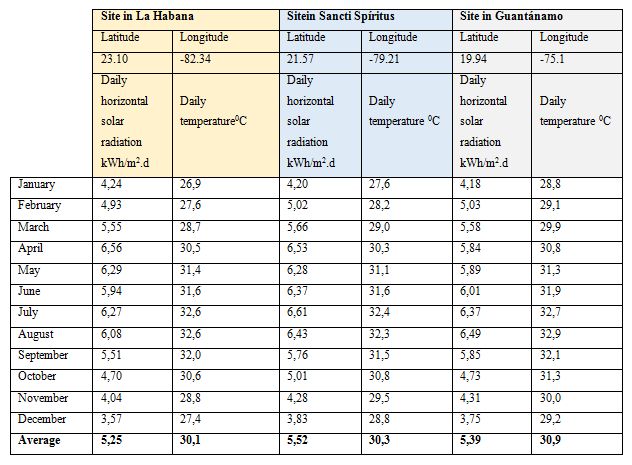

Table 1
Radiation and temperature of sites

Design of the experiment: site selection and factor ranges

The main objective of this work is to obtain the marginal contribution of the factors affecting the generation with the use of bifacial modules in SAF and HSAT systems, or what is equal, the determination of the sensitivity of energy to the main factors that affect it. The details of the design of the experiment are described below.

Factors to be evaluated for the SAF:

1. 1. I: Tilt of modules.
2. 2. Nf: Number of rows.
3. 3. Df: Distance between the beginning of the previous row and the beginning of the next one in meters.
4. 4. E: Ground elevation of the lowest part of the module in meters.
5. 5. Ra: Albedo in fraction or %.

The energy produced by the SAF will be referred as Gsaf (in MWh).The following ranges will be used for the variation of the factors:

1. 1. I: variation between 15 and 23 degrees, optimal tilt range for monofacial modules. An inclination greater than 23⁰ is not recommended due to the risk of strong winds.
2. 2. Nf: variation between 10 and 30 rows.
3. 3. Df: variation between 4,9 and 6,7 meters. Lower limit: Average minimum distance of the three sites to avoid shading in the winter solstice at 8:00 AM (solar time) with 15⁰ tilt. Upper limit: 1,05 m more than the average minimum distance of the three sites to avoid shading in the winter solstice at 8:00 AM (solar time) with 23⁰.
4. 4. E: 0,4 and 1,2 meters (practical reasons)
5. 5. Ra: 20 and 60% (practical reasons)

To evaluate the orientation of the panels and to calculate Lat₀, equation (1), will be used an elevation 0 m; 3,37 receiving band width and albedo 0,5. The resulting critical latitudewas 30.5º.

According to the above data, if the latitude of the selected sites is less than 30.5⁰, the East-West orientation would maximize the generation. To test this, we performed a simulation with PVsyst, as recommended Sun X., Ryyan Khan M., Deline C. et al⁷,with real critical magnitudes (table 2), but with nearby shading of modules.

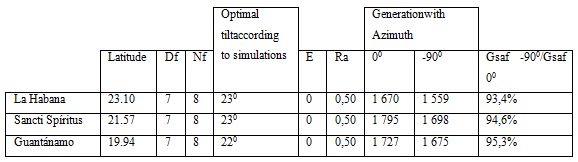

Table 2
Calculation of generation with North-South and East-West orientation

Although it is true that, with the reduction of latitude, the relative difference in generation seems to decrease, under real conditions, with the North-South orientation energy is maximized in all three cases. Hence, an azimuth of 0⁰ will be taken as a reference for the realization of our experiment.

The ranges of the distance between the beginning of the previous row and the beginning of the next one, were calculated with the application "Calculation of tilt and hour" (original name in Spanish “Cálculo de ángulo y hora”), available at the Empresa de Fuentes Renovables de Energía, and developed by the authors of this text (table 3).

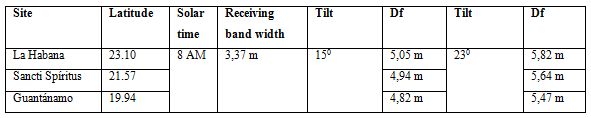

Table 3
Calculation of minimum distances with angles of 15⁰and 23⁰

From this information, a range of between 4,9 and 6,7 meters will be used for Df in simulations.

Factors to be evaluated for the HSAT system:

1. 1. Nc: Number of solar tracking columns
2. 2. De: Distance between axes of the parallel trackers in meters (pitch)
3. 3. J: Height of the tracker axis from the ground in meters
4. 4. Ra: Albedo in fraction or %

The energy produced by the HSAT systems will be referred as Ghsat.The following ranges will be used for the factor variation:

1. 1. Nc: variation between 15 and 40 columns.
2. 2. De: variation between 4,6 and 5,8 meters. Lower limit: Average minimum distance of the three sites to avoid shading in the winter solstice at 8:00 AM (solar time). Upper limit: 1,20 m more than the average minimum distance to avoid shading in the winter solstice at 8:00 AM.
3. 3. J: variation between 0,4 and 1,2 metros (practical reasons)
4. 4. Ra: variation between 20 and 60%. (practical reasons)

The ranges of the distance between axes of the parallel trackers were calculated with the same application "Distance rows and columns". View table 4.

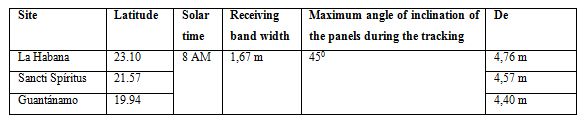

Table 4
Calculation of minimum distance between axeswith angle of 45⁰

From this information, a range of between 4,6 and 5,8 meters will be used in simulations.

Design of the experiment: technological parameters for SAF

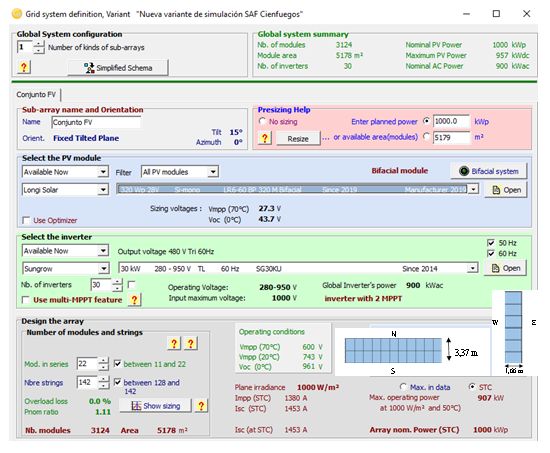

PVsyst V6.8.1 was used for the simulations. Two LR6-60 BP 320 M Bifacial modules from Longi Solar in portrait position was used. The width of the receiver band is 3,37 m. There are no minor light obstruction losses on the back of the panel due to the mounting structures. The horizon profile will be PVsyst's own.Simulations of the three sites was carried out with a 1000 kWp farm with 30 inverters (Fig.2).

Design of the experiment: technological parameters for HSAT

PVsyst V6.8.1 was also used. One LR6-60 BP 320 M Bifacial module from Longi Solar was used in "portrait" mode (Fig.2). The width of the receiving band is 1.66 m. There are no shadows from nearby objects, and no minor light obstruction losses on the back of the panel due to the mounting structures. The horizon profile will be PVsyst's own.Simulations of the three sites was carried out with a 1 000 kWp farm with 30 inverters (Fig. 2).

Design of the experiment: samples with randomized factor values

In order to achieve a comprehensive assessment of the marginal contribution of each factor to the generation in its interaction with the others, tables were prepared for the generation of random numbers for each of the factors listed in tables 5 and 9. The resulting samples were taken and entered into PVsyst. A partial view of generated random numbers for SAF with limits is shown in table 5, as an example. For each of the six regression analyses different random number series were used.

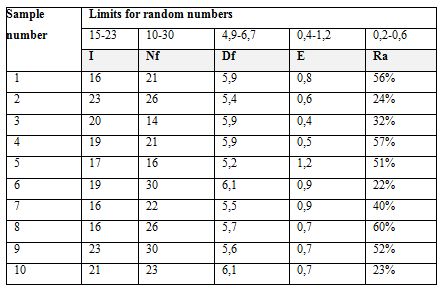

Table 5
Random numbers (an example)

Fig. 2
SAF y HSAT configuration.

Results of Multiple Linear Regressions

Fifty or more samples were taken for each site according to the SAF or HSAT system. 321 simulations were performed, one for each sample, with a significance level of 5%. In some cases, several regressions had to be performed to eliminate variables whose relationship with energy was not statistically significant. The results of the final multiple linear regressions are show in table 6.

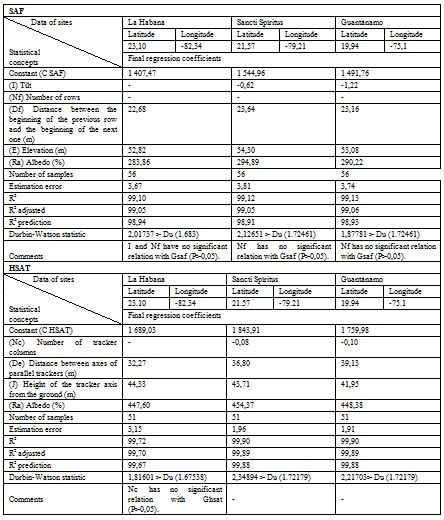

Table 6
Multiple linear regressions results (α=0,05)

DISCUSSION OF RESULTS

R²was more than 99% in all regressions. The estimation error, in the worst case, is only 3,81 MWh.The following assumptions of the multiple linear regression model werefulfilled: homoscedasticity, normality in the distribution of random disturbances, no correlation according to the Durbin-Watson test and no collinearity among variables.

Therefore, these regression models are suitable for explaining the marginal factor contribution to energy gains in the three sites.The regression equations, for purposes of prediction, are only valid within the ranges of the independent variables (limits).

The resulting regression equations for SAF system were. View equations (3-8):

La Habana:

Sancti Spíritus:

Guantánamo:

For HSAT system the regression equations are:

La Habana:

Sancti Spíritus:

Guantánamo:

The partial derivative of Gsaf or Ghsat regarding each factor is the own coefficient associated to each one, and it can be interpreted as the marginal contribution of each factor to the generation.

ForSAF:

1. 1. The main factor that contributes to the generation is the albedo.
2. 2. The second factor is the elevation of modules.
3. 3. The third one is the distance between the beginning of the previous row and the beginning of the next one.
4. 4. The inclination only contributes marginally in Sancti Spíritus and Guantánamo, sites of lower latitude. These coefficients are negative and relatively negligible. However, these results found in conjunction with the rest of the factors, contradict to some extent the statement of other studies suggesting that the optimal tilt for bifacial modules is slightly greater than that for monofacial ones (2, 7).

The average marginal contribution in the three sites of variablesDf, E and Ra for the SAF is shown below (table 7).

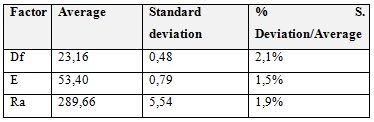

Table 7
Average marginal contribution and standard deviation forSAF

Hence, on average, with an increase in the albedo by only 0,08 (8%), an energy increase of 23,2 MWh should be expected. To obtain the same energy gain, the elevation of the modules should be increased by 0,43 meters or the distance between the beginning of previous row and the beginning of next one should be extended by 1,0 meters.

1. 1. For HSAT:
2. 2. The factor that contributes most marginally to the generation is the albedo.
3. 3. The second factor is the height of the axis from the ground.
4. 4. The third one is the distance between axes of the parallel trackers.
5. 5. The number of tracker columns only marginally contributes in Sancti Spíritus and Guantánamo, sites of lower latitude, in a relatively small magnitude.
6. 6. The average marginal contribution in the three sites of variables Df, E, and Ra for the HSAT is shown below (table 8).

Table 8
Average marginal contribution and standard deviation for HSAT

On average, with a 0,08 (8%) increase in albedo; the energy would increase by 36 MWh. To obtain this gain in generation, the elevation of the axis should be increased by 0,8 meters or the distance between axes of trackers should be extended by 1,1 meters.

Other relationships between regression coefficients

In addition to the observations mentioned above, the ratios between the different regressions coefficients allow to analyze others (table 9).

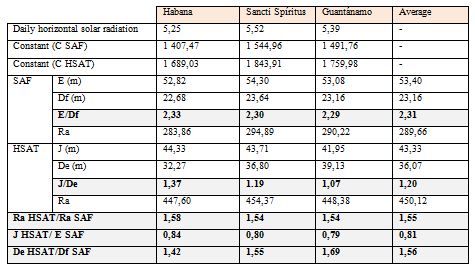

Table 9
Relations between coefficients and data

1. 1. - The marginal contribution of the albedo (Ra) is greater as the global radiation is higher in both systems.
2. 2. - The higher daily horizontal radiation the greater the regression constants (C SAF and C HSAT).
3. 3. - The higher daily horizontal radiation the greater contributions of module elevation (E) androw spacing (Df) in SAF.
4. 4. - The marginal contribution of module elevation (E) is higher than the contribution of row distance (Df) in SAF. The same happens for the elevation of the axis (J) and the distance between axes (De) in HSAT.
5. 5. - The marginal contribution of module elevation regarding row distance contribution in SAF is greater than the marginal contribution of axis elevation respect to the contribution of distance between the axes in HSAT (E/Df versus J/De).
6. 6. - The marginal contribution of albedo to energy gains is, on average, 1,55 times higher in HSAT than in SAF (Ra HSAT/Ra SAF).
7. 7. - The contribution of axis elevation in HSAT is less than the contribution of module elevation in SAF (J HSAT/E SAF)
8. 8. - The contribution of distance between axes in HSAT is greater than the contribution of row spacing in SAF (De HSAT/Df SAF)
9. 9. - It seems that, as the latitude decreases,

1. 1. the ratios (E/Df) in SAF and (J/De) in HSAT diminish,
2. 2. the ratio (J HSAT/E SAF) reduces and
3. 3. the ratio (De HSAT/Df SAF) increases.

CONCLUSIONS

The authors have analyzed the marginal contribution of each factor associated with the energy gains from the use of bifacial panels with SAF and HSAT technologies in Cuba. One of the findings has been that, marginally, albedo and module elevation or axis elevation, depending on the technology, are more important than the distance between rows or the distance between axes, depending on the system. Moreover, the higher daily horizontal radiation the greater the regression constants (C SAF and C HSAT).

Then,underlandrestrictions, other alternatives can be taken to raise the generation. Also, derived from this work, the energy gains due to higher albedo levels are much higher in HSAT technology, so it should be given priority to install tracking system in sites with higher levels of radiation and albedo.

The authors recommend field research to identify those areaswith higher albedo (lighter grounds) and its seasonal behavior. This depends not only on the first layer (grass, for example), but also on the type of ground¹⁰. On the other hand, investments with ground-covering materials could be economically evaluated to augment artificially the albedo. The maintenance of grass at a low height in solar farms is a necessary condition to take fully advantage of this factor.

Acknowledge

The authors thank the collaboration of the Master in Statistics Luis Piña León, in the review, discussion and recommendations for the implementation of the regressions and statistical analysis.

REFERENCES

. SUÁREZ PadrónL., et al. ``Uso de paneles bifaciales en sistemas fotovoltaicos de ángulo fijo y de seguimiento horizontal de un eje/Use of bifacial panels in fixed tilt photovoltaic and horizontal single axis tracking systems´´.Ing. Energética, vol. 41, n. 3, 2020, (Consultado 22/11/2020). (En línea). Disponible en: Disponible en: https://rie.cujae.edu.cu/index.php/RIE/article/view/604

. YUSUFOGLUU.,et al. ``Simulation of Energy Production by Bifacial Modules with Revision of Ground Reflection´´.Energy Procedia, vol. 55, p. 389-395,dic. 2014, doi: 10.1016/j.egypro.2014.08.111. (Consultado 22/11/2020). Disponible en: Disponible en: https://www.sciencedirect.com/science/article/pii/S1876610214013368/pdf?md5=a2469b38b3b6912c031b913f77cc59f6&pid=1-s2.0-S1876610214013368-main.pdf

. STEINJ. S., et al. ``Outdoor Field Performance from Bifacial Photovoltaic Modules and Systems´´. IEEE 44th Photovoltaic Specialist Conference (PVSC), jun. 2017, p. 3184-3189, doi: 10.1109/PVSC.2017.8366042. (Consultado 22/11/2020). Disponible en: Disponible en: https://ieeexplore.ieee.org/abstract/document/8366042

. PÉREZ J. Guerrero y S. Chaouki Almagro . ``Bifacial Trackers , the Real Deal´´. 2019. (Consultado 14/12/2020). Disponible en: Disponible en: https://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=&ved=2ahUKEwj3ypPD67nuAhUFtjEKHZTJAVcQFjAAegQIAxAC&url=https%3A%2F%2Fwww.energias-renovables.com%2Fficheroenergias%2Fdocumentos%2FWhite-Paper-BiTEC-Results-Bifacial-Trackers-the-Real-Deal.pdf&usg=AOvVaw0dw58z3pAVxRgUDNMqgmfL

. HYEONWOOKPark,et al. ``Outdoor Performance Test of Bifacial n-Type Silicon Photovoltaic Modules´´.J. Sustain. Nov. 2019, vol. 11, n.22. doi: https://doi.org/ 10.3390/su11226234.(Consultado 22/11/2020). Disponible en:Disponible en:https://www.mdpi.com/2071-1050/11/22/6234

. K. I. Adolfsson y S. Ekbring. ``Bifacial photovoltaic systems established in a Nordic climate´´.2019. (Consultado 17/12/2020). Disponible en: Disponible en: http://urn.kb.se/resolve?urn=urn:nbn:se:uu:diva-384180

. BOMANX.Sun, M.Khan, C.Deline, y M.Alam. ``Optimization and Performance of Bifacial Solar Modules: A Global Perspective´´. Appl. Energy, vol. 212, sep. 2017, doi: 10.1016/j.apenergy.2017.12.041. (Consultado 22/11/2020). Disponible en:Disponible en:https://www.sciencedirect.com/science/article/abs/pii/S0306261917317567

. BORRULLM. Guari. ``Performance Optimization of Bifacial Module PV Power Plants Based on Simulations and Measurements´´. Thesis, Hochschule für angewandte Wissenschaften, Hamburg, 2019.(Consultado 22/11/2020). Disponible en: Disponible en: https://reposit.haw-hamburg.de/handle/20.500.12738/9131

. AGUILELLA CastilloJ. E.y P. S. Hauser. ``Multi-Variable Bifacial Photovoltaic Module Test Results and Best-Fit Annual Bifacial Energy Yield Model´´.IEEE Access, vol. 4, p. 498-506, 2016, doi: 10.1109/ACCESS.2016.2518399. (Consultado 22/11/2020). Disponible en: Disponible en: https://reposit.haw-hamburg.de/handle/20.500.12738/9131

. GUL M., et al. ``Enhancement of Albedo for Solar Energy Gain with Particular Emphasis on Overcast Skies´´. Energies, vol. 11, p. 2881, oct. 2018, doi: 10.3390/en11112881. (Consultado 22/11/2020). Disponible en: Disponible en: https://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=&ved=2ahUKEwjWhqmW7rnuAhVmRDABHTOVCoEQFjAAegQIAxAC&url=https%3A%2F%2Fcore.ac.uk%2Fdownload%2Fpdf%2F287501882.pdf&usg=AOvVaw0lkG1R50T77JVnPoYyPt91
