Introduction

Endoscopic retrograde cholangiopancreatography (ERCP) is currently considered the standard procedure for managing pancreatobiliary conditions. Various studies have demonstrated its safety and efficacy, leading to an increase in the number of procedures performed. Consequently, this has resulted in a rise in reported complications¹. Among post-ERCP complications, pancreatitis is the most common. Although most cases are mild to moderate (95%) with complete patient recovery, it remains a notable cause of mortality², including the occurrence of rare complications, as described in this report.

Acute bilateral lesions of the lateral geniculate bodies represent a rare entity with unclear pathophysiology. These lesions are associated with various conditions, such as inflammatory processes and vasculitis³, osmotic demyelination secondary to electrolyte imbalances^4,5, and ischemia due to systemic hypoperfusion⁶. This report presents the first case described in Latin America of a patient who developed visual deficits and radiological findings indicative of attenuation in the lateral geniculate bodies within the context of severe acute post-ERCP pancreatitis.

A case report

The patient is a 28-year-old female with a body mass index (BMI) of 32 kg/m² and no other relevant medical history. She was referred from a lower-complexity facility where she had presented with a three-day history of epigastric abdominal pain. The pain was described as sharp, with an intensity of 7/10 on the pain analog scale, radiating to the right dorsal region. The symptoms were accompanied by nausea and three episodes of vomiting, followed by the onset of jaundice and dark urine; however, she did not report pale stools or fever. Upon admission, vital signs were within normal ranges: heart rate (HR), 62 beats per minute [bpm]; blood pressure (BP), 116/82 mmHg; oxygen saturation (SpO₂), 92%; respiratory rate (RR), 18 breaths per minute; and temperature, 36°C. Physical examination revealed mucocutaneous jaundice and tenderness in the right hypochondrium, with no other abnormal findings.

Laboratory tests performed at the referring institution revealed marked leukocytosis (16,280 cells/μL) with neutrophilia (80%), a negative pregnancy test, and, notably, normal bilirubin and alkaline phosphatase levels. As part of the abdominal pain workup, a complete abdominal ultrasound was performed at the referring site, which identified cholelithiasis without signs of cholecystitis and multiple diffuse focal lesions predominantly affecting the right hepatic lobe. To better characterize these findings, a contrast-enhanced magnetic resonance imaging (MRI) of the abdomen was conducted, revealing hypointense areas with geographic contours, primarily in the right hepatic lobe. At our institution, laboratory tests showed alterations in liver biochemistry consistent with a cholestatic pattern (total bilirubin: 4.59 mg/dL, direct bilirubin: 3.38 mg/dL, alkaline phosphatase: 279 U/L, aspartate aminotransferase [AST]: 976 U/L, alanine aminotransferase [ALT]: 1,553 U/L). Tests for hepatotropic viruses were negative, and coagulation times, renal function, and electrolyte levels were within normal limits. Given the persistence of abdominal pain, the cholestatic biochemical pattern, and focal liver lesions, choledocholithiasis was deemed highly probable despite its absence in prior imaging studies. Consequently, endoscopic ultrasound (EUS) was performed, which revealed hyperechoic lesions consistent with microabscesses in the right hepatic lobe and dilation of the distal common bile duct (CBD) to 9 mm, with a 6 mm hyperechoic image in its distal third suggestive of biliary lithiasis. During the same anesthetic session, an ERCP was performed without rectal administration of nonsteroidal anti-inflammatory drugs (NSAIDs). Purulent fluid was observed, and the CBD measured 6 mm in diameter. A 5 mm stone was successfully extracted. As adequate clearance of the contrast medium was not achieved, a plastic biliary stent was placed without complications (Figure 1). In light of cholangitis, antibiotic therapy with intravenous piperacillin/tazobactam 4.5 mg every six hours was initiated.

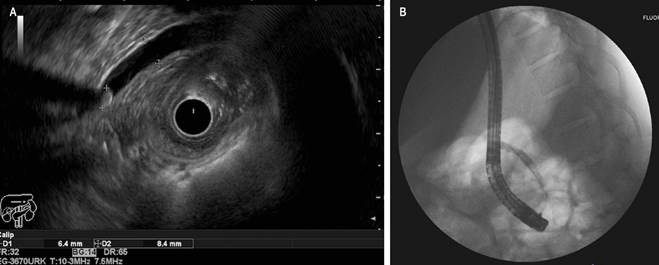

Figure 1
Diagnostic Imaging. A. Endoscopic ultrasound of the biliopancreatic region showing distal common bile duct dilation to 8.4 mm with a 6.4 mm biliary stone in its distal third. B. Fluoroscopic image from ERCP showing a 6 mm CBD and a 5 mm stone, successfully extracted without complications.
Author’s File.

Forty-eight hours after the procedure, the patient developed upper abdominal pain radiating to the back, requiring opioid analgesics. Serum amylase levels were noted to be elevated to 18 times the upper normal limit, leading to a diagnosis of post-ERCP pancreatitis. On the same day, the patient reported bilateral visual field disturbances, which caused difficulty reading and perceiving objects. A neuro-ophthalmology evaluation revealed normal visual acuity on physical examination but an incongruent binasal visual field defect with left-sided predominance, observed through confrontational visual field testing and better characterized with the Amsler grid (Figure 2). A contrast-enhanced brain MRI was requested, showing diffusion restriction in both lateral geniculate bodies (LGBs), with low values on the apparent diffusion coefficient (ADC) map and hyperintensity in fluid-attenuated inversion recovery (FLAIR)/T2 sequences localized to the lateral aspect of the LGBs (Figure 3). Infectious and autoimmune causes were ruled out, and no metabolic or electrolyte disturbances were observed during hospitalization to account for the lesions. These findings were attributed to the inflammatory process associated with severe acute post-ERCP pancreatitis, which was also characterized by multiple pancreatic collections on abdominal CT. These collections showed favorable clinical evolution, and the patient’s pain resolved completely. Upon discharge, the patient still exhibited persistent incongruent binasal hemianopia. However, during outpatient follow-up at 12 weeks, she reported improvement in her visual field defects.

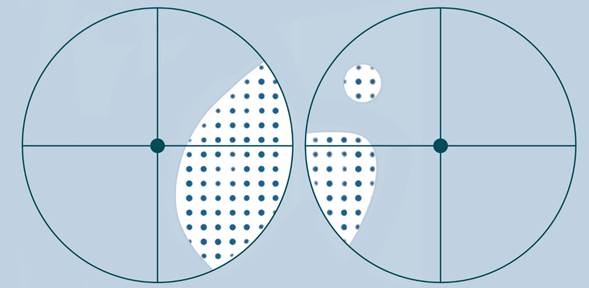

Figure 2
Diagram of the Patient’s Visual Fields Based on the Amsler Grid.
Author’s own research.

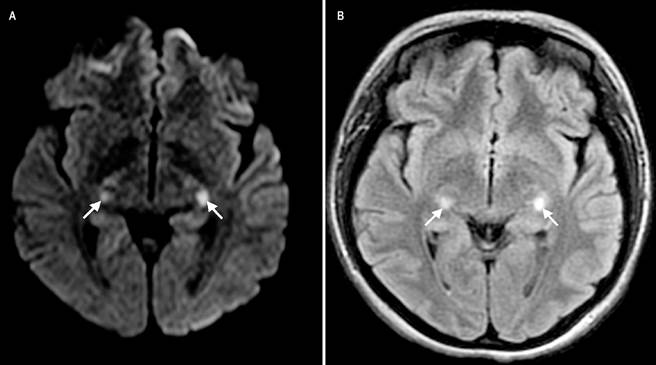

Figure 3
Brain MRI Findings. A. Diffusion-weighted imaging (DWI) showing signal enhancement in the lateral geniculate bodies, predominantly on the left side (arrows). B. FLAIR images with hyperintensities in the same distribution.
Author’s File.

Discussion

ERCP is a diagnostic and therapeutic tool for various biliopancreatic pathologies⁷. Over the past two decades, the use of ERCP for therapeutic purposes has increased, while its use as a diagnostic tool has declined⁸. ERCP is an invasive procedure associated with adverse events, with an overall incidence rate of approximately 10%, varying across studies based on patient characteristics, procedural complexity and volume, endoscopist experience, and prophylactic measures employed⁹.

Among post-ERCP complications, pancreatitis is the most common, occurring in 5%-15% of cases, followed by hemorrhage (0.3%-9.6%), cholecystitis (0.5%-5.2%), cholangitis (0.5%-3%), and perforation (0.08%-0.6%). Rarely, outbreaks of infections linked to contamination of duodenoscope equipment have also been reported¹. Although the majority of post-ERCP pancreatitis cases are considered mild (95%), this complication can carry a mortality rate of up to 2.8%².

The concept of post-ERCP pancreatitis was introduced in 1991, and its definition has since evolved². Currently, the diagnosis is considered in patients who develop new or worsening abdominal pain 24 hours after undergoing ERCP, associated with serum amylase or lipase levels exceeding three times the upper normal limit, or imaging evidence of pancreatitis, requiring hospitalization or prolongation of the hospital stay, as observed in the present case¹⁰. Notably, this patient presented symptoms 48 hours after the procedure, which is unusual and suggests the need for longer observation periods for such patients, particularly in outpatient settings.

Post-ERCP pancreatitis should be suspected in cases of post-procedural abdominal pain, with evaluation of serum amylase or lipase levels to distinguish it from other post-ERCP complications, such as perforation, cholangitis, or unresolved biliary lithiasis. Diagnostic imaging may also be warranted to rule out structural causes of pancreatitis². In confirmed cases, the revised Atlanta classification is recommended to describe local and systemic complications, as it may better predict the severity and mortality of post-ERCP pancreatitis compared to consensus criteria².

While the pathophysiological mechanisms of acute pancreatitis are not fully understood, intra-acinar signaling events play a critical role. These include elevated cytosolic calcium levels, mitochondrial depolarization, and cytochrome C leakage, alongside nuclear factor-κB activation via IkB dissociation and proteasomal degradation, culminating in nuclear translocation of p65. This process promotes the synthesis of inflammatory mediators (cytokines and chemokines), leading to neutrophil infiltration in the pancreas¹¹. Concurrently, lysosomal dysfunction, zymogen granule alterations, and increased oxidized glutathione due to reactive oxygen species (ROS), coupled with concurrent deleterious mechanisms and impaired autophagy, perpetuate acinar injury¹¹. Additional mechanisms include loss of apical microvilli, inhibition of apical secretion, F-actin reorganization, basolateral vesicle formation, release of damage-associated molecular patterns (DAMPs) activating inflammasomes, and leakage of exocrine enzymes such as trypsin and pancreatic lipase. These enzymes cause unregulated hydrolysis of adipocyte triglycerides, resulting in fat necrosis and the production of unsaturated fatty acids that inhibit mitochondrial complexes I and V, thereby reducing adenosine triphosphate (ATP) production. This exacerbates local injury and systemic inflammatory responses¹¹. These insights elucidate the multi-organ involvement of acute pancreatitis and the emergence of unusual manifestations, as seen in the present case.

In the presented clinical case, the diagnosis of post-ERCP pancreatitis was confirmed based on the onset of abdominal pain, marked elevation of serum amylase, and imaging findings showing bilateral lesions of the lateral geniculate bodies (LGBs), which coincided with acute visual field deficits.

The LGBs are thalamic nuclei located in the dorsolateral thalamus¹² and are critical in the visual pathway. They receive retinal projections and send signals to the primary visual cortex¹³. Measuring 4-6 mm in diameter¹⁴, the LGBs are structured into six cellular layers. Layers 2, 3, and 5 receive ipsilateral input (temporal retina), while layers 1, 4, and 6 receive contralateral input (nasal retina). Each layer is composed of distinct neuronal populations characterized by their size: magnocellular neurons are found in layers 1 and 2, while parvocellular neurons are located in layers 3 through 6¹⁵. The layers have a retinotopic organization, with macular vision represented centrally, the superior visual field in the lateral horn, and the inferior visual field in the medial horn of the LGB¹⁶. The LGBs are connected to retinal ganglion cells through their axons, which travel via the optic nerves and optic tracts¹⁶.

Projections from the LGBs predominantly terminate in the primary visual cortex via optic radiations, with a smaller proportion reaching extra-striate cortical areas such as the thalamic reticular nuclei¹⁶. The LGBs are vascularized by dual arterial supply: the anterior choroidal artery, a proximal branch of the internal carotid artery, which supplies the medial and lateral horns, and the posterior choroidal artery, a branch of the posterior cerebral artery, which irrigates the hilum of the LGB¹⁶. These structures are also considered centers of signal modulation and integration¹⁷, with roles that extend beyond simple signal relay. They regulate the flow and strength of visual information sent to the cortex, control extraretinal afferent input to the LGB¹⁸, encode visual attention¹⁹, and perform additional integrative functions¹⁷.

Lesions of the LGBs are rare. Unilateral involvement typically causes congruent bilateral homonymous hemianopia²⁰ or partial homonymous anopia. In the context of multiple sclerosis, such lesions result from demyelinating processes. However, thromboembolic events have also been described, leading to variability in visual defects due to the anatomical diversity of LGB vascularization and anastomoses²¹.

As presented in this case, bilateral lesions of the lateral geniculate bodies (LGBs) have been infrequently described in the literature (Table 1), and the underlying mechanisms for their involvement remain poorly understood. The first known report was published in 1933 by MacKenzie and colleagues, who described these lesions in the context of anterior choroidal arteritis secondary to syphilis²². Since then, various mechanisms have been proposed to explain such injuries. Among these are hypoperfusion and ischemia resulting from hemodynamic changes secondary to massive hemorrhage or anaphylactic shock, as the LGBs lie in a vascular border zone supplied by the anterior, middle, and posterior arterial territories²². Other proposed mechanisms include posterior circulation cerebral infarcts in patients with microangiopathic hemolytic anemia, traumatic brain injury, and methanol-induced cytotoxicity (pancreatitis and renal necrosis). Due to the histological similarity between the LGBs and the brainstem pons, it has been hypothesized that the tightly interwoven neuronal and oligodendroglial networks in the LGBs hinder cellular expansion during rapid sodium level increases, resulting in bilateral extrapontine geniculate myelinolysis due to overly rapid correction of hyponatremia²³. Additional etiologies reported include aseptic lateral geniculitis, H1N1 influenza, severe preeclampsia, inflammatory bowel disease, and anaphylactic shock²⁴.

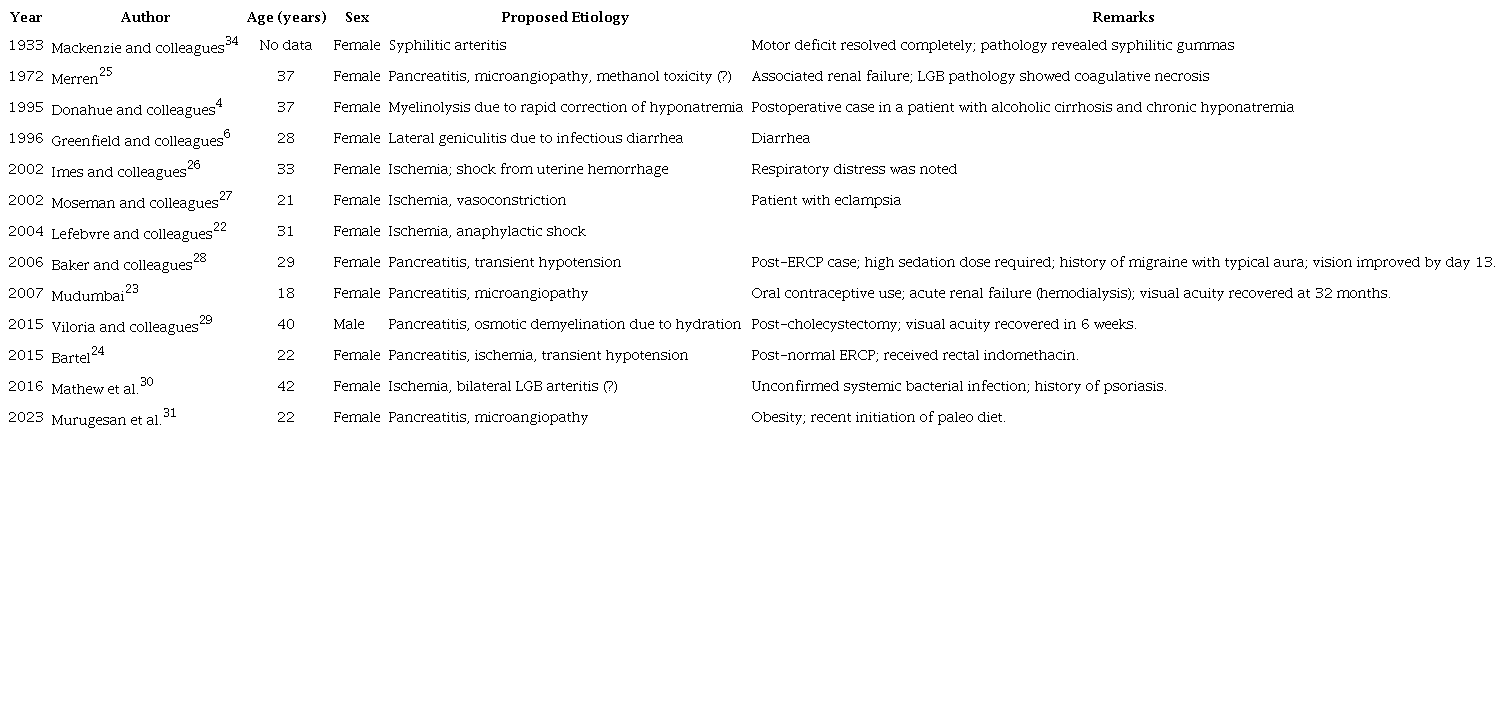

Table 1
Reported Cases of Bilateral LGB Lesions

Author’s own research.

Year	Author	Age (years)	Sex	Proposed Etiology	Remarks
1933	Mackenzie and colleagues34	No data	Female	Syphilitic arteritis	Motor deficit resolved completely; pathology revealed syphilitic gummas
1972	Merren25	37	Female	Pancreatitis, microangiopathy, methanol toxicity (?)	Associated renal failure; LGB pathology showed coagulative necrosis
1995	Donahue and colleagues4	37	Female	Myelinolysis due to rapid correction of hyponatremia	Postoperative case in a patient with alcoholic cirrhosis and chronic hyponatremia
1996	Greenfield and colleagues6	28	Female	Lateral geniculitis due to infectious diarrhea	Diarrhea
2002	Imes and colleagues26	33	Female	Ischemia; shock from uterine hemorrhage	Respiratory distress was noted
2002	Moseman and colleagues27	21	Female	Ischemia, vasoconstriction	Patient with eclampsia
2004	Lefebvre and colleagues22	31	Female	Ischemia, anaphylactic shock
2006	Baker and colleagues28	29	Female	Pancreatitis, transient hypotension	Post-ERCP case; high sedation dose required; history of migraine with typical aura; vision improved by day 13.
2007	Mudumbai23	18	Female	Pancreatitis, microangiopathy	Oral contraceptive use; acute renal failure (hemodialysis); visual acuity recovered at 32 months.
2015	Viloria and colleagues29	40	Male	Pancreatitis, osmotic demyelination due to hydration	Post-cholecystectomy; visual acuity recovered in 6 weeks.
2015	Bartel24	22	Female	Pancreatitis, ischemia, transient hypotension	Post-normal ERCP; received rectal indomethacin.
2016	Mathew et al.30	42	Female	Ischemia, bilateral LGB arteritis (?)	Unconfirmed systemic bacterial infection; history of psoriasis.
2023	Murugesan et al.31	22	Female	Pancreatitis, microangiopathy	Obesity; recent initiation of paleo diet.

Interestingly, recent reports of such lesions frequently occur in the context of acute abdominal pain or pancreatitis, often as complications of ERCP. Six cases were identified in the reviewed literature^23,24,28-31. Another notable case was reported by Pun and colleagues, where vision loss occurred as a complication of ERCP, though central nervous system lesions could not be documented because the patient declined neuroimaging (Table 1)³².

It is noteworthy that, to date, since the first case reported in 1933, 92% of patients in the literature with bilateral LGB lesions have been female; only a single case has been reported in a male patient²⁹. The reason for this relationship remains unknown, or it could represent an incidental finding. In our patient, the only preexisting condition was obesity, similar to the case reported by Murugesan and colleagues³¹, which also identified acute pancreatitis as a possible etiology. However, unlike our case, their patient was diagnosed with associated thrombotic microangiopathy. In our case, there were no hemodynamic disturbances or electrolyte imbalances requiring correction, no history of traumatic brain injury, and infectious, autoimmune, and autoinflammatory causes were excluded. Based on these findings, we propose severe post-ERCP acute pancreatitis and multiorgan involvement secondary to the underlying systemic inflammatory response as a plausible etiology. The damage to the blood-brain barrier caused by the release of trypsin, elastase, lipase, and phospholipase A2 may allow the infiltration of leukocytes and proinflammatory cytokines (tumor necrosis factor-alpha [TNF-α], interleukin-1β, and interleukin-6), potentially explaining neuronal edema, demyelination, or hemorrhagic necrosis in these structures, as has been suggested in cases of pancreatic encephalopathy³³.

Referencias

Johnson KD, Perisetti A, Tharian B, Thandassery R, Jamidar P, Goyal H, et al. Endoscopic Retrograde Cholangiopancreatography-Related Complications and Their Management Strategies: A “Scoping” Literature Review. Dig Dis Sci. 2020;65(2):361-75. https://doi.org/10.1007/s10620-019-05970-3

Cahyadi O, Tehami N, de-Madaria E, Siau K. Post-ERCP Pancreatitis: Prevention, Diagnosis and Management. Medicina (B Aires). 2022;58(9):1261. https://doi.org/10.3390/medicina58091261

Ogawa Y, Nakagawa M, Yazaki M, Ikeda S, Shu S. An Abnormal MRI Signal in Both Lateral Geniculate Bodies Is a Diagnostic Indicator for Patients with Behçet’s Disease. Case Rep Neurol. 2014;6(1):78-82. https://doi.org/10.1159/000360848

Donahue SP, Kardon RH, Thompson HS. Hourglass-shaped Visual Fields as a Sign of Bilateral Lateral Geniculate Myelinolysis. Am J Ophthalmol. 1995;119(3):378-80. https://doi.org/10.1016/S0002-9394(14)71190-0

Tomlinson BE, Pierides AM, Bradley WG. Central pontine myelinolysis. Two cases with associated electrolyte disturbance. Q J Med. 1976;45(179):373-86.

Greenfield DS, Siatkowski RM, Schatz NJ, Glaser JS. Bilateral Lateral Geniculitis Associated With Severe Diarrhea. Am J Ophthalmol. 1996;122(2):280-1. https://doi.org/10.1016/S0002-9394(14)72030-6

Testoni P, Mariani A, Aabakken L, Arvanitakis M, Bories E, Costamagna G, et al. Papillary cannulation and sphincterotomy techniques at ERCP: European Society of Gastrointestinal Endoscopy (ESGE) Clinical Guideline. Endoscopy. 2016;48(07):657-83. https://doi.org/10.1055/s-0042-108641

Ahmed M, Kanotra R, Savani G, Kotadiya F, Patel N, Tareen S, et al. Utilization trends in inpatient endoscopic retrograde cholangiopancreatography (ERCP): A cross-sectional US experience. Endosc Int Open. 2017;05(04):E261-71. https://doi.org/10.1055/s-0043-102402

Lee HJ, Cho CM, Heo J, Jung MK, Kim TN, Kim KH, et al. Impact of Hospital Volume and the Experience of Endoscopist on Adverse Events Related to Endoscopic Retrograde Cholangiopancreatography: A Prospective Observational Study. Gut Liver. 2020;14(2):257-64. https://doi.org/10.5009/gnl18537

Dumonceau JM, Kapral C, Aabakken L, Papanikolaou IS, Tringali A, Vanbiervliet G, et al. ERCP-related adverse events: European Society of Gastrointestinal Endoscopy (ESGE) Guideline. Endoscopy. 2020;52(02):127-49. https://doi.org/10.1055/a-1075-4080

Garg PK, Singh VP. Organ Failure Due to Systemic Injury in Acute Pancreatitis. Gastroenterology. 2019;156(7):2008-23. https://doi.org/10.1053/j.gastro.2018.12.041

Kosif R. The Thalamus: A Review of its Functional Anatomy. Med Res Arch. 2016;4(8). https://doi.org/10.18103/mra.v4i8.740

Atapour N, Worthy KH, Rosa MGP. Remodeling of lateral geniculate nucleus projections to extrastriate area MT following long-term lesions of striate cortex. Proc Natl Acad Sci U S A. 2022;119(4):e2117137119. https://doi.org/10.1073/pnas.2117137119

Fujita N, Tanaka H, Takanashi M, Hirabuki N, Abe K, Yoshimura H, et al. Lateral geniculate nucleus: anatomic and functional identification by use of MR imaging. AJNR Am J Neuroradiol. 2001;22(9):1719-26.

Skalicky SE. Ocular and Visual Physiology. Singapore: Springer Singapore; 2016. https://doi.org/10.1007/978-981-287-846-5

Prasad S, Galetta SL. Anatomy and physiology of the afferent visual system. Handb Clin Neurol. 2011;102:3-19. https://doi.org/10.1016/B978-0-444-52903-9.00007-8

Weyand TG. The multifunctional lateral geniculate nucleus. Rev Neurosci. 2016;27(2):135-57. https://doi.org/10.1515/revneuro-2015-0018

Casagrande V, Ichida J, Mavity-Hudson J. Distinct patterns of corticogeniculate feedback to different layers of the lateral geniculate nucleus. Eye Brain. 2014;2014(6 Suppl 1):57-73. https://doi.org/10.2147/EB.S64281

O’Connor DH, Fukui MM, Pinsk MA, Kastner S. Attention modulates responses in the human lateral geniculate nucleus. Nat Neurosci. 2002;5(11):1203-9. https://doi.org/10.1038/nn957

Liu A, Sanguino L. Right lateral geniculate nucleus infarct presenting as a left monocular temporal hemianopia. Clin Case Rep. 2019;7(6):1226-9. https://doi.org/10.1002/ccr3.2189

Goldman M. Demyelinating Lesion Isolated to the Lateral Geniculate Nucleus. J Neurol Neurophysiol. 2013;s12(1). https://doi.org/10.4172/2155-9562.S12-014

Lefèbvre PR, Cordonnier M, Balériaux D, Chamart D. An unusual cause of visual loss: involvement of bilateral lateral geniculate bodies. AJNR Am J Neuroradiol. 2004;25(9):1544-8.

Mudumbai RC, Bhandari A. Bilateral Isolated Lateral Geniculate Body Lesions in a Patient with Pancreatitis and Microangiopathy. Journal of Neuro-Ophthalmology. 2007;27(3):169-75. https://doi.org/10.1097/WNO.0b013e31814a5921

Bartel MJ, Bhalla R, Lopez Chiriboga AS, Eidelman BH, Lewis MD. Vision loss: another ERCP-related adverse event, also known as isolated bilateral lateral geniculate body infarction. Gastrointest Endosc. 2016;83(2):474-6. https://doi.org/10.1016/j.gie.2015.07.031

Merren MD. Bilateral lateral geniculate body necrosis as a cause of amblyopia. Neurology. 1972;22(3):263-263. https://doi.org/10.1212/WNL.22.3.263

Imes RK, Kutzscher E, Gardner R. Binasal hemianopias from presumed intrageniculate myelinolysis: report of a case with MR images of bilateral lateral geniculate involvement after emergency cesarean section and hysterectomy. Neuro-Ophthalmology. 2004;28(1):45-50. https://doi.org/10.1076/noph.28.1.45.17336

Moseman CP, Shelton S. Permanent blindness as a complication of pregnancy induced hypertension. Obstet Gynecol. 2002;100(5 Pt 1):943-5. https://doi.org/10.1016/S0029-7844(02)02250-0

Baker CF, Jeerakathil T, Lewis JR, Climenhaga HW, Bhargava R. Isolated bilateral lateral geniculate infarction producing bow-tie visual field defects. Can J Ophthalmol. 2006;41(5):609-13. https://doi.org/10.1016/S0008-4182(06)80033-5

Viloria A, Jiménez B, Palacín M. Reversible severe bilateral visual loss in an unusual case of bilateral lateral geniculate myelinolysis during acute pancreatitis. BMJ Case Rep. 2015;bcr2015212409. https://doi.org/10.1136/bcr-2015-212409

Mathew T, D′Souza D, Nadig R, Sarma Gosala RK. Bilateral lateral geniculate body hemorrhagic infarction: A rare cause of acute bilateral painless vision loss in female patients. Neurol India. 2016;64(1):160-2. https://doi.org/10.4103/0028-3886.173671

Murugesan S, Senthilkumar E, Kumar K, Shah V. Isolated bilateral lateral geniculate body necrosis following acute pancreatitis: A rare cause of bilateral loss of vision in a young female. J Postgrad Med. 2023;69(1):53-55. https://doi.org/10.4103/jpgm.jpgm_1134_21

Pun A, Kumar Sah K, Kumar Shah S, Bastola R. Post Endoscopic Retrograde Cholangiography Bilateral Loss of vision: A Case Report. JNMA J Nepal Med Assoc. 2021;59(242):927-9. https://doi.org/10.31729/jnma.6548

Albacete Ródenas P, Ortiz Sánchez ML, Gajownik U, Alberca de las Parras F, Pons Miñano JA. Pancreatic encephalopathy, a little-known complication of acute pancreatitis. Rev Esp Enferm Dig. 2022;114(2):122-123. https://doi.org/10.17235/reed.2021.8241/2021

Mackenzie I, Meighan S, Pollock EN. On the projection of the retinal quadrants on the lateral geniculate bodies, and the relationship of the quadrants to the optic radiations. Trans Ophthalmol Soc UK. 1933;53:142-169.
