Introduction

The immediate predecessor of domesticated maize, the Teocintle, is considered native of Mesoamerica and, thus, Mexico is considered to be the origin of maize (Zea mays L., Poaceae family). Fifty nine of the 220-300 races of maize found in the American continent grow in Mexico (Sánchez et al., 2000). In addition to white corn, there are over 45 races of pigmented maize (Salinas-Moreno et al., 2005). Annual maize yield in 2014 was ~23.27×10⁶t of grain, produced on ~7.4×10⁶ha, representing an average yield of 3.14t·ha^-1 (SIAP, 2014). The Mexican state of Jalisco is the second largest national producer of corn, and harvested 3.47×10⁶t/year for a yield of 6.42ton·ha^-1, constituting 15% of national production (SIAP, 2014).

Anthocyanins, a water-soluble polyphenol, comprise one or more sugar molecules (glycosylated type), and may also contain acyl radicals in the form of aliphatic organic acid derivatives linked to sugar (acylated type) which show greater stability at different pH levels (Eng et al., 2017). Moreover, they show substantial bioactivity, mainly as antioxidants (Yang and Shai, 2011). These metabolites exhibit health benefits, promoting reduction of inflammation (He and Giusti, 2010); with properties such as prevention of the chronic diseases diabetes and obesity (Li et al., 2015) and cancer (Chen et al., 2015), among other.

The Mexican races of maize present kernels with white, yellow, pink, red, blue, purple and black coloration (Bello-Perez et al., 2016). The color is related to the amounts and types of anthocyanins. The pigmented maize varieties are desirable as food, as well as for cosmetic or pharmaceutical applications (Ignat et al., 2011). They also have functional properties, since they cause a slow digestion of starch that has been associated with beneficial health effects like the control of hunger and an more evenly spaced food consumption (Bello-Pérez et al., 2016). Bibliographic reports mention anthocyanin contents of 9-15.9mg·kg^-1 dry matter (DM) in white corn, 163.9mg·kg^-1 DM pink corn, 342.2 in blue corn, 1270 in red corn, 1277 in purple corn, and 5290mg·kg^-1 DM in black corn (Salinas-Moreno et al., 2013; Escalante-Aburto et al., 2016).

The rose western corn is a very productive variety, with cobs of 15 to 20cm in length, cylindrical shape, and 12 to 14 lines. The grain is jagged, pink or pink-red. This maize is included in the variety of cone shaped corn races. Traditionally, it is used to make tortillas, pozole, gorditas, and sweet atole (Ron Parra et al., 2006). The present study aims to assess the types and characteristics of anthocyanin metabolites in this corn variety, which is abundant in many regions, with large availability and interesting biological properties due to the presence of anthocyanin and other polyphenols.

Materials and Methods

Sample

Rose maize (Zea mays L.; National Registry Nº 05046) was harvested in the summer (rainy season) in the period of June-August of 2015 in a property located in the town of Nextipac, Zapopan, Jalisco, Mexico (20º45’51”N; 103º31’ 44”W; 1634masl). Maize is cultivated annually under the environmental conditions that prevail in the area: average temperature 20-22ºC; average rainfall 980mm (Climate-data, 2018; Sagarpa, 2015), applying traditional fertilization consisting of the incorporation of nitrogen and phosphorus, on a Regosol type soil (sandy-loam texture). About 30 pieces were sampled, obtaining the grains manually. A representative sample was evaluated for anthocyanin content as follows: the corn kernels were manually reeled off and washed, they were then pulverized in a hammer mill (Retsch GmbH) using a screen with 0.5mm perforations, and the obtained flour was dehydrated to constant weight in an oven at 40ºC.

Extraction and purification by combined column chromatography

A schematic of the proposed method is illustrated in Figure 1. Anthocyanins were obtained with the ultrasound assisted extraction (UAE) procedure (Vinatoru, 2001). The flour ground from whole corn (10g) was extracted with 100ml (10:1 w/v) of 80% (v/v) methanol acidified with 0.1% HCl, in an ultrasonic bath (Branson model 8892; 42kHz), for 20min. The extract was filtered and concentrated by rotoevaporation at <40ºC and purified making use of a column (2.0×60cm) of amberlite (XAD-7HP, 20-60 mesh; Sigma-Aldrich). Amberlite is an acrylic resin, nonionic, moderately polar material that partially purified the anthocyanins based on polar/non-polar interactions (Wang et al., 2014). The column was activated with 250ml of methanol at a flow rate of 1ml·min^-1 and so washed with 500ml of distilled water in order to achieve a greater adsorption of the organic compounds and, then the extracts were loaded onto a column and washed with abundant distilled water to remove most of sugars, organic acids, proteins and ions (Wang et al., 2014). The anthocyanin pigment fraction was recovered from amberlite with 300ml of methanol:acetic acid (19:1 v/v), concentrated by rotary evaporator at <40ºC, dryed (Labkept in amber flasks at 4ºC. This procedure was repeated sequentially until there was no more separation of spots on the plate.

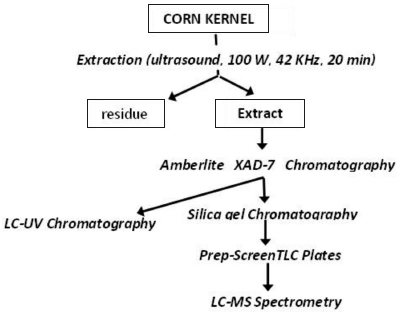

Figure 1
Isolation and fragmentation scheme of anthocyanins of corn grains.

HPLC analysis

Crude extract was filtered through a 0.45µm membrane and analyzed using a Waters liquid chromatograph equipped with a 2707 autosampler, a 1525 binary pump, a 2478 UV/Vis detector (520nm) and a Hypersil Gold ODS column (250×4.4mm, 5µm). We used a gradient of solvent A (H₂O: ACN: HCOOH, 87:3:10) and solvent B (ACN), with the following elution program: 97% A and 3% B from 0-45min; 75% A and 25% B from 45-46min; 70% A and 30% B from 46-47min; and 97% A and 3% B from 47-56min. The flow rate was 1.0ml·min^-1, and the injection volume was 20µl.

MS conditions

Mass spectrometry was performed using an Agilent Technologies model 6430, series 1200, mass spectrometer equipped with a quadrupole mass filter and electrospray system ionization (ESI). Sample injection volume was 10µl; detection 520nm; dry gas (N₂), 12l·min^-1, dry temperature 400ºC; capillary voltage 4.5kV. Analysis was performed in ion positive mode and scanning from 200 m/z to 1000 m/z.

Results and Discussion

The extracts were evaluated by chromatography. Preliminarily by TLC using typical standards for corn anthocyanin. Although there was no separation of compounds for the pink corn extract in the thin-film plate (line 1 in Figure 2), the spot agrees with the standards of Pelargonidin-3-glucoside and Cyanidin-3- (6-malonyl) glucoside. To achieve a greater elucidation of the anthocyanins, the crude extract of pink corn was processed by HPLC.

Figure 2
Crude extract Silica-TLC of pink corn compared with anthocyanin standards. 1: Rose corn kernel, 2: purple corn kernel, 3: Cyanidin-3-glucoside standard from jaboticaba, 4: Pelargonidin-3-glucoside standard from strawberry, 5: Cyanidin-3-(6 malonyl) glucoside standard from purple lettuce. Elution system: etil acetate: water: formic acid (75:20:10).

Figure 3 shows the HPLC profile of the corn anthocyanins, which exhibit several signals. The eight anthocyanins that were identified in this study are numbered, with peaks 4, 2, 8, 1 predominating by their height and area, due their greater relative abundance. Similar amount of signals (21 spots or fractions) were obtained by column-TLC, as shown in Figure 4 and Table I, some of them by the combination of spots with similar Rf. TLC is an analytical tool, simple, fast, cheap and frequently used as a technique for separation in natural products and organic chemistry, with low consumption of solvents. It allows the simultaneous analysis of several samples, it does not require special instrumentation, and combined with mass spectrometry is considered as useful tool in routine analytical methods (Ignat et al., 2011).

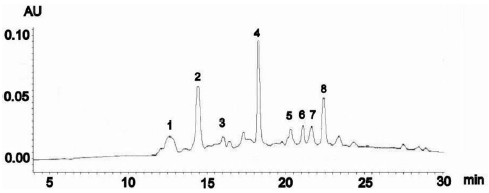

Figure 3
HPLC chromatogram (UV-detector at 520nm) of crude corn anthocyanin extracts obtained with MeOH:H2O:HCl system solvent and cleaning through amberlite column. AU: absorbance units.

Figure 4
Silica TLC development of extracts from rose corn kernels visualized with UV light at 325nm. Each spot with different Rf is considered as a monomeric anthocyanin. Spots with similar Rf were combined.

TABLE I

Rf VALUES OF SPOTS OBSERVED IN THE THIN-LAYER CHROMATOGRAM

Rf retention/retardation factor

The purified and recovered anthocyanins obtained from column-TLC were analyzed by LC-MS obtaining their fragmentation pattern. To identify the anthocyanins, we compared the peak information to previously reported data (Montilla et al., 2011; Salinas-Moreno et al., 2012: Zilic et al., 2012), including the retention times (t_R) in HPLC, mass/charge (m/z), and characteristic fragmentation patterns for each molecule obtained by LC-ESI-MS. Known maize aglycones include Cyanidin (m/z 287), Pelargonidin (m/z 287) and Peonidin (m/z 301). On the other hand, glycosides (anthocyanins) contain mainly glucose, or are further acylated with malonic acid.

The identification results are presented in Table II. Peak 4 is the most abundant, and shows a t_R of 18.3min, a molecular ion [M]⁺ of 535, and fragments of m/z 449 and 287, corresponding to Cyanidin-3-(6-malonyl-glucoside). Similarly, studies of purple corn kernels have reported that this anthocyanin is the most abundant (Salinas-Moreno et al., 2012). Peak 1 (t_R 12.6min, m/z 449→287) correspond to Cyanidin-3-glucoside, which has been previously reported to be the most common anthocyanin in maize (Escalante-Aburto et al., 2016). Peak 2 (t_R 14.4min, m/z 433→271) agrees with Pelargonidin-3-glucoside, peak 3 (t_R 16.0min, m/z 463→301) corresponds to Peonidin-3-glucoside and peak 5 (t_R 20.3min, m/z 549→463, 301) matches Peonidin-3-(6-malonyl-glucoside). Based on previous reports (Cuevas et al., 2011) and fragmentation patterns, peaks 6, 7 and 8 would correspond, respectively, to doubly acylated Cyanidin, Pelargonidin and Peonidin with malonic acid moiety. These anthocyanidin (Cyanidin, Pelargonidin and Peonidin) are characteristic in magenta maize, which is the most studied group of grains, and includes maize with grain colors from pink to purple, including red corn (Salinas-Moreno et al., 2012). Hence, the anthocyanins from western race corn variety rose (Table II) are coincident with those found in most of the purple-red maize: Cyanidin-3-glucoside, Pelargonidin-3-glucoside, Peonidin- 3-glucoside, Cyanidin3-(6-malonyl-glucoside), and Cyanidin-3-(3-6-dimalonyl-glucoside), with Cyanidin as the main aglycon (Salinas-Moreno et al., 2005; Escalante-Aburto et al., 2016). However, in maize with grains of rose hue Peonidin is the relatively more abundant aglycon, according to the intensity of the peaks in Figure 3.

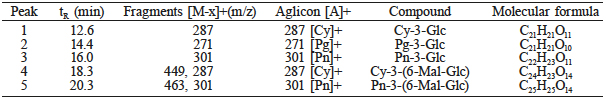

TABLE II

MS AND CHROMATOGRAPHIC CHARACTERISTICS RELATIVE TO RETENTION TIME AND FRAGMENTATION PATTERNS OF ANTHOCYANINS FOUND IN ROSE CORN KERNELS

Cy: Cyanidin, Pg: Pelargonidin, Pn: Peonidin, Glc: glucoside, Mal: malonic acid, tR: rentention time, m/z: mass-to-charge ratio.

The lower intensity of color of this pink-red maize would indicate a lower content of anthocyanins as compared to blue maize (342mg anthocyanins/kg flour) and that of red maize (1270mg/kg flour), although it exhibits a similar profile.

Pigmented corn represents only 10% of the total corn production in Mexico, which indicates a low utilization considering that its nutritional content and nutraceutical properties represent a great opportunity for the development of new products, with new or better functional and nutritional characteristics (Bello-Pérez et al., 2016). This and other pigmented corn has a large potential market. Nixtamalized maize products like tortillas, pregelatinized flours, chips, extruded breakfast cereals, and snack totopos obtained mainly from white and yellow corn, are used in countries, as diverse as China and Australia (Bello-Perez et al., 2016). Also, due to its stability in acid medium anthocyanin could be an additive in fermented milk and yogurts (Cavalcante dos Santos et al., 2017). From their brilliant colors, they are an alternative to obtain natural food colorants which would replace synthetic dyes that have been banned in food since they have been related to degenerative diseases (Salinas-Moreno et al., 2005). Also, these pigments are potential pharmaceutical ingredients that provide various health benefits (Eng et al., 2017). The information gathered could be useful to choose the most suitable maize for the food industry, according to its health benefits and nutraceutical value (Salinas-Moreno et al., 2012).

Conclusions

This study aims to contribute to the knowledge of dominant acylated and non-acylated anthocyanins in the rose-red kernel maize variety, using a non-conventional extraction method, purification and fractionation by simple and sensitive chromatographic techniques (combined column chromatography - Prep-Screen TLC Plates), and identification of anthocyanins by a HPLC-MS system. We identified five anthocyanins from whole-grain flour made from rose corn. The applied chromatographic and spectroscopic methods allowed the identification of the anthocyanidins Cyanidin, Peonidin, and Pelargonidin, presents in this variety, as well as the most abundant anthocyanin, the Cyanidin-3-(6-malonyl-glucoside), a malonic derivative of Cyanidin. Since corn is native to Mesoamerica and is the basis of the Mexican diet, it is important to study the anthocyanins present in the various varieties of pigmented corn grains to promote their consumption for beneficial health effects. Products that contain anthocyanins, such as fruits and vegetables, are looked upon for their health benefits. Consumption of colored corn products could represent an important contribution in this regard.

Acknowledgements

The authors acknowledge the support of CONACYT, through of the Master of Science in Forest Products program (Guadalajara University, Mexico) and of UNAM (México) through the PAPIIT-UNAM-IN220015 project

REFERENCES

Alltech (2004) Alltech Special Application Plates. p. 463. Alltech Asociates, Inc. Deerfield, IL, USA. http://www.allpump.co.kr/alltech/c6461tlc.pdf (Cons. 2017).

Bello-Pérez LA, Camelo-Mendez GA, Agama-Acevedo E, Utrilla-Coello RG (2016) Nutraceutic aspects of pigmented maize: digestibility of carbohydrates and anthocyanins. Agrociencia 50: 1041-1063.

Cavalcante dos Santos Campos D, Carmago Neves LTB, Flach A, Mendonça Alves Costa LA, Oliveira de Sousa B (2017) Post-acidification and evaluation of anthocyanins stability and antioxidant activity in açai fermented milk and yogurts (Euterpe oleracea mart.). Rev. Bras. Frutic. 39(5): e-871 http://dx.doi.org/10.1590/0100-29452017871

Chen XY, Zhou J, Luo LP (2015) Black rice anthocyanins suppress metastasis of breast cancer cells by targeting RAS/RAF/MAPK pathway. BioMed Res. Int. 2015: 1-11. http://dx.doi.org/10.1155/2015/414250

Climate-Data (2018) Clima Nexitpac: Temperatura, Climograma y Tabla Climática. https://es.climate-data.org/location/872526

Cuevas M, Hillebrand ES, Antezana A, Winterhalter P (2011) Soluble and bound phenolic compounds in different Bolivian purple corn (Zea mays L.) Cultivars. Agric. Food Chem. 59: 7068-7074. https://doi.org/10.1021/jf201061x

Eng KH, Azlan A, Tang ST, See LM (2017) Anthocyanidins and anthocyanins: colored pigments as food, pharmaceutical ingredients, and the potential health benefits. Food Nutr. Res. 61: 1361779. https://doi.org/10.1080/16546628.2017.1361779

Escalante-Aburto A, Ponce-García N, Ramírez-Wong B, Torres-Chávez PI, Figueroa-Cárdenas JdeD, Gutiérrez-Dorado R (2016) Specific anthocyanin contents of whole blue maize second-generation snacks: An evaluation using response surface methodology and lime cooking extrusion. J. Chem. 2016: 1-8s. https://dx.doi.org/10.1155/2016/5491693

He J, Giusti MM (2010) Anthocyanins: Natural colorants with health promoting properties. Annu. Rev. Food Sci. Technol. 1: 163-187. https://doi.org/10.1146/annurev.food.080708.100754

Ignat I, Volf I, Popa VI (2011) A critical review of methods for characterization of polyphenolic compounds in fruits and vegetables. Food Chem. 126: 1821-1835. https://doi.org/10.1016/j.foodchem.2010.12.026

Jain P, Jain S, Pareek A, Sharma S (2013) A comprehensive study on the natural plant phenols: perception to current scenario. Bull. Pharm. Res. 3: 90-106.

Li D, Zhang Y, Liu Y, Sun R, Xia M (2015) Purified anthocyanin supplementation reduces dyslipidemia, enhances antioxidant capacity, and prevents insulin resistance in diabetic patients. J. Nutr. 145: 742-748. https://doi.org/10.3945/jn.114.205674

Montilla EC, Hillebrand S, Antezana A, Winterhalter P (2011) Soluble and bound phenolic compounds in different Bolivian purple corn (Zea mays L.) cultivars. J. Agric. Food Chem. 59: 7068-7074. https://doi.org/10.1021/jf201061x

Ron Parra J, Sánchez González JdeJ, Jiménez Cordero ÁA, Carrera Valtierra JA, Martín López JG, Morales Rivera MM, de la Cruz Larios L, Hurtado de la Peña SA, Mena Munguía S, Rodríguez Flores JG (2006) Maíces nativos del Occidente de México I. Colectas 2004. Scientia-CUCBA 8: 1-139.

Sagarpa (2015) Agenda Técnica Agrícola de Jalisco. Secretaría de Agricultura, Ganadería, Desarrollo Rural, Pesca y Alimentación 2ª ed. México, D.F. 179 pp. http://www.inifap.gob.mx/Documents/agendastecnologicas/14_Jalisco_2015_SIN.pdf (Cons 01/2018).

Salinas Moreno Y, Salas Sánchez G, Rubio Hernández D, Ramos Lobato N (2005) Characterization of anthocyanin extracts from maize kernels. J. Chromatogr. Sci. 43: 483-487.

Salinas Moreno Y, Pérez-Alonso JJ, Vázquez-Carrillo G, Aragón-Cuevas F, Velázquez-Cardelas GA (2012) Anthocyanins and antioxidant activity in maize grains (Zea mays L.) of chalqueño, elotes cónicos and bolita races. Agrociencia 46: 693-706.

Salinas Moreno Y, García Salinas C, Coutiño Estrada B, Vidal Martínez VA (2013) Variabilidad en contenido y tipos de antocianinas en granos de color azul/morado de poblaciones mexicanas de maíz. Rev. Fitotec. Mex. 36(3A): 285-294.

Sánchez JJ, Goodman MM, Stuber CW (2000) Isozymatic and morphological diversity in the races of maize of Mexico. Econ. Bot. 54: 43-59.

SIAP (2014) Cierre de la Producción Agrícola por Cultivo. Servicio de Información Agroalimentaria y Pesquera http://www.siap.gob.mx/cierre-de-la-produccion-agricola-por-cultivo/ (Cons. 07/2016).

Vinatoru M (2001) An overview of the ultrasonically assisted extraction of bioactive principles from herbs. Ultrason. Sonochem. 7: 303-313.

Wang E, Yin Y, Xu C, Liu J (2014) Isolation of high-purity anthocyanin mixtures and monomers from blueberries using combined chromatographic techniques Erlei. J. Chromatogr. A 1327: 39-48. https://doi.org/10.1016/j.chroma.2013.12.070

Yang S, Shai W (2011) Identification and antioxidant activity of anthocyanins extracted from the seed and cob of purple corn (Zea mays L.). Innov. Food Sci. Emerg. Technol. 11: 169-176. https://doi.org/10.1016/j.ifset.2009.08.012

Žilić S, Serpen A, Akıllıoğlu G, Gökmen V, Vančetovic J (2012) Phenolic compounds, carotenoids, anthocyanins, and antioxidant capacity of colored maize (Zea mays L.) Kernels. J. Agric. Food Chem. 60: 1224-1231. https://doi.org/10.1021/jf204367z

Author notes

Correspondence author: J. Jesús Vargas Radillo. Address: Departamento de Madera, Celulosa y Papel (DMCyP), UdeG. Zapopan, Jalisco, México, CP 45100, tel. (33)-36820110. e-mail: jvargasr@dmcyp.cucei.udg.mx
