Introduction

Bioenergy production is an environmental and economic benefit, and Brazil has experience and worldwide recognition in this area. The country has demonstrated the viability of the large-scale production of ethanol (Pereira et al., 2012).

Sustainable use of agricultural biomass will be necessary in the future, and there is a large diversity of vegetable raw materials used in the industry, food processing and others (Gonzalez-Salazar et al., 2014; Aditiya et al., 2016). This will contribute to the decentralization of biofuels production and is attractive to the economy of the regions, considering the use of regional productive capacities and the waste or by-products of different sources of agricultural or industrial production. Among the fuels, bioethanol stands out for having great potential to boost regional economy.

Ethanol can be produced from any polysaccharide that contains sugars or starches, even when structured in larger molecules. Sugar-based raw materials, such as sugar cane, are commonly used in Brazil and in other countries and represent the biomass most widely used for the production of ethanol (Teetor et al., 2011; Dias et al., 2015; Gumienna et al., 2016; Moraes et al., 2016). Starchy materials such as corn, cassava, sweet potato, potato, wheat and rice can also be raw materials used to produce ethanol in high yield (Shanavas et al., 2011; Zhang et al., 2013; Cinelli et al., 2015), and cellulosic materials, which after pretreatment and saccharification, can also be used for alcohol production (Ishola et al., 2015; Tewfik et al., 2015; Ko et al., 2016).

Regarding the potential use of rice for bioethanol production, it is important to consider that the annual grain production is ~606×10⁶t. In this scenario, Brazil contributes with 13,140,900t (2.17% of world production) and stands out as the only non-Asian country among the 10 largest producers (FAO, 2015). The largest consumption of rice is as food in the form of grains that can be cooked or fried, sake and extruded snack foods (Juliano, 2016).

Rice is an excellent source of energy. Due to its high concentration of starch, rice is suitable for the production of bioethanol (Kennedy, 2002; Chu-Ky et al., 2016). Typically, ethanol production is an exothermic reaction in which 51.14g of ethanol and 48.86g of CO₂ are generated from 100g of glucose fermentation, which represent the theoretical 100% ethanol yield (Fujieda et al., 2012).

The southern region of Brazil accounts for about 80% of the country’s rice production. The state of Rio Grande do Sul, the largest national producer, yields over 65% of the harvested grain, with an average productivity of 7500 kg·ha^-1. This is well above the national average, which is of 4500kg·ha-1 (IRGA, 2015).

New varieties of rice have been studied as energy sources. Some of these varieties have characteristics different from those required for human consumption, such as that known as giant rice, which is hardy but adaptable to the soil and climatic conditions in southern Brazil. Another source is broken rice or grits, which comes from industrial waste processing of grains (Carvalho et al., 2012; EMBRAPA, 2015). In 2008, broken rice accounted for 14% of rice production (Limberger et al., 2009). The use of this waste, which is rich in starch, is mainly as animal feed and may contain contaminants such as rice husks, barnyard-grass seeds (Equinocloa spp.) and angiquinho (Aeschinomene spp.) (Irineo et al., 2007).

This study aims to analyze an alternative for the production of bioethanol fuel in the state of Rio Grande do Sul, through the use of broken rice and waste from the rice production system not intended for human consumption.

Methodology

The rice used in the experiments consisted of 50kg of polished white broken rice grains, types 3 and 4. The samples were ground in a hammer mill to form a flour. Particle size was determined through the use of a sieve shaker with intermittent beats (APBIH7 - PHD equipment) using sieves of 28, 32, 48, 60, 100 and 200 mesh.

Starch content was determined by mass difference after the removal of proteins. To remove the proteins 15g of the sample were mixed with 6 volumes of NaOH 0.16% and allowed to stand for 24h. The remaining solid was collected and mixed again with the same basic solution. The procedure was repeated until the biuret test (1ml of the supernatant over 4ml of biuret solution) showed no positive signs for the presence of proteins (Zaia et al., 1998). The reduction of proteins in the supernatant was observed after about six washes, when the color the solution changed from the initial purple to blue.

Hydrolysis / Saccharification

For the liquefaction and saccharification an α-amylase (trade name Liquozyme Supra 2.2X) obtained from Bacillus licheniformis, and the exo-1,4-α-D-glucosidase enzyme (glucoamylase; 1,4-α-D-glucan glucohydrolase; commercially known as AMG 300L) obtained from Aspergillus niger were used. The methodology followed the basic instructions provided by the product manufacturer, which contained information on the temperature optimization and enzyme concentration to be applied in the hydrolysis (Novozymes, 2008).

The hydrolysis experiments were performed with a 5% load (w/v) in aqueous medium with controlled pH levels. Initially, the sample was pretreated by boiling for 0.5h. Hydrolyses were conducted in a water bath under stirring, at pH 6, for 2h, with α-amylase at concentrations of 0.378 and 1.134 KNU (α-amylase units with activity of 300 KNU/g) at 70 and 90ºC. Afterwards, the pH was adjusted to 4.5 and the temperature changed to 50 and 60ºC, and second enzyme was added at concentrations of 0.45 and 0.75 AGU (amyloglucosidase units with activity of 300 AGU/ml). The second stage was also conducted for 2h in a water bath under stirring. Samples were taken at regular time intervals for sugar analysis using high performance liquid chromatography (HPLC).

Fermentation

After saccharification of the samples, the hydrolyzate was fermented with Saccharomyces cerevisiae (Angel Thermal Resistance Alcohol Yeast) with the purpose of producing bioethanol, according to the methodology of Vancov et al. (2015). Fermentation was performed in 100ml autoclaved bottles, to which 50ml of the filtered hydrolyzate, 0.1g monobasic potassium phosphate, 0.025g of yeast extract and 0.05g magnesium sulfate were added. The vials were autoclaved at 121ºC for 30min. After cooling, 0.25g of yeast was added, and the containers were incubated in a shaker (Marconi, MA420) at 30ºC and 100rpm for 24h. Samples were taken at regular time intervals for sugars and bioethanol determination by HPLC.

Sugars and bioethanol determination

The identification and quantification of sugar and bioethanol were conducted on a high performance liquid chromatograph (Shimadzu) with refractive index detector (RID-A10), RHM (H⁺Monosaccharides) column (300×7.8mm). The analysis was conducted at 85ºC using an ultrapure water flow of 0.6ml·min^-1 as the mobile phase, i.e., a maximum pressure of 210kg·cm^-2 and analysis time of 20min. The volume injected sample was 5μl. The samples were previously centrifuged at 14,100rpm in a centrifuge (Mini Spin - Eppendorf) and filtered through a 0.45μm filter (Chromafil Xtra - RC 45/25).

Statistical analysis

Statistical analysis of the data was performed using the Kruskal-Wallis test and Assistat Software version 7.7 Beta. Choosing the test was based on comparing groups, with data being categorical, non-parametric, ordinal, unpaired, independent and with a population >2.

Results and Discussion

Hydrolysis

The hydrolysis was conducted with a broken rice sample that showed 80.1 ±1.2% of starch. These starch contents were close to those found by Frei et al. (2003) for whole grain rice (74.12%), polished white rice (87.58%) and polished parboiled rice (85.08%). The starch content was regarded as the total to be converted in the hydrolysis to glucose. The broken rice sample was hydrolyzed with two enzymes in sequence as shown in Table I.

According to de la Hera et al. (2013) α-amylase affinity for native starches from rice flour is dependent on the particle size of starch. The particle size diminishes when milled and the enzyme actions are favored due to the exposure and superficial interaction between starch and enzyme. For this reason, the broken rice samples were milled in a hammer mill and evaluated for particle size distribution. Particle size distribution of rice flour showed mainly two particle size fractions: 500-300μm and 300-200μm, comprising 75.9 and 21.9%, respectively, of the total mass of milled broken rice. These particle size ranges are close to those used by Gohel and Duan (2012a) and lower than that used by Gohel and Duan (2012b), and are the ones that are applied to facilitate gelatinization of the starch.

According to Syahariza et al. (2013), when the starch is heated, granule gelatinization occurs, which breaks the hydrogen bonds of the molecule, and disintegrates the semi-crystalline grain structure. Consequently, the starch molecules are susceptible to the activity of the enzymes, which have easier access to the inside of the granules.

Thus, preliminary studies defined the hydrolysis temperature according to the enzyme manufacturer’s directions and the condition of thermal pretreatment of the rice to gelatinize and facilitate the hydrolysis (Amaral et al., 2007; Denardin and da Silva, 2008). The reaction temperatures of the first enzyme (α-amylase) were pre-tested to optimize the proper temperature for the liquefaction of starch. The result of these tests showed a better uniformity of the sample before the addition of the enzymes, at the boiling point of water. Table I shows that experiments with the first enzyme at 90ºC exhibited a higher conversion as compared to the experiments conducted at 70ºC. However, there was no improvement in yield, involving the effect of the temperature on the second enzyme, when compared at 50ºC and 60ºC. Both comparisons were made in the same hydrolysis conditions, except for the change in temperature. Moreover, there are indications that the effect of the concentration on the two enzymes influences the yield of the hydrolysis. However, these performance improvements are not significant.

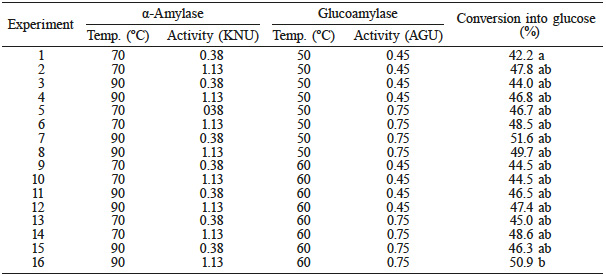

TABLE I

HYDROLYSIS OF BROKEN RICE EMPLOYING Α-AMYLASE AND GLUCOAMYLASE IN SEQUENCE, AT DIFFERENT CONCENTRATIONS AND TEMPERATURES (N=3)

a and b= indicate similarity between results.

Statistical analysis showed that, considering as a null hypothesis (H0) that the treatments come from the same population and at the level of 5% probability, rejecting H0 and with H and H-crit defined, there were two large groups with similarities among the 16 entries in the experimental design. Of the statistical analysis of multiple comparisons, only experiments 1 and 16, which are the extremes of concentration and temperature in the experimental design, are significantly different. Thus, for the continuity of the experiments, experiment 7 was selected, since it apparently showed a higher conversion to glucose (51.6%). This hydrolysis condition was carried out with the lowest concentration of α-amylase and the highest concentration of glucoamylase, which can be an important factor in ensuring a higher conversion of starch to glucose, since the effect of the enzymes to form glucose complement each other. This reaction condition, although not significantly different from other conditions studied, was chosen for the production of bioethanol.

The results found are due to the α-amylase action, which hydrolyzes starch to disaccharides, transforming polysaccharides by breaking α-1,4-glycosidic and glucoamylase bonds which hydrolyses α-1, 4 and the α-1,6 bonds in the liquefied starch. Thus, rice starch, which is equivalent to glucose bound by α-1,4-linked, is liquefied and saccharified by amylases (Fujieda et al., 2012).

The ratio of sugars along the hydrolysis at controlled pH can be seen in Figures 1 and 2. The conversion of glucose was mainly observed after the addition of the glucoamylase. It is noted that the hydrolysis rate depended on the type of bond broken and the size of the polysaccharide chain; for example, α-1,4 bonds are hydrolysed faster than α-1,6 bonds; and therefore, maltotriose and maltose formed in the first stage tend to be hydrolyzed at a lower rate than the larger oligosaccharide (Denardin and da Silva, 2008; Jonathan et al., 2015; Jonathan et al., 2016). In this regard, it is noted in Figure 1 that the compounds formed in the hydrolysis with α-amylase do not include glucose and form mainly maltose.

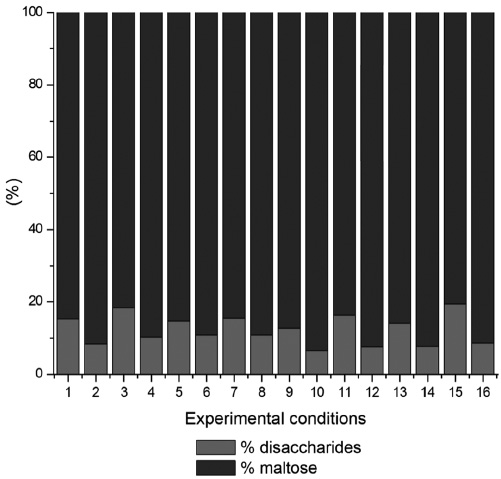

Figure 1
Relationship of disaccharides formed by the hydrolysis with α-amylase at pH 6

In Figure 2 it can be seen that with the addition of glucoamylase, glucose was formed, it being understood that this enzyme performs the breaking of disaccharides such as maltose. However, being free of transglicosidade activity, this enzyme may cause the formation of isomaltose and panose by transferring glucose molecules in α-1,4 to α 1,6-position, which may result in lower yields of reaction (Novozymes, 2002). In some experiments carried out in a buffered medium at the indicated pH for each enzyme, the conversion was shown to decrease.

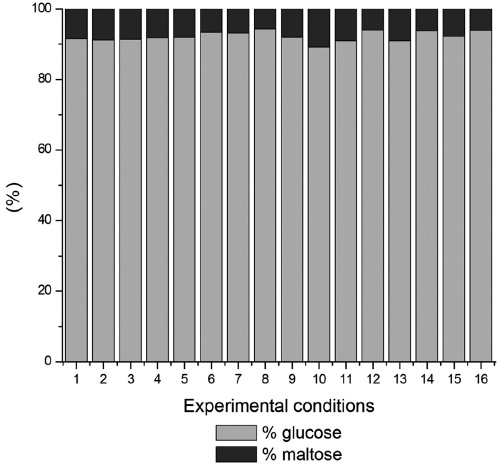

Figure 2
Relationship of the compounds formed in the hydrolysis with α-amylase (pH 6) and glucoamylase (pH 4.5) in sequence

Whereas the addition of buffer in the medium can be a determining factor for the economic viability of the process, pH was adjusted to 6 and 4.5 for the α-amylase and glucoamylase, respectively, with the aid of a phosphoric solution. The results are shown in Figure 3 and correspond to the temperatures and enzyme concentrations according to experiment 7 of Table I. In this condition, a higher conversion of starch to glucose was observed. No buffer was used.

The maximum conversion achieved was 70% within 5h of hydrolysis, in which the entire disaccharide content had been converted into glucose. Furthermore, it was observed that the average conversion of starch to glucose at the time of addition of the glucoamylase was 5.2% and after 1h it reached 48.7% of glucose. The particle size of broken rice flour can be a factor that hinders the complete conversion of starch to glucose, since the larger sample fraction is 500-300μm.

The relationship between glucose and maltose during hydrolysis (Figure 3) is also a factor which shows that the conversion rate was high. It was observed that the addition of glucoamylase in the medium nearly quadrupled the formation of glucose from maltose, passing a ratio of 0.42 to 1.51. These results are consistent with those of Surmely et al. (2001) with a yield of 110%, due to the formation of dextrose, which also corresponds to the percentage of water molecules entering the starch chains.

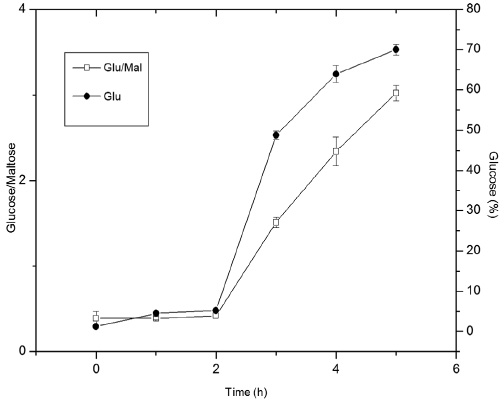

Figure 3
Conversion (%) of starch present in broken rice into glucose, by employing α-amylase (90ºC / 0.38 KNU / pH6) and glucoamylase (50° C / 0.75 AGU / pH4.5) in sequence, and the relationship between the content of glucose and maltose along hydrolysis employing α-amylase and glucoamylase enzymes in sequence (n = 6)

As for the activity of enzymes for hydrolysis, Yamada et al. (2011) suggest that, compared with other raw materials, the activity of amylase and glucoamylases are high in whole grain rice. Since broken rice is from polished rice, there are no benefits from metals that aid in stabilizing the α-amylase, as noted by the author.

High conversions can also be found at temperatures and from various starchy raw materials. In these cases, capital and operational costs are approximately 41% and 51% lower, respectively. For rice, 51% of hydrolysis efficiency with pancreatic α-amylase and glucoamylase from A. niger (37 C, pH 6.0, 24h) has been reported (Cinelli et al., 2015).

Fermentation

Fermentation was carried out from the broken rice hydrolyzate and the results were shown in Figure 4. For 100g of initial biomass, 29.2g of ethanol were obtained, corresponding to a yield of 104% of bioethanol produced from glucose. After 6h of fermentation, the glucose concentration reached near zero from total consumption, and the formation of the maximum concentration of ethanol was reached at 16h. Sugar was totally converted to bioethanol by yeast through the glycolytic pathway (Fujieda et al., 2012).

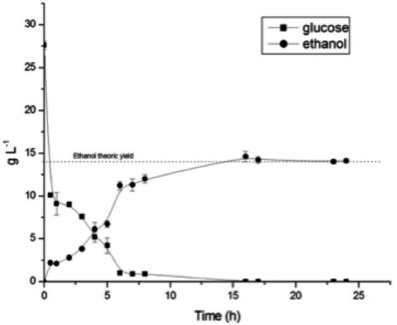

Figure 4
Glucose and bioethanol curve in the fermentation of broken rice hydrolyzate

The conversion of bioethanol into glucose reached the theoretical yield. The conversion percentage found was comparable to those in other studies of rice. According to Fujieda et al. (2012) a yield of 89.5% ethanol was possible from rice, and Saga et al. (2010) reached efficiencies of 95 and 90% yields in hydrolysis and fermentation, respectively, in a high-yield rice plant.

It is interesting that the limiting step in ethanol production is not fermentation, but saccharification of starch. For fermentation there is no formation of inhibitors and saccharification conduces to glucose production, sugar used for the production of ethanol by the yeast selected in the relation previously presented at 0.51 (ethanol / glucose).

To make improvements, it is still possible to change the process to make it more sustainable and economically competitive, employing some innovations such as fermentation with the removal of ethanol in situ, through a stripping column and immobilization of yeast cells (Bai et al., 2008).

Conclusion

We conclude that broken rice can be used as an alternative for the production of bioethanol. The conditions to produce bioethanol from broken rice were optimized with the use of two enzymes, α-amylase (90ºC / 0.38 KNU / pH 6) and glucoamylase (50ºC / 0.75 AGU / pH 4.5). The optimized conditions led to 70% conversion of starch to glucose and some disaccharides. The hydrolyzed starch was fully converted into ethanol (104% theoretical yield).

The results obtained at laboratory-scale are promising if applied at a pilot scale, which could assess the economic feasibility of using broken rice for the production of bioethanol.

It is emphasized that this proposal looks to diversify the production of biofuel in rice-producing regions, as the volume of broken rice is large and bioethanol production may lead to profits for rice producers and promote decentralization in energy production.
