1. INTRODUCTION

Continental and coastal waterbodies are considered highly sensitive strategic ecosystems to anthropogenic pressure and climate change [1], [2]. It is important to consider that around these natural environments is concentrated more than 60 % of the world's population [3]. Besides, people use the water in activities such as fishing, human consumption, agriculture, industry, recreation, tourism, and electricity generation. These multiple uses of the water can cause several environmental problems that might have a direct impact on its quality [4].

According to [3], [5]-[7] one of the main indicators that determines how healthy an aquatic ecosystem is, is the clarity (turbidity), which is influenced by the amount of dissolved matter and TSS. These particles can vary in size and range from nanoscale to sand-sized sediments. An excess of suspended solids can cause a lot of detrimental effects on water resources, causing problems such as decreased light availability for primary productivity, eutrophication, hypoxia, and algae proliferation in the aquatic environment [2], [8]-[11].

Consequently, authors such as [12], [13] indicate that monitoring the TSS variable constantly in an aquatic environment is indispensable, taking into account the high diversity and dynamics in the spatial and temporal domains of this parameter in continental waterbodies. In this context, [14]-[16] show that traditional in situ sampling techniques are limited when it looks for representing the spatial and temporal variability of a waterbody. Thus, it is recommended the use of remote sensing methodologies to have a synoptic view of the lake and obtain an estimated measurement with a high time frequency of the variable of interest.

Thus, models to calculate TSS concentration can use a single-band empirical algorithm, or something that involves performing a previous band mathematical process, where the reflectance captured by the remote sensor is directly related to TSS measurements collected in situ [3], [17], [18]. To achieve the correlation model, statistical techniques are used, which can be linear or nonlinear. According to [9], [19], [20] the most suitable regions that have electromagnetic spectrum to estimate TSS concentration are located in the red and near-infrared spectral bands. According to [21]-[24] they demonstrate that the remote estimation models used may have a coefficient of determination greater than 0.7, provided that TSS concentrations vary between 5 mg. L-1 to 200 mg. L-1.

In accordance with [3], [8], [17], [25] IKONOS, MERIS (MEdium Resolution Imaging Spectrometer), SPOT (Satellite Pour l'Observation de la Terre), Landsat and MODIS (Moderate Resolution Imaging Spectroradiometer) sensors possess spectral bands which are carefully positioned to estimate the concentration of TSS in water. Of the above mentioned sensors, MODIS has presented the best results. Authors such as [18], [19], [24], [26] claim that the reasons for this positive performance, is that MODIS has a higher spectral resolution (36-band, 8-band in its spectral range of red and infrared light) [27], it generates a daily surface reflectance product (MOD09GA) and their average spatial resolution (250 m, 500 m and 1000 m) allow large bodies of water (greater than 40 Ha) to be mapped in a single frame [28], [29].

Based on the aforementioned ideas, it is defined that monitoring optically active variables using medium-resolution images with high temporal frequency can be performed in a large lake like the PPR [28], [29]. This reservoir is located among the states of São Paulo, Mato Grosso do Sul, and Paraná, it includes several water bodies, and is situated in the Paraná River floodplain. The region's climate is humid subtropical mesothermal, with a drier period from June to August [30], [31]. The construction of the Porto Primavera dam caused significant socio-environmental changes, flooding 80 % of the area on the Mato Grosso side [32]. The reservoir extends from the Jupiá dam to Primavera in São Paulo. This development affected over 50 % of the floodplain between the Jupiá and Itaipú dams, disrupting ecological, economic, and cultural activities [31], [32].

The primary objective of this research was to generate a time series with a homogeneous frequency (1 month) using MODIS images, which are suitable for monitoring the flooded area in the Porto Primavera Reservoir and analyzing optically active limnological variables such as TSS.

The analysis focuses on identifying the most significant changes in the TSS parameter trend over 20 years (May 2000 to April 2020) using the BFAST (Breaks for Additive Season and Trend) algorithm. BFAST is an algorithm that detects long-term trend changes in natural phenomena through statistical tests and the identification of breakpoints in time series data [33]. Its primary application in remote sensing is in phenological studies, making it a valuable tool for remote sensing studies of inland and coastal waters. BFAST models the variable's trend, highlighting the differences between observed and modeled values, and considers interannual variability [34], [35]. To work effectively, BFAST relies on historical data to generate a baseline model and detect interannual alterations over the monitoring period. This R library can detect both gradual and abrupt changes, including multiple breakpoints and seasonal variations. In this study, BFAST was employed to characterize the timing, magnitude, and direction of changes, identifying disturbance events in the TSS variable. This approach enables the analysis of the impacts of abrupt climatic changes or natural lake dynamics on the TSS over 20 years, highlighting periods of significant increase or decrease.

2. MATERIALS AND METHODS

2.1 Geographic location

The Porto Primavera reservoir (53o W to 52o W and 22o to 22'S -30'S), as shown in Figure 1a, is located in the south-west of Brazil [32]. The maximum depth of the lake is 35 m and occupies an area of 2500 km. [31]. The wall built to form the reservoir, is the largest in the country, with a length of 10186.20 m. The main function of this reservoir is the generation of electricity, with a capacity of 1814 MW, which corresponds to 23 % of the energy consumed by the State of Sao Paulo [36], [37].

Figure 1.

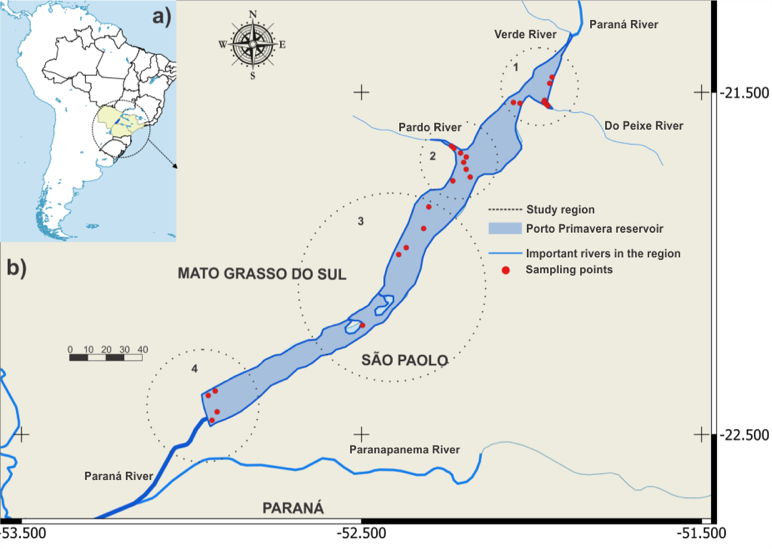

Geographical location of the Porto Primavera reservoir. (a) The water basin of the reservoir is indicated in the circle. (b) Displays reservoir boundaries and spatial distribution of sampling points. The dotted areas (circles) indicate 1) mouth of the Rio do Peixe; 2) Pardo River mouth; 3) Transition zone; 4) region near the reservoir wall.
Source: own elaboration.

2.2 Methodology

Five main processes were conducted in order to extracts the historical concentration of TSS variable over a period of 20 years using MODIS images (MOD09GA) in PPR (Figure 2). The process (a) shows field campaigns radiometric and TSS data collection in PPR, next step (b) was download the MODIS images and clip spatial and spectrally MOD09GA products. Quality Control bands (state_1 km and QC_500 m) that come with the MOD09GA reflectance products are used to ensure the quality of the images, the resulting image is converted to surface reflectance (box c). The TSS values obtained in the laboratory are correlated, analytically, with the field spectral data corresponding to the band centered at 645 nm, the model is extrapolated to a time series of 252 MODIS images (box d). Finally, time series vectors are extracted from pixels that match the sampling points, an average vector is obtained from the 25 sampling observations, and lastly the average time series is separated and analyzed using the BFAST algorithm (box e).

Figure 2.

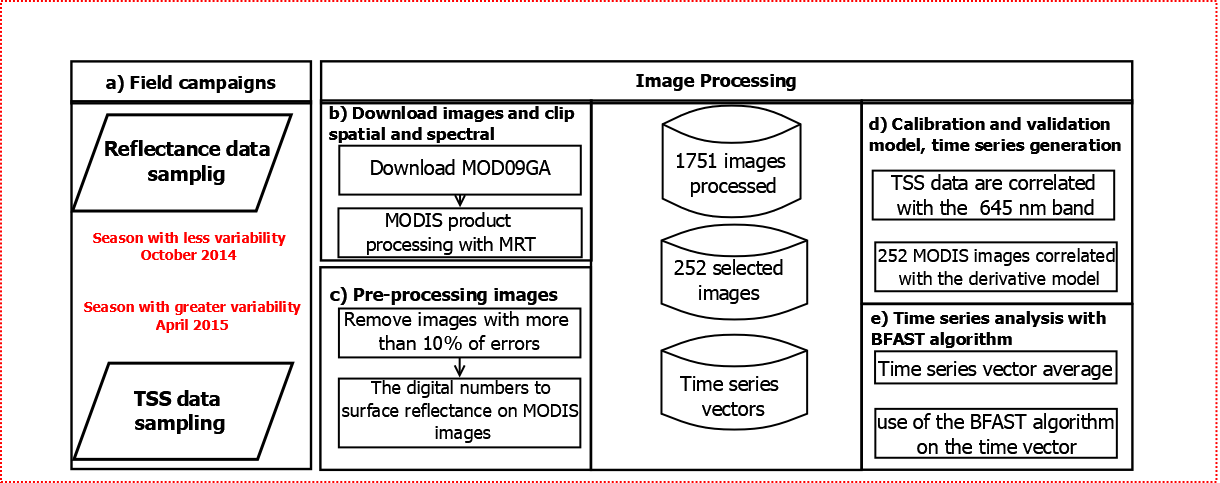

Flow-chart of the methodology applied in this study.
Source: own elaboration.

2.2.1 Data collection

Figure 1b illustrates the spatial distribution of 25 sampling points located throughout the PPR. To determine the optimal locations for these sampling stations and the best times for sampling campaigns, a time series of MODIS images from May 2000 to April 2013 (156 scenes at one-month intervals) was used. These images were preprocessed as described in Chapter 2.2.3. The R1MODIS (645 nm) was applied to determine TSS concentration, allowing for the identification of sampling points with the highest variability over the 13-year period, given the strong correlation between this band and TSS concentration in tropical waters [38] (Figure 3).

Figure 3.

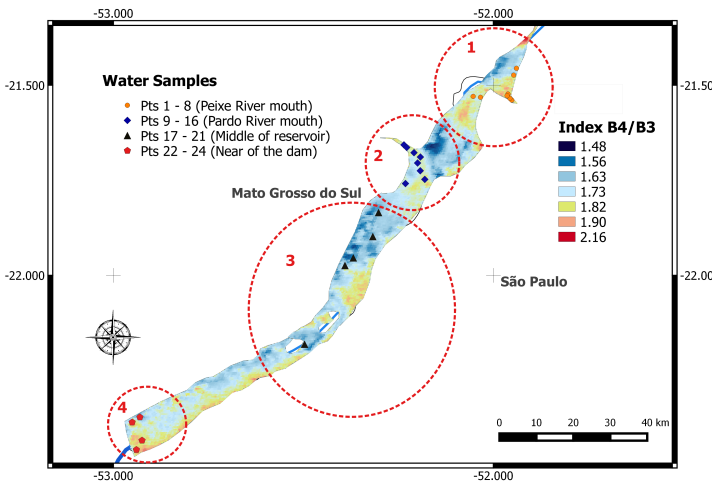

Map of temporal average standard deviation intervals of bands ratio B4/B3 and the distribution of sampling units. Dashed lines show the sampling point groups in PPR.
Source: own elaboration.

To determine the most suitable seasons for sampling, the same set of images was used to create monthly average images. The average value of each image was analyzed to identify the seasons with the highest (fall) and lowest (spring) variability in TSS concentrations. This analysis indicated that autumn and spring were the most appropriate seasons for conducting sampling campaigns in the reservoir.

Fieldwork was applied on dates when the TSS parameter had less (October 6th ~ 10th (2014) and greater variability (April 13th ~ 16th (2015)). The data include a total of 49 samples, 24 samples from October (2014) and 25 samples from April (2015). Table 1 shows the exploratory analysis data and descriptive statistics of TSS in field campaigns. The collection of spectroradiometry samples were carried out between 9 am and 3 pm local time. In order to measure and analyze the TSS variable, it was necessary to collect water samples in bottles and filter their contents using a vacuum pump and Whatman filters of 0.5 µm–0.7 µm. These filters were previously incinerated at 480 .C for six hours in a muffle and weighed on an analytical balance before being released to fieldwork. Once in situ sampling was completed, the filters were stored at -4.C in a refrigerator and then dried for 24 hours at 60.C on a stove. At the end, the filters were weighed again and (1) was used to determine the total amount of matter suspended in water [39].

Table 1

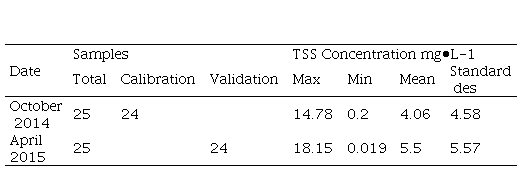

Summary of TTS concentration N49 in fieldworks of October 2014 and April 2015

Source: own elaboration.

Date	Samples			TSS Concentration mg•L-1
	Total	Calibration	Validation	Max		Min	Mean	Standard des
October 2014	25	24		14.78	0.2		4.06	4.58
April 2015	25		24	18.15	0.019		5.5	5.57

(1)

Where, A: filter weight after filtering water contained in the bottles; B: filter weight before being released to field work; C: volume of filtered water.

2.2.2 MODIS product and digital image processing

The MODIS sensor, which is aboard the Terra orbital platform, has been taking images of the earth since 2000. The products obtained by this sensor have between 2 to 36 spectral bands, and their values can be expressed in radiance scaling or surface reflectance [8], [15], [40], [41]. One of the products generated by the sensor is MOD09GA; this contains surface reflectance data that is generated on a daily basis and a spatial resolution of 500 m [28].

For this study, MODIS images were downloaded from the United States Geological Survey (USGS) (http://earthexplorer.usgs.gov/) website, and a total of 1751 images were taken from May 2000 to April 2020. According to [17], [27], [42], the bands located at the spectral intervals of red and infrared provide sufficient sensitivity to correlate their reflectance values with water quality indicators such as TSS. For this particular study, band 1 (620 nm -670 nm) was used, which it was possible to recover the concentration of TSS in the Porto Primavera reservoir.

2.2.3 Image processing

To generate the time series of MOD09GA products between May 2000 and April 2020 month by month, a total of 1751 images were downloaded. Subsequently, these images were pre-processed by performing the following actions: spectral trimming, spatial trimming, UTM mapping re-projection, and pixel resampling at 250 m using the nearest neighbor interpolation method and the MODIS Reprojection Tools (MRT). When using the equation defined by [43] (2), the values of the digital numbers contained in the reflectance image were converted. To make all processes faster, it was necessary to create computational routines in the Python and R languages to perform parallel tasks. Using routines developed in the Python programming language, .prm files necessary for performing spatial and spectral cropping of MODIS images are created. Subsequently, using the pyhdf.SD library available in Python version 2.7, the elements contained in the HDF meta-file are processed.

(2)

Where is the pixel at the i position of any of the reflectance bands contained in the MOD09GA product.

The next step was to use the quality assessment bands State_1km_1, QC_500m_1 to determine the pixel quality of the image; this process allowed to eliminate images that had more than 10 % errors by cloud occlusion or sensor errors. After the sub-pixel debugging process was completed, the images with fewer errors were chosen for a month. The Python computational routine in this step allowed for the evaluation of each pixel and the creation of a new, error-free file that can be detected during the production of MODIS products. As a result, a time series was obtained with 252 observations. To achieve a time series with a homogeneous frequency, it was necessary to use interpolation techniques such as moving average, to create an average image in the months when it was not possible to have one image at least with less than 10 % error.

2.2.4 Spectral analysis

Water surface reflectance measurements were performed using a FieldSpec UV/VNIR ASD HandHeld spectroradiometer, which has a spectral resolution of 355 nm to 1075 nm and a sample range of 1.6 nm. The signal collected by the computer is quantified in 16 bits [44]. In this work, the Hemispherical-Conical Reflectance Factor (HCRF) was measured, as shown in the reflectance curves analyzed in (Figure 2). Then, in order to obtain surface reflectance measurements, it was collected spectroradiometry readings from the waterbody, sky, and spectralon reference panel for each point. Equation (3) defined by [45] is used to obtain the surface reflectance curve.

(3)

Therefore: Lt is the total radiance captured by the spectroradiometer coming from the waterbody; . is the radiation that comes from the sky (skylight) in the air-water interface which depends on the azimuth, data acquisition geometry, wind speed and surface roughness; Ls is diffuse sky radiation and has no information about water; Rg is about fiducial marker reflectance measured under controlled conditions (laboratory); Lg is the radiance measured in the field of view.

2.2.5 Integrating MODIS spectral bands

Before creating the empirical model estimation for the TSS variable in the region, it was necessary to convert the measured field reflectance, using the response functions for band 1 in the MODIS sensor. This process was carried out in order to simulate the remote sensing reflectance signals (Rrs(λi)) recorded by the sensor and centered on a given λi wavelength. Equation (4) allows to obtain the reflectance data of each MODIS spectral band [46], [47].

(4)

Where λ1 and λn are the lower and upper limits of the band (Bi being i = 1, 2... 36). S(λ) is the spectral response function [48]. Rrs(λ) signal collected in the field with the FieldSpec UV/VNIR ASD HandHeld spectroradiometer.

2.2.6 Empirical regional model and estimating measurement uncertainty associated with the model

A large number of regional algorithms have been developed to estimate the TSS variable; these can be calculated from the correlation between the concentration of the variable measured in-situ and the reflectance contained in the image pixels and using the measure field reflectance collected (the models found among the relationships of the variables can be linear, quadratic, exponential, logarithmic or polynomial type) [49], [9].

According to [3], [40], empirical estimation algorithms using band 1 (B1 645 nm) and band 2 (B2 858.5 nm) of MODIS sensor can be classified into six categories: with a single band (B1, B2), difference between two bands (B1-B2), sediment index ((B1-B2)/ (B1+B2)), band division (B2/B1) and division logarithm (log (Rrs (B2))/ (Log (Rrs (B1))).

As stated above and according to [50]-[54], the best wavelength to recover TSS values lower than 200 mg L-1 is located in the red light spectral intervals (620 nm to 670 nm). Therefore, it is defined that to estimate the TSS in the PPR, it is possible use a single band algorithm that uses the spectral channel centered at 645 nm (B1), the above, taking into consideration that the body of water does not present readings greater than 30 mgL-1. Once the MODIS band is selected, we proceeded to correlate the pixel reflectance of the MODIS image, and the field read with the TSS concentration. With the two field campaigns conducted on the lake, a dataset is separated to calibrate the model (samples collected in October 2014) and validate it (samples collected in April 2015).

In order to validate the applicability of the model to estimate the TSS, the statistical estimators R2, MAE (5), MSE (6), RMSE (7), %RMSE (8) and p-value were used.

(5)

(6)

(7)

(8)

In the previous equations, Xesti is the value of the TSS parameter estimated by the empirical algorithm. Xmed is the TSS value measured in the lab. MAX and MIN are the maximum and minimum TSS values read in the lab.

2.2.7 Generation and analysis of the TSS parameter time series

To extrapolate the empirical algorithm in October 2014 field campaign (calibration model) into the 252 MODIS images in the time series, the procedure defined by [55] is followed. Subsequently, temporary vectors are extracted from the 25 sampling stations and an average temporal vector of these observations is generated. From the time series, the trend and seasonality components are extracted to be analyzed using the R Breaks For Additive Seasonal and Trends (BFAST) language library [56], [57].

The main improvement that BFAST presents over other temporary decomposition libraries, such as decompose and Seasonal and Trend decomposition using Loess STL, it is that allows to characterize the intervals (date, sign and magnitude) where gradual and abrupt changes occur that affect the magnitude and trend direction [58], [59].

3. RESULTS AND DISCUSSION

3.1 Results

3.1.1 Spectral data analysis

Once the spectral curves generated by the field spectroradiometer were obtained, a classification is carried out to discriminate the areas where the hyperspectral samples were collected and the dates on which the fieldwork was performed (Figure 2). It is observed in the graphs that all spectral curves show a characteristic behavior of water, there is a low reflectance in the spectral range from 400 nm to 500 nm associated with strong absorption by organic matter.

The spectral curves obtained at some sampling stations maintained similar characteristics in two fieldworks. The points collected at the mouth of the Peixe River (2A), transition zone (2C) and in the regions near the barrier, showed that the spectral curves are similar to those published by [17], [60]-[64] especially with bodies of water with a dominant presence of Chl-a. However, the estimated concentrations of Chl-a in the Porto Primavera reservoir are lower than those found by the aforementioned authors.

The set of spectral curves measured in the Pardo River, have a flat shape between 570 nm and 670 nm, which according to [17], [44], [64] can be associated with high content of suspended solids in the water.

3.1.2 Calibration and validation models

In order to test and validate the performance of the TSS empirical recovery algorithm, calibration and validation models are created to verify the accuracy between relationships: TSS concentration – field measurement of reflectance. Table 1 shows some statistical aspects of the measurements carried out in-situ for the TSS, it can be verified that for the two field works the results are very similar, increasing in some statistical values (average, maximum, standard deviation) in the fieldwork carried out in the austral fall (April 2015). Taking into account the statistical characteristics of the TSS data sets, it is defined that to find the calibration model (Figure 3) the fieldwork dataset collected in October 2014 (n. 24) was used. The results indicate that the quadratic function (9) showed a better fit in its coefficient of determination (R2 = 0.859). According to [3], [7], [49], estimation models with an R2 > 0.7, can be considered suitable to estimate the TSS variable in both inland and coastal waters.

(9)

The fieldwork carried out in April 2015 was used to validate the model (Figure 4). The data collected in this sampling campaign confirm that the performance of the algorithm remains satisfactory to retrieve the values of the TSS variable (R2 = 0.82; RMSE 2.74). The results coming from the statistical estimators indicate that the model used (Figure 5) shows an adequate degree of accuracy and consistency in predictive results (Figure 6).

Figure 4.

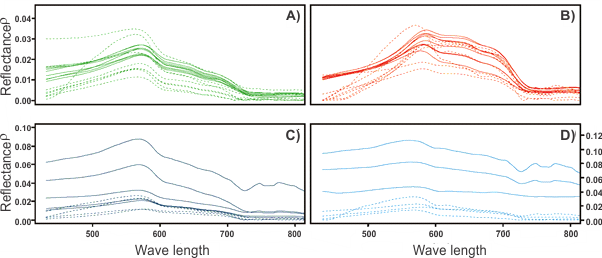

Reflectance curves taken at the sample points located in. (a) Rio do Peixe river mouth; (b) Rio Pardo river mouth; (c) Transition zone; (d) Region near the wall.
Source: own elaboration.

Figure 5.
Calibration model for the TSS variable. The correlation model considered the measured field reflectance for band 1 of the MOD09GA product and the TSS concentration measured in October 2014 at 23 sampling points.
Source: own elaboration.

Figure 6.

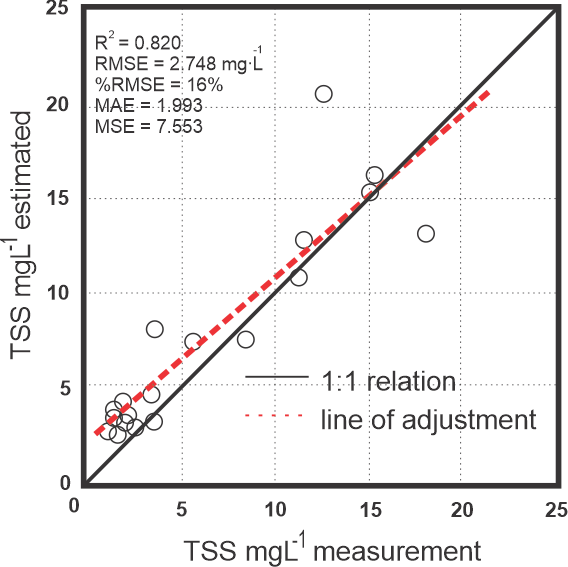

Model validation for the recovery of the TSS variable, performed from the spectroradiometry and TSS concentration data, taken in April 2015.
Source: own elaboration.

3.1.3 Analysis of the time series components in the TSS parameter

Description of the variation points in the time series trend

Figure 7 shows the variability of the average time series extracted from the pixels of the MODIS images for the 25 sampling points. The graph reflects the variations on trend component in the period 2000 to 2020 as well as the periods in which break points occur due to changes in the magnitude and frequency of the TSS values.

Figure 7.

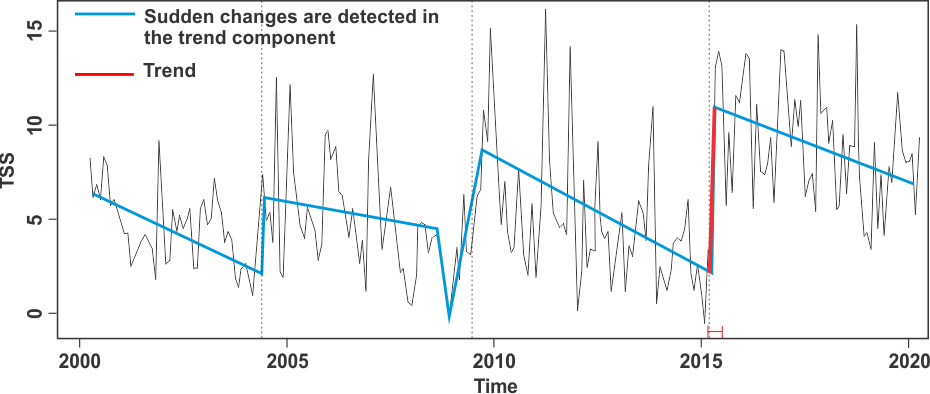

Change points in the time series trend of the TSS variable in the Porto Primavera reservoir from May 2000 to April 2020.
Source: own elaboration.

To [59], [65], the break points analysis on trend component is realized by researchers to know possible reasons that originated them. In this respect, the analysis done for each of the periods that show break points in the TSS temporal series of PPR, have indicated that four intervals registered a gradual increase in the TSS concentrations in the reservoir, however, exceptional climatic events have altered the periodicity and intensity of factors (rains) that directly affect the TSS, permanently affecting the concentration of this parameter in the lake.

Within the first two periods (A and B), the trend of the TSS parameter was stable with a slight increase in period B, for the interval 2000 to 2009, two fundamental aspects that affect the result can be considered, the first of them is the construction of the reservoir, where at the beginning of the flood (1998-2001) the amount of material in suspension in the lake registered values higher than 5 mgL-1. Nevertheless, the lake waters began to gradually homogenize the TSS content, this factor being accelerated by the size (2250 km.) and average depth (30 mts) of the lake [66], which is reflected in a progressive decrease in the parameter. The second important aspect of this period is that the oscillations in the variable depend on the dry (autumn-winter) and rainy (spring-summer) seasons.

The second interval of interest on trend analysis is the breaking point that begins in the spring of 2009 and that extends until the fall of 2015, this interval shows an exceptional change that alters the dynamics of the TSS in PPR, this change is due to the climatic phenomenon known as "la Niña" which increased the frequency and quantity of rains in the region in the period 2010 to 2011. This precipitation anomaly result in a large amount of particulate material in the waters of the reservoir produced by the tributaries and the runoff from the crops surrounding the lake, due to this increase in the rains, TSS concentration almost doubled in a relatively short period of time (4.93 mgL-1 2000-2009 to 8.83 mgL-1 2009 to 2011). For the last period (2015-2020), the reservoir has not been able to reestablish the values prior to 2009, on the contrary, they have increased obtaining an average value of 8.96 mgL-1.

Analysis of TSS seasonality in Porto Primavera Lake

In order to understand the TSS seasonality in the water body, Figure 8 is generated; this graph indicates that there is a regularity and coincidence with the driest and rainiest seasons of the year, the highest concentration of suspended solids occurs in the spring-autumn interval (October-April), this season corresponds to the months where there is the greatest precipitation in the region (October-February), and subsequently there is a growth of algae in the lake that affects transparency in the water column (March-April). The decrease in TSS concentrations corresponds to the driest and coldest season of the year, where temperature shortens algae growth, and low rainfall limits the flow of particulate matter from the cultivated margins around the lake.

To complement the findings of Figure 8, Table 2 shows a descriptive statistical analysis of the seasonality found in the TSS concentration time series, it was detected that the maximum value within the entire time series was presented in the month of May (autumn) 2011, the lowest value was presented in October 2009, the highest average values occurs in the summer season, a season that coincides with the highest amount of rainfall in southern latitudes. In the same way, it is found from the data in this table that the average increase in TSS in the winter-spring seasons is 0.94 mgL-1 and in the change of spring-summer season it is on average 3.49 mgL-1, this increase is due to the greater occurrence of rains, which generate a large amount of particulate material that ends up in the reservoir.

Figure 8.

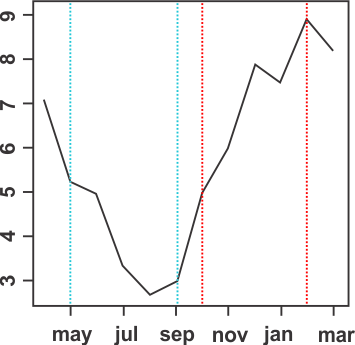

Seasonality presented in the TSS variable in Porto Primavera Lake. The blue lines indicate the months with the least number of suspended solids. The red lines show the months in which TSS present the highest concentrations.
Source: own elaboration.

Table 2

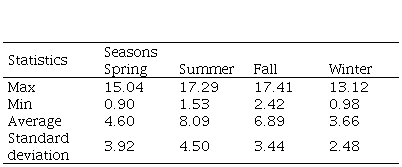

Statistics of TSS in Porto Primavera Reservoir during 2000 to 2020

Source: own elaboration.

Statistics	Seasons
	Spring	Summer	Fall	Winter
Max	15.04	17.29	17.41	13.12
Min	0.90	1.53	2.42	0.98
Average	4.60	8.09	6.89	3.66
Standard deviation	3.92	4.50	3.44	2.48

3.2 Discussion

3.2.1 Evaluation of the empirical model for TSS recovery

As well as in the researches developed by [5], [17], [58], [67], [68], in the PPR is possible to make use of the spectral region located in the wavelength of red light (620 nm-750 nm), the aforementioned authors indicate that this band of the electromagnetic spectrum has a direct relationship with the increase in the concentration of the TSS. However, they mention in their studies that at this wavelength it is possible to successfully recover values lower than 200 mgL-1. Taking into account that in the in-situ work in the PPR, values higher than 25 mgL-1 were not recorded, it is possible to conclude that the use of band1 (645 nm) of the MODIS sensor to derive the TSS concentration in the lake is appropriate. The results show that an algorithm based on the band embedded in 645nm is quite accurately for estimating the variable, which also has a low error associated with its estimated values.

3.2.2 Interpretation of break points in the trend of TSS concentration and its seasonality

We propose to use a novel tool that combines remote sensing and the BFAST time series analysis algorithm. This tool enables us to analyze different components of a time series and examine the magnitude of changes in the trend. The BFAST algorithm is commonly used to study changes in land cover, and its potential application in analyzing bodies of water has been relatively unexplored. Using remote sensing data allows for an evaluation directly linked to the dynamics of the TSS variable's concentration and how it may be permanently impacted by extreme weather events, as demonstrated in this study. These findings align with research on Qinghai Lake, showing a strong correlation between seasons and climatic and land cover variables, resulting in breakpoints in the time series of optically active aquatic variables [69].

After analyzing the performance and findings obtained from using BFAST in the PPR, we observed two important aspects for all the breaking points. First, even during periods of increased rainfall and runoff from the crop areas surrounding the lake, as well as transportation of particulate material by the two main tributaries of the lake (the Pardo River and the Peixe River), the lake tends to homogenize the content of TSS due to its large size and average depth of 30 m when the rain decreases in intensity in the region or is attenuated due to the change of season. This allows for time lapses to balance TSS within the water column. The second aspect was a gradual increase during the first two observed periods in the series, reaching an increase of 0.59 mgL-1 (from May 2000 to October 2009). However, the third period within the series shows an increase of 3.92 mgL-1 compared to the first average value of the time series. This period mainly shows that the rains generated by the “La Niña” phenomenon between 2010 and 2011 significantly affected the TSS content within the lake. The value increased slightly (0.13 mgL-1) in the range of 2015-2020 compared to the previous period (2010-2015).

The BFAST algorithm demonstrated its advantages over traditional methods for decomposing time series such as STL. BFAST not only effectively extracted the trend, seasonality, and random components; but it also allowed us to find the inflection points that affect the amount of TSS within the lake, and it was also possible to associate these inflection points with external natural factors and those caused by humans.

4. CONCLUSIONS

This article proposes a novel approach when analyzing the dynamics of a time series including reflectance images produced by the MODIS sensor using the BFAST algorithm. The R function proved to have advantages over other time series decomposition techniques. The main utility applied in this study was to identify variation points within the trend. It was also possible, based on the results, to associate interval oscillation with aspects such as lake construction, increased rainfall, and weather events such as “la niña” affecting the TSS behavior. Similarly, seasonal analysis found two intervals in which the number of suspended solids in water is increased, the first one is related to rains that produce sedimentation in tributary rivers (Pardo River and do Peixe River) and the flow of particulate matter from crop areas surrounding the lake; the second one is associated with algae growth after lake fertilization produced by rains.

Moreover, it was also possible to develop a model based on the spectral response of band 1 (645 nm) of MODIS MOD09GA products. This algorithm was useful to retrieve the TSS parameter. The statistical estimators used to validate the model showed a high coefficient of determination (R2 = 0.82) and low errors associated with observations (RMSE = 2.7 mgL-1).

Finally, the high temporal resolution of the MOD09GA product, was adequate to analyze the time series generated. Similarly, the prior analysis of MOD09GA image information enabled an appropriate planning to define the spatial distribution of sampling points and the dates in which more relevant information could be obtained.
