Fresh-bought ripen pineapple fruits (Ananas comosus, L.) MD2 variety (large size, 1.5 - 2.2 kg, oval shape and mostly yellow with patchy light green) were obtained at the local market (Stuttgart, BW, Germany) later stored at 8°C. The fruits were manually peeled, transversely cut with 10 mm thickness using an electrical slicer (Bosch, Germany) and finally cored. Initial moisture content was bounded by 456-683 % (db). The pineapple slices were placed inside the overflow drying chamber of the laboratory scale dryer.

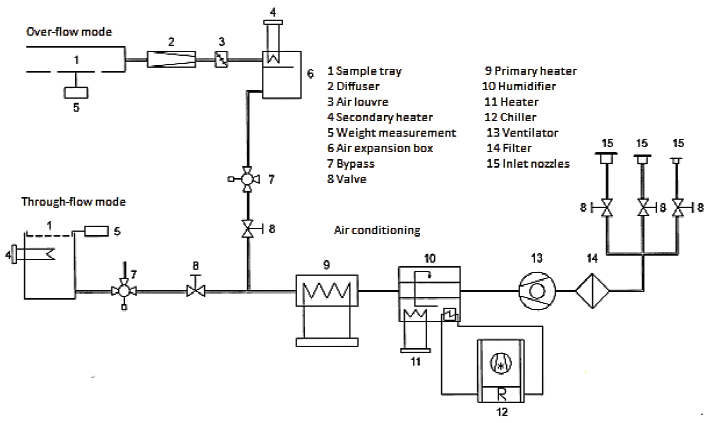

The high precision lab-scale dryer used for the pineapple drying (Figure 1) was designed by the department of Agricultural Engineering, University of Hohenheim (Stuttgart, Germany). In this system a wide range of operating parameters can be controlled. The main structure is divided in four units:

1. 1. An air flow control unit
2. 2. An air conditioning unit with a thermostat-controlled water bath and sprayed Raschig-ring bed
3. 3. A heating control unit with primary and secondary heating elements
4. 4. Two drying compartments to provide either through flow or over flow (Argyropoulos et al., 2011). Each unit is electronically controlled by a proportionalintegral-derivative (PID) controller. A detailed description of the working process of the system with its correspondent schematic figures can be found elsewhere (Janjai et al., 2011).

Before running the drying experiment, the high precision laboratory scale dryer was in operation mode for at least two hours in order to obtain steady-state parameters. Pineapple thin layer drying scenarios were set up at a temperature of 50, 60 and 70°C; air velocity of 0.5, 1.0 and 1.5 ms^-1 and specific humidity of 25 g_waterkg_air^-1. Pineapple samples were weighted automatically every 30 minutes. Nine experiments with three replications were carried out.

The moisture content was calculated (θ_mass, %) by mass which is defined as

m_w (kg)= mass of water andm_material (kg)= mass of the dry material

The moisture in the material comes from three sources: external water, internal liquid water and water vapour present in the surrounding air. Gravimetric determination is a direct method that is considered as the best procedure to measure the average moisture content, i.e. to weight the sample before and after drying (Erich and Pel, 2011).

Weight difference between wet and dry sample is used for absolute moisture content determination of the (θ_m, kg/kg).

m_wet (kg)= mass of the wet materialm_dry (kg)= mass of the dry material

During the development of pineapple flesh nutrients are stored as starch, which during the ripening process is transformed into sugars (OECD s.f.). A Pallet Type Refractometer ATAGO model PR-201was used to measure TSS. Checking and recalibrating to zero was mandatory for each test. Juice sample was extracted uniformly.

Sugar/acid ratio contributes to the characteristic flavour of pineapple, thus it is an indicator of commercial and organoleptic ripeness. During the ripening process the fruit acids are degraded, the sugar content increases and the sugar/acid ratio achieves a higher value (OECD s.f.). The determination of the titratable acidity of pineapple (%) used a pH meter, which is a Potentiometric method.

Color determination of both fresh and dried samples was carried out with a Konica Minolta Colorimeter (CR-300; Minolta Co., Ltd., Osaka, Japan). Device calibration was done with a standard white tile at D₆₅ illumination (Y = 85.8, x = 0.314, y = 0.331). Three readings were performed per pineapple slice surface by placing the colorimeter head directly above the slice. Twenty seven measurements were considered in each experiment for both fresh and dried pineapple samples.

The CIE L*, a*, b* color space developed in 1976 provides uniform color differences in relation to human perception of differences and it is commonly used in the food industry (Pathare et al., 2013).

Color parameters are characterised by L* describing lightness (L* = 0 for black, L* = 100 for white), a* describing intensity in green-red (a* < 0 for green, a* > 0 for red) and b* describing intensity in blue-yellow (b* < 0 for blue, b* > 0 for yellow). Color differences are defined as ∆L* = L*_d - L*_f for lightness, ∆a* = a*_d - a*_f for redness and ∆b* = b*_d - b*_f for yellowness, where subscript “f” refers to fresh samples and “d” to the values of dried materials respectively. Total color difference is expressed as ∆E = ((∆L*)² + (∆a*)² + (∆b*)² )1/2 being larger ∆E* denotes greater color change from the fresh material. Similarly, Chroma (C*) is defined as:

indicating color saturation, which is proportional to its intensity. The hue angle (h) is defined as

For the h value, an angle of 0° or 360° indicates a red hue, while angles of 270°, 180° and 90° represent blue, green and yellow hue correspondingly (Argyropoulos et al., 2011; Pathare et al., 2013). Because Chroma (C*) portrays the quantitative attribute of colorfulness, it is used to determine how different is the hue in comparison to a grey color with the same lightness. The higher the Chroma value is, the higher is the color intensity of samples perceived by humans (Pathare et al., 2013).

Data obtained at different drying temperatures were transformed to the moisture content ratio (MR, dimensionless) calculated as

where M,db decimal, M₀, db decimal and M_e,db decimal are the moisture content at any given time, the initial moisture content and equilibrium moisture content, respectively.

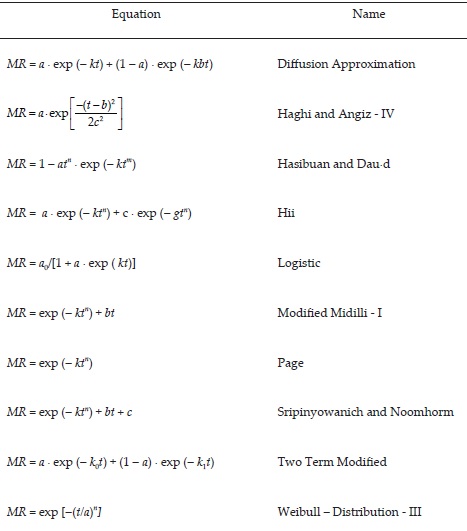

The drying curves generated by data coming from the High Precision lab-scale dryer at Hohenheim, were fitted with ten empirical and semi theoretical thin-layer drying models (Table 1) suggested by (Ertekin and Firat, 2015). These equations were chosen since they have shown better fit behaviour for this category of drying experiments (Togrul and Pehlivan, 2002; Koua et al., 2009; Janjai et al., 2011)The models were selected from a total of 26 discarding the ones with large Root Mean Square Error (RMSE). The constants estimation and RMSE with nonlinear regression was performed using MatLab® (Version R2013b).

Although, it was found in literature that Logarithmic model had produced good fitting in predicting pineapple drying (Kingsly et al., 2009), results with data from the high precision laboratory showed that the fitting was not appropriate therefore the model was excluded.

The Table 1 shows the suitable thin-layer drying models. Three different thin layer drying models were selected to fit the pineapple drying experimental data. The coefficient RMSE was chosen because it helps to eliminate the problem of compensation between under- and over-prediction.

For a good fit the root mean squared error (RMSE) should be close to zero, defined as

where M_pre,i and M_obs,i are the predicted and observed dimensionless moisture ratios respectively and N is the number of measurements.

The Root Mean Squared Error (RMSE) is comparable with a generalised standard deviation, which measures the given difference between known locations and interpolated ones. Another criterion for selection uses the mean absolute error (MAE), which is a statistical measure of how accurate the estimates are in comparison with the actual values. MAE avoids compensation between under- and over-prediction. The MAE is given by:

$f_i$= prediction and$y_i$= true value$\left|e_i\right|$= an average of the absolute errors. Units of MAE are the same as y_i, thus there are no large differences over-weighting.

Modelling efficiency (EF) considers measures of distance, which have an upper and/or lower bound giving allowance for completely different cases to be compared (different data, different models) and it is defined as

where

is the average of the y_i .

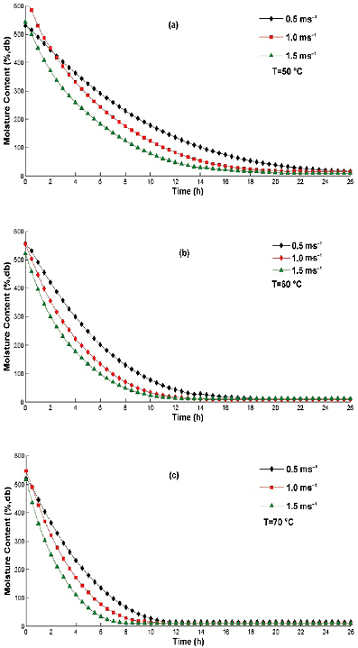

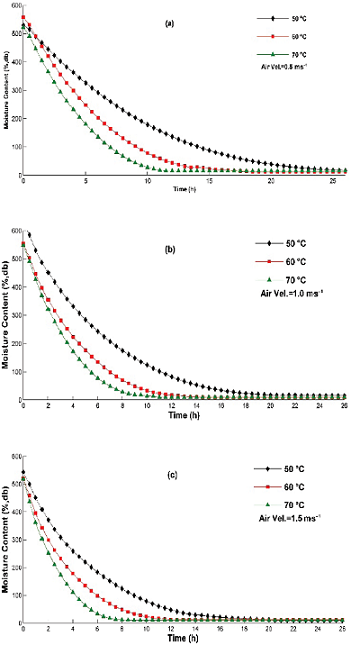

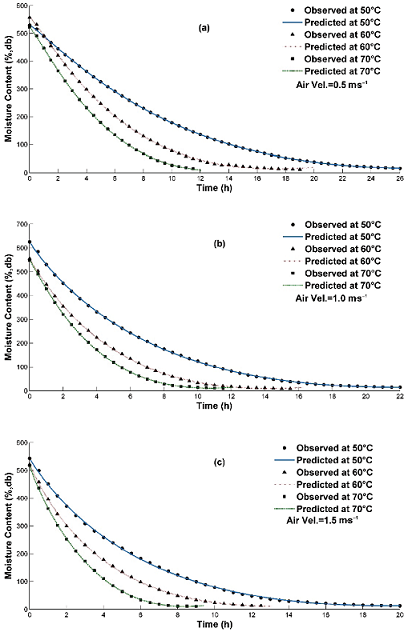

Figure 2 shows drying effect in moisture content at different combinations of drying air temperature with constant air velocity. Final moisture content under different conditions resulted to be bounded from 8.54% to 15.53% (db.). By comparing Figures 2a, 2b and 2c it can be seen that minimum final moisture content depends, to certain extent, on higher drying rate and hotter temperatures. Moreover, it can be noticed, for each applied temperature, that the higher the air velocity is, so the initial rate is. Figure 3 shows the existent relationship between moisture content reductions with the applied air flow in the range of 0.5 ms^-1 to 1.5 ms^-1. By comparing Figures 3a, 3b and 3c it can be observed that the greater air flows are, the rate of pineapple drying increases. Thus, from 50 to 70°C at 0.5 ms^-1 drying time decreased from 26 to 12 hours; similarly with higher air flow rates, from 50 to 70°C at 1.0 ms^-1 drying time decreased from 20 to 10 hours and from 50 to 70°C at 1.5 ms^-1 drying time decreased from 16 to 8 hours.

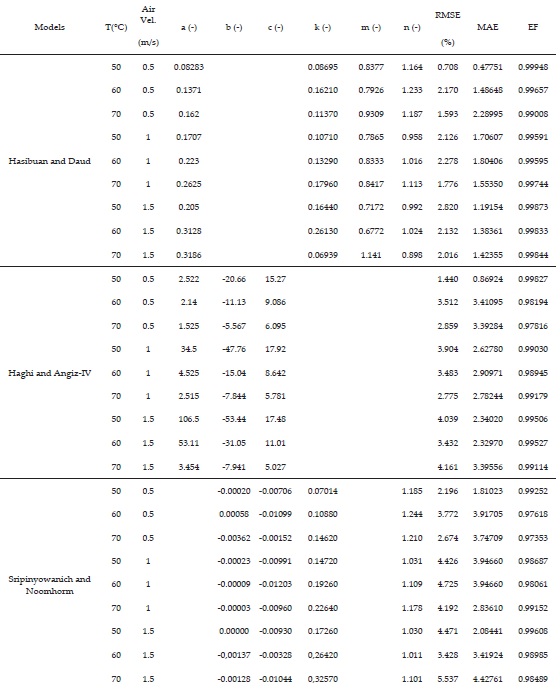

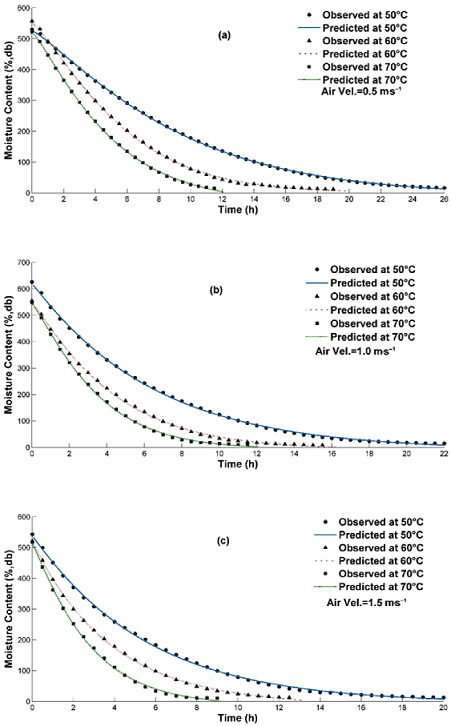

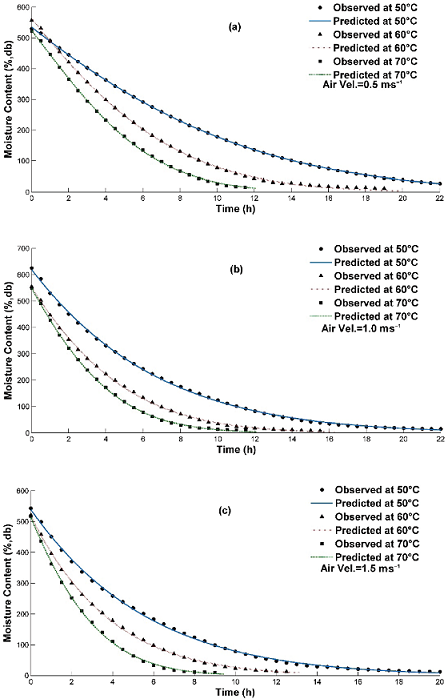

Moisture ratios of dried pineapples at different temperature and air velocity were fitted with three thin layer models. Parameter values of the models and the statistics RMSE, MAE and EF are shown in Table 2. Hasibuan and Daud model was the best, followed by Haghi and Angiz IV’s and Sripinyowanich and Noomhorm’s. For these three cases the value of RMSE was less than 5.6% indicating a good fit. The average value of RMSE for the Hasibuan and Daud model was 1.96%, MAE was 1.48 and EF= 0.99.

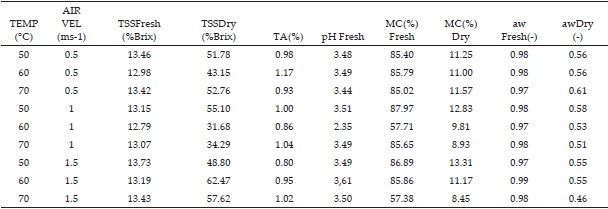

In Table 3 are summarized the basic quality specifications that are required for fresh and dry pineapple samples. TSS dry values indicate an increase of approximately 35% of sugar concentration from fresh to dried pineapple causing sweeter taste in the dried slices. Titratable acidity (TA) and juice pH are measured in order to have a pineapple maturity overview during harvest. A minimum flavour acceptance by most consumers is achieved by having a soluble solids content of at least 12% and a maximum acidity content of 1 % (Kader, 1996).

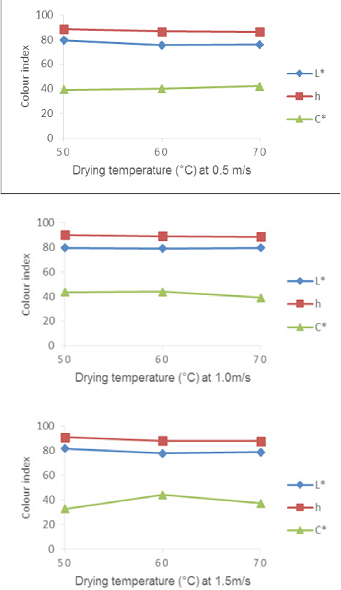

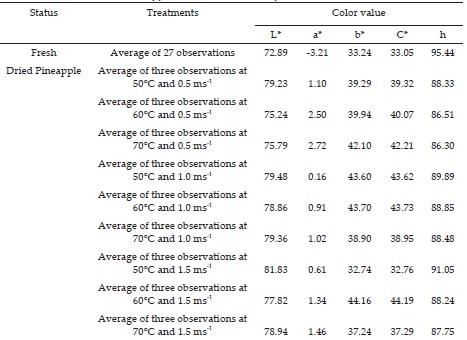

Table 4 describes the variations in color for both fresh and dried slices in relation with temperature and air velocity; this change of color is due to the evaporation of the water in the fruit. Figure 7 shows the drying temperature influence on pineapple color indices. From Table 4 and Figure 7 is observed that the lightness value is higher in dried pineapple compared with the one of fresh pineapple. Redness and yellowness do not increased significantly, which means that yellow color varied in a meagre extent. The Chroma (C*) reacted in the same way as redness and yellowness (negligible change) indicating that any color saturation took place. Hue angles (h) of dried pineapple decreased no more than 8 units evidencing that color moves around red and yellow resulting in a scant presence of brown color on the dried pineapple. For this reason, there is not a significant change in the color indexes when the pineapple are dried at 50°C, 60°C and 70°C. These temperatures are suitable for drying pineapple in slices.
