INTRODUCTION

Due to lack of knowledge of classical mechanisms, students experiment emptiness when comprehending a determined synthesis found in the literature. Since a mechanistic proposal is naturally mandatory for a rational explanation of products emerging from a synthesis, we offer the present series theming on mechanistic approaches on several published syntheses. As academics we are committed with the didactics and we have designed a series of articles exposing mechanistic theoretical proposals, articles have a character of short review. The present contribution: Hydroboration, a brief historical review through mechanistic views, part I: alkyl- and aryl-substituted olefins, as addition-substrates, The Organic Chemistry Notebook, Nº 15, that refers to regioselectivity considerations, is the fifteenth study in the series: “The Organic Chemistry Notebook Series, a Didactical Approach” [1-14].

REVIEW OF REACTIONS, MECHANISTIC THEORETICAL PROPOSALS, DISCUSSION

Hydroboration of olefins

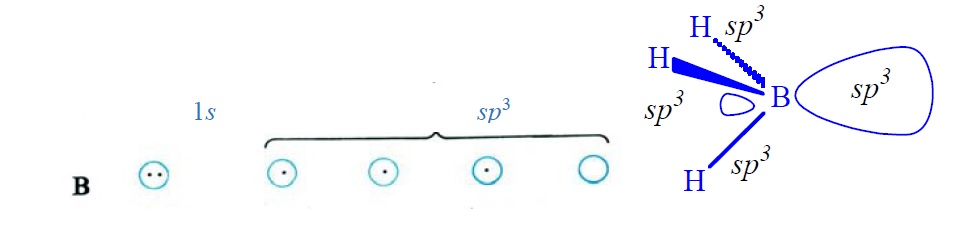

Hydroboration is a good method in many synthesis reactions employing electron-rich compounds as substrate, namely alkenes and alkynes [15]. Boron as borane BH₃ is a Lewis acid with a free orbital suitable for rooming an electron pair. Borane is available as a dimer, B₂H₆, with the boron atoms bridged by two of the six hydrogens between them [15]. Due to its Lewis acid nature (Figure 1), boron interacts with Lewis bases such as oxygen, nitrogen or sulphur in ethers, tertiary amines and sulfides, R₂O⁺-^-BH₃, R₃N⁺-^-BH₃, R₂S⁺-^-BH₃ [15], see boron hybridation´s changement when borane overlaps with Lewis bases (Figure 2).

Using THF as solvent or DMS, the addition of borane over most alkenes is immediate [15], a reaction known as hydroboration. Hydroboration is stereospecific and very regioselective [15]. Steric and electronic effects are involved in the addition of borane and they favor the attack over the carbon the less substituted [15]. Since borane reacts with alkenes until completion of the hydride substitution in BH₃ and their replacement by the adding on three alkene molecules to give a trialkyl borane, the less substituted carbon is chosen by boron in order to avoid steric hindrance when adding the second and the third alkenic residue, e.g. the addition of BH₃ to 2-methyl-1-propene, where atom 1 is preferred over atom 2 for the new B-C bond [15], see Figure 3. This behavior gives this reaction its regioselective quality [15]. The minor option of addition of the boron atom to the carbon with the most steric hindrance represents severe nonbonded repulsions, see Figure 4.

The regioselectivity can be improved by the use of some mono or dialkylboranes instead borane itself (disiamylborane [DAB, 15,16], thexylborane [TB, 15,17], 9-BBN [15,18]). While diborane shows a 94% of regioselectivity in hydroboration of 1-hexene, this increases to 99% when using chloroborane-dimethyl sulfide [15,19,20], or DAB [15,16] or thexylchloroborane-dimethyl sulfide [15,21], and 99.9% if 9-BBN is used [15,18], but it’s equal (94%) if TB is used [15,17]. When the substrate of the hydroboration is 2-methyl-1-butene diborane gives 99%, chloroborane-dimethyl sulfide 99.5%, thexylchloroborane-dimethyl sulfide 97%, and 9-BBN 99.8%. Changing the substrate to 4-methyl-2-pentene diborane gave 57%, DAB 97%, TB 66%, thexylchloroborane-dimethyl sulfide 99%, and 9-BBN 99.8%. Finally, [15] styrene as substrate gave a regioselectivity of 80% (diborane), 98% (chloroborane-dimethyl sulfide, and DAB), 95% (TB), 99% (thexylchloroborane-dimethyl sulfide), and 98.5% (9-BBN). These alkylboranes can be prepared by hydroboration of the corresponding alkene, the degree of alkylation of borane comes out from stoichiometric control [15]. See Figure 5.

Comments

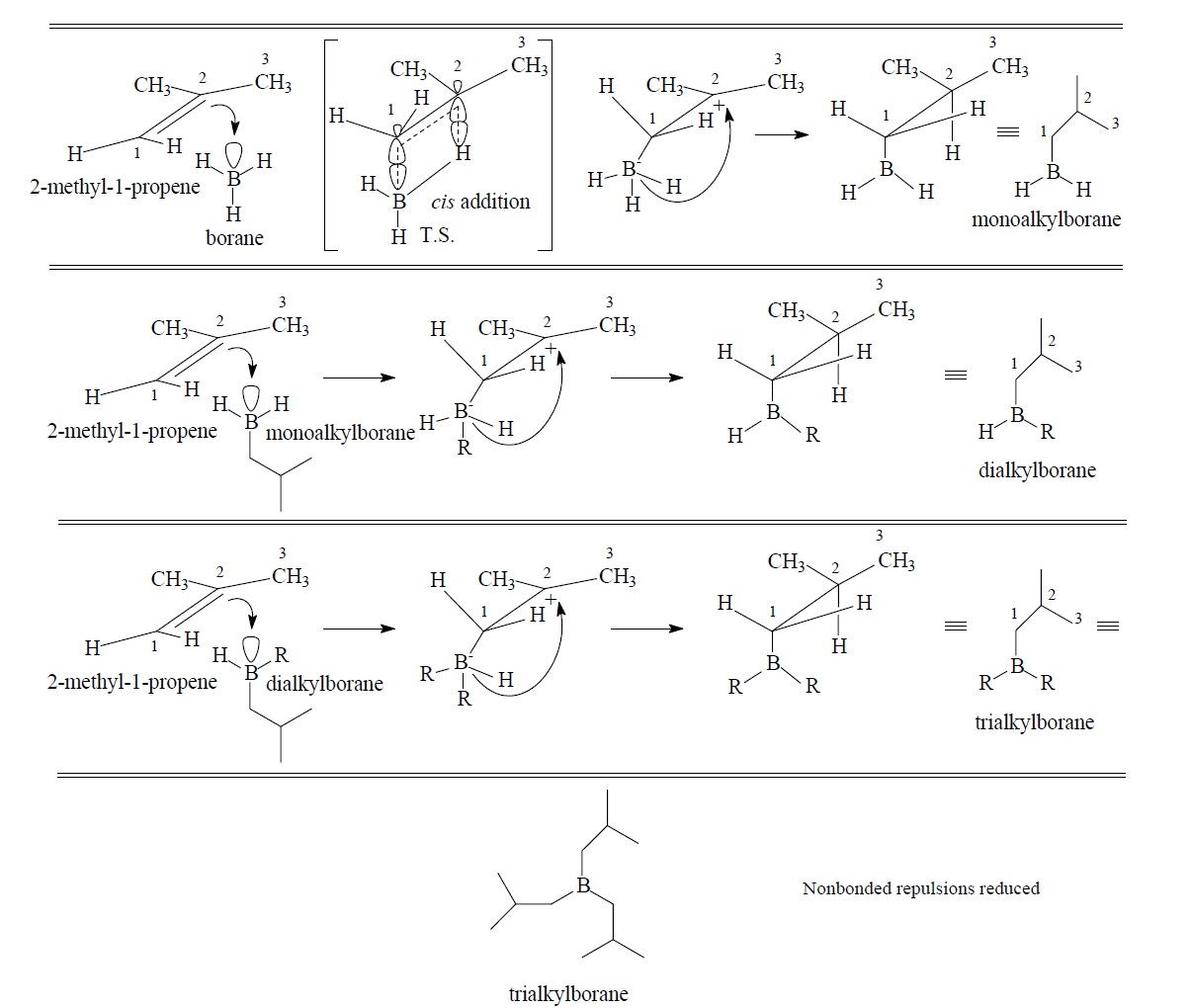

The fact of adding alkyl substituents on the boron atom implies obviously an increase of the steric hindrance at the moment of interaction between the reagent and the substrate olefin. This tool makes more difficult the interaction with the most hindered carbon and accelerates the rate of attacking the less hindered sterically carbon.

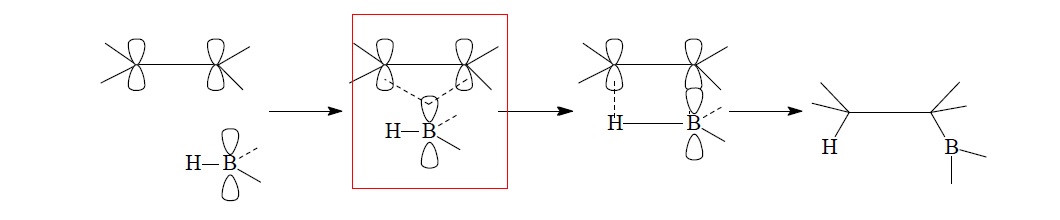

As shown above in Figures 3 and 4, the borane or its derivative in hydroboration follows a syn (cis) stereospecific addition on the alkene [15]. The transition state (T.S.) involves a four center adduct with simultaneous bonding to B and H [15]. This atoms’ spatial position makes possible the formation of the new bonds B-C and H-C, as being formed in the same side of the double bond [15]. A previous to the transition-state-step is the interaction of the two electrons of the bond p and the empty orbital p of the boron sp², see Figure 6 [15,17].

Diborane is gaseous, but soluble in ether after dissociating into monomeric borane as etherate in varied ethers. Ether acts as catalyst in the addition reaction because of its ability of dissociating diborane [17]. The ethereal nature as solvent is not determining in the direction of addition in the hydroboration of styrene [17]. This means that the solvent does not participate actively in the transition state. On the other hand, the hydroborating agent (LiBH₄ or Na BH₄ or B₂H₆) does not make much difference in the direction of the addition either. Temperature variations didn’t influence the addition direction [17]. As a general result in the distribution of boron over the double bond is from 94 to 98% in the same direction, or the less hindered carbon, in most of the cases. Indicated yields were of 90% or higher. The majority of olefins proceed in the reaction until the trialkyl borane, however, there are exceptions with the more hindered olefins that can reach the monoalkyl or dialkylborane stage [17]. The addition to styrene (20% a) or p-chlorosytrene (35% a) is different [17]. Styrene was chosen for studying the influence of temperature, solvent and hydroboring agent with regard to the direction of addition. A small increase in temperature produced an increase in the percentage of the a-derivative [17]. Hydroboration was also surveyed under the scope of the effect of the structure of the olefin involved in five groups, alkyl monosubstituted terminal olefins (I), alkyl disubstituted terminal olefins (II), alkyl disubstituted internal olefins (III), alkyl trisubstituted internal olefins (IV), p-substituted styrenes (V) [17]. The results pointed out the preferred anti-Markownikoff type of addition. Group I with alkyl substitutents, linear or branched gave 93-94% of addition of the boron to the terminal carbon. If the substituent includes somehow phenyl, the boron addition to the terminal carbon is between 80 to 90%. Group II presents a 99% of the primary alkylborane due to two substituents that exert steric compression on the more unsaturated carbon. Group III like 2-pentene and 2-hexene undergo addition of the boron in almost equal proportions to both sides of the double bond. Slight variation is seen from cis to trans isomers. Group IV shows addition results with boron added to the secondary carbon in about 98% and only 2% for the tertiary compound. Group V included results derived from the relative strong influence of the phenyl group over addition on the double bond on styrene.

Hydroboration of alkyl-substituted olefins

The directive effects of the similar structural features of different alkyl-substituted olefins during addition of hydrogen and boron to the double bond were studied [17].

Alkyl-monosubstituted terminal olefins RCH=CH₂

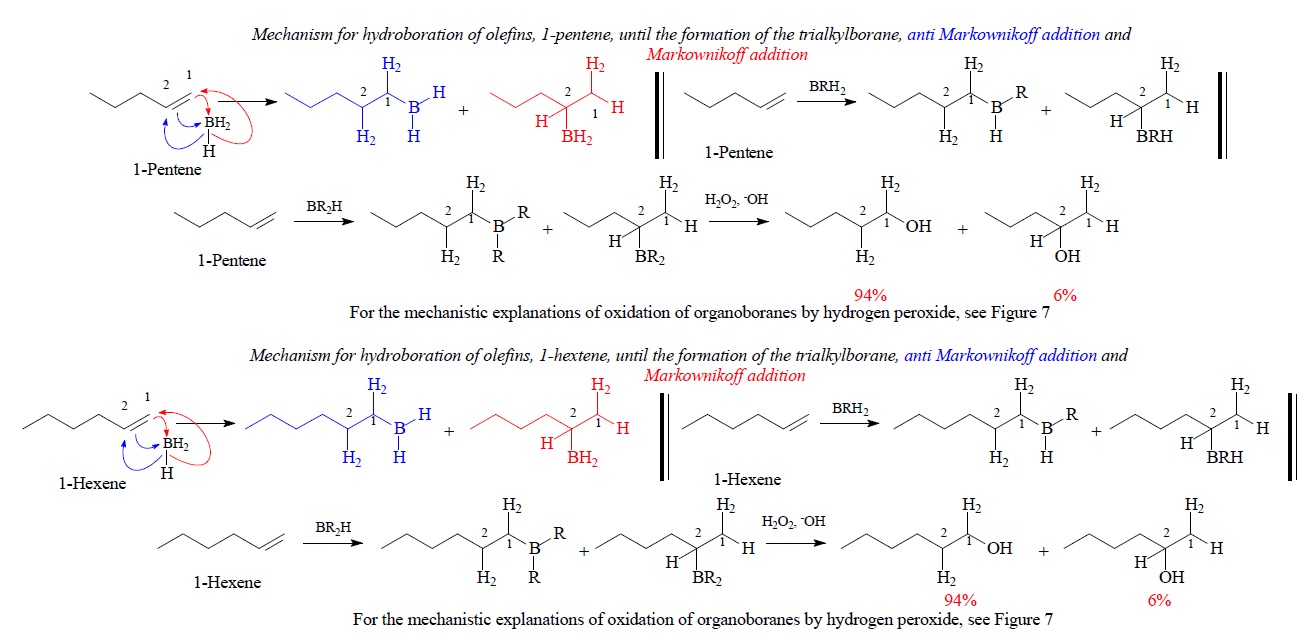

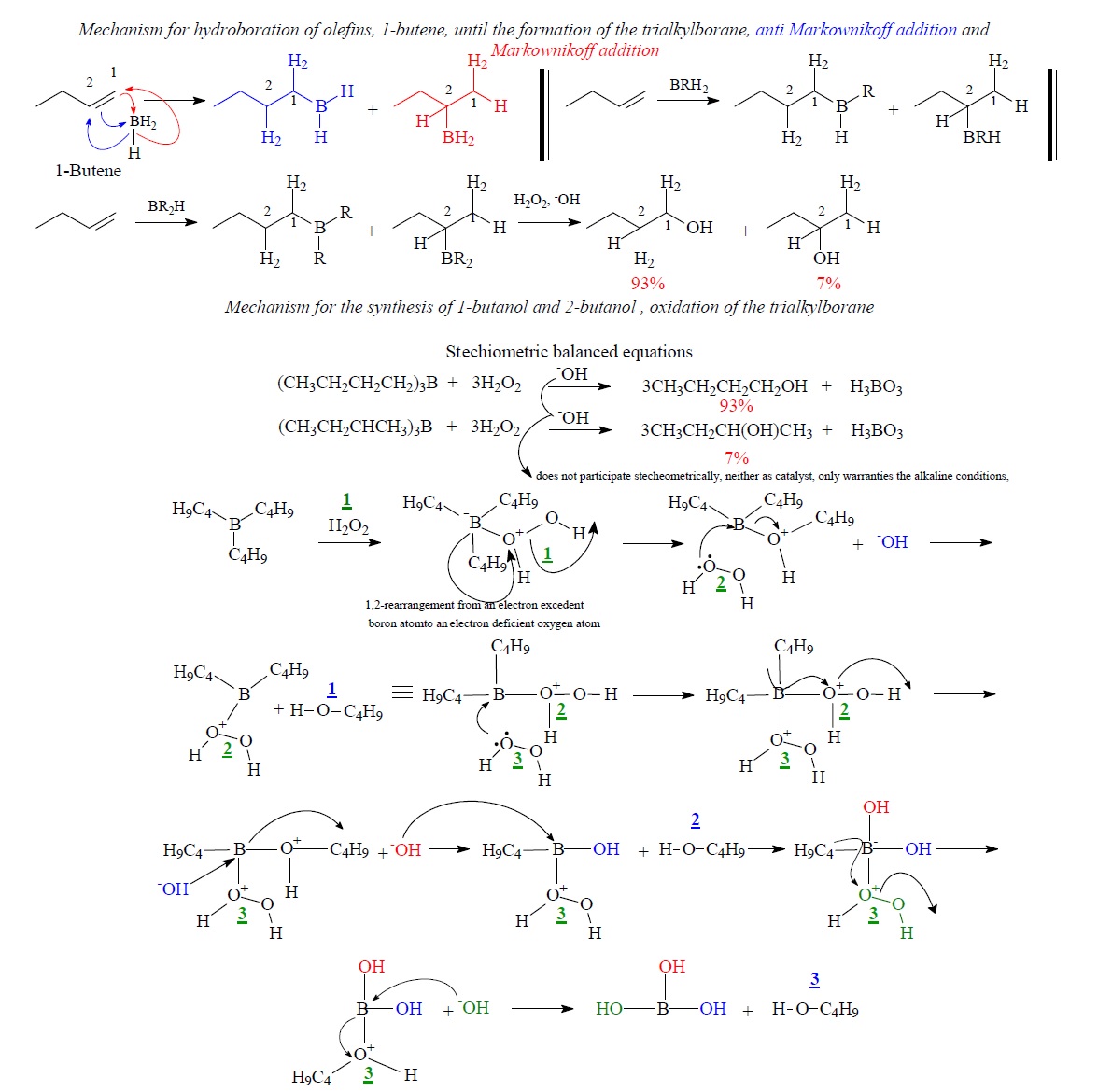

Straight-chain terminal olefins like 1-butene (Figure 7), 1-pentene and 1-hexene (Figure 8) give preferably the addition of boron to the terminal carbon in a 93-94% (6 to 7% for the secondary alkyl boron derivative) [17].

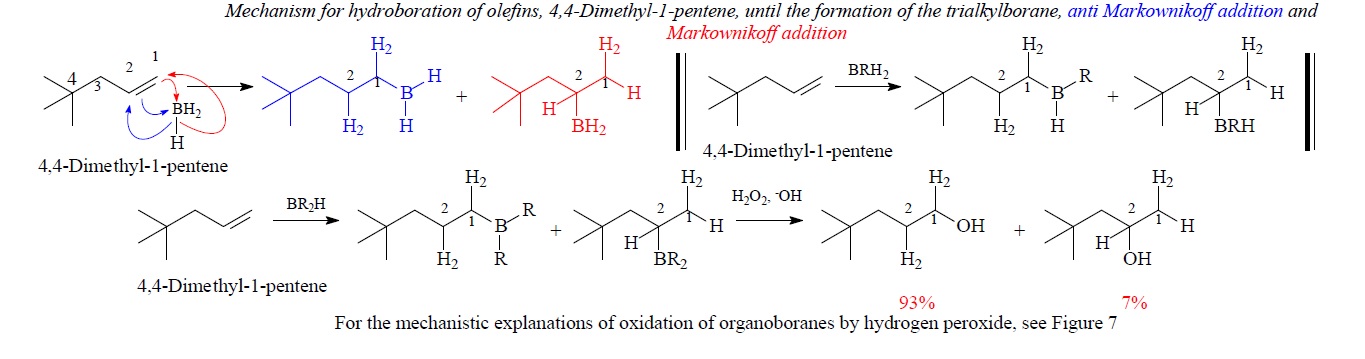

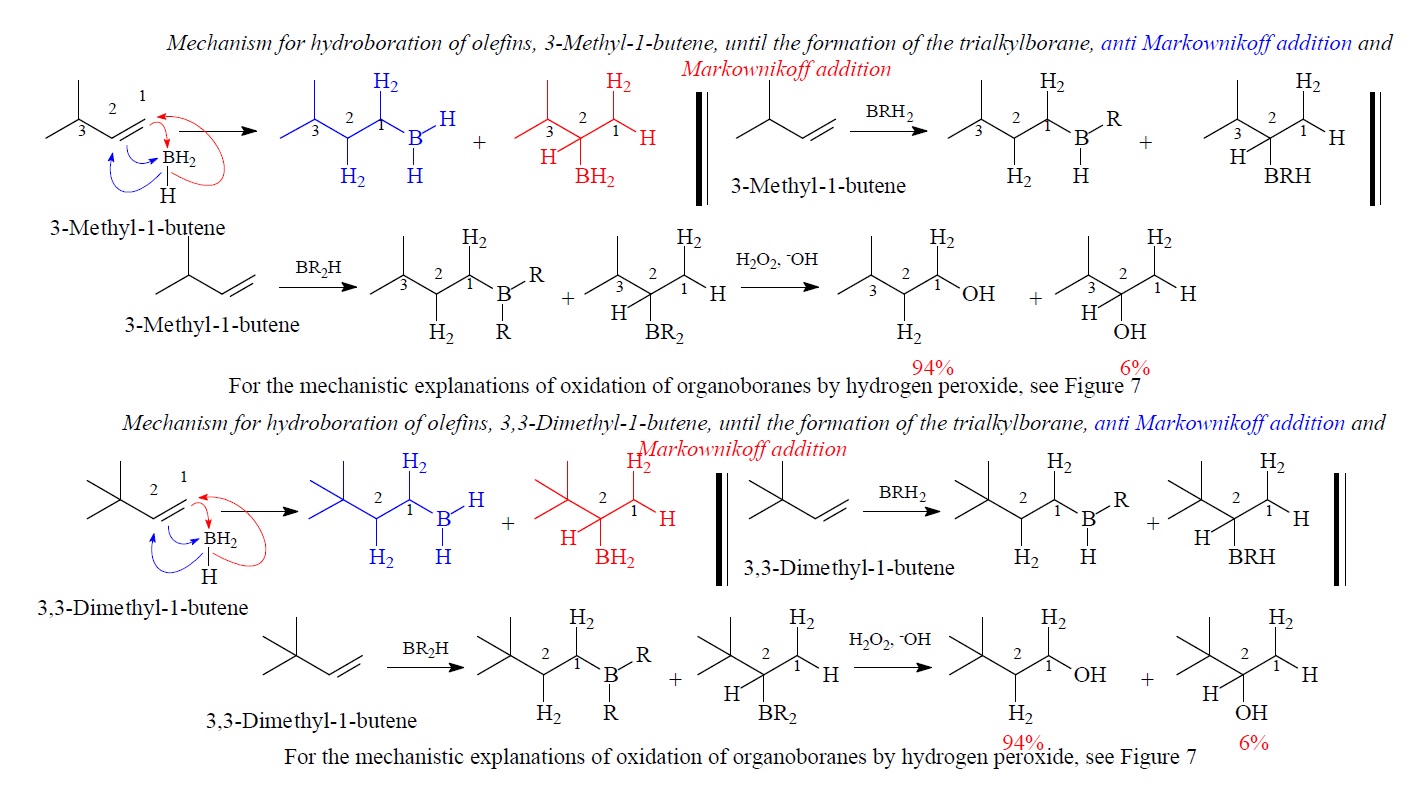

The alkyl branching makes not much difference in the boron distribution as shown with the use of 3-methyl-1-butene, 3,3-dimethyl-1-butene (Figure 9) and 4,4-dimethyl-1-pentene [17] (Figure 10).

Alkyl-disubstituted terminal olefins R₂C=CH₂

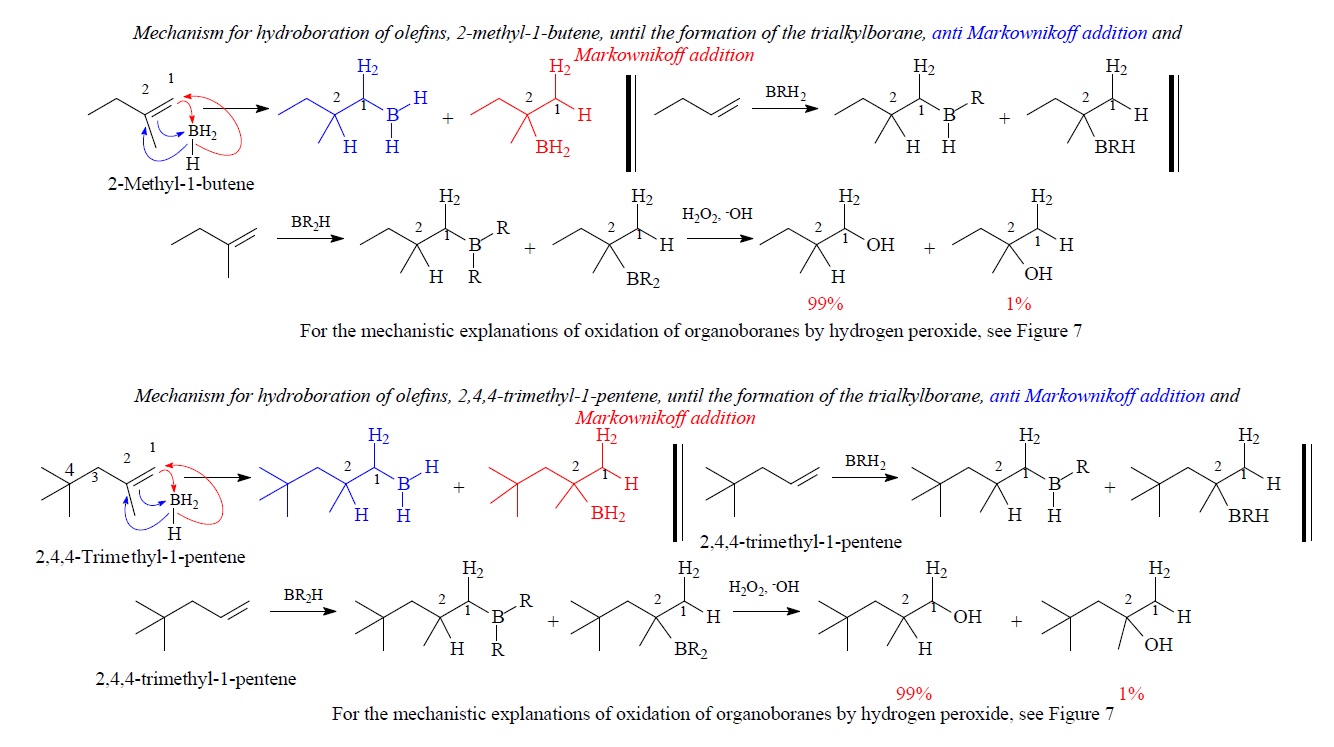

Here we are faced to two geminal alkyl groups, very hindering, by the way. This provides a terminal methylene of alkenic carbon easily approachable by voluminous groups like borane and its derivatives. The directive effect of the geminal alkyl groups (identical or not), is overpowering giving rise to boron-addition results almost exclusively on the terminal carbon. As a sample let us mention that 2-methyl-1-butene and borane give 99% of the primary alkylborane and 1% of the tertiary alkylborane, and 2,4,4-trimethyl-1-pentene [17] (Figure 11).

Alkyl-disubstituted internal olefins RCH=CHR’

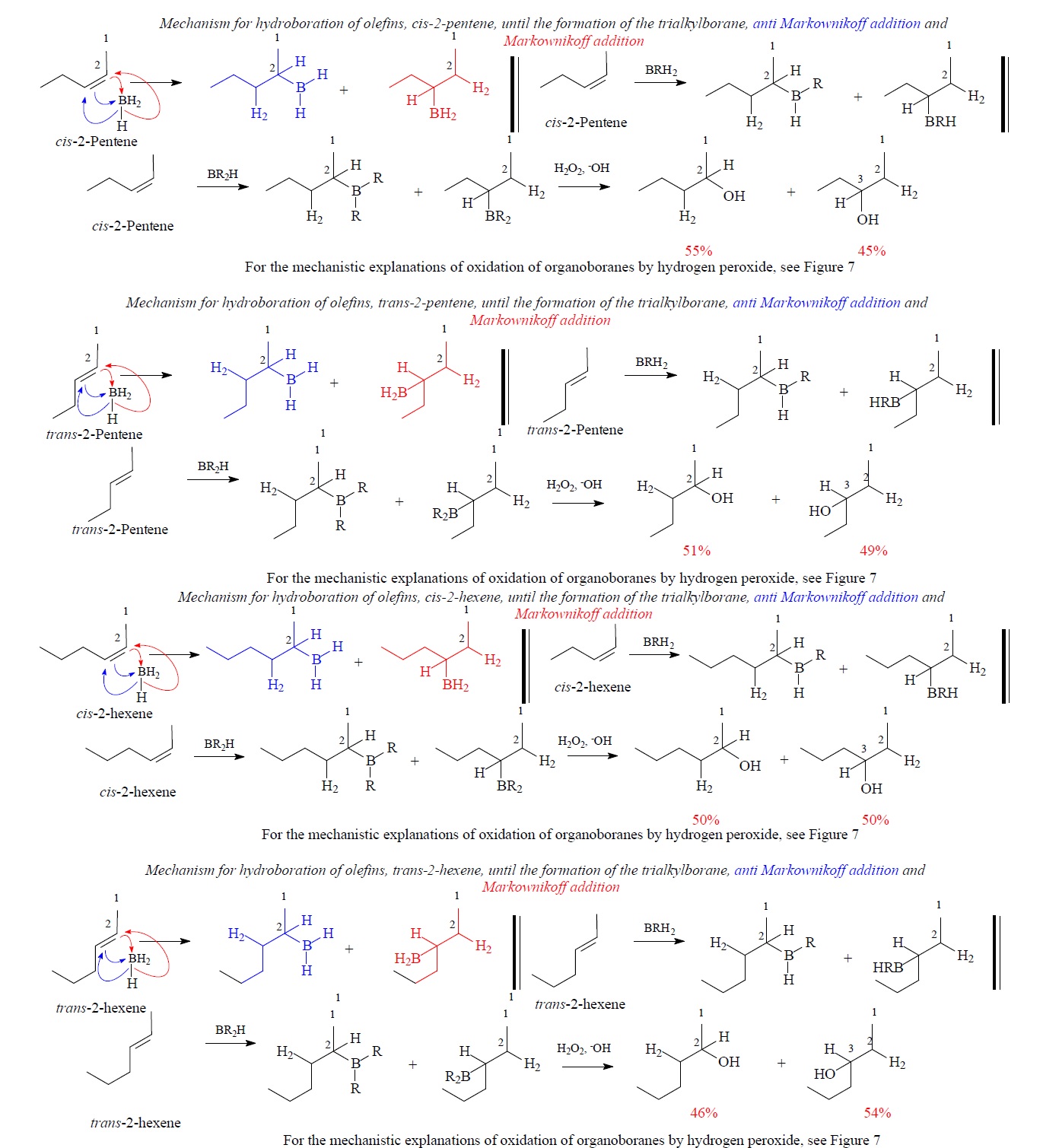

The immediate examples for the approach to alkyl-disubstituted internal olefins are 2-pentene and 2-hexene, which experiment hydroboration with boron addition fairly equally distributed on both extremes of the double C=C bond (Figures 12). The small difference in this distribution is observed in the geometrical isomers cis and trans.

Comments

A special case is the hydroboration-oxidation of cis-3-hexene [17], that gives a couple of enantiomeric alcohols after hydroboration and subsequent oxidation [17]. The distribution of boron on the double central C=C bond is egalitarian (50:50). The result of hydroboration and hydrogen peroxide oxidation is the enantiomer couple: (R)-3-hexanol and (S)-3-hexanol, as a racemic mixture (50:50). The mechanism for the hydroboration-oxidation of cis-3-hexene is proposed in Figure 13. In this figure it is clearly established that, being cis-3-hexene a symmetric molecule, the alkyl side chains at each side of the double bond are identical. This means that there is no preference of the electrophile for either of the unsaturated carbons, giving a 1:1 distribution of borane. The article under current scrutiny and review [17] shows in Table IV the product of the hydroboration-oxidation of cis-3-hexene as an only product (100%) in the column of 3-ol result. This report is not specific, meaning by this that the only product is the 3-hexanol. However, Figure 13 clearly shows the formation of a racemic mixture. Figure 14 shows through molecular models the substrate structure, cis-3-hexene, and, the monoalkylboranes, product of the electrophilic addition, (S)-3-dihidroborohexane (1) and (R)-3-dihidroborohexane (2). Figure 15 shows the two enantiomers as specular images, demonstrating that the hydroboration gave two products instead of only one, as Table IV [17] seems to suggest.

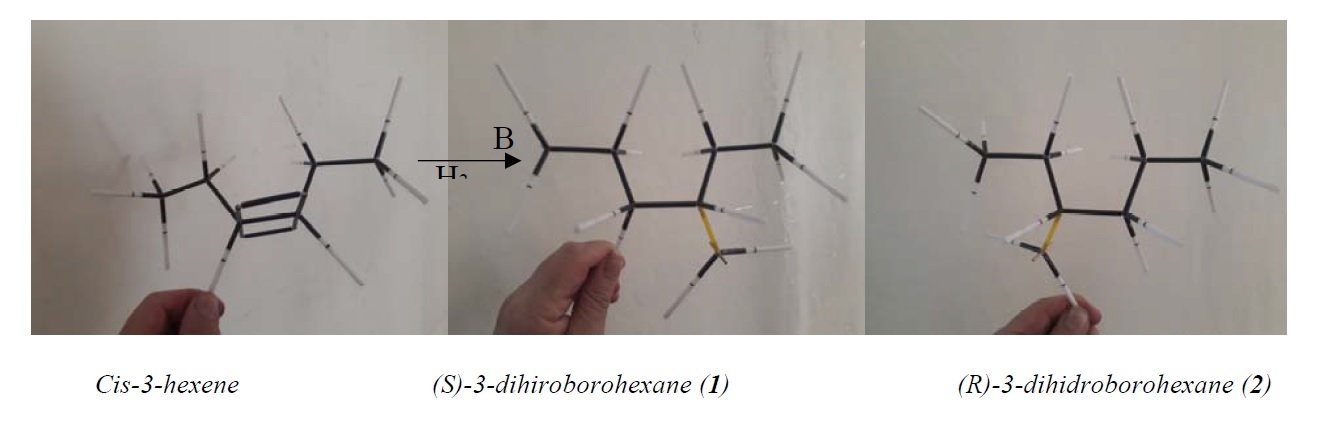

This analysis of the hydroboration of cis-3-hexene to afford a couple of enantiomers (S)-3-dihiroborohexane (1) (R)-3-dihidroborohexane (2) as a racemic mixture as shown in Figures 14 and 15 demonstrates existence of the transition state that directs a syn (cis) simultaneous addition of the H–B bond to the double bond. If the addition were anti (trans), it means in two instead of an only step, then the two addition-products or the 3-dihidroboranes, would be diastereomers, and not enantiomers as it’s the case.

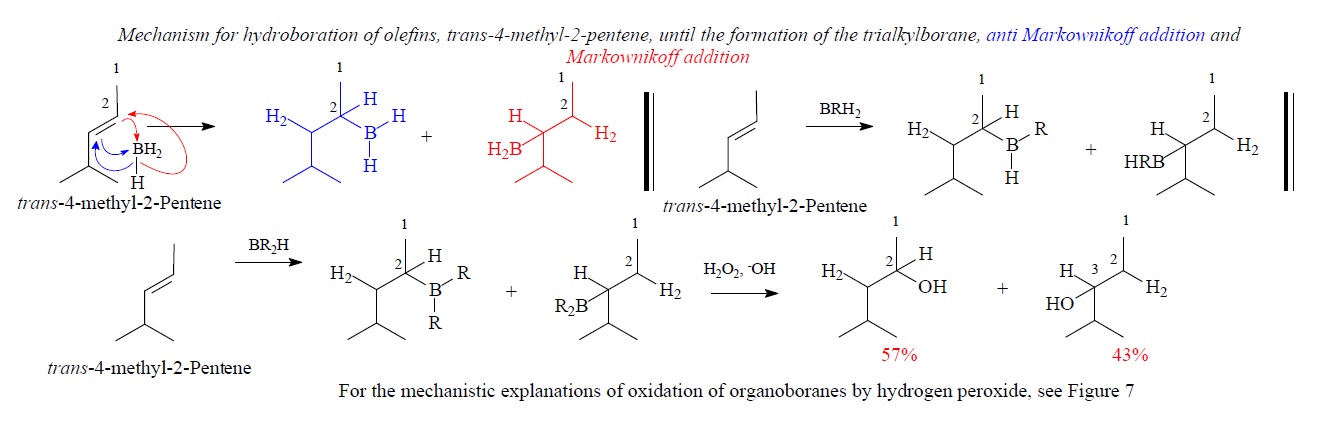

If the structural complexity at one of the side chains of the double bond is augmented, a small preference of the boron atom for the carbon atom with the less hindering side chain is manifested as shown for trans-4-methyl-2-pentene (Figure 16) and trans-4,4-dimethyl-2-pentene (Figure 17). The reaction proceeds until the dialkylborane in the case of trans-4,4-dimethyl-2-pentene [17].

Alkyl-trisubstituted olefins R₂CH=CHR’

Two products were assayed as examples of hydroboration of alkyl-trisubstituted olefins, R₂CH=CHR’, 2-methyl-2-butene with a 98% of accommodation of borane on the secondary unsaturated carbon and 2% on the tertiary carbon, and 2,4,4-trimethyl-2-pentene, which afforded the same distribution on the secondary and tertiary carbon as the 2-methyl-2-butene. Both compounds under mild conditions reached until the second alkylation of borane only [17].

Hydroboration of aryl-substituted olefins

Influence of the hydroboration (reducing) agent employed and temperature in the hydroboration of styrene

The use of one or another hydroboration agent makes no remarkable difference in the addition distribution of the couple H-B on the double bond. Thence there was no significant change being noticed with the use of LiBH₄ (Et₂O THF or diglyme), NaBH₄ (diglyme) or B₂H₆ (diglyme) [17]. A small increase in the proportion of addition on the a-carbon of styrene was produced with increasing temperature [17].

Styrene and its derivatives

Styrene gives much different addition results of the hydroboration agent than those of alkyl-substituted olefins with proportions about 20% and 80% on the double bond [17]. See Figure 19 for a comparison of products in different solvents and by using different hydroboration agents and at different temperatures [17].

As mentioned above, the distribution is 80% at C-1 and 20% at C-2 in the hydroboration of styrene. The effect of the phenyl group is minor but still present in allylbenzene with a 90_C-1:10_C-2 distribution [17], see Figure 19. The case of a-methylstyrene shows the drastic directive effect giving a full regioselectivity with a100% addition in position 1 [17]. See Figure 20.

A comparison of the directive effect of alkyl-substituted (1-pentene) vs. aryl-substituted (styrene) olefins puts in evidence that the phenyl group of styrene is less effective than alkyl groups in directing the boron atom to the terminal carbon atom. This is seen in the hydroboration of trans-1-phenylpropene, with the competition between the methyl and the phenyl group [17], Figure 21.

Comments

The article under current scrutiny [17], mentions a distribution of 15% for 1-phenyl-2-propanol and 85% of 1-phenyl-1-propanol, however, Figure 21 demonstrates that the distribution is exactly the opposite, namely 15% for 1-phenyl-1-propanol and 85% of 1-phenyl-2-propanol. This is an error of Brown and Zweifel [17].

p-Substituted styrenes

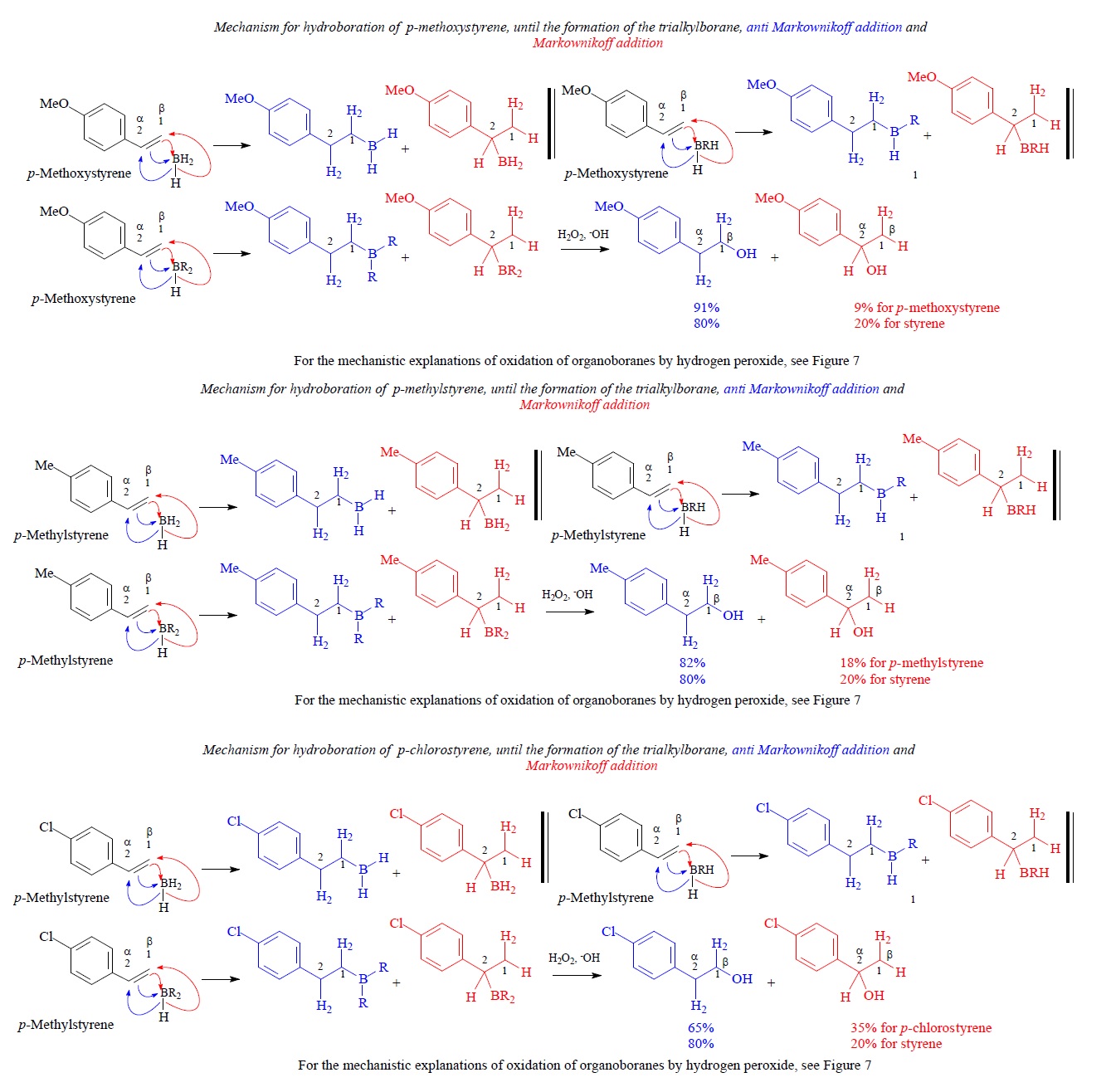

Due to the remarkable influence of the phenyl group in styrene on the tendency for the diborane when choosing a carbon atom over the other in the double bond, incited to the investigation of styrenes substituted in para [17]. This study was hoped to give enlightenment about the nature of the forces controlling the preference in the addition reaction.

The methyl substituent in styrene, provoked a minor effect, with a diminution from 20% in styrene in the a carbon to 18% in the para derivative. The methoxy substituent exerted a higher effect diminishing form 20% in the a position in styrene to 9% in the para derivative. Finally, the p-chloro substituent augments the distribution in the a position of the double bond until 35% from 20% in styrene [17], Figure 22.

CONCLUSION

The direction of addition of borane on olefins exposed in the examples above has been examined through the corresponding alcohols after oxidation [17]. The hydroboration repeats three times, each time with a new molecule of substrate until reaching the trialkylated boron stage [17]. There is no evidence that the final distribution signaled by the alcohols is the same at each stage in the borane’s alkylation pathway [17]. But, authors consider the distributions of the alcohols derived, as the same preferred by borane in the each of the preceding steps in the addition to olefins. Most of olefins proceeds to the trialkylborane R₃B [17]. Other olefins, in function of the alkyl increasing structural complexity arrive to the dialkylborane stage or the monoalkylborane stage [17]. All that have been exposed until here, regards with the directive effects derived from steric effects on the direction of addition of borane on olefins [17]. However, authors signaled that steric directive effects are not alone in exerting influence in the addition of borane on olefins [17]. Some of them being much different in branching, but with similar effect in distribution in results of the electrophilic addition, as seen in the following table [17].

All data collected and its previous analyses require an explanation other than the steric effects, and it concerns the electronic influences clearly playing an important role in controlling the direction of addition of the B-H bond to the double bond [17].

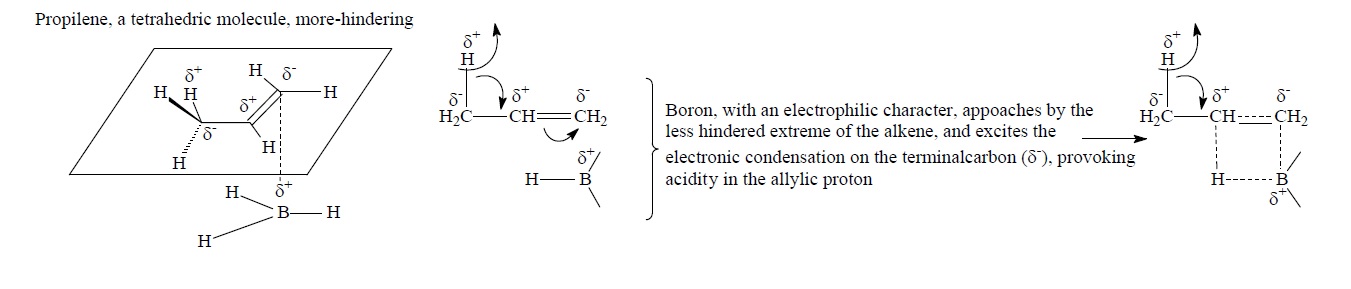

As shown above (figures 3 and 4), the addition of diborane to olefins happens clearly in a cis manner (see also figures 13-15), involving a four-center transition state [17]. The B-H bond is polarized with the hydrogen possessing a hydride character. Hence, by analogy, the electronic shifts are like in the addition of H-Cl to double bonds. See Figure 23, where borane adds to propylene, that kind of electronic shift is the explanation for the addition of boron to the terminal carbon. The same explanation is applicable to 2,2-dialkylethylenes (99% C-1) and for the secondary position in trisubstituted olefins (98%).

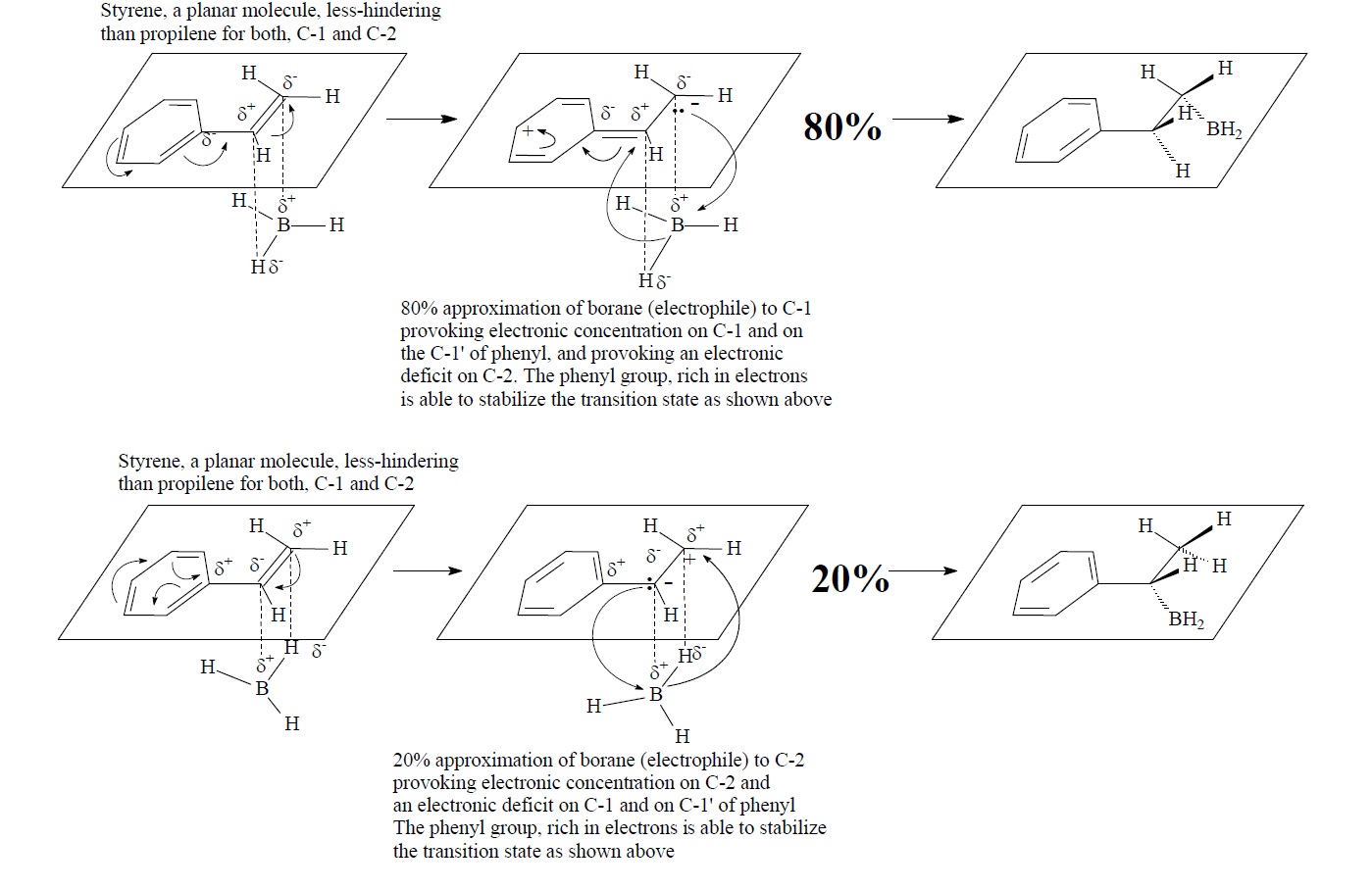

A similar approach can be employed for styrene to explain the preference of the boron atom for the ending position in the side chain. This approach also let explain the higher preference of C-2 with respect of the similar carbon in alkyl-substituted olefins: “In order to account for the enhanced substitution which occurs in the a-position, we must recognize that the phenyl group can also stabilize a negative charge in the a-position as in the benzyl anion. This transition state would be stabilized by an electron-withdrawing substituent, such as p-chloro-, and rendered less stable by an electron supplying substituent, such as p-methoxy” [17]. See Figure 24. The transition state at 80% possesses three resonant structures (two of them corresponding to benzene), in contrast to transition state at 20% that dispose of only 2 resonant structures (corresponding to benzene), being thus less stable.
