Abstract: The reaction of urea (ur) and glycine (gly) with the metal ions Co(ΙΙ), Ni(ΙΙ) and Cu(ΙΙ) in ethanolic solution of 1M:1L1:1L2 molar ratio (where M= Co(II), Ni(II) and Cu(II), and L1 = urea L2 = glycine) led to the preparation of complexes of the general formula [M(ur)(gly)(H2O)2]Cl. Elemental microanalysis (CHN), molar conductivity measurements, IR,1HNMR, Mass and UV-VIS spectroscopic, and magnetic susceptibility measurements were used for the characterization of the compounds. Thermal analyses were used for the complexes degradation characterization. The complexes have an octahedral geometry and are of electrolytic nature in DMSO solvent with the absence of inner-sphere coordination of the chloride anion. An inhibition zone was observed for Ni-urea-glycine complex against Escherichia coli when the biological activity was considered.
Keywords:ureaurea,glycineglycine,transition elementstransition elements,complexescomplexes.
Physicochemical and biological activity studies on complexes of some transition elements with mixed ligands of glycine and urea
Universidade Estadual Paulista Júlio de Mesquita Filho
This work is licensed under Creative Commons Attribution 4.0 International.
Received: 08 August 2018
Accepted: 11 November 2018
Published: 05 December 2018
The synthesis and study of mixed ligand transition metal complexes have been of growing interest1, 2. New materials with useful properties such as electrical conductivity photoluminescence, magnetic exchange, nonlinear optical property and antimicrobial activity can be provided by using mixed ligand transition metal complexes3-5.
Urea (CO(NH2)2) plays an important role in many biological processes such as decomposition of proteins and amino acids catabolism. In 1828, Wöhler discovered urea, when organic materials were prepared from inorganic substances.
All living things contain building blocks of amino acids6, which were first discovered as constituents of natural products and then observed to be the major components of proteins.
All life forms on earth consist of the simplest proteinaceous amino acid, called glycine or amino acetic acid7. Glycine is a neutral, aliphatic, optically inactive nonessential amino acid8 and it is the only protein amino acid that does not have optical isomers9. Most of the metal ions form mono, bis and tris complexes with glycine that acts as a bidentate ligand forming stable 5- membered chelating rings via the N atom of the amino group and O atom of carboxylate group10.
The mixed ligand complexes of urea and glycine acid with Co(II), Ni(II) and Cu(II) ions were synthesized, characterized and thermally studied for the first time in this work.
All Chemical reagents used were purchased from BDH and used as provided.
Generally, the solid complexes were prepared by the same methodology previously described11. Briefly, an ethanolic solution of hydrated metal chloride (0.01 mol) was dropwise added in an ethanolic solution of the first ligand (urea 0.01 mol) with stirring. The mixture was refluxed for 12 h with constant stirring. A hot solution of 0.01 mol glycine in 1:1 ethanol / water mixture ratio was dropwise added to the urea / metal mixture and drops of 1 mol L-1 NaOH solution were used to adjust pH 7.0 - 7.5 to deprotonate NH3+ of the glycine to NH2. The mixture was refluxed for 2 h until resulting in the formation of a colored precipitate. The resulting product was filtered off and then washed with distilled water to remove NaCl. The product was further washed with absolute ethanol/dimethylformamide (DMF) and left to dry. Acceptable yield percentage was obtained (52-66%).
Glass capillary tubes were used to measure the melting points of the metal complexes in degrees celsius on a Stuart Scientific electrothermal melting point apparatus. Silica Gel GF254 plates (mn-kieselgel G., 0.2 mm thickness) was used for TLC. Vario ELFab instrument was used for elemental analysis (carbon, hydrogen and nitrogen) of complexes. Chloride was volumetrically or gravimetrically determined by silver nitrate. The amount of water was determined gravimetrically using weight loss method and also from thermal analysis. Perkin-Elmer 2380 flame atomic absorption spectrophotometer was used to measure the metal content. Jenway conductivity meter model 4510 was used to measure the molar conductance of 10-3 mol L-1 solutions of the metal complexes in dimethylsulfoxide (DMSO) solvent. IR spectra of the metal complexes were measured by using FT/IR-140 (Jasco, Japan). A Varian FT-300 MHz spectrometer in d6-DMSO solvent was used for obtaining proton 1HNMR spectra, using TMS as internal standard. Mass spectra were recorded on a JEOL JMS600 spectrometer. The electronic spectra of the complexes were measured in the range 400-800 nm using an UV–VIS spectrophotometer Specord 200, Analytilk Jena (Germany). The mass susceptibility (χg) of the solid complexes was measured at room temperature using Gouy’s method on a magnetic susceptibility balance from Johnson Metthey and Sherwood model. Differential Thermal Analysis (DTA) and Thermogravimetric Analysis (TGA) were performed using the Shimadzu DTA-50 and Shimadzu TGA-50H thermal analyzers. The experiments were carried out in the temprature range from 25 to 800 oC under nitrogen atmosphere in a platinum pan, heating rate of 10 oC / min and flow rate of 30 mL min-1. The antibacterial activity against four species of bacteria (Staphylococcus aureus, Bacillus spp., Escherichia coli and Pseudomonas aeruginosa) was tested by agar diffusion method. 1000 µg mL-1 concentration for each of these compounds were individually prepared in DMSO, then the filter paper disc (whatman No.1.5 mm diameter) was saturated with the solution of these compounds. The discs were placed on the surface of Millar Hinton agar dishes seeded with the strains of bacteria. The inhibition zones (mm) were measured after 24 h at 37 oC. DMSO and gentamicin (120 μg mL-1) were used as control and reference, respectively.
Complexes of Co(II), Ni(II) and Cu(II) with urea (ur) and glycine (gly) ligands have been prepared and characterized. Analytical data, physical properties, molar conductivity, and composition of the synthesized complexes are given in Tables 1 and 2. The molar conductivity values (135-149 S cm2 mol-1) reflect the electrolytic properties of these complexes. The single spot appearance in the TLC proves the purity of these complexes.

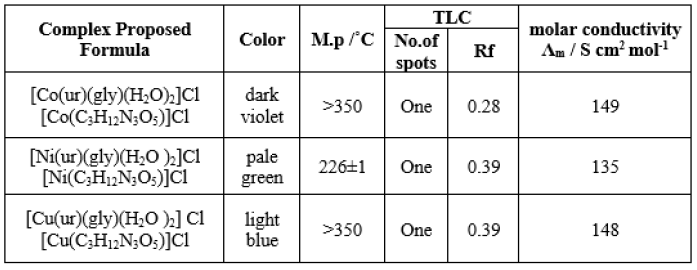

Some physical properties of the complexes.

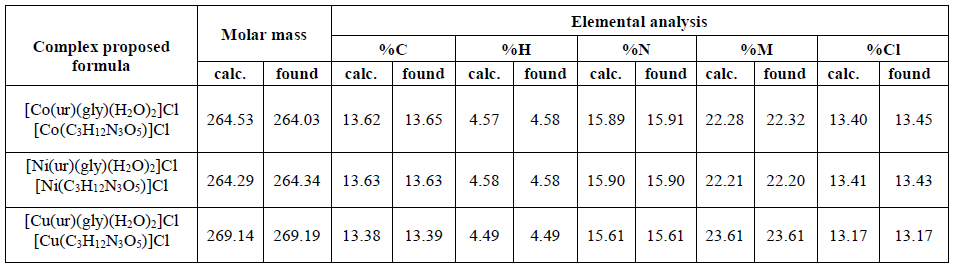

. Elemental analysis of the complexes.
The coordination sites of urea and glycine ligands in their complexes were investigated. The infrared spectra show that urea acts as a neutral bidentate ligand through C=O and NH2 groups while glycine behaves as a bidentate anion ligand through COO- and NH2 groups. IR spectra of urea-glycine complexes are represented in Figures 1, 2 and 3. Assignments of the characteristic bands are summarized in Table 3. As it was postulated, the metal complexes were quite different when compared with the free ligands.

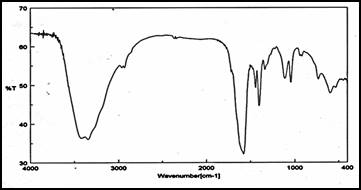

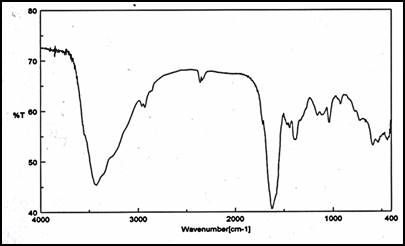

Figure 1.
IR spectrum of [Co(ur)(gly)(H2O)2]Cl complex.

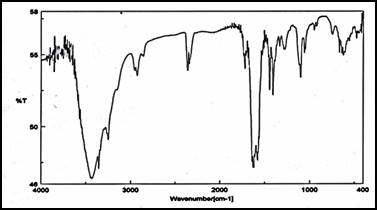

Figure 2.
IR spectrum of [Ni(ur)(gly)(H2O)2]Cl complex
Figure 3.
IR spectrum of [Cu(ur)(gly)(H2O)2]Cl complex.

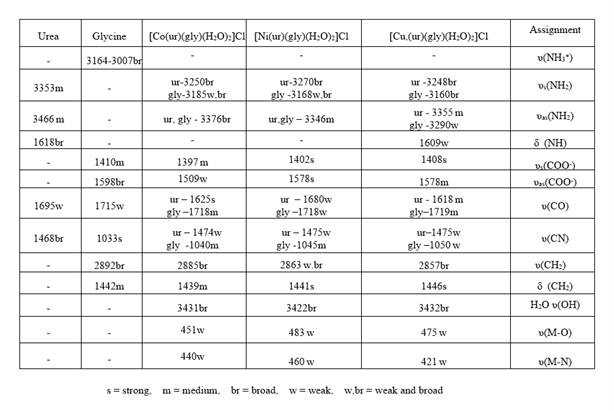

Main IR bands (cm-1) of the urea-glycine complexes
The infrared spectral data of the complexes are as follows:
(1) All the complexes spectra show a broad band at 3422-3432 cm-1 that corresponds to the stretching mode of water existing in the complexes as identified by thermal and elemental analysis. The coordinated water is identified by the appearance of ρr (rocking) and ρw (wagging) at 925 cm-1 and 511 cm-1, respectively12.
(2) The amino groups of urea show lower-shift of 123-103 cm-1 and of 120-90 cm-1 for symmetrical and asymmetrical stretching υ(NH2) frequencies, respectively. This strongly suggests that the nitrogen atom of amino group must be involved in complexation, and the appearance of a new band in the range of 406-460 cm-1, assigned to υ(M-N) vibration, confirms this proposition13,14.
(3) A new band at 1680-1618 cm-1 is attributed to υ(CO) from urea, assigned to υ(C=O–M).
(4) The characteristic bands in complexes spectra occur in the ranges 3185-3160 cm-1 and 3376-3290 cm-1 for symmetrical and asymmetrical υ(NH2) group of glycine, respectively, which appears at lower wave number than the free υ(NH2). Hence, coordination through nitrogen of the amino group is involved15.
(5) The symmetrical υ(COO-) and asymmetrical υ(COO-) vibrations of glycine shift by 13-8 cm-1 and 89-20 cm-1, respectively. This confirms that carboxylate is acting as a monodentate group16. Glycine acts as monobasic bidentate, through the nitrogen of amino and oxygen of carboxylate groups in these complexes17, 18.
(6) The IR spectra in the range 483-451cm-1 and 460-421cm-1 show bands of low intensity due to stretching vibrations of υ(M-O) and υ(M-N), respectively13, 14.
Complexes were investigated by using 1HNMR spectra in d6-DMSO and TMS (tetramethyl silane) as standard and data are in Table 4. [Co(ur)(gly)(H2O)2]Cl, [Ni(ur)(gly)(H2O)2]Cl and [Cu(ur)(gly)(H2O)2]Cl complexes show signals in the range 5.4-7.2 ppm attributed to the amide group of urea19, 20. The methylene group of glycine (- CH2- ) in Co(ΙΙ), Ni(ΙΙ) and Cu(ΙΙ) complexes absorbs near 3.2, 3.2 and 3.1 ppm, respectively. NH2 group shows signals at 2.9, 2.5 and 2.6 ppm, respectively21, 22. In urea, one amine and the carbonyl groups are coordinated to the central metal ion without displacement of NH2 proton, while in glycine presents a new signal in the range 2.5-2.9 ppm because of the deprotonation of NH3+ to NH2. The appearance of a new signal around 3.5-3.8 ppm confirms the presence of water molecules in the complexes23.

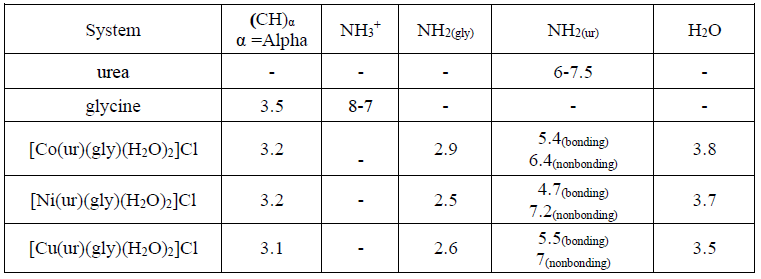

1HNMR chemical shift (ppm) of free urea and glycine ligands and of complexes.
The mass spectra of Co(ΙΙ), Ni(ΙΙ) and Cu(ΙΙ) complexes with urea and glycine reveal molecular ion peaks at m/z (calc. 264.53, found 264.03 (4%)), (calc. 264.29, found 264.34 (11%)) and (calc. 269.14, found 269.19 (9%)), respectively.
The molecular ion of [Co(ur)(gly)(H2O)2]Cl complex loses glycinate (NH2CH2COO-) ion and 2H2 leaving an ion at m/z 185.67, which by its turn, loses H2O, Cl, CO, NH3 and H2 giving an ion at m/z 85.01.
The mass spectrum of [Ni(ur)(gly)(H2O)2]Cl complex exhibited a peak at m/z 244.90, indicating the loss of H2 and NH3, then this molecular ion loses H2O and ½ Cl2 leaving an ion at m/z 192.83, which further loses one more H2NCH2COO- affording an ion at m/z 118.87. The complex [Cu(ur)(gly)(H2O)2]Cl loses [CO, ½ Cl2] and H2O to give ions at m/z 205.68 and 251.19, respectively.
The magnetic moments of the Co(ΙΙ), Ni(ΙΙ) and Cu(ΙΙ) complexes as well as their electronic spectra data have provided good evidence for the structures of these complexes as shown in Table 5. [Co(ur)(gly)(H2O)2]Cl hexa-coordination is suggested. This is based on the spectrum (Figure 4) recorded in DMSO solution which shows bands at 17985 cm-1 and 14482 cm-1, due to transition of 4T1g → 4T1g(P) (υ3) and 4T1g→ 4A2g (υ2), respectively23. The third band of the spectrum, assigned to υ1, could not be observed due to the limited range of the used instrument (200-1100 nm). [Co(ur)(gly)(H2O)2]Cl has a magnetic moments of 4.76 B.M; this value is due to a high-spin octahedral geometry around the Co(II) ion as reported previously24. Moreover, the violet colour of octahedral Co(II) complexes is in good agreement with those previously reported25.

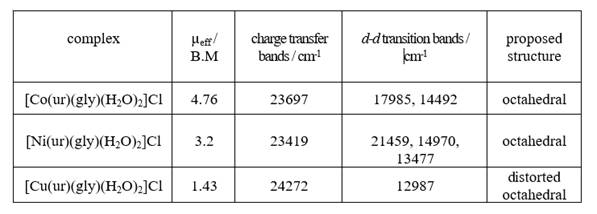

Magnetic moment and electronic spectral data in DMSO solution for the complexes.
Figure 4.
UV-VIS spectrum of [Co(ur)(gly)(H2O2]Cl complex in the MSO solution.
From the above discussion (Figure 5) of [Co(ur)(gly)(H2O2]Cl can be suggested. Furthermore, previous studies proved that the broad bands centred at 23697 cm-1 should be assigned to charge-transfer transitions in [Co(ur)(gly)(H2O)2]Cl26.
Figure 5.
Suggested structure for the complex.
The magnetic moment data as well as the electronic spectrum data of the nickel complex are given in Table 5. The complex [Ni(ur)(gly)(H2O)2]Cl has a magnetic moment value of 3.2 B.M consistent with an octahedral geometry around the Ni(ΙΙ) ion with a 3A2g ground term, which lies in the range reported in the literature27. In addition, the complex has three bands in the UV-VIS recorded in DMSO solution (Figure 6): 21459 cm-1 may be due to the 3A2g→ 3T1g (υ3); 14970 cm-1 due to 3A2g→ 3T1g (υ2); 13477 cm-1 in the transition range of an octahedral structure around the Ni(ΙΙ) ion (υ1) (Figure 5)28. The green colour is also an additional evidence for the octahedral structure26. The band at 23419 cm-1 may be attributed to the charge transfer transition of [Ni(ur)(gly)(H2O)2]Cl complex23.
[Cu(ur)(gly)(H2O)2]Cl (structure in Figure 5) has an electronic spectrum (Figure 7) that shows a strong band at 12987 cm-1 due to 2Eg → 2T2g transition, suggesting a distorted octahedral geometry26. The broadness in the band may be due to Jahn-Teller effect29 and the proposed geometry is also supported by the blue colour of this complex27. The magnetic moment value of this complex 1.43 B.M agrees with the d9 system containing one unpaired electron26. The observed band at 24272 cm-1 in the spectrum of the complex may be due to LMCT (L→M charge transfer transition) of [Cu(ur)(gly)(H2O)2]Cl complex30.
Figure 6.
UV-VIS spectrum of [Ni(ur)(gly)(H2O)2]Cl complex in DMSO solution.
Figure 7.
UV-VIS spectrum of [Cu(ur)(gly)(H2O)2]Cl complex in DMSO solution.
The thermal and kinetic parameters for each step in the decomposition sequences of the Cu-complex were determined by using the integral Coast-Redfern equation. The Coats-Redfern method is linearized for a correctly-chosen order of reaction (n) and the activation energy (Ea) is obtained from the slope of the log [y] versus T-1 plot from Equation:
where: α = fraction of mass loss, T = temperature (K), Z = pre-exponential factor, R = molar gas constant, q = heating rate and n = reaction order; estimated by Horovitz-Metzger method.
The thermodynamic parameters of the thermal degradation step: enthalpy (ΔH*), entropy (ΔS*), and Gibbs energy (ΔG*) of activation are calculated using the following standard equations:
where z, k, and h are the pre-exponential factor, Boltzmann and Planck constant, respectively.
The TG and DTA thermograms of [Cu(ur)(gly)(H2O)2]Cl complex (Figures 8 and 9) are characterized by the three fast decomposition steps (25-318, 318-361 and 361-375 °C). The TDTG at 302 °C is consistent with the evolution of 100% of coordinated water, 100% of bonded chloride and 60% the urea ligand (calc. 39.95%, found 39.93%). The activation energy calculated is 89 kJ mol-1 (Table 6). The remaining urea molecule may be eliminated in the second step together with 52.72% of glycine molecule (calc. and found 23.43%). In this step (318-361 ºC), the activation energy is 123 kJ mol-1 and the order of decomposition reaction is 3.6 with the apparent TDTG (334 ºC) and the exothermic (TDTA) peak at 349 ºC (Table 7). The third step, which corresponds to 17.57% loss of glycine molecule (calc. 4.86, found 4.84%) has an activation energy of 117 kJ mol-1. The final residue is CuO and 0.5C as ash [(O=21.6%gly, C=8.11%gly) (calc. and found 31.78%)]. The ∆S*, ∆H* and ∆G* for these three steps are calculated (-119.3, -100.1 and -183.8 J K-1 mol-1), (86.5, 120.2 and 114 kJ mol-1) and (122.5, 153.6 and 180.7 kJ mol-1), respectively.

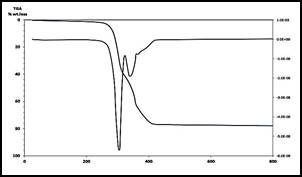

Figure 8.
TG and DTG curves of [Cu(ur)(gly)(H2O)2]Cl.
Figure 9.
DTA curve of [Cu(ur)(gly)(H2O)2] Cl.

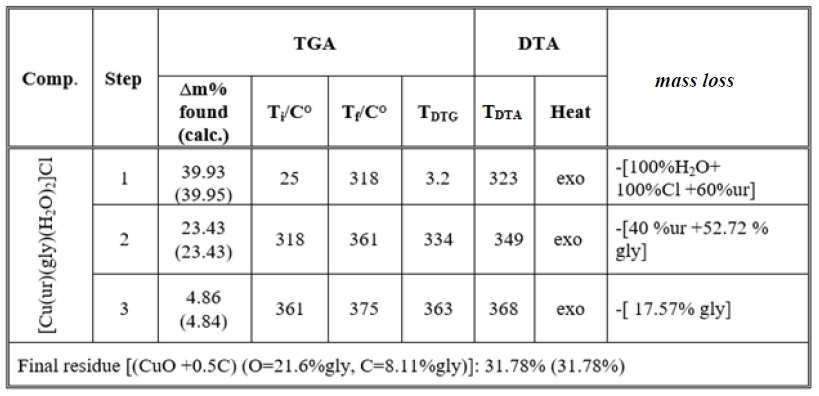

Characteristic parameters of thermal decomposition (10 °C min-1) for [Cu(ur)(gly)(H2O)2]Cl.

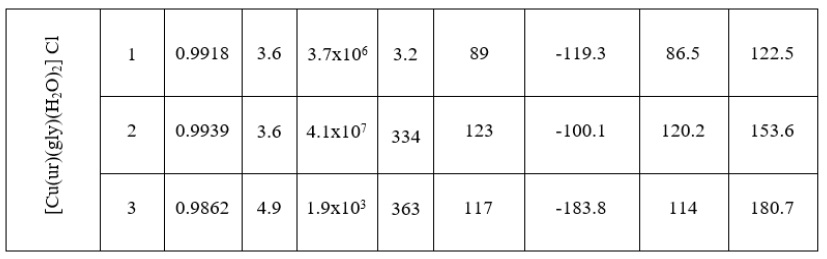

Kinetic and thermodynamic parameters of the thermal decomposition of [Cu(ur)(gly)(H2O)2]Cl.
Urea showed activity against the Bacillus spp. and Escherichia coli with inhibitory zones of 12 mm and 10 mm, respectively and glycine against the Bacillus with inhibitory zone of 9 mm. But no inhibition zone was observed for all the complexes against the four studied strains (Bacillus spp., Escherichia coli, Pseudomonas aeruginosa and Staphylococcus aureus) excepting the complex [Ni(ur)(gly)(H2O)2]Cl which was active against Escherichia coli with inhibitory zone 5 mm. This is probably because urea denatures protein when dissolved, and for the presence of amino and carbonyl groups. However, after complexes formation there would be no activity, due to the coordination of the amino and carbonyl groups31.
The formulae and the stoichiometry of the complexes of urea and glycine with Co(II), Ni(II) and Cu(II) metal ions are suggested based on the analytical data and TGA results. Neutral bidentate behavior of the urea coordination through the amine nitrogen and carbonyl oxygen is identified by IR spectra. Glycine behaved as an anionic bidentate ligand through the carboxylate group and the neutral amino group. The electrolytic nature of the complexes was confirmed by the molar conductance values. All the complexes have an octahedral geometry, as revealed the spectral and magnetic results. The thermal decomposition studies of [Cu(ur)(gly)(H2O)2]Cl allowed to access the kinetic parameters for the successive steps of its decomposition. The complexes have no antibacterial activities against the four strains of bacteria, except the Ni-complex, which is active against Escherichia coli, probably due to protein denaturation.
Authors are grateful to Professor Hussein Al-Maydama for his valuable assistance.
