1. Introduction

Quantitative instrumental methods based on atomic spectrometry are commonly used to determine Cr(VI), however these techniques are expensive and are not available in several universities, especially those located in developing countries^1-3. An image for analysis can be obtained from a mobile phone, scanner or webcam that are versatile instruments and easy to operate. Undergraduate students enjoy interactive and attractive classes, and the use of these tools can be an interesting approach for the experimental part of a laboratory exercise. In recent years, several research groups have used mobile phones and scanners in laboratory classes for determination of metals in several samples^4-6.

Digital images can provide a large amount of data from the extraction of picture elements called pixels, where each pixel is characterized by different channels. The color system most commonly used for color images is red (R), green (G) and blue (B). Although RGB is the most frequently used color model, there are others that can be generated from it, such as hue, saturation and value (HSV); hue, saturation and lightness (HSL); cyan, magenta, yellow, key or black (CMYK) color space; and hue, saturation and intensity (HSI). In these models, hue (H) is associated with how most people recognize a color, for example, the differentiation between red and yellow. Saturation (S) is the amount of the color that is present in an image, for example, the differentiation between red and pink. Value (V), lightness (L), or intensity (I) are related to the amount of light, such as the distinction between dark and light red or between dark and light gray. Value is defined as the highest amount among R, G or B, intensity as the average of R, G or B colors, and lightness is defined as the average of the maximum and minimum amounts of R, G or B⁷.

In 2016, a new free app called PhotoMetrix for image analysis was proposed by Grasel and co-authors⁸. The authors used PhotoMetrix for the identification of tannins according the source type (chestnut, valonea, quebracho, black wattle, tara and myrobalan). PhotoMetrix was used in module multivariate analysis, and images were analyzed using RGB histograms and HSI channels. Principal component analysis (PCA) was employed to verify separation among sample groups. In other study using PhotoMetrix, Helffer and collaborators⁹ proposed a simple method for determination of Fe in supplements. The determination of Fe in these samples was performed in univariate mode and differentiation among them was performed in multivariate mode using PCA.

In this sense, the present study proposed a new method for Cr speciation and Cr(VI) determination in leather samples by digital images using the PhotoMetrix app and a mobile phone to obtain, prepare, handle the data, and perform the calculations. This method is simple and obeys the principles of green chemistry as it requires minimum number and quantity of reagents and can be performed in a fast, non-destructive and inexpensive manner. In addition, the method can be applied in laboratory classes and several chemical concepts can be addressed with students.

2. Materials and methods

2.1 Experimental details

The experiments related to image analysis, data processing and treatment were accomplished in an analytical chemistry laboratory course with 15 students. The students were divided into groups, and each one was responsible for part of the activities. Group 1 was responsible for standard solutions preparation, Group 2 was responsible for alkaline Cr(VI) extraction in leather samples and Group 3 was related to data acquisition, processing, and results compilation and organization. A total of 4 hours was needed to carry out the experiments. The results obtained by ICP OES (inductively coupled optical emission spectrometry) for total Cr determination were previously provided to the students.

2.2 Instrumentation

Digital images were obtained using the PhotoMetrix app version 1.0.5 using a cell phone. The PhotoMetrix application in the “Univariate Analysis” mode captures images using the camera of the mobile device. The images can be analyzed using two modes, vector RGB and multi-channel. In vector RGB mode, R, G, B average values are used to calculate the Euclidean norm of the values. In multi-channel mode, each color channels (R, G, B, H, S, V, L, I) is used individually. PhotoMetrix also allows the use of different spot sizes (32 x 32; 64 x 64; 96 x 96 pixels) to obtain images. The mobile phone was mounted on an apparatus made from a wooden box (16.5 × 29.5 and 9.5 cm in height), with a holder to attach the phone (similar to those found in cars to mount a mobile phone) and a hole for the phone camera, as shown in Figure S1 (see Supplementary Material).

Reference concentrations of total Cr were obtained with an ICP OES (iCAP 6000, Thermo Scientific, Waltham, MA, USA), after acid extraction of the samples (n=3). This instrument allows collection of sequential emission signals, using both axial and radial viewings. Argon (99.996%, White Martins-Praxair, Sertãozinho, SP, Brazil) was used as a plasma gas for ICP OES and additional instrumental parameters are shown in Table S1 (see Supplementary Material). Reference concentrations of Cr(VI) were obtained using a spectrophotometer (Thermo Fisher, Shanghai, China), in 540 nm wavelength and a quartz cuvette with 1 cm of optical path.

2.3 Reagents, solutions and samples

All solutions were prepared by students. Ultrapure water (18.2 MΩ cm resistivity) produced by a Milli-Q Plus Total Water System (Millipore Corp., Bedford, MA, USA) was used to prepare all the aqueous solutions. Nitric acid (HNO₃) was previously purified using a sub-boiling distillation system, Distillacid BSB-939-IR (Berghof, Eningen, Germany), and hydrogen peroxide, (H₂O₂) 30% w/w (Synth, Diadema, Brazil), was used for the digestion of samples to determine total Cr. The analytical curve for determination of total Cr was prepared in the range 0.005 to 60 mg L^-1. All glassware and polypropylene flasks were washed with soap, soaked in 10% v/v HNO₃ for 24 h, and rinsed with deionized water prior to use.

A standard stock solution containing 1000 mg L^-1 of Cr(VI) was prepared by weighing an adequate mass of a primary standard, potassium dichromate (K₂Cr₂O₇) (Synth, São Paulo, Brazil), previously dried at 160 °C for 2 h. The reagents sodium hydroxide (NaOH), sulfuric acid (H₂SO₄), 1,5-diphenylcarbazide (DPC) and acetone were purchased from Merck (Darmstadt, Germany).

The alkaline extraction of Cr(VI) was performed using a 0.1 mol L^-1 NaOH solution. A 5.0 mol L^-1 H2SO4 solution was prepared to adjust the pH of the extracts. In addition, a DPC solution was prepared daily by dissolving 0.2 g of the reagent in 10 mL of acetone and diluting to 100 mL with deionized water. The DPC solution was then stored in an amber flask to avoid degradation by the environmental light. The calibration curve to determine Cr(VI) concentration by digital images was prepared in the range from 0.05 to 0.75 mg L^-1 and a Cr(III) solution (Qhemis, Jundiaí, SP, Brazil) containing 50 mg L^-1was prepared and used in the addition and recovery tests. Seven leather samples were acquired from Embrapa Pecuária Sudeste (São Carlos, SP, Brazil) and analyzed in this study. The leathers were tanned with Cr salts (bovine samples: 1 to 4) and vegetable tannin (ovine samples: 5 to 7). Additional details about the process of leather tanned using Cr salts are available in publication of Dixit et al.¹⁰.

2.4 Sample preparation to determine total Cr and Cr(VI)

To determine total Cr, a reference extraction procedure proposed by Neiva and Pereira-Filho¹¹ was used. The extraction procedure for determination of Cr(VI) using the reference method by UV−Vis and proposed procedure using digital images is described below. The general procedure is represented in Figure 1.

For Cr(VI) extraction, 100 mg of leather samples were weighed in Erlenmeyer flasks, and 10 mL of 0.1 mol L^-1 NaOH solution were added. This solution was placed on a hot plate (208-2 D, Nova Ética, São Paulo, Brazil) for 60 min at 90-95 °C with sporadic shaking. When it reached room temperature, the solution was transferred to plastic tubes and centrifuged (3500 rpm for 3 min). A 50 µL aliquot of the supernatant solution was collected and diluted 200-fold. Later, 700 μL of 0.2% (w/v) DPC solution was added and, after this, the pH was adjusted to 1.0 with 5 mol L^-1 H₂SO₄ solution until the solution changed to a pink color¹². To verify the performance of the proposed method, addition and recovery experiments were employed. In the recovery tests, a known concentration of Cr(III) and Cr(VI) was added to the samples before the alkaline extraction and the determinations were carried by UV−Vis and digital images.

2.5 Hazard

The students were advised to use safety goggles, gloves and lab vests during the experimental procedure and to take extreme care in acid and solutions preparation and manipulations. The Cr(VI) extraction was performed in a fume hood. In addition, all the Cr (VI) waste were separated for proper treatment and disposal.

3. Results and discussion

3.1 Optimization of the PhotoMetrix parameters

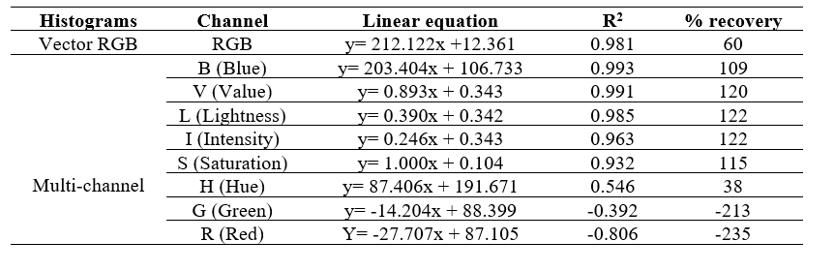

Initially, some experiments were performed to verify the influence of spot size (number of pixels) in the recording of the digital images. To select the best spot size, the linear determination coefficient (R²) of the analytical curves was used. The spot size that presented the best R² value of the analytical curves was 64 x 64 pixels. To select the best color parameter (vector RGB and multi-channel), we used a standard solution of Cr(VI) at 0.35 mg L^-1, and from the analytical curve obtained, the standard concentration was predicted. The parameters obtained for vector RGB and multi-channel histograms are presented in Table 1.

The color channel B (blue) showed the best trueness (109%) and so was selected for the further experiments. In addition, channel B presented an R² of 0.993 and a linear analytical curve equation of y = 203.404x + 106.733. After images decomposition it was observed that channel B presented the highest values when compared with R and G, being the most sensitive channel among the 8 tested.

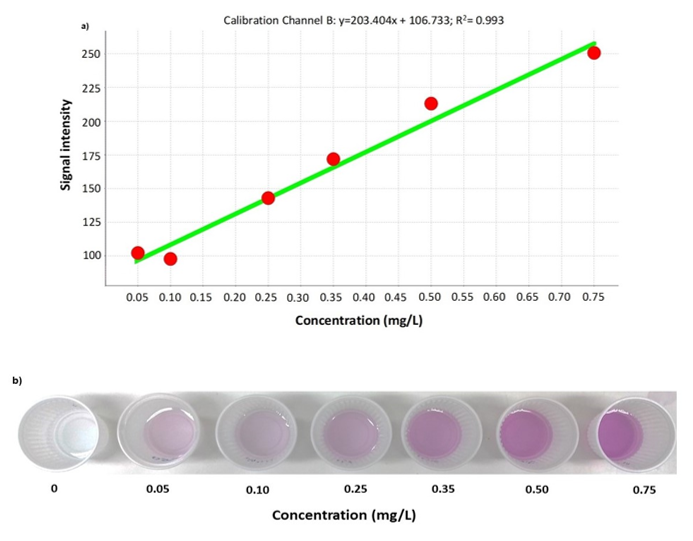

Figure 2a shows the analytical curve for color channel B, and Figure 2b show the colors of the standard solutions used in the analytical curve. An attractive feature of PhotoMetrix is that the analytical curves are obtained on the app (Figure 2a). In addition, the concentrations predicted by the colors can be also observed in the app. The pink/violet coloration, shown in Figure 2b, is derived from the colorimetric reaction between Cr(VI) and the chromogenic reagent DPC. The overall reaction between Cr(VI) and DPC is presented in Equation 1.

The DPC (H₄L) is oxidized to diphenylcarbazone (H₂L), whereas Cr(VI) is reduced to Cr(III) forming the pink/violet color complex Cr(III) - diphenylcarbazone [Cr(III)(HL)₂]⁺, the reaction occurs in acid medium and the complex has maximum absorbance at 540 nm.

3.2 Validation and application

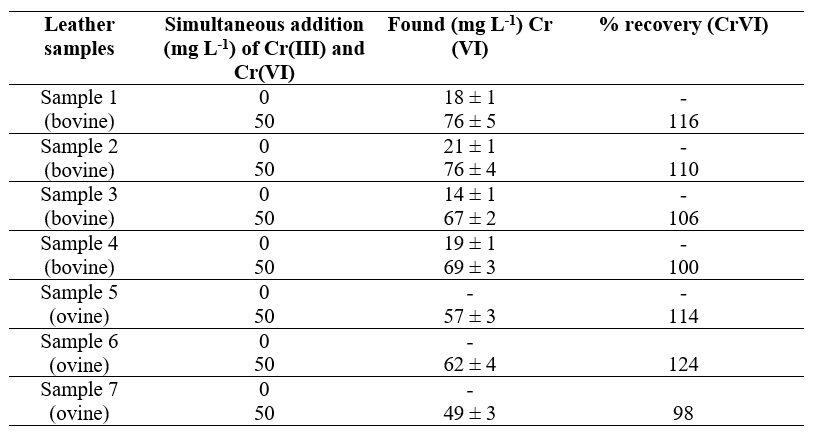

The limits of detection (LOD) and quantification (LOQ) were calculated according International Union of Pure and Applied Chemistry (IUPAC) recommendations¹³. The LOD and LOQ of method proposed were 0.6 and 2 mg kg^-1, respectively. These values were obtained after multiplying the LOD and LOQ values from the analytical curve by the dilution factor (20,000-fold). The precision estimated as the relative standard deviation (%RSD, n=7) was determined from seven measurements for the extractions performed on a sample of leather with a concentration of 14 mg L^-1 of Cr(VI), and the RSD obtained was 7.5%. To evaluate the accuracy of the proposed method, addition and recovery experiments were employed. Samples were spiked with standard solutions of 50 mg L^-1 Cr(III) and 50 mg L^-1 Cr(VI) before alkaline extraction, and the obtained recoveries were in the range 98-124%. The results are shown in Table 2. No species conversion (oxidation) from III to VI was observed.

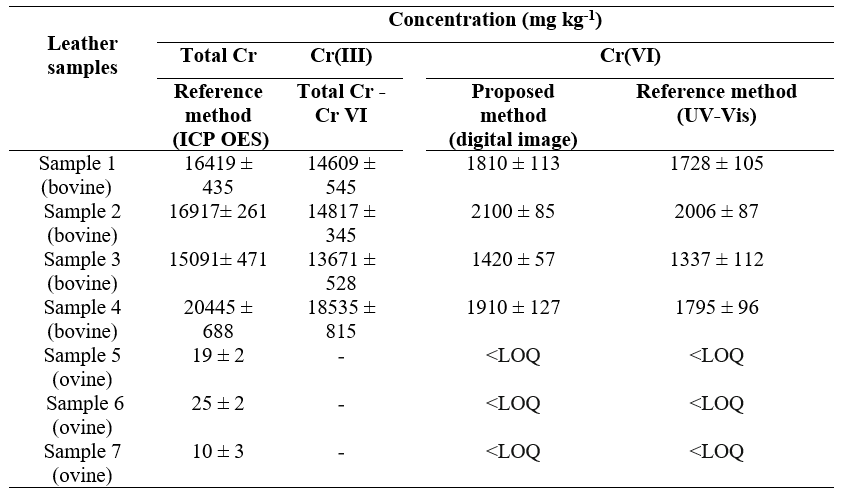

In addition, the results obtained through the method developed in this research were compared to those obtained by a reference method using UV-Vis, and the results of the concentrations of total Cr, Cr(III) and Cr(VI) are presented in Table 3.

A statistical evaluation using two-sample t-test showed that there is no difference between the Cr(VI) values obtained with the use of the proposed and the reference method at the 95% confidence level. The concentrations of Cr(VI) determined in the bovine leather samples tanned with Cr salts showed, as expected, the highest values, varying from 1420 – 2100 mg kg^-1. On the other hand, the ovine leather samples tanned with vegetable tannins presented Cr(VI) concentration lower than the LOQ of the proposed method. The samples analyzed show values of Cr(VI) concentration above the limits set by the European Union that established a maximum concentration of Cr(VI) of 3 mg kg^{1 14}. The use of vegetable tannins shows this treatment is in accordance with principles of green chemistry.

The Cr(VI) values found are high and worrisome, since studies with sensitized individuals revealed that at a level of 5 mg kg-1 of Cr, half of the people evaluated presented allergic skin reactions15. Normally, leather tanning involves the use of Cr(III). However, there have been many reports that Cr(VI) has been abnormally detected in some leather samples, but this has been widely debated16. In time, the chemicals used in production and other environmental factors, such as heat and light, may cause changes and deformations in leather products, e.g., oxidation of Cr(III) to Cr(VI), a decrease in shrinkage temperature, fading or yellowing color, a loss of physical resistance, and odor problems due to oxidation of fat liquors or formaldehyde release. These deformations generally occur due to oxidant groups – free radicals, which arise depending on these factors.

3.3 Note to faculty

In technological terms, our society has changed substantially in the last decades. Not only did computers become ubiquitously part of school space or homes, but mobile phone also invaded the hands of students and teachers. It is well known in the literature that teacher can use tools accessible to students, aiming at a contextualized teaching. Contextual teaching draws the attention of students, since the reality of their day can be lived in the classroom. Nowadays every student has a mobile phone, and this may be an opportunity for the teacher to introduce chemical concepts from colorimetric experiments, in which students use their mobile phone as an instrument of analysis. This type of activity addresses the concept of contextualized teaching.

In the experiments proposed in this study using a mobile phone, we highlight the importance of the used app (PhotoMetrix), which facilitates the development of the class and student learning. In this sense, the use of these tools can be a strategy used by teachers in experimental classes, with the purpose of contributing to the intellectual development and awakening the scientific interest of these students who could become future researchers.

From this experiment, several chemical concepts can be approached in the classroom and are listed below:

· Quantitative analysis;

· Chemical speciation;

· Environmental chemistry;

· Solution preparation and construction of a calibration curve;

· Sample preparation;

· Planning and executing experiments through the use of appropriate chemical literature and electronic resources;

· The use of statistical tools can also be approached from analyzing data statistically, assessing the reliability of experimental results, and discussing the sources of systematic and random error in experiments;

· Validation of the analytical procedure.

3.4 Students opinion about the use of Photometrix in experimental class

Currently, many students have a mobile phone and are willing to install a free app, such as the PhotoMetrix. This approach shows that it is possible to use materials in the daily lives of students in the classroom. The utility of this method lies not only in its efficacy for determining Cr(VI) concentration via the measurement of a color change but also in its robustness in a range of factors, including lighting conditions and picture quality, which can vary dramatically from one classroom to another. In addition, the samples used in this experiment can be easily obtained and are present in the daily lives of the students. The students found the experiment interesting, mainly because they could compare the results obtained with PhotoMetrix with those obtained with an equipment, such as a UV-Vis as was performed in this study.

The students’ evaluation from the experimental procedure was very positive, mainly due to the fact they used their own mobile phones in data acquisition and treatment. This experiment was performed in a course named “Qualitative and Quantitative Analysis in Chemistry” and at the end of at least 4 experimental classes performed in different semesters, 20 students answered some questions about the use of Photometrix in the experimental classes. Figure 2S summarizes the students’ opinions.

4. Conclusions

The proposed method for Cr(VI) speciation and determination in leather samples using digital images from mobile phones was shown to be very efficient. The results obtained with the proposed procedure demonstrated good accuracy with values obtained from a reference method by UV-Vis. This method can be used in routine analyses for determination of Cr(VI) in leather samples. In addition, the method can be used in experimental analytical chemistry courses. The students can be motivated by learning that their mobile phones can be used as effective analytical devices. Another benefit of this approach is that students can see with their eyes what they are measuring and understand.
