1. Introduction

The negative effects resulting from the growing demand for fossil fuel energy have mobilized the international community in the search for renewable fuels^1,2⁠. An alternative is the use of biofuels, and, among them bioethanol, or second-generation ethanol (2G), obtained by the fermentation of sugars present in plant residues^3,4⁠.

The plant cell wall matrix is lignocellulosic and composed of cellulose fibrils with a protective layer of hemicellulose and lignin. Covalent bonds ensure cell wall rigidity and high resistance to microbial degradation⁵. Cellulose is the primary constituent⁶⁠, followed by hemicellulose, which is composed by different linked monomers, resulting in a branched heteropolysaccharide. These monomers include pentoses (D-xylose, L-arabinopyranose, L-arabinofuranose), hexoses (D-glucose, D-mannose, D-galactose), hexuronic acids (D-glycuronic, D-4-O-methylglycuronic, D-galacturonic) and deoxyhexoses (L-rhamnose and L-fucose)⁷⁠. Xylan, a polymer of D-xylose, is the primary polymer constituent of hemicelluloses.

Xylanases degrade xylan by hydrolyzing the β 1,4 glycosidic bonds producing xylooligosaccharides (XOS) and β–xylosidases convert them to xylose. However, xylan has more structural complexity, containing β-D-xylopyranoside residues linked by β 1,4 glycosidic bonds associated with other sugars, forming glucuronoxylans, glucuronoarabinoxylans, glucomannans, arabinogalactans and galactoglucomannans⁸⁠. Because of this heterogeneity, their complete hydrolysis requires several enzymes acting synergistically to convert their disaccharides and constituent monosaccharides into its subunits^9,10⁠.

Industry uses enzymes of the xylanolytic complex in different processes. For example, the paper industry uses enzymes in the bleaching stage to replace chlorine, as they promote the removal of xylan linked to the lignin, facilitating the bleaching of lignin¹¹⁠. They are also used in the pretreatment of arabinoxylan found in the substrate in beer production, reducing the viscosity and facilitating the process of filtration. These enzymes are employed in the production of bread, by increasing the volume of the product, making the dough soft and loose¹²⁠.

Filamentous fungi are the major producers of enzymes of the xylanolytic complex, followed by macromycetes, bacteria, seaweed and some germinating plant seeds^8⁠. Fungal enzymes for biotechnological purposes can be produced in two main ways: by cultivation in solid-state (CSS) or by submerged culture (CSm). The CSm is characterized by the high availability of free water in the culture medium¹³⁠. To promote the aeration necessary for the growth of filamentous fungi, it is necessary to agitate the culture medium, but the constant agitation during the growth of the mycelium can cause morphological changes in the microorganism¹⁴⁠, resulting in changes in the metabolite production.

Cultivation in solid-state is carried out without the presence of free water, and with the humidity necessary for fungal growth¹⁵⁠, the material is incubated and the product is recovered at the end of the process. The solid substrate provides better conditions for mycelial growth and is similar to the natural environment of fungi, requiring a lower demand of energy¹⁶⁠. Aeration of the medium does not require agitation when the fungus contact surface with the substrate is assured.

The biodegradation of xylan by enzymes from the xylanolytic complex allows to obtain several products, such as xylitol, xylooligosaccharides (XOS) and xylose^8,17⁠. In recent years, the use of these enzymes in saccharification of plant biomass has gained prominence, since in combination with other enzymes they facilitate the release of monosaccharides from the hemicellulose polymer, thus, yeasts can metabolize them for the production of second generation ethanol⁴⁠. The enzymatic attack on the lignocellulosic material allows the conversion of polymers into carbohydrate monomers. For an efficient degradation, it is necessary to overcome the structural barrier of this material, and for that pretreatment strategies are adopted. Several options can be used; the main ones are physical, chemical and biological pretreatment. Also, the combination of these processes is described as more efficient in removing the noncellulosic fraction¹⁸⁠.

Physical pretreatment (grinding, radiation, or heat treatment) is responsible for decreasing polymerization of the material, increasing the surface area. Among thermal methods, high temperatures are required, the biomass is mixed with water and are heated to the desired temperature and held at the pretreatment conditions for a controlled time before being cooled¹⁹⁠. Higher temperatures require shorter treatment times, while lower temperatures require longer treatment times. In this context, it would be helpful to use thermostable enzymes for the next hydrolysis step, thus, the pretreated material could be hydrolyzed at high temperatures, saving refrigeration resources.

This study describes a biochemical characterization of endoxylanases from the crude extract of the thermophilic fungi Rasamsonia emersonii. In addition, it was investigated the effectiveness of this crude extract to hydrolyze pretreated sugarcane bagasse to release products, like glucose and xylose. Endoxylanases isolation and the analysis of thermostability for the enzyme with the highest activity towards xylan were also carried out.

2. Experimental

2.1 Materials

All chemicals and solvents used for the procedures were analytical grade.

2.2 Enzyme production by R. emersonii S10 by solid-state cultivation

The thermophilic fungus R. emersonii S10, isolated and identified by a previous work²⁰⁠, was cultivated on Sabouraud dextrose agar. From this agar, 20 disks of 1 cm in diameter were extracted and cultivated at 55 °C for 6 days in individual polypropylene bags containing 5 g (1:1:1 w/w) of sugarcane bagasse, wheat bran and corn straw, these were previously washed on distilled water and dried at 47 °C until constant weight. To each bag were added 20 mL of nutrition solution (3.5 g L^–1 of (NH)₄SO₄, 3 g L^–1 of KH₂PO₄, 0.5 g L^–1 of CaCl₂, 0.5 g L^–1 of MgSO_4-7H₂O and 10 g L^–1 of tween 80) at pH 5.0.

To prepare the enzyme extract, 50 mL of deionized water was added, and the plastic bags were placed on an orbital shaker at 150 rpm for 40 min. The liquid extract containing the enzymes was transferred from the bag and it was vacuum filtered through a 0.45 μm nylon membrane. Subsequently, the filtrate was centrifuged at 10,000 xg for 30 min at 4 °C. The supernatant was the used as crude extract in the subsequent procedures.

2.3 Biochemical characterization of xylanases from the crude extract

To determine the xylanolytic activity, the sample was incubated in 1% (w/v) beechwood xylan at 55 °C for 10 min, and for endoglucanase activity, the sample was incubated with 4% (w/v) of carboxymethylcellulose (CMC) as substrate at 50 °C using a 1:9 enzyme:substrate volume ratio²¹⁠⁠⁠. The released reducing sugars reacted with 3,5-dinitrosalicylic acid (DNS) and the activity was quantified using spectrophotometry, being expressed as the product concentration change over time (d[P]/dt)^22⁠, which was linear up to 4 min, time adopted for the enzymatic assays. Experiments were carried out using a 0.1 mol L^–1 acetate buffer pH 5.5, with the exception of the determination of the optimal pH.

All experiments to determine the optimal pH (3.0–9.5) and temperature (30–90 °C) were conducted in three repetitions, and the pH stability of the crude extract was evaluated after 24 h of incubation in this range of pH, at the optimum temperature. For the optimal pH determination, the following buffers (0.1 mol L^–1) were used: citrate (pH 3.0 and 3.5), acetate (pH 4, 4.5, 5.0 and 5.5), MES (pH 6.0, 6.5 and 7.0), tris (pH 7.5 and 8.0) and glycine (pH 8.5, 9.0 and 9.5). For the pH stability experiment, the enzyme activity was expressed as the relative activity between the activity before and after the 24 h treatment.

The effect of glycerol on the storage conditions of the xylanases was evaluated by their activity, performing every experiment in triplicate. Three aliquots of the crude extract were stored in liquid nitrogen (-196 °C), -80 °C freezer, freezer (-20 °C), refrigerator (4 °C) and room temperature (25 °C), with and without glycerol 50% (v/v). The enzyme activity was quantified before and after 24 h of storage.

2.4 Effect of phenolic compounds on the xylanolytic activity

The inhibition of xylanolytic activity by phenolic compounds was tested on the crude extract at room temperature (24 °C). The following compounds were tested individually at a final concentration of 10 mmol L^–1: tannic acid, p-coumaric acid, syringic acid, gallic acid, ferulic acid, 4-hydroxybenzoic acid, vanillin, vanillic acid and syringaldehyde. The enzymatic activity was measured and expressed as percentage for the solutions incubated for 10 min, 24 and 48 h. The activity of the enzyme was compared with that measured prior to incubation, considered to be 100%.

2.5 Sugarcane bagasse pretreatment

The pretreatment was carried out by a combination of ozonolysis with an alkaline treatment²³⁠. After these procedures, the bagasse was either washed or left unwashed. The washed bagasse was rinsed several times with distilled water. Both washed and unwashed treated bagasses were dried in a convective oven at 40 °C until constant weight.

2.6 Enzymatic hydrolysis of sugarcane bagasse

Hydrolysis was performed using an orbital shaker at 150 rpm in glass flasks with rubber stoppers, containing 0.5 g of washed or unwashed bagasses, 2.5 mL of acetate buffer 0.1 mmol L^–1 pH 5.5 and 2.5 mL of crude extract of R. emersonii containing 22 U mL^–1 of xylanase (or 110 U per g of sugarcane bagasse) and 17 U mL^–1 of endoglucanases (or 85 U per g of sugarcane bagasse). All the tests were conducted in three repetitions.

A preliminary test to determine the optimal time and temperature for enzymatic hydrolysis was conducted with untreated sugarcane bagasse. The untreated sugarcane bagasse was hydrolyzed for 6, 12 and 24 h at 50, 60, 70 and 80 °C. Maximum hydrolysis was observed with 6 h at 60 °C.

The pretreated sugarcane bagasses, washed and unwashed, were hydrolyzed at 60 °C for 2, 4 and 6 h. The material was filtered after hydrolysis, and the soluble fraction was used for quantification of released sugars. Experiments were performed using sugarcane bagasse (untreated, washed and unwashed pretreated) with 5 mL of 0.1 mmol L^–1 pH 5.5 acetate buffer (without enzyme extract) as a control of hydrolysis.

The efficiency in converting hemicellulose (or cellulose) was calculated as in Eq. 1:

where c is the concentration (g L^–1) of sugars in the soluble fraction hydrolyzed, v is the volume in liters of soluble fraction and m is the hemicellulose (or cellulose) mass in grams.

2.7 Quantification of the sugars from the breakdown of the sugarcane bagasse

The procedures were done according to Perrone et al.^23⁠. The obtained hydrolysates from washed and unwashed pretreated sugarcane bagasses were analyzed by chromatography. The quantification of glucose and xylose were carried out using high-performance liquid chromatography (HPLC) with a pulsed amperometric detector (HPAEC-PAD, Thermo Scientific, Dionex, ICS-5000). A Dionex CarboPac PA-1 column was used for separation at 25 °C, using a flow of 1 mL min^–1 with ultrapure water (solvent A) and 0.5 mol L^–1 NaOH (solvent B). Elution was carried from 0 to 12 min with 4.8% of solvent B, and from 12 to 16 min with 100% of the same solution. Before each injection, the sample was diluted and filtered through a 0.22 µm polyvinylidene fluoride (PVDF) filter unit (Merck).

2.8 Electrophoretic profile of endoxylanases produced by R. emersonii

Polyacrylamide gel electrophoresis was performed on the crude extract. The gel was immersed on 1% of triton X-100 at the end of the run to eliminate the residual SDS and washed with a 0.1 mmol L^–1 pH 5.5 acetate buffer.

One vertical strip was separated and used for zymogram analysis²⁴⁠. After that, the strip and the original unstained gel were put side by side and a strip of the gel was cut horizontally to compare the known gel isoforms with the zymogram, a technique used to isolate other enzymes²⁵⁠.

The enzymatic activity of the four isolated endoxylanase isoforms was analyzed against different substrates: the synthetic substrates pNPG (specific for β-xylanases) and pNPX (specific for β-glucanases), and the natural polymers CMC (for endoglucanases), beechwood xylan and oat spelt xylan (for endoxylanases).

2.9 Thermodynamic analysis of Xyl_C isolated from the crude enzymatic extract of R. emersonii

Among the four isolated isoforms, was selected the xylanase that showed the highest affinity for the complex substrate, confirming the endoxylanase identity for these experiments.

The thermodynamic analysis of Xyl_C thermal denaturation was done using xylan from beechwood at the optimum pH. After incubation at each temperature samples were cooled in ice overnight, followed by the enzyme assay for residual activity. The calculation of the activation energy E_a, the temperature coefficient Q₁₀, half-life T_1/2 and other parameters of the enzyme related to the thermal denaturation, including the activation energy E_a(D), melting temperature Tm, ΔH_(D), ΔG_(D) and ΔS_(D), followed the method proposed in the literature^26,27⁠ and done in previous studies with other enzymes^28,29⁠. The irreversible denatured “I” state is evaluated using the model N ↔ D → I, where N represents the native conformation and D the reversible denatured conformation.

3. Results and discussion

3.1 Production and biochemical characterization of endoxylanases on the crude extract produced by R. emersonii

The production of endoxylanases by R. emersonii on solid state cultivation was 473.86 U g^–1 after 144 h of cultivation at 55 °C. The substrate combination of equal amounts of sugarcane bagasse, wheat bran, and corn straw (w/w) results on a complex carbon source. The protein expression changes, as recorded for R. emersonii, with different culture media. This fact can be a mechanism directly or indirectly based on the accumulation in the medium of the products and substrates on which the enzymes are working and which will influence their induction³⁰⁠.

When analyzing the chemical composition of substrates used to induce xylanase production, it could be inferred that the combination of various substrates, such as sugarcane bagasse, corn straw, and wheat bran, is successful due to the heterogeneity of the composition to which the fungus was subjected. Corn straw has higher xylan values than the stalk of the plant, with 26.8% xylan in the straw versus 19.4% xylan in the stalk. In contrast, proteins constitute 1.2% in the fiber and 3.4% in the stem³¹⁠. Sugarcane bagasse has a characteristic chemical composition that is high in cellulose, hemicellulose and lignin, while overall ash values are lower (1.0–5.5%)³²⁠, factors that make it attractive for the cultivation of microorganisms that produce lignocellulolytic enzymes. Studies use wheat bran as a substratum for the production of biomass because it is rich in starch; however, the oligosaccharides present in its composition are shown to be efficient in inducing cellulase and hemicellulase production³³⁠.

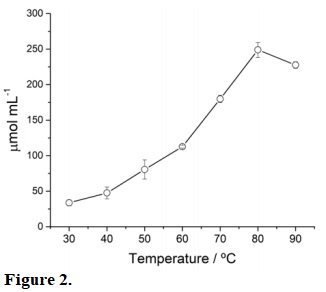

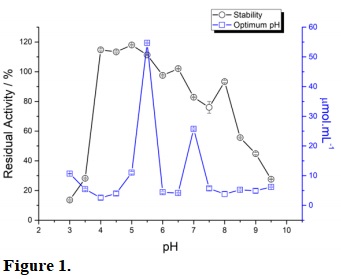

The optimum pH and temperature of xylanases on the crude enzymatic extract from R. emersonii was 5.5 (Fig. 1) and 80 °C (Fig. 2), close to those described for Talaromyces emersonii, currently classified as R. emersonii, with solid-state wheat and beet pulp cultivation (1:1 w/w) at pH 4.5 and 45 °C³⁰⁠. Another increase of activity occurred at pH 7.0 and suggests isoforms of the endoxylanases produced by R. emersonii, since the zymogram shown in Fig. 3 indicates four bands.

Endoxylanolytic activity remained stable for pH ranging from 4 to 8, with relative activity above 70%, and from 4 to 5.5 with relative activity values above 100% (Fig. 1). The chemical species related to the pH can change the tridimensional structure of the enzyme, by protonation or deprotonation of the amino acid side chains on the enzyme surface or affecting the catalytic residues, becoming more favorable or unfavorable to interact with the substrate. Among these changes, electrostatic repulsions, destruction of salt bridges and formation of isolated buried charges stand out³⁴⁠.

Comparative analyses of structural changes in acid, neutral and alkaline xylanases from family 11 shows differences in the amino acid compositions and secondary structure. Neutral xylanases have a decrease on hydrophobic residues, while acidophilic xylanases have a decrease on positively charged residues. On the secondary structure, alkaline xylanases show an α helix between β strands, and, in nonalkaline xylanases, this is substituted by a β-turn or a loop³⁵⁠.

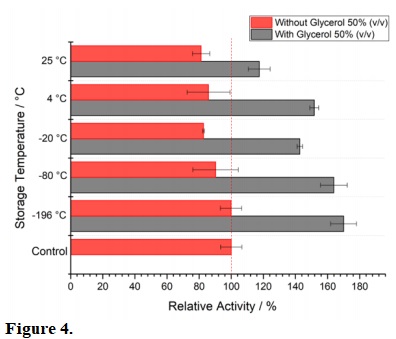

In the absence and presence of glycerol, the two best storage conditions were obtained in liquid nitrogen at -196 °C with 99% relative activity in the absence and 170% in the presence of 50% glycerol, and in a -80 °C freezer, which kept 90.2% of activity in the absence and 163.8% in the presence of 50% glycerol (Fig. 4).

The presence of glycerol during the storage process increased the endoxylanase activity on all the tested conditions. The effect of osmolytes on the conformational stability of proteins in adverse situations of cellular stress is known³⁶⁠. Similarly to sorbitol, it favors protein folding, making the polypeptide chain more compact and less flexible, since it acts by shifting the reaction balance to the less energetic state³⁷⁠.

The interaction of the enzyme with the osmolyte is not favorable for its function, so it is excluded from the surface of the protein, where a hydration layer is formed by several highly organized and less flexible water layers. Consequently, the unfolded state has a greater contact surface of the polypeptide chain with water molecules, resulting in a larger hydration layer, which will require more energy for stabilization. For this reason, glycerol acts by shifting the reaction balance towards the native state, increasing levels of enzyme catalytic effect³⁸⁠.

3.2 Effect of phenolic compounds on the xylanolytic activity on the crude extract from R. emersonii

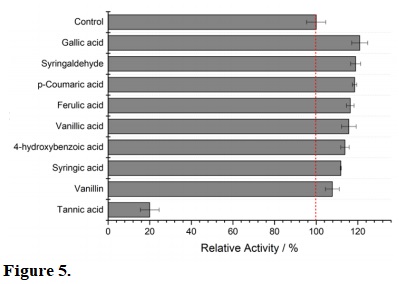

From all the tested phenolics (Fig. 5), the only one that decreased the xylanolytic activity was tannic acid, a large molecule with a molecular weight of 1,701.23 kDa, which is composed by 10 aromatic rings and 25 hydroxyls, characteristic that could explain the inactivation of the endoxylanolytic activity, according to observations previously cited^39⁠. Tannins can form a complex with the protein that results in precipitation, thus, the enzyme is removed from the solution, decreasing its catalytic capacity^40,41⁠.

The other compounds analyzed showed a modest or a significant increase of the relative activity compared to the control. The relative activity of the enzymes increased 12% for 4-hydroxybenzoic acid; 16% for vanillic acid; 26% for ferulic acid and 44% for syringic acid in a 30 mmol L^–1 final concentration⁴²⁠.

Phenolic compounds are generated from lignin degradation^43⁠during the pretreatment step of the biomass aiming second generation ethanol production and are reported as enzymatic inhibitors^44,45⁠ including hemicellulase inhibition^46⁠. Some authors propose that phenolic acids at low concentrations can form a hydrophobic layer on the surface of the protein, ensuring more interaction with the substrate; however, at high concentrations the increase in this hydrophobic layer causes protein precipitation due to increased interactions^41,42,47⁠. Boukari et al.³⁹ proposed the inhibition mechanism by phenolic compounds on family GH11 endo-β-1,4-xylanase. The authors described a noncompetitive inhibition mechanism, and more than one aromatic molecule interacting with the enzyme molecule is necessary to induce complete inactivation. Effects on the enzyme activity by the phenolic compound interaction can be produced by forming soluble enzyme-inhibitor complex at low phenolic concentrations, while, at high concentrations, insoluble protein-phenolic complexes decrease the solubility of enzymes⁴⁵⁠.

The interaction of phenolic compounds with proteins involve amino acid residues present at the surface of the protein, and can occur in two ways: hydrophobic aromatic ring stacking with the tryptophan side chains, or hydrogen interacting with basic amino acid residues between their functional groups and phenolic hydroxyl³⁹⁠.

3.3 Enzymatic hydrolysis of pretreated sugarcane bagasse

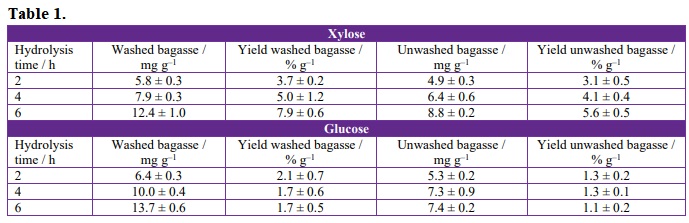

The quantification of xylose was slightly higher in the washed sugarcane bagasse when compared to the nonwashed, in all evaluations, which difference increased with time. In hydrolysis for six hours, the xylose concentration was almost 1.5 times higher with washed sugarcane bagasse than with the unwashed one (Tab. 1). Glucose release presented a similar behavior.

Concentration of hemicellulose (14.1%) and cellulose (48.9%) on the insoluble fraction after the pretreatment process²³⁠ was used to calculate the hydrolysis efficiency in terms of xylose and glucose. Under all analyzed conditions, the conversion of xylose was greater than glucose (Tab. 1), presumably due to high xylanolytic activity in the R. emersonii crude enzymatic extract, and pretreated bagasse structural changes, that could affect cellulose and hemicellulose accessibility. The conversion of xylose was greater than glucose under all the analyzed conditions (Tab. 1), suggesting that the crude enzymatic extract from R. emersonii has many xylanolytic enzymes. However, auxiliary enzymes are necessary to have a greater effect on the breakdown of the xylan structure and make cellulose more accessible to hydrolysis⁴⁸⁠. Analysis of the secretome of T. emersonii shows 266 proteins, and 119 CAZymes identified with 40 different glycosyl hydrolase families, while the functional annotation of fungi genome shows represent 55 different glycosyl hydrolase families⁴⁹⁠. The secretion of protein by fungi relate directly to the carbon source used for fungi cultivation, so analyses of different complex carbon sources on the culture medium of R. emersonii can be performed to find how to improve the expression of enzymes for xylan hydrolysis.

As noted earlier, the findings obtained could also be related to the effects of pretreatment on the lignocellulosic material structure. The pretreatment used in this study was proposed by Perrone et al.²³⁠, where the authors reported that the combined pretreatment of ozone and NaOH results in a greater amount of hemicellulose, when compared to the combined pretreatment of ozone with NaOH and ultrasound irradiation, and smaller amounts of hemicellulose than the pretreatment using only ozone. Still, according to the same authors, the insoluble fraction after the pretreatment has 6.7 mg of total phenolic compounds per gram of sugarcane bagasse. Therefore, the phenolic compounds would be present in the pretreated unwashed sugarcane bagasse, which could negatively affect the enzymatic performance and result in a lower yield of released monosaccharides.

Although our results on the effect of phenolic compounds on endoxylanolytic activity are promising, with the only exception of tannic acid, there is a probability that negative results could be observed when several phenolic compounds are present in the same solution and submitted to higher temperatures.

The possible effect of pH resulting from the alkaline pretreatment was also considered, and, for that reason, it was performed an inhibition test with the soluble fraction obtained after that procedure. In this inhibition test, the crude enzyme extract was diluted in the same volume with the insoluble fraction resulting from the sugar cane bagasse pretreatment process. The mixture remained in contact for 0, 2, 4 and 6 h, and, after each time, endoxylanase activity was evaluated and compared with the values obtained before the test. The maximum value of inhibition of relative activity was 10% for the time of 2 h, remaining essentially constant (9.8%) in 4 h and decreasing to 8.2% after 6 h. The pH was 6.1 after 2 h, 5.9 at 4 h and 5.7 after 6 h for the unwashed bagasse, while the pH was 5.5 for the washed bagasse. A reason for the lower activity may be the higher pH in the unwashed bagasse, above the optimum verified at 5.5.

Our hydrolysis results are similar to those presented by Marques et al.⁵⁰. In their work, hydrothermally pretreated sugarcane bagasse was hydrolyzed using a mixture (1:1 v/v) of the enzymatic extracts produced by solid-state cultivation of fungi Botryosphaeria sp. AM01 and Saccharicola sp. EJC04. In this case, pretreated bagasse hydrolysis continued at 50 °C for 20 h with an enzymatic load of 150 U g^–1 of pretreated bagasse at 5% (m/v) concentration. The authors had 3.56 mg mL^–1 of glucose and 1.66 mg mL^–1 of xylose⁠. Our findings were 1.37 mg mL^–1 of glucose and 1.24 mg mL^–1 of xylose at 60 °C, using approximately one third of the incubation time and a lower enzymatic load (110 U g^–1).

Our results are similar to those presented by Marques and coworkers. In their work, hydrothermally pretreated sugarcane bagasse was hydrolyzed using a mixture (1:1 v/v) of the enzymatic extracts produced by solid-state cultivation of fungi Botryosphaeria sp. AM01 and Saccharicola sp. EJC04. In this case, pretreated bagasse hydrolysis continued at 50 °C for 20 hours with an enzymatic load of 150 U/g of pretreated bagasse at 5 % (m/v) concentration. The authors had 3.56 mg/mL of glucose and 1.66 mg/mL of xylose⁵⁰⁠. Our findings were 1.37 mg/mL of glucose and 1.24 mg/mL of xylose at 60 oC using approximately one third of the incubation time and a lower enzymatic load (110 U/g). Table 2 shows more comparisons with the literature.

The lower sugar yields in the unwashed sugarcane bagasse could be the result of a sum of factors, such as the inhibitory effect of the residual alkaline pH of the pretreated bagasse that increased pH of the assay above the optimum value, and a potential inhibitory effect of a mixture of phenolic compounds.

3.4 Isolation and evaluation of specific endoxylanase catalysis substrate

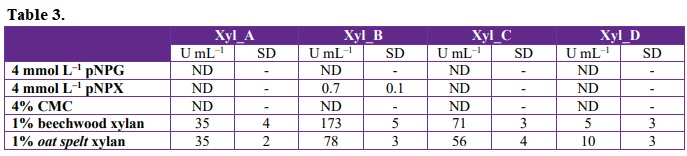

Data ND: no detected activity. Average ± standard deviation (mean values of three independent measurements).

The four isolated isoforms from polyacrylamide gel were evaluated by hydrolysis of synthetic substrates (pNPX and pNPG) and natural polymers (CMC, beechwood xylan and oat spelt xylan) (Tab. 3). None of the enzymes had activity against pNPG and CMC and only Xyl_B had activity against synthetic substrates. The enzymes Xyl_A, Xyl_B and Xyl_C showed high activity concerning natural polymers, whereas Xyl_D showed lower activity.

Endoxylanases from R. emersonii are not able to recognize glucose to hydrolyze the glycosidic bond, which limits their action to xylan constituent carbohydrates. This is observed in the GH 11 family of glycosyl hydrolases, composed exclusively of endo β 1,4 xylanases, in which no other activity was observed. They are capable of cleaving internal β 1,4-xylosidic bonds, unlike GH10 xylanases, which are also capable of cleaving β 1,3-xylosidic and β 1,4 -glycosidic bonds⁵⁴.

3.5 Thermodynamic analysis of the isolated Xyl_C

Xylanase xyl_C displayed the highest activity when tested against xylan: 70.87 U mL^–1 for beechwood xylan and 56.11 U mL^–1 for oat spelt xylan. Therefore, it was chosen for the thermodynamic analysis.

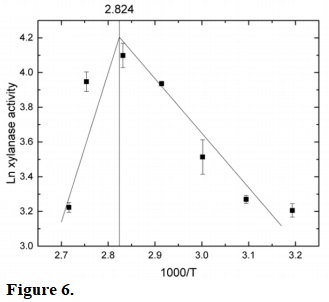

The Arrhenius plot (Fig. 6), allowed calculating the optimum temperature (80 °C) and the enzymatic activation energy (26.10 kJ mol^–1). The first-order plot for the effect of temperature on enzyme activity (Fig. 7), was used to find the half-life and the first-order rate of thermal inactivation (kd). The kd rates were used for the first-order Arrhenius plot (Fig. 8), allowing to determine the activation energy of denaturation (𝐸𝑎(𝑑)), estimated as 99.58 kJ mol^–1. The temperature coefficient decreases slightly with each increase of 10 °C (Tab. 4).

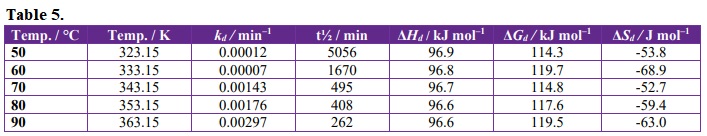

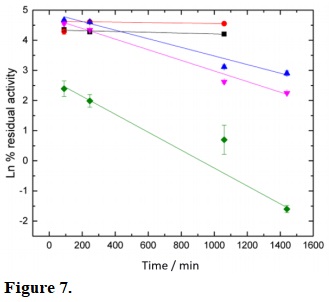

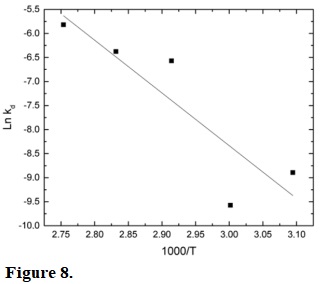

Thermodynamic parameters were calculated to evaluate the temperature denaturant effect on the enzyme. Enzymes undergo thermal denaturation in two steps: the native enzyme becomes unfolded inactive enzyme when exposed to high temperature and follows to become the inactivated enzyme if the thermal exposition continues⁵⁵⁠. The first structural modification could be reversible upon cooling, while the second one is irreversible⁵⁶⁠. Table 5 shows the values for the variation of enthalpy, Gibbs free energy, entropy and the half-life time related to denaturation.

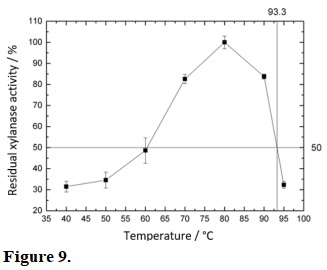

Some enzymes have an optimal catalytic performance at high temperatures and are useful in high temperatures processes and for brief times; however, when kept at high temperatures for a long time, many enzymes do not have stability to remain active throughout the process. The half-life of Xyl_C was approximately 8 h at 50 °C, 27 h at 60 °C, 8 h at 70 °C, 6 h at 80 °C and 4 h at 90 °C. The half-life at 70 °C is larger than the value reported for a mutant xylanase from Aspergillus fumigatus produced by heterologous expression at Escherichia coli BL21, 42 min at 70 °C⁵⁷. Site directed mutagenesis can improve the stability significantly. Alterations of N-terminal residues of a xylanase from Penicillium janthinellum MA21601 improved the half-life 107-fold higher than the wild-type strain, increasing from 30 s to 53.6 min at 60 °C⁵⁸⁠.

High half-life values at elevated temperatures can be directly related to high melting temperatures (Tm). The Tm is described as the temperature at which the maximum activity drops by half. For Xyl_C, the maximum activity occurred at 80 °C and decreased to 50% of that value at 93.3 °C (Fig. 9).

There was no significant variation in the enthalpy variation (ΔHd) of thermal denaturation of Xyl_C. The enthalpy values decrease slightly with increasing temperature (Tab. 4). This behavior, together with lower entropy values, is related to enzymatic thermostability⁵⁹⁠.

Gibbs free energy values found for Xyl_C (114.3 kJ mol^–1) at 50 °C are higher than those reported at 55 °C for wild and mutant enzymes from Thermomyces lanuginosus: 108.5 and 112.4 kJ mol^–1, respectively. The enzymes were produced by liquid cultivation with 2% of corn cobs at 45 °C59⁠. These values suggest that Xyl_C is more resistant to unfolding. Xyl_C is also more resistant than Melanocarpus albomyces xylanase in the presence of glycerol and NaCl (96.6 kJ mol^–1)⁶⁰.

Entropy is a measure of disorder in the system; the increase in disorder of the protein structure is a consequence of conformational changes in the protein. Conformational changes comprise changes in noncovalent interactions: ion-dipole, hydrogen and van der Waals, and in the rotational positions controlled by the secondary bond structure⁶¹⁠. A decrease in entropy values was observed with increasing temperature for Xyl_C (Tab. 4).

Negative entropy (ΔS_d) and positive free energy (ΔG_d) values reveal the resistance for the denaturation reaction to occur. The increase in temperature promotes the weakening of polar interactions, and it strengthens hydrophobic interactions⁵⁴ ensuring resistance of the enzyme to thermal denaturation.

4. Conclusions

The endoxylanases from solid state culture of R. emersonii present interesting properties, such as the tolerance to a wide pH range, as well as to the presence of diverse phenolic compounds. The enzymes also demonstrate higher activity and stability in the presence of glycerol and this is potentially relevant for industrial applications. The isolate Xyl_C has good stability against thermal denaturation, properties which can be positive on the process requiring high temperature and long periods of xylan hydrolysis. On the breakdown of the sugarcane bagasse, R. emersonii crude extract has provided strong hemicellulose conversion values to xylose and can be used in the process of obtaining high-value products, such as xylooligosaccharides and, for the most part, biofuels from lignocellulose residues without any additional area of cultivation.
