1. Introduction

In past years, the ceramic’s powders and crystals of molybdates were prepared by different methods, such as solid-state reaction (Kumar et al., 2020), precipitation with calcination in high temperatures (Silva et al., 2020), and the crystal growth by the “Czochralski” process (Khan et al., 2020). However, these synthesis methods require high temperatures, long processing times, sophisticated equipment with high maintenance costs and can even lead to the formation of undesirable phases. Therefore, some synthesis methods have been developed and used in the preparation of molybdate crystals (Lakhlifi et al., 2020; Skutina et al., 2021; Tang et al., 2021), such as coprecipitation (Chankhanittha et al., 2021; F. Oliveira et al., 2021), conventional hydrothermal (Farahpour and Arvand, 2021), microwave assisted hydrothermal (Keshari and Dubey, 2021), and sonochemical (Silva Junior et al., 2021). These methods make possible to allay the problems present in older methods and obtain crystals of different sizes and shapes.

In particular, the coprecipitation method, which, according to the literature, is defined as a process for obtaining crystalline materials from the dissolution of reagents or soluble precursors in aqueous solution with or without the presence of a mineralizer (chemical bases) at relatively low temperature, has been used recently in the preparation of different molybdates of different shapes and sizes (Theiss et al., 2016). However, to obtain homogeneous and monophasic molybdate crystals by this method, higher temperatures (> 100 °C) are necessary due to the low reaction kinetics (Kianpour et al., 2013). Studies have been carried out using the coprecipitation method, employing surfactants as stabilizing agents to aid in the kinetics and, thus, reduce the reaction temperature (Kianpour et al., 2016). These surfactants act as reactants during the reaction and stabilize the colloids. The literature also shows the effect of different surfactant ratios in controlling the size of microstructures and improving photocatalytic, photoluminescent, and antibacterial properties (Ji et al., 2020; Keerthana et al., 2021; Ray et al., 2018). Among the used surfactants, the anionic sodium dodecyl sulphate (SDS) acts as a stabilizer protecting the newly formed cation or anion nuclei, which has an intrinsic preference for the growth of their crystals (Kianpour et al., 2013; Luo et al., 2010).

Among molybdates, barium molybdate (BaMoO₄) is relevant material in electro-optics due to its green luminosity production and electro-optic applications, including solid-state lasers and optical fibers. The BaMoO₄ presents a scheelite structure with 𝐼4₁/𝑎 space group formed by distorted [BaO₈] and [MoO₄] clusters. This material has a high band gap energy (Egap) ~4.2 eV (Pereira et al., 2021; Sczancoski et al., 2010; Xia and Chen, 2010). Due to its poor use of light (ultravisible [UV] light) from the solar spectrum, the photocatalytic efficiency becomes very low. Various techniques have been applied to photogenerate electron-hole pairs in semiconductors to improve photocatalytic performance, such as modeling new crystals through BaMoO₄ synthesis to form new morphologies efficient in enhancing the photocatalytic performance of BaMoO₄ (Hu et al., 2021; Luo et al., 2008; Xia and Chen, 2010). It is possible to correlate the size of materials with different or even new properties; thus, semiconductors designed with different sizes and exposed facets proved to be excellent models to promote, for example, photocatalytic and biocide studies (Macedo et al., 2018).

This paper presents a simple method for the synthesis of uniform and pure BaMoO₄ crystals through the coprecipitation method using the SDS to evaluate the effects on the crystal morphology in the application of Rhodamine B (RhB) degradation. Thus, to endorse the experimental results, first-principles calculations were used to assess the effects of morphology on the degrading processes of the RhB.

2. Experimental sections

2.1 Synthesis

The BaMoO₄ crystals were synthetized by a simple coprecipitation method by using barium nitrate (Ba(NO₃)₂, Sigma-Aldrich, 99.0%), sodium molybdite dihydrate (NaMoO₄･2H₂O, Sigma-Aldrich, 99.0%) as precursors, and the sodium dodecyl sulfate (SDS, Synth, 90.0%) as a surfactant. The first step of the synthesis involves the dissolution of 1 × 10⁻³ mol of the precursor’s salts, separately, in 100 mL of deionized water at 70 °C. Then, 1 g of the surfactant SDS was added to the MoO²⁻ ions solution. After these steps, the two solutions were mixed under constant stirring. Approximately ten washes with deionized water were carried out at the end, using a centrifugation process (Centrifuge 5804, Eppendorf) to remove the residual Na⁺ and organic ions. The synthetized solid was collected and dried in an oven at 65 °C for 24 h. The same procedure described above was repeated to obtain the pure BaMoO₄ crystal by removing the SDS in the precursor solution. The samples were named by BaMoO₄ and BaMoO₄-SDS for the synthesis without and with SDS, respectively.

2.2 Structural and morphological characterization

The structure of BaMoO₄ crystals was characterized by X-ray diffraction (XRD) with Rietveld and micro-Raman. The morphological change was analyzed through field emission-scanning electron microscopy (FE-SEM), and the electronic modifications were analyzed by UV-visible (UV-vis) spectroscopy.

2.3 Photocatalysis evaluation

To analyze the surfactant’s effect in the photocatalytic activity of the BaMoO₄ and BaMoO₄-SDS crystals, it was performed the photodegradation of the RhB (95%, Mallinckrodt) under UV light. The experiment was conducted as follows: 50.0 mL of RhB solution (1 × 10⁻⁵ mol L⁻¹) were added to the glass reactor with 50 mg of the sample. The reactor was taken to ultrasound (42 kHz, model 1510) for 5 min in the dark to disperse the BaMoO₄ crystals in the solution and then transferred to the photocatalytic system with 6 UV lamps (TUV Phillips, 15 W, and intensity of 254 nm), in 10 cm from the reactor. Then, to reach the adsorption equilibrium, the system remained in the dark for 40 min (collecting aliquots at −40, −30, −20, −10 and 0 min) at 25 °C and in the next step, the lamps were turned on, and the aliquots were removed at 20, 40, 60, 80, 110 and 140 min. After the reaction, the photocatalytic system was placed in a plastic tube where they were centrifuged at 10,000 rpm for 5 min to remove the catalyst particles from the solution completely. The remaining solution was analyzed by UV-vis absorption spectroscopy in a V-660 spectrophotometer (JASCO). The monitoring of the variation in the RhB absorption band with maximum λ = 554 nm for photocatalytic tests was investigated.

2.4 Theoretical models

First-principles calculations were performed using the CRYSTAL program (Dovesi et al., 2017; 2018) at the DFT level associated with the B3LYP hybrid functional (Becke, 1988; 1993). To study the electronic properties of the BaMoO₄ structure, a unit cell model was created from the refinement data. In the optimization process to obtain the perfect crystal data, without defects, the lattice parameters (a, b, c, and α, β, γ) and the internal coordinates (x, y, z) of each atom were optimized. The electronic band gap energy (Egap) value and the Raman frequencies were computed and compared with the experimental values. From the calculated surface energy (Esurf) values published in the literature (M. Oliveira et al., 2016), associated with the Wulff’s construction, it was possible to obtain the ideal theoretical morphology (in vacuum) for the material studied. In addition to this ideal morphology and using the methodology developed by us (Andrés et al., 2015), it was also possible to obtain the experimental morphology in order to compare it with the theoretical one.

3. Results and discussion

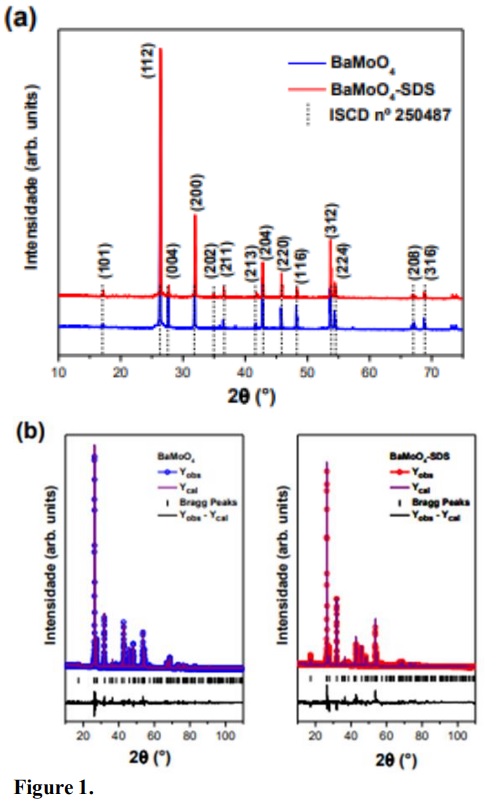

The XRD and Rietveld refinement was performed to verify the crystallinity of the material and its phase and structural parameters, as illustrated in Fig. 1. The XRD data allowed an analysis of the material structure at long-distance. It was possible to index and prove that both materials were obtained in their pure phase. As can be seen in Fig. 1a, it was not observed the presence of secondary phases, since the diffraction peaks are in good agreement with those reported for BaMoO₄ in ICSD nº 250487 (Inorganic Crystal Structure Database, ICSD) and the strong and acute peaks indicate that the synthesized crystals have good crystallinity. Structural refinement was performed using the Rietveld method for BaMoO₄ and BaMoO₄-SDS crystals to confirm that the structures belong to the tetragonal structure and obtain the lattice parameters, cell volume, and atomic coordinates (Fig. 1b). The structural refinement’s quality was analyzed using the Rwp, RBragg, R_p e 𝜒² statics parameters. Minor deviations of these parameters indicate the excellent quality of the structural refinement.

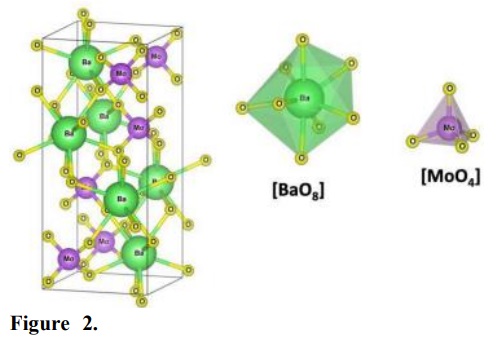

The BaMoO₄ crystals, synthesized by the coprecipitation method with and without SDS, were obtained in their pure tetragonal phase (space group 𝐼4₁/𝑎). Fig. 2 illustrates the tetragonal BaMoO₄ structure obtained from the refinement data. The crystal lattice of this semiconductor is formed by deltahedral [BaO₄] and tetrahedral [MoO₄] clusters and contains four formula units per unit cell (Z = 4).

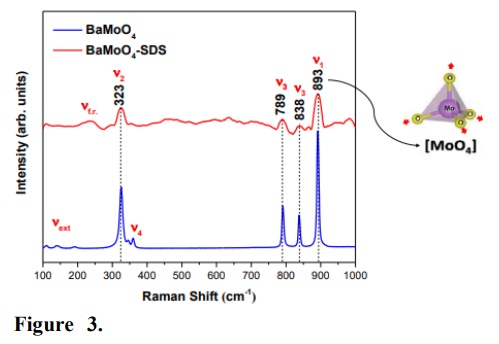

The analysis of the structural order/disorder degree of the BaMoO₄ crystals at a short distance was analyzed using the micro-Raman spectra. The results can be found in Fig. 3 and in Tab. 1, compared with the theoretical modes.

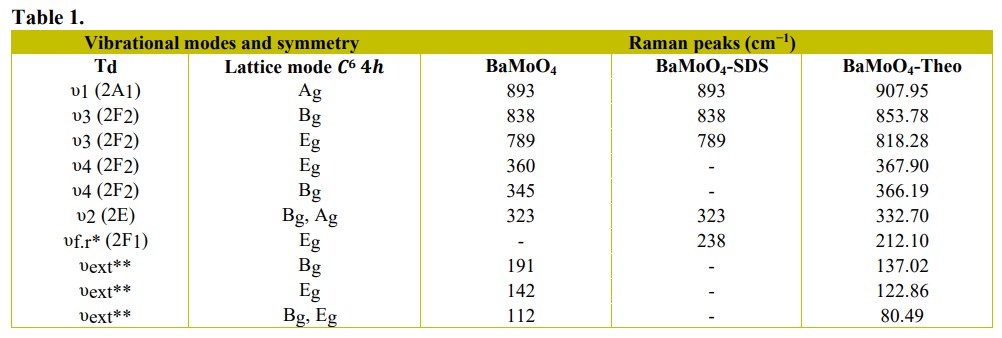

As can be seen, the Raman bands related to the four active modes were observed. The vibrational modes observed in the Raman spectra are divided into two groups: the internal and external modes. The external vibrational modes are composed of tetrahedral [MoO₄] clusters with strong covalent bonds between Mo−O and octahedral [BaO₈] clusters (Christofilos et al., 2004; Sczancoski et al., 2010). The internal modes are composed of tetrahedral [MoO₄] clusters with a rigid center of mass. The external modes can be considered as reticulated phonons because they result from the movement of [BaO₈] and [MoO₄] clusters, in symmetry Td, in the free space generated (Panchal et al., 2006). The BaMoO₄ samples exhibited all the internal and external modes, corresponding to the material’s phase, well defined, indicating that the material is highly crystalline at close range. On the other hand, the Raman spectrum of BaMoO₄-SDS showed peaks at 893, 838, 789, and 323 cm⁻¹, showing only the internal modes, demonstrating that this material is partially disordered. In addition, the BaMoO₄-SDS has peaks corresponding to the internal modes, with less intensity, which is a characteristic for disordered crystals: the appearance of wide Raman bands reflecting on the density of the phonon states. These Raman results prove that the use of SDS in BaMoO₄ synthesis causes changes in the crystal structure at a short distance and that even with the pure BaMoO₄ phase confirmed by XRD results, these crystals are disordered.

The UV-vis spectra for the BaMoO₄ and BaMoO₄-SDS samples made it possible to determine each .gap value, applying the Kubelka–Munk function. This function is generally applied to convert diffuse reflectance into equivalent absorption coefficient and is mainly used to analyze powder samples and is described as (Eq. 1) (Wood and Tauc, 1972):

where F(R) is Kubelka.Munk function; 𝛼 is the abortion coefficient, and R is the reflectance. Therefore, the Tauc relation becomes (Eq. 2):

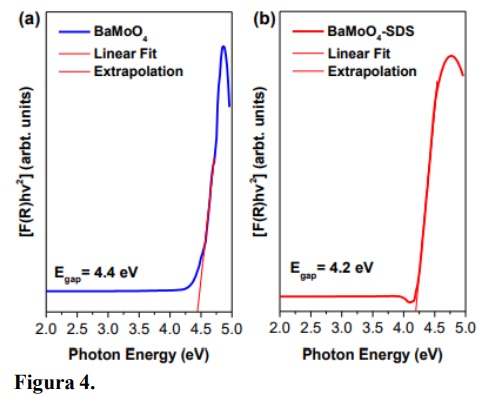

where n = 0.5 and 2 for direct and indirect transitions, respectively, resulting in direct and indirect band intervals (Spassky et al., 2005). The graphs of (F(R)hν²) versus hν for all samples are shown in Fig. 4. The extrapolation of linear regions from these graphs to F(R)hν² = 0 gives the direct band gap values.

The Egap values show a slight variation between the samples. The decrease in the Egap value for the BaMoO₄-SDS crystals can be attributed to a reduction in the local order degree, which may have been caused by the creation of new intermediate levels between the valence (VB) and conduction bands (CB). This fact can be attributed to the presence of the SDS surfactant during the synthesis of the material that causes distortions in the crystal structure, which endorse the experimental Raman spectra.

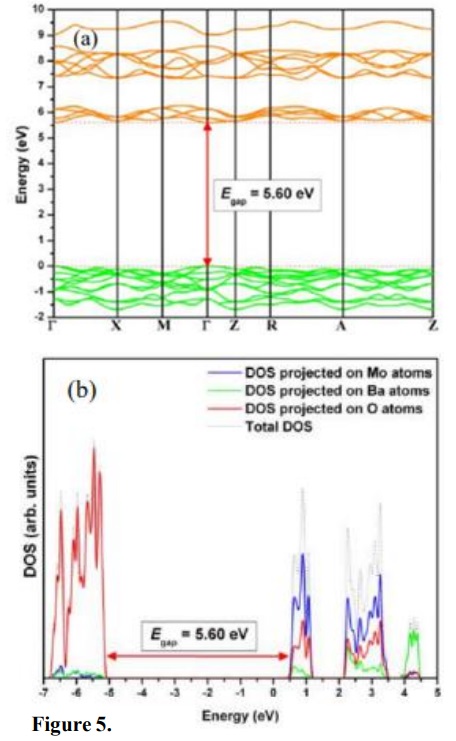

The theoretical study of the electronic properties corroborates with the UV-vis results. The theoretical model of the BaMoO₄ is seen as a defect-free structure with ideal parameters. This model presented a higher Egap value (Fig. 5a) of 5.60 eV. The observed electronic transition is direct between the Γ-points of the Brillouin zone. The atomic composition of the VB and CB was investigated by analyzing the density of states (DOS) from all atoms in the structure. As shown in Fig. 5b, the VB for BaMoO. is mainly formed by the contribution of the orbitals from the O atoms, and these orbitals are mostly antibonding types. On the other hand, the CB is composed primarily by the hybridization of the orbitals from the Mo and O atoms. This region also has a contribution from the Ba atoms. There is the presence of bonding and antibonding orbitals.

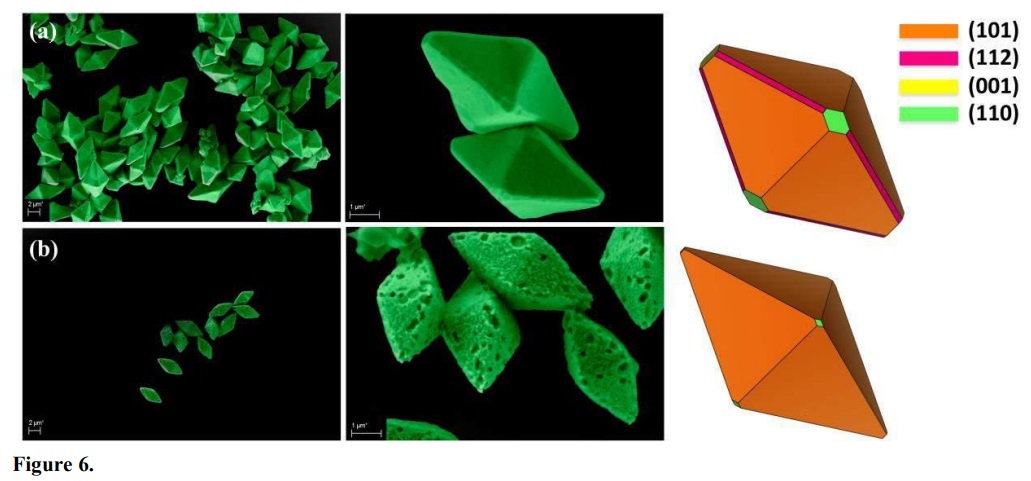

The morphologies of the BaMoO₄ and BaMoO₄-SDS crystals were investigated by microscopy, and the FE-SEM images are illustrated in Fig. 6. The BaMoO₄ crystals synthesized without the surfactant present an octahedron-shaped morphology with a predominance of the (101) surface, with a small contribution of the (112) and (110) surfaces (Fig. 6a). Better visualization of these surfaces can be seen in the theoretical morphology known as Wulff’s crystal. To achieve this theoretical morphology, it was employed the methodology developed by Andrés et al. (2015), in which used the calculated surface energy (Esurf) values associated with the Wulff construction (Wulff, 1901). The Esurf of the BaMoO₄ crystals were reported by M. Oliveira et al. (2016). The morphology observed for the crystals obtained in the presence of SDS (Fig. 6b) presents the same crystal shape as the sample without SDS (Fig. 6a). However, morphological differences are observed, such as the (112) surface no longer contributes to the morphology of the crystal, and the (110) starts to have a minor contribution. The major difference between the morphologies of BaMoO₄ and BaMoO₄-SDS is in the shape texture. BaMoO₄-SDS crystals have a rugged surface with the presence of pores.

M. Oliveira et al. (2016) reported the synthesized of the BaMoO₄ crystals also by the coprecipitation method; however, they used a temperature of 80 °C, at pH 7. They modeled the BaMoO₄ surfaces and calculated the surface energies. The morphology reported by the authors is different from that obtained in this study, with a significant presence of the (100), (112), (110), and (101) surfaces. Through these results, it is possible to observe that the surfaces of this BaMoO₄ structure present, mainly, different types of clusters for the Ba atom, with several oxygen vacancies.

The photocatalytic activity of the BaMoO₄ crystals was tested against the RhB dye. The analysis started in the dark (light off) to test the influence of this environment in the photocatalysis process and obtain the adsorptive equilibrium. The equilibrium adsorption-desorption rate of RhB in the dark versus time in the presence of BaMoO₄ and BaMoO₄-SDS was shown in Fig. 7a and Fig. 8a. The BaMoO₄-SDS degradation profiles in the dark showed that this material has one more property that has not yet been reported in the literature, the adsorptive capacity. The BaMoO₄-SDS crystals adsorbed about 18% of RhB while BaMoO₄ adsorbed about 1% of RhB. This property is acquired by the presence of pores in the crystal surfaces (see FE-SEM images in Fig. 6a), as illustrated in Fig. 8b. The high roughness of this material confers such properties, and the adsorptive process added to the photocatalytic process certainly makes the material promising in the studies of adsorptive and photocatalysis processes. These two properties were illustrated in Fig. 8b–c. In addition, the BaMoO₄-SDS also has a photocatalytic performance enhancement, as seen in Fig. 7b.

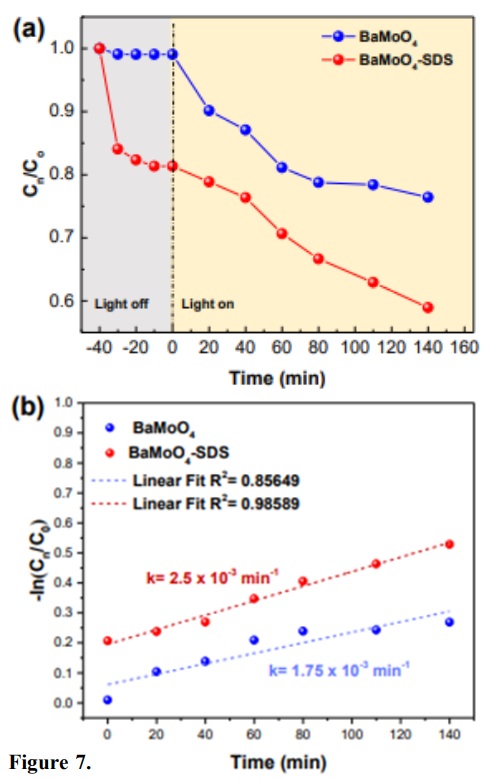

Therefore, by analyzing the degradation profile shown in Fig. 7a, it can be seen that the presence of SDS in the synthesis improved the photocatalytic activity. BaMoO₄ crystals degraded about 23% in 140 min, while the degradation of the BaMoO₄-SDS crystals was 45%. The process analysis showed that both degradations occur in first-order kinetics. The calculated velocity constants were k = 1.75 × 10⁻³ min⁻¹ and k = 2.50 × 10⁻³ min⁻¹ for the BaMoO₄ and BaMoO₄-SDS crystals, respectively, as shown in Fig. 7b. So, the increase in reaction kinetics indicates that BaMoO₄ synthesis in the presence of SDS is favorable for materials with photocatalytic properties.

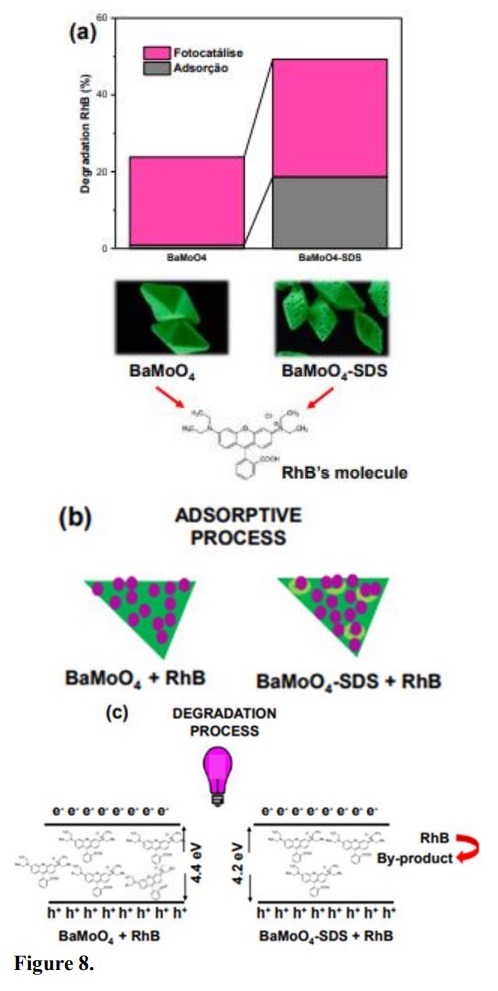

Hence, the control of morphology is of fundamental importance because the properties of the materials depend on the kind of surfaces that constitute their morphology. In the case of the BaMoO₄ crystal, the use of the SDS favored the increase of the (101) surface and caused deformations on the crystal surfaces, considerably altering the morphology. This change is mainly responsible for creating and improving the main properties of the BaMoO₄ crystals studied in this work.

4. Conclusions

In this study, it was possible to understand how the presence of a surfactant, in this case, the SDS, can generate changes in the morphology of the BaMoO₄ crystals and how this fact shifts the photocatalytic activity. In the case of BaMoO₄ synthesized with SDS, the presence of this surfactant generated pores on the surface of the material’s morphology, and the presence of these pores facilitated the adsorption process of the RhB dye in the dark, without the presence of UV light, and, consequently, a new property for that semiconductor was created, the adsorptive capacity. In addition to the acquired adsorptive ability, BaMoO₄ synthesized with SDS showed a photocatalytic improvement. These results demonstrate that morphology control can influence the creation of new properties, opening a range of opportunities for further studies.
