Palmer mangoes in an optimum maturation stage for consumption were purchased at the local market in the city of Rio Pomba, MG, selected and washed under running water. The fruits were then sanitized in a sodium hypochlorite solution (200 mg L^-1) to eliminate contaminating microorganisms and rinsed in drinking water containing 10 mg L^-1 active chlorine. They were subsequently peeled manually using stainless steel knives cut into pieces and shredded in a Walita processor (Model RI6720), obtaining a homogeneous pulp, which was evaluated for its pH, titratable acidity, total soluble solids (TSS) (AOAC, 2010), ascorbic acid (ZENEBON; PASCUET, 2004), and color. It was then frozen in plastic bags at -18 ºC for later use in the preparation of the tropical juice.

From the frozen fruit pulp, tropical juice containing 50% mango pulp, with the addition of sugar up to 11 °Brix, was produced, in order to comply with Normative Instruction N° 12 (BRASIL, 2003). After elaboration, 90 mL aliquots of the juice were bottled in 200 mL glass bottles and pasteurized in a water bath at 90 °C for 60 seconds, using as the control a bottle containing the juice and a thermometer for control of the temperature. After pasteurisation, the juice was cooled to room temperature.

For activation of the probiotic cultures, 5 g of L. acidophilus La-05 containing 10¹¹ cells and two capsules of L. rhamnosus GG (Culturelle^®) and of L. plantarum LP299v (Jamieson™) containing 10¹⁰ cells were added individually under aseptic conditions, into the juice, and incubated for 24 h at 36 ºC (New Ethics 403-5D, Brazil), characterizing the adaptation phase of the microorganism, in order to reach an inoculum with a count of approximately 9.0 - 8.0 log CFU g^-1 of probiotic bacteria in 100 mL of pasteurized juice.

After the incubation period, 10 mL aliquots of the pre-inoculums of L. acidophilus La-05, L. plantarum LP299v and L. rhamnosus GG were added individually under aseptic conditions to 90 mL of pre-pasteurized juice. The vials containing the juice were stored at 8 °C for up to 28 days, being evaluated for their microbiological and physicochemical characteristics, and for the resistance of the L. acidophilus La-05, L. plantarum LP299v and L. rhamnosus GG to simulated in vitro gastrointestinal conditions.

The viability of probiotic cultures was determined in triplicate by deep plating in deMan, Rogosa and Sharpe Agar (MRS) according to Richer and Vedamuthu (2001). After incubation, the colony forming units (CFU) were counted to determine the population of probiotic bacteria in the product. The viability assessment was carried out immediately after juice elaboration (time 0) and after 3, 7, 14, 21 and 28 days of storage at 8 ºC for all the treatments.

The survival of L. acidophilus La-05, L. plantarum LP299v and L. rhamnosus GG was evaluated by simulating the gastric and enteric juices and enzymes of the gastrointestinal tract using an in vitro model, according to the methodology proposed by Bedani et al. (2013) at time 0 (after juice production, 0 d) and after 14 and 28 days of storage (14 d and 28 d) at 8 ºC.

Tropical mango juices with added L. acidophilus La-05, L. plantarum LP299v or L. rhamnosus GG were analyzed immediately after preparation (time 0) and after four weeks of storage at 8 °C in order to evaluate the conformity of the products to the microbiological quality standards recommended by RDC N° 12 (BRASIL, 2001).

Coliform analyses at 36 °C and at 45 °C were carried out according to Kornacki and Johnson (2001). The presence or absence of Salmonella sp. in 25 mL was determined according to the methodology of Andrews et al. (2001). The analysis of filamentous fungi and yeasts was carried out using 0.1% peptone-water as diluent and surface plating on Dichloran Rose Bengal Chloramphenicol Base Agar (Neogen, Indaiatuba, São Paulo, Brazil), incubating at 25 °C for five days according to Beuchat and Cousin (2001).

The juices containing probiotic cultures were analyzed for pH, titratable acidity, TSS and color, immediately after their elaboration (time 0), and after 3, 7, 14, 21 and 28 days of storage at 8 ºC. These analyses were applied to the juices according to AOAC (2010).

Ascorbic acid was determined in the different treatments using Tillman’s method according to Zenebon and Pascuet (2004) for the times of 0, 7, 14, 21 and 28 d of storage at 8 ºC. The results were expressed in milligrams of ascorbic acid per 100 mL of mango juice according to equation 1.

(1)

Where:

V: the volume of Tillman’s solution used to titrate the sample

v: the volume of Tillman’s solution used to titrate the blank

F: the Tillman’s solution factor

A: mL of sample

AA: mg ascorbic acid 100 mL^-1 of juice

In order to determine the color of the tropical juices, a direct reflectance reading of the L*, a* and b* coordinates was carried out using a colorimeter (Konica Minolta CR-10, Osaka, Japan) and the CIELAB scale of the International Commission of Lighting. Samples of the juices were transferred to borosilicate glass plates of about 3.0 mm thickness and the values for L*, a* and b* of each sample obtained from the average of five consecutive readings at different points of the product.

The juices with the best cell viability after processing (containing L. rhamnosus GG and L. plantarum LP299) were evaluated for acceptability by 50 untrained testers, using a nine-point hedonic scale varying between "liked extremely" (score 9) and "disliked extremely” (score 1) for the attributes of flavor, color, aroma, acidity and overall impression, according to Minim (2013). The juice was served at room temperature in plastic cups with a capacity of 50 mL, randomly encoded with three pre-set numbers.

The project was approved by the Committee of Ethics in Research of the Federal Institute of Education of the Southeast of Minas Gerais State, with the emission of a Presentation Certificate of Ethical Appreciation (CAAE nº. 35283014.1.0000.5588).

The experiments were carried out with three repetitions, the physicochemical and microbiological evaluations and viability of the cultures were carried out in duplicate, while the in vitro simulation of gastrointestinal conditions was carried out in triplicate.

For the physicochemical analyses (pH, acidity, color and TSS), the experiment was carried out using a completely randomized design (CRD) with a 3x6 factorial scheme (microorganisms x time). The ascorbic acid content was evaluated by CRD with a 3x5 factorial scheme (microorganisms x time) and the linear regression of each microorganism was carried out at the time of analysis. The probiotic viability experiments were carried out using a CRD with a 3x6 factorial scheme (microorganisms x time). The study of the in vitro simulation of the gastrointestinal tract was carried out using a CRD with a 3x3x3 factorial scheme (microorganism, phases and time). The acceptance test data of the sensory analysis for all the attributes were analyzed using a random block design (RBD) for two samples (tropical mango juice with added L. rhamnosus GG and tropical mango juice with added L. plantarum) and one time (immediately after processing). The results were evaluated by an analysis of variance and the means compared by the Tukey test at 5% probability. All the analyses were carried out using the Free R Statistical Software (R DEVELOPMENT CORE TEAM, 2008) with the aid of the ExpDes packet (FERREIRA et al., 2011).

The mango pulp presented the following characteristics: 11.7 ºBrix, pH value of 4.67, titratable acidity of 0.081 g of citric acid per 100 mL, 16.96 mg of ascorbic acid per 100 mL and values for L*, a* and b* of 41.6, 5.0 and 23.2, respectively, it being necessary to adjust the pH value and acidity to conform with the Brazilian legislation.

L. rhamnosus GG and L. plantarum LP299v presented counts higher than 7.96 log CFU mL-1 and 7.74 log CFU mL^-1, respectively, throughout the 28 days of storage of the juices at 8 °C, showing no difference (p>0.05) in the viability of these cultures with time (Figure 1). Although there is no consensus on the minimum amount of probiotic microorganisms needed to provide beneficial effects to the organism (MARTINS et al., 2016), some authors consider a value of >6 log CFU g^-1 or mL^-1 of the food (HUSSAIN et al., 2016), whilst others consider between 6 and 7 log CFU g^-1 (MADUREIRA et al., 2011), or 9 to 10 log CFU g^-1 (NAIDU et al., 2012). A 100 mL portion of the tropical mango juice containing L. rhamnosus or L. plantarum carried at least 9.96 log CFU or 9.74 log CFU of these microorganisms, sufficient to promote health benefits to the host.

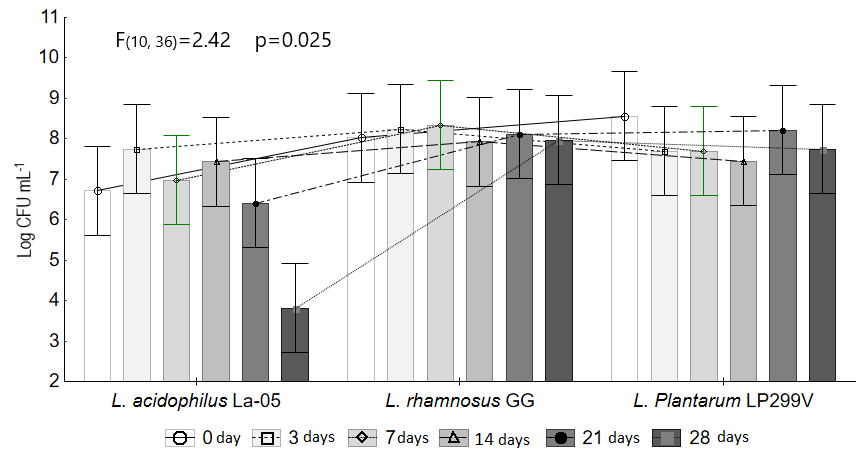

Figure 1
Viability of L. acidophilus La-05, L. rhamnosus GG and L. plantarum LP299v in the tropical mango juices during 28 days of storage at 8 °C. Values followed by the same letter do not differ statistically from each other according to the Tukey test at 5% probability for all the microorganisms with time.

On the other hand, it was observed that the viability of L. acidophilus La-5 reduced (p<0.05) after 21 days of storage (Figure 1), reaching a count of 3.81 log CFU mL^-1 at the end of the 28-day shelf life of the juice. Galgano et al. (2015) pointed out that not all probiotic strains produce good results in terms of survival when added to fruits and vegetables, which can be seen in the present study for L. acidophilus. It is believed that this reduction in the viability of L. acidophilus La-5 occurred due to the microorganism produce highly amount of acidic which could generate its inhibition.

Moreira et al. (2017) found that the count of L. rhamnosus GG was above 108 CFU mL^-1 during the 30 days of storage at 4 °C in a mixed juice of Ubá mango and jussara processed by a thermal process (pasteurization) and by high isostatic pressure (HIP), demonstrating its viability in the potentially probiotic product.

When developing functional probiotic foods, the selection of a suitable strain is critical to the success of the product development, since the microorganism versus matrix interaction should aid in probiotic resistance during passage through the gastrointestinal tract (BURNS et al., 2014; ESPÍRITO SANTO et al., 2011). In addition, several other factors may influence probiotic viability, such as factors inherent to the food matrix (fat content, protein content, sugar composition, pH and the presence of antimicrobial substances) and factors related to processing (oxygen level, preservatives, temperature and storage time). Thus, the tropical mango juice can influence the resistance of the different microorganisms due to their physicochemical characteristics, since each strain has its own survival characteristics.

When evaluating the behavior of L. acidophillus La-05, L. plantarum LP299v and L. rhamnosus GG in the different phases of gastrointestinal conditions simulated in vitro during storage of the juices (Figure 2), significant interaction was found between the microorganism, phase and storage time, which was deployed for analysis (Figures 3A, 3B, 3C and 3D).

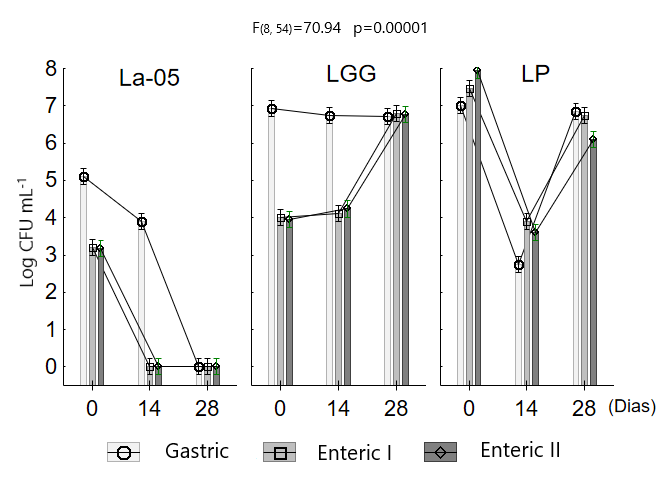

Figure 2
Survival of L. acidophillus La-05 (La-05), L. rhamnosus GG (LGG) and L. plantarum LP299v (LP) in the tropical mango juices during the gastrointestinal tract assay for 28 days at 8 °C. Bars demonstrate the viability of the strains in the gastric, enteric I and enteric II gastrointestinal tract phases.

A difference was found (p<0.05) between the gastric phase and the enteric phases I and II (Figures 3A and 3C). The mean viability of the microorganisms in the gastric phase was 5.11 log CFU mL^-1, falling to 4.02 and 3.97 log CFU mL^-1 in enteric phases I and II, respectively (Figure 3A). There was also a difference in viability (p<0.05) between the times (T0, T14 and T28) storage days of the juices (Figures 3B and 3D), decreasing between time 0 and time 14 days, followed by an increase for L. plantarum LP299v and L. rhamnosus GG between 14 and 28 days. This could be related to the sub-lethal stress applied to the microorganisms, which could have entered a viable but not culturable state and, in sequence, after adaptation, reassumed their growth. However, L. acidophillus La-05 did not show this behavior (Figure 3D).

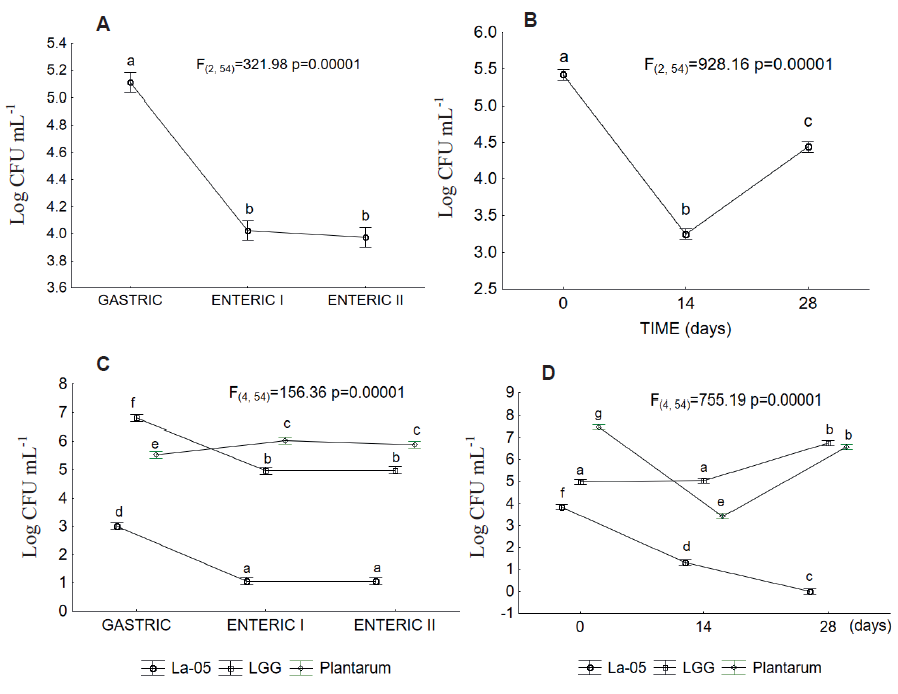

Figure 3
Development of the significant interaction (microorganism x storage time x phases of the in vitro GIT assay). A: Viability of the probiotic bacteria versus phases of the in vitro assay; B: Viability of the probiotic bacteria versus storage time of the juices; C: Viability of each probiotic bacterium versus phases of the in vitro assay; D: Viability of each probiotic bacterium versus storage time of the juices.

The results obtained by the present research group, such as those obtained by Oliveira et al. (2017) showed that the L. rhamnosus GG count in jaboticaba juice was <1.0 log CFU mL^-1, estimated at the end of in vitro simulation, demonstrating the influence of the food matrix in the resistance of probiotic bacteria in the gastrointestinal tract.

When added to food, probiotic cultures should remain viable and in high concentrations, as from their inoculation and up to the end of the shelf life of the product, being able to survive gastrointestinal tract conditions, tolerating acidic conditions and bile salts, such that the food can be considered to be probiotic (PERES et al., 2014). Madureira et al. (2011) considered that at least 10⁶ to 10⁷ CFU g_-1 or mL^-1 of viable probiotic cells should reach the intestinal colon for the food to have a therapeutic effect.

In the present study, L. plantarum LP299v and L. rhamnosus GG were more tolerant of most of the gastrointestinal tract stress factors. On average, from the viability of the microorganisms in enteric phase II of the gastrointestinal tract at all times of analysis, it can be inferred that the amount of viable cells that would reach the large intestine would be 1.06, 4.98 and 5.88 log CFU mL^-1 for L. acidophillus La-05, L. rhamnosus GG and for L. plantarum LP299v, respectively. However, the consumption of a minimum of 100 mL of the tropical juices containing L. rhamnosus GG and L. plantarum would offer 6.98 and 7.88 log CFU, respectively, sufficient to promote benefits to the host.

Although there are alternative technologies to protect microbial cells from gastrointestinal tract stress, such as encapsulation (HUQ et al., 2013), in the present work tropical mango juice was shown to be an excellent carrier matrix for the free cells of L. rhamnosus GG and L. plantarum LP299v. On the other hand, encapsulation technology represents a promising alternative to increase the viability of L. acidophillus La-05, protecting it from the acidic conditions of the stomach and allowing the cells to traverse this organ intact.

The quality and microbiological safety of juices depends on good manufacturing practices and efficient pasteurisation. The different treatments given to the tropical juice conformed to the Brazilian legislation (BRASIL, 2001) which established the standards for the microbiological safety of juices, soft drinks and other non-alcoholic drinks as being a maximum of 10 CFU mL^-1 of coliforms at 45 ºC and the absence of Salmonella sp. in 25 mL of the product.

Values of <3.0 x 10¹ MPN mL^-1 were found for total coliforms and E. coli and the absence of Salmonella sp. in 25 mL of the juices, indicating they were fit for human consumption. Regarding the yeast and filamentous fungi count, the treatments obeyed the maximum limit of 2.0 x 10³ CFU mL^-1 for chemically preserved pulp and/or that which was heat treated (BRASIL, 2001), since there is no legislation for the maximum limit in tropical juice.

The pH values and TSS of the tropical mango juices with added L. acidophillus La-05, L. plantarum LP299v and L. rhamnosus GG did not differ significantly (p>0.05) (Table 1). However, the acidity of the juice with added L. acidophillus La-05 differed (p<0.05) from those of the other treatments (Table 1), which may be related to the lower viability of the strain.

Table 1
Mean values obtained for the pH, total titratable acidity and total soluble solids of the mango juices containing probiotic bacteria at different storage times.

Means followed by the same letter in the same column do not differ statistically from each other according to the Tukey test at 5% probability.

Probiotic bacteria from the same species were also studied by Martins et al. (2015) in fruit salad. These authors also observed a reduction in pH and an increase in the acidity of the product due to acid production. In the evaluation of pH, a significant reduction was verified with time (p<0.05) (Figure 4A). However, time did not influence the acidity or TSS (p>0.05) for any of the treatments (Figures 4B and 4C).

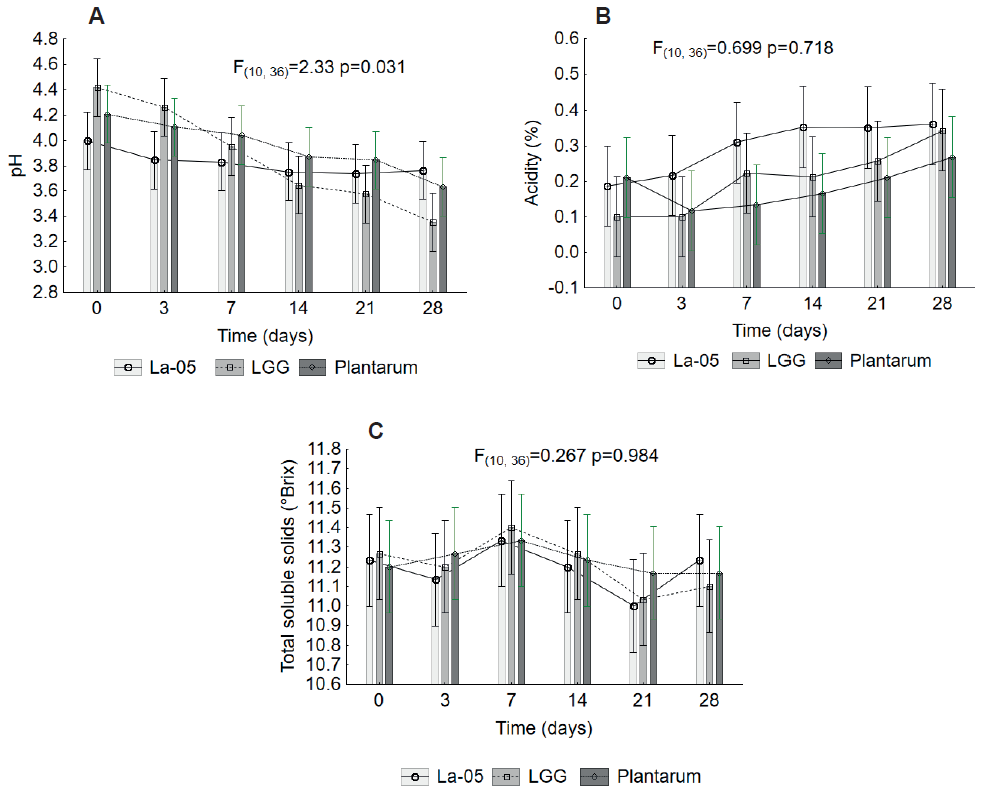

Figure 4
Values obtained for pH (A), total titratable acidity (B) and total soluble solids (°Brix) (C) of mango juices containing L. acidophillus La-05, L. rhamnosus GG and L. plantarum LP299v during 28 days of refrigerated storage.

The tropical mango juice containing L. acidophillus La-05 presented a higher vitamin C content (p<0.05) than the other treatments (Table 2). Considering the results obtained, the consumption of 130 mL of tropical juice containing L. acidophillus soon after processing was recommended in order to acquire the recommended daily amount of vitamin C, since, according to RDC n.° 269 of the National Health Surveillance Agency (ANVISA), the recommended intake of vitamin C is 45 mg day^-1 (BRASIL, 2005). However, with age and according to the health conditions, the Recommended Daily Intake (RDI) is variable.

Table 2
Mean results obtained for the ascorbic acid content (mg 100g^-1) in the mango juices containing L. rhamnosus GG, L. plantarum LP299v and L. acidophillus La-05, during 28 days of storage at 8 °C

Means followed by the same letter in the same column do not differ statistically from each other according to the Tukey test at 5% probability.

With respect to the ascorbic acid content of the mango juice there was no difference in relation to storage time (p>0.05) and no interaction between the factors of treatment and time (p>0.05). Thus, a regression model was fitted for each treatment as a function of time (Figure 5).

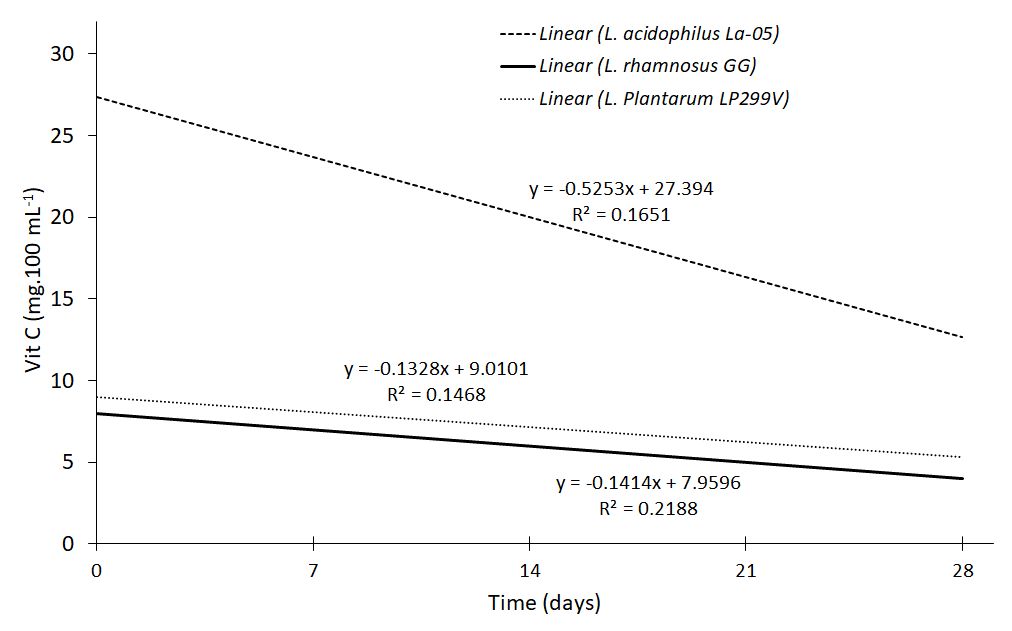

Figure 5
Regression equations and coefficients of determination for the ascorbic acid contents of mango juices containing L. rhamnosus GG, L. plantarum LP299v and L. acidophilus La-5 during 28 days of refrigerated Storage.

Color is a characteristic that indicates the sensory quality of food products on the market, being of great importance in acceptance (WU et al., 2013). There was no difference (p>0.05) for luminosity (L*) or for the coordinates of a* and b* between treatments, or throughout storage (Table 3), showing that the probiotic microorganisms did not alter the color of the juices. The positive values obtained for the b* coordinate indicated predominance of a desirable yellow color in the mango juice, characteristic of the product, which is due to the presence of carotenoids.

Table 3
Mean results for L* and the color coordinates a* and b* in the tropical mango juices containing probiotic bacteria.

Means followed by the same letter in the same column do not differ statistically from each other according to the Tukey test at 5% probability.

Different from the present study, Costa et al. (2017) observed that the addition of L. paracasei and oligofructose to orange juice promoted darkening with a consequent loss of the yellow color, compromising acceptability of the product by consumers.

There was no significant difference (p>0.05) between the mango juices containing L. rhamnosus GG and L. plantarum LP299v for the attributes evaluated (Table 4). Both juices were well accepted, indicating that the addition of probiotic cultures did not affect the sensory quality of the product after processing. Khezri et al. (2016) also observed no differences (p>0.05) in the attributes of flavor, odor, consistency and overall impression between fig juices containing L. plantarum DSMZ 20179 and L. delbrueckii DSMZ 15996.

Table 4
Mean results obtained in the sensory evaluation of the tropical mango juices containing L. rhamnosus GG and L. plantarum LP299v.

Means followed by the same letter in the same column do not differ statistically from each other according to the Tukey test at 5% probability.
