Introduction

Joint diseases are relatively common in domestic animals, particularly in dogs (FRIES; REMEDIOS, 1995; RETTENMAIER et al., 2002). Al though the condition is more clinically relevant in medium and large breeds, such as Fila Brasileiro, Rottweiler, German Shepherd (WOOD et al., 2000; GINJA et al., 2009), there is no predilection for dog breeds. Lust et al. (1993) posited that the condition has a genetic component, although its occurrence has also been associated with aging in dogs.

Osteoarthritis, a multifactorial disease, may be associated with secondary causes, such as age, chronic lesions, local inflammation, obesity, hip dysplasia, and other factors (FRIES; REMEDIOS, 1995). The disease may have a symptomatic picture that does not correspond with radiological findings (WALLACE, 1987), and can rangefrom a slight discomfort to severe pain when touched, claudication, and voluntary paresis of the hind limbs, which can progress to degenerative joint disease (FRIES; REMEDIOS, 1995; ALLAN, 2002; NOGUEIRA; TUDURY, 2002; NOGUEIRA et al., 2005; ROCHA et al., 2013).

Inflammatory processes result from the release of mediators and cell signaling initiated by molecules deriving from the harmful process (SERHAN; CHIANG, 2004; OLIVA et al., 2004; RANG et al., 2008). These mediators trigger a cascade of events thatinclude reprogramming of local metabolic activity and disruption of the balance of immune-neuroendocrine responses,involvingchanges in the patterns of blood flow and thermal energy distribution, which is accompanied by anincrease in local temperature (CHANDRASEKHARAN et al., 2002; TAZIMA et al., 2008).

The thermal energy generated inthis way in a living organism could, initially, be eliminated by convective processes, conduction, and radiation emission in the infrared spectral range, with wavelengths ranging from 2 to 20µm (WINSOR; WINSOR, 1985; ANBAR et al., 1998). Furthermore, the relationship between high temperatures and is well known (RING, 2004).

Specific sensors that allow capturing of infrared images were developed based on the Stefan?Boltzmann law (JONES, 1998), and with advances in thermography techniques, thermal sensitivity of up to 0.02ºC has been achieved. The non-invasiveness of thermography allows mapping of the body and detection of foci of thermal emission that maybe associated with inflammatory processes (RING; COLLINS, 1970; EDDY et al., 2001; ROBERTO; SOUZA, 2014). Since the development of the technique, several studies in veterinary and human medicine (BRIOSCHI et al., 2007; NUNES et al., 2007; BANDEIRA et al., 2012; SEGUNDO; AZEVEDO, 2015) have been performed.

Given the paucity of literature on the use of thermography in the diagnosis of inflammation associated with diseases of the hip joint in dogs, we proposed a method for the diagnosis of these inflammatory foci using infrared thermometry.

Material and Methods

The protocols described below complied with biosafety and ethical standards and were approved by the Ethics Committee for Animal Experimentation of University XXX under protocol number 063/2016.

Adult dogs (n = 31), of different breeds and both sexes, were obtained from the clinic of the Veterinary Hospital of the XXX University.

Upon admission of the animals, the personal data of the guardian and data of the animal, such as its name, age, sex, weight, and rectal temperature (measured using a clinical thermometer), were recorded in a registration form. An informed consent form was also filled out, in which the guardian was informed about the research conditions, and they agreed to the inclusion of the animal in the planned study. Each animal was then subjected to a detailed anamnesis and clinical orthopedic examination, as suggested by Nogueira and Tudury (2002). Animals with clinical signs compatible with hip inflammation underwent radiographic examinations, and those who exhibited clinical complaints of claudication were included in the study. The control group was comprised of dogs that did not have hip articulation problems.

After registration, all animals were transferred to an air-conditioned room at 25°C and relative air humidity above 70%, for 20 minutes, to minimize the effects of the environment on the temperature of the animal. After this period, the temperature atthe axis of the hip joint in the anteroposterior and lateral projection was recorded using a digital thermograph(model TG165, Flir Systems, Wilsonville, OR, USA), with a resolution of 60 × 80 pixels, to capture electromagnetic waves in the infrared spectrum, which makes it possible torecord temperature within 3 seconds of exposure. In this study, a 30-cm long PVC cannula, coated with matte black film, was coupled to the end of the device to minimize external interferences that could hinder the readings. The temperature of the animals was recorded simultaneously, minimizing the effects of circadian rhythms on temperature variation.

After positioning the animal appropriately for recording the temperature, the cannula and the equipment were juxtaposed over the desired region. The same focal length was maintained throughout, and emission proportional to an area of 1.23 cm² was obtained. The emissivity of the equipment was adjusted to e =0.95 in all measurements. The data obtained were tabulated and used in calculation.

For animals without joint disease, the interval between the temperature recorded by the equipment (Tt) and body temperature (Tb)was obtained by the equation ${\mathrm{DT}}_{\mathrm{wnjd}}={\mathrm{Tt}}_{\mathrm{free}\mathrm{jd}}-{\mathrm{Tb}}_{\mathrm{free}\mathrm{jd}}$. This difference was normalized by the relation DT_{free jd}/Tb_{free jd} to allow comparison of readings could be compared. The mean and standard deviation of these control animals were obtained by the equationDT_{free jd}^M/Tb_{free jd}.

For animals clinically diagnosed with joint problems, the same procedure was applied, and the difference obtained as ${\mathrm{DT}}_{\mathrm{wjd}}={\mathrm{Tt}}_{\mathrm{wjd}}-{\mathrm{Tb}}_{\mathrm{wjd}}$.

The inflammation difference (ID), which may be associated with inflammation ofthe hip joint wasobtained as thedifference between the value DT_wjd/Tb_wjd measured for each animal with joint problemsand the mean value of the parameterDT_sda/Tc_sdaobtained for the control group animals (DT_{free jd}^M/Tc_{free jd});i.e.,$\mathrm{ID}={\mathrm{DT}}_{\mathrm{wjd}}/{\mathrm{Tb}}_{\mathrm{wjd}}-{\mathrm{DT}}_{\mathrm{free}\mathrm{jd}}{}^M/{\mathrm{Tb}}_{\mathrm{free}}$. When the ID is positive, the animal could be considered to be suffering inflammation. If the value was negative, the animal was considered "free of inflammation" by thermographic evaluation.

Calculations were performed separately for temperature recorded for the anteroposterior and lateral projections.

Using Student' st-test in Microsoft Excel 2010 software, the statistical significance of differences in mean values was evaluated with a significance level set at p <0.05. The sensitivity and specificity of the diagnosis determined in this way were calculated, following the recommendations of Reis (2003) and Hastie (2009), to assess the viability of the method as a diagnostic aid.

Results and Discussion

The mean age of the dogs was 9.5 ± 2.5 years. Of the 31 dogs, 22 were males and nine were females, and their mean weight was16.76 ± 6.73 kg.

We sought to develop a diagnostic method based on temperature values measured by a thermograph, as no effective method for assigning a parameter indicating association between temperature variation in the hip joint and the presence of local inflammation has been reported in the literature.

The use of thermography and associated techniques has been used in Tj_AAD diseases in veterinary medicine previously, for instance, the study by Purohit and Mccoy (1980), which diagnosed inflammation in the superficial digital flexor tendons in race horses. Other important studies werethatof Ring and Ammer (2008), which investigated the occurrence of diseases involving the neuromuscular and skeletal systems using thermal imaging, and that of Turner (2010), which investigated the detection of low back pain in horses with spinal problems, and foundthermographic evaluations to have a sensitivity of 98.5%. Rantanen (2010) proposed algorithms for evaluating thermographic images related to the presence of foci of inflammation in superficial and deep areas in horses.

Todevelop the method, it was necessary to consider the natural decreasein theanimal's body temperature, as estimated fromthe rectal temperature taken at the level of the joint,and to define to what extent this temperature would drop in animals not suffering from joint disease, as expressed by ${\mathrm{DT}}_{\mathrm{free}\mathrm{jd}}={\mathrm{Tt}}_{\mathrm{free}\mathrm{jd}}-{\mathrm{Tb}}_{\mathrm{free}\mathrm{jd}}$. We normalized this difference, i.e., DT_{free jd} was divided by Tb_{free jd}(body temperature), so that these values could be compared across animals. Thus, the mean value for the normalized difference DT_{free jd}^M/Tb_{free jd} was obtained so that this measure could be used when measuring the normalized temperature difference obtained in animals with joint disease, by the equation $\mathrm{ID}=\left[\left({\mathrm{Tb}}_{\mathrm{wjd}}-{\mathrm{Tt}}_{\mathrm{wjd}}\right)/{\mathrm{Tb}}_{\mathrm{wjd}}\right]-D_{\mathrm{free}\mathrm{jd}}{}^M/{\mathrm{Tb}}_{\mathrm{free}\mathrm{jd}}$.

This equation above should be writtenas$\left[\mathrm{DI}+D_{\mathrm{free}\mathrm{jd}}{}^M/{\mathrm{Tb}}_{\mathrm{free}\mathrm{jd}}\right]/{\mathrm{TA}}_1=\left[\left({\mathrm{Tb}}_{\mathrm{wjd}}-{\mathrm{Tt}}_{\mathrm{wjd}}\right)/{\mathrm{Tb}}_{\mathrm{wjd}}\right]/{\mathrm{TA}}_2$, where TA₁ and TA₂correspond to the contributions of room temperature at the time of thermographic evaluations. Since the tests were carried out in an air-conditioned environment at 25°C, where all animals were allowed to restfor at least 20 minutes to reduce their stress and provide thermal accommodation, TA₁was considered to be equal to TA₂and the equation was simplified as follows: $\mathrm{ID}=\left[\left({\mathrm{Tb}}_{\mathrm{wjd}}-{\mathrm{Tt}}_{\mathrm{wjd}}\right)/{\mathrm{Tb}}_{\mathrm{wjd}}\right]-D_{\mathrm{free}\mathrm{jd}}{}^M/{\mathrm{Tb}}_{\mathrm{free}\mathrm{jd}}$.

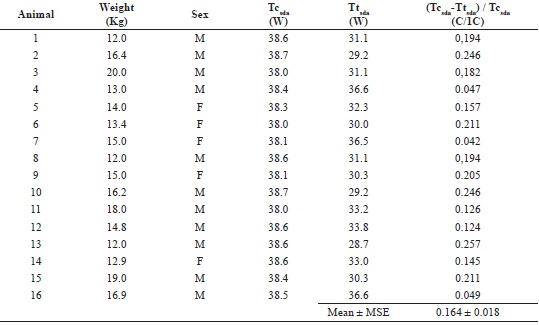

The values of ID obtained, respectively, for animals without and with joint disease, relevant to the hip joint at the anteroposterior projection,s shown in Tables 1 and 2.No significant differences were found between the normalized temperature difference values between these two groups (p = 0.0827).

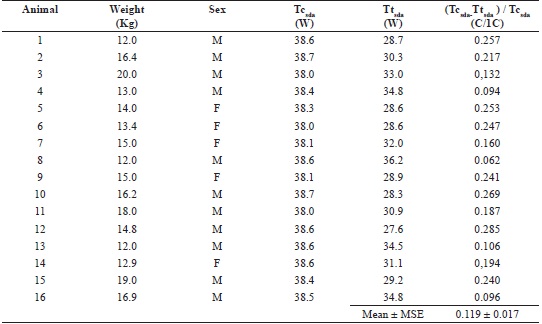

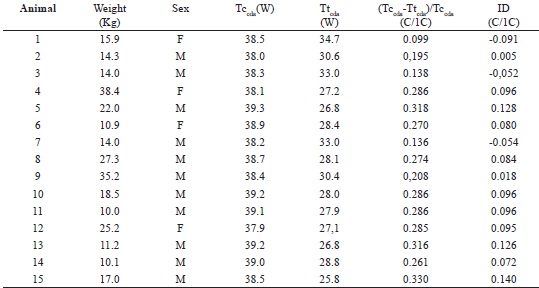

For thelateral projection, there was asignificant differencein thenormalized joint temperature differences between animals with and those without joint disease(p = 0.0407) as shown in Tables 3 and 4, demonstrating that,in the thermographic evaluation usingthe proposed methodology, the angle of capture of the temperature atthe joint has an effect,as, anatomically, the regional circulatory contributions and the superposition of the tissues associated with the joint affect thehomogeneity of the temperaturedistribution by influencing the propagation of thermal energy by conduction, convection, and even by emission of infrared radiation in local tissues.

Table 4 shows a comparison of the ID values, whose unit (C/1C) corresponds to the local temperature variation per degree of body temperature change in the evaluated animal, in animal swith and those without joint disease. Among the animals with a positive ID, some demonstrated greater variations than others, which may be associated with the intensity of the inflammatory process in the tissues related to the hip joint. It is important to note that some animals were clinically symptomatic of joint inflammation (3 of 15 animals, 20%), but had a negative ID value, i.e., an ID that was below the critical limit of thermal variation in the joints of animals without joint disease.

Given that two of the animals without joint disease showed normalized temperature difference values above the critical limit, we determined the sensitivity and specificity as 80.0%, and 87.5%, and the accuracy of the method was 83.87%. Since sensitivity measures the proportion of animals clinically diagnosed with joint inflammation that showeda positive ID value, and specificity measures the proportion of animals without joint diseasethat hadanegative ID value, the results obtained in this study couldbe considered satisfactory,and similar to those obtained by Head et al. (1999), who reported a sensitivity of 86.0% and a specificity of 89%when using thermography to identify and monitor breast cancer.These results also emphasizedthe importance of thismethodology as a tool that could aid in the diagnosis of inflammatory processes, in agreement with the report by Ring and Ammer (2008), who investigateddiagnosis of diseases of the neuromuscular and skeletal systems by thermography.

There were no significant differences in the temperature values obtained for males and for females (p = 0.382 for evaluations in the anteroposterior direction and p = 0.648 for evaluations in the lateral direction).

Thermography has been shown to be useful for the evaluation of abnormal alterations in the patterns of superficial temperature variation caused by tissue injuries in local musculature and tissues, although some authors, such as Valberg (2006), have pointed out that this procedure may have limited applicability to the identification of deeper lesions.

The emission of thermal energy in the form of infrared radiation does not occur uniformly but varies according to the characteristics of local and circulatory metabolism and its regulation by the immune and neuroendocrine systems, as pointed out by Anbar (1994). According to Cetinkaya and Demirutku (2012), thermography is particularly useful for identification of deep inflammatory foci the thermographic images show fields of contrast between areas with different thermal density, which was associated with the local temperatures measured in the regions containing inflammatory foci.

This thermographic imaging protocol allows monitoring of the evolution of inflammatory processes in the lateral projection of the hip joint, even during therapy, as demonstrated by Basile et al. (2010a,b), who evaluated the evolution of theinflammatory picture ofthe thoracic limbs of horses over a period of 150 hours, and demonstratedthe oscillation of temperature in the inflamed areas during therapy, up tothe final phase of the treatment.

Conclusions

The results of the present study indicate that this infrared thermography method can be used for diagnosis of inflammatory foci at the hip joint in dogs, with good sensitivity, specificity, and satisfactory accuracy when the images are captured at the lateral projection of the joint. The simplicity of the method, the stability of the results, and the rapidity of the diagnosis make this a useful clinical approach that can improve animal welfare.
