Abstract: Immunostaining of p21, p27, p53, cyclin D1, c-myc was evaluated in normal canine prostate and prostate with proliferative disorders to verify the interaction between these regulators of cell cycle progression. From 106 samples of canine prostate obtained from a TMA block, 15 were considered normal, 16 diagnosed as benign prostatic hyperplasia (BPH), 30 as proliferative inflammatory atrophy (PIA), 20 as prostatic intraepithelial neoplasia (PIN), and 25 as prostatic carcinoma (PC). There was positive correlation between p21 and p27 for number of stained cells and staining intensity in all conditions and between c-myc and p53 in prostates with PIN. Considering the number of labeled cells, there was positive correlation between p21 and p53 in the normal prostate. Relative to the intensity of staining, there was positive correlation between p21 and p53 in prostate tissue with PIN and between p27 and c-myc in prostates with PIA. A negative correlation between c-myc and cyclin D1 was also identified in the glands with PIN, considering the number of labeled cells, and between p27 and c-myc in the prostates with PC for staining intensity. In conclusion, the expression of p21, p27, p53, cyclin D1 and c-myc varies according to type of proliferative lesion in canine prostate. Taken together, the results indicate low growth potential of the canine PC in the presence of p21 and p27 overexpression, cyclin D1 low expression and regular expression of c-myc, even with the expression of p53 mutant type. Further, it was possible reaffirm the premalignant potential of PIA and PIN in canine prostate.

Key words: C-mycC-myc,Cyclin D1Cyclin D1,Benign prostatic hyperplasiaBenign prostatic hyperplasia,Proliferative inflammatory atrophyProliferative inflammatory atrophy,Prostatic intraepithelial neoplasiaProstatic intraepithelial neoplasia,Prostatic carcinomaProstatic carcinoma.

Resumo: A imunomarcação de p21, p27, p53, ciclina D1 e c-myc foi avaliada na próstata canina normal e com desordens proliferativas para verificar quanto a interação desses reguladores na progressão do ciclo celular. Um total de 106 amostras de próstata canina foi obtido a partir de um bloco de TMA, sendo 15 normais, 16 hiperplasia prostática benigna (HPB), 30 atrofia inflamatória proliferativa (PIA), 20 neoplasia intraepitelial prostática (PIN), e 25 carcinoma prostático (PC). Foi encontrada diferença na imunomarcação de p21, p27, ciclina D1 e p53 no epitélio acinar em relação aos diagnósticos. Houve correlação positiva entre p21 e p27 para as variáveis número de células marcadas e intensidade de imunomarcação em todos os diagnósticos (normal, HPB, PIA, PIN e PC), e entre c-myc e p53 nas próstatas com PIN. De acordo com o número de células marcadas, houve correlação positiva entre p21 e p53 na próstata normal. De acordo com a intensidade de imunomarcação houve correlação positiva entre p21 e p53 no tecido prostático com PIN e entre p27 e c-myc em próstatas com PIA. Foi observada correlação negativa entre c-myc e ciclina D1 nas glândulas com PIN, considerando o número de células marcadas, e entre p27 e c-myc na próstata com PC, para a variável intensidade de imunomarcação. Conclui-se que a expressão de p21, p27, p53, ciclina D1 e c-myc varia na próstata canina de acordo com o tipo de lesão proliferativa. Em conjunto, os resultados indicam baixo potencial de crescimento dos carcinomas da próstata canina quando há superexpressão de p21 e de p27, baixa expressão de ciclina D1 e expressão normal de c-myc, mesmo com expressão de p53 tipo mutante. Ainda, considerando o imunofenótipo semelhante nas glândulas com PIA, PIN e PC no que se refere aos reguladores da progressão do ciclo celular, reitera-se o potencial pré-maligno da PIA e PIN na próstata canina.

Palavras-chave: C-myc, Ciclina D, Hiperplasia prostática benigna, Atrofia inflamatória proliferativa, Neoplasia intraepitelial prostática, Carcinoma prostático.

The major step in malignant transformation of the tumors is the uncontrolled cell cycle, and knowing the regulators is important to understand these malignant transformations (SANCHEZ; DYNLACHT, 2005). One of the important proteins that control the cell cycle is the p53 protein, known as the guardian of the genome. If an error occurs in DNA transcription, it will stop the cell cycle and activate repair mechanisms or trigger apoptotic events, to induce cell death. This occurs by stimulating p21 that has regulatory functions and blocks the cell cycle progression from G1-S phase through different steps (KIRKNESS et al., 2003). The p21 allow cell DNA repair, differentiation and apoptosis. These tasks are performed by the interaction with cyclin A-cyclin dependent kinase 2 (Cdk2), and cyclin D1-Cdk4 complexes (GARTEL; RADHAKRISHNAN, 2005).

Cyclin D1 (CD1) is the positive regulator of the G1 phase progression in the cell cycle, binds to and activates the cyclin-dependent kinases Cdk4 and Cdk6, regulate phosphorylation of the retinoblastoma gene (Rb) product, thereby activating E2F transcription factors (COLOZZA et al., 2005). Also, the CD1 is down-regulated by c-myc factor (TAPIA et al., 2009). In dogs, CD1 is also overexpressed in mammary carcinoma, squamous cell carcinoma and basal cell carcinoma (SFACTERIA et al., 2003), but not in mast cell tumors (OZAKI et al., 2007). Another important cell cycle inhibitor is the p27 protein, which increasing levels result in blocking cell cycle at S phase. De Marzo et al. (1998) observed lower expression of p27 in lesions such as benign prostatic hyperplasia (BPH), prostatic intraepithelial neoplastic (PIN), and prostatic carcinoma (PC), and concluded that this reduced expression contributes to the high rate of mitosis in these proliferative lesions.

The c-myc has been suggested as the key element of carcinogenesis in different tumors, with direct and indirect action in the regulation of the cell cycle and apoptosis (LOPES et al., 2010). Expression of c-myc has been found in different types of canine neoplasia, such as transmissible venereal tumors (TVT) (LIMA et al., 2016), mammary tumors (GAVHANE et al., 2013), and prostatic carcinoma (FONSECA-ALVES et al., 2013). In canine prostate, the expression of c-myc is elevated in tissues with proliferative inflammatory atrophy (PIA) and PC and has been associated with the loss of the tumor suppressor proteins NKX3.1 and E-cadherin (FONSECA-ALVES et al., 2013). To verify the interaction between the regulators of cell cycle progression in canine prostate with proliferative lesions, p21, p27, p53, ciclina D1 and c-myc immunostaining were evaluated in normal glands and with BPH, PIA, PIN and PC.

This research was approved by committee on publication ethics COPE/UFG number 353/2010. The prostatic samples were from adult dogs of pure or mixed breeds and normal prostatic tissues were from dogs with no lesions in the gland. Three-µm-sections were obtained from formalin-fixed-paraffin-embedded (FFPE) tissue blocks and stained with hematoxylin and eosin (HE). Histomorphological evaluation included normal prostates and with BPH (FONSECA-ALVES et al., 2010), PIA (TOLEDO et al., 2010), PIN (BOSTWICK, 1995), and PC (LAI et al., 2008).

The prostate tissue microarray (TMA) was carried out according to Rubin et al. (2002). From the areas identified in the histomorphological evaluation, tissue cores of 1.0 mm were taken from FFPE tissue samples and arrayed on a recipient paraffin block using the tissue microarray (Beencher Instruments^®, Silver Spring, USA). Three-µm-sections were obtained from recipient block and distended on charged slides (Starfrost^® - Dako 9545-1) for HE and immunohistochemistry.

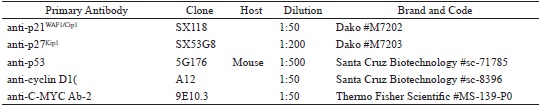

Immunohistochemistry was performed in TMA slides. The tissues were deparaffinized, rehydratated and washed in distilled water. Endogenous peroxidase and non-specific protein were blocked with 3% hydrogen peroxide for 20 min, and protein block (Leica, Newcastle, UK, #RE7102) for 5 min at 37°C, respectively. Antigen retrieval was performed with 10 mM pre-heated citrate buffer, pH 6.0, for 3 min, in pressure cooker (Solar, Rapid Express, Tramontina, Brazil). The samples were incubated with the primary antibodies (Table 1) overnight, at 4°C, in a wet chamber. Incubation with polymer enzyme, chromogen and HRP substrate for signal detection were done using reagents from polymer kit (New Link Max Polymer, United Kingdom, #RE7260-K) and following manufacturer's directions. Sections were counterstained with Mayer's hematoxylin, washed, dehydrated, cleared, coverslipped, and examined by light microscopy.

Samples from human colon carcinoma for p21 and p27, human mammary carcinoma for p53, and canine lymph node to cyclin D1 and c-myc were used as positive control. For negative control the primary antibody was replaced by PBS buffer, pH 7.4. The intensity of p21, p27, p53, cyclin D1 and c-myc reactivity was scored as: 0=negative, 1=mild, 2=moderate and 3=intense. Regarding the number of stained cells, the scores were: 0=negative, 1=1-25%, 2=26-50%, 3=51-75% and 4=76-100%.

The Chi-square, Kruskal-Wallis, nonparametric multiple comparison test for paired contrasts the relative effects with Tukey correction, as well as descriptive data were used to compare the scores of the percentage of positive cells and their intensity. Association between p21, p27, p53, cyclin D1and c-myc expression in normal prostatic tissue and with the different lesions studied was achieved by Spearman test. For all it was used SPSS (IBM Corp. Released 2010. IBM SPSS Statistics for Windows, Version 19.0. Armonk, NY: IBM Corp.) and R (R Development Core Team (2008) R Foundation for Statistical Computing, Vienna, Austria). The 5% of significance level was considered.

From TMA slide were obtained 15 (14.15%) were normal tissues, 16 (15.10%) BPH, 30 (28.30%) PIA, 20 (18.87%) PIN, and 25 (23.58%) PC. The immunostaining was nuclear for p21, p27, and p53 (Figure 1), cytoplasmic for cyclin D1 and nuclear through cytoplasmic and membrane for c-myc (Figure 2).

The number of stained cells to p21 in normal prostatic tissue was different from those with PIN, as well as it was different in prostatic tissues with BPH from those with PIA, PIN and PC. According to intensity of expression, there were differences in normal prostatic tissue from those with PIA, PIN and PC, as well as it was different in prostatic tissues with BPH from those with PIA, PIN and PC (p<0.05 - Table 2).

In this study, p21 was overexpressed in 40% of PC, 30% in PIN and 6.7% of PIA. It seems that malignant tissue shows high expression of p21, which would work as a pathway to control cell proliferation in those tissues. Increased expression of p21 may lead a crucial part in growth arrest, inducing senescence or apoptosis, a mechanism which seems to protect against malignant transformation (LIN et al., 2007; MAJID et al., 2008). According to Majid et al. (2008), increased levels of p21 indicate good prognosis. So, the p21 overexpression observed in canine PC could mean tumors more controlled in terms of proliferation and growing.

Most prostates with BPH were p21 negative and those ones positives showed mild immunostaining, which could contribute to the typical cell proliferation associated with this condition in the canine prostate. According to Huang et al. (2004), prostatic tissue with BPH may express p21 due to an alteration in CDKN1A, the p21 gene. It could cause an imbalance between cell proliferation and apoptosis in the prostatic tissue, resulting in a continuous cell cycle, which influences the cell proliferation and involves the pathogenesis of BPH.

The number of stained cells to p27 in normal prostatic tissue was different from those with PIA, PIN and PC, as well as it was different in prostates with BPH from those with PIA, PIN and PC. According to intensity of expression, there were differences in normal prostatic tissue from those with PIA, PIN and PC, as well as it was different in prostatic tissues with BPH from those with PIA, PIN and PC (p<0.05 - Table 2).

Prostate with PIA, PIN and PC showed higher immunostaining of p27 when compared to BPH and normal tissue. The opposite was reported by De Marzo et al. (1998) in human prostate with PIN and PC, which showed lower expression of p27. Once loss or decrease of p27 has been associated with cell undifferentiation, proliferation and poor prognostic (TAYLOR et al., 2010), it is prompt to think that p27 would be working as a product of one suppressor gene (CDKN1B) in canine prostate tissues with premalignant and malignant lesions. Reinforcing this hypothesis, Trotman et al. (2003) have observed 100% of prostate tumors in p27 deficient mices. Wang et al. (2012) reported that overexpression of p27 in prostate with PIN may contribute to preventing and inhibiting the progression of PIN to invasive PC. Either, Wang et al. (2012) affirm that both p27 and p53 function should be checked in the progression of PIN to invasive cancer in order to prognosis establishment.

The number of stained cells to p53 in normal prostatic tissue was different from those with PIA, PIN and PC as well as it was different in prostatic tissues with BPH from those with PIA, PIN and PC, and in prostatic tissues with PIA from those with PC. According to intensity of expression, there were differences in normal prostatic tissue from those with PIA, PIN and PC, as well as it was different in prostatic tissues with BPH from those with PIA, PIN and PC (p<0.05 - Table 2).

The expression of p53 was observed in normal canine prostate, in proliferative lesions, and a higher expression in PC, as reported by Croce et al. (2011). There were differences between PIA and PC, but not between PC and PIN relative to the number of stained cells. These results suggest that alterations related with the p53 protein begin in the canine prostate with PIA and are accentuated in the canine glands with PIN and PC, reinforcing malignant potential of PIN as previously described in dogs (CROCE et al., 2011), and humans (STANGELBERGER et al., 2012). According to Stangelberger et al. (2012), the high expression of p53 in human PC and PIN has been associated with progression of disease due to higher proliferative indices and more aggressive phenotype.

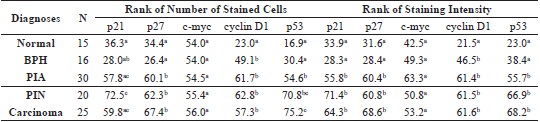

The number of stained cells to cyclin D1 in normal prostatic tissue was different from those with BPH, PIA, PIN and PC. According to intensity of expression, there were differences in normal prostatic tissue from those with BPH, PIA, PIN and PC (p<0.05 - Table 2). The number and the intensity of stained cells to c-myc antibody there were no difference according to diagnoses (p<0.05 - Table 2).

In canine prostate we observed cyclin D1 (CD1) immunostaining only in tissues with lesions (BPH, PIA, PIN, PC). Moreover, the CD1 expression though almost mild it was more frequent in prostates with PIA, PIN and PC if compared to BPH. CD1 protein is a positive regulator of G1-S phase progression in the cell cycle. It binds to and activates the cyclin-dependent kinases Cdk4 and Cdk6 (MURAKAMI et al., 2000; COLOZZA et al., 2005; IMBODEN et al., 2009), and the low expression of CD1 is significantly associated with high expression of p21 protein (LIN et al., 2007; WANG et al., 2010). Also, according to Jirawatnotai et al. (2011), CD1 may play a positive role in DNA damage repair. Thus, the seeming lower expression of CD1 in association with high p21 expression could mean the slowing of cell cycle and it mild expression could represent the repairing of DNA damaged in the prostatic tissue with proliferative lesion.

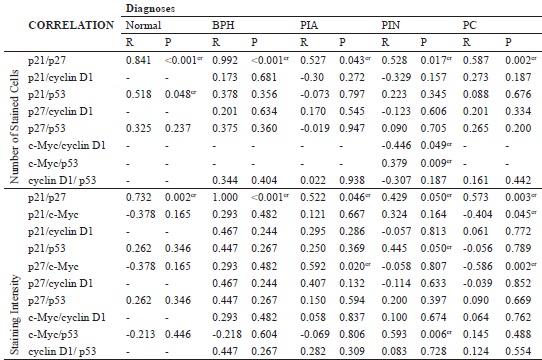

There was strong positive correlation between p21 and p27 for both number of stained cells and staining intensity for normal tissue and with BPH, PIA, PIN and PC. There was positive correlation between p21 and p53 regarding the number of stained cells in normal prostate tissue, and also the intensity of staining to PIN tissue. There was positive correlation of staining intensity between p27 and c-myc in prostates with PIA. Also, in prostates with PIN there was correlation between p53 and c-myc relative to the intensity of staining cell (Table 3).

Furthermore, there was negative correlation between c-myc and cyclin D1 for prostate tissue with PIN regarding the number of stained cells. Considering staining intensity, there was negative correlation between p27 and c-myc and between p21 and c-myc for prostate with carcinoma. That means that high values of one variable are associated the low values of the other variable (Table 3).

Interestingly, even though no differences based on c-myc immunostaining according to diagnosis, c-myc immunostaining was found in all normal prostates and with PIA, PIN, and PC, PIA and PIN. However, it was cytoplasmic or nuclear depending on diagnosis, being cytoplasmic in normal and with BPH prostates, and cytoplasmic and/or nuclear in glands with PIA, PIN and PC. It was also observed that even in low frequency, the immunostaining became stronger from PIA to PIN and from this to PC and also when compared to normal prostate and with BPH. These results are similar to those described by Fonseca-Alves et al. (2013) who reported c-myc immunostaining in canine normal prostate and with PIA and PC having concomitant PIN foci. These authors also observed cytoplasmic and nuclear immunostaining, but with nuclear staining only in few prostates with PC. Although the cytoplasmic immunostaining of c-myc is reported (FONSECA-ALVES et al., 2013), its importance at this location is controversial, since Koh et al. (2010) affirm that almost c-myc functions are based on its known nuclear action. So, considering our results for nuclear immunostaining of c-myc it seems that lesions of PIA and PIN have malignant potential and the canine PC could be less aggressive, since the increased c-myc expression in the human PC is related to tumor cell proliferation, undifferentiation of basal cells, and changes in the apoptotic pathway (KOH et al., 2010). According to Dang (2012), c-myc is overexpressed at early and late stages of development of PC and many others human cancers.

A correlation between p21 and p27 was observed in all tissues (normal, BPH, PIA, PIN and PC) relative to the number and intensity of immunostaining in canine prostates, but not between p21, p27 and cyclin D1 and c-myc. Wang et al. (2010) reported that when p21 and p27 levels are increased and cyclin D1 decreased, a good prognosis is expected. Likewise, Majid et al. (2008) reported an increase of the p21 and p27 with decrease of several types of cyclin (A2, B2, E1 and E2), but not with cyclin D1. Thus, herein our results suggest that even though there was no correlation between those proteins, the positive relation between p21 and p27 overexpression and decreasing of CD1 seems to be controlling the cell proliferation in canine prostates with proliferative disorders, mainly in PC, which could explain the low incidence of canine PC in comparison with this tumor in human glands.

There was positive correlation between immunostaining of p21 and p53 in normal canine prostatic tissues, but not in prostates with proliferative lesions, except in glands with PIN regarding intensity of staining. This confirms that the expressions of p21and p53 are associated and both are active in the cell pathway where p53 induces p21in normal tissues (KIRKNESS et al., 2003; GARTEL; RADHAKRISHNAN, 2005). Thus, this known cellular mechanism of control and repair would be absent in those canine prostates with PIA and PC, enabling the cell growing, since the reduction or absence of p21 has been shown in cell lines of tumors lacking p53 or containing a non-functional mutant form of TP53 (STANGELBERGER et al., 2012). However, it seems that even in the presence of p53 mutant, p21 is induced and keeps its action controlling cell growth, which could justify the low development of PC in canine prostate. In prostates with PIA, the inflammatory environment could be changing those proteins expression and other p21 pathways would arrest cell proliferation. In this context, Yan et al. (2012) identified p21 induction independent of p53 expression in several cell types of tumors, including human breast cancer cells and canine kidney cell line. Also, in human PC, Matsushima et al. (1998) reported that PC with p53⁺/p21^- phenotype showed poorer prognosis compared with those p53⁺/p21⁺, and that combination could predict the patient survival more accurately than p53 immunostaining alone, turning p21 a useful tool for interpretation of p53 IHC results.

In conclusion, the expression of p21, p27, p53, cyclin D1 and c-myc varies according to type of proliferative lesion in canine prostate. Taken together, the results of this study indicate low growth potential of the canine PC in the presence of p21 and p27 overexpression, cyclin D1 low expression and regular expression of c-myc, also with the expression of p53 mutant type. Further, the similar cell cycle progression regulators immunostaining profile presented by glands with PIA, PIN and PC, corroborate the pre-malignant potential of PIA and PIN in canine prostate.
