Criollo is a medium-sized horse, very balanced, agile, fast in its movements, and with good abilities with cattle. Such characteristics made this species be chosen for field works in southern Brazil, Uruguay, and Argentina (VIDART, 2004). With breed evolution, these animals have also been destined to sports practice, standing out the competition Freio de Ouro (ABCCC, 2017). The exercises to which the Criollo horses are submitted predispose them to lesions in the distal portion of the digit, being this region a frequent place of origin of locomotor system disorders, leading to lameness in about 68.6% of the animals studied by Abreu et al. (2011). In addition, changes in CL-DIPJ have been increasingly related to the cause of lameness (DYSON et al., 2004).

Desmopathies involving CL-DIPJ are usually presented as acute lameness from scores 1 to 4 out of 5, with no painful response to hoof sensitivity test (MCDIARMID, 1998). Lameness presents improvement after perineural blocking of the palmar digital nerve in the abaxial sesamoid region (TROPE; WHITTON, 2009) and is characterized by being refractory to treatment with intra-articular corticosteroids (TURNER; SAGE, 2002; ZUBROD et al., 2005). Affected animals may show tumefaction in the ligament region and/or distention of the distal interphalangeal joint capsule (DYSON et al., 2004).

Exercises that involve stops and turns, especially on irregular terrains, angular deformities, and hoof imbalances are the main factors that predispose animals to the development of this disease (ZUBROD et al., 2005). Its diagnosis is adequately performed by means of ultrasonography (MITCHELL, 2013).

Considering this scenario, the knowledge of physiological measurements of this ligament in Criollo horses can help in the early diagnosis and prognosis of lesions in this structure. Therefore, the aim of this study was to standardize, by ultrasonography, CL-DIPJ measurements in healthy Criollo horses not submitted to athletic training.

This research was approved by the Ethics Committee on Animal Use (CEUA) of the Federal University of Pampa (UNIPAMPA) under the protocol No. 027/2017.

Twenty-five adult Criollo horses, four of them castrated males and the other 21 non-pregnant females, were used in the experiment. Animals had a good body condition and an average age of 4.5 years (standard deviation of 1.26), an average weight of 392 kg (standard deviation of 34.9), with a maximum weight of 450 kg and a minimum weight of 325 kg, and an average height of 1.42 m (standard deviation of 0.04). All the animals were from the same farm of Uruguaiana, RS, Brazil, being used to work with cattle. No animal had undergone athletic training nor had a history of lameness originating in the distal portion of the digit. Moreover, no animal was regularly shoed nor trimmed, thus presenting irregular and expanded hooves. The same evaluator performed a general and specific clinical evaluation of the locomotor system systematically and only animals without clinical changes and lameness were selected for the experiment.

After washing with soap and water, trichotomy was performed on the dorsolateral and dorsomedial faces of both thoracic limbs, extending approximately three centimeters above the coronary band. Ultrasonographic evaluation of lateral and medial collateral ligaments of the distal interphalangeal joint was performed by the same evaluator only in the thoracic limbs since CL-DIPJ of pelvic limbs are rarely affected (TROPE; WHITTON, 2009). An ultrasound Chison 8300VET, with a linear probe and a standoff pad, was used with a frequency of 6.0 MHz. Animals were kept in a quadrupedal position, resting on the studied thoracic limb. Due to the docile temperament of the horses, there was no need to sedate or contain them in handling chutes.

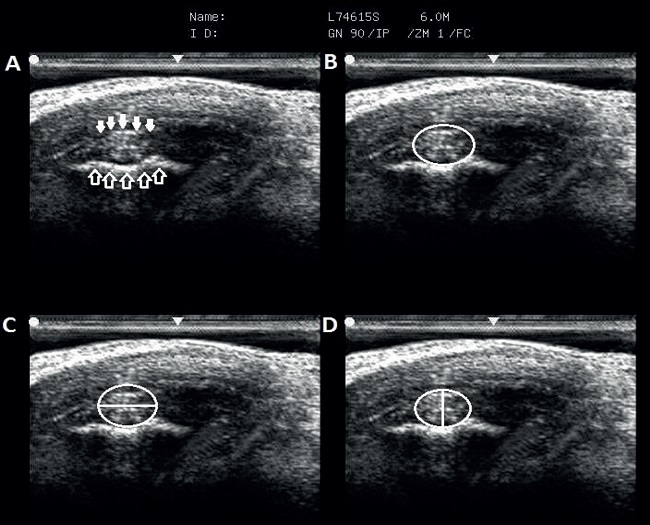

The ultrasonographic technique used in this study was recommended by Denoix et al. (2011), with the ultrasonographic cut-off in position A, in which CL-DIPJ is observed in the distal concavity of the middle phalanx. We measured the four CL-DIPJ of the thoracic limbs of each animal. For this, after animal preparation and probe positioning, three images of each studied ligament were captured. Measurements were performed in each of the images by means of the ultrasound equipment, which also allowed obtaining the values of CL-DIPJ area. With the three measurement values, the average of each variable was calculated. The sites for performing the measurements followed the recommendations of Contreras (2009) and the studied variables were named as the dorsopalmar diameter (DPD), latero-medial diameter (LMD), and cross-sectional area (CSA) of ligaments, which are shown in Figure 1.

The values of lateral CL-DIPJ between left (LTL) and right thoracic limbs (RTL), medial CL-DIPJ between LTL and RTL, and between lateral and medial CL-DIPJ were compared regardless of the studied thoracic limb. For this, the t-test was used at 5% error probability.

Although in the literature we have found other studies that used the same ultrasonographic technique used in our study and with measures for this structure, the measurements were carried out in different breeds, such as quarter horses (TURNER; SAGE, 2002; RIBEIRO, 2016), purebred Arabian horses, paint horses (TURNER; SAGE, 2002), and purebred Chilean horses (CONTRERAS, 2009). Thus, there were no standardizing of CL-DIPJ measurements in Criollo horses.

The choice of this technique and position A, as recommended by Denoix et al. (2011), for CL-DIPJ measurements allowed measuring the studied ligaments in a satisfactory, fast, and relatively easy way. Moreover, due to the irregularity of shoeing and trimming, animals presented expanded hooves, which makes it relatively easier to see the studied structures, as described by Ribeiro (2016).

The evaluator had a greater difficulty in obtaining images of the medial collateral ligaments (MCL), which was also reported by Whitcomb (2009) and Ribeiro (2016). In addition, although all the animals have presented hooves with similar characteristics, we observed slight variations in CL-DIPJ shapes, with some ligaments being flatter or more rounded and varying between individuals and between the lateral collateral ligaments (LCL) and MCL of the same individual. Denoix et al. (2011) and Ribeiro (2016) also described similar results. This characteristic did not cause a great complication to carry out the measurements, but it reinforces the fact that individuals have variations between each other and that an individual evaluation must be carried out carefully, respecting the characteristics of each animal.

In both thoracic limbs, the probe was positioned dorsolaterally and dorsomedially on the coronary band, as described by Turner and Sage (2002) and Evrard et al. (2012). This structure served as a window and allowed finding the concavity of the distal edge of the middle phalanx and using it as a reference point in the chosen position, as described by Denoix et al. (2011) and Turner and Sage (2002). Although CL-DIPJ has particular characteristics regarding their echogenicity during the ultrasonographic evaluation due to the variation in the direction of its ligament fibers along the length (DENOIX et al., 2011; EVRARD et al., 2012), the positioning allowed visualizing the ligament with echogenic characteristics without major difficulties. Moreover, in cases where an anisotropy was observed in position A, a slight adjustment in the probe angulation by the evaluator was sufficient to undo this effect.

The use of a linear probe at a frequency of 7.5 MHz is indicated for CL-DIPJ evaluation, especially to observe changes in echogenicity (DYSON et al., 2004; DENOIX et al., 2011). However, using a frequency of 6 MHz, although the loss of image quality to evaluate fiber echogenicity, we observed a better delimitation of this structure, avoiding a possible erroneous evaluation of CL-DIPJ size.

The average values found for MCL and LCL of the left and right thoracic limbs are shown in Table 1. These values were compared to each other and no statistically significant difference was observed between the MCL of the right and left thoracic limbs (p>0.05). The same result was obtained when LCL values of both limbs were compared to each other (p>0.05).

When LCL and MCL were compared, regardless of the studied thoracic limb, the average values of DPD, LMD, and CSA were, respectively, 9.63±0.15 mm, 6.88±0.1 mm, and 0.52±0.009 cm² for LCL and 9.71±0.14 mm, 6.99±0.1 mm, and 0.53±0.008 cm² for MCL. Although the averages of MCL were higher when compared to LCL, no significant difference was observed between them (p>0.05). This result is in accordance with Contreras (2009) and Ribeiro (2016).

Considering that there was no statistical difference between lateral and medial ligaments, the average size of CL-DIPJ in Criollo horses was 9.67 mm for DPD, 6.94 mm for LMD, and 0.52 cm² for CSA. In fact, domestic animals are anatomically divided into antimeres, which would justify the absence of large bilateral asymmetries in individuals (DIDIO, 1981).

The average values of ATL (0.52 cm²) differed from the values found by Denoix et al. (2011), Turner and Sage (2002), and Ribeiro (2016), who used horses submitted to physical exercises and found values ranging from 0.6 to 0.9 cm² in horses weighing 550 kg, 0.61 to 0.65 cm² in Arabian, quarter, and paint horses, and 0.77±0.17 cm² in quarter horses with an average weight of 450 kg. Contreras (2009) described measures with an area similar to those found in our study in purebred Chilean horses submitted to sports training, with values between 0.55 and 0.61 cm². This similarity in measures may have a relation with the origin and conformation of the purebred Chilean horses, which resemble those observed in Criollo horses (GAJARDO, 2009).

Regarding diameter measurements, we obtained averages of 9.67 mm for DPD and 6.94 mm for LMD. These values of LMD are similar to those found by Denoix et al. (2011), who observed values of 6-9 mm. However, they were higher than the values of 5.4-5.9 mm found by Contreras (2009). For DPD, the values found in our study were lower when compared to those observed by Contreras (2009), Denoix et al. (2011), and Ribeiro (2016), with values of 12.7-13 mm, 12-16 mm, and 11.7±1.4 mm, respectively.

Although the similarity between LMD values obtained here and in other studies, a marked difference was observed when the variables CSA and DPD were observed, with values for Criollo animals lower than those found for other breeds were. Turner and Sage (2002), Denoix et al. (2011), and Ribeiro (2016) evaluated animals with a minimum weight of 450 kg, while in this study, horses had a maximum weight of 450 kg, which could be considered as smaller animals. Although the comparison between our study and the existing literature is valid, it is very important that more studies be carried out in order to prove the relationship between body size of animals and ligament size.

The average measurements of diameter and area of collateral ligaments of the distal interphalangeal joint in Criollo horses were 9.67 mm for DPD, 6.94 mm for LMD, and 0.52 cm² for CSA.

Although the description of measurements of collateral ligaments of the distal interphalangeal joint in equines is found in the literature, this was the first study that standardized the size of this structure in Criollo horses.

Acknowledgments

To the veterinarian Marcelo Teixeira Napoleão and the Estância Itapitocai for making available the animals used in this study.

References

ABREU, H. C.; De La CORTE, F. D.; BRASS, K. E.; POMPERMAYER, E.; LUZ, T. R. R. da; GASPERI, D. de. Claudicação em cavalos Crioulos atletas. Ciência Rural, Santa Maria, v. 41, n. 12, p. 2114-2119, 2011.

ASSOCIAÇÃO BRASILEIRA DE CRIADORES DE CAVALO CRIOULO - ABCCC. O cavalo crioulo. Porto Alegre: Hostche Interatividade Digital, 2017.

CONTRERAS, R. A. C. Caracterización ecotomográfica de los ligamentos colaterales de la articulación interfalángica distal en el equino pura sangre chileno. 2009. Monografía (Trabajo de Conclusión de Curso en Medicina Veterinaria) - Universidad de Chile, Santiago.

DENOIX, J. M.; BERTONI, L.; HEITZMANN, A. G.; WERPY, N.; AUDIGIÉ, F. Ultrasonographic examination of the collateral ligaments of the distal interphalangeal joint in horses: Part A: technique and normal images. Equine Veterinary Education, Fordham, v. 23, n. 11, p. 574-580, 2011.

DIDIO, S. J. A. Variação anatômica. In: SISSON, S.; GROSSMAN, J. D. Anatomia dos animais domésticos. 5. ed. São Paulo: Interamericana, 1981. v. 1, p. 268-272.

DYSON, S. J.; MURRAY, R.; SCHRAMME, M.; BRANCH, M. Collateral desmitis of the distal interphalangeal joint in 18 horses (2001-2002). Equine Veterinary Journal, Fordham, v. 36, n. 2, p. 160-166, 2004.

EVRARD, L.; BOLEN, G.; MAQUET, N.; BUSONI, V. Ultrasonography of the collateral ligaments of the distal interphalangeal joint: technique and reference images. Journal of Equine Veterinary Science, Amsterdam, v. 32, n. 9, p. 584-589, 2012.

GAJARDO, A. M. Caballos en américa; Sello racial del caballo chileno. In: ______. Historia del rodeo chileno. Santiago: [s.n.], 2009. Cap. 2, v. 1, p. 28-32.

McDIARMID, A. C. Distal interphalangeal joint lameness in a horse associated with damage to the insertion of the lateral collateral ligament. Equine Veterinary Education, Fordham, v. 10, n. 3, p. 114-118, 1998.

MITCHELL, R. D. Distal limb lameness in the sport horse: a clinical approach to diagnosis. In: AAEP ANNUAL CONVENTION, 59., 2013, Nashville. Proceedings... Nashville: AAEP, 2013. p. 244-259.

RIBEIRO, G. H. C. Avaliação ultrassonográfica dos ligamentos colaterais da articulação interfalangeana distal do membro torácico em equinos quarto de milha. 2016. Dissertação (Mestrado em Ciência Animal) - Universidade Federal de Goiás. Goiânia.

TROPE, G. D.; WHITTON, R. C. Medial collateral ligament desmitis of the distal interphalangeal joint in the hindlimb of a horse: treatment with cast immobilisation. Australian Veterinary Journal, Queensland, v. 87, n. 12, p. 499-502, 2009.

TURNER, T. A.; SAGE, A. M. Desmitis of the distal interphalangeal collateral ligaments: 22 cases. In: AAEP ANNUAL CONVENTION, 48., 2002, Orlando. Proceedings… Orlando: AAEP, 2002. p. 343-346.

VIDART, D. Orígenes del caballo criollo. In: LEÓN, L. P.; SAN MARTÍN, A. Z. Criollos de America. Montevideo: Ponce de Léon y Zorrilla, 2004. p. 15-26.

WHITCOMB, M. B. Ultrasonographic evaluation of the distal extremity. Journal of Equine Veterinary Science, Amsterdam, v. 29, n. 1, p. 47-59, 2009.

ZUBROD, C. J.; FARNSWORTH, K. D.; TUCKER, R. L.; RAGLE, C. A. Injury of the collateral ligaments of the distal interphalangeal joint diagnosed by magnetic resonance. Veterinary Radiology & Ultrasound, Harrisburg, v. 46, n. 1, p. 11-16, 2005.
