1. Introduction

Expanded polystyrene (EPS), derived from the addition polymerization of phenyl ethane (styrene monomer), is produced in white beads consisting of a number of closed cells, solidly supported and heat-sealed tangentially to each other, which contain still air occluded inside [1]. PS foam is produced by treating crystalline PS with a blowing agent, typically a hydrocarbon or carbon dioxide, to produce a cellular structure in the material, which reduces the brittleness, making it an excellent cushioning and insulating material [2]. Its use in food and electronics packaging, airplane and automotive parts, and sporting equipment, among other applications, has increased in the last few years due to its advantages of being light weight, easy to form, acoustic and thermally insulating, inexpensive to produce, cushioning, dimensionally stable, and heat and moisture resistant [3] – [5].

In Colombia, the expandable polystyrene manufacturing industry produces and markets long life-cycle products, such as geoblocks, cornices, insulation systems for construction, and refrigerators, as well as short life-cycle products, such as multipurpose boxes and packaging systems for the transport of fragile goods and caissons, to name a few. However, short life-cycle products end their useful lives at best as solid waste that ends up in landfills and garbage dumps in different cities across the country.

The composition of solid waste in Colombia in 2010 consisted of 65% organic wastes, followed by 14% plastics [6]. Particularly in Bogota, the recycling of plastics is marginal compared to other kinds of packaging and container materials. According to CEMPRE, the amounts recovered by the collection network of the recycling company CODESARROLLO included 2,932 tons of PET and 1,973 tons of HDPE, LDPE, PP, and PS. The amount of plastic materials used in Colombia has increased from 169,000 tons in 2005 to 209,655 tons in 2010, which corresponds to 27.5% of the apparent consumption of virgin plastic resins [7].

The increased use of polymeric materials causes their recycling to become a way to reduce environmental problems caused by polymeric waste accumulation generated from day-to-day applications of polymer materials, such packaging and construction. The recycling of polymeric waste helps to conserve natural resources, as most polymer materials are made from oil and gas [8]. Polystyrene can be recycled by mechanical, chemical, and thermal methods [9].

Most articles found in the literature on recycled expanded polystyrene use it in the concrete industry. Some of these results will be shown below.

Gu and Ozbakkaloglu [10] reported that the use of recycled plastic aggregates and fibers as construction materials has gained widespread attention in recent years. This practice can contribute significantly toward a more sustainable construction industry.

Chaukura et al. [11] concluded that current on-going research on waste polystyrene (WPS) is in development, and the evaluation of lightweight concrete, ion exchanges and composites from WPS represents one step in that direction.

Dissanayake et al. [12] developed a novel walling system, which uses 50% recycled EPS to produce lightweight foam concrete panels. The described precast panels have a better performance than burnt clay bricks because they generate less carbon emissions and allow faster construction.

Kaya [13] used waste expanded polystyrene (EPS) in a mixture of cement and tragacanth resin to produce a new concrete material. The amount of the resin in the mixture was 0.5, 1.0, and 1.5% of the total cement, and the EPS ratios in the samples were determined as 20, 40, 60 and 80% of the total volume. As the EPS and resin percentages of the samples increased, the density, thermal conductivity, compressive strength and tensile strength decreased, and the porosity increased. The change in the physical properties shows that artificial pores (besides those of EPS) are formed in the concrete blocks, which increases the insulating characteristics of the material.

Other uses of recycled polystyrene can be found in the work of Acierno et al. [14] and Poletto et al. [15].

Acierno et al. [14] fabricated injection-molded products made from blends of virgin EPS with fractions up to 40% post-consumer recycled waste EPS under controlled conditions. The materials were characterized, and a reduction in the density was found; therefore, properties such as the thermal conductivity and compressive strength are affected, although not significantly.

Poletto et al. [15] used waste EPS samples acquired from electronic goods and home appliance packaging to manufacture a thermoplastic material containing wood. Samples with 10, 20, 30 and 40% wood flour with and without 2% poly(styrene-maleic anhydride) (SMA) and EPS flakes were processed in a co-rotating twin-screw extruder at 200 rpm. In general, the mechanical properties of the composites with and without coupling agent presented similar behavior and low density.

Nevertheless, the characterizations omitted properties such as thermal diffusivity, which is associated with the velocity of heat propagation during temperature changes over time. Thus, mixtures of virgin EPS and post-consumer recycled EPS with food residues should be examined to corroborate the effect on these properties, including materials that have not been well analyzed and using equipment that is commonly found in industrial settings in the country, so that possible applications can be reviewed, thus motivating industry to work towards environmental sustainability by examining the life cycle and proving that EPS is a usable waste.

Gu and Ozbakkaloglu [10] reported that the use of recycled plastic aggregates and fibers as construction materials has gained widespread attention in recent years. This practice can contribute significantly toward a more sustainable construction industry.

Chaukura et al. [11] concluded that current on-going research on waste polystyrene (WPS) is in development, and the evaluation of lightweight concrete, ion exchanges and composites from WPS represents one step in that direction

Dissanayake et al. [12] developed a novel walling system, which uses 50% recycled EPS to produce lightweight foam concrete panels. The described precast panels have a better performance than burnt clay bricks because they generate less carbon emissions and allow faster construction.

Kaya [13] used waste expanded polystyrene (EPS) in a mixture of cement and tragacanth resin to produce a new concrete material. The amount of the resin in the mixture was 0.5, 1.0, and 1.5% of the total cement, and the EPS ratios in the samples were determined as 20, 40, 60 and 80% of the total volume. As the EPS and resin percentages of the samples increased, the density, thermal conductivity, compressive strength and tensile strength decreased, and the porosity increased. The change in the physical properties shows that artificial pores (besides those of EPS) are formed in the concrete blocks, which increases the insulating characteristics of the material.

Dissanayake et al. [12] developed a novel walling system, which uses 50% recycled EPS to produce lightweight foam concrete panels. The described precast panels have a better performance than burnt clay bricks because they generate less carbon emissions and allow faster construction.

Kaya [13] used waste expanded polystyrene (EPS) in a mixture of cement and tragacanth resin to produce a new concrete material. The amount of the resin in the mixture was 0.5, 1.0, and 1.5% of the total cement, and the EPS ratios in the samples were determined as 20, 40, 60 and 80% of the total volume. As the EPS and resin percentages of the samples increased, the density, thermal conductivity, compressive strength and tensile strength decreased, and the porosity increased. The change in the physical properties shows that artificial pores (besides those of EPS) are formed in the concrete blocks, which increases the insulating characteristics of the material.

Other uses of recycled polystyrene can be found in the work of Acierno et al. [14] and Poletto et al. [15].

Acierno et al. [14] fabricated injection-molded products made from blends of virgin EPS with fractions up to 40% post-consumer recycled waste EPS under controlled conditions. The materials were characterized, and a reduction in the density was found; therefore, properties such as the thermal conductivity and compressive strength are affected, although not significantly.

Poletto et al. [15] used waste EPS samples acquired from electronic goods and home appliance packaging to manufacture a thermoplastic material containing wood. Samples with 10, 20, 30 and 40% wood flour with and without 2% poly(styrene-maleic anhydride) (SMA) and EPS flakes were processed in a co-rotating twin-screw extruder at 200 rpm. In general, the mechanical properties of the composites with and without coupling agent presented similar behavior and low density.

Nevertheless, the characterizations omitted properties such as thermal diffusivity, which is associated with the velocity of heat propagation during temperature changes over time. Thus, mixtures of virgin EPS and post-consumer recycled EPS with food residues should be examined to corroborate the effect on these properties, including materials that have not been well analyzed and using equipment that is commonly found in industrial settings in the country, so that possible applications can be reviewed, thus motivating industry to work towards environmental sustainability by examining the life cycle and proving that EPS is a usable waste.

2. Materials and methods

2.1 Manufacturing of the material

The manufacture of recycled expanded polystyrene (EPS) begins with injected EPS parts (post-consumer multipurpose polystyrene boxes) that were previously washed with an industrial detergent and dried in the atmosphere for a period no less than 24 hours. The material was crushed in a blade mill or SIEMENS model Shattering 1LA3 equipped with a 5 mm sieve. The milling product was weighed on an industrial scale (PCE-LS) with a resolution of 0.001 mm, according to the proportions specified in Table 1, and was powered by a SIEMENS fan model number 2044-2 AA 1LA hopper homogenizer, as shown in Fig. 1.

The properties of the milled particles in the sample residue are as follows. The bulk density of the material was 25 kg/m3, calculated according to ASTM D1622-08 prior to grinding, and the EPS size after grinding was ≤ 5 mm.

General-purpose expandable polystyrene beads (grade S3) were used in the manufacture of virgin expanded polystyrene (EPS), which were produced in Ming Dih, Taiwan, and provided by AISLAPOR (Production Plant: Canavita, Tocancipá, Colombia). This material was weighed on a scale and poured into expander 1 according to the proportions specified in Table 1. The material was pushed by a SIEMENS model 1LA3 series fan to the 106-2YB60 hopper homogenizer and finally transferred to a storage silo for at least 2 hours and up to 24 hours to prevent the loss of pentane, as explained in Fig. 1.

Table 1 shows the mass in grams used in the formulations throughout the manufacturing process of the four materials and their respective identification

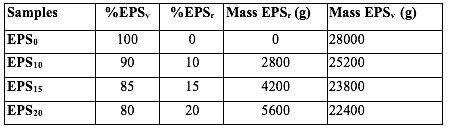

Table 1

Mass in grams used in the formulations

Source: Authors’ own elaboration

Finally, the specific proportions were poured into the homogenizer to produce each of the materials. The materials were manually entered into the feed hopper of the LA-LENDLE injection machine model 90-70-20, with the operating conditions described in Table 2.

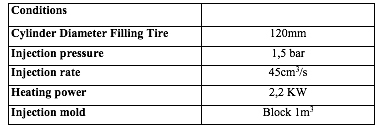

Table 2

Injection molding conditions

Source: Authors’ own elaboration

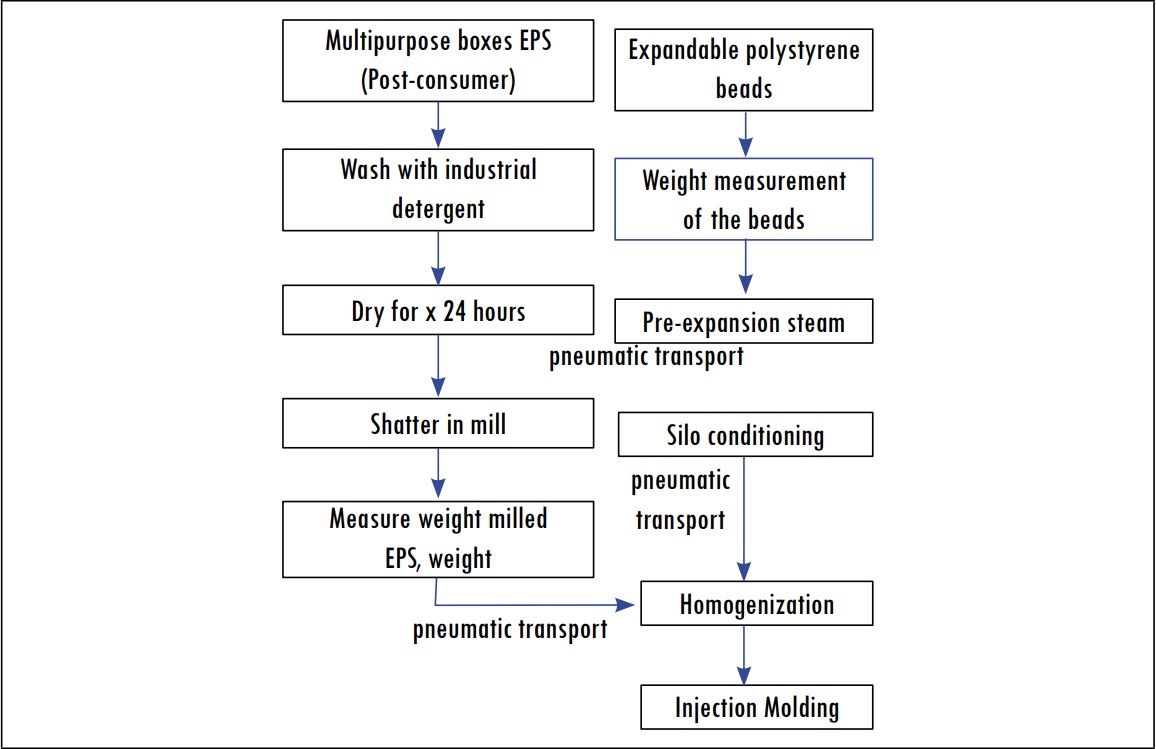

Figure 1
Block diagram of the operations performed with the material
Authors’ own elaboration

2.2 Infrared spectrophotometric method

The degree of modification of the manufactured materials was evaluated by analyzing the absorption bands. The spectra were obtained using a SHIMADZU model S FTIR over a wavelength range of 400 to 4000 cm-1. The samples were prepared by scraping with P400 CROWNMAN sandpaper. A powdered tablet was manufactured with 1 mg of the sample in KBr. The samples were pre-weighed on an analytical balance.

2.3 Description of the mechanical properties

Physical testing of the compressive resistance and bending was performed on a SHIMADZU universal testing machine model A6-1S with temperature and humidity conditions of 23±2°C and 50±5% RH, respectively.

For the compressive resistance test, the tested pieces were cut from the material produced in the injection molding machine in dimensions of 58 × 58 × 44 mm (±1 mm), according to the specifications given in ASTM standards D7557-09 and D1621-10 ASTM 6.1. The load on the entire surface was applied at a displacement rate of 2.5±0.25 mm/min per 25.4 mm of thickness, i.e., 4.3 mm/min, until the sample was compressed to approximately 13% of its original thickness or until it reached the yield point thickness.

To test the flexural resistance, the samples in sheet form were cut from the material produced in the injection molding machine in dimensions of 300 × 75 × 22 mm (±1 mm), according to the specifications given in paragraphs 8.2 and 8.3 of the ASTM C203-05a (2012) and ASTM D7557-09 standards, following test method I and process A, primarily designed for materials which break at relatively small deviations.

Cylindrical support edges in PVC were designed with a diameter of 33.5 mm and length of 100 mm; the separation between centers was 250 mm (±1 mm). Specimens were bent under the flapper load and broken by the combined effects of compression and tension; in this way, the maximum breaking load was determined.

Izod impact testing was performed on unnotched samples using a Physical Test Solutions impact pendulum. Rectangular specimens cut from the material produced in the injection molding machine were used, with dimensions of 10.2 × 63.5 × 12.7 mm (±1 mm), according to the specifications given in Section 7 of ASTM D4812-11 and ASTM D7557-09.

2.4. Thermal characterization

Differential scanning calorimetry was performed using a Modulated Instruments DSC 2910, previously calibrated with an indium standard. The samples were prepared in a DuPont Instruments SN PN 900878-901 01678 hermetically encapsulating aluminum press. All measurements were performed in nitrogen atmosphere with a controlled flow of 50 ml/min. Temperature sweeps were performed over the standard DSC range of 40 to 220°C with a sample amount of 3±0.5 mg and a heating rate of 5°C/min. The values of the heat flow of the liquid and glassy lines, obtained through DSC, were used to extrapolate the Tg, and the specific heat (Cp) was calculated with Equation (1) [16].

Thermal gravimetric analysis was performed on a TA Instruments 2050 TGA, which was equipped with a platinum sample holder, previously calcined red hot to erase the thermal history. All measurements were performed in nitrogen atmosphere with a controlled flow of 50 ml/min. Temperature sweeps were performed within a range of 30 to 850°C with a sample amount of 5±2 mg and a heating rate of 20°C/min.

The thermal conductivity was measured on hot plate equipment that consisted of thermocouples with 12 measurement points, a k-type display, a digital multimeter, a digital ammeter, a gauge, measuring tape, and a variable voltage source. In total, 2 cuttings for each of the tested materials were used as samples. The cuttings had dimensions of 300 × 300 × 24 (±1 mm) and were taken from the material produced in the injection molding machine, according to the specifications given by ASTM C177-10 and considering the direction of compression molding.

For the test, two plates were mounted on the sample stage on the test bench. The equipment was hermetically sealed, and the average exposure temperature was kept under the glass transition temperature obtained from the DSC experiment to prevent softening of the material in each case. The material was exposed in the equipment until it reached a steady state. The thermal diffusivity was determined in this state according to Equation (2) [17].

The heat transfer differential equation can be solved by the finite difference in one dimension for the case of a flat wall, resulting in Equation (3). This equation was used to write the code for the Octave 3.6.4 software and to simulate the temperature distribution profile in the non-stationary regime for the reference material and the manufactured EPS10, EPS15, and EPS20.

Thermal gravimetric analysis was performed on a TA Instruments 2050 TGA, which was equipped with a platinum sample holder, previously calcined red hot to erase the thermal history. All measurements were performed in nitrogen atmosphere with a controlled flow of 50 ml/min. Temperature sweeps were performed within a range of 30 to 850°C with a sample amount of 5±2 mg and a heating rate of 20°C/min.

The thermal conductivity was measured on hot plate equipment that consisted of thermocouples with 12 measurement points, a k-type display, a digital multimeter, a digital ammeter, a gauge, measuring tape, and a variable voltage source. In total, 2 cuttings for each of the tested materials were used as samples. The cuttings had dimensions of 300 × 300 × 24 (±1 mm) and were taken from the material produced in the injection molding machine, according to the specifications given by ASTM C177-10 and considering the direction of compression molding.

For the test, two plates were mounted on the sample stage on the test bench. The equipment was hermetically sealed, and the average exposure temperature was kept under the glass transition temperature obtained from the DSC experiment to prevent softening of the material in each case. The material was exposed in the equipment until it reached a steady state. The thermal diffusivity was determined in this state according to Equation (2) [17].

The heat transfer differential equation can be solved by the finite difference in one dimension for the case of a flat wall, resulting in Equation (3). This equation was used to write the code for the Octave 3.6.4 software and to simulate the temperature distribution profile in the non-stationary regime for the reference material and the manufactured EPS10, EPS15, and EPS20.

3. Results

3.1 Infrared spectroscopy test

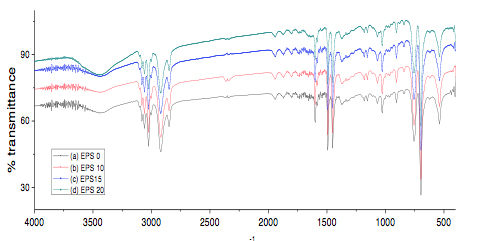

Figure 2.
Infrared spectra of the polystyrene powder samples: (a) EPS0, (b) EPS10, (c) EPS15, and (d) EPS20
Source: Authors’ own elaboration

Characteristic bands include the absorption bands at 3088, 3059, and 3030 cm-1, corresponding to “stretching” vibrations of the aromatic C-H bonds. The absorption bands at 2921 and 2848 cm-1 are due to symmetric and asymmetric vibration, respectively, and C-H “stretching” of CH2 in the polystyrene backbone. An absorption band corresponding to the “stretching” of the C-C bond in the ring plane appears at 1503 cm-1. “Stretching” vibrations of the C-H ring are observed at 1445 and 1366 cm-1, and in-plane “bending” bands of the C-H ring are observed at 1176, 1140, 1067, and 1030 cm-1. Finally, the characteristic out-of-plane “bending” vibrational bands of C-H in the aromatic ring appear at 900, 841, 754, 689, and 529 cm-1, as shown in Fig. 2 (a)-(d).

It can be seen that both the reference material EPS0 and the studied materials EPS10, EPS15, and EPS20 correspond to the same polymer, with no evidence of oxygenated groups composed of environmental agents or any other functional group formed during degradative processes such as washing and milling of the recycled material.

3.2 Mechanical properties

Table 3 shows the results of the determination of the mechanical properties of the materials produced in comparison to the EPS0 reference material. The three EPS mixtures exhibit a low compressive load, which is very similar to the behavior of the EPS0 reference material. The deflection observed during the test was homogeneous, and resistance to this kind of force remained constant at 0.11 MPa, with little significant variation among the materials studied.

However, when comparing the modulus of elasticity of EPS0, corresponding to 2.86 MPa, with the results for EPS10, EPS15, and EPS20, an increasing linear trend can be observed, and in turn, a greater spread in the data appear. This indicates that the increase in the percentage of recycled material makes the mixture more rigid [18]. Given that the modulus is closely related to the binding energy of the linked molecules, it is possible that the electrostatic attraction tends to be slightly reduced, causing a loss in the flexibility of the polymer chain [20] and affecting other mechanical properties. When the cells in EPS are destroyed, they probably release air/n-pentane gas and in turn lose cohesiveness, and therefore, the material depends on pristine pearls to stay together.

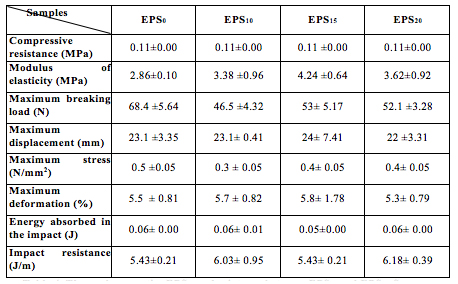

Table 3

Mechanical properties of EPSv and mixtures of EPSv and EPSr.

Source: Authors’ own elaboration

The impact resistance ranges between 5.43 and 6.18 J/m, with no significant variation in the ability of the material to withstand collisions when increasing the percentage of recycled material, and the energy absorption observed during impact is maintained at approximately 0.06 J. This property also applies to EPS0, and the fault presented in the 4 materials under study is complete fracture; that is, the sample separated into two parts. Therefore, the rigid component in the structure of the manufactured materials is still low and thus does not affect the mechanical properties. These results explain the absence of significant effects for EPSv and EPSr mixtures, causing the formation of intermediate phases or structures that affect the characteristics of the initial components [19].

By contrast, the bending test showed a decrease in the maximum tensile resistance with respect to that of the EPS0 reference material. The value of EPS10 was approximately 68%, EPS15 77%, and EPS20 76%, considering the maximum load to break was 68.4 N, corresponding to an EPS0 value of 100%. Thus, brittleness is exhibited by the manufactured material, although EPS0 breaks when elastically deformed. However, in the materials produced, the highest tensile resistance is significantly lower than that of the reference material; that is, elastic deformation occurs faster. It is evident that upon subjecting the EPS to grinding, a reduction in the average length of the PS chains and the molecular weight [18], [20] results.

The presence of recycled material transforms EPS10, EPS15, and EPS20 into a stiffer, more brittle material, depending on the proportion of recycled material, though all three materials show a very similar decrease.

Given that the assay combines bending compression stress and tensile resistance, it follows that by applying tensile forces to EPS10, EPS15, and EPS20, the bonds between the molecular chains are more quickly overcome with respect to EPS0, which in the case of amorphous thermoplastics, occurs through van der Waals forces

The mechanical characteristics of the manufactured materials EPS10, EPS15, and EPS20 define them as foamed polymers with good resilience when subjected to compression and impact resistance and poor when subjected to bending stresses. This establishes that the long chain structure is preserved, which provides resistance, except when the material is subjected to bending or pulling, as well as toughness.

3.3 Thermal properties

Table 4 shows the results of the temperature scan from 40°C to 220°C, where a single glass transition temperature (Tg) is observed in all materials produced. It is possible to characterize the structure of the materials produced as an amorphous solid state, in accordance with the EPS0 reference material.

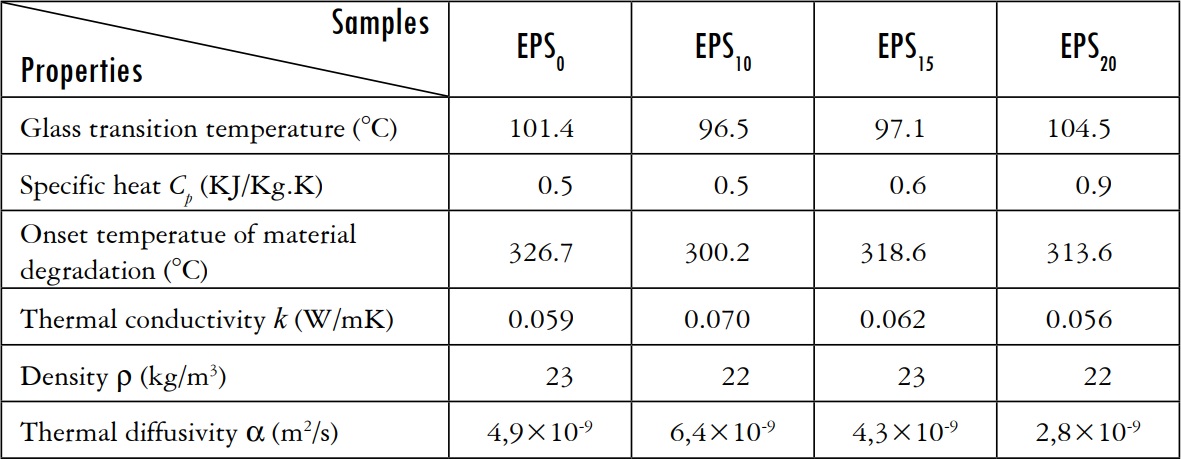

Table 4

Thermal properties of EPSv and mixtures of EPSv and EPSr

Source: Authors’ own elaboration

Softening of the EPS10 material can be observed at 96.5°C, with a difference of -4.9°C with respect to EPS0. In the case of EPS15, 97.1°C is obtained with a difference of -4.3°C compared to EPS0, and for EPS20, molecular motion occurs at 104.5°C with a difference of 3.1°C relative to EPS0. It can be seen that the glass transition temperature shows no significant difference between the materials under study, but there is a small decrease in the value obtained for the blends compared to the reference material (EPS0), except for EPS20, which may possibly be an experimental error.

This effect can be explained by the loss of pentane emitted into the atmosphere throughout the life cycle of the product and during the destruction of the EPSr pearl when subjected to grinding. This is in agreement with the decrease in the observed maximum load break when subjected to bending and the increased elastic modulus and mixtures of EPSr and EPSV. Additionally, the onset degradation temperatures of the materials determined via TGA are presented.

The thermogravimetric analysis of EPS0 gave an onset degradation temperature of 326.7°C. In the case of EPS10, this effect was seen at 300.2°C. In EPS15, a temperature of 318°C was obtained, and for EPS20, degradation was observed at 313.6°C.

In this test, the onset degradation temperature of the manufactured materials containing a percentage of EPSr decreased with respect to the reference material. The thermograms shown in Fig. 3(a)-(d) demonstrate the homogeneity in the formulations, since there is clear uniformity and regularity in the decrease in mass loss versus temperature. There is no evidence of intermediate structures significantly affecting the characteristics of the initial components.

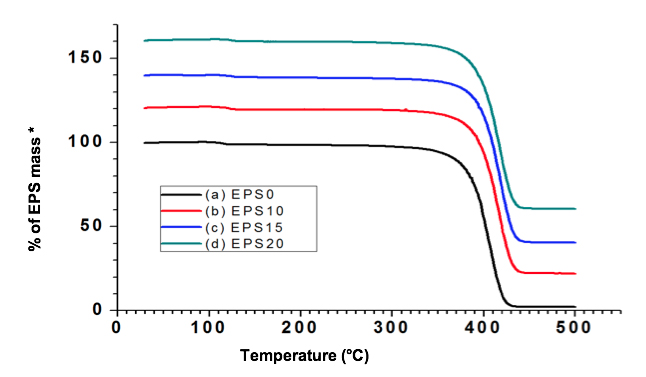

Figure 3
Thermal gravimetric analysis of (a) EPS0, (b) EPS10, (c) EPS15, and (d) EPS20
Source: Authors’ own elaboration

The hot plate test determined the thermal conductivity (k) of EPS0 to be 0.059 W/mK. When compared to this reference, the results of the mixtures present the following variations: for EPS10, k = 0.070 W/mK, with a variation of 0.011 corresponding to an 18% difference; for EPS15, k = 0.062 W/mK, with a variation of 0.003 corresponding to a 5.1% difference; and for EPS20, k = 0.056 W/mK, with a variation of -0.003 corresponding to a 5.1% difference.

The difference in the values may be due to the sections of material employed as samples in each case and the random distribution of the recycled material in the studied plate, since the homogenization in the production process, although acceptable, is far from ideal. However, the results obtained make it possible to state that the overall thermal conductivity values increase with respect to the reference material, exceeding the permitted value for thermal insulating materials and poor conductors of 0.06 W/mK.

This behavior can be explained as follows: the three materials, with varying proportions of recycled material, may have a more solid cellular structure and, in turn, decreased content of air cells. This allowed an increase in vibrational energy transport and the translation and rotation of molecules resulting from collisions with phonons from the high temperature regions to the low temperature regions, which permitted a greater flow of heat transfer. However, the contribution of thermal electron conduction, that is, conduction by free electrons, can be discarded because the variation is not significant compared to that of good conductors [19].

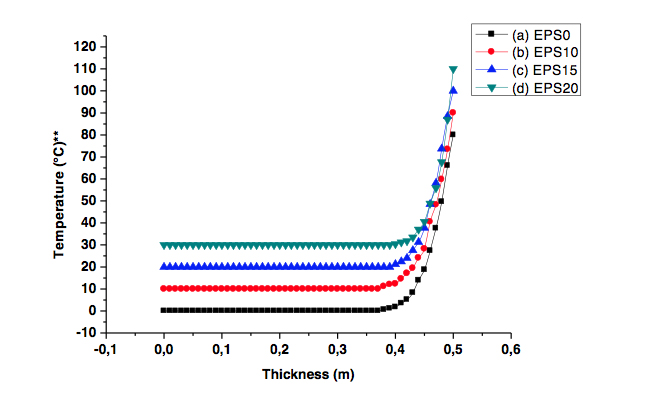

Figure 4
Linear distribution of temperatures in a plate with a thickness of 0.50 m in the unsteady state with inhomogeneous boundary conditions (T(0,0) = 0°C and T(0,0.5) = 80°C) and a time interval of 500, i.e., 2500 minutes: (a) EPS0 with α = 4.9×10-9 m2/s, (b) EPS10 with α = 6.2×10-9m2/s, (c) EPS15 with α = 4.3×10-9 m2/s, and (d) EPS20 with α = 2.8×10-9 m2/s.
Source: Authors’ own elaboration

These results were determined at a temperature approximately 30% below the glass transition temperature, thus preventing softening of the materials studied.

All data obtained from the thermal diffusivity measurements were determined on the order of 10-9 m2/s; that is to say, as for the reference material, EPS10, EPS15, and EPS20 can be characterized as poor diffusers, since the rate of heat propagation during temperature changes is very low, as shown in Fig. 4, as determined by the simulations in Octave over 2500 minutes, by means of the one-dimensional temperature distribution profiles in the four formulations, showing very similar results.

In the last measured time interval shown in the graph, at a distance of 0.4 m of its thickness, EPS0 exhibits T = 1.6°C, EPS10 exhibits T = 2.8°C, EPS15 exhibits T = 1.3°C, and EPS20 exhibits T = 0.5°C, showing in all cases a very low warming rate without exceeding the rate of heat propagation in the reference material, except for EPS10, since this material exceeded the thermal conductivity of EPS0 and maintained its specific heat. However, the difference does not exceed 2°C after 2500 minutes, i.e., heat propagation continues to be slow.

4. Conclusions

Materials consisting of EPSv and EPSr mixtures containing recycled material from food industry wastes in weight percentages of 10, 15, and 20%, were produced using a secondary reprocessing method. These materials could have a positive impact on the industry, since the amount of EPSv required for the development of some products is reduced, and the overall life cycle of the EPS products is increased.

The mechanical properties of the manufactured materials EPS10, EPS15 and EPS20 defines them as foamed polymers with good strength when subjected to compression and impact stress and poor strength when subjected to bending stresses. This establishes that the long-chain structure provides resistance, except when the material is subjected to flexural or tensile stresses, where the branches possibly supply tenacity.

The thermal properties show no significant difference between the materials under study; therefore, the current thermoforming processes are compatible with the EPS10, EPS15, and EPS20 materials.

A significant contribution of this research is the measurement of the thermal diffusivity. In all cases, the data were on the order of 10-9 m2/s; that is to say, as for the reference material, EPS10, EPS15, and EPS20 can be characterized as poor diffusers, since the rate of heat propagation during temperature changes is very low. Thus, it was possible to study one of the main properties that characterize expanded polystyrene. However, due to the limited access to equipment that can perform this measurement, it is recommended to carry out studies where these results can be verified and used for new industrial applications.

References

[1] I. Tsivintzelis, A. G. Angelopoulou, and C. Panayiotou. “Foaming of polymers with supercritical CO2: An experimental and theoretical study”, in Polymer, Vol. 48, 2007, pp.5928-5939. [Online]. Available: http:// doi:10.1016/j.polymer.2007.08.004

[2] C. Arriaga, C. Adrián, J. López, M. Hernández, R. Echavarría and V.Ovando. “Thermal characterization of microwave assisted foaming of expandable polystyrene”. In Ingeniería Investigación y Tecnología, vol. XVII, (issue 1), pp 15-21, January-march 2016. [Online]. Available: http://dx.doi.org/10.1016/j.riit.2016.01.002

[3] EPS, Industry alliance packaging (2009), expanded polystyrene packaging Environmental Profile Analysis. [Online]. Available: http://www.epspackaging.org/images/stories/EPS_Environmental_Profile_Analysis- lores.pdf.

[4] A. Emblem and H. Emblem, Ed. “Plastics properties for packaging materials” in Packaging technology fundamentals, materials and processes. Woodhead Publishing Limited, p.299, 2012.

[5] E. Susan, M. Selke.and J. Culter. “Foams, Cushioning, and Distribution Packaging” in Plastics Packaging Properties, Processing, Applications, and Regulations. Third Edition. Hanser Publications, Cincinnati. 2016, pp. 123, 340-341.

[6] G. Pernett. “Eco-materiales. La incidencia negativa de la construcción en el medio ambiente”, en Revista de Investigación Universidad América. Vol. 4, n° 1, pp. 61-77. 2011

[7] CEMPRE. (2011, Abril). Estudio Nacional de reciclaje. [Online]. Available: http://www.cempre.org.co/sites/default/files/3926-estudio_nacional_de_reciclaje_aproximación_al_mercado_de_reciclables_y_las_experiencias_significativas_0.pdf

[8] K. Hamad, M. Kaseem, and F. Deri “Review article. Recycling of waste from polymer materials: An overview of the recent Works”. Polymer Degradation and Stability 98 (2013) 2801-2812. [Online]. Available: http://dx.doi.org/10.1016/j.polymdegradstab.2013.09.025.

[9] T. Maharana T, Y. Negi and B. Mohanty. “Review Article: Recycling of polystyrene”. In Polymer-Plastics Technology and Engineering, Vol 46, n° 7, pp. 729-736, March 2007.

[10] L. Gu and T. Ozbakkaloglu. “Use of recycled plastics in concrete: A critical review”. Waste Management 51 (2016) 19–42. [Online]. Available: http://dx.doi.org/10.1016/j.wasman.2016.03.005

[11] N. Chaukura, W. Gwenzi, T. Bunhu, Deborah T. Ruziwa, I. Pumure. “Potential uses and value-added products derived from waste polystyrene in developing countries: A review”. Resources, Conservation and Recycling 107 (2016) 157–165. [Online]. Available: http://dx.doi.org/10.1016/j.resconrec.2015.10.031

[12] D. Dissanayake, C. Jayasinghe, M. J Jayasinghe. (2016, Nov) “A comparative embodied energy analysis of a house with recycled expanded polystyrene (EPS) based foam concrete wall panels”. In Energy and Buildings [Online]. Available: http://dx.doi.org.ezproxy.unal.edu.co/10.1016/j.enbuild.2016.11.044.

[13] A. Kaya and F. Kar. “Properties of concrete containing waste expanded polystyrene and natural resin” In Construction and Building Materials. Vol 105, pp.572-578, February 2016. [Online]. Available: http://dx.doi.org/10.1016/j.conbuildmat.2015.12.177

[14] S. Acierno, C. Carotenuto C. and M. Pecce. “Compressive and thermal properties of recycled EPS foams”. In Polymer-Plastics Technology and Engineering, Vol 49, n° 1, pp. 13-19, December 2010. [Online]. Available: http://dx.doi.org/10.1080/03602550903282994

[15] M. Poletto, H. Ornaghi and Zattera A. “Characterization of composites based on expanded polystyrene wastes and wood flour” In Waste Management, Vol. 31, n° 4, pp. 779-784, April 2011. [Online]. Available: http://dx.doi.org/10.1016/j.wasman.2010.10.027

[16] J. Mano. Propiedades térmicas de los polímeros en la enseñanza de la ciencia de materiales e ingeniería. Estudios DSC sobre Poli (Tereftalato de Etileno). Journal of Materials Education Vol.25 (4-6), México, 2003, pp. 161-164. [Online]. Available: http://www.redalyc.org/pdf/266/26625607.pdf

[17] A. Salazar. On termal diffusivity. Eur. J. Phys 24, 2003, pp. 351-358. [Online]. Available: http://iopscience.iop.org/article/10.1088/0143-0807/24/4/353/pdf

[18] J. Perilla, L. Chaparro, C. Escorcia y N. López. Mezcla de materiales poliméricos I. Evaluación de las mezclas de poliestireno virgen y reciclado. Revista Ingeniería e Investigación. Vol. 44, 1999, pp. 80-83. [Online]. Available: http://revistas.unal.edu.co/index.php/ingeinv/article/view/21303

[19] W. Callister. Introducción a la Ciencia e ingeniería de los materiales 2. España: Reverte, 2007, pp. 674 - 676

[20] A. López, “Influencia del proceso de reciclado sobre las propiedades de los materiales compuestos obtenidos por inyección de poliestireno reforzado con fibras lignocelulósicas”, D.S. Thesis. Universidad de Girona. Girona. España, 2004. [Online]. Available: http://www.tdx.cat/handle/10803/7759
