Five zones in the area of distribution of E. robusta plantations were chosen for the study. They were located in the Highlands of Madagascar (Figure 1). Three sites representative of the zones were selected for each of them.

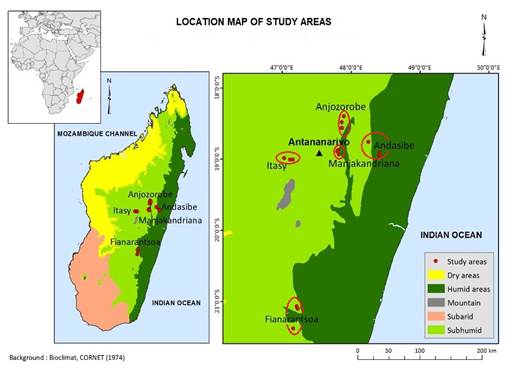

Figure 1:
Location of the study zones.

Table 1 lists the characteristics of the study zones according to the environmental factors considered. The study zones differed in terms of elevation, climate and soil texture. Andasibe lies in a humid, lowland region. Anjozorobe, Fianarantsoa, Itasy and Manjakandriana lie in sub-humid highland zones. The highest temperature was encountered at Fianarantsoa and the lowest at Manjakandriana. The soils in the 5 zones are somewhat clay-rich and vary in sand and silt rates.

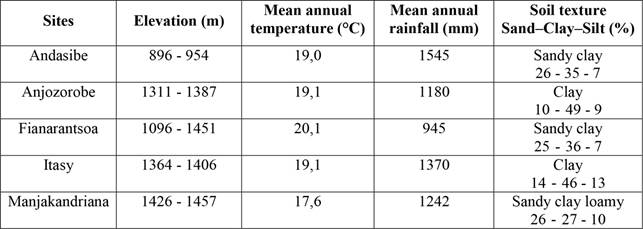

Table 1:
Characteristics of each study zone depending on environmental factors.

The environmental factors considered here were elevation, climate (MAT and MAR) and soil properties. The silvicultural parameters were the forestry regime, rotation length and tree density in the plantations.

Soil samples were taken at each site from a soil pit (30 cm*30 cm*70 cm), along with 3 auger samples taken around it. The soil texture was determined by sedimentation granulometry using the pipette method (Rzasa and Owczarzak 2013). The finer particles (clay and fine silt) were quantified by decantation. The coarser particles (coarse silt, sand) were separated by dry screening.

The pH was obtained using a solution with a soil/distilled water ratio of 1:2,5 (Conyers and Davey 1988). Organic carbon was measured by the titration method (Walkley and Black 1934) and total nitrogen was measured by quantification on a Kjeldahl continuous flow analyser (SKALAR) (Bradstreet 1954). Available phosphorus was quantified on a spectrophotocolorimeter (Olsen et al. 1954) and the cation exchange capacity (CEC) by cobaltihexamine extraction and quantification on an atomic absorption spectrometer (Ciesielski et al.1997).

Wood samples were collected from the different coppice-managed E. robusta smallholder plantations. For each site in each zone, the suckers were 2 to 10 years old. The age was determined by interviewing the managers. In all, 135 plants were sampled. The plantation spacing differed depending on the stands and the owners, varying from 4m * 4m, to 3m*3m and 3m* 2m.

A stem without any apparent defects was cut from each stump. A log was cut from each stem 1,30 m above the stump. Two 1,5-cm disks were cut from each log. A diametral strip measuring 1 cm wide by 1,7 mm thick was made from one of the disks to assess wood density at a 12% moisture content. The second disk was ground to 4 mm to assess chemical properties (Figure 2).

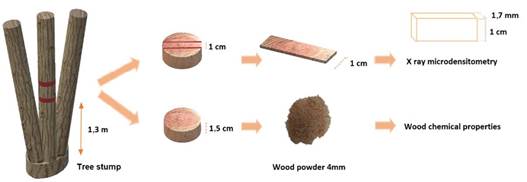

Figure 2:
Diagram of the sampling protocol for the characterization of E. robusta wood properties.

The samples were placed in a climate chamber at 20°C and 65% moisture for 96 h up to stabilization at a theoretical 12% moisture content. The density (d12) of the samples was determined by X-ray microdensitometry on a specific QTRS-01X instrument controlled by QMS Tree Ring System software (Quintek Measurement Systems). For each wood sample, we obtained a density profile along the radius taking measurements every 80 µm.

The chemical properties of the wood, such as extractives (EXT), Klason lignin (KL) and holocellulose (HOLO) contents were predicted using existing prediction models and near infrared (NIR) spectroscopy spectra measured on the wood samples from the study (Chaix 2012). As for the pre-established models, we used a Bruker Vector 22/N model spectrophotometer. The spectra were measured on the longitudinal surface of all the previously moisture-stabilized samples.

Statistical analyses were carried out with the Rstudio version of R software (R Core Team 2017). The relations between environmental factors, silvicultural practices and wood properties were determined with Pearson’s coefficient. Some Y=aX+b type linear models were established to show relations between the variables. Variance analyses were used to investigate how the studied factors affected wood properties. The Tukey test was used to determine groups with significant differences at the 5% limit depending on the factors analysed.

The descriptive data for the 12% density and chemical properties of the wood per study zone are presented in Figure 3.

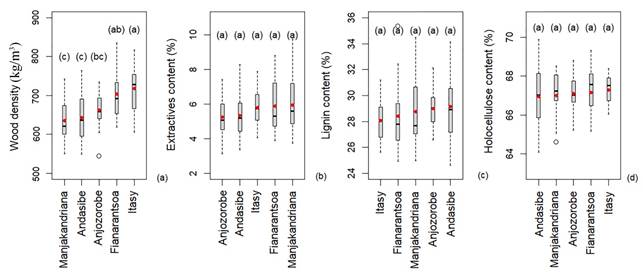

Figure 3:
Variability in wood density and chemical properties between and within regions: (a) wood density according to regions, (b) total extractives content according to regions, (c): Klason lignin content according to regions, (d) holocellulose content according to regions.

Density varied from 543 to 836 kg/m³ and differed significantly between the regions (p-value<0,001). Two groups stood out, with Manjakandriana, Andasibe and Anjozorobe in the first, and Fianarantsoa and Itasy in the second. Based on the factors characterizing the regions, we found no explanation for the formation of these two groups. For example, the Fianarantsoa region was the driest, while the Itasy region was among the wettest.

The extractives, Klason lignin and holocellulose rates varied from 3,1 to 9,8%, 24,6 to 35,3% and 63,8 to 69,9% respectively, but did not differ significantly between the regions (p-value>0,05). These results might be explained by the effects of the different ecological growing factors characterizing each zone, and especially their interactions.

The correlations between silvicultural practices, environmental factors and wood properties are described in Table 2.

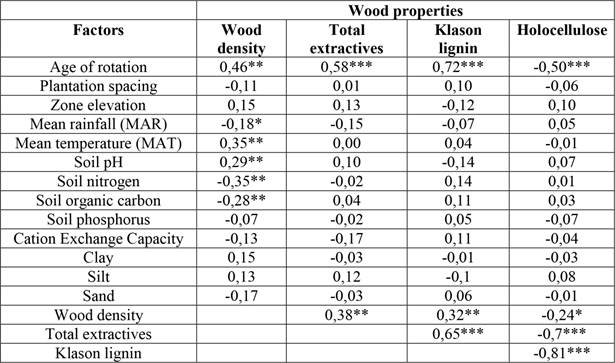

Table 2:
Coefficient of correlation between wood properties and the variables representing silvicultural practices and environmental factors.

An analysis of the correlations showed that, out of the factors studied, wood age, MAR and MAT, along with soil chemical properties, such as pH, nitrogen and organic carbon contents, were related to wood density. Only wood age was related to both d12 and the EXT, KL and HOLO contents and therefore appeared to be the most important factor. However, the tree density per hectare, elevation and certain soil properties, such as phosphorus content, cation exchange capacity and texture, did not affect wood physico-chemical properties.

Tree density per hectare had more of an influence on biomass production (Gonçalves et al. 2004). DeBell et al. (2001) showed for E. saligna that a wide spacing (4m * 4m) between trees significantly increased tree diameter, not wood density. Bravo et al. (2012) also showed for E. nitens that tree spacing as a result of thinning does not affect wood density but tree diameter. Likewise, soil texture governed root development and soil drainage rather than affecting wood properties (Gonçalves et al. 2004). In addition, according to Drew et al. (2017), variability in wood properties depending on elevation is often associated with the effects of a temperature change. Our results were along the same lines as regards the effect of the mean annual temperature on wood density.

Figure 4 shows the relation between climate and wood density.

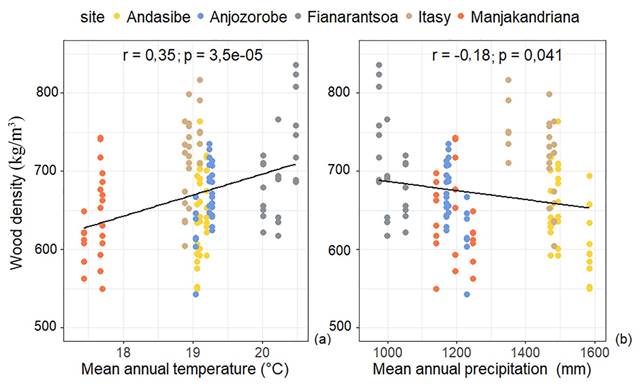

Figure 4:
Effect of temperature and rainfall on wood density at the 15 sites considered in Madagascar: (a) wood density depending on the mean annual temperature of the study zones, (b) wood density depending on the mean annual rainfall of the study zones.

Wood density presents some significant differences depending on MAT and MAR (p-value<0,001). It was positively correlated with MAT and negatively with MAR. In general for eucalyptus wood, wood density has been found to be positively correlated with the temperature of the study zone (Drew et al. 2017, Thomas et al. 2007). Muneri et al. (2007) obtained the same result with E. dunnii wood, as did Thomas et al. (2007) for E. camaldulensis. Temperature affects cambial activity, and thereby the thickness of fibre cell walls and the number and distribution of vessels (Roderick and Berry 2001), hence wood density. A denser wood has fibres with thicker fibre walls, smaller vessels and a lower vessel frequency (Malan 1995). These changes correspond to the adaptation of the tree to heat and water stress. In some warmer regions sap viscosity decreases, making it more fluid (Roderick and Berry 2001). Smaller, or less numerous vessels are better adapted to transporting sap to leaves at higher temperatures (Thomas et al. 2007).

As has been presented in the literature, the density of E. robusta wood decreases when rainfall increases. Generally speaking, wood produced under water stress is denser (Drew et al. 2017). Downes et al. (2006), Downes et al. (2014) showed that the wood of E. globulus increases in response to reduced water availability. Searson et al. (2004) found similar results with E. grandis, E. sideroxylon and E. occidentalis, as did Downes et al. (2006) for E. nitens. Smaller vessels with thicker cell walls are more appropriate for adapting to water stress and resisting embolism risks, and they lead to a higher wood density (Searson et al. 2004). It therefore seems that wood from coppices react in the same way as wood from high forest.

Figure 5 shows the relation between certain soil chemical characteristics (pH, organic carbon and nitrogen) and wood density.

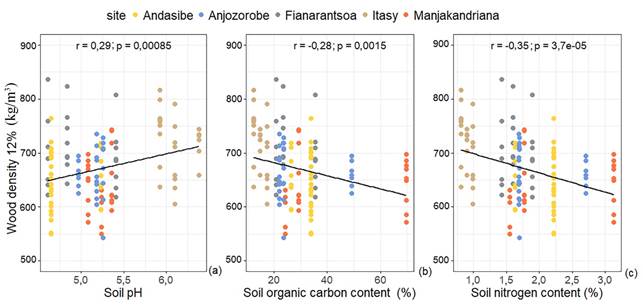

Figure 5:
Effects of soil chemical components on wood density for the sites considered in Madagascar: (a) Correlation between wood density and soil pH, (b) Correlation between wood density and soil organic carbon content, (c) Correlation between wood density at 12% moisture content and soil nitrogen content.

Wood density was significantly correlated with the soil pH, nitrogen content (N) and organic carbon content (C). The correlation was positive for pH and negative for the C and N contents. Soil fertility could have an effect on vessel frequency as Lima et al. (2010) showed. Thus, the density of hardwood trees is generally lower on more fertile soils, which are conducive to faster tree growth (Cutter et al. 2007). Naidoo et al. (2007) showed for E. grandis that wood density decreases when the soil organic carbon content increases. This leads to an increase in the percentage of wood vessels with thinner fibre walls on an organic carbon-rich soil. Indeed, the soil’s water-holding capacity increases significantly with the quantity of organic carbon in the soil (Rawls et al. 2003). This reflects the influence of water availability on wood density (Figure 4b).

Some authors found different results for how nitrogen applications affect wood properties. DeBell et al. (2001), Downes et al. (2014) showed that nitrogen did not have any effect on the wood density of E. saligna, E. globulus and E. grandis. Raymond and Muneri (2000) showed that the effect of nitrogen on the wood density of E. globulus varied depending on the site. They also found that the wood density of E. globulus was lower on a soil fertilized with nitrogen and phosphorus.Eufrade-Junior et al. (2017) showed for E. urophylla x E. grandis hybrids that wood density increases in response to enhanced nitrogen intake associated with phosphorus and potassium. Thus, the tendency of wood density in relation to soil nitrogen might vary according to the amount applied and depending on the nutrients present or applied with the nitrogen, on the species and on silvicultural practices.

Variability in pH depends on the chemical composition of the soil; a high nitrogen content corresponds to a more acid soil. According to Figure 5c, wood density decreases as the nitrogen content increases. Thus, the less acid the soil is, the higher the wood density will be for E. robusta.

Figure 6 shows the effect of the rotation length, hence wood age, on the density of E. robusta wood and its chemical properties depending on the study zones.

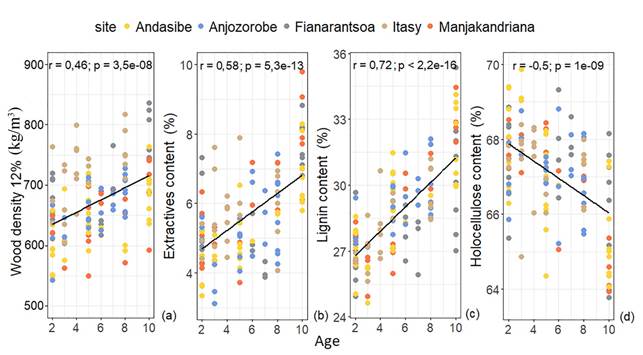

Figure 6:
Correlation between the age and properties of E. robusta wood: (a) correlation between age and density, (b) correlation between age and extractives content, (c) correlation between age and lignin content, (d) correlation between age and holocellulose content.

Wood density displayed significant differences (p-value<0,001) depending on the sites and was positively correlated with wood age. E. robusta wood became denser with age for all the study zones. Several authors have shown identical results on some eucalyptus species: E. saligna from 12 to 48 months (Trugilho et al. 1996), E. grandis from 2 to 6 years (Sette Jr et al. 2012) and E. urophylla x E. grandis clones from 3 to 7 years (Castro et al. 2016). This tendency would appear to come from changes in the cambial meristem and from physiological and mechanical demands resulting from the tree development process (Sette Jr et al. 2012). It is reflected in the thickening of fibre walls, notably for mechanical aspects, and a reduction in vessel size (Sette Jr et al. 2012) to avoid cavitation, as the distance covered by the sap from roots to leaves is greater.

The total extractives content of wood is positively correlated with age. Severo et al. (2006) found that the total extractives content of E. citriodora wood tended to be lower in young woods, due to the larger quantity of juvenile wood. One of the characteristics of juvenile woods is their low extractives content as they are still lacking heartwood (Koga 1988). Santana et al. (2012) showed similar results on E. grandis x E. urophylla clones, as did Wehr (1991), during a study on E. grandis woods of different ages. The increase in the extractives content in older woods is linked to the wood maturing process, more particularly to duraminization. Extractives, particularly polyphénols, are released during the transition from juvenile wood to mature wood (Trugilho et al. 1996).

Klason lignin and holocellulose contents are highly variable depending on the species, the cell layers and even between the different layers of the wall of the same cell. In our study, they were negatively correlated (r=-0,81) with each other: the lignin content increased with age and the opposite was the case for holocellulose. Protásio et al. (2014) showed the same tendencies on four eucalyptus clones (57 and 69 months old). Hsing et al. (2016) showed that the lignin and holocellulose contents of some E. grandis x E. urophylla clones did not have any clearly defined tendency linked to age. However, Trugilho et al. (1996) showed for E. saligna that lignin content tended to decrease with age up to 4 years. This was because younger trees tend to have a larger proportion of juvenile wood, which is richer in lignin than mature wood (Koga 1988, Trugilho et al. 1996). According to Jankowsky (1979), the juvenile wood period varies depending on the species. It can extend up to 20 years for certain eucalyptus species (Jankowsky 1979). Koga (1988) showed that a trunk can be formed of 85% juvenile wood at 15 years old, whereas it is 10% at 30 years old. The tendency of the lignin content in our study could therefore be explained by the fact that the samples considered mostly consisted of juvenile wood and were therefore richer in lignin.

Until now, the optimum E. robusta coppice cutting age in Madagascar has been determined based on the volume of wood produced. Randrianjafy and Deleporte (1995) drew up production tables and proposed optimum ages per site. Yet, it would be interesting to determine the optimum E. robusta coppice cutting age taking into account both the increase in wood volume and the variation in basic wood density (Figure 7).

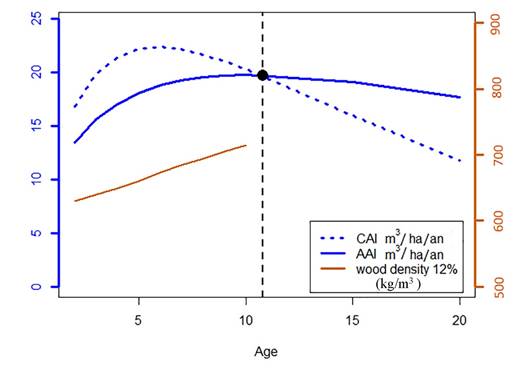

Figure 7:
Variability of E. robusta wood density and its production in terms of merchantable volume over bark according to age and for an average fertility class (according to Randrianjafy and Deleporte 1995). AAI: (average annual increment in volume): average annual increment in merchantable volume over bark in m³:ha, since planting. CAI: (current annual increment in volume): current annual increase in merchantable volume over bark in m³:ha; it is the volume produced over a short period (1 year).

For an average fertility class, the current annual increment curve for the merchantable volume of wood per hectare increased up to 5-6 years, decreasing thereafter. The curve for the average increment in merchantable volume of wood per hectare displayed peaks at around 8-9 years. The two curves crossed over in the 11^th year, which therefore corresponds to the optimum cutting age for the volume of wood produced. Considering that wood density increases with age, the proposal to cut at 11 years is coherent. Nevertheless, in order to take into account socio-economic aspects whereby E. robusta wood is in great demand and the owners often have money problems that prevent them from waiting for a long rotation, the average rotation recommended for E. robusta cutting in Madagascar is, in fact, 7 years (Ramamonjisoa 1999). At that age, wood density is around 694 kg/m³.

In addition, the rotation age of eucalyptus coppices affects soil physical and chemical properties. The nutrients involved are primarily organic carbon, total nitrogen, exchangeable calcium, exchangeable magnesium and the cationic exchange capacity of the soil (Zhao et al. 2014). These nutrients are essential for sucker growth. For instance, the nutrient content of soil decreases after each cutting operation, through exports resulting from coppice logging. Consequently, the more frequent the cutting operations, the more the soil becomes impoverished, leading to weaker sucker growth. In addition, for E. robusta in Madagascar, soils are not fertilized between cutting operations. The situation is worsened through the collection of E. robusta coppice litter for local domestic energy requirements and fertilizing crop fields.

It can therefore be concluded that the tendency in Madagascar to shorten the coppice rotation age by up to 2-3 years affects not only wood properties, but also those of the soil. The wood produced is less dense, thereby reducing its qualities for use as timber, or for energy purposes. In addition, this type of management reduces soil fertility and, thereby, coppice productivity.
