Introduction

Wood plastic composites (WPCs) have made significant progress in thermoplastic industries and are finding application in interior automotive panels, garbage pails, crates, garden equipment, etc. (Hornsby et al. 1997). They have also made tremendous progress in exterior nonstructural or semi-structural building products such as door and window frames, siding, decking, cladding, floor and roof tiles, fencing, etc. (Schneider et al. 2000). These composites are known to possess excellent durability, dimensional stability, high rigidity, and relatively low density (Schneider et al. 2000, Ashori 2008). However, the potential use of WPCs is greatly restricted by their poor fire resistance property (Mouritz and Gibson 2006, Chapple and Anandjiwala 2010, Salemane and Luyt 2006). During a fire situation, the polymer burns and drips, leading to hazardous fire situations (Kozlowski and Wladyka-Przbylak 2008, Panagiotou and Levendis 1994). PVC is a self-extinguishing material, but they generate toxic gases while burning and create serious risk to life (Panagiotou and Levendis 1994). Therefore, from the point of view of fire safety, the users are insisting on fire resistant materials.

In order to impart flame retardancy in WPCs, many fire retardants (FR) chemicals have been introduced. Antimony based systems along with halogen compounds provide good flame retardancy, but their large-scale industrial use is restricted because of environmental issues (Kozlowski et al. 1999, Chen et al. 2006). Certain nano particles like nano clay, carbon tube, nano-SiO₂, TiO₂ and ZnO are used as FR additives for imparting flame retardancy in WPCs (Pan et al. 2014, Devi et al. 2013, Palza et al. 2010). However, the high price of nano additives makes their use unaffordable in commodity products such as the construction sector. Boron compounds have long been used as FR additives for wood and WPCs (Chen et al. 2006, Pan et al. 2014). Effectiveness of borax and boric acid has been widely reported (LeVan 1984, Nagieb et al. 2011). Borax reduces flame spread, but it promotes glowing, whereas, boric acid subdues glowing but has minimum effect on flame spread. Therefore, borax and boric acid are generally used together (Wang et al. 2004). Further, phosphorus-based FR (phosphoric acid) and their salts such as monoammonium phosphate and diammonium phosphate are the oldest and most commonly used FRs. Ammonium polyphosphate (APP) is considered as one of the most effective FR additives for WPCs. However, to achieve required flame retardancy, higher loading of APP is suggested, which increases cost and reduces material properties.

Although the effect of APP and boron-based FR on properties of WPCs has been studied extensively, studies on synergistic effect of APP and boric acid-borax (Ba-Bx) on FR properties of polymer are meager (Kurt et al. 2012). Kurt et al. (2012) have investigated the utilization of boron compounds (BCs) as synergists with APP in WPCs manufacturing, however, the method adopted in present study is different in terms of pretreating the bamboo fibers with BCs and using these fibers in combination with ammonium polyphosphate (APP) for investigating their combined effects on thermal stability, flame retardancy and mechanical properties of WPCs. Moreover, the effect of alkali (NaOH) pretreatment of fibers on performance of FR additives i.e., APP and BCs has not been studied. The objective of this study is to examine the feasibility of imparting flame-retarding functions to WPCs through alkali washing of wood fibers prior to their pretreatment with BCs i.e., boric acid - borax (Ba-Bx) and borax (Bx) and use these pretreated fibers along with APP as FRs. The aim of this work is to develop economically competitive WPCs with better flame retardancy.

Materials and methods

Materials

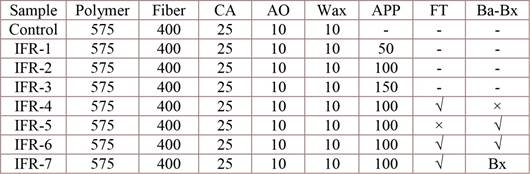

Reliance make high-density polyethylene (HD50MA180) was used in this study. Polymer density is around 0,950 g/cm³ and melt flow index is 20 g /10 min (at 190 °C and 2,16 kg load). APP (phase II, degree of polymerization >1000) was procured from Advance Inorganics, New Delhi. The coupling agent (CA) maleic anhydride grafted polyethylene M603 having melt flow index of 25 g/10 min was supplied by Dupont, India. Boric acid (Ba) and Borax (Bx) were used as boron compounds (BCs). Boric acid, borax, and sodium hydroxide were obtained from M/s Himedia. All the chemicals used for experiments were analytical reagent grade and were used without further purification. Freshly harvested wood biomass was processed to pass -60+80 mesh sieve. Oven dried wood fibers were used for experiments.

Processing

A part of oven dried wood fibers was chemically treated with sodium hydroxide (5 % w/w) for 4 hrs for surface activation and removal of impurities from the cellulose fibre and for increasing adhesion and compatibility of fibers to polymer matrix (Islam et al. 2012, Lee et al. 2009). The alkali treated fibers were washed with hot distilled water (four times) and oven-dried to constant weight at 80 ºC. One unit of Bx was mixed with one unit of Ba and dissolved in warm water. A part of wood fiber was soaked in 5 % aqueous solution of Ba-Bx (Jiang et al. 2011). The treated wood fibers were air dried for four days followed by oven drying to constant weight at 80 ºC. Oven dried HDPE, APP, CA, and wood fibers were used for further processing. The components were pre-mixed in a double-cone blender and then extruded using a twin-screw extruder. The screw speed of 150 rpm and temperature profile of 140 °C to 160 °C in the barrel and 180 °C near nozzle was maintained. The extruded composite granules were injection moulded into test specimens using a closed loop 60 tonnes injection moulding machine (L & J make). The injection molding process parameters were 180 °C to 190 °C temperature and injection pressure of 100 bars. Compositions of wood fiber composites (WPCs) with and without flame retardant additives are summarized in Table 1.

Testing

Flexural and tensile tests were conducted as per ASTM D790-15 (2015) and ASTM D638-14 (2014), respectively, using Shimadzu make model AGIS10, 10 kN universal testing machine. For tensile test, dumbbell shaped specimens were used (Type I) with span length of 100 mm. Crosshead speed was 5 mm/min. Flexural strength was determined using standard specimens (127 mm x 13,2 mm x 6,2 mm) and crosshead speed of 2,8 mm / min. Five replicates were evaluated for each treatment group. The thermal degradation properties were studied under nitrogen atmosphere. Thermo-gravimetric analysis (TGA) was carried out using TGA Q500 V20.2 Build 27. A known quantity of sample was placed in a platinum crucible and heated from ambient to 800 °C at heating rate of 10 °C/min and 60 ml/min air flow rate. Three replicates were evaluated for each treatment group. The thermal degradation profiles of the samples were derived by applying the derivative thermogravimetry technique (Haykira-Acma 2003). The flammability properties of WPCs were measured using cone calorimeter at CIPET, LARPM Bhubaneswar. The compounded specimens were compression moulded into standard size specimens (100 mm x 100 mm x 4 mm) for cone calorimeter test. Heat release rate was determined as per ISO 5660-1 (2015). An external heat flux of 50 kW / m² was applied. The flammability was also performed with limited oxygen index (LOI) as per ASTM D2863-19 (2019) and two replicates were evaluated for each treatment group. The data analysis was performed using SPSS statistical software. One way ANOVA was performed to understand statistically significant differences in each treatment group.

Results and discussion

Mechanical performance

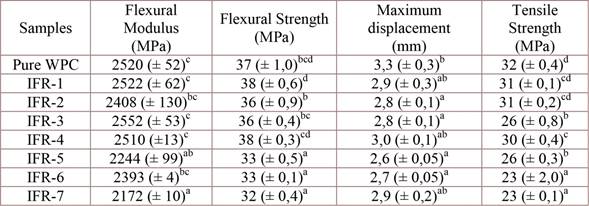

The effect of FRs on strength properties of WPCs has been evaluated. The results are presented in Table 2. In case of WPC prepared with untreated fibers (pure WPC, IFR 1, IFR2 and IFR3) addition of APP had insignificant influence on flexural modulus or strength but tensile strength at 150 g of APP (IFR3) exhibited significant decline from 32 MPa to 26 MPa. This suggests that higher loading of APP has affected interfacial adhesion between fiber and polymer matrix. When treated fibers were used for making WPC along with APP, a marginal increase in flexural strength (FS) was observed which was statistically higher than with untreated fibers (IFR2 v/s IFR4). This shows the influence of alkali washing of fibers on FS of WPCs, added with APP. Ikhlef et al. (2012) studied the effect of alkali washing and reported improvement in strength properties of composite due to improved interfacial adhesion between matrix and cellulosic fiber. The addition of boron compound in the formulation resulted in significant loss in strength (both tensile and flexural) and flexural modulus of APP incorporated composites irrespective of fiber treatment. FS and FM of IFR1, IFR2, IFR3 and IFR4 samples doesn’t change significantly. This shows that addition of APP alone (up to 15 %) doesn’t reduce FS and FM of WPCs. However, significant reduction in FS (10 % to 14 %) and FM (6 % to 18 %) is seen in IFR5, IFR6 and IFR7 combinations where, BCs was added along with APP. Similarly, TS values are also found to be minimum in groups which has BCs in their compositions (IFR5, IFR6 and IFR7).

Wang et al. (1996) studied interaction of boric acid with polymer constituents of a wood/polystyrene composite material and reported that boric acid gets chemically bonded with wood components during manufacturing of composite materials. This may alter the efficiency of coupling agent in improving the compatibility of fiber with the polymer. Addition of APP in small quantity (up to 10 %) is not influencing tensile or flexural properties but higher loading (15 %) was indicating adverse impact. Kurt et al. 2012, found that 25% APP loading resulted in a very sharp decrease in TS value (49,04%) of WPCs, however, TS decreased between 18 % to 27 % in groups where BCs was added along with APP.

Thermal degradation under inert atmosphere

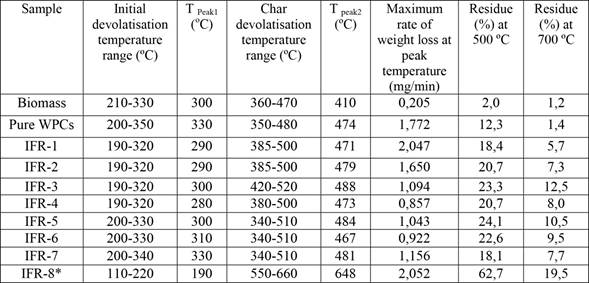

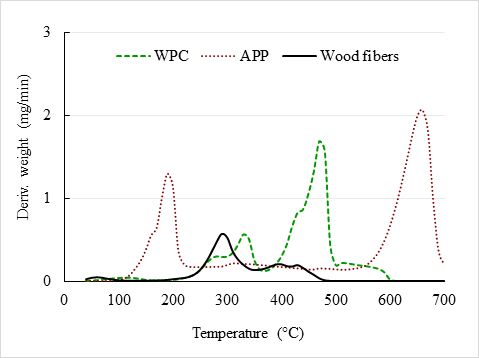

The results on thermal degradation of WPCs under inert atmosphere are summarized in Table 3. The pyrolysis of biomass can be divided into three different zones i.e., moisture evaporation, initial devolatilisation and major devolatilisation zone (Kumar and Chandrashekar 2014). Figure 1 shows that DTG curve of wood fibers, WPCs and APP. The initial weight loss, between 40 ºC to 100 ºC is mainly due to removal of moisture and lighter volatiles. After moisture evaporation, weight loss resulting at 150 ºC to 350 ºC is attributed to thermochemical decomposition and subsequent de-volatilization of samples (Haykira-Acma 2003, Kumar et al. 2021). The pure APP showed one sharp decomposition peak (T_peak1) at 200 ºC with initial devolatisation temperature at 110 ºC. During initial thermal degradation, mainly ammonia and moisture escapes as volatiles from APP. The major decomposition temperature of APP ranges from 550 ºC to 650 ºC, with T_peak2 of 648 ºC, which is mainly due to the generation of highly cross-linked pyro/polyphosphoric acid (Stark et al. 2010). The residue char in pure APP at 500 ºC and 700 ºC was around 63 % and 19 %, respectively. Figure 2 shows the DTG curve of WPCs with and without APP. A clear shift in major devolatisation temperature towards higher side is observed by increasing the amount of APP in WPCs Figure 2. For pure WPC, major devolatilization temperature (T_MD ) ranged from 350 ºC to 480 ºC. T_MD shifted to higher temperature range (385 ºC to 520 ºC) with addition of APP. The shift in T_MD to higher temperature range indicates towards thermal stability provided by APP (Table 3). Among IFR1, IFR2 and IFR3 samples, highest T_MD was observed in IFR3 samples. For IFR3, T_MD ranged from 420 ºC to 520 ºC, with T_peak2 of 488 ºC. The initial devoaltisation temperature (T_ID ) ranged from 190 ºC to 320 ºC in IFR1, IFR2, IFR3 and IFR4 samples. T_ID shifted towards higher temperature (200 ºC to 340 ºC) when BCs are added with APP as FRs (IFR5, IFR6 and IFR7) Table 3.

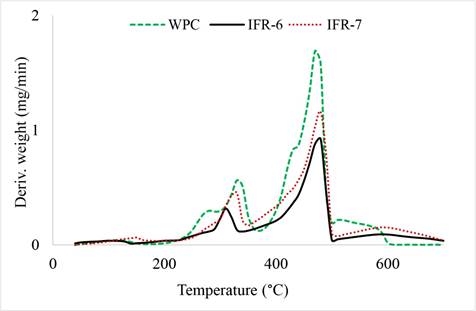

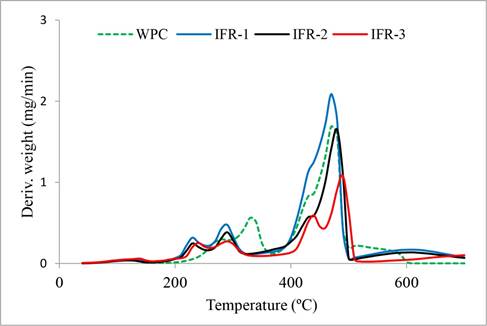

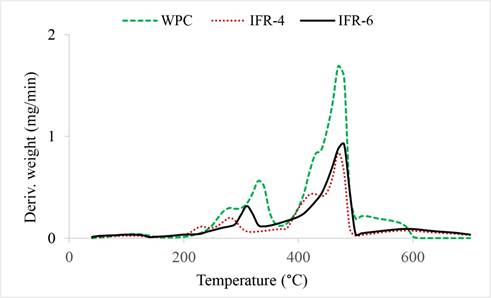

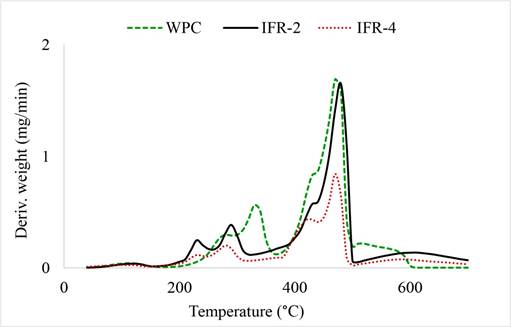

For IFR3, char residue at 500 ºC and 700 ºC was 23 % and 13 %, respectively. Figure 3 shows the DTG curve of neat WPC, IFR2 and IFR4 samples. Among these combinations, maximum weight loss at peak temperatures (T _peak2) was 1,8 mg/min, 1,7 mg/min and 0,9 mg/min in pure WPC, IFR2 and IFR4, respectively (Table 3). The rate of weight loss indicates the reactivity of the samples. IFR4 showed lowest rate of thermal degradation i.e., 0,9 mg/min (Table 3). Figure 4 shows DTG curve of neat WPC, IFR4 and IFR6 samples. T_MD ranged from 380 ºC to 500 ºC in IFR4, whereas, it ranged from 340 ºC to 510 ºC in IFR6 (Table 3). This shift in T_MD towards lower side (340 ºC) in IFR6 sample can be attributed to early charring in WPC, caused by boric acid. Wang et al. 2004 concluded that boric acid catalyzes the dehydration and other oxygen-eliminating reactions of wood at a relatively low temperature (approximately 100 ºC - 300°C) by catalyzing the isomerization of the newly formed polymeric materials and by forming aromatic structures, which contributes partly to the effects of boric acid on promoting the charring and fire retardation of wood. Figure 4 confirms the significance of boric acid in promoting char formation at lower temperatures. Figure 5 shows DTG curve of WPC, IFR6 and IFR7 samples. Among IFR6 and IFR7 samples, rate of weight loss at T _peak2 was found to be minimum (0,74 mg/min) in IFR6 samples. Further, the char residues in IFR6 and IFR7 at 500 ºC was 23 % and 18 %, respectively. This shows that char residue with higher thermal stability is formed with Ba-Bx/APP, as compared to borax with APP. The overall result shows the usefulness of alkali washing of fibers and use of BCs as synergist in combination with APP for obtaining improved thermal stability in WPCs.

Flammability properties

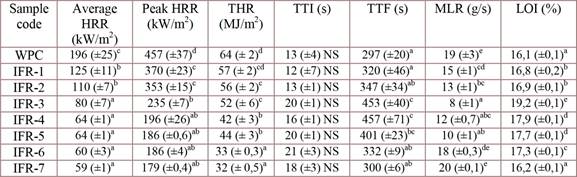

The flammability properties of WPCs (with and without flame additives) were determined by cone calorimeter and LOI tests. The results on average heat release rate (HRR), the peak HRR, total heat release rate (THR), time to ignition (TTI), time to flame out (TTF), mass loss rate (MLR) and limited oxygen index (LOI) are summarized in Table 4.

The best result on LOI was seen with IFR3 (Table 4). Compared to pure WPCs, LOI was increased by 19 % in IFR3. All FRs showed positive influence on flame properties of WPCs. Peak HRR decreased from 457 kW/m² to 179 kW/m², which is approximately 61 % lower than pure WPCs. Average HHR and peak HRR (kW/m²) in IFR2 and IFR4 combinations decreased from 110 and 353 to 64 and 196, respectively. Compared to pure WPC, higher reduction in HRR was seen in IFR4 (67 %) than IFR2 (44 %). This shows alkali washing enhances performance of APP decreasing HRR in WPCs. The order of decrease in average HHR (kW/m²) is as follows; Pure WPC = 196 > IFR1 = 125 > IFR2 = 110 > IFR3 = 80 > IFR4 and IFR5 = 65 > IFR6 = 60 > IFR7 = 59 (Table 4). Through IFR6 and IFR7 combinations, maximum reduction in average heat release rate (HRR) was by 69 %, peak heat release rate (PHRR) by 59 %, total heat released rate (THR) by 48 % and time to ignition (TTI) was increased by 62 % as compared to pure WPCs. However, the statistical analysis indicated no significant difference among different combinations (IFR3, IFR4, IFR5, IFR6 and IFR7) towards reducing HRR in WPCs (Table 4). This shows that APP (15 %) is equally effective in reducing HRR as it is with combination of BCs along with APP. THR (MJ/m²) reduced significantly with addition of FRs (Table 4). The result indicated significant increase in TTF in IFR3 and IFR4 samples (Table 4). This shows that 15% APP is appropriate amount for achieving effective flame retardancy in WPCs. THR decreased from 64 MJ/m² to 32 MJ/m² in IFR7, which is approximately 50 % lower than pure WPC. Wang et al. 2004 found that during combustion, borates form an impenetrable glass coating on a materials surface and restricts the supply of oxygen which prevents further propagation of flame from one part to another. The FRs combination showed no significant difference in prolonging the TTI during fire (Table 4). The most delayed ignition was in IFR6, where TTI is prolonged by 62 %, as compared to pure WPC. The same may be attributed to the positive impact of Ba-Bx which promotes early char formation in samples during fire. During combustion, borax suppresses flame spread but promotes glowing. Boric acid, on the other hand, increases the rate of depolymerization of cellulosic fibers and enables char production at considerably lower temperature (120 ºC to 180 °C) and suppresses glowing (Shafizadeh 1984). It also prevents the flame spread to some extent by releasing water (Shafizadeh 1984). Table 4 shows average MLR of WPCs with and without the flame additives. It is evident that the incorporation of FRs decreases the MLR of WPCs during combustion. For IFR3, the average MLR decreased most from 19 g/s to 8 g/s, which is approximately 58 % lower than that of neat WPC (Table 4). This shows that APP (15 %) is most effective in reducing average MLR in WPCs.

Conclusions

Effect of BCs and APP on flame retardancy, thermal stability and mechanical properties in WPCs have been investigated. Prior to its pretreatment with BCs, wood fibers were washed with NaOH. Alkali washing of wood fibers showed positive influence on flexural strength, thermal stability and HRR of WPCs. The addition of BCs with APP, initiated early char formation in WPC. Best results on thermal stability in WPC were obtained under condition i.e., NaOH 5 % / Ba-Bx 5% / APP 10 %. Second best result was with addition of 15 % APP alone, wherein, major devolatilization temperature shifted to higher temperature range i.e., 385 ºC - 520 ºC. The combination i.e., alkali washing of fibers/BCs/APP also showed better flame retardancy in WPCs, leading to improvement in peak HRR, THR and TTI. However, the best results on MLR, TTF and LOI was obtained by using APP (15 %) as FR. Keeping in view the above results on thermal stability and flame retardancy, the appropriate combination recommended for further research is NaOH 5 % / Ba-Bx 5% / APP 15 %. The strength properties of WPCs reduced significantly on adding BCs in the composition. In general, the effect of combination of Ba-Bx and APP leads to better thermal stability and flame retardancy in WPCs.

References:

ASTM. 2019. Standard Test Method for Measuring the Minimum Oxygen Concentration to Support Candle-Like Combustion of Plastics (Oxygen Index). ASTM. D2863-19. 2019. ASTM International: West Conshohocken, PA, USA.

ASTM. 2014. Standard Test Method for Tensile Properties of Plastics. ASTM. D638-14. 2014. ASTM International: West Conshohocken, PA, USA .

ASTM. 2015. Standard test methods for flexural properties of unreinforced and reinforced plastics and electrical insulating materials. ASTM. D790-15. 2015. ASTM International: West Conshohocken, PA, USA .

Ashori, A. 2008. Wood-plastic composites as promising green-composites for automotive industries. Bioresour Technol 99(11): 4661-4667. https://doi.org/10.1016/j.biortech.2007.09.043

Chapple, S.; Anandjiwala, R. 2010. Flammability of Natural Fiber-reinforced Composites and Strategies for Fire Retardancy: A Review. Journal of Thermoplastic Composite Materials 23(6): 871-893. https://doi.org/10.1177/0892705709356338

Chen, X.L.; Yu, J.; Guo, S.Y. 2006. Structure and properties of polypropylene composites filled with magnesium hydroxide. Journal of Applied Polymer Science 102(5): 4943-4951. https://doi.org/10.1002/app.24938

Devi, R.R.; Gogoi, K.; Kowar, B.K.; Maji, T.K. 2013. Synergistic effect of nanoTiO₂ and nanoclay on mechanical properties, flame retardancy, UV stability, and antibacterial properties of wood polymer composites. Polymer Bulletin 70(4): 1397-1413. https://doi.org/10.1007/s00289-013-0928-x

Haykira-Acma, H. 2003. Combustion characteristic of different biomass materials. Energy Conversion and Management 44(1): 155-162. https://doi.org/10.1016/S0196-8904(01)00200-X

Hornsby, P.R.; Hinrichsen, E.; Tarverdi, K. 1997. Preparation and properties of polyethylene composites reinforced with wheat and flax straw fibre: Part II Analysis of composite microstructure and mechanical properties. Journal of Materials Science 32(4): 1009-1015. https://doi.org/10.1023/A:1018578322498

Ikhlef, S.; Nekkaa, S.; Guessoum, M.; Haddaoui, N. 2012. Effects of Alkaline Treatment on the Mechanical and Rheological Properties of Low-Density Polyethylene/Spartium junceum Flour Composites. International Scholarly Research Notices e965101: 7p. https://doi.org/10.5402/2012/965101

Islam, Md. S.; Hamdan, S.; Jusoh, I.; Rehman, Md. R.; Ahmed, A.S. 2012. The effect of alkali pretreatment on mechanical and morphological properties of tropical wood polymer composites. Materials & Design 33: 419-424. https://doi.org/10.1016/j.matdes.2011.04.04

ISO. 2015. Reaction to fire tests-Heat release, smoke production and mass loss rate, Part 1: Heat release rate (cone calorimeter method). ISO. 5660-1. 2015. ISO International.

Jiang, J.; Yang, Y.; Li, J. 2011. Effect of three boron flame retardants on thermal curing behavior of urea formaldehyde resin. Journal of Thermal Analysis and Calorimetry 105(1): 223-228. https://doi.org/10.1007/s10973-011-1307-1

Kozlowski, R.; Wesolek, D.; Wladyka-Przbylak, M. 1999. Combustibility and toxicity of board materials used for interior fittings and decorations. Polymer Degradation and Stability Stab 64(3): 595-600. https://doi.org/10.1016/S0141-3910(98)00146-3

Kozlowski, R.; Wladyka-Przbylak, M. 2008. Flammability and fire resistance of composites reinforced by natural fibers. Polymers for Advanced Technologies 19(6): 446-453. https://doi.org/10.1002/pat.1135

Kurt, R.; Mengeloglu, F.; Meric, H. 2012. The effects of boron compounds synergists with ammonium polyphosphate on mechanical properties and burning rates of wood-HDPE polymer composites. European Journal of Wood and Wood Products 70(1-3): 177-182. https://doi.org/10.1007/s00107-011-0534-2

Kumar, R.; Chandrashekar, N. 2014. Fuel properties and combustion characteristics of some promising bamboo species in India. Journal of Forestry Research 25(2): 471-476. https://doi.org/10.1007/s11676-014-0478-6

Kumar, R.; Gunjal, J.; Chauhan, S. 2021. Effect of carbonization temperature on properties of natural fiber and charcoal filled hybrid polymer composite. Composites Part B: Engineering 217: e108846. https://doi.org/10.1016/j.compositesb.2021.108846

Lee, S.Y.; Chun, S.J.; Doh, G.H.; Kang, I.A.; Lee, S.; Paik, K.H. 2009. Influence of Chemical Modification and Filler Loading on Fundamental Properties of Bamboo Fibers Reinforced Polypropylene Composites. Journal of Composite Materials 43(15): 1639-1657. https://doi.org/10.1177/0021998309339352

LeVan, S.L. 1984. Chemistry of fire retardancy. The chemistry of solid wood. In Advances in chemistry series. 207p. Rowell, R. (ed). American Chemical Society: Washington, D.C., USA. https://pubs.acs.org/doi/abs/10.1021/ba-1984-0207.ch014

Mouritz, A.P.; Gibson, A.G. 2006. Flame Retardant Composites. In Fire Properties of Polymer Composite Materials. 237-286. Gladwell, G.M.L. (ed.). Springer: London, UK.

Nagieb, Z.A.; Nassar, M.A.; El-Meligy, M.G. 2011. Effect of Addition of Boric Acid and Borax on Fire-Retardant and Mechanical Properties of Urea Formaldehyde Saw Dust Composites. International Journal of Carbohydrate Chemistry: e146763. http://downloads.hindawi.com/archive/2011/146763.pdf

Palza, H.; Reznik, B.; Kappes, M.; Hennrich. F.; Naue, I.F.C.; Wilhelm, M. 2010. Characterization of melt flow instabilities in polyethylene/carbon nanotube composites. Polymer 51(16): 3753-3761. https://doi.org/10.1016/j.polymer.2010.06.016

Pan, M.; Mei, C.; Du, J.; Li, G. 2014. Synergistic effect of nano silicon dioxide and ammonium polyphosphate on flame retardancy of wood fiber-polyethylene composites. Composites Part A: Applied Science and Manufacturing 66: 128-134. https://doi.org/10.1016/j.compositesa.2014.07.016

Panagiotou, T.; Levendis, Y.A. 1994. Study on the combustion characteristics of PVC, poly (styrene), poly (ethylene), and poly (propylene) particles under high heating rates. Combust Flame 99(1): 53-63. https://doi.org/10.1016/0010-2180(94)90082-5

Salemane, M.G.; Luyt, A.S. 2006. Thermal and mechanical properties of polypropylene-wood powder composites. J Appl Polym Sci 100(5): 4173-4180. https://doi.org/10.1002/app.23521

Schneider, M.H.; Phillips, J.G.; Lande, S. 2000. Physical and mechanical properties of wood polymer composites. J Forest Eng 11(1): 83-89. https://journals.lib.unb.ca/index.php/IJFE/article/view/30111/1882525393

Shafizadeh, F. 1984. The Chemistry of Pyrolysis and Combustion. In The Chemistry of Solid Wood. Advances in Chemistry Series 207: 489-529. Rowell, R. (ed.). American Chemical Society: Washington, D.C., USA. https://pubs.acs.org/doi/abs/10.1021/ba-1984-0207.ch013

Stark, N.M.; White, R.H.; Mueller, S.A.; Osswald, T.A. 2010. Evaluation of various fire retardants for use in wood flour-polyethylene composites. Polym Degrad Stab 95(9): 1903-1910. https://doi.org/10.1016/j.polymdegradstab.2010.04.014

Wang, Y.; Simonsen, J.; Pascoal Neto, C.; Rocha, J.; Rials, T.G.; Hart, E. 1996. The reaction of boric acid with wood in a polystyrene matrix. J Appl Polym Sci 62(3): 501-508. https://doi.org/10.1002/(SICI)1097-4628(19961017)62:3%3C501::AID-APP8%3E3.0.CO;2-U

Wang, Q.W.; Li, J.; Winandy, E.J. 2004. Chemical mechanism of fire retardance of boric acid on wood. Wood Sci Technol 38(5): 375-389. https://doi.org/10.1007/s00226-004-0246-4

Author notes

^♠Corresponding author: ritesh@icfre.org
