Introduction

Rotary friction welding (RFW) of wood is a recent technique for joining elements from the insertion of dowels, with specific rotation and feed rate, into pre-drilled holes machined in wood substrates. This process causes heating at the interface of the wood pieces in contact, reaching maximum temperatures of 301 °C to 388 °C for rotations between 1000 rpm to 2500 rpm (Rodriguez 2010, Belleville 2012). Consequently, the fusion of polymers occurs in this region, forming an amorphous and dense material, fused with fragments of densified wood fibers (Pizzi et al. 2004, Leban et al. 2005, Pizzi 2010).

According to Pizzi et al. (2004) and Pizzi (2010), the RFW technique has considerable interest, since it is simple, fast, environmentally friendly, more sustainable and low-cost, when compared to adhesives and metal fasteners joint techniques. In addition, RFW joints have mechanical strength comparable to or even higher than glued joints (Pizzi et al. 2004). This technique has potential for application in furniture and joinery manufacturing and in engineered wood products, such as dowel-laminated timber (DLT) and dowelled cross-laminated timber (DCLT), used as construction and building materials, alternatively to concrete and steel (Pizzi 2010, Sotayo et al. 2020).

According to Belleville et al. (2018), eucalypts Australian hardwood is suitable for RFW, since its greater lignin content is favorable to condensation reactions during the RFW process and this is necessary to obtain an effective welded joint. The main Eucalyptus species welded by rotary friction are: saligna (784 kg/m³), pilularis (925 kg/m³) and maculata (965 kg/m³) (Belleville et al. 2016). The RFW parameters are 1,11 or 1,25 for the dowel/pre-drilled hole diameter ratio and 1230 rpm or 1415 rpm for the rotation (Belleville et al. 2016, Belleville et al. 2018).

Eucalyptus species from Brazilian planted forests have a higher proportion of sapwood due to their fast growth, caused by favorable edaphoclimatic conditions (Magalhães et al. 2012). Mansouri et al. (2011) found that the weld line is wider for sapwood than heartwood, since the greater permeability of sapwood allows greater movement of the molten material at the dowel/substrate interface during the welding process. Therefore, differences in wood anatomy influence the quality of welded joints, as well as the chemical composition and structure of wood polymers, mainly lignin and hemicelluloses (Rodriguez 2010).

In Brazil, eucalypts plantations represent 78 % of the total tree planted area (IBÁ 2021). Its wood is commonly used in construction and in furniture and joinery manufacturing (IPT 2022). Few studies have investigated the potential application of the RFW technique to eucalypts woods from Brazilian planted forests. Schneid and Moraes (2016) welded E. saligna, with 690 kg/m³ (IPT 2022), and Eucalyptus spp. (794 kg/m³) using 1,25 for the dowel/pre-drilled hole diameter ratio and 1750 rpm for the rotation. This study found promising results. However, it was focused only on determining the joint strength. Therefore, further research might evaluate the thermochemical changes that occur at the welding interface of these eucalypts woods.

The aim of this research is to evaluate the macro and microstructural and thermochemical changes at the dowel/substrate interface of eucalyptus welded joints from Brazilian planted forests and to determine the mechanical strength of two-piece eucalypts welded joints. Therefore, visual evaluation and scanning electron microscopy (SEM), attenuated total reflectance-Fourier transform infrared spectroscopy (ATR-FTIR), X-ray diffraction (XRD), thermogravimetric (TG), differential scanning calorimetry (DSC) and tensile tests were performed.

Materials and methods

Wood

Eucalyptus hardwood, from planted forests in the state of Paraná - Brazil, was obtained from a sawmill. It has an average apparent density of 938 kg/m³ ± 12 kg/m³ at 12 % moisture content (MC).

Samples and specimens (1^st phase)

This research was organized into two phases. The 1^st phase consisted of macro and microstructural and thermochemical evaluation of the dowel/substrate interface. The sample was composed of 5 specimens formed by the substrate and the dowel, both eucalypts wood. They were produced using smooth dowels (10 mm in diameter and 80 mm in length) and planed rafter as substrate (240 mm ? 48 mm ? 45 mm), in which five holes of 8 mm in diameter were drilled in the radial-tangential plane of the wood, perpendicularly to the fibers and tangentially to the growth rings (Figure 1). Therefore, the dowel/pre-drilled hole diameter ratio of 1,25 were adopted (Belleville et al. 2016, Schneid and Moraes 2016).

The RFW process consisted of inserting the dowels into the pre-drilled holes machined in the substrates to a depth of 40 mm, using a Charles MVC 955 machining center. The dowel rotation and feed rate were 1000 rpm and 500 mm/min (Viana et al. 2021), respectively, resulting in a welding time of 5 s.

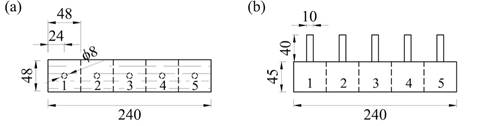

After the RFW process, the sample was split into five specimens maintaining the dowels centered in the top position (Figure 1). Subsequently, they were exposed to the ambient temperature and humidity of the laboratory environment for 15 days, to recover the MC lost during the RFW process. Following the stabilization period, samples were taken from the specimens, exposing the welded interface and the unwelded wood, which is named the reference wood in this paper.

Specimens for macrostructural analysis

Three wood specimens measuring 48 mm ? 24 mm ? 45 mm were used for the macrostructural analysis. They were obtained from a cut perpendicular to the fibers and tangential to the growth rings, as illustrated in Figure 2.

Specimens for microstructural analysis

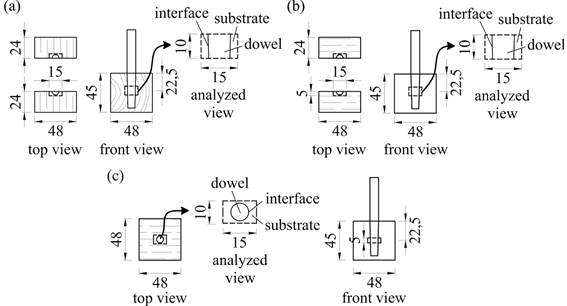

Three wood specimens measuring 15 mm ? 10 mm ? 5 mm were used for the microstructural analysis (Figure 3). They contained part of the dowel, the welded interface, and the substrate, which were extracted from three specimens of 48 mm ? 24 mm ? 45 mm. The first specimen (1S) was obtained from a cut perpendicular to the fibers and tangential to the growth rings (Figure 3a), while the second (2S) and the third (3S) specimens were obtained from a cut parallel to the fibers in the tangential and the radial directions to the growth rings, respectively (Figure 3b and Figure 3c).

Samples and specimens for thermochemical analysis

The reference and welded interface specimens, measuring approximately 15 mm ? 10 mm ? 1 mm, were used for the ATR-FTIR test. The reference and welded interface powdered samples, obtained by scrapping the surface of the specimens, were used for the XRD (100 mg), TG (10 mg) and DSC (5 mg) tests.

Samples and specimens (2^nd phase)

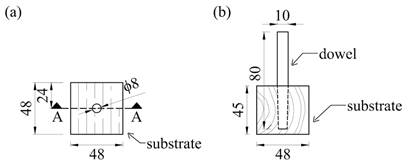

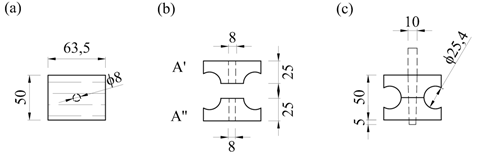

The 2^nd phase consisted in determining the mechanical strength of two-piece eucalyptus joints. The sample were composed of 5 specimens (1M-5M) formed by the substrate (944 kg/m³ ± 74 kg/m³) and the dowel (861 kg/m³ ± 67 kg/m³), both eucalyptus wood. They were produced using smooth dowels (10 mm in diameter and 80 mm in length) and two-piece substrates (63,5 mm ? 50 mm ? 50 mm), whose dimensions were based on ABNT NBR 7190 (1997) standard for transverse tensile testing, equivalent to ASTM D143 (2021) standard (Figure 4).

The dowels and substrates were conditioned at 20 °C ± 2 °C and 60 % ± 5 % relative humidity (RH) (ISO 13061-17 2017) before the RFW process, to maintain 12 % MC. Holes of 8 mm diameter were machined in the radial-tangential plane of the substrates, perpendicularly to the fibers and tangentially to the growth rings. Subsequently, the dowels were welded by rotary friction into the pre-drilled holes, to a depth of 55 mm. The RFW parameters were the same adopted in the 1^st phase, resulting in a welding time of 7 s. Later, the specimens were conditioned at the same temperature and RH for 7 days for MC recovery.

Macrostructural analysis

The macrostructural analysis of 1^st phase specimens consisted of evaluating the RFW process, the arrangement of substrate growth rings, the color of the welded interface and the dowel and pre-drilled hole shapes resulting from the RFW process.

Tapered dowel measurements

The taper rate of the dowels was determined from the largest and smallest diameters of the

dowel, measured using a caliper with an accuracy of 0,01 mm. It is expressed by Equation 1 (Smid 2003).

Where X is the dowel taper rate, in %; D and d are the largest and the smallest diameters of the dowel, in mm, respectively; and L is the insertion depth of the dowel, in mm.

Microstructural analysis

The microstructural analysis consisted of capturing images of the welded interface using a JEOL JSM-6390LV scanning electron microscope, with an accelerating voltage between 0,5 kV and 30 kV. The specimens were dried in an oven at 40 °C to remove residual moisture, which could influence the quality of the SEM micrographs. Subsequently, they were fixed in stubs, coated with gold in a sputtering system, placed in a sample holder, and then placed in the SEM.

Thermochemical analysis

ATR-FTIR

For the ATR-FTIR analysis, the specimens were placed directly on the crystal of an Agilent Cary 660 FTIR spectrometer, with an ATR accessory (ZnSe crystal). The spectra were obtained at a range of wavenumbers between 4000 cm^-1 and 650 cm^-1, with a resolution of 4 cm^-1, recording an average of 32 sweeps. The spectra were normalized from 0 to 1 (Faix 1991).

XRD

For the XRD analysis, the samples were placed in a silicon zero background crystal sample holders, which were prepared by front pressing using a glass slide. Subsequently, they were placed in an X’Pert Pro X-ray diffractometer (PANalytical) PW3040/60. The equipment operated at 45 kV and 40 mA, with CuKa radiation and a wavelength of 1,5418 Å. XRD measurements were recorded by an X’Celerator detector equipped with a graphite monochromator in a scanning range of 5 º - 55 º (2θ) and a step size of 0,042 º (2θ). A knife was used to reduce low-angle air scattering.

The empirical cellulose crystallinity index (CI) was determined by the most commonly used methodology in literature, the Segal method (Segal et al. 1959). After baseline subtraction, it was calculated by Equation 2. In addition, the apparent crystallite size (L) was calculated using Scherrer (Equation 3) (Navi and Sandberg 2011).

Where CI is the cellulose crystallinity index (%), I₂₀₀ is the maximum intensity of the 200 lattice diffraction and I_am is the minimum intensity at 18 º.

where L is the apparent crystallite size (nm), λ is the X-ray wavelength (0,15418 nm), β is the half-height width of the diffraction band and 𝜃 is the Bragg angle corresponding to the (200) plane.

TG

For the TG analysis, the samples were placed in alumina capsules and then in a NETZSCH STA 449-F3 Jupiter thermal analyzer, where they were heated in a nitrogen atmosphere at a flow rate of 60 ml/min and temperature rate of 10 °C/min, from 23 ºC to 800 ºC.

DSC

For the DSC analysis, the samples were placed in alumina capsules and then in a Jade-DSC Perkin Elmer differential scanning calorimeter, where they were heated in a nitrogen atmosphere at a flow rate of 50 ml/min and temperature rate of 10 °C/min, from 20 ºC to 400 ºC.

Mechanical tensile tests

For the mechanical analysis, the specimens were placed in an Instron 5569 universal testing machine, in which they were subjected to a tensile force parallel to the dowel wood fibers and perpendicular to the substrate wood fibers. The applied load increased monotonically, due to the crossbar displacement at a rate of 2 mm/min, until the joint rupture. Later, the shear engaged by tensile pullout of the dowel was determined from the ratio between the maximum force verified in the tensile test and the welded interface area of piece A, where the joint breaks. It is expressed by Equation 4 (Viana et al. 2022b).

Where τ is the shear stress, in MPa; F_max is the maximum force, in N; d is the pre-drilled hole diameter (8 mm); h is the piece A'' height, in mm.

Results and discussions

Macrostructural analysis

During the RFW process, some events were observed: the smoke emissions, which are, according to Omrani et al. (2008), water vapour, CO₂ and degradation compounds from carbohydrates, mainly hemicelluloses, and lignin (Figure 5); the darkening of the welded interface; and the wear of the dowel and the pre-drilled hole. As stated in Yin et al. (2022), these events are due to the contact pressure between the dowel and the pre-hole surfaces and the high temperatures reached during this process, which intensity depends on the RFW parameters adopted and the welding time.

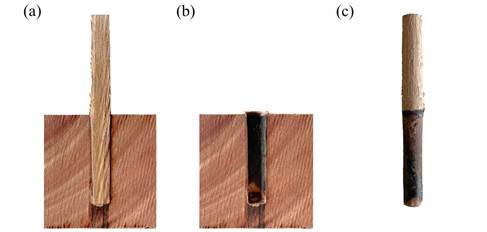

The cross-sections of a specimen, before and after the extraction of the dowel, are illustrated in Figure 6. During the dowel insertion in the substrate, it passed through regions with distinct anatomical and physical characteristics (Figure 6a), since the arrangement of the growth rings in the cross-section is not symmetrical to the pre-hole axis.

The darkening of the dowel/substrate interface (Figure 6b) is due to hydrolysis of hemicelluloses, reactions of sugars with amino acids and condensation and oxidation of lignin phenolic compounds (Peña 2014). The pre-drilled hole and the dowel, originally cylindrical, assume a conical shape due to their wear (Figure 6c). As the dowel is inserted into the pre-drilled hole, its diameter reduces gradually, while the pre-drilled hole diameter increases. Thus, the dowels had an average taper rate of 4,2 % and a standard deviation of 0,1 %.

Microstructural analysis

The scanning electron micrographs of 1S, 2S and 3S specimens are illustrated in Figure 7. The micrographs show that the RFW of eucalyptus wood reproduces the behavior described in the literature for other wood species, even had a higher average apparent density (938 kg/m³ ± 12 kg/m³). There is a space between the dowel/substrate interface (Figure 7a and Figure 7b), as reported by Properzi et al. (2005) when welding Fagus sylvatica hardwood (450 kg/m³ - 600 kg/m³). Figure 6c shows an intercellular material adhered to the substrate interface, which is composed mainly of lignin present in the middle lamella of the wood,

keeping the cells interconnected, as reported by Gfeller et al. (2003) when welding F. sylvatica.

For the RFW parameters adopted, the wood fibers intertwined at the interface and formed a microstructure responsible for joining the dowel and the substrate, providing mechanical strength to the joint (Zhu et al. 2017b) (Figure 7d, Figure 7e, Figure 7f). Hongda et al. (2022) reported a similar behavior when welding Phyllostachys edulis (680 kg/m³) bamboo dowels in European spruce (700 kg/m³) substrates, with feed rates of 200 mm/min, 600 mm/min and 800 mm/min.

The fibers at the edge of the substrate interface flowed in the direction of rotational movement, due to the forced insertion of the dowel and the consequent increase in temperature (Figure 7g, Figure 7h) (Pizzi et al. 2004). Figure 7i illustrates the deformation and the densification of wood cells at the substrate interface due to the contact pressure and the heating induced by the RFW process. According to Leban et al. (2004), this contributes to the welded joint strength.

Thermochemical analysis

ATR-FTIR

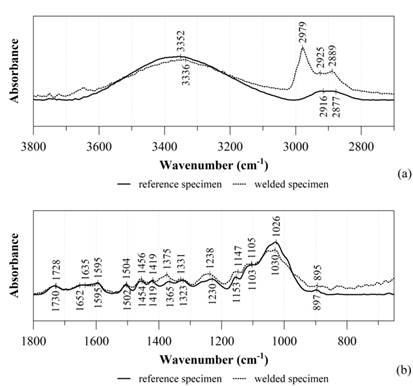

The ATR-FTIR spectra of reference and welded wood specimens are illustrated in Figure 8. The shape of the spectra is similar to those obtained by Belleville et al. (2018) when welding Australian E. saligna and E. pilularis with a rotation of 1230 rpm and a dowel/pre-drilled hole diameter ratio of 1,26. These parameters are similar to those adopted in this research.

The main changes resulting from the RFW process are verified in the 3600 cm^-1 - 2800 cm^-1 and 1500 cm^-1 - 850 cm^-1 bands. The 3600 cm^-1 - 3100 cm^-1 band corresponds to the stretching of hydroxyl groups (O-H) (Delmotte et al. 2008). The low peak at 3336 cm^-1, for the welded specimen, is due to dehydration reactions, caused by water loss during the RFW process (Kanazawa et al. 2005, Esteves et al. 2013). This change increases dimensional stability by reducing hygroscopicity and water absorption at the wood-welded interface (Amirou et al. 2019).

The 3000 cm^-1 - 2800 cm^-1 band is attributed to the stretching of methyl (CH₃) and methylene (CH₂) groups (Esteves et al. 2013, Dias Jr. et al. 2019). The high peaks at 2979 cm^-1, 2925 cm^-1 and 2889 cm^-1, for the welded specimen, is due to changes in cellulose crystallinity and lignin (Dias Jr. et al. 2019).

The 1456 cm^-1 - 1419 cm^-1 band corresponds to asymmetric C-H deformations in lignin and C-H bending in cellulose (Özgenc et al. 2017, Kubovský et al. 2020). It is higher for the welded specimen due to lignin alteration resulting from condensation and/or formation of CH₂ bridges between lignin fragments and the increase in the amount of crystalline cellulose (Belleville 2012, Kubovský et al. 2020). Li et al. (2021) observed the increase of a nearby peak (1462 cm^-1) when welding Phyllostachys pubescens (680 kg/m³) bamboo dowels in Populus sp. (450 kg/m³) substrates, using a rotation of 1500 rpm and a feed rate of 400 mm/min - 450 mm/min. The feed rate is similar to that used in this research (500 mm/min).

The 1380 cm^-1 - 1300 cm^-1 band is assigned to C-H bending in cellulose and hemicelluloses (Kubovský et al. 2020). For the welded specimen, the 1375 cm^-1 and 1331 cm^-1 peaks are higher due to the increase of condensed structures (Esteves et al. 2013, Kubovský et al. 2020). In addition, the 1331 cm^-1 - 1323 cm^-1 band indicates the splitting of ether bonds from lignin (Belleville et al. 2013).

The peaks at 1300 cm^-1 - 1200 cm^-1 and 950 cm^-1 - 850 cm^-1 bands are more intense for the welded specimen due to acetyl group splitting from hemicelluloses, causing the production of acid substances in the welded interface, as reported by Belleville (2012) when welding Acer saccharum and Betula alleghaniensis hardwoods with a rotation of 1230 rpm.

The 1200 cm^-1 - 1000 cm^-1 band is assigned to C-O-C stretching in cellulose, hemicelluloses and lignin (Kubovský et al. 2020). For the welded specimen, the 1147 cm^-1 and 1105 cm^-1 peaks are higher and the 1030 cm^-1 peak are lower, when compared to the reference specimen. The first behavior suggests dehydration reactions forming covalent intermolecular bonds and the latter indicates the beginning of cellulose degradation processes and the partial demethoxylation of lignin and its gradual crosslinking (Kubovský et al. 2020).

XRD

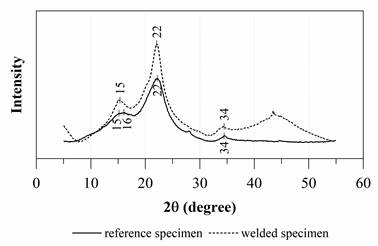

The XRD patterns of the reference and welded wood samples are illustrated in Figure 9. The X-ray diffractograms are similar to those obtained by Zhu et al. (2017b) and by Zor et al. (2021), when welding B. pendula, L. Gmelinii, Abies bornmulleriana, Quercus robur and Castanea sativa from northern hemisphere. These patterns refer to cellulose Iβ (JINROO01-CSD), whose main peaks are 14,9 º, 16,6 º, 22,9 º and 34,4 º (2θ) (Groom et al. 2016).

The peaks are more pronounced for the welded sample. It indicates that there were changes in the cellulose crystallinity, as observed in the ATR-FTIR spectra (Figure 8). This is also confirmed by the cellulose CI which corresponds to 65 % and 59 % for the welded and reference samples, respectively. Zhu et al. (2017b) reported a similar behavior when welding B. pendula dowels in L. gmelinii substrates using a rotation of 1080 rpm and feed rate of 600 mm/min, parameters similar to those adopted in this research.

The apparent crystallite size (L) is 2,9 nm and 2,4 nm for the welded and reference samples, respectively. The greater L and cellulose CI for the welded sample suggests that the proportion of crystalline cellulose increased due to the RFW process. The contact pressure and the high temperatures cause the hydrolysis of polysaccharides, the production of acid substances from acetyl groups of hemicelluloses and the splitting of ether bonds from lignin, as verified in the ATR-FTIR spectra (Figure 8). Consequently, a reduction in the amorphous phase from the sample, since the polymers become more mobile, leaving cellulose free to fuse and form larger diameter fibrils and microfibrils (Navi and Sandberg 2011). According to Navi and Sandberg (2011), the greater L and cellulose CI, together with interface densification observed in the SEM micrographs, contributes to the stiffness and strength of the joint.

TG

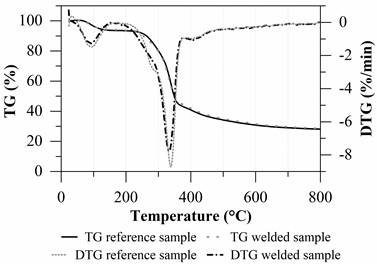

The thermogravimetric behavior of the reference and welded wood samples and their first derivatives (DTG) are illustrated in Figure 10. The thermal degradation process is divided into three phases: dehydration, at a range from 20 ºC to 200 ºC; active pyrolysis, at a range from 200 ºC to 385 ºC; and passive pyrolysis after 385 ºC (Slopiecka et al. 2012). At the initial heating temperatures, the DTG behavior of the samples shows a relative minimum due to the evaporation of water and volatile wood extractives (Slopiecka et al. 2012, Zhu et al. 2017b). This occurs at 90 ºC for the reference and welded samples, with a mass loss of 6,2 % and 5,8 %, respectively. The mass loss of the welded sample is 0,4 % lower, since the high temperatures reached in the RFW process reduce the number of accessible OH groups, as found in the ATR-FTIR test (Figure 8). Similar behavior was obtained by Zhang et al. (2018) when welding Betula spp. dowels in L. gmelinii substrates, with welding times of 3 s, 5 s and 7 s and rotation of 2400 rpm. The welding times are similar to those of this research, however, the rotation is much higher.

The DTG behavior shows a relative maximum at 153 ºC, for the reference sample, and, at 150 ºC, for the welded sample. According to Crespo et al. (2015), these maximum points are due to the complete evaporation of water and volatile extractives. As the temperature increases, the chemical bonds are broken due to dehydration reactions (Rowell 2005). At 290 ºC, the DTG of the reference sample shows a slope change characterized by the pyrolysis of hemicelluloses (Rowell 2005). It is caused by the deacetylation and by the release of acetic acid and formic acid (Navi and Sandberg 2011, Poletto et al. 2012a), which was observed in the 1238 cm^-1 - 1230 cm^-1 and 897 cm^-1 - 895 cm^-1 bands of the ATR-FTIR spectra (Figure 8). The DTG of the welded sample does not show a slope change, since part of hemicelluloses was decomposed during RFW (Stamm et al. 2006). According to Poletto et al. (2012b), the susceptibility of hemicelluloses to thermal decomposition can be attributed to its random amorphous structure, which is easily hydrolyzed. Zhu et al. (2017a) reported similar temperatures for the pyrolysis of hemicelluloses, between 227 ºC and 327 ºC, when welding Betula spp. and L. gmelinii woods, with a rotation of 1000 rpm. The same rotation used in this research.

The DTG behavior shows a relative minimum around 335 ºC due to the pyrolysis of cellulose, which is less intense for the welded sample. This is probably caused by chemical changes in the amorphous regions of microfibrils during the RFW process (Sun et al. 2010). At 348 ºC, the reference and welded samples lost 50 % of their mass. Belleville et al. (2018) obtained similar results when welding E. pilularis (345 ºC).

Between 350 ºC and 800 ºC, the samples show a continuous and slow mass loss due to lignin pyrolysis, which occurs in a wide temperature range (Crespo et al. 2015). This results in a more condensed structure, as verified in the ATR-FTIR test, which contributes to the mechanical strength of the welded joint (Sun et al. 2010). In this temperature range, the mass loss is less pronounced for the welded sample, since the chemical reactions during RFW increase the complexity and the thermal stability of polymers at the welded interface (Belleville et al. 2018).

The extractives, mainly volatiles, degrade between 150 ºC and 600 ºC, causing the emergence of new extractable compounds, resulting from the thermal decomposition of cell wall structural components of the wood (Esteves and Pereira 2009, Zhu et al. 2018).

DSC

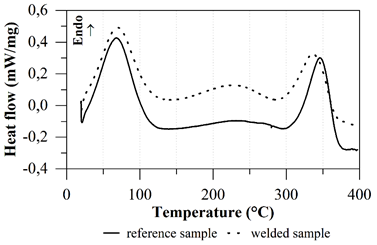

The thermograms, represented in Figure 11, illustrate the DSC behavior of the reference and welded wood samples. There are relative maximum (endothermic) peaks, between 20 ºC - 125 ºC, 160 ºC - 285 ºC and 300 ºC - 375 ºC, and relative minimums (exothermic), between 125 ºC - 160 ºC, 285 ºC - 300 ºC and after 375 ºC. They are derived from the volatilization, decomposition and carbonization of wood compounds (Strezov et al. 2003, Yang et al. 2007).

In general, the temperature and the intensity of the relative maximum and minimum are lower for the welded sample than the reference sample. This behavior indicates that the RFW process causes changes in the chemical composition of the welded interface, as noticed by the XRD results (cellulose crystallinity). Sun et al. (2010) also reported a reduction in the intensity of relative maximum (exothermic) peaks when welding B. alleghaniensis hardwood.

The first relative maximum (endothermic) peak, at 68 ºC, for the reference sample, and, at 70 ºC, for the welded sample, is due to the water evaporation (Strezov et al. 2003, Poletto 2016). The heat flow intensity for the welded sample is 9 % lower than that of the reference sample. This lower intensity is due to the loss of OH groups caused by high temperatures reached during the RFW process. Pereira (2017) also verified the reduction in intensity of the endothermic peak between 50 ºC and 100 ºC, after heating E. urophylla wood, up to 260 ºC.

As the temperature increases, the wood polymers soften, mainly hemicelluloses, which are more susceptible to high temperatures (Vaziri and Sandberg 2021). At 140 ºC, the DSC thermograms show a first relative minimum (exothermic) hump assigned to the complete evaporation of free and adsorbed water present in the wood (Esteves and Pereira 2009).

A secondary relative maximum (endothermic) peak is observed at 231 ºC, for the reference sample, and, at 225 ºC, for the welded sample. It is characterized by the degradation of lignin and, mainly, hemicelluloses, due to their thermal decomposition (Strezov et al. 2003, Poletto 2016, Wulfhorst et al. 2016). The intensity of the heat flow at this peak is 44 % higher for the welded sample than for the reference sample, since the intercellular material at the welded interface has more lignin condensed structures, as verified in the ATR-FTIR test (Pizzi et al. 2006, Stamm et al. 2006).

A second relative minimum (exothermic) hump is observed at 294 ºC for the reference sample and, at 286 ºC, for the welded sample. It is attributed to the primary pyrolysis of hemicelluloses and the consequent formation of furfurals and acetic acids (Strezov et al. 2003, Yang et al. 2007), since hemicelluloses are the least thermally stable and, therefore, more susceptible to thermal degradation caused by RFW (Stamm et al. 2006).

Increasing the temperature, a third relative maximum (endothermic) peak is observed at 346 ºC, for the reference sample, and, at 336 ºC, for the welded sample. This peak is due to the pyrolysis of cellulose, caused by depolymerization, decomposition, and volatilization (Lee et al. 2003, Yang et al. 2007, Wulfhorst et al. 2016). Its temperature and intensity reduce after RFW, indicating that part of cellulose, mainly amorphous fraction, is decomposed during the RFW process (Sun et al. 2010, Zhu et al. 2017b), as observed in the ATR-FTIR and TG/DTG results. Khalimov et al. (2019) reported very similar behavior for birch wood, with 690 kg/m³ (Meier 2021), when comparing a reference sample and a pyrolyzed wood sample.

The enthalpy of fusion of cellulose corresponds to 18,2 J/g and 15,1 J/g for the reference and welded samples, respectively. The enthalpy value is lower after welding, probably due to the partial degradation of cellulose during RFW of the wood (Zhu et al. 2017a). Above 375 ºC, the heat flow of the DSC thermograms starts to decrease due to the condensation reactions (Tsujiyama and Miyamori 2000).

Mechanical strength

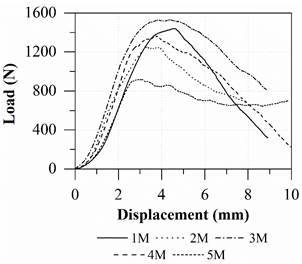

The load × displacement curves of 1M to 5M specimens are illustrated in Figure 12. An almost linear increase in force is observed, until reaching the maximum load. Subsequently, there is a gradual failure of the joint, characterizing a ductile rupture. Belleville (2012) reported the same behavior for B. alleghaniensis dowels welded unidirectionally in two-piece substrates of the same species, which is a hardwood as eucalyptus species.

The welded surface strength of eucalyptus specimens is presented in Table 1. The average strength and the coefficient of variation are 2,1 MPa and 18 %, respectively. The variation in the results may be related to the wood heterogeneity, since Belleville et al. (2016) obtained similar coefficients of variation (10 % to 25 %) when welding E. saligna and E. pilularis by rotary friction, with a rotation of 1000 rpm.

Schneid and Moraes (2016) obtained an average strength of 3,0 MPa when welding E. saligna dowels (12 mm in diameter) into pre-drilled holes (10 mm in diameter) machined in Eucalyptus spp. (794 kg/m³) substrates composed by two pieces, to a depth of 50 mm. The rotation and the feed rate were 1750 rpm and 750 mm/min, respectively. The strength is 30 % greater than that obtained in this research. This may be due to the different adopted RFW parameters.

Viana et al. (2022a) reported an average strength of 0,7 MPa when welding Mezilaurus itauba (824 kg/m³ ± 8 kg/m³) dowels with 10 mm in diameter into pre-drilled holes, with 8 mm in diameter, machined in Pinus taeda (606 kg/m³ ± 10 kg/m³) substrates composed of two pieces, to a depth of 55 mm. The rotation, the feed rate and the dowel/pre-drilled hole were 1000 rpm, 500 mm/min and 1,25, respectively. The strength is 67 % lower than that obtained in this research, probably, due to the different dowel and substrate wood species, since the RFW parameters are the same adopted in this research.

The results obtained in this research demonstrate the potential of fast-growing eucalypts woods, from Brazilian planted forests, to be welded adopting RFW parameters similar to those used for Australian eucalypts and northern hemisphere woods. However, further studies should focus on determining the optimal RFW parameters to obtain the best mechanical performance of the joint.

Conclusions

In this research, Eucalypts RFW joints from Brazilian planted forests were evaluated based on the macro and microstructural, thermochemical and mechanical analyses. The results allow us to conclude that:

The adopted RFW parameters contribute to the densification of the welded interface and the formation of a structure responsible for joining the dowel and the substrate, providing mechanical strength to the joint;

The cellulose CI and the apparent crystallite size of the eucalypts welded sample are greater due to thermal degradation of amorphous components;

The rupture of eucalypts welded joints is ductile and their average strength is 2,1 MPa;

welded joints of fast-growing eucalypts, from Brazilian planted forests, have suitable strength when the RFW parameters are similar to those used for Eucalypts woods from Australian forests.
