1. Introduction

1.1. Occupational risk and thermal environmental

The economic and social development that has taken place throughout the 20th century has been accompanied by a greater awareness of work safety and health problems and also by the development of protective measures for workers. The objective has been to minimize risk. Despite these efforts, there are still working situations that can be very harmful to workers' safety and health. One of these situations is related to workers who perform activities in "extreme" thermal environments, even if these are sedentary activities.

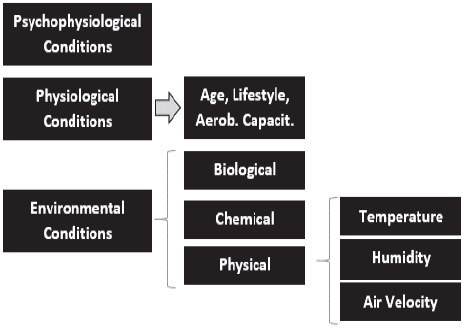

Figure 1
Influence of different conditions in human ability.
^[10].

It is pertinent to assess the relationship between thermal environment and cognitive capacity since all human activity is influenced by the surrounding environment, including working activities. This allows the question of how thermal environment influences human being's responsiveness to be clarified. Over the course of undertaking this research, we found several studies on the subject that have been performed in controlled environments, such as climatic chambers ^{[1, 2, 3, 4, 5]}. Furthermore some of the relevant literature ^{[6, 7]} states that thermal environment can have a negative impact on performance, particularly when combined with other variables such as exposition time or task duration.

With increased technological development the workplace assumes a greater complexity. This increased complexity often brings additional risks for workers. Increasing technological complexity requires, from the worker, an increased cognitive performance, which may be jeopardized due to an inadequate thermal environment.

1.2. Influence of environment in human ability

The way that each individual feels the surrounding environment is influenced by intrinsic and extrinsic factors from the individual himself ^{[8, 9]}. Tolerance to environment depends directly on, among others factors, age, aerobic capacity, hours of rest, lifestyle and consumption of medicines. These factors can be classified as shown in Fig. 1.

All of these strongly influence the feeling of well-being. The psychophysiological and physiological factors mean that different individuals in similar environmental conditions feel the conditions to which they are exposed differently.

1.3. Characterization and interpretation of brain waves

Monitorization and interpretation of brain waves can clarify how cognitive capacity is influenced by the thermal environment. The different types of brain waves / activities are:

• Delta Activity- is referred to as a "slow wave"; it is in the frequency range between 0.5 Hz and 4 Hz. This type of activity is recorded in the transitional phase for sleep and during sleep ^[11].

• Teta Frequency- this lies between 4 Hz and 7 Hz. Itis associated with different psychological states, which include low levels of alertness and, consequently, is associated with the decrease in the capacity to process information. Theta frequency can also be considered a "slow wave" ^[12].

• Alpha waves- This type is dominant in adult human brains, and has a frequency of between 8 Hz and 13 Hz. The waves' presence is common in the occipital cortex, during the period of wakefulness. Whenever the eyes are closed, the presence of this type of waves is common. When head wavers due to fatigue occurs, and when trying to be aware, Alpha wave activity decreases ^[11]. The presence of these waves during when the individual is awake and in a state of relaxation, leads to a slow response to stimuli ^[13].

• Beta waves- These have a frequency of between 13 Hz and 30 Hz, which indicates a high propagation speed. Their presence is associated with a state of arousal/alert. Beta activity can occur in humans while performing a motor task that requires high reaction time ^[14].

This study aims to contribute by establishing a relationship between thermal environment, and the signal amplitude of brain waves (Alpha and Beta), in particular the cognitive performance of individuals under uncomfortable environmental conditions.

2. Materials and Method

2.1. Main equipment

Monitoring and data collection was done using specific equipment. Table 1 presents the equipment that was used and its respective functions. After all the equipment ^[15] to be used was selected, each piece was tested and validated under trial protocol ^[16].

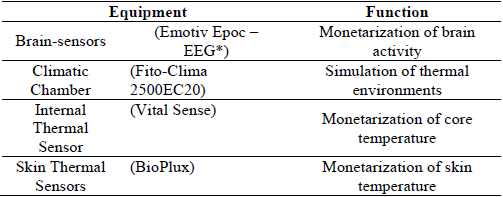

Table 1

Equipment used in laboratory tests

* electroencephalogram.

^[17].

2.2. General trial conditions

The relationship between cognitive capacity, thermal environment and brain waves was evaluated by performing experimental trials with 10 male volunteers. Their ages were between 18 and 36 years old, with an average of 26±6 years.

In these trials, each volunteer performed two cognitive tests. The first was held at 18ºC - 40% RH, and the second was done seven days later at 35ºC - 80% RH. All the trials were performed between 6:00 pm and 8:00 pm. The operating conditions were simulated within a Climate Chamber with an error of ±1ºC and ±2% RH.

Each volunteer was submitted to each one of the environmental conditions for 60 minutes after a stabilization period of 20 minutes outside the chamber (in the laboratory) at a temperature between 20ºC and 22ºC and a relative humidity between 55% RH and 65% RH. After this period, the volunteer who entered the climatic chamber waited for 10 minutes under environmental test conditions before beginning the essay. These 10 minutes were used to install an EEG device on the volunteer's head. The total time for each experiment was 90 minutes. Control of skin temperature was undertaken at two points, one on the neck and the other on the forehead of the volunteer, as shown in Fig. 2. In all the tests, all volunteers were dressed with 0,7 clo.

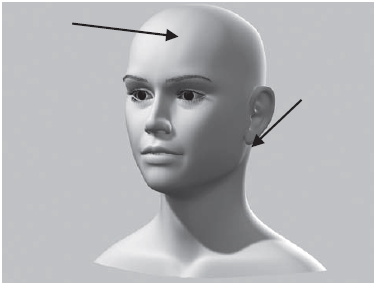

Figure 2
Neck and forehead points to control the skin temperature
^[18].

For the trials at 35ºC - 80% RH, core temperature was also controlled. In total were conducted 20 tests. Skin temperature allowed individual stabilization to be controlled. Core temperature allows signs of thermal stress to be identified, especially when the organism was exposed to high temperatures (35ºC - 80% RH) ^[19]. This monitoring also allows the risks of excessive exposure to heat to be minimized.

To evaluate brain activity we used a specific interface (brain computer interface) that allowed Alpha and Beta waves to be registered. Only brain waves from the left and right occipital were studied. The occipital lobe is related to the visual sense and to the ability to process information and understanding its contents.

All selected volunteers were male. To obtain a high-quality signal, all electrodes must be connected (in green), as is shown in Fig. 3.

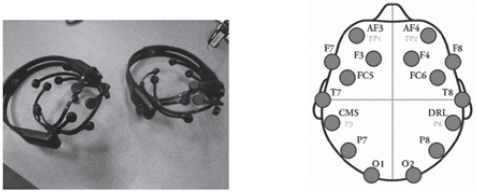

Figure 3
Emotiv equipment and the respective signal.
www.engr.ucr.edu

Volunteers' cognitive capacity was stimulated by performing a "game/task". Each individual had to follow the given instructions. Each volunteer undertook a one hour task, in this case, the Go / No-Go test ^[20] (Fig. 4) and completed it as successfully as possible. Go/No-Go is a selective attention test that does not have learning effects over the results as is totally random.

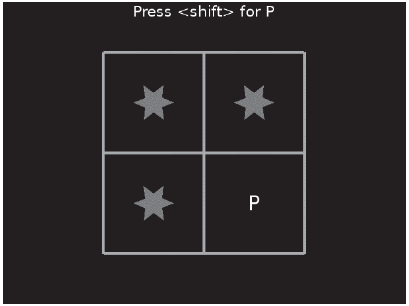

Figure 4
Go/No-Go test image
^[20].

Before starting the test, we explained what we intended to happen and the risks to the volunteer and an informed consent was signed. The study was approved by the Ethics Committee of the University of Porto (nº04 CEUP/2012).

2.3. Questionnaires

Before entering the Climate Chamber the volunteer answered 4 questions in order to assess their lifestyle, namely: a -Ingested caffeinated drinks in the last 12 hours?; b -Ingested alcoholic drinks in the last 12 hours?; c - Any medicine taken?; d - Good overnight rest?

These questions are relevant as they allow us to know if the volunteer is tired at the beginning of the test and, therefore, if task performance could be affected by other factors in addition to temperature and humidity.

Once the test was completed (1 hour), all the equipment was turned off, and the volunteer leaves the Climatic Chamber.

3. Results and discussion

3.1. Lifestyle

The answers given by the volunteers about their lifestyle before starting the tests helped to interpret the results (Table 2). Lifestyle can interfere with the results, for example, disguising fatigue (coffee) or reducing concentration power (alcohol).

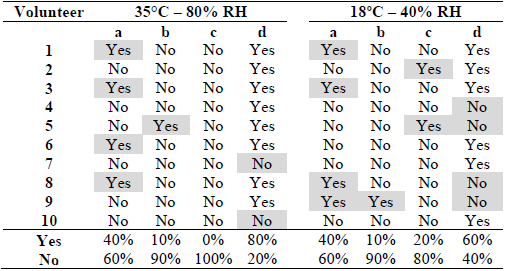

Table 2

Lifestyle Assessment for each volunteer

The authors.

Although some volunteers had a lifestyle that may influence the results (gray in Table 2), i.e. inserting biases in the results, we decided to include them if they are usual consumers of small doses.

3.2. Skin and core body temperature

Fig. 5 shows the evolution of the skin temperature average in the forehead and neck at 18ºC - 40% RH for the ten volunteers. Fig. 6 shows the evolution of skin temperature average at 35ºC - 80% RH at the same skin points. In both environments, skin temperature stabilizes. This level is clearer on the forehead and for hot temperatures. It is also interesting to notice that in hot environments, on both control points, neck and forehead, the temperature value has almost the same value after stabilization.

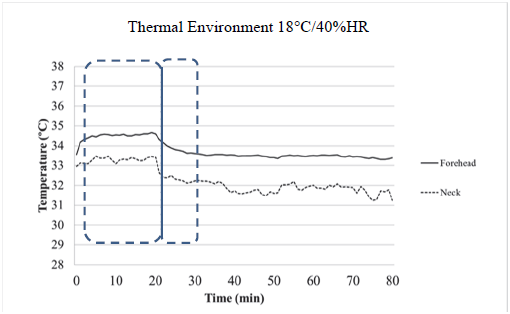

Figure 5
Forehead and neck mean temperature
The authors.

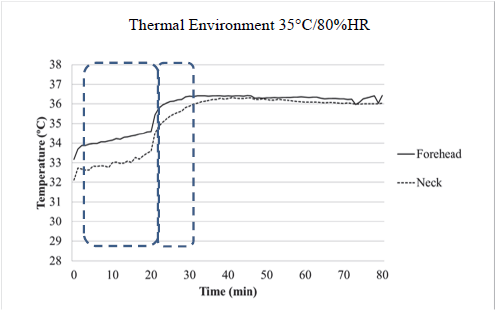

Figure 6
Forehead and neck mean temperature
The authors.

The core body temperature that was measured only in the hot environment (35ºC - 80% RH) shows a great stability over time (Fig. 7).

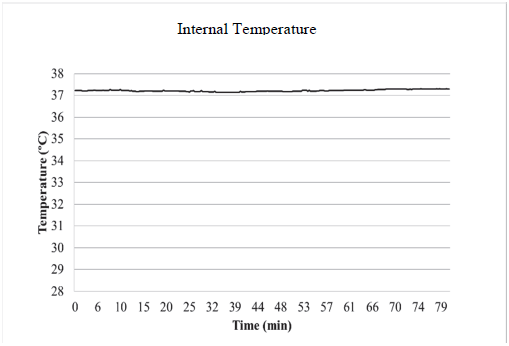

Figure 7
Core body temperature average at 35ºC80%RH
The authors.

3.3. Brain activity

Figs. 8, 9, 10, 11 represent the average results for recorded brain activity. When Figs. 8 and 9 are compared with the Figs. 10 and 11, it is possible to confirm thermal environmental influence on brain activity (Alpha and Beta waves' amplitude). For the colder environment (18ºC - 40% RH) Alpha activity is far superior to that obtained in the hot environment (35ºC - 80% RH). This excludes the occasionally-raised hypothesis that the perspiration is the main cause of the occurrence of high values of the EEG signal for hot environments.

Figure 8
Alpha Brain Activity
The authors.

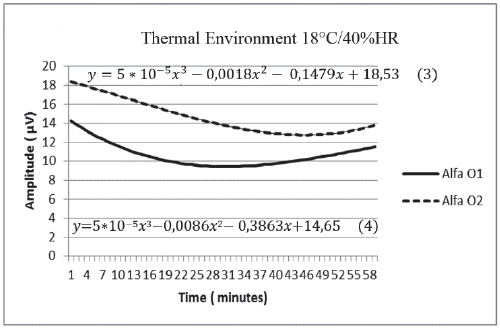

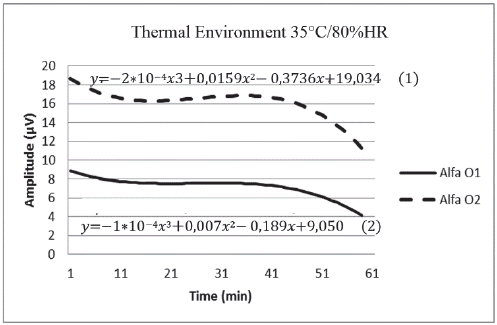

Figure 9
Alpha Brain Activity
The authors.

Figure 10
Beta Brain Activity
The authors.

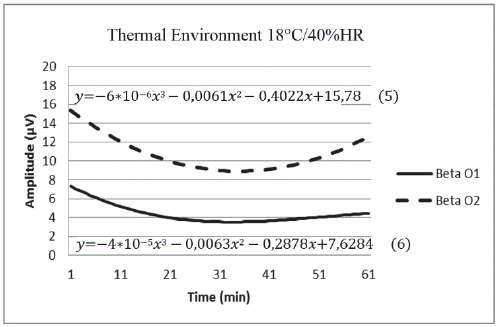

Figure 11
Beta Brain Activity
The authors.

In a state of wakefulness in which the volunteers are concentrated (eyes open), Alpha activity is usually small. As individuals become fatigued Alpha, activity is expected to increase. However, when time goes on, in the case of the trials at 35ºC - 80% RH (Fig. 8), only a small decrease in Alpha activity can be observed, which does not verify the expected trend. For the trials at 18ºC and 40% RH (Fig. 9), there is a decrease in Alpha activity in the first part of the test (20-30 min); this then increases until Alpha activity maintains values that are close to the initial values. The increase in Alpha activity suggests an increase of tiredness/fatigue in the volunteers.

Another relevant fact is the discrepancy of activity between the right and left brain hemispheres for hot thermal environments. In the left area of the brain (occipital 1) the range values activity is between 4-9 µV while in right area (occipital 2) this range rises to 11-19 µV (Fig. 8). It seems that in a hot thermal environment the temperature and relative humidity affect the left and right hemispheres differently.

According to several studies ^[11], Beta activity is considered the one that best describes alertness/arousal.

In a cold thermal environment, Beta activity is typically higher than the activity verified for the hot thermal environment.

It is usually considered that a decrease in Beta activity is related to the loss of the ability to concentration (reduction of surveillance), which was be verified throughout the trial. It is therefore possible to consider that cold thermal environments (Fig. 10) are conducive to higher levels of concentration/alertness than hot environments (Fig. 11).

When comparing the activity between left side and right side of the brain, the activity in the occipital 1 (left) is lower than the one verified in occipital 2 (right).

After analyzing the data of brain activity for the two frequency bands (Alpha and Beta) it is possible to calculate the Alpha/Beta ratio. This ratio is developed to relate the two most relevant frequencies, which facilitates understanding of the evolution of individual's cognitive state.

With the analysis of the Alpha /Beta ratio, it is possible to observe the evolution of fatigue/tiredness over time. Theoretically an increase in fatigue levels over the trial time is expected, and the consequent tendency is to increase the Alpha/Beta values ratio.

However, this expectation was only applied to the occipital 2 for 35ºC - 80% RH (Fig. 12) and very dimly at the end of the test in the cold thermal environment in occipital 1 (Fig. 13).

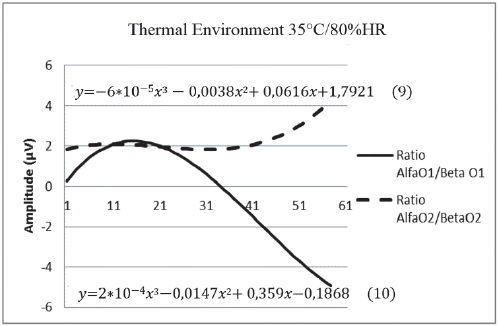

Figure 12
Ratio Alpha /Beta
The authors.

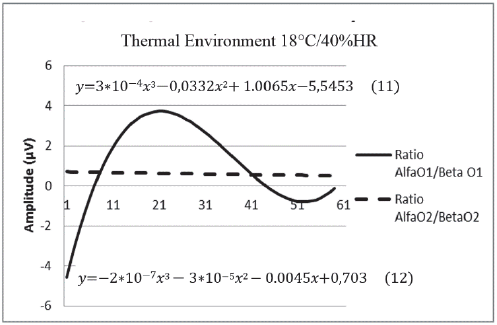

Figure 12
Ratio Alpha /Beta
The authors.

Interpreting Alpha and Beta wave activity still lacks scientific unanimity. It is commonplace that different studies reveal completely diverse results and interpretations. Some authors report that Alpha waves show changes at different temperature ^[21], and others report that alpha and beta increase at either 17ºC or 28ºC ^[4].

A comparison of both hemispheres can be seen in Table 3; when the average amplitude of Alpha waves increases, there is a decrease in the amplitude of Beta waves. This concurs with Eoh et al.'s results ^[22].

Table 3

Values of the amplitude averages for the different waves over time in each hemisphere

The authors.

4. Conclusions

In hot thermal environment Alpha activity tends to decrease over the course of the task/test, for both areas of the occipital lobe. In the cold thermal environment, Alpha activity decreases for half the time of the test (30 min) and then rises, showing an increase for both areas of the occipital lobe. This means that a bigger effort was made.

Beta activity for the hot thermal environment is quite small on the left side of the occipital lobe (Fig. 10 and Table 3); a downward activity is shown as the task was being developed. In tests undertaken in a cold thermal environment, Beta activity decreases for approximately half of the test time (30 min), and then it tends to increase at the end of the trials.

The results support the idea that the different areas of the brain, in this case the left and right occipital lobes, are affected differently by the same environmental conditions.

Agradecimientos

The authors acknowledge the Master's program in Occupational Safety and Hygiene Engineering at the Faculty of Engineering, University of Porto, and the Research Laboratory on Prevention of Occupational and Environmental Risks (PROA) for their financial support.

References

1. Gaoua, N., Racinais, S., Grantham, J. and El Massioui, F., Alterations in cognitive performance during passive hyperthermia are task dependent. International Journal of Hyperthermia, 27(1), pp 1-9. 2011. DOI: 10.3109/02656736.2010.516305

2. Hashiguchi, N., Feng, Y., and Tochihara, Y., Gender differences in thermal comfort and mental performance at different vertical air temperatures. European Journal of Applied Physiology, 109(1), pp 41-48, 2010. DOI: 10.1007/s00421-009-1158-7

3. Lan, L., Lian, Z., Pan, L. and Ye, Q., Neurobehavioral approach for evaluation of office workers' productivity: The effects of room temperature. Building and Environment, 44(8), pp. 1578-1588 2009. DOI: 10.1016/j.buildenv.2008.10.004

4. Lan, L., Lian, Z. and Pan, L., The effects of air temperature on office workers' wellbeing, workload and productivity-evaluated with subjective ratings. Appl Ergon, 42(1), pp. 29-36 2010. DOI: 10.1016/j.apergo.2010.04.003

5. Racinais, S., Gaoua, N. and Grantham, J., Hyperthermia impairs short-term memory and peripheral motor drive transmission. J Physiol, 586, pp. 4751-4762, 2008. DOI: 10.1113/jphysiol.2008.157420

6. Pilcher, J.J., Nadler, E. and Busch, C., Effects of hot and cold temperature exposure on performance: a meta-analytic review. Ergonomics, 45, pp.682-698, 2002. DOI: 10.1080/00140130210158419

7. Gaoua, N., Cognitive function in hot environments: A question of methodology. Scand J Med Sci Sports, 20, pp. 60-70, 2010. DOI: 10.1111/j.1600-0838.2010.01210.x

8. Guedes, J.C., Costa, E.Q. and Baptista, J.S., EAT 2012 Book of Proceedings - Appendix 1 of Thermology International pp. 22-23. 2012.

9. Costa, E.Q., Baptista, J.S. and Tato, M.D., Effects of thermal environment on cognitive response in sedentary activities. A revision. Faculdade de Engenharia da Universidade do Porto, Portugal, 2012.

10. Costa, E., Correlação entre sinais das ondas cerebrais e a carga cognitiva em ambientes térmicos extremos controlados, MSc. Thesis, Departamento de Segurança e Higiene Ocupacionais, Universidade do Porto, Porto, Portugal, 2014.

11. Lal, S.K.L. and Craig, A., A critical review of the psychophysiology of driver fatigue, Biological Psychology 55, pp. 173-194, 2001. DOI: 10.1016/S0301-0511(00)00085-5

12. Fisch, B.J., Fisch and Spehlmann's EEG primer: Basic principles of digital and analog EEG. 3rd ed., Elsevier, USA, 2000.

13. Grandjean, E., Fitting the task to the man. Taylor and Francis, London, UK, 1988.

14. Sheer, D.E., A working cognitive model of attention to fit in the brain and in the clinic. Academic Press, USA, 1988.

15. Costa, E.Q. and Baptista, J.S., Thermal environment and cognitive performance: Parameters and equipment, in: Arezes et al., eds. Occupational Safety and Hygiene -Taylor & Francis Group, London, UK, 2013. DOI: 0.1201/b14391-55

16. Costa, EQ, Santos-Baptista, J., Couto1, D., Torres-Costa, J., Diogo, M.T., Almeida, P., Chaves, P., Carvalho, J. and Ponce L., Test protocol validation for thermal environment and cognitive performance. IRFMS, 2013.

17. Costa, E.T., Costa, E.Q. and Baptista, J.S., Changes in the brain waves' sign with thermal environment, in: Arezes et al., eds., Occupational Safety and Hygiene -Taylor & Francis Group, London, UK, 2015.

18. http://www.secondpicture.com/tutorials/3d/3d_modeling_of_a_human_head_3ds_max_01.html

19. Costa, E.Q. and Baptista J.S., Thermal environment and cognitive performance: Parameters and Equipment, n: Occupational Safety and Hygiene. CRC Press, pp.267-272, 2013.

20. Mueller, S.T., The PEBL Manual programming and usage guide for the Psychology Experiment Building Language PEBL Version 0.14. [Online]. ISBN 978-0-557-65817-6. Available at: http://pebl.sourceforge.net.

21. Yao, Y., Lian, Z., Liu, W. and Shen, Q., Experimental study on physiological responses and thermal comfort under various ambient temperatures. Physiology & Behavior, 93(1-2), pp. 310-321. 2008. DOI: 10.1016/j.physbeh.2007.09.012

22. Eoh, H.J., Chung, M.K. and Kim, S.-H., Electroencephalographic study of drowsiness in simulated driving with sleep deprivation. International Journal of Industrial Ergonomics, pp. 35(4), pp. 307-320, 2005.
