1. Introduction

The interest in generating functional foods has increased in the last years in the market because it offers more benefits to human health. Nowadays, the industry is focused to provide healthy food from natural origins for balanced diets due to important issues in supercharged populations [1]. Therefore, recent research reports that natural biomass such as microalgae are source of bioactive compounds which are key in healthy food industry [1,2]. Particularly, carotenoids are a group with around 600 biomolecules, biosynthesized mainly by higher plants, but also by some yeasts, fungi, algae, and bacteria from isoprene units [3].

More recent studies indicate that carotenoids are composed of more than 700 structurally different compounds, typically consist of C-40 hydrocarbon backbone, and often produce cyclic and acyclic xanthophylls by modification with various oxygen containing functional groups [4]. Significant diversity of carotenoids exists in plants, animals, fungi, and micro-organisms, and obtaining and maintaining pure carotenoid standards is one major problem in quantification [5]. Besides, carotenoids have an important role in photosynthesis, forming pigment-protein complexes, where they harvest light energy and this energy goes to the chlorophyll by singlet-singlet excitation transfer [6,7]. In addition, carotenoids have an important role as food colorants and antioxidants with different benefits for human health. It is demonstrated that they are able to decrease stress oxidative levels by neutralizing free radicals, and preventing some types of cancer, chronic diseases, cardiovascular and eye diseases [1,8].

Due to numerous applications, there are increasing demands for carotenoids in the international market [9]. Biomolecules as astaxanthin, fucoxanthin, and lutein among others are part of broad family of carotenoids [1]. In particular, fucoxanthin showed in Fig. 1 will be the focus of this work.

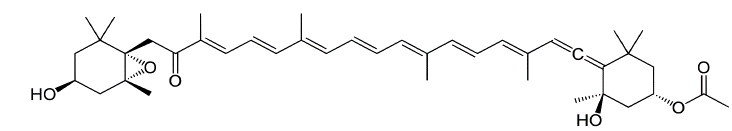

Figure 1.
Chemical structure of fucoxanthin with esters of alcohol.
Source: adapted of Woo et al. [10]

This carotenoid is typically found in algae such as Eisenia bicyclis, Laminaria japonica, and Undaria pinnatifida but also in microalgae such as Phaeodactylum tricornutum and Odontella aurita [13]. Particularly, Isochrysis galbana is a marine microalga studied for its high content in fucoxanthin compared to other species [11-14]. Moreover, I. galbana is known to contain other bioactive compounds such as PUFAs (polyunsaturated fatty acids) as docosahexaenoic acid (DHA) with important commercial interest [15]. In spite of the fucoxanthin market being provided from the algae industry, novel studies demonstrate that microalgae can be considered a potential source of fucoxanthin such as I. galbana or diatoms [16,17] adding other bioactive compounds.

Multiple reviews have been published on various extraction methods to improve the extraction efficiency from biomasses diversity. For instance, the highlighted methods could be divided into: (i) the atmospheric liquid extraction with Soxhlet (maceration, microwave or ultrasound), (ii) pressurized liquid extraction, (iii) enzyme-assisted extraction, (iv) supercritical fluid extraction, which is often based on the use of supercritical carbon dioxide (SC-CO₂) [10,18].

This preliminary study will assess the importance of contact solvent-biomass based on extraction time and the use of polar/non-polar solvent to obtain a potential functional ingredient such as fucoxanthin. Therefore, in this work will perform a previous optimization of fucoxanthin extraction methods from I. galbana as from: (i) solvents selection to extract and (ii) extraction time. Finally, fucoxanthin will be quantified though analytical standard methods to use I. galbana as the source of this potential bioactive compound for the food industry. In the future, we evaluated other green extraction technologies to quantify this bioactive compound.

2. Methodology

2.1. Materials

The marine microalga biomass of Isochrysis galbana was provided by “Laboratorio de Microalgas y Compuestos Bioactivos” (University of Antofagasta, Chile) where was cultured under control condition and was harvested in its exponential phase of growth. Then, this biomass was lyophilized in a freeze-dry system (Labconco Freezone 2.5L Benchtop Freeze Dry System, USA). All chemicals used in this study were of chromatographic purity. Particularly, carotenoid standards such as fucoxanthin was provided by Sigma-Aldrich with ≥ 98% purity.

2.2. UV-vis spectrum and quantification of Fucoxanthin

Fig. 2 shows the fucoxanthin UV-vis spectrum though spectrophotometer Uv-vis (Shimadzu UV- 1280, Japan) using fucoxanthin standard.

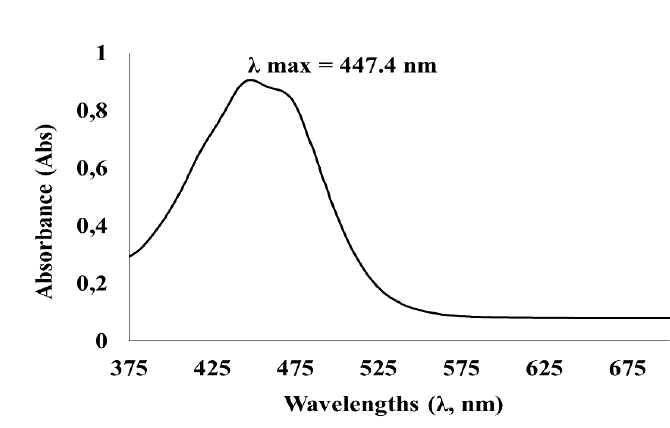

Figure 2.
Fucoxanthin Uv-vis spectrum from fucoxanthin standard from 375nm to 675nm.
Source: The Authors.

Fig. 3 represents the standard calibrated curve of fucoxanthin under λ max at 447.4 nm described by the formula (1) where fucoxanthin content is calculated as mg/g.

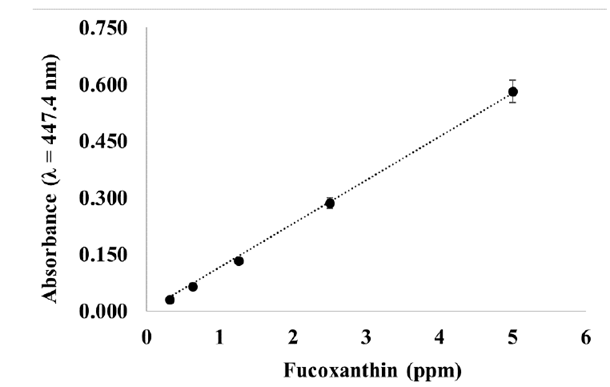

Figure 3.
Fucoxanthin standard calibrate curve. This was performed with standard samples between 0.1-20 ppm of fucoxanthin. There is only showed the linear response of this calibrate curve (R=0.9988). All results are expressed as mean values from three independent experiments.
Source: The Authors.

(1)

Where Fx had fucoxanthin content, A447.4 was the absorbance of the sample at this λ max, 8.665 was the specific slope of the standard curve, DF was dilution factor of solvent, V was the solvent volume used in mL and finally, the biomass of I. galbana weighted in mg.

2.3. Extraction solvents of fucoxanthin from I. galbana

Seven solvents were used under the experimental conditions for fucoxantin extraction. Solvents with different polarities were: methanol, ethanol, acetone, ethyl acetate, chloroform, n-hexane and petroleum ether. For every extraction experiment 10 mg lyophilized biomass of I. galbana was added with 5 mL of every solvent. Samples were put in an ultrasonic bath (Biobase, Digital Ultrasonic Cleaner, China) for 10 min at room temperature. After that, the samples were stored at 4°C and mixed at 300 rpm for 50 min in shaker incubator (Thermo Shaker Incubator MSC100). Finally, they were centrifuged at 4400 rpm for 5 min (Eppendorf 5702, Germany). This protocol was repeated in triplicate and under darkness. Finally, in this section the first extraction was only measured (I. galbana biomass was coloured).

2.4. Extraction times of fucoxanthin from I. galbana

The selection of extraction times was needed to determine the period of contact between biomass-solvent to reach the best fucoxanthin extraction. All samples under 5 mL selected extract solvent were put in an ultrasonic bath for 10 min at room temperature. Then, they were incubated at 4°C and mixed at 300 rpm in shaker incubator for: 5, 10 and 30 min and 1, 2, 6, 12 and 24 h. Finally, they were centrifuged at 4400 rpm for 5 min. This protocol was repeated in triplicate and under darkness until I. galbana biomass was colourless.

2.5. Statistics

All data was determined from three independent experiments. The selection of extractant solvents were based on theirs polarities. Mean values and standard deviations were calculated with Microsoft Excel software, and the data is expressed as the means ± standard deviation (SD). Every data was ± SD ≤ 5%. To determine the statistical differences between the mean values of the fucoxanthin concentration (mg/g) by extraction method with ethanol at different times the Analysis of Variance (ANOVA) was applied followed by the Multiple Ranges Test (MRT) of Duncan as a post hoc test to measure specific differences between the mean values. All statistical analyses employed Statgraphics Centurion XVI.1® software (StatPoint Technologies, Inc., Warrenton, VA, USA).

3. Results and discussion

The selection of accurate solvent is one of the most critical factors for efficient extraction of carotenoids. Several reports study the use of organic solvents, such as acetone, chloroform, hexane, isopropanol, methanol, methylene chloride and diethyl ether [19]. Consequently, Fig. 4 shows fucoxanthin content obtained using seven independent solvents. The best solvent to extract fucoxanthin from I. galbana biomass was methanol, followed by ethanol with values as 6.282 and 4.187 mg/g respectively.

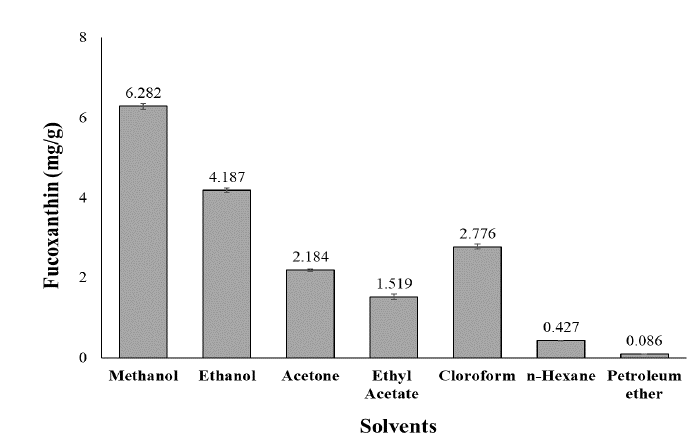

Figure 4.
Fucoxanthin content (mg/g) under seven extraction solvents from freeze-dried I. galbana. The extracted solutions were performed as described in the Methodology section and they were analysed by spectrophotometer. Fucoxanthin contents are expressed as mean values from three independent experiments.
Source: The Authors.

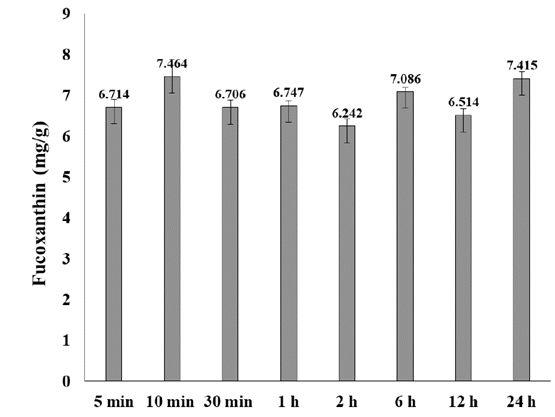

Figure 5.
Concentration of fucoxanthin (mg/g) under different extraction time from freeze-dried I. galbana. The extracted solutions were performed as described in the Methodology section and they were analysed by spectrophotometer. Fucoxanthin contents are expressed as mean values from three independent experiments. Results in graphical form of the application of the Duncan’s Multiple Range Test.
Source: The Authors.

4. Conclusion

In conclusion, this initial research was performed to determine the best solvent for fucoxanthin extraction from I. galbana biomass. Ethanol was selected in favour of methanol for not being a toxic solvent for the food industry. Moreover, extraction time was a relevant parameter to improve in fucoxanthin extraction from microalga. Here, 10 min was the time selected for this under 100% ethanol reaching 7.464 mg/g of fucoxanthin. Besides, future research will be done with several fucoxanthin extractions from I. galbana using green extraction technologies such as super and subcritical fluid extractions. Finally, I. galbana could be described as natural source of potential functional ingredients useful for food industry.

Acknowledgements

This research was financed by two projects in development, belonging to public resources of Chile (CONICYT, “Comisión Nacional de Investigación Científica y Tecnológica”). They are codified as Projects PAI-79160037 and FONDECYT-11170017. Additionally, the group at University of Antofagasta, Chile “Laboratorio de Microencapsulación de Compuestos Bioactivos, LAMICBA” wants to give special recognition to Carlos Dario Alfonso for his help in translation.

References

Poojary, M.M., Barba, F.J., Aliakbarian, B., Donsì, F., Pataro, G., Dias, D.A. and Juliano, P., Innovative alternative technologies to extract carotenoids from microalgae and seaweeds. Mar Drugs, 14(11), pp. 214, 2016. DOI: 10.3390/md14110214.

Raposo, M.F.D.J., de Morais, A.M.M.B. and de Morais, R.M.S.C., Carotenoids from marine microalgae: a valuable natural source for the prevention of chronic diseases. Mar Drugs, 13(8), pp. 5128-5155, 2015. DOI: 10.3390/md13085128.

Goodwin, T.W., Nature and distribution of carotenoids. Food Chem, 5(1), pp. 3-13, 1980. DOI: 10.1016/0308-8146(80)90061-8.

Kushwaha, K., Saini, A., Saraswat, P., Agarwal, M.K. and Saxena, J., Colorful world of microbes: carotenoids and their applications. Adv Biol, Article ID 837891, pp. 13, 2014. DOI: 10.1155/2014/837891.

Kumar, R., Hariram, S. and Won, S., Carotenoids from fruits and vegetables: chemistry, analysis, occurrence, bioavailability and biological activities. Food Res Int, 76(3), pp. 735-750, 2015. DOI: 10.1016/j.foodres.2015.07.047.

Telfer, A., Pascal, A. and Gall, A., Carotenoids in photosynthesis. In: Britton G., Liaaen-Jensen S., Pfander H. (eds) Carotenoids. Carotenoids, vol. 4, Birkhäuser Basel, 2008, pp. 265-308. DOI: 10.1007/978-3-7643-7499-0_14.

Frank, H.A. and Cogdell, R.J., Carotenoids in photosynthesis. Photochem photobiol, 63(3), pp. 257-264, 1996. DOI: 10.1111/j.1751-1097.1996.tb03022.x.

Miyashita, K., Nishikawa, S., Beppu, F., Tsukui, T., Abe, M. and Hosokawa, M., The allenic carotenoid fucoxanthin, a novel marine nutraceutical from brown seaweeds. J Sci Food Agr, 91(7), pp. 1166-1174, 2011. DOI: 10.1002/jsfa.4353.

Valdés, Y.A. y Soto, M.F.B., Algas, aliadas en el pasado y sustento para el futuro. Tecnol Química, 28(3), pp. 46-50, 2017. ISSN: 0041-8420.

Saini, R.K. and Keum, Y.S., Carotenoid extraction methods: a review of recent developments. Food Chem, 240, pp. 90-103, 2018. DOI: 10.1016/j.foodchem.2017.07.099.

Kim, S.M., Kang, S.W., Kwon, O.N., Chung, D. and Pan, C.H., Fucoxanthin as a major carotenoid in Isochrysis aff. galbana: Characterization of extraction for commercial application. J Korean Soc Appl Bi, 55(4), pp. 477-483, 2012. DOI: 10.1007/s13765-012-2108-3.

Woo, M.N., Jeon, S.M., Shin, Y.C., Lee, M.K., Kang, M. and Choi, M.S., Anti‐obese property of fucoxanthin is partly mediated by altering lipid‐regulating enzymes and uncoupling proteins of visceral adipose tissue in mice. Mol Nutr Food Res, 53(12), pp. 1603-1611, 2009. DOI: 10.1002/mnfr.200900079.

Peng, J., Yuan, J.P., Wu, C.F. and Wang, J.H., Fucoxanthin, a marine carotenoid present in brown seaweeds and diatoms: metabolism and bioactivities relevant to human health. Mar Drugs, 9(10), pp. 1806-1828, 2011. DOI: 10.3390/md9101806.

Wu, S., Xie, X., Huan, L., Zheng, Z., Zhao, P., Kuang, J. and Wang, G., Selection of optimal flocculant for effective harvesting of the fucoxanthin-rich marine microalga Isochrysis galbana. J Appl Phycol, 28(3), pp. 1579-1588, 2016. DOI: 10.1007/s10811-015-0716-0.

Tokuşoglu, Ö. and Üunal, M., Biomass nutrient profiles of three microalgae: Spirulina platensis, Chlorella vulgaris, and Isochrisis galbana. J Food Sci, 68(4), pp. 1144-1148, 2003. DOI: 10.1111/j.1365-2621.2003.tb09615.x.

Kim, S.M., Jung, Y.J., Kwon, O.N., Cha, K.H., Um, B.H., Chung, D. and Pan, C.H., A potential commercial source of fucoxanthin extracted from the microalga Phaeodactylum tricornutum. Appl Biochem Biotech, 166(7), pp. 1843-1855, 2012. DOI: 10.1007/s12010-012-9602-2.

Rijstenbil, J.W., Effects of UVB radiation and salt stress on growth, pigments and antioxidative defence of the marine diatom Cylindrotheca closterium. Mar Ecol Prog Ser, 254, pp. 37-48, 2003. DOI: 10.3354/meps254037.

Yen, H.W., Yang, S.C., Chen, C.H., Jesisca and Chang J.S ,., Supercritical fluid extraction of valuable compounds from microalgal biomass. Bioresource Technol, 184, pp. 291-296, 2015. DOI: 10.1016/j.biortech.2014.10.030.

Alfonsi, K., Colberg, J., Dunn, P. J., Fevig, T., Jennings, S., Johnson, T.A., Kleine, H.P., Knight, C., Nagy, M.A., Perry, D.A. and Stefaniak, M., Green chemistry tools to influence a medicinal chemistry and research chemistry based organisation. Green Chem, 10(1), pp. 31-36, 2008. DOI: 10.1039/B711717E.

Capello, C., Fischer, U. and Hungerbühler, K., What is a green solvent?. A comprehensive framework for the environmental assessment of solvents. Green Chem, 9(9), pp. 927-934, 2007. DOI: 10.1039/B617536H.

Castro-Puyana, M., Herrero, M., Urreta, I., Mendiola, J.A., Cifuentes, A., Ibáñez, E. and Suárez-Alvarez, S., Optimization of clean extraction methods to isolate carotenoids from the microalga Neochloris oleoabundans and subsequent chemical characterization using liquid chromatography tandem mass spectrometry. Anal Bioanal Chem, 405(13), pp. 4607-4616, 2013. DOI: 10.1007/s00216-012-6687-y.
