Peral, M., Fernàndez, M., Torne, M., 2018. Resolution test of GOCE satellite data applied to density anomalies at crustal and upper mantle levels. Geologica Acta, 16(1), 93-105. DOI: 10.1344/GeologicaActa2018.16.1.6

INTRODUCTION

The Gravity field and steady-state Ocean Circulation Explorer (GOCE) (Floberghagen et al., 2011) is one of the last satellite missions launched by the European Space Agency (ESA) to provide new insights on a broad range of issues, from oceanography to solid Earth physics as well as sea-level and climate change.

The main novelty of GOCE with respect to previous missions is the measurement of gravity gradients, i.e. the second derivate of the gravitational potential (V),

G_ij = - (δ²V)/(δ_iδ_j) (1)

where i,j = x,y,z, representing the spatial rate of change of the gravity vector, g, in all three perpendicular directions (Saad, 2006). The Electrostatic Gravity Gradiometer (EGG) from GOCE (van der Meijde et al., 2015a) is the most important and innovative instrument of the satellite, allowing for direct measurements of the spatial variations of the Earth’s gravity field with a great high accuracy (about 10^-13 of the gravitational attraction on Earth). Original and final GOCE products as well as details of the different coordinate systems used to represent gravity gradients can be found in the literature (e.g. Fuchs and Bouman, 2011; Bouman and Fuchs, 2012; Bouman et al., 2013; Fecher et al., 2015; Bouman et al., 2016).

The GOCE mission was launched on March 2009 and ended on October 2013, generating great expectations since the very beginning. The first gravity model derived from GOCE was presented in June 2010. The potential of the mission to improve the estimated mean circulation of the North Atlantic was envisaged very soon, two months after initiating the satellite measurements (Bingham et al., 2011). One of the products of GOCE is the global GOCO03S model, a great-accuracy and high-resolution global gravity field model that combines GOCE, GRACE, SLR and CHAMP satellite data. GOCO03S model is a spherical harmonics expansion model developed up to degree 250 with a half-wavelength spatial resolution of 80km and accuracy of 0.4mE in gravity gradients at orbit altitude (255km) (Mayer-Gürr et al., 2012).

Several studies revealed that the gravity gradients signal may become relevant in modelling the lithosphere and upper mantle density variations (Hirt et al., 2012; Mariani et al., 2013; Fullea et al., 2014, 2015; Bouman et al., 2015; Fadel et al., 2015; Reguzzoni and Sampietro, 2015; Barzaghi et al., 2016). GOCE data have been also used to explore the crustal and upper mantle structures in Africa (Martinec and Fullea, 2015), Arabia (Holzrichter and Ebbing, 2016) and the Andean and Central American margins (Köther et al., 2012) among many other regions. Finally, a number of studies are devoted to validate the quality and accuracy of the GOCE data (e.g. Godah and Krynski, 2013; Braitenberg et al., 2013; Fecher et al., 2015; Mysen, 2015; Pal and Majumdar, 2015). A summary describing the studies based on the GOCE mission can be found in van der Meijde et al. (2015b). Nevertheless, to our knowledge, a parametric study focusing on the size, burial depth, and density contrast of anomalous bodies that can be resolved from GOCE gravity gradients data at crust and upper mantle levels is still missing, being this the main goal of our work.

We have first computed the gravity gradients that are related to rectangular prism structures of different size, burial depth, and density contrast. Second, we have computed the gravity gradients corresponding to a synthetic 3D passive continental margin structure. We have compared the resulting signal with that calculated from the GOCO03S gravity potential model in the NW Iberian margin, which has a similar crustal structure. Results are discussed in terms of possible geological structures that can be resolved from GOCE data and the gravity gradient signature associated with these structures.

RESOLUTION OF SINGLE-PRISM DENSITY ANOMALIES

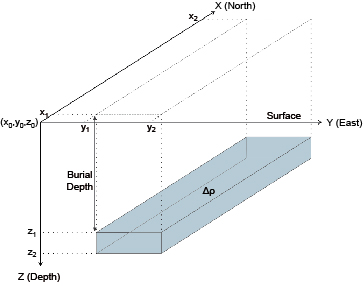

To compute the gravity gradients from synthetic models we have used the Tesseroids approach developed by Uieda et al. (2015). Tesseroids is a forward modelling software of gravitational fields that supports models and computation grids in Cartesian (planar approximation) or spherical coordinates, in which the geometric element can be either a sphere (tesseroid) or a rectangular prism. In our estimations, we have considered both the planar and the spherical approximation. Although the spherical approximation gives a more exact solution, our results fully agree with those obtained by Fullea et al. (2015) in that the difference between both approximations is close to the GOCE resolution (1mE, 1milli-Eötvös = 10^-12s^-2) when calculations are made at the satellite altitude (255km) and the lateral dimensions of the anomalous body are in the range of 1ºx1º. To what follows we will show the results from the spherical approximation.

The performed tests consist to identify those density anomalies with the minimum size and density contrast that, at the mean satellite altitude (255km), show a gravity gradient with an amplitude larger than GOCE resolution (1mE for the accurate components G_xx, G_yy, G_zz, G_xz and 100mE for G_xy and G_yz), and a sufficient wavelength to recognize the shape of the anomaly. Therefore, we have defined a series of rectangular prisms (Fig. 1) with a fixed aspect ratio of 9:3:1, length (Δx), width (Δy), and thickness (Δz), respectively. The variables of the model are the dimensions of the prism (Δx, Δy, Δz), the burial depth (z₁) and the density contrast (Δρ).

To maximize the gravity effects, we have considered two end-member density contrast values for crust and upper mantle levels. Density contrasts of up to Δρ=500kg/m³ are restricted to crustal levels and can be either associated with uncompacted sedimentary basins (e.g. young marine basins, salt diapirs), or with variations of the crust-mantle boundary topography (i.e. Moho depth) (e.g. Christensen and Mooney, 1995; Brocher, 2005; Torne et al., 2015). Larger density contrasts about 1600–1700kg/m³ (e.g. lakes and ocean basins) or 2400–2670kg/m³ (e.g. topography effect) are always found at superficial levels and can cause perturbations in the gravity gradient, about ±3E (e.g. Holzrichter and Ebbing, 2016).

A density contrast of Δρ=50kg/m³ can be expected at any depth within the crust, related to lithological variations (e.g. Barton, 1986; Christensen and Mooney, 1995; Maystrenko and Scheck-Wenderoth, 2009), or within the upper mantle related to thermal and/or compositional variations (Cammarano et al., 2011; Afonso et al., 2013; Globig et al., 2016).

Amplitude resolution

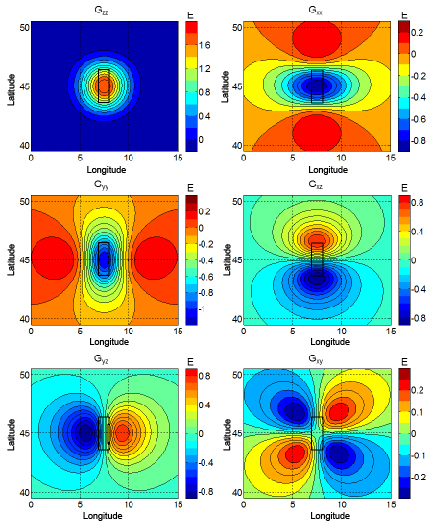

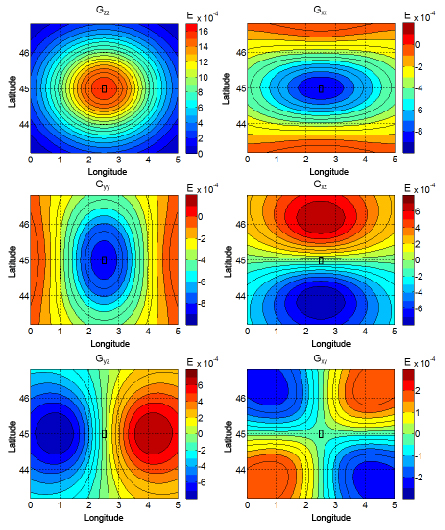

In the first test the anomalous body has a density contrast of 500kg/m³ and a burial depth z₁ covering the common range of crustal depth, i.e. 0≤z₁≤40km. After estimations, we find that the minimum dimensions of the anomalous body that can be resolved by the G_zz component within this depth range is Δx=22.5km, Δy=7.5km, and Δz=2.5km. The resulting maximum value of the G_zz component is 1.7mE, if the anomalous body is located at the Earth’s surface (z₁=0km) and 1.1mE when the burial depth is z₁=40km (Fig. 2). Note that, at this depth, the gradient signal is in the limit of GOCE resolution (1mE).

In the second test, the anomalous body has a density contrast of 50kg/m³ and a burial depth z₁ covering the whole range of crust and upper mantle depths, i.e. 0≤z₁≤650km. In this case, the minimum size that results in a perceptible signature in the vertical component of the gravity gradient (G_zz=1mE) is 41.4x13.8x4.6km and occurs for z₁=0. As the considered density contrast can occur at any depth within the crust and the upper mantle, were interested in determining the minimum size of the anomalous body that can be detected at different depths (see Table 1). Figure 3A plots depth vs. thickness of the anomalous body that produces a vertical gravity gradient signal of G_zz=1mE. We find that there is a linear relationship between both variables when using the fixed aspect ratio of 9:3:1. Therefore, an anomalous body within the lithospheric mantle (i.e. 50km≤z₁≤200km) requires minimum dimensions of Δx=49.5–75.6km; Δy=16.5–25.2km; and Δz=5.5–8.4km, respectively. For anomalies located in the upper mantle, at 400km and 650km depth, the minimum thickness values required are 12.3 and 17.5km, respectively. At the crustal depth range (0–40km), the wavelength of the G_zz anomalies with similar amplitudes do not differ noticeably, but they do when the burial depth is in the range of hundred kilometers (Fig. 3B). The resulting half wavelength (>400km) exceeds by far the spatial resolution of GOCE (80km).

Wavelength resolution

In the previous section, we have shown the minimum size and burial depth of a density anomaly producing a detectable gravity gradient signal in the G_zz component. However, both size and burial depth of the density anomaly influence in a different way the wavelength of the gravity gradient variations and particularly, the spatial distribution of maximum and minimum (extrema) values. Figure 4 shows the six gravity gradient components for an anomalous density body of 22.5x7.5x2.5km, Δρ=500kg/m³ and burial depth z₁=0km computed at 5km height. The G_zz component delineates a maximum value miming the planar shape of the density anomaly, whereas the G_xx component shows a quadrupole distribution with the minimum values within the anomalous body and the maximum values close to the N-S bounds of the anomaly. The G_yy component shows an elongated minimum centered on the anomalous body with values increasing outwards. The different shape of the G_xx and G_yy components is related to the elongated shape of the density anomaly at the low computation height. Components G_xz and G_yz display a bipolar distribution with relative extrema values distributed symmetrically with respect to the width and length axes crossing the center of the body, respectively (y and x axes). Maximum and minimum values roughly coincide with the lateral sides of the anomalous body. Finally, component G_xy exhibits a quadrupole pattern with alternating maximum and minimum values roughly coinciding with the corners of the anomalous body. In summary, in the case that the dimensions of the anomalous body are large relative to the computation height, the relative extrema distribution, i.e. the wavelength of the gravity gradient components is sensitive to the boundaries of the density anomaly, which allows for identifying its shape. It is worth noting that, due to the low computation height (5km), the half wavelength in all components is <20km, which is below the spatial resolution of GOCE.

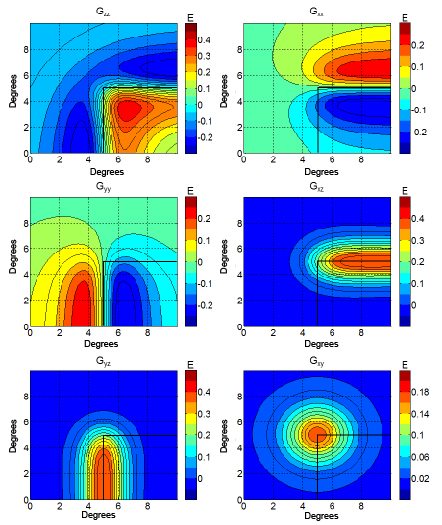

Figure 5 shows the calculated gravity gradient components for the same anomalous density body (22.5x7.5x2.5km, Δρ=500kg/m³, z₁=0km) computed at 255km height, the mean satellite altitude. As the computation height moves upwards, the calculated gravity gradient components show larger wavelength variations and the relative extrema of the horizontal components separate and eventually vanish. Although the amplitude of the vertical component can be detected by GOCE, all the other components are slightly below its accuracy. Furthermore, the wavelengths of the gravity gradient variations are very far from the limits of the anomalous body and are clearly unable to delimit its shape and orientation. Note that, in this case, the main components (G_zz, G_xx and G_yy) are insensitive to the aspect ratio of the density anomaly. On the other hand, the extrema associated with the crossed components G_xz and G_yz show an apparent rotation of 90º losing any relation with the shape of the anomaly. A similar situation occurs with the G_xy component where the resulting quadrupole distribution is almost symmetric and unrelated to the aspect ratio of the anomaly. Calculations at a height of 255km, varying the size of the density anomaly, and considering Δρ=500kg/m³ show that the minimum size to generate both amplitudes and variation wavelengths sensitive to the shape of the density anomaly and higher than the resolution of GOCE mission at a burial depth of 0km, are 270x90x30km (Fig. 6). On the other hand, the required minimum size increases to 585x195x65km for a prism buried at 200km depth if the density contrast is Δρ=50kg/m³. In these cases, the distance between relative extrema still reflects the aspect ratio of the anomalous body.

3D CONTINENTAL MARGIN STRUCTURES: A PROXY FOR NW-IBERIA

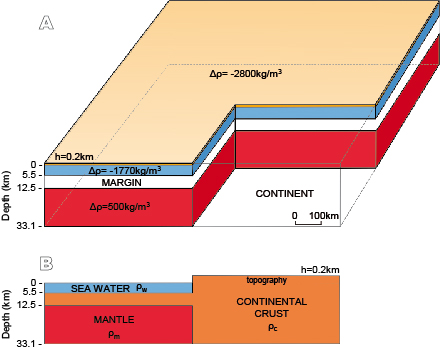

In the previous sections we have calculated the gravity gradient field produced by simple and isolated density anomalies. Nevertheless, in the Earth the anomalous bodies are not isolated but are the result of tectonic processes that deform the crust and the lithospheric mantle in addition to surface mass transport related to erosion/sedimentation. To illustrate the application of gravity gradients to modelling large-scale crustal structures, in this section we present a first order analysis of a 3D structure that resembles the NW corner of the Iberian Peninsula and its northern and western margins (Fig. 7). It must be noted that we do not intend to reproduce the accurate crustal structure of the region, but to compare the major trends of the gravity gradient components produced by a simple 3D crustal structure with GOCO03S data.

The vertical component G_zz delineates the main regional trends of the margin with relative lows (<-0.2E) located at the base of the slope, while maximum values (~0.4E) are observed onshore (Fig. 8). The horizontal components, G_xx and G_yy, highlight the northern and the western margins, respectively, with a coupled positive (offshore) and negative (onshore) anomaly in a range of 0.25 to -0.25E. As expected, the weakest signal corresponds to the G_xy component (from 0 to -0.19E) with maximum values centered on the corner formed by both margins. Finally, the G_xz and G_yz components, with amplitudes in the range of -0.02E and 0.42E, are symmetrically opposite and show the highest amplitudes just at the shoreline of the northern and western margins, respectively.

To compare our model with the measured signal, gravity gradients are computed in the Local North Oriented Frame (LNOF) from the disturbing potential over the Iberian Peninsula and nearby regions, including the western Mediterranean and North Africa regions (Fig. 9). All computations are incorporated on a 10x10min grid at the mean satellite altitude of 255km, taking the WGS84 as the reference ellipsoid.

The highest amplitudes in the gravity gradient components reflect the largest gravity spatial variations. The vertical component (G_zz) shows the strongest signal from -0.56 to 0.96E, whereas the planar components show variations from -0.58 to 0.47E for G_xx in S-N direction, and from -0.39 to 0.41E for G_yy in E-W direction. The vertical component shows the highest positive gradients over the Atlas, whilst the largest area with lowest negative values is related to the Sahara Platform. As the gravity potential satisfies the Laplace’s equation, there is a direct correlation between the lateral and vertical components (G_xx+G_yy+G_zz=0). Comparing the G_xx and G_zz signals, we observe nearly the same but opposite anomaly patterns, since regions with higher positive amplitudes in G_zz also show higher negative amplitudes in G_xx and vice versa. Something similar is observed when correlating the G_yy and G_zz signals, though in this case the anomaly pattern of the lateral component is slightly different, highlighting the structures oriented N-S like the western Iberian margin and the Calabrian Arc. Crossed components are sensitive to the borders of the major structures and its orientation.

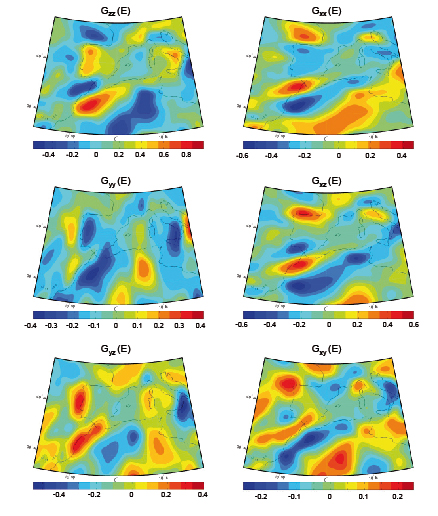

The gravity gradient field derived from the synthetic model (Fig. 8) shows a very similar pattern in the large wavelengths than that obtained from the GOCO03S in the NW Iberian Peninsula and its associated northern and western margins (Fig. 9). Nevertheless, some differences are observed in the signal amplitudes that are as much as 0.3E in the G_zz component and 0.1 and 0.05E in the G_xx and G_yy components, respectively, the crossed components showing similar amplitudes. A different case is the South-Iberia and North-Africa regions (Fig. 9), where the measured gravity gradient pattern is not easily identifiable with a simple margin structure, which could be explained by the presence of sublithospheric anomalous bodies (e.g. Spakman and Wortel, 2004; Fullea et al., 2010, 2014; Díaz and Gallart, 2014; Villaseñor et al., 2015).

DISCUSSION

Gravity gradients are proven to be very sensitive to the shape of a given anomalous body or geological structure provided that there is sufficient density contrast with the surrounding medium. The six gradient components help in constraining the size and position of the lateral sides of the structure as well as its burial depth. This is particularly true when measurements are relatively close to the anomaly as the signal vanishes rapidly due to its dependence with (L/r³). The mean satellite altitude of the GOCE mission is 255km and then, the calculated gradients at this height show a noticeable reduction in its amplitude and a large increase in its wavelength.

According to our resolution tests, a rectangular prism anomaly with a density contrast of 500kg/m³ and a burial depth between 0–40km, requires a minimum size of 22.5x7.5x2.5km to generate a detectable signal of 1mE amplitude in the G_zz component. However, this size must be multiplied by a factor f=12 when using the wavelengths of all gravity gradient components to determine the precise position and shape of the anomalous structure.

When the density contrast is reduced to 50kg/m³, the required size of the structure to be detected in the G_zz component must be multiplied by a factor f=1.8, for a burial depth z₁=0km ; f=3.4, for z₁=200km; or f=4.9, for z₁=400km. Moreover, the required minimum size increases to 585x195x65km (f=26) for a prism buried at 200km depth, when using the wavelengths of the six gradient components to resolve its shape and burial depth.

These calculations evidence that gravity gradients computed at satellite altitude can be used to determine mid-to-large scale structures, depending on their burial depths. Structures of hundreds km long are typical for tectonic processes related to orogenesis or rifting, in which the crust and the lithospheric mantle undergo thickening or thinning. Larger structures can also be related to sinking lithospheric slabs associated with subduction, and to convection or chemical anomalies in the sublithospheric mantle, as revealed by seismic tomography. In this regard, the main advantage of using all gravity gradient components is their sensitivity to sharp changes in the gravity field and therefore, to the lateral boundaries of the anomalous structures. It is also expected that GOCE mission can contribute to analyze and refine the Gravitational Centroid Moment Tensor solutions associated with the mass redistribution produced by large earthquakes (e.g. Sumatra-2004, Tohoku-2011) previously calculated from GRACE satellite mission data (e.g. Cambiotti and Sabadini, 2012, 2013).

It should be noted, however, that the presented resolution tests are based on an isolated density anomaly corresponding to a prism with a fixed aspect ratio. This is not the general case in nature, where density anomalies are placed at different depths resulting in a complex superposition of individual signatures. Using different aspect ratios will modify the calculated signal, although when the anomalous mass is equivalent and the lateral dimensions are realistic, these changes are not significant. In addition, the gravity gradient will be sensitive to the inclination of the lateral sides of the anomalous body, such that a regular prism, as that considered in the resolution test, tends to maximize the signal. Finally, the high satellite altitude together with the burial depth of the density anomalies contributes to the filtered and somewhat blurred final image of the computed gravity gradient components.

Bearing in mind all these aspects, we have applied a very simple model to the northwestern corner of the Iberian Peninsula, which is characterized by a 3D structure formed by the northern and western Iberian-Atlantic passive continental margins. As we have not removed the signal of topographic masses from GOCE data, we have computed the average topography and water layer effect so that measured and calculated values can be directly compared.

The signal observed in all the gravity gradient components is dominated by the crustal thinning associated with the passive continental margins and the corresponding isostatic response. Differences between measured and calculated gravity gradient components are attributed to both short wavelength departures of the averaged topography of our 3D model and second order structures within the crust and/or the lithospheric mantle not considered in our approach.

CONCLUSIONS

The main goal of this study was to analyze the resolution, in terms of shape, minimum size, and density contrast of anomalous bodies related to geological structures that can be identified from GOCE gravity gradient data. From the presented models, we can draw the following conclusions:

i) Gravity gradients obtained in the GOCE mission can detect a buried density anomaly as long as the amplitude of the signal in the vertical component is G_zz≥1mE and the half wavelength is >80km. When the dimensions of the anomalous body are large relative to the computation height, the position of the relative extrema (maximum and minimum values) of the gravity gradient components allow for identifying its shape, orientation and burial depth.

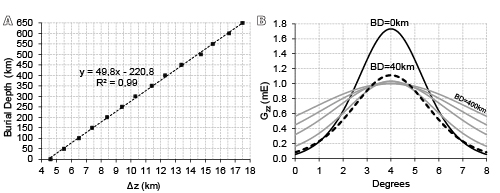

ii) For given computation heights and density contrasts, there is a linear relationship between the burial depth and the thickness of the anomalous density body producing the same amplitude in the G_zz component, when using the fixed aspect ratio of 9:3:1.

iii) For crustal density anomalies, the minimum dimensions of an anomalous body that can be resolved by the G_zz component computed at a height of 255km, with a density contrast of Δρ=500kg/m³, and a burial depth of 0–40km, is Δx=22.5km, Δy=7.5km, and Δz=2.5km.

iv) For crustal and upper mantle density anomalies with Δρ=50kg/m³ and a burial depth from 0 to 650km, the minimum dimensions for a body to be detected must be multiplied by a factor, relative to a crustal density anomaly with Δρ=500kg/m³, of 1.8, 3.4, 4.9 or 7 for burial depths of 0, 200, 400 and 650km, respectively.

v) Determining the size and orientation of a crustal density anomaly from the position of the relative extreme (wavelength of the signal) of the gravity gradient components, requires a minimum size of 270x90x30km, i.e. a factor 12 for a Δρ=500kg/m³ and a computation height of 255km. This factor rises up to 26 (585x195x65km) for a body with Δρ=50kg/m³ and buried at a depth of 200km.

vi) The application to the 3D case of NW-Iberia shows that the signal of all gravity gradient components is dominated by the crustal thinning associated with the passive continental margins and the corresponding isostatic response. Misfits are related to short wavelength departures of the averaged topography considered in our model and to second order crustal and/or lithospheric mantle structures.
