Possibilities of rice husk ash to be used as reinforcing filler in polymer sector -a review

Posibilidades de usar la ceniza de cascarilla de arroz como reforzante en el sector de polímeros – una revisión

This work is licensed under Creative Commons Attribution-NoDerivs 4.0 International.

Rice is the second agricultural product cultivated worldwide after corn [1]. Global paddy rice production in 2016 was 752 million tons (499 million tons, milled basis), planted in 163 million hectares all along the world. This production was 3.9 million tons more than December forecasts and 1.6% above the same period of 2015 [2]. According to FAO, the global paddy production in 2017 will be 755 million tons [3].

Colombia is the third rice producer in south America [3]. According to DANE, the planting rice area in 2016 was 570,802 hectares and the paddy rice production was 2.97 million tons [4], which supposed 594,000 tons of rice husk (RH). RH is a byproduct of agriculture industry which depicts 20% of the whole grain rice. RH low density (~125 kg/m³) [5], difficults its handling and appropriate disposal. In many countries, this agricultural waste is disposed in vacant lots and in the riverbed causing environmental impacts such as landscape damages and fauna and flora affectations [6], [7].

On the other hand, RH has interesting characteristics from the energy and materials recovery point of view. In general terms, RH is composed by 33 wt.% cellulose, 25 wt.% lignin, 22 wt.% hemicellulose and 20 wt.% inorganics [7, 8, 9, 10]. Some common alternatives for the RH valorization involve its use as: i) substrate in greenhouse crops (moisture retention in crops and controlling plant height or stem length) [11], [12], ii) fertilizer [13], iii) animal food [14, 15, 16], iv) beds for livestock and poultry industry (floor covering in farms) [17, 18] and v) chipboards [19], among others. Likewise, RH is attractive as fuel for conducting the rice drying process [20, 21, 22, 23]. Its heating value (between 15 and 17 kJ/kg) and its higher volatile matter (between 60 and 65 wt.%) make the RH a reasonable feedstock for combustion process in spite of its higher ash content (between 16 and 20 wt.%). The resulting rice husk ash (RHA) has high silica content (>90 wt.%) [7], [24, 25, 26, 27] and hence, it is attractive as a raw material for cement [28, 29, 30], polymers [31, 32, 33, 34], adsorbents [14], [28], [35], among others.

Beside all those applications, different processes have been developed for the preparation of silica from RH as reviewed by Soltani et al. [28]. In general terms, there are three different treatments applied to RH for the silica production: thermochemical, chemical and biological treatments. Within thermochemical treatments is found pyrolysis, gasification and combustion, being the last one the more attractive and studied process for the SiO₂ production with minor unburnt compounds [36], [37]. Combustion of RH is not only a self-sustaining process minimizing the requirements for auxiliary fuel, but also allows the easy temperature control which is necessary to obtain amorphous structure RHA [6], [38], [39]. In this sense, amorphous nature of RHA is favored at temperatures lower than 700°C [37], [40]. In the case of chemical treatments, different acid and even basic agents are also used to remove the organic matter to produce a purified silica [41], while biochemical treatments use microbial fermentation to decompose the organic matter and finally obtain the amorphous silica [42].

The aim of this review is to present the most important properties of silica and RHA for its use in polymer applications. A brief revision on the commercial silica processes is showed as well as the main properties for its use in polymers. The RHA properties (chemical composition, surface area, molecular structure (crystalline or amorphous) and particle size) from RH combustion is also reviewed as well as the mechanical performance of both thermoplastics and elastomers filled with RHA.

After carbon, silica is the second main element found in the earth crust. Silica is found in oxide or silicate form, in amorphous or crystalline structure [24]. In general terms, there are two types of silica, natural and synthetic. Natural silica is found in minerals such as quartz and flint, and also in plants such as bamboo, rice and barley. Synthetic silica is produced by different routes obtaining fibers, sheets, gel and powder. Those synthetic process can be classified in two routes: thermal and wet processes. Depending on the raw material and the applied pathway, it could be possible to obtain different kinds of synthetic silica such as sols or colloidal, gel, pyrogenic, and precipitated silica [43], [44] as is shown in Figure 1.

Pyrogenic silica process is one of the most widely used for synthetic silica production. This process consists in the synthesis of silica in a vapor phase at high temperatures [45]. The silica is prepared from SiCl₄ and is known as fumed silica while silica obtained from quartz sand is known as arc silica. More details of fumed silica are found in section 2.1. Arc silica, also called fused silica, is produce by reducing quartz sand or other silica containing material with coke at temperatures above 2000 °C in an electrical arc furnace. Then, volatile SiO reacts with oxygen from air or steam in a second step to produce SiO₂, as showed in reaction (1) and (2) [43]:

(1)

(2)

On the other hand, silica gel and colloidal (sols) are considered as hydrated silicas, and they are obtained by wet processes. As well as pyrogenic silica (thermal processes), hydrated silicas are produce from different raw materials and routes. Colloidal silicas are obtained from silicate solution (generally Na₂SiO₃) followed by the separation of silica from the silicate. That step could be carried out by three different ways: i) a neutralization with acid (for instance H₂SO₄), ii) an ion exchange with cation ion exchange resin and iii) an electrodialysis with cation exchange membrane. Once the silica is separated, the nucleation takes place followed by polymerization of silicate tetrahedron in a random amorphous manner until forms small spheroids called micelles. The solution with micelles is known as colloidal silica or silica sol (suspension of SiO₂ particles size between 100 and 150 nm) [45]. The liquid where silica is dispersed can be water or organic solvent which are known as hydrosol or organosols respectively [44].

Similarly, colloidal silica may also be produced by: i) peptization of silica gel, ii) hydrolysis of a silica compound and iii) dispersion of a pyrogenic silica as shown in Figure 1 [45].

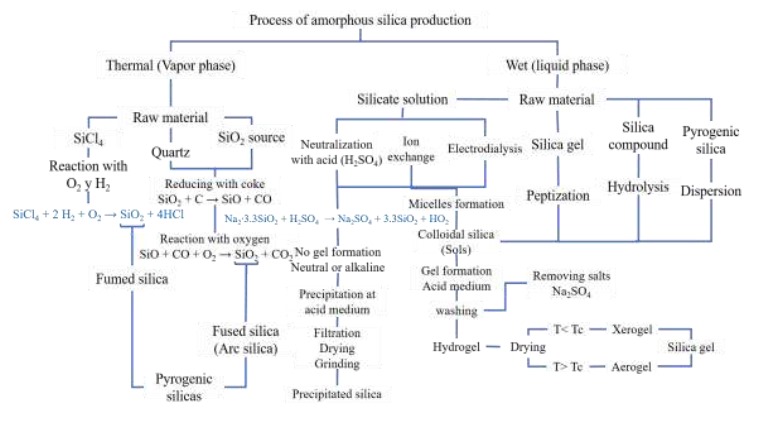

Figure 1
Different commercial silica routes of production (adapted from [45])

On the other hand, Walter Patrick developed the original process of silica gel production in 1919 [46]. Silica gel is prepared from the neutralization of sodium silicate solution by an acid reagent (generally H₂SO₄). From the hydrosol, the gel is formed when occurs the interactions of separate micelles through hydrogen bonds and interparticle condensation. This step is known as gelation and produce the hydrogel. After the gel formation, the solid gel is washed and dried at specific conditions to obtain the desired physical properties such as porosity, pore size and surface area [45]. In general terms, there are three types of silica gel: hydrogel, xerogels and aerogels. The first one is produced in the gelation step and is known as hydrogel or alcogel whether the solvent is water or an alcohol respectively, while the other gels (xerogel and aerogel) depend on the method for extraction the liquid from the solid network. The xerogel is formed when the hydrogel is dried under critical temperature (T_c), resulting in a shrinkage of the structure and reducing the porosity. Whereas the aerogel, is formed when the liquid is extracted above T_c of the solvent to prevent any collapse or shrinkage in the structure [44].

Within commercial silicas references, it is common to find pyrogenic silicas with similar physical properties to others precipitated silica or silica gel. This fact suggest that differences in properties not only depends on the preparation method [43], but also on the primary particle size and the way in which particles are aggregated or agglomerated [44]. Agglomeration refers to the sharing of a side between two particles (loosely attached), while aggregation is related to the linking of particles or agglomerates to form stable aggregates (hard to break). Furthermore, the structure parameter is a function of the aggregate size, shape and pore volume [47].

The structure is determined by an oil absorption test (usually named as oil absorption number (OAN)) given as a result 5 different levels: i) very low structure (VLS) when OAN is less than 75 mL/100g, ii) low structure (LS) for OAN between 75 and 125 mL/100g, iii) medium structure (MS) when OAN is between 125 and 175 mL/100g, iv) high structure (HS) for OAN between 175 and 200 mL/100g and v) very high structure (VHS) when OAN is above 200 mL/100g [48]. That way, the chainlike arrangement of primary particles results in a non-porous structure [44]. For instance, pyrogenic silicas do not show any porosity because of their aggregation in a chain-like form, while silica gels show porous structure [44], [49]. As it is shown in Table 1 silica gel has the highest surface area compared to fumed, arc and precipitated silica due to its high internal porosity.

There are two types of surface area, internal and external; however, the degree of reinforcement polymer filled with silica is related to silica external surface area because internal surface is inaccessible to the large polymer molecule. This characteristic may be the reason why silica gel is not an effective reinforcing filler compare with precipitated silica [43].

Table 1 also shows that hydrated silicas (gel and precipitated) has higher silanol density than pyrogenic silicas (fumed and arc silicas). This is because the high temperature used in pyrogenic processes makes silanol to condensate to form siloxane groups. The presence of lower temperature and vapor water results in rehydroxylation which increases silanol groups.

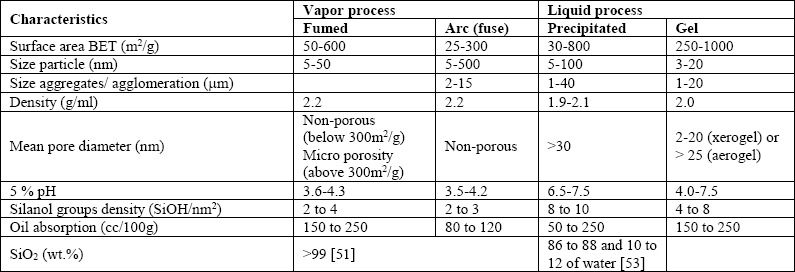

Table 1
Properties of some different types of silicas (adapted from [43], [44])

2.1. Fumed silica

As mentioned before, fumed silica is part of pyrogenic silica produced by thermal process in a vapor phase. Fumed silica is produced by burning SiCl4 with hydrogen and oxygen, as showed in reaction (3):

(3)

The key properties such as particle size and surface area is controlled by the reactants ratio. This process was developed by Degussa and the silica obtained in this process is known as Aerosil® [44]. The first particles are formed when SiCl₄ are burned in a flame and then fuse among them irreversibly given place to secondary particles (aggregates with a three-dimensional chainlike). After that, the silica is collected in cyclones or filters and separated from the residual HCl by treating them with moist hot air [43]. This process leads to the production of nonporous and amorphous high purity silica (~ 99 wt.%). The surface area BET of fumed silicas varied from 50 to 600 m²/g and the average particle size is between 5 and 50 nm, depending on the reaction conditions [44]. Generally, fumed silica with surface area below 300 m²/g is nonporous while silica with a surface area above 300 m²/g exhibits some microporosity [43].

One advantage of fumed silica is that there are different grades depending on the final application. For instance, some of them are designed for highly transparent products, allowing to obtain a versatile product that could be impregnated by any color [50], [51].

There are two types of fumed silica commercially available, hydrophilic, and hydrophobic for elastomers reinforcement [52]. Hydrophilic is used in products that can be wetted with water and is produced during normal flame hydrolysis of silicon tetrachloride, while hydrophobic silica is produced by reacting hydrophilic silica with organosilanes and is applied in products that cannot be wetted. Generally, hydrophobized silica is expected to be better reinforcement than hydrophilic silica [43].

2.2. Precipitated silica

Precipitated silica is produced by wet process: starting from the acidulation of Na₂SiO₃ solution with H2SO4 under alkaline conditions or simply, from a colloidal silica. The process seems to be similar to that of the silica gel production mentioned before, but in this case, the formation of gel is avoided and the precipitation is stimulated [43], [44]. The main difference is that silica gel is produced under acidic conditions, while precipitated silica is carried out in neutral or alkaline medium. The precipitation occurs when the first particles (micelles) are formed and then start to grow in size as more silica is precipitated on the surface micelles [43]. This precipitation process leads to the production of a white powder with almost 87 wt.% of SiO₂ and 10 wt.% of water which is bounded into the molecular structure or physically adsorbed onto the surface [53].

The properties of the precipitated silica can be influenced by the plant equipment design and process parameters. The production process consists of the following steps: precipitation, filtration, drying, grinding, and, in some cases, compacting and granulation [45].

Regardless of the production method, all synthetic silicas are amorphous in nature, colourless, odourless and tasteless. They are considered polymers produced by interlinking of SiO₄ tetrahedron which ends in siloxane and silanol groups [43]. In conclusion, there are many kinds of commercial silicas which confer different reinforcing grades and properties to the final product (reinforced polymer). Table 2 shows the surface area and reinforcing grade reported by some producers of different commercial silica references.

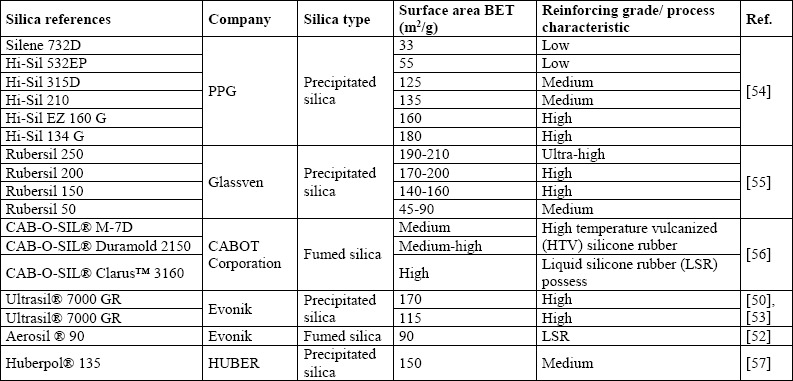

Table 2
Different types of commercial silicas

As mentioned in section 1, there are various methods to obtain silica from RH. Figure 2 summarize some of them. Combustion (thermal treatment) allows to produce amorphous RHA depending on the operational conditions, mainly the temperature achieved inside the reactor. Controlled combustion at reasonable equivalence ratios lead to oxidize the carbon and the hydrogen contained in the RH into CO₂ and H₂O [58]. The reactors commonly used for RH combustion are: fixed bed reactor, moving bed reactor and bubbling fluidized bed reactor (BFBR) [59]. This last technology seems to offer excellent conditions for thermochemical conversion of complex materials with irregular size and shape such as RH. Furthermore, BFBR is commonly used to transform materials with high ash content, low heat value and density [6], [36], [37]. All these characteristics are also typical for RH.

The RHA produced by combustion can be later treated (post-purification) with acid or alkaline substances to remove the inorganics contained (Zn, K, Na, Mg, Fe, Ca, among others) and hence, to obtain higher SiO₂ content. As reviewed by Soltani et al. [28], those post-purification routes to precipitate silica from RHA can be classified into three pathways. The first one starts with RHA solubilization in alkaline medium (pH>10) to form silicate solution (generally Na₂SiO₃) which allows the gel formation. Then, the silica gel is precipitated in acid medium to obtain a silica with SiO₂ higher than 98wt.%. Likewise, silica can be precipitated from the sodium silicate solution by adding CO₂ and calcium. The second route is based on the silica extraction in an acid medium following by the addition of Na₂CO and CO₂. Finally, the third route is the dissolution of RHA in NH4F to form (NH₄)₂SiF₆ which is later added to NH₃ aqueous solution.

In general terms, the RHA produced by combustion is composed mainly of silica around 75-97 wt.% and other minerals such as K₂O, Al₂O₃, CaO, MgO, Na₂O y Fe₂O₃. The RHA composition and structure not only depends on the region where RH is cultivated but also on the combustion temperature and reaction time.

In this sense, Martinez et al. [37] concluded that amorphous RHA is favored at temperature lower than 700°C which is in accordance with Rozaninee et al. [40] who expose that the minimum temperature for the onset of silica crystallization is around 700 °C. Also, Chopra et al. [60] reported that the combustion of RH at temperature lower than 700 °C lead to amorphous silica into the RHA. According to Hamad et al. [61] RHA prepared at a temperature between 500 to 600 °C consists of amorphous silica, while cristobalite structure was detected at 800 °C. Cristobalite and tridymite appeared after burning the RH at 1150 °C. In the same way, Nehdi et al. [38] obtained amorphous silica from RHA (94 wt.% SiO₂) by using a BFBR (Torbed reactor) operated between 750 and 830 °C. Table 3 shows different RHA compositions obtained by RH combustion, while while Table 4 shows some physicalchemical properties highlighting the type of reactor used. Besides chemical composition and structure, RHA surface chemistry is another important property for the application of this material in polymers. In general terms, RHA silica presents two main surface functional groups: silanol (Si-OH) and siloxane (-Si-O-Si-) [62].

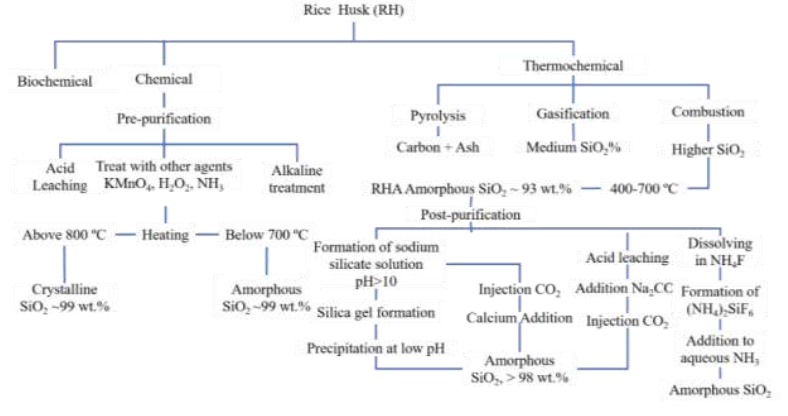

Figure 2
Different routes for producing silica from RH, (adapted from [28])

These groups can be identified in the infrared spectra. The rocking vibration of Si-O appears in a peak around 462 cm^-1 while the asymmetric stretching and the symmetric stretching of Si-O-Si is near to 800 cm^-1 and 1088 cm^-1 respectively [77], [78]. In addition, Bakar et al. [39] reported infrared absorption peaks at 1044 cm^-1, 796 cm^-1 and 438 cm^-1 attributed to SiO₂ stretching and bending vibrations. As observed in Table 1, Table 2 and Table 4, RHA as produced (without any post treatment), presents larger particle sizes and lower surface areas as compared with some commercial silicas. According to surface area parameter, RHA could be classified as low reinforcing filler.

Reinforced polymers with inorganic fillers have generated a huge academic and industrial interest because they modify important mechanical and physical properties such as tensile modulus, tensile strength, hardness and also the processability [79].

Among the common inorganic fillers used in thermoplastics and elastomers is found calcium carbonate, talc, clays (montmorillonite, kaolin), mica, silica and also alumina [80]. However, silica is the most widely used inorganic filler given among others, its low cost and its wide range of possibilities in construction and automobile industries as well as in many consumer goods and even in polymer applications. In this sense, there are many works on the RHA use as low cost filler [81. 82, 83, 84, 85] for elastomers (natural and synthetic rubber) and thermoplastics (polypropylene and high density polyethylene).

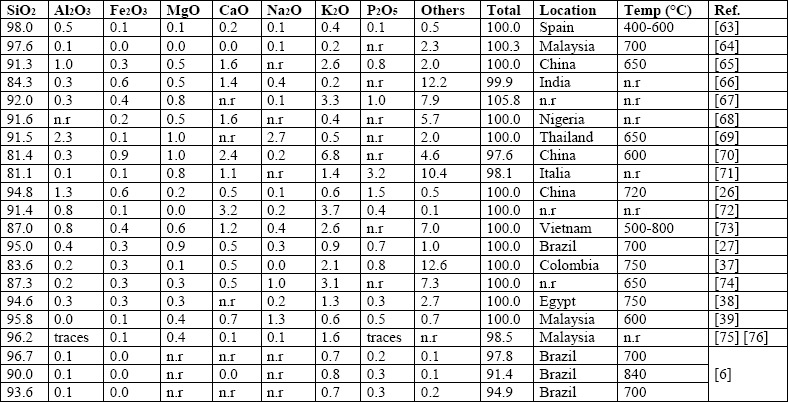

Table 3
RHA Composition obtained by combustion from diferent location reported in literature

n.r. not reported.

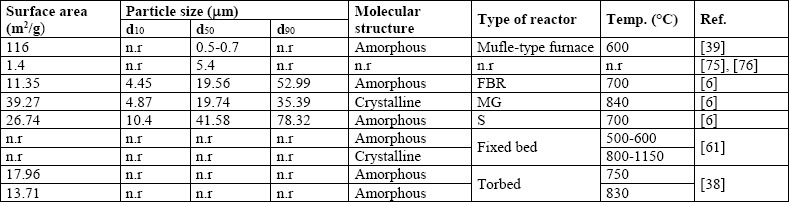

Table 4
Physics properties of RHA obtained by RH combustion in different reactors

n. r. not reported. MG: moving grate. S: suspension/entrained.

Particle size, surface activity and structure are important factors when evaluating a filler for polymer applications. High structure (OAN at or above 200 mL/100g [48]) is desirable for better processing, because homogeneous dispersion is achieved [86]. Additionally, fine primary particle size (10-100nm) is desirable for high reinforcing degree [87]. Moreover, surface activity which indicates the chemical linkages between filler surface and polymer, is important to separate filler agglomerates during mixing process, thus providing better dispersion and avoiding the re-agglomeration. However, excessive polymer-filler bonding appears to be in principle highly undesirable, given the occurrence of a continuous rubber-filler network (prior to vulcanization) that hinders the process.

And if strong bonding takes place during vulcanization, the polymer would be completely immobilized at the filler surface and cause a drastic reduction in mobility [87].

Plastic composites prepared with nanoscale fillers (10100 nm) have yielded greatest increases in mechanical properties compared with micron-sized fillers, mainly due to its larger surface area [88]. Also, it is well known that the addition of surface modifiers or compatibilizers (also known as coupling agents such as Aerosil r816: Aerosil 200 functionalizing with hexadecylsilane, 3APE: 3-aminopropyl triethoxysilane, methacryloxymethyltri-ethoxysilane, PP-g-maleic anhydride, PP-g-acrylic acid (3-acryloxypropyl) methyldimethoxysilane, among others) into polymer composites have the ability to form a stable bond between organic (polymer) and inorganic (filler) materials [89] which hence improve the surface activity.

There are different methods for the incorporation of micro and nanoscale particles into polymer. The most used method is melt blending or melt mixing. The melt blending process involves the dispersion of fillers into a polymer melt using well-known melt processing techniques (e.g. extrusion and compression molding) of polymers. In this method, the polymer is directly mixed with the filler in the molten state and no solvent is required [90].

4.2. RHA /thermoplastic composites

As commented above, extensive studies have been carried out about the use of RHA as reinforcing filler material, mainly in polyolefins such as polyethylene (PE) and polypropylene (PP). Ingeneral, the RHA addition into thermoplastics causes an increase in the tensile modulus and a decrease in the tensile strength and elongation at break as compared with the matrix without filler [84], [85], [93]. That behavior disagrees with the commercial silica performance because all three properties increase compared with no filled composites as shown in Table 5. That phenomenon is attributed to the poor filler-polymer compatibility in RHA composites.

For instance, Fuad et al. [84] introduce white rice husk ash (WRHA) and black rice husk ash (BRHA) as a reinforcing filler into PP matrix. WRHA and BRHA contained approximately 96 wt.% and 54 wt.% of silica, respectively. Both types of fillers exhibited an enhancement of flexural modulus at expenses of tensile strength when the filler amount increase. Even though, the flexural modulus of BRHA-PP was higher than WRHA-PP composites.

Ayswarya et al. [93] also studied the RHA effect on the mechanical properties of high density polyethylene (HDPE) as well as the influence of the HDPE compatibilization with maleic anhydride (HDPE-MA). In that research, the increase of different RHA (obtained in a furnace at 550°C) from 1.0 wt.% to 2.5 wt.% into uncompatibilized HDPE, showed a decrease steadily in tensile strength and elongation at break. The same phenomenon was observed in RHA/PP composites [84], [85]. The decrease of these two properties is attributed to the polymer-filler incompatibility [84], [85], [93]. However, the use of HDPE-MA improves the polymerfiller compatibility. The maleic anhydride is bonded to the HDPE and become a bridge between filler silanol group and polymer which leads to enhance the fillerpolymer compatibility [93]. The HDPE-MA filled with RHA in Ayswarya et al. [93] research work showed an increase in tensile strength and elongation at break with the increase of RHA up to 1.5 wt.%. Both HDPE-RHA and HDPE-MA-RHA blends showed an increase in the tensile modulus with the RHA loading increase as is shown in Table 5. That increase in tensile modulus is in accordance with some research works [84], [85]. In this regard, Ismail et al. [85] observed that the increase of RHA (mean particle size 5.4 µm; surface area 1.4 m²/g and density 2.2 g/m³) filled in natural rubber-linear low density polyethylene (NR-LDPE) blends showed an increase in tensile modulus of composites which means higher stiffness. Similarly, Fuad et al. [84] noticed an increase in flexural modulus in PP-RHA blend when the filler increase from 0 to 40 wt.%.

Melt flow measurement is another important property for polymer-RHA composites. As some researchers have showed, melt flow index (MFI) decreases with the increase of filler content [92], [93], because the polymer mobility restriction caused by the filler addition into polymer, which is the same phenomenon with the tensile modulus [94]. Low MFI indicates a higher melt viscosity and higher stiffness which means a high reinforcing grade.

On the other hand, Siriwardena et al. [95] evaluated the effect of incorporate RHA into ethylene-propylenediene-terpolymer/polypropylene (EPD/PP) blends on physical properties of the final polymer. They noticed that RHA incorporation increased composite density which has an influence on water absorption behavior. That effect makes more difficult the water molecules penetration into the composite. They also compared the EPD/PP-RHA composites with the EPD/PP filled with commercial silica (with higher surface area and more OH groups than RHA) and observed higher water absorption in the commercial silica composites which is not generally desired for industrial applications.

Regarding molecular structure type effect (amorphous or crystalline) on the reinforced compound, in general terms amorphous RHA presents better reinforcing capacity than crystalline because the high reactivity [84], [96]. Fuad et al. [84] compared the effect of amorphous and crystalline RHA addition into PP on mechanical properties. The composites showed lower flexural modulus and slightly lower tensile strength when 40 %wt. of crystalline WRHA was used instead of BRHA (amorphous) at same load which is attributed to the higher reactivity of the amorphous fillers.

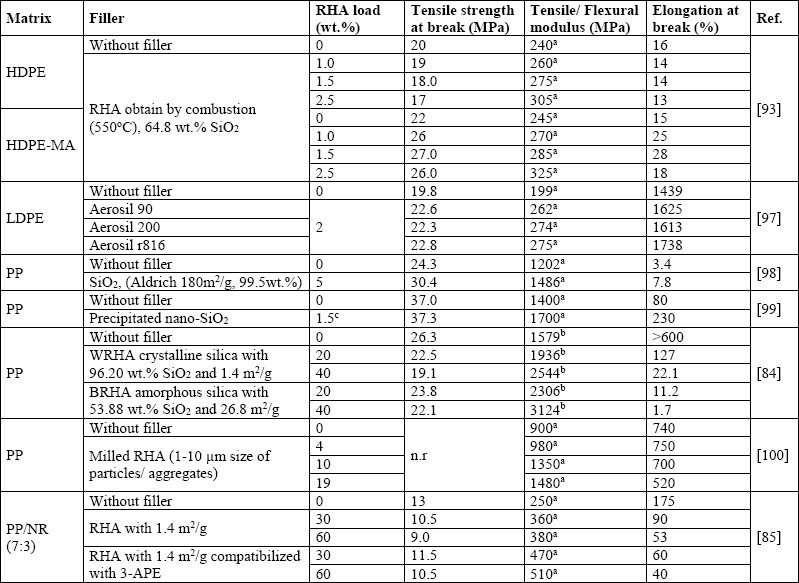

Table 5
Mechanical properties for common thermoplastics with RHA and silica as fillers

a: tensile modulus; b: flexural modulus; c: in vol.%; n.r. not reported; PP: polypropylene; HDPE: high density polyethylene; HDPEMA: compatibilized with maleic anhydride; LDPE: low density polyethylene; Aerosil r816: Aerosil 200 functionalizing with hexadecylsilane; 3-APE: 3-aminopropyl triethoxysilane.

4.3. RHA /elastomers composites

The effect of a filler on the rubber properties can be mainly related to: i) how many polymer chains are attached to the filler surface and ii) how strongly they are attached. The characteristics of a filler such as particle size, surface area, molecular structure and surface activity have an important role in the polymer-filler interaction. As shown in section 3, RHA presents relatively larger particle/aggregate size and lower specific surface area than commercial silica, but even so, similar molecular structure and chemical composition. Therefore, RHA seems to be attractive for polymer industry applications.

Many researchers have been studying the use of RHA as filler in natural and/or synthetic rubber [81, 82, 83], [101], [102]. Overall results indicate that RHA can be used as a cheap filler for natural rubber materials where high quality mechanical properties are not required.

The common trend in the mechanical properties is the increase in tensile strength, tensile modulus at 300%, tensile strain and hardness, when the RHA amount increase up to 30 phr, as is shown in Table 6. For instance, Costa et al. [101] reported that the tensile strength of milled RHA/NR vulcanized composites increase with the increasing filler content until a maximum level reached at 20 phr. The reduction of this property at higher loads may be caused by filler particles agglomeration that leads to poor polymer-filler compatibility.

In general terms, commercial silica provide better mechanical properties than the RHA, mostly due to their high surface area (small particle size) and surface activity [103]. However, chemical treatments applied to RHA enhance the performance of RHA-rubber composites.

For instance, Da Costa et al. [101], showed a treatment with 20 wt.% NaOH and 12 M HCl in order to improve the mechanical properties of NR filled with RHA. As a result, the composites filled at 20 phr with treated RHA showed a higher tensile strength as compared with the NR filled at 20 phr with commercial silica (Zeol-175), and even higher than the Zeol-175/NR composite compatibilized with Si-69 [101].

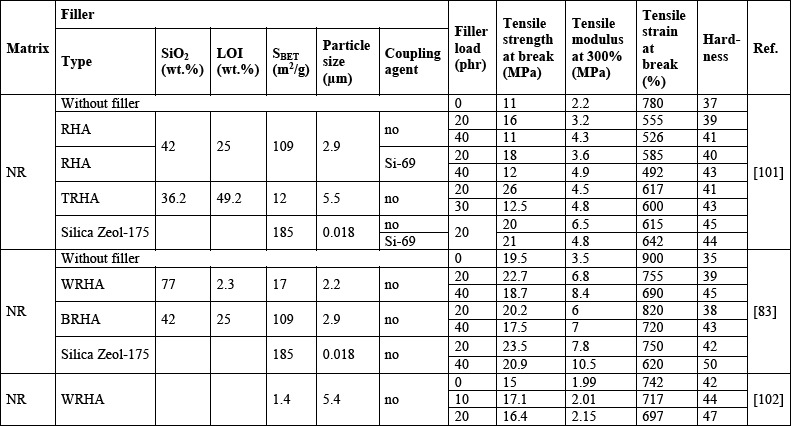

Table 6
Mechanical properties for common elastomers with RHA and silica as fillers

n.r. not reported; Si-69: bis(3-triethoxysilylpropyl)-tetrasulfane; LOI: loss on ignition, TRHA: RHA treated with 20 wt.% NaOH and 12 M HCl.

In the same way, Ismail et al. [79] also found an increase of the tensile strenght as WRHA increased, until a maximun of 10 phr. This behavior is in accordance with Costa et al. [101] which is attributed to the possible particles agglomeration, as commented above.

In other work, Costa et al. [82] evaluated the vulcanization process of NR filled with BRHA (75 wt.% SiO₂, 21 wt.% LOI, 17 m²/g) and WRHA (97 wt.% SiO₂, 0.2 wt.% LOI, 109 m²/g). They reported that the vulcanization process was accelerated in the presence of WRHA, whereas the BRHA filler did not present a significant effect. The WRHA/NR compounds showed a remarkable increase in vulcanization rate constant as compared to the NR filled with BRHA or commercial silica (Zeosil-175). The higher vulcanization rate is found for BRHA/NR as compared with that reported for Zeosil-175/NR at the same loads (above 20 phr). This fact was attributed to differences in filler properties, such as surface area, surface activity, pH, particle size, moisture content, and metal content. Furthermore, the ZnO added to the composites may led to accelerate the vulcanization process [81], [82].

In the case of partial replacement of commercial silica by RHA, Costa et al [79] found that when Zeolsil-175 is partially replacement by WRHA, the composites showed a catalitic effect given the aceleration of the vulcanization. As mentioned before, this fact is attributed to filler properties. Authors attributed the WRHA catalitic efect mainly to the presense of metal impurities such as K, Na, Ca, Mg, Fe, P and Al, which exist in the form of oxides or silicates.

In addition, the surface chemistry, represented by the silanol groups, also shows an effect on the vulcanization process. Hydroxyl groups on silica surface could form very strong intermolecular hydrogen bonds with another hydroxyl of an adjacent silica particle. This hydrogen bonds causes the easily formation of tightly held aggregates which cause a poor dispersion of silica particles in a rubber matrix [81], [101], [102]. The hydrogen bonds also contributes to increase viscosity of WRHA/NR composite faster than most fillers specially those with high surface are. The vulcanization additives could be absorbed on silica surface cousing longer scorch time and reduces the state of cure [81].

Other kind of elastomers or elastomer blends have been investigated with RHA as filler, such as styrene butadiene rubber (SBR) [86], epoxidized rubber [75], NR/ ethylenepropylene-diene monomer (EPDM) blends [103], [104], polysiloxane elastomers [105], among others.

Most of researchers coincide that the RHA addition into a thermoplastic matrix increases elastic modulus and decreases steadily tensile strength and elongation at break. This phenomenon is attributed to the poor polymer-filler interaction.

That loosely interaction can be enhanced with the use of intermediate compounds that leads to link the filler to the polymer chain (coupling agents). Commonly used compounds are silanes and maleic anhydride.

In addition, the amorphous molecular structure filler is desired for better reinforcing applications due to the high reactivity compared with crystalline structure. This high reactivity leads to enhance the filler-polymer interaction as well.

The surface chemistry (represented by the silanol groups) influences the composite performance from the processing point of view. That fact is attributed to the hydrogen bond formation between hydroxyl groups of adjacent particles, causing a poor dispersion. In addition, hydroxyl groups become hydrophilic the reinforced composites.
