1. Introduction

Reliability in mechanical engineering structures after fabrication depends on how well these are controlled in a lifetime period ^{[1], [2]}. For that, non-destructive testing (NDT) is a useful tool. Ultrasonic guided waves (UGW) for inspection in mechanical structures have been widely investigated and developed ^[3]. This is because this method allows for evaluating large and complex form structures with only one measurement, unlike the conventional ultrasonic method using a transmitter-receiver system for local measurement.

A variation for UGW generation consists of using the power density of an incident laser beam ^[4]. For low power densities, ultrasonic waves are caused by the rapid thermal expansion of the material being irradiated. For this purpose, an optoacoustic transductor must transform in an easy and efficient way laser energy into acoustic (elastic) waves. This method to generate mechanical energy has been the focus of research in ^[5]-^[9], where many different configurations of composite materials such as gold nanoparticles, carbon nanofiber and carbon nanotubes have been studied experimentally to obtain high-performance laser ultrasound transducers. In the same way, Ref. ^{[10], [11]} have focused on viscoelastic particulate composites.

According to ^[10], carbon nanoparticles produced by candle soot (CSPs) is an efficient light absorbing material and viscoelastic Polydimethylsiloxane (PDMS) has a high thermal coefficient of volume expansion. Therefore, CSPs - PDMS composite is found to be a high-performance optoacoustic transducer since it could generate a high frequency, broadband and high amplitude ultrasound wave.

Inspired by the aforementioned results, the authors are interested in carrying out an analysis of elastic wave propagation in heterogeneous media. A first theoretical thermo-acoustic validation is proposed in ^[10], where the generated pressure gradient is directly associated with the temperature gradient generated by the laser impact. Under meaningful assumptions, the pressure gradient may be related solely to the setting parameters of the laser source.

Another analysis consists of considering the propagation process being in steady state. Then, it is possible to consider elastic behavior and temperature gradient separately, as proposed in ^[12]. In this case, the displacement field of the propagating wave is supposedly coincident with the displacement field of solid media. Therefore, the solution searched is the eigenvalues and eigenvectors velocities of the propagating wave in the solid media.

Solving the wave propagation problem is standard for homogeneous media ^[12]. The micromechanical approach is a traditional way to estimate the effective behavior of heterogeneous materials, especially for static problems ^[13]. Within the framework of dynamic problems, the acceleration term in the Navier equation has to be retained to evaluate the dynamic response of the composite through a micromechanical self-consistent approach ^[14].

The dynamic response in a solid homogeneous media for the wave propagation problem must be evaluated by the wave number 𝑘_𝛾, where 𝛾=𝛼 for longitudinal waves and 𝛾 = 𝛽 for shear waves. This wavenumber belongs to the complex domain:

where, 𝑉(𝜔) and 𝛼(𝜔) are the phase propagation velocity and the propagation attenuation coefficient, respectively. Dissipative properties of viscoelastic composites directly affect the attenuation coefficient as demonstrated experimentally in ^{[15], [16]}.

This work presents in Section 2 a general micromechanical self-consistent formulation based on ^[14] for analyzing the elastic wave propagation in a heterogeneous solid media. Multiple scattering caused by the random distribution and interaction between particles complicates considerably the wave propagation analysis. Therefore, we considered a single scattering problem described in Section 2. Afterward, the addition of viscoelastic properties to the micromechanical formulation is presented. In Section 3, the results obtained are shown and discussed. Finally, in Section 4, some conclusions and limitations of the study are presented.

2. Methodology

2.1. Dynamic self-consistent formulation

Micromechanical methods are widespread to estimate composite behavior within the static framework. For the dynamic case where acceleration terms are considered, the perturbation in the infinite media is supposed to be the mean propagating wave. Moreover, volume inclusion concentration in composites is available information in practice and not the distribution and interaction between particles. Accordingly, a first approach consists of considering the single inclusion problem embedded in the matrix possessing effective media properties.

A composite is considered comprising a matrix with elastic moduli tensor L_n+1 and density p_n+1, in which there are embedded n different types of inclusions; an inclusion of family phase r has an elastic modulus tensor L_r and density p_r . Volume concentration in the composite is such that:

Solving the dynamic problem consist of determining a mean response to the displacement field on the solid < u >. For this purpose, the starting point is the Navier equation, that in the absence of body force reads:

where σ is the stress field, and p is the momentum density. Stress and momentum density are related to elasticity Hooke's law and displacement wave field, respectively:

At the same time, deformation e is related to displacement field through Cauchy's law in elasticity for small displacement assumption.

Analysis of the composite behavior by a classical micromechanical approach comprising n phases supposes that an effective response of the composite behavior is the result of the micromechanical behavior of each constituent; thus:

Correspondingly, other quantities describing composite behavior are averaged so that we obtain:

Effective deformation field:

Effective displacement field:

Effective stress field:

Effective momentum density field:

By using perturbation theory shown in ^[17] for the static problem, the elastic and momentum density field in (5) can be separated by splitting into a homogenous part (comparison media) and a fluctuating part (perturbation). Consequently, (8) and (9) are written as follows:

The final solution is then obtained for e_r and 𝑢̇_r expressed as a function of the mean fields < e > and < 𝑢̇ >. For this aim, the problem is simplified by introducing the single scattering problem for spherical inclusions, as presented below.

2.2. Single scattering problem

This problem considers a single inclusion of volume Ω_r embedded in an elastic or viscoelastic effective matrix. The displacement field of the composite is coincident with the displacement field of the wave that is represented through the wave propagation equation in solids:

where m is the wave amplitude, k is the wave number, and 𝜔 is the frequency. Consequently, the dynamic response of an effective media of subscript '0', Equation (13), must be equivalent to Equations (10) and (11):

The mathematical treatment that follows requires of perturbation theory, micromechanical Green's function, 'polarization' theory and operation of convolution. This development is well presented in previous works ^{[14], [18]}. Final equations represent the dynamic response of effective properties (L₀, p₀) to the elastic wave propagation:

where h_r(k),h_r(-k) and are localization functions and dynamic tensors, respectively. They are dependent on the shape and size of the inclusion, the wave frequency as well as effective properties. As shown in (14) and (15), the equation system is implicit, and it must be solved by iteration.

In addition, the static response of a composite can be estimated from (14) and (15), considering the zero-frequency limit of equations, 𝜔 ≈ 0, k = 0, h_r(k) = 1 and Thus, equations are reduced to the classical micromechanical approach for the static problem:

where A_r are localization tensors in the classical micromechanical theory.

2.3. Spherical inclusions case

As proposed in Section 2.2, Equations (14) and (15) are dependent on the shape of the inclusion. In this section, the system of equations that describes the dynamic effective response to the elastic wave propagating in a spherical particle composite is presented.

Since a heterogeneous media has become homogenised by a self-consistent approach, the effective media can be described with the aid of elastic moduli. Thus, the behavior of the phase r is represented by two elastic constants ^[12], L_r= (3K_r,2μ_r).

The dynamic response for a phase of random spherical inclusions, each of radius a, is as follows:

Subscripts ‘1’ and ‘2’ represent the inclusion and matrix response. The Equations (18-20) are function of volume inclusion concentration 𝑐₁, the functions ℎ₁(𝑘) and 𝜀_𝛾, which are presented for the spherical case below:

Subscript denotes two possible polarizations for the wave propagation problem in homogeneous solid media, 𝛾 = 𝛼 and 𝛾 = 𝛽 for the longitudinal and transversal wave propagation, respectively. Polarization for the wave propagation problem is displayed in detail in ^[12] with the aid of the wave number in (1); therefore:

Longitudinal wave

Transverse wave

Finally, (18-24) is a system of implicit equations, which is solved by iteration. The first iteration is done by assigning to the effective properties the matrix properties (L₀= L₂, p₀= p₂). Because this study is interested in seeking the dynamic response of the composite adding viscoelastic properties, the next section presents the dynamic viscoelastic response (L₂, p₂) that will be integrated to the formulation in (18-20).

2.4. Viscoelastic properties

Viscoelastic homogeneous behavior is represented in the complex domain, acknowledging the elastic-viscoelastic duality of material. Several rheological models have been proposed in the literature ^[19]. The chosen model to apply in the present study, due to its simplicity, is the Maxwell rheological model. In this model, mechanical behavior of the material is represented with the aid of a spring for elasticity behavior and a damper for viscosity behavior, both connected in series.

For homogeneous viscoelastic materials, the dynamic behavior is described by two mechanical constants just as the homogeneous elastic material. This time, these properties are described in the complex domain. For this purpose, the fundamental equation stress-deformation for Maxwell materials,

is introduced in (3). Since the solicitation remains in a propagating wave as (12), the equations obtained ^[12] for the dynamic response in viscoelastic materials are:

where, c_T and c_L denote the phase velocity, and α_T and α_T are the attenuation coefficients of the longitudinal and transverse waves, respectively.

2.4.1. Dynamic characterization of viscoelastic matrix

To calculate (26) and (27) to be introduced in the formulation model (18-20), viscoelastic properties of the matrix must be experimentally characterized through the dynamic values (𝑐_𝑇, 𝑐_𝐿, 𝛼_𝑇 and 𝛼_𝐿) and be introduced as frequency dependent parameters defined by (26) and (27) in the propagation wave model (18-20).

Several previous experimental studies for the measurement of longitudinal wave propagation in viscoelastic materials have been carried out. It has been found that for a large frequency interval, phase velocity is invariant. Furthermore, the attenuation coefficient increases linearly with frequency (𝛼 = 𝑚𝜔 + ??₀)^[15]. This behavior is presented in Table 1 and Figure 1. As EPOXY is often used as a matrix in the literature, we have also analyzed the wave propagation problem with this material in Section 3. EPOXY and PMMA experimental characterization are taken from ^[16]. In addition, an experimental characterization for the PDMS has been studied in ^[20].

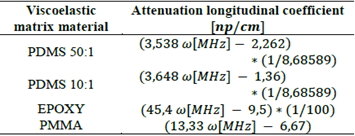

Table 1

Dynamic characterization of viscoelastic matrix.

3. Results

As mentioned before, the dynamic response to the wave propagation in a solid can be estimated with the wavenumber in (1). The phase velocity as well as attenuation coefficient are evaluated using (23, 24).

Three special studies have been carried out in this work. First, it was the validation of micromechanical self-consistent, adding the viscoelastic properties to the formulation (18-20) developed in Section 2 and presented in ^[14], where the formulation is solved for an elastic particulate composite. Second, once the model is validated, it is subjected to the change of different parameters such as the volume concentration of inclusions and their size. Finally, these results are compared with experimental results, with ^[21] for phase velocity and ^[16] for the attenuation coefficient. The labels corresponding to the various configurations illustrated in the following figures are presented in Table 2.

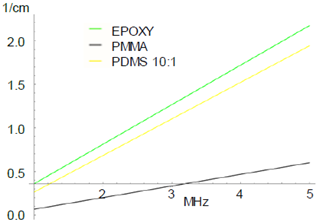

Figure 1
Dynamic characterization of viscoelastic matrix: EPOXY, PMMA, AND PDMS.

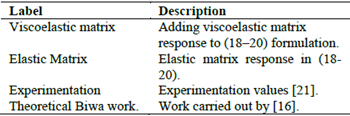

Table 2

Descriptions used in the figures.

The next figures have been normalized for phase velocity, attenuation coefficient and frequency. The phase velocity measurement is taken as 𝜔/Re{𝑘_𝛾}, where 𝛾 = 𝛼 and 𝛾 = 𝛽 for longitudinal and transversal wave propagation, respectively and where 𝑘_𝛾 is defined by (23, 24). Phase velocities are normalised to the phase velocity of a longitudinal wave propagation in the matrix material (C2L). The measure of attenuation is lm{a 𝑘_𝛾}. Normalised frequency is k₂a, where k₂= Re{k_α] and is evaluated for K₀= K₂,μ₀= μ₂,p₀= p₂.

3.1. Phase velocity

At first, the study focused on a composite with a large contrast in density between its constituents, e.g. an Epoxy-lead composite. It has been demonstrated that this large difference directly affects the dynamic response, mainly the effective density, which becomes the complex domain ^[22].

3.1.1. Validation of the self-consistent model adding the dynamic viscoelastic response

Lead-epoxy composite is first considered, with the size of inclusions set at 660 [μm].Figures 2 and 3 show the study carried out for an epoxy matrix containing 5% and 15% of volume concentration spherical lead inclusions. The results are obtained for elastic and viscoelastic matrices. However, it was noticed that accounting for dynamic viscoelastic response leads to a global increase of the phase velocity. The experimental study carried out by Kinra ^[21] (yellow point in Figures 2 and 3) shows some peaks due to the resonance phenomenon that are also clearly represented by the micromechanical approach. For this particular composite, resonance phenomenon is close to k_αa = 0.5.

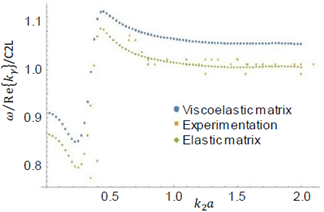

Figure 2
Phase velocity for longitudinal propagation, Epoxy - 5% Lead Composite.

Figure 3
Phase velocity for longitudinal propagation, Epoxy - 15% Lead Composite

Notice that the micromechanical approach gives good approximations to experimentation, especially for upper-frequency values.

Finally, the micromechanical self-consistent approach does not take into account the information on spatial correlations between inclusions ^[14]. Thus, this fact is a source of error and can be seen in the large difference in the resonance zone. In the literature, the self-consistent micromechanical approach gives a good approximation to low volume concentration of inclusions, typically 30% as in static problem.

3.1.2. Variation of volume concentration inclusion

The experimental study in [21] for Epoxy - Lead particulate composite for longitudinal phase velocity shows a displacement of resonance phenomenon when the volume concentration of inclusions increases (Figure 4).

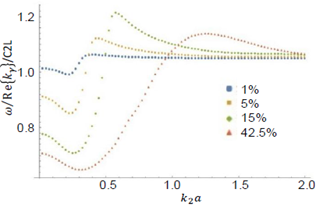

Figure 4
Longitudinal phase velocity for Epoxy - Lead composite. Variation of volume concentration.

3.2. Attenuation coefficient

In Section 2.3, it was shown the first characterization of attenuation coefficient in the viscoelastic matrix (26) and (27) that was necessary for the evaluation of dynamic effective properties in (18-20). In this section, the imaginary parts of (23, 24) are analyzed.

3.2.1. Validation of self-consistent micromechanical model with viscoelastic matrix

Accounting for the viscoelastic behavior of the matrix leads to change in the attenuation coefficient, in particular, at the high-frequency regime. Attenuation coefficient becomes zero at high frequency for the elastic matrix. This attenuation coefficient has a defined value different from zero when viscoelasticity in the matrix is considered. Dynamic response of the effective media at high frequency corresponds to viscoelastic dynamic linear behavior, as introduced in 2.4.1. The validation has been carried out for an Epoxy - Lead particulate composite, with the size of particles supposed at a = 660 [μm]. Volume concentrations of 5 and 15% have been analyzed in Figure 5.

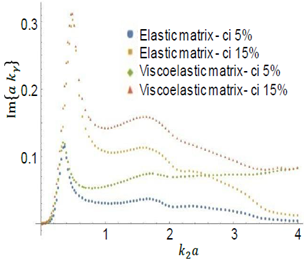

Figure 5
Longitudinal attenuation coefficient. Epoxy 5% and 15% Lead.

The theoretical model developed in ^[16] evaluates attenuation coefficient by absorption due to viscoelastic behavior and by scattering due to inclusions, separately. One of the particulate composites used for that study has been the Epoxy - Glass. In order to validate this approach with the present work, Epoxy and Glass properties are taken from Table 3, and the results are demonstrated in Figure 6.

Figure 6
Longitudinal attenuation coefficient. Epoxy and 15% Glass.

Comparing Figures 5 and 6, it can be observed that the tendency of the curves is different for the same frequency range. Therefore, it is demonstrated that dynamic composite response depends on the inclusion nature.

3.2.2. Variation of volume concentration of inclusions

Figure 7 shows epoxy - lead composite with different values of volume concentration. At low volume concentration of inclusions, the attenuation coefficient seems to be linear due to viscoelastic behavior. That means dissipation in wave propagation energy due to the absorption in the matrix. On the other hand, when the volume concentration increases, attenuation is due to the scattering in single inclusion.

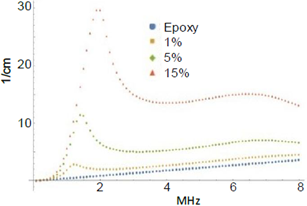

Figure 7
Longitudinal attenuation coefficient for Epoxy - Lead. Variation of volume concentration of inclusions.

3.2.3. Variation of the size of inclusions

As mentioned before, two factors cause attenuation of a wave propagating in a viscoelastic matrix composite. First, it is absorption due to the viscoelastic behavior in the matrix, and second, it is scattering due to the inclusions. In this section, the micromechanical dynamic self-consistent approach is compared to the theoretical model proposed by Biwa ^[16], who has studied the influence of size variation of inclusions on the attenuation coefficient.

Figure 8 depicts the results obtained by Biwa for Epoxy - Glass composite; volume concentration of inclusions is 20%. It is worth to note that the attenuation coefficient in particulate composites is always higher than attenuation in pure viscoelastic material, contrary to the unidirectional fibre composites case ^[16]. Figure 9 shows the results for the micromechanical self-consistent approach.

Figure 8
Longitudinal attenuation coefficient, theoretical approach Biwa [16]. Variation of the size of inclusions.

Figure 9
Longitudinal attenuation coefficient in micromechanical self-consistent approach. Variation of the size of inclusions.

The tendency in Figures 8, 9 is similar when the size of the inclusions increases.

The increase of the attenuation value is greater for a larger size of inclusions and at low frequencies (Figure 8). However, for the dynamic - self-consistent approach (Figure 9), this behavior is rather observed at higher frequencies.

3.2.4. Experimental validation

The self-consistent model is compared to experimental results carried out by Kinra ^[21]. Attenuation coefficient for Epoxy - Glass composite has been analyzed. The size of particles is 150 [μm], and the volume concentration of inclusions is supposed to be 8,6%.

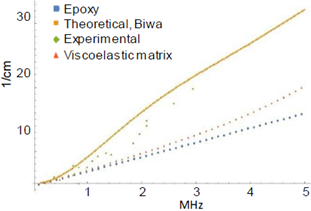

Figure 10
Experimental validation of attenuation coefficient. Epoxy - 8,6% Glass composite.

Both theoretical approaches presented in Figure 10 show a good approximation with experimentation work for a low volume concentration in inclusions (8,6%) and at low frequency. When these values increase, both approaches give an incorrect approximation; in the case of dynamic self-consistent, this is due to the no experimental information relating to the correlation between particles. Thus, the single scattering problem does not give a good approximation at high volume concentration values.

4. Conclusions

In this work, elastic wave propagation in a heterogeneous viscoelastic particulate media has been studied.

This approach is based on a dynamic micromechanical self-consistent approach. The dynamic term has been included in the Navier equation; it represents the displacement field of the wave which is coincident with the displacement field of effective media. In the literature, this approach gives good approximations at low concentration volume of inclusion, 30% maximum.

The dynamic micromechanical self-consistent approach does not take into account correlations between inclusions. Therefore, this is a source of error compared with experimental works. The dynamic composite response also depends on the inclusion nature.

The integration of dynamic viscoelastic response of matrix gives an increase in both phase velocity and attenuation coefficient values in comparison with the elastic model.
