1. Introduction

In the last years, photovoltaic (PV) solar energy has taken a relevant place in electric power generation, due to its compatibility with other methods of generation, modularity, zero emissions, and an inexhaustible energy source. Those advantages and the policies implemented by several countries around the world have helped PV systems reach an accumulated installed capacity of approximately 609 GW by the end of 2019 and, according to the International Energy Agency (lEA) forecast, the total installed PV capacity is expected to exceed 1 TW by 2023 [1].

Beyond the social and environmental benefits, the installation of a photovoltaic system is expected to provide financial return, whereby the operation of PV systems should be carried out as efficiently as possible. Nonetheless, the electrical performance of the PV panel, the main element of a PV system, can be affected by several failure mechanisms during operation, such as delamination, Light-Induced Degradation, and cracked PV cells, among others, which not only cause power losses but also degrade the PV panel characteristics and create safety issues [2]. Therefore, it is a critical issue to minimize or remove the conditions and factors that can make the PV panels malfunction.

During the last decade [3], Potential-Induced Degradation (PID) has gained great interest in the PV industry as it could affect the PV system performance in the medium and long-term, with power losses up to 40 % [4]. PID is an undesirable phenomenon associated with large grid-tied PV systems (a few hundreds of volts), where it is configured a high voltage between cells of a PV panel and the grounded metallic frame when the panel is part of a series string [5]. The high voltage forces

the sodium ions to diffuse from the glass through the encapsulant of the PV panel, and to accumulate on the surface of the cell, causing polarization of the surface (shunting). This leads to an increase in leakage current from the cell surface through encapsulation and the glass, which is discharged to the ground, and adversely changes the cell efficiency. PID is more frequently associated with the negative potential relative to the ground, due to the predominance of P-type crystalline silicon panels in current installations. However, the positive potential concerning ground and its relation to the PID process is discussed in [6], [7], [8].

The problem of PID has been tried to solve from the manufacturing perspective, but also at the PV installation level. PV panel manufacturers are taking necessary corrections in manufacturing processes and materials to reduce the susceptibility of PV panels to suffer from PID [9], [10]. Nowadays, IEC TS 62804-1 standard defines “test methods for testing and evaluating the durability of crystalline silicon photovoltaic modules to the effects of short-term high-voltage stress including PID”. Furthermore, PID does not occur in every PV panel of the PV installation, as only appears eased by a combination of humidity and temperature conditions under operation, and it is a reversible phenomenon when the negative voltage stress has ended. Then, whether it is detected on time, the causes could be corrected and the PV panels with surface polarization in the cells (normally associated with c-Si PV panels) can be regenerated by employing some methods in the lab [3], [8], [11], or even in the field [12], [13], [14], [15]. Therefore, it is essential to know whether or not a PV system is affected by PID.

This paper presents a comparison of the methods to detect PID in PV panels. The following sections present and analyze methods reported in literature intended to detect PID, by highlighting their advantages and disadvantages. In the end, a simulation analysis is performed intended to determine a suitable electrical indicator associated with the detection of PID.

2. Methods for detection of PID

Several works reported in the literature are focused on the detection of PID in PV panels, and two types of methods can be distinguished: visual analysis methods [16], [17], [18], [19], and methods that involve electrical indicators analysis [20], [21], [22]. The visual analysis methods comprise Electroluminescence (EL) imaging [16], Infrared (IR) imaging [17], [18], [19], and the I-V curve tracing. As part of Operation and Maintenance activities and even as a third-party service, EL imaging, IR imaging, and I-V curve tracing are inspection methods performed on-site to confirm whether a PV panel is affected by PID or not [23].

2.1. Visual analysis methods

2.1.1. EL imaging

A PV panel free of PID has an EL image where all cells have almost the same brightness, while a panel affected by PID presents a pattern of darker cells at the edges of the panels, due to the shorter distance between these cells and the frame: that is, shunted cells due to PID [16]. At the string level, the panels closer to the positive pole have almost the same brightness, while the panels closer to the negative pole have dark cells: those affected by PID [2]. To acquire EL images, the panel must be biased with a current source (typically set at Isc/10), and without sunlight because the amount of infrared radiation emitted by the solar panel is low compared to the radiation emitted by the background lighting.

In most implementations reported in the literature, EL imaging is a qualitative technique of PV failure detection. However, in the work of [24], the authors present an approach called “EL power prediction of panels” (ELMO) for the quantitative prediction of the electrical properties (i.e., the I-V curve) of all cells in a PV panel, just from EL measurements. The EL images are converted into either a series resistance or a parallel resistance map. With these maps, together with data from the datasheet of the undamaged panel, the complete I-V curve of the damaged panels is predicted. The authors analyzed the electrical properties of a commercially available panel, which suffered from PID, and its electrical performance was predicted with an accuracy of better than 1% at the maximum power point.

2.1.2. Infrared imaging

An IR inspection of the panels, while they are in operation with an IR camera, can be a useful method to estimate if a panel is affected by PID or not [25]. In operation, incident uniform sun irradiance makes PV panel get heat, which is evidenced in an almost homogeneous IR image, where PV cells’ temperature can differ only a few degrees. But a panel with PID has a characteristic IR pattern, since the PID-affected cells have higher temperatures than the neighbor non-PID-affected cells, while a panel free of PID has all their cells almost at the same temperature [17], [25], [19].

The cells that are close to the framework of the PV panel, and are hotter than the others, are potentially affected by PID. In a string, PID affected PV panel is located more frequently at the negative string end. It is possible to make a quantitative analysis of PID-affected PV panels, as IR data can be correlated to PV power through the linear decrease of the PV panel power with an increasing number of suspicious cells (hot cells). The linear function presented in [18] is an acceptable approximation of the PV panel power, with a deviation of less than 7 %.

2.1.3. I-V curve shape

The I-V curve distortions are reliable proof that a PV panel has degradation. Assuming that curve is traced in a period in which the temperature and irradiance conditions do not change, the I-V curve can differ substantially from a non-degraded reference (at the same operating conditions), due to one or more different degradation factors. PID causes the horizontal part of the I-V curve (where the IPV is close to the ISC) to fall, as shown in Figure 1. In the advanced stages of the degradation, a decrease in open-circuit voltage can also be observed. However, not always it is easy to detect a difference in shape, as the curves must be free of steps from mismatch effects, then comparing curves in STC could be the best option. Nevertheless, in [21] authors report that the efficiency of panels at low irradiances is more affected by PID than in STC, whereby an alternative is to capture the I-V curve at low irradiances; in the field, this could be done when the sun is rising or at the sunset.

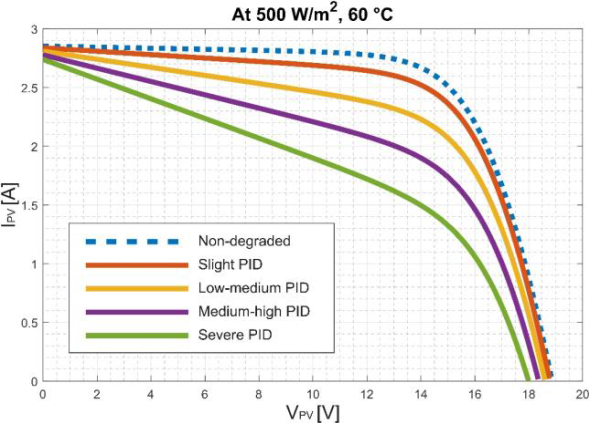

Figure 1
Light I-V curve of a PID-free PV panel (dash-dot blue line) and I-V curves of a PID-affected PV panel at different degradation levels.

The pattern in the EL images of panels affected by PID is very clear even for early degradation stages [26], allowing an accurate detection, but it does not report how this degradation is affecting the panel efficiency.

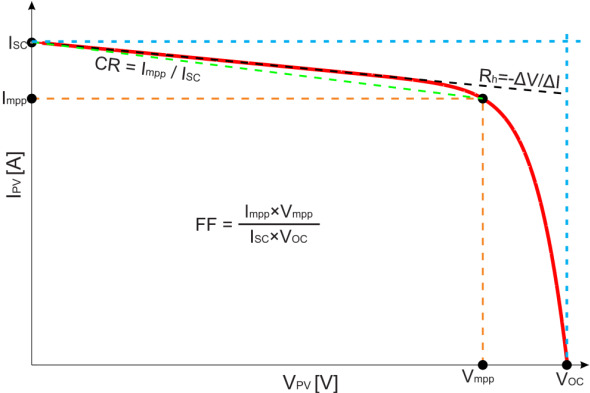

Figure 2
Graphical representations in the I-V curve associated with PID in PV panels: current ratio (CR), fill factor (FF), parallel resistance (Rh), and the points used to calculate them.

Regarding I-V curve tracing, early detection of PID at string level is not easy, because string I-V curve could not exhibit significant changes as usually few PV panels that are at the end of the string are most affected by PID. Considering difficulties to get a string I-V curve because of a large number of PV panels, an option could be to get individual I-V curves and compare them with reference I-V curves of healthy PV panels [17].

The main disadvantage of the visual analysis methods is the use of specialized equipment, like CCD and IR cameras and I-V curve tracers, which can represent an extra high cost for the diagnostic. Likewise, the dark conditions for EL imaging or the electrical disconnection of the PV panel for I-V curve tracing represent an extra complexity to the application of this type of method.

The most advantageous of the visual analysis methods are IR imaging, a non-destructive and contactless method since images can be acquired easily by adapting a suitable high-resolution camera to the aerial vehicle while the panels are in operation [27], [28]. However, IR-imaging analysis is not always conclusive, since hot spots caused by PID could be not easily noticeable in an early stage of the degradation, and as well hot spots could be caused by other factors like shadowing, and cracks in PV cells, or short-circuited bypass diodes [2]. Moreover, in large-scale PV systems, image capturing should be performed during normal operation in the field with stable environmental conditions. That is on a sunny cloudless day, with a minimum of 700 W /m²[2], [17], to clearly detect the differences in temperature between the PID-affected panels and the healthy panels.

2.2. Electrical indicators from I-V curves

Visual analysis methods are usually carried out to confirm the suspicions of degradation previously detected by measurements from monitoring data of the PV system. As presented in the previous section, the PID affects the I-V curve that reflects the electrical behavior of the PV panel, decreasing the maximum power point and therefore the I-V curve fill factor. However, there are other characteristics from the I-V curve (see Figure 2) also affected to a lesser or greater degree according to operating conditions and the level of degradation, such as the open-circuit voltage. Electrical indicators can be determined from measurements of the I-V curve to quantify those characteristics. Although the calculation of some indicators requires operating the PV panel at extreme points, such as open-circuit voltage or short-circuit current, some indicators can be obtained from measurements close to the maximum power point (MPP). Following, four electrical indicators are analyzed in terms of their calculation and sensitivity.

2.2.1. Fill Factor

The fill factor (FF) is used as an indicator of the performance of the PV panel and, it is defined in the equation 1 as the ratio of the rectangle maximum power to the product of Voc and Isc (see equation 1). The higher the FF, the lower the slope of the I-V curve in the region of the short-circuit current, and the higher is the slope close to the open-circuit voltage [29].

PID causes an increase in the slope of the I-V curve in the region of the short-circuits current, therefore, decreasing the fill factor. However, the fill factor can be decreased due to different causes, such as short-circuited bypass diodes, moisture, or partial shading [2]. That is why the use of FF as an indicator of PID should be supported by other analyzes or diagnostic techniques, as done in [20], where a diagnostic method is proposed and experimentally tested to detect faults associated with partial shading, reduction of the series resistance, and, PID. The detection process generates a Yes/No alert for each of the three faults. For PID, the fuzzy classifier employs a group evaluation of the fill factor, the equivalent thermal voltage (Vte defined in (2)), and the equivalent series resistance (Rse defined (3)) to detect PID. To distinguish and identify the specific factor that causes the loss of power, the group evaluation is needed as the indicators present sensitivity to more than one of the failure factors and the changes in environmental conditions.

(1)

(2)

(3)

2.2.2. Open-circuit voltage

PID can make a PV panel have a lower open-circuit voltage (Voc) than a reference value (non-degraded PV panel). But this reduction is usually noticed when the PV panel has a strong degradation [17]. Therefore, Voc can be used as an indicator to know if a PV panel is PID-affected. This parameter can be measured in the field by a maintenance operator with a voltmeter, or by using a monitoring system. The work presented in [21] reports that Voc could be used to detect PID in an early stage of degradation. The results evidence at low irradiance (lower than 12,5 W /m 2) that PID can be detected before the power reduces by more than 1 %; nonetheless, an accuracy irradiance measurement is needed for low irradiance values. Moreover, low Voc can be also caused by partial shading, short-circuited bypass diodes, inverted bypass diodes, light-induced degradation, and short-circuited PV cells [2], which also makes difficult the use of this parameter as a unique indicator of PID.

2.2.3. Current ratio

PID causes the segment between Isc and IMP P (the horizontal zone) of the I-V curve to fall (see Figures 1 and 2). This higher-than-expected slope in the horizontal zone of the I-V curve can be quantified by comparing the current ratio (CR) of the PID-affected PV panel I-V curve to a reference value [22], for a given operating condition. The current ratio is the relation between the PV current at maximum power (IMP P ) and the short-circuit current (ISC ), as it is expressed in (4).

(4)

2.2.4. Shunt resistance

Considering the Single-Diode Model (SDM), the shunt resistance (Rh) represents paths for the leakage currents in the PV panel, which is inherent to manufacturing materials and processes. When the shunt resistance decreases, it means leakage currents are higher, and the performance of the PV panel also decreases [2], [8]. Since PID creates shunts on PV cells and therefore leakage currents increase, Rh can be used to detect PID. In the work reported in [30], Rh is analyzed as an indicator for PID detection, by characterizing this parameter at different PID progression levels and different temperatures through forwarding dark I-V curves (an indoor test). The work concludes that “monitoring the cell shunt resistance at low bias conditions can be a promising method for PID detection in the field before any significant power loss occurs (< 1 %)”.

It is possible to obtain certain parameters like shunt resistance from the I-V curve of a PV panel. As illustrated in Figure 2, Rh is the inverse of the slope of the I-V curve close to the short-circuit point, as given by (5), which is considered an accurate estimation for the shunt resistance for the SDM [31]. For a better estimation of R_h , I_{P V 2} should be close to I_{P V 1} . Furthermore, it is possible to fit the I-V curves of a PV panel to the SDM by using methods like Newton-Raphson or Levenberg-Marquardt. The accuracy of parameters’ estimation will depend on the quality of the dataset and the initial guess solution [29].

(5)

The work in [32] proposes NΔRh as an indicator to detect reductions in the MPP current (Impp) of a PV panel, expressed by (7) as the relative value of a variation of shunt resistance ΔRh concerning a reference value Rh, the last corresponding to the PV panel without degradation. ΔRh can be seen as an additional resistance connected in parallel to Rh (see Figure 3), that produces the same reduction in Impp. Since PID produces reductions in Rh (ΔRh), NΔRh can be used to detect PID. To that end, it is necessary to know Impp and Vmpp of the degraded panel, the current of the PV panel without degradation (IP V ), and the reference value of Rh, according to (6), (7), and the Figure 4. For equation (7), Impp and Vmpp can be obtained from data monitoring of the PV system. The photovoltaic current of the non-degraded PV panel (Ind) and the reference value of Rh could be estimated with the approach described in [33] based on the PV panel datasheet, or through parameterization of the single-diode model from experimental I-V curves, for a given operating condition. In this work, the method described in [33] has been used.

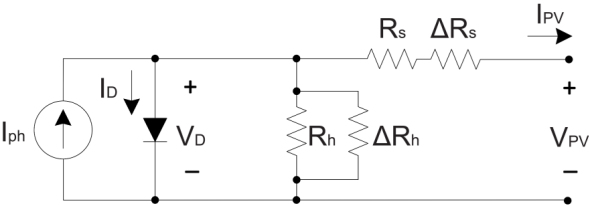

Figure 3
Single-diode model with degradation represented by additional series and parallel resistances, ΔRs and ΔRh, respectively [32].

(6)

(7)

Moreover, even though the analysis of electrical indicators is related to the I-V curve, it is possible to obtain the indicators by using the monitoring systems implemented in the PV systems.

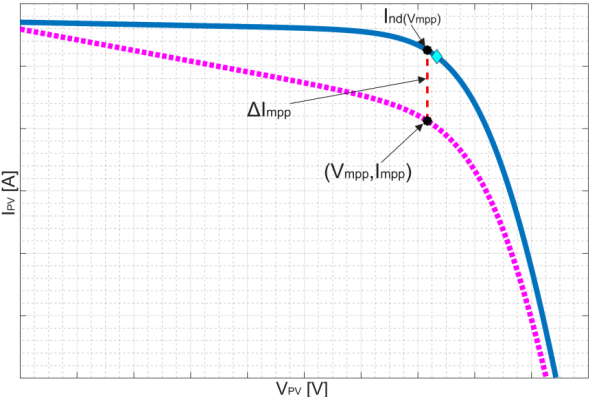

Figure 4
Explanation of NΔRh concerning the I-V curve. The blue-continuous line is the non-degraded I-V curve, and the magenta-dashed line is the PIDdegraded I-V curve. The cyan-diamond point is the maximum power point in the non-degraded curve [32].

These monitoring systems may be those offered by most major inverter manufacturers, which provide general information on PV performance, or third-party systems when measurements with panel and string granularity levels are required. That means the analysis of electrical indicators has a significant advantage over visual analysis methods since the implementation as part of fault detection and diagnosis system could use existing infrastructure, which would decrease costs; besides, the data acquisition could be carried out during the day in many cases, with none or minimal mechanical or electrical intervention of the PV system. In the next section, it is presented a simulation-level evaluation of the use of electrical indicators derived from the I-V curve for PID detection.

3. Comparison of electrical indicators

Single-diode model-based simulations were performed to evaluate the behavior of Fill Factor (FF), the value of Rh, the Normalized Change of Rh (NΔRh), and the Current Ratio (CR), as electrical indicators to detect Potential-Induced Degradation in c-Si PV panels [2], [22], [32]. Firstly, the procedure described in [33] is applied to simulate non-degraded I-V curves for an IPS-100 PV panel, employing equations 8 and 9. The electrical characteristics extracted from the datasheet, as well as the STC single-diode model parameters for the IPS-100 PV panel, are presented in Table 1 and Table 2, respectively. The single diode model is widely used and referenced in literature to represent crystalline-silicon-based PV panels, with a good compromise between precision and complexity [29], [33], [34].

Table 1

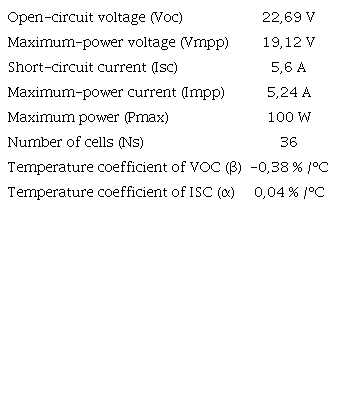

Parameters of an IPS-100 PV panel in STC, extracted from datasheet [35]

Source: Authors.

(8)

(9)

To simulate the effect of PID on the I-V curve and calculate the degraded I-V curves, reductions of Rh are introduced into the calculation of degraded I-V curves. These reductions are between 0 % and 75 % with steps of 5 %, considering the STC value of Rh (see Table 2) as the one with 0 % of degradation. Parameters Iph, αIsc, η, Isat, and Rs are not modified, considering that the PV panel is not affected by other degradation mechanisms. The flowchart in Figure 5 summarizes the simulation process, which is repeated for different irradiance (S) and temperature (T) conditions and different levels of degradation.

The values of FF, Rh, NΔRh, and CR are plotted in Figures 6, 7, 9, and 8, respectively. In those figures, the values on the x-axis represent the level of degradation, calculated by using the equation 10, where Rh,d is the degraded parallel resistance, and Rh,h is the parallel resistance in STC of the PV panel without any degradation (see the Table 2).

Table 2

STC single-diode model parameters for a IPS-100 PV panel,calculated based on the method stated in [33]

Source: Authors.

(10

Under different irradiance and temperature conditions, the simulation results show that all indicators decrease as the level of degradation increases. The PID affects the slope of the horizontal zone of the curve, the slope increases, and then, the maximum power current and the fill factor also decrease. Due to the dependence of the fill factor on the short-circuit current and the open-circuit voltage, the fill factor value shows a different evolution for each operating condition when Rh decreases. This could be overcome by normalizing the fill factor for its maximum value or its STC value. However, FF does not provide useful evidence of PID in the early stages. As it can be seen in Figure 6 for irradiance greater than 400 W /m2, the simulation shows that the variation of the indicator is not significant (about 1 %) until the degradation is greater than 40 %, which could be misunderstood if there is not a data acquisition system with a high resolution, other degradation factors also affect the panel, or if it is not possible to ensure the repeatability of measurements in the field.

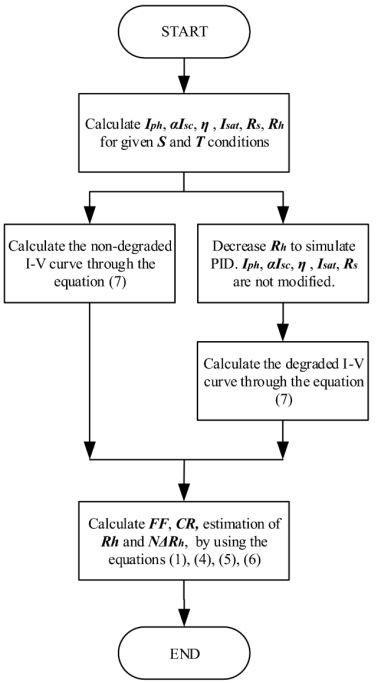

Figure 5
Flowchart of the PID simulation on a PV panel for given irradiance (S) and temperature (T) conditions.

The shunt resistance is affected by changes in temperature [36]. The PID is caused by the combination of a certain humidity, temperature, and high voltage conditions in the photovoltaic panel operation. Figure 7 presents the estimate of Rh, calculated using equation (5), with the combined effect of irradiance and temperature, which has linear behavior. The estimation of Rh (Figure 7), which is calculated using equation (5), has a decreasing linear behavior. As mentioned before, this parameter is directly affected by PID, then it provides reliable information about degradation. The pairs used to determine ΔIpv and ΔVpv were the point of ISC and the subsequent point, looking for a good approximation for the slope of the horizontal zone of the I-V curve. As the short-circuit current is used for the estimation of Rh, there is no variability of the indicator when the irradiance and temperature conditions change. This represents an advantage since this indicator can be calculated with the capture of information at any time while the PV panel is operating. However, the necessity of the short-circuit current measurement is a significant disadvantage since it could mean the electrical disconnection of the PV panel by technical personnel. In addition, the experimental calculation could not be an easy task, because measurement noise can make the Rh estimation not accurate, then several points close to Isc could be needed to estimate Rh with low error.

NΔRh indicator is low affected by changes in the irradiance and temperature conditions, which facilitates its determination at any time of the operating period of the PV system. It has a decreasing behavior, with a prominent variation in the first degradation stages. Figure 9 shows that for the step from 5 % to 10 % of degradation, the indicator has a variation of approximately 52 %. The indicator tends to infinity for degradation of 0 %; the greater the degradation, the lower the value of the indicator. NΔRh has the advantage that does not require the measurement of short-circuit current or the open-circuit voltage. Variations in the zone of the horizontal segment of the I-V curve are made concerning the point of maximum power (see equation 7), so it could be feasible to synchronize the detection algorithm with the inverter of the PV system or using the monitoring information that inverter provides.

All indicators, Fill Factor (FF), the value of Rh, the Normalized Change of Rh (NΔRh), and the Current Ratio (CR), show variability in the face of reductions of Rh. On the one hand, the variability of FF and CR depends on the operating conditions, since they do not vary for reductions of Rh less than 10 %, except at low irradiations (300 W/m2 in simulations). On the other hand, Rh and NΔRh indicators have very low variability in the presence of changes in environmental conditions, which allows them to be determined at any time during the operation of the PV system.

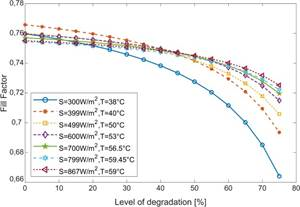

Figure 6
Fill Factor (FF) for reductions in Rh from 5% to 75 % at different irradiances and temperatures.

Figure 7

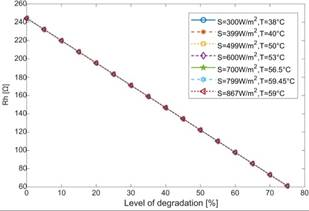

Estimation of Rh for reductions in Rh from 5% to 75 % at different irradiances and temperatures.

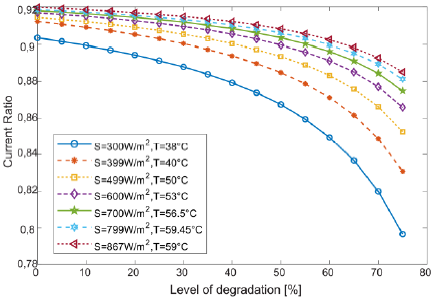

Figure 8
Current ratio (CR) for reductions in Rh from 5% to 75 % at different irradiances and temperatures.

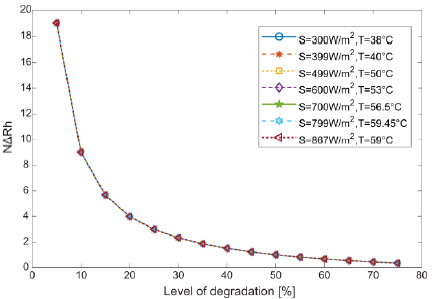

Figure 9
Normalized change of Rh (N∆Rh) for eductions in Rh from 5 % to 75 % at different irradiances and temperatures.

Although [22] states that CR is a good indicator to identify changes in the horizontal zone of the I-V curve, Figure 8 shows that like the FF, the CR does not show significant variations for slight reductions (less than 10%) of Rh. Besides, FF and CR are electrical indicators that can be influenced by other degradation factors in the life cycle of the PV panel, whereby their use as PID detection indicators should be complemented with other indicators or detection techniques. Moreover, considering that PID mainly affects the Rh parameter of the single-diode model, the estimation of Rh and NΔRh have the advantage over the other electrical indicators shown in this section, as they represent direct information about changes in Rh. Nevertheless, NΔRh is considered more appropriate because it does not require the measurement of ISC and/or VOC to be calculated, and these measurements are not feasible to carry out in the field without disconnecting the PID-suspicious PV panel.

4. Conclusions

This paper has presented a comparison of methods to detect potential-induced degradation in PV panels. Firstly, methods reported in the recent literature are exposed, highlighting the main features, advantages, and disadvantages. Then, a simulation was performed to compare and analyze electrical indicators associated with the detection of PID, under different irradiance and temperature conditions and for different levels of degradation.

In the recent literature, there are several reported methods to detect Potential-Induced Degradation in PV panels, both under indoor and field conditions. However, there is not a standardized procedure to detect PID. Two types of methods can mainly be distinguished from the works reported in the literature: visual methods and methods that involve electrical indicators analysis. The visual methods comprise Electroluminescence, Infrared imaging, and the I-V curve shape, which are technical inspections usually carried out on-site, as part of predictive or corrective maintenance. Their main disadvantage is that they use specialized equipment, which represents an extra cost in the detection process; in addition, special conditions are required to capture data.

The methods that involve electrical indicators analysis usually consider the SDM, and although the analysis is related to the I-V curve, it is possible to obtain the indicators by using the monitoring systems implemented in the PV systems. This is a significant advantage over visual methods since their implementation as part of fault detection and diagnosis system could use existing infrastructure, decreasing costs; moreover, the data acquisition can be carried out during the day in many cases, with no or minimal mechanical or electrical intervention of the PV system.

Considering that the PID especially affects the horizontal zone of the curve I-V, increasing the slope between the Impp and the short-circuit current, the Rh parameter of the single diode model could be used directly as an indicator for PID detection, but it presents the disadvantage that its calculation may require the electrical disconnection of the panel for the measurement of currents as close as possible to the short circuit point. The NΔRh indicator is a more convenient option in practice, as it also provides direct information about changes in Rh, it does not require Isc to be calculated and it has low sensitivity to changes in irradiance and temperature conditions, whereby, it can be determined at any moment of the operation of the PV panel.

For future work, it should be evaluated the calculation of the indicators by considering data from a PV string or array. As well as implement algorithms of data analysis, detection, and diagnosis of PV panels’ failures based on machine learning, artificial intelligence, and so on, and involving more than one indicator and considering several degradation mechanisms.
