1. Introduction

A superconductor is a material that can conduct electricity without resistance, meaning that it can transmit electrical current indefinitely without any loss of energy. Superconductors are characterized by a critical temperature Tc below which they exhibit superconductivity. Two-condensates superconductivity, also known as two-band superconductivity, is a phenomenon that occurs in some materials where there are two different types of electrons or condensates that contribute to the superconductivity. These two-condensates can have different Tc, allowing the material to exhibit superconductivity at higher temperatures than a single-band superconductor. Two-condensates can interact with each other, leading to interesting phenomena such as a re-entrant superconducting phase diagram, where the material goes through multiple superconducting phases as the temperature or magnetic field is varied. This type of superconductivity has been observed in several materials (MgB₂ , whit T_c~ 39K and iron-based superconductors, with T_c~ 55K) and has been widely studied theoretically using computational methods [1], [2], [3], [4], [5], [6], [7], [9], [10].

The study of two-condensate superconductivity is an active area of research in condensed matter physics, with potential applications in high-temperature superconductivity and quantum computing, for this is important to control the vortex state by pinning centers, for example, including structural o topological defects into the sample. A good candidate for this is, the kagome-lattice structure, this lattice consisting of interconnected triangles arranged in a hexagonal pattern [11], [12], [13], [14]. Some materials with Kagome-lattice structures, such as iron-based superconductors and ruthenate-based superconductors, have also been studied extensively in recent years. These studies have revealed that the superconductivity in these materials is closely related to the electronic properties of the Kagome-lattice structure. Overall, the study of Kagome-lattice structures in superconductors is a promising field that could lead to the discovery of new materials with high-temperature superconductivity and other exotic electronic properties [15], [16], [17], [18], [19].

Several theoretical and experimental works have been carried out in this area, for example, F. Du et al., studied the interplay of superconductivity with electronic and structural instabilities on the Kagome lattice in vanadium-based kagome metals AV₃ Sb₅ founding that this material exhibit superconductivity on an almost ideal kagome lattice, with the superconducting transition temperature forming two domes upon pressure tuning and that distortions of the crystal structure modulate superconductivity in this sample under pressure, providing a platform to study kagome lattice superconductivity in the presence of multiple electronic and structural instabilities [20]. S. Gazit et al., described a theoretical model for a Kagome lattice two-band superconductor and the emergent Dirac fermions and broken symmetries that arise in the confined and deconfined phases [21]. T. Neuper et al., showed that the lattice geometry, topological electron of the compounds KV₃ Sb₅ , CsV₃ Sb₅ and RbV₃ Sb₅ , play a role in determining the properties of materials with a Kagome lattice structure and exhibit superconductivity at low temperature and an unusual charge order at high temperature, revealing a connection to the underlying topological nature of the band structure [22]. K. Jiang et al., reported progress on the experimental and theoretical studies of AV₃Sb₅ with (A=K,Rb,Cs), as an unconventional kagome superconducting sample. They found several theoretical models about the nature of the time-reversal symmetry breaking [23]. J. S. Leon et al., studied theoretically using the Ginburg-Landau model, the magnetization and the vortex state in a mesoscopic superconducting sample with a Honeycomb and Kagome structure in regions with suppressed superconductivity, they found that is possible to control the magnetic response of the sample and to manipulate the vortex configuration whit this kind of topological defects [24]. Rui Lou et al. studied the electronic properties of the charge density wave (CDW) and superconductivity in Kagome metal and observed the superconducting gap on both the electron band and the flat band around implying the multi-band superconductivity and offering insights into the relationship between CDW and superconductivity [25]. This paper is outlined as follows. In Section 2 we describe the theoretical formalism used to study a superconducting sample. In Section 3 we present the results and finally, in Section 4 we present our conclusions.

2. Theoretical Formalism

In this present work, we will study the superconducting matter in a two-condensate thin square of size ??=30𝜉₁₀ with a Kagome lattice of circular defects of radius r=𝜉₁₀ in presence of an external applied magnetics field H (see Figure 1). We will consider the Gibbs functional 𝒢(𝜓𝑖,𝐀)for a two-condensate with a Josephson-coupling Ξ(𝜓₁,𝜓₂), where 𝜓₁ is the superconducting order parameter complex pseudo-function 𝜓𝑖=|𝜓𝑖|𝑒^𝑖𝜃𝑖, (𝜃_𝑖 its phase) for the i=1, 2 condensate, 𝐀 is the magnetic potential related to magnetic induction as 𝐁=∇×𝐀 [7], [8]:

with

And

Figure 1
Layout of the studied sample: superconducting two-condensate thin square of size L = 30 𝜉₁₀ with a Kagome-lattice of circular defects of radius r = 𝜉₁₀, in presence of a perpendicular magnetic field H at T = 0.

Here, we will neglect the z-dependence on the order parameter in the limit of thin film 𝑑<<𝜉10 [12], [13], [14], [26], [27], [28]. We will consider 𝛼_𝑖=𝛼_𝑖0(1−𝑇/𝑇_𝑐𝑖) and 𝛽_𝑖 are two phenomenological parameters, i = 1, 2 in the equations 1 and 2. We used the Josephson coupling showed in the equation 3. We express the temperature T in units of the critical temperature T_c1 , length in units of the coherence length 𝜉₁₀=ℏ/√−2𝑚₁𝛼₁₀, the order parameters in units of 𝜓_𝑖0=√−𝛼_𝑖0/𝛽_𝑖, time in units of the Ginzburg Landau characteristic time 𝑡_𝐺𝐿=𝜋ℏ/8𝑘_𝐵𝑇_𝑐1, and the vector potential 𝑨 is scaled by 𝐻𝑐₂𝜉₁₀, where 𝐻_𝑐2 is the bulk upper critical field. Although we consider T = 0 in our simulations, the generalized time dependent-Ginzburg-landau equations can be applied to superconductors at T ≥ 0,5T_c , or equivalently, the sizes can be adjusted according to 𝜉(𝑇)=𝜉(0)(1−𝑇/𝑇_𝑐)^−0.5. For instance, for T = 0,96T_c , and 𝜉(0)=10𝑛𝑚, we have 𝜉=50𝑛𝑚 for thin Nb films. This gives L = 600nm. The two-condensate superconductor dynamical equations in dimensionless units, is given by [1], [7], [8], [29], [30]:

where 𝑫=𝑖∇−𝑨, and 𝜑𝑖(𝑟)=(𝑓(𝒓)−|𝜓𝑖|²) 𝜓𝑖,𝑖=1,2. The equation for the vector potential 𝑨.

where:

For this case, 𝜁₁ = 𝜁₂, also, and 𝛾 represents the strong of the Josephson coupling between the i and j band. The boundary conditions 𝐧⋅𝐉_𝑠=𝑖𝜓/??, a superconductor-dielectric interface is simulated by (b→∞). 𝐧 outer surface normal vector. Finally, for the coupling constants 𝑚_𝑟2=𝑚₂𝑚₁⁻¹=0.5,𝛽_𝑟2=𝛽₂𝛽₁⁻¹=0.7,𝛾=−0.01,𝜁₁=𝜁₂=0.01 the Ginzburg-Landau parameter 𝜅=1.0 [29], [30]. For the computational mesh we use Δ𝑥=Δ𝑦=0.25 and the convergence rule for the time Δ𝑡≤𝑚𝑖𝑛(0.25𝜁⁻²,0.25𝜅−2𝜁⁻²), with 𝜁⁻²=2/((Δ𝑥)⁻²+(Δ𝑦)⁻²). The function 𝑓(𝒓)=1 for all regions except in the Kagome lattice defects were we choose 𝑓(𝒓)=0.1 simulating a thermal defect at lower critical temperature 𝑇𝑐, and, 𝑓(𝒓) incorporates the temperature dependence as 𝑓(𝒓)=(𝑇𝑐(𝒓)−𝑇)(𝑇_𝑐1−𝑇)⁻¹, where T is the working temperature, 𝑇_𝑐1 is the nominal critical temperature of the sample and 𝑇𝑐(𝒓) captures the spatially nanoengineered critical temperature in the sample [24], [31].

3. Results

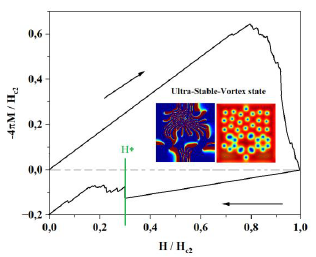

In the Figure 2, we plot the magnetization curve - 4𝜋𝑀 as a magnetic field function H, and the superconducting-electron density of the dominant band ∣𝜓₁∣² (right) and its phase Δ𝜃₁ (left) for the ultra-stable-vortex state in the down-branch of the magnetic field at H₂> H > H^* (Inset). As we can see this curve presents the typical behaviour of a type II superconducting sample, where each jump represents the entry or exit of one or several vortices of the sample. H₂ representes the superconducting-normal transition magnetic field and H* = 0.3, the magnetic field where the ultra-stable-vortex state is destroyed. We think that this interesting state is due to the heigh of the topological coupling used betwee the bands.

Figure 2
Magnetization curve - 4𝜋𝑀 as a magnetic field function. (Inset) Superconducting-electron density of the dominant band I ∣𝜓₁∣² and its phase Ав₁ for the ultra-stable-vortex state in the down-branch of the magnetic field at H₂> H > H^*.

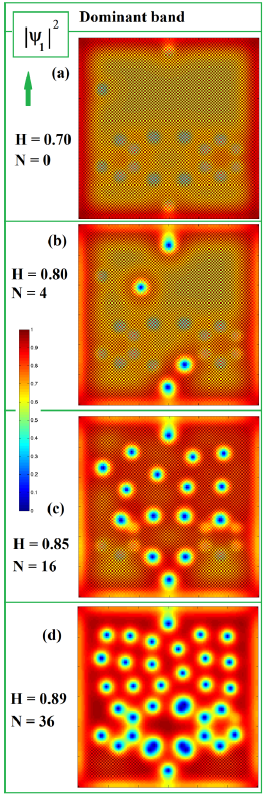

In the Figure 3 (a-d) we plot the superconducting order parameter relationet to electronic density n_s as n_s =| 𝜓₁ I² of the dominant band, increasing the magnetic field (arrow up) for a) H = 0.70, N = 0, b) H = 0.80, N = 4, c) H = 0.85, N = 16, and d) H = 0.89, N = 36, N is the vorticity. We can observe that the vortex entry of occurs in an un-conventional way in this system. The first N = 2 vortices, enter through the middle region (±L/2) in the sample, it is to be expected that the next vortices enter through the opposite sides to the sides through which the first two entered,but it does not happen like this, the entrance is always given by the same region, this is due to the nature of the two condensates of the material and its coupling between bands, as it does not happen in a conventional one-band superconductor [24]. It is important to note that due to the high of the coupling used, the configuration and size of the pinning-centers, the vortex configuration in band 2 is highly dependent on band 1 or the dominant band, therefore, in our study, we found no notable difference between these configurations and we only report results from the dominant band.

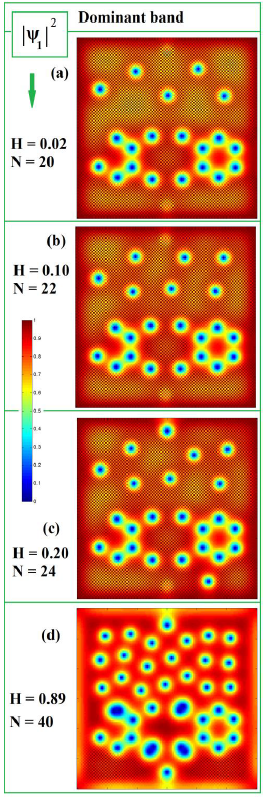

In the same way, In the Figure 4 (a-d) we plot the superconducting-electron density of the dominant band ∣𝜓¹∣², decreasing the magnetic field (arrow down) for a) H = 0.02,N = 20, b) H = 0.10,N = 22, c) H = 0.20, N = 24, and d) H = 0.89, N = 40.

Figure 3
Superconducting-electron density of the do minant band ∣𝜓₁∣2, decreasing the magnetic field (arrow down) H for a) H=0.70, N=0, b) H=0.80, N=22, c) H = 0.20, N = 24, and d) H=0.89, N=40, where N is the vorticity. Red (blue) regions represent a superconducting (normal) state 𝜓₁= 1(0).

Figure 4
Superconducting-electron density of the dominant band |𝜓₁|², decreasing the magnetic field (arrow down) H for a) H=0.02, N=20, b) H=0.10, N=22, c) H=0.20, N=24, and d) H=0.89, N=40, where N is the vorticity. Red (blue) regions represent a superconducting (normal) state 𝜓₁= 1(0).

It is interesting to note that in the down-branch of the magnetic field (decreasing H), the pinning centers play a very important role in the vortex configuration, thus, between 0.8 ≲ H ≲ 0.3 we find a highly stable vortex configuration (Figure 4 (c)), remains practically unaltered in this magnetic field interval, we think that this is a very important result in practical applications, since we found a magnetic field interval for which the configuration of pinning centers allows us to have a permanent control of the voracity within the sample. For H* < 0.3, the vortex exit occurs only in the upper part of the sample, keeping the vortex configuration in the lower part practically stable. In the same way, we attribute this fact to the coupling used and the size of the defect lattice Kagome structure. It is interesting to note that when the magnetic field increases in the lower left part of Figure 4, a hexagonal vortex structure is formed, which is highly stable in the sample, both when the field increases and when it decreases, when the magnetic field decreases, the expulsion of vortices is given by the regions far from these configurations. This interesting result can be attributed to the fact that the sample is of two-condensates with a coupling between the bands.

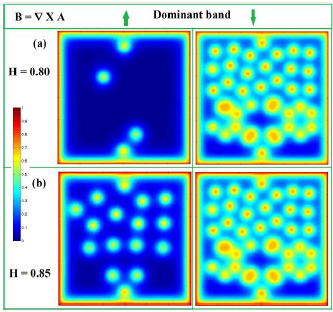

In the Figure 5 (a-b) we plot the magnetic induction B related to magnetic vectorial potential A as, В = ∇ x A, for a dominant band, for a) H=0.80, and b) H=0.85, increasing (arrow up) and decreasing (arrow down) H. We can observe that in the superconductin state the order parameter 𝜓 = 1.0 while de local magnetic induction В = 0 and in the regions where there are vortices 𝜓 = 0 and В = 1.0, result completely in agreement with the already known experimental data.

Figure 5
Magnetic induction В = V x A for a dominant band, for a) H=0.80, and b) H=0.85, increasing (arrow up) and decreasing (arrow down) H.

Also, we can corroborate the result obtained, where we assert the existence of an ultra-stable vortex configuration, between 0.8 ≲ H ≲ 0.3. We see that this vortex configuration exists in 0.8 ≲ H ≲ 0.85 in the down-branch of the magnetic field, this ultra-stable-configuration does not exist in the up-branch of the magnetic field.

In the Figure 6 (a-b) we plot the phase of the order parameter of the dominant band Δ𝜃₁ for a) H=0.80, and b) H=0.85, increasing (arrow up) and decreasing (arrow down) H. When the Kagome-lattice of defects is placed in the sample, the square symmetry is broken and the lattice acts like a pinning center. The phase allows to determine the vortex number in a given region, by counting the phase variation in a closed path around this region. If the vorticity in this region is N, then the phase changes by 2𝜋N.

Figure 6
Phase of the order parameter of the dominant band Δ𝜃₁ for a) H=0.80, and b) H=0.85, increasing (arrow up) and decreasing (arrow down) H. Here blue and red regions represent values of the modulus of the order parameter (as well as Δ𝜃₁/2𝜋), from 0 to 1.

4. Conclusions

We studied theoretically the vortex spatial distribution in a two-condensate superconducting thin square with a Kagome-lattice of topological defects. The presence of this lattice and the coupling high between the bands affects the vortex entry and the vortex configuration in the sample. We found an interesting non-conventional ultra-stable vortex configuration in the down-branch of the magnetic field, this a very important result, because we can to control de resistive state (vortex matter) in the sample by controlling the internal structure of topical defects into the sample. This non-typical behavior of the vortex-matter for a two-band sample, considering a Josephson coupling between bands, i can be explained with a non-monotonic vortex interaction, i.e, short-range repulsion and long-range attraction. Finally, we think that we did not find any difference in the vortex configurations in the bands, it is due of the chosen values of the heigh of the coupling and the size of the defects in the Kagome-lattice.
