Introduction

Dentistry aimed to restore the patient to normal function; aesthetic and speech by replace the missing tooth, what make dental implant important option in restoring missing teeth the high ability to achieve these goals with high efficiency¹. Previous studies mentioned that 2-3% of implanted teeth are lost during the process of healing². Some authors reported that the failure rate is ranged between 0.3 and 1.3% per year using different surgical approaches³. Several factors play roles in the implanting teeth failure, periodontal diseases, poor oral hygiene, bad social habit e.g. smoking, and chronic diseases e.g. diabetes mellitus^4,5. In addition, dentist profession and implant systems or design are also involved in the survival rate of implanting teeth^6,7. In one systemic review, a survival rate of more than 50% over 5-years was reported without any significant technical or biological, or aesthetic complications⁸. Early implant failure was reported at individual and implant levels by 0.8% and 0.5% in one study, and patients aged >40 years, or currently smokers or those with chronic diseases had a higher percentage of early implant failure⁹. Sakala et al (2012) 10 attributed suboptimal design of dental implantation and improper prosthetic constructions are the causes of implant failure as they observed that early failure is associated with surgical trauma and infection, while the late failure is related to the occlusal overload and periimplantitis¹⁰. In order to eliminate the dentist profession and the materials used in the dental implantation as contributor factors of implant failure, this a single-center study was conducted to assess the requirements of the surgical approaches that improve the survival rate of implantation with a minimum complication.

Material and methods

This prospective study was done in the Consultant Clinic of Dental Implant in the Department of Dentistry at the University College of Al-Rafidain in Baghdad-Iraq during 2017-2020. A total number of 141 patients (80 females and 61 males) were included in the study. The median age of the participants is 50 years with a range of 20-70 years. All the patients were recruited from single-center, and a single surgical team comprised of the maxillofacial specialist surgeon and paramedic staff carried on the surgical procedure and the follow-up. A total number of 297 implanted teeth belonged to 141 patients were studied. Sixteen out of 141 patients were subjected to immediate placement procedure. In brief, patients without any evidence of local inflammation or recent infection (which excluded by clinical observation and pre-operative radiological pictures), and without clinical evidence of traumatic or pathological periapical lesions were undergone tooth implantation. Non-restorable tooth extraction was carried on under local anesthesia, and a fixture of the implant was immediately inserted in the socket. Bone graft in form of hydroxyapatite was used to fill the gap if it is of ≥2mm depth to enhance the Osseo integration. as seen in figure 1. 125 out of 141 patients were electively planned for tooth implantation.

Fig 1.
(A): un restorable central incisor (B) implant inserted in the fresh socket (C) bone graft to fill the gap around the implant (D) temporary crown inserted

In brief, the tooth implanted in the edentulous ridge either by a rising flap or flapless then follow the drilling sequence according to the operating implant system used and insert the implant with primary torque > 35 Newton. A straight flange in solid screw endosseous implant with diameter ranged from 3.3 mm to 4.8 mm and length range from 8mm to 14 mm was used. as seen in Fig 2

Two operating implant system were used in this study, including Easy Box surgical case (Easy implant, France), and T6 Nucleoss implant (Nucleoss implant system, Turkey)

The primary outcome measure is determining the rate of early and late failure of teeth implantation in patients subjected to implantation immediately after tooth extraction or after a latent period (which exceeding three months) from teeth extraction.

Fig 2.
(A) flap incision using scalpel 15 (B) implant fixture insertion in native bone (C) implant in its final position and cover screw in (D) closure with nylon 5/0 interrupted sutures

Statistical analysis

The results are expressed as a number, percentage, median, and mean ± SD. The p-value was calculated using the difference between proportions test, taking p-value ≤0.05 is the lowest limit of significance. Excel 2010 software program was used for analyzing the data and plotting the figures.

Results

A total number of 141 participants have completed the study. Female to male ratio is 1.31: 1, and the mean ± SD of the age is 46.4±12.8 years. Current smoking is reported in 7.8% of the participants (11 out of 142), and 9 out of 141 patients had a history of diabetes mellitus. Figure 3 shows that the distribution of teeth implantation according to the site. The ratio of the maxillary-to mandible teeth implant is 1.71:1 (89 versus 52) which is significantly (p<0.001) differed. The number of implanted teeth ranged between 1 and 8 with a median value of 2. Figure 4 shows the frequency distribution curve of the number of implanted teeth per patient. The majority of patients (47.5) had a chance to implant two teeth at the time of the study, while none of the participants was implanted seven teeth in this study. Thirty teeth were implanted immediately after teeth extraction in 16 patients, while 267 teeth were implanted at least 3 months after extraction in 125 patients. Early failure was reported in 4 out of 30 (13.3) implanted teeth immediately after extraction compared with 7.5% (20 out of 267) implanted teeth after a latent period of extraction, which non-significantly (p>0.05) differed. Smoking and diabetes mellitus as risk factors of early failure was observed in one smoker and one patient with diabetes mellitus. All 297 implanted teeth did not show any evidence of latent failure up to three years following-up.

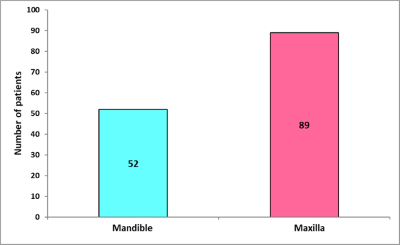

Figure 3.
Distribution of patients according to the site of the implanted teeth

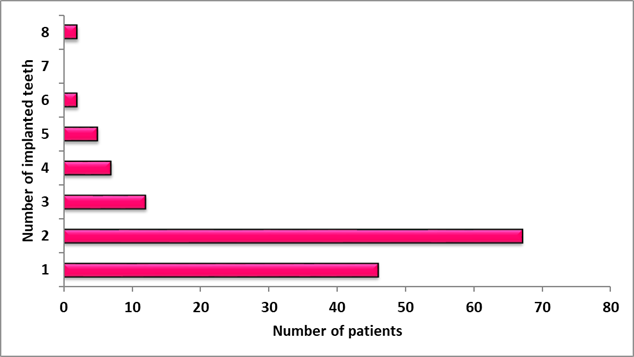

Figure 4.
Frequency distribution bar plot of the number patients who subjected to the number of implanted teeth

Discussion

The results of this study derived from single-center in Baghdad-Iraq highlight many points that indicate the specificity of dental implantation in Middle East Countries. The mean age of patients in this study is 46.4 years, while the age of patients in the developed countries is more 70 years which is higher than the corresponding patient’s age of this study¹¹. The ratio of female-to-male patients that attended dental implantation is 1.31 to 1.0, and this could explain the low rate of implantation failure as the gender male is considered as a risk factor¹². In the study, smoking is not considered an important risk factor as reported by others¹³ because only one smoker patient showed implantation failure. Also one out of nine diabetic patients showed early implant failure, which indicates that diabetes is not the only cause of implantation failure rate¹⁴. Early failure rate was significantly higher in teeth implanted in the maxilla site compared with the mandible site (22 versus 8, P<0.05). This finding agreed with others, as the surgical procedure of teeth implantation in the maxilla required many specifications¹⁵. The maximum number of implanted teeth is eight, which agreed with others¹⁶. Bone grafting was carried on to fill the gap if it is of ≥ 2mm depth to enhance the Osseo integration as recommended by others¹⁷. The survival rate of implanted teeth with a 1-stage placement procedure is effective as a 2-stage procedure, which agreed with other studies¹⁸. The strength of this study included, the number of implanted teeth is higher compared with other studies because the data of this study obtained from one center within a short period¹⁹. This study was carried on the Teaching Dental Clinics, and the undergraduate students have a chance to practice teeth implantation^20,21.

Conclusion

Early failure of teeth implantation is not a serious complication, while the late failure is negligible. Moreover, a 2-stage procedure is effective as a 1-stage procedure, and every effort is needed in the maxilla-teeth implantation to reduce the early failure rate.

References

1 Testori, Tiziano et al. “Implant Placement in the Esthetic Area: Criteria for Positioning Single and Multiple Implants.” Periodontology 2000 1 June 2018: 176–196.

2 Karlsson SA. Clinical evaluation of fixed bridges, 10 years following insertion. J Oral Rehabil 1986; 13: 423–432.

3 Jung RE, Zembic A, Pjetursson BE, Zwahlen M, Thoma DS. Systematic review of the survival rate and the incidence of biological, technical, and aesthetic complications of single crowns on implants reported in longitudinal studies with a mean follow-up of 5 years. Clin Oral Implants Res 2012; 23 (Suppl 6): 2–21.

4 de Araújo Nobre M, Maló P. Prevalence of periodontitis, dental caries, and peri-implant pathology and their relation with systemic status and smoking habits: Results of an open-cohort study with 22009 patients in a private rehabilitation center. J Dent. 2017;67:36-42.

5 Kasat V, Ladda R.Smoking and dental implants. J Int Soc Prev Community Dent. 2012;2(2):38-41.

6 Jung RE, Zembic A, Pjetursson BE, Zwahlen M, Thoma DS. Systematic review of the survival rate and the incidence of biological, technical, and aesthetic complications of single crowns on implants reported in longitudinal studies with a mean follow-up of 5 years. Clin Oral Implants Res 2012; 23 (Suppl 6): 2–21.

7 Esposito M, Ardebili Y, Worthington HV.Interventions for replacing missing teeth: different types of dental implants. Cochrane Database Syst Rev. 2014;(7):CD003815

8 Pjetursson BE, Tan K, Lang NP, Bragger EU, Egger M, Zwahlen M. A systematic review of the survival and complication rates of fixed partial dentures (FDPs) after an observation period of at least 5 years – I. Implant supported FDPs. Clin Oral Implants Res 2004; 15: 625–642.

9 Zhang ZY, Meng T, Chen Q, Liu WS, Chen YH. Retrospective analysis of early dental implant failure. Beijing Da Xue Xue Bao Yi Xue Ban. 2018 Dec 18;50(6):1088-1091.

10 Sakka S, Baroudi K, Nassani MZ. Factors associated with early and late failure of dental implants. J Investig Clin Dent. 2012 Nov;3(4):258-261.

11 Guillaume B.Dental implants: A review. Morphologie. 2016 Dec;100(331):189-198.

12 Castellanos-Cosano L, Rodriguez-Perez A, Spinato S, Wainwright M, Machuca-Portillo G, Serrera-Figallo MA, Torres-Lagares D. Descriptive retrospective study analyzing relevant factors related to dental implant failure. Med Oral Patol Oral Cir Bucal. 2019;24(6):e726-e738.

13 Chrcanovic BR, Kisch J, Albrektsson T, Wennerberg A. Factors Influencing Early Dental Implant Failures. J Dent Res. 2016 Aug;95(9):995-1002.

14 Singh K, Rao J, Afsheen T, Tiwari B. Survival rate of dental implant placement by conventional or flapless surgery in controlled type 2 diabetes mellitus patients: A systematic review. Indian J Dent Res. 2019; 30(4):600-611.

15 Chen ST, Buser D. Esthetic outcomes following immediate and early implant placement in the anterior maxilla--a systematic review. Int J Oral Maxillofac Implants. 2014;29 Suppl:186-215.

16 Galindo-Moreno P, Padial-Molina M, Nilsson P, King P, Worsaae N, Schramm A, Maiorana C. The influence of the distance between narrow implants and the adjacent teeth on marginal bone levels. Clin Oral Implants Res. 2017; 28(6):704-712.

17 Gual-Vaqués P, Polis-Yanes C, Estrugo-Devesa A, Ayuso-Montero R, Mari-Roig A, López-López. Autogenous teeth used for bone grafting: A systematic review. J. Med Oral Patol Oral Cir Bucal. 2018; 23(1):e112-e119.

18 Esposito M, Grusovin MG, Chew YS, Coulthard P, Worthington HV. Withdrawn: Interventions for replacing missing teeth: 1- versus 2-stage implant placement. Cochrane Database Syst Rev. 2018 ;5(5):CD006698.

19 Parzham V, Judge RB, Bailey D. A Five-Year Retrospective Assay of Implant Treatments and Complications in Private Practice: Restorative Treatment Profiles of Long-Span, Implant-Supported Fixed and Removable Dental Prostheses. Int J Prosthodont. 2018; 31(3):211-222.

20 Sharma A, Chaudhari BK, Shrestha B, Suwal P, Parajuli PK, Singh RK, Niraula SR. Knowledge and perception about dental implants among undergraduate dental students. BDJ Open. 2019;5:1.

21 Vandeweghe S, Koole S, Younes F, De Coster P, De Bruyn H. Dental implants placed by undergraduate students: clinical outcomes and patients'/students' perceptions. Eur J Dent Educ. 2014; 18 Suppl 1:60-69.
