Introduction

Patients with solid and hematological malignancies require dependable, reliable vascular entrance to the venous system for chemotherapy administration or blood product transfusion, taking blood samples for tests, antibiotics, hydration and parenteral nutrition if needed. ¹Repeated peripheral venipuncture may lead to destruction or sclerosis of superficial veins, in addition to that, extravasation of vesicant chemotherapy may result in damage to surrounding tissues in cancer patients with poor peripheral blood access which may add considerably to already ill cancer patients. Therefore, adequate venous access is recommended to ensure the safety of chemotherapy administration.

During the last decades, several central venous access devices have been developed, Dr. Brovial and associate introduced the first long-term arterial catheters for clinical use in 1970³. Venous access can be externally placed catheters like Hickman and Groshony or could be totally implantable subcutaneous access devices like Porta-A- cath, and Infusaport.^4,5

Many reports demonstrated that the subclavian vein approach is the most commonly used route, although perioperative complications could occur in about 12% of the patients ^(6,7). However, the internal jugular vein approach seems to be less prone to developed significant complications.. Particularly with the use of ultrasound guidance that decreases significantly the rate of complications.⁹

The introduction of PAC in routine clinical practice has facilitated vascular access for the safe administration of chemotherapeutic drugs and supportive care.⁵Safe access to the right subclavian vein was performed by Seldinger technique^10. Although the implantation of Port-A-Cath is regarded as a simple surgical procedure, unfortunately many complications can occur.

Complications of port systems are divided into early complications (≤ 30 days after implantation) and delayed (> 30 days) complications and occur in up to 33%. Most common complications are infection and catheter-related thrombosis.

Early Complications, like Malposition of catheter, haemothorax, pneumothorax, arrhythmias, accidental blood vessels injury, and air emboli, are related to the procedure of the operation, while the most frequently reported late events are mechanical dysfunctions, thrombosis, infections and which is mostly related to the foreign catheter presence in the body³.

PAC has been increasingly used in cancer patients undergoing long-term chemotherapy, however, no previous study has been done in Mosul for verifying its complications associated with chemotherapy administration, and consent have been taken from all patient^11.

Patients and Methods

This was a prospective, observational study that evaluated early and late complications and efficacy of US-guided puncture of the RIJV for PAC placement. It was conducted on patients who were diagnosed and treated in Mosul Hospitals in the period from Nov. 2017 to Nov. 2019 and had PAC for chemotherapy, drugs, blood and fluid administrations. This study was approved by the Ethical Committee and it was registered at the Surgical Department on Ninevah Medical College.

This study was carried out in coordination with the oncologists (two oncologist doctor participated) together with surgical teams (two cardiothoracic and vascular surgeons experienced in PAC) at private Mosul hospitals.

In this study 93 patients who were candidates for chemotherapy, drugs, and fluids infusion. They included cancer patients who received at least two cycles of chemotherapy by the PAC and were followed up for at least 8 months. Patients with active infection or high risk of bleeding (Prothrombin time > 18 s, platelet count <50,000 μl), or life expectancy <6 months were excluded from the study.

PAC was inserted under local anesthesia after patient received the correspondent information and signed the informed consent. Data were collected on date at insertion, underlying diagnosis, PAC uses, chemotherapy protocol, duration of use, rate of complication, and removal

Surgical Technique

It started by referring the patient to the oncologist for implantation of PAC for chemotherapy, drugs administration, after that was done a physical examination and standard preoperative investigations. The upper area of the right-sided chest wall was usually chosen as the suitable site of insertion.

Patients were positioned supine, and vital parameters were evaluated on a monitor. All operations were done under local anesthesia. After double sterilization (alcohol and Betadine) of the right thorax and neck, local anesthesia (20 ml mepivacaine) was applied. A skin incision was made parallel to Langer’s lines, safe access to the right subclavian vein was performed by Seldinger technique¹⁰ (Venipuncture is performed under US guidance in 50 patients only (53.7%) according to the facility of the hospital with a micropuncture needle, Figure 1) until obtaining venous blood. Then the syringe was disconnected and a guidewire inserted downward. A small subcutaneous incision (2-3cm) was done at the upper chest wall, and the portal was implanted in a subcutaneous pocket with additional dissection (Figure 2).

Figure 1.
Figure 1. Seldinger Technique

Figure 2.
dissection for pocket

A suitable length of the tube from the site of the port to the right atrium was measured, then the port was fixed by 3 stitches, closure of the wound was done after ensuring port action by blood aspiration and normal saline administration (Figure 3).

This procedure was done without fluoroscopic screening in the first 20 patients (21.5%) then used under fluoroscopic screening in the last 73 patients (78.5%) (Figure 4).

Figure 3.
Checking function before closure

Figure 4.

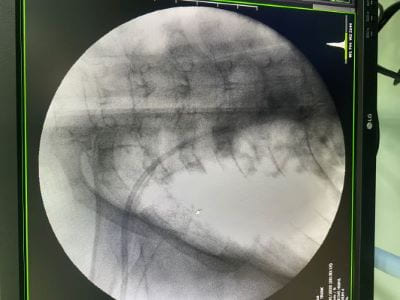

Fluoroscopic screen

However postoperative chest X-ray was used in all cases (Figure 5); finally, skin and subcutaneous above port chamber were sutured and all wound dressing was done for the site of operation (Figure 6).

Figure 5.
Chest XR Post-Operative

Figure 6
Post-Operative dressing

The Right Inrenal jugular vein (RIJV) was punctured and the guidewire advanced into the superior vena cava; a 5-F coaxial dilatator was positioned, and the extra-stiff guidewire was advanced into the inferior vena cava, Tunnelling incision for the PC was made about 2 cm below and parallel to the clavicle in a caudal direction (this approach has no malposition complication post-operatively).

Intra-operative and post-operative complications were recorded and classified into early and late complications. (Figure 7 and 8). All patients received chemotherapy and followed up regularly in Mosul Oncology Hospital.

Figure 7.

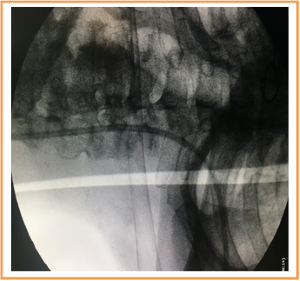

Early Malposition

Figure 8.
Late Thrombosis

For maintenance of the PCA, the patients and his relatives were learned how to keep it clean and functional by flushing heparinized normal saline using a sterile syringe continuously after each use of the PCA.

The study was conducted according to the second principle of the declaration of Helsinki.

Result-

230 patients were considered for eligibility within the accrual period 24 months of the study; however, PAC were implanted into only 93 cancer patients. The main tumor types included in the present study were breast cancer, lung cancer, colorectal, gastric, pancreatic, hematological malignancy, and sarcomas, as shown in Table 1. The regimens of chemotherapy used were the following: Adriamycin-Cyclophosphamide, Cisplatin-Gemcitabine, vinorelbine–fluorouracil–cisplatin, Docetaxel, FOLFOX, FOLFORI, Paclitaxel, 5FU continuous infusion, and others.

Out of 93 included patients, there were 43 (46.2 %) female and 50 (53.7%) male patients. Their mean age was 51 range from 17-80 years.

Table 1 showed sex distribution and the frequency of malignant disease in our patients.

The complications were recorded according to the occurrence time: early complications are intraoperative / the time from post-implantation period to first use of chemotherapy administration, while late complications were considered from the timing of the first chemotherapy cycle given by the PCA.

Early complications were found in 14 (15%) patients and late complications were found in 13 (13.9%) patients. As shown in Table 2 and 4.

Mal-position was occurred in 4 patients who underwent implantation without screening and managed by catheter redirection under screening guidance. (Figure 7), Pulmonary embolism was never found. Wound bleeding was developed in 3 patients that required re-admission to the theater and stopping the bleeding. One patient developed hematoma that resolved conservatively. The accidental arterial puncture occurred in 6 patients for whom PAC was inserted without US guidance and managed simply by direct pressure without surgical intervention.

The right side was used in all patients, 2 patients had to be shifted to another side (2.1% from all patients and 7.4 % from the complication patients).

During the observation periods, most of the patients received chemotherapy without complication at 1-4 weeks intervals, it was used also for blood product transfusion and for blood sampling for tests as shown in Table 3.

Thrombosis was developed in only three patients that required anticoagulant therapy (Figure 8), mild and superficial wound infection occurred in 7 patients and was managed simply by repeated dressing and antibiotic coverage without complications.

PAC was removed from 6 patients after finishing the chemotherapy cycles, but it was removed in one patient after 2 months due to the development of fever of unknown origin giving the suspicion of septicemia that showed negative blood culture later on.

Discussion.

Problems of vascular access are frequently developed in patients with cancer receiving chemotherapy. In a recent analysis of cancer patients’ perceptions of their treatments, they rated that one of the most distressing physiological side effects of chemotherapy is pain that is associated with the search of suitable veins.

In addition to that, repeated irritation of peripheral veins from cytotoxic drugs and the need for repeated venipuncture for a long period ( months to years) results in gradual sclerosis, thrombosis, and the possibility of destruction of the available superficial veins, therefore, many oncologists and physicians advised to use a central venous catheter for venous access particularly for patients with poor peripheral veins to prevent the risk of extravasation during cytotoxic drugs administration.²

PAC is becoming a beneficial device for the oncological department for safety administration of cytotoxic drugs and supportive managements.. however, there is a real fear of serious complications during its use, therefore, we conducted this study to demonstrate the possible PAC-related complications.

The rate of PAC related complications in the present prospective study was 15 % and 13.9 % early complication and late complication, respectively, comparable to that reported by others^12,13 (Table 5). With a notable decreasing trend of early complication with the previously reported rate of complication in 2002, this is probably related to the use of fluoroscopic guidance during port implantation that followed by X-ray for position confirmation.

When two-dimensional ultrasound guidance was used a great reduction in the rate of unsuccessful cannulation during internal jugular catheterization occurred, such as hematoma formation and carotid artery puncture, when compared with surgeon experience by anatomical landmark technique only without ultrasound guidance ⁽⁹⁾ that provides crucial information with regard to venous access patency or the presence of intraluminal thrombosis.

No pneumothorax complication was reported in our study; however, it was reported in up to 4% of patients with PCA implantation in other studies¹⁴and this could be attributed to the use of US guidance for most of patients.

A wide range of PCA-related infections was reported and it may reach up to 70% of cases, ranging from simple local infect to septic thrombophlebitis, Staphylococcus Aureus and Candida are the most frequently recognized causative pathogens^.15

Recently Maki et al.¹⁶described a “systematic analysis of more than 200 prospective studies for the risk of bloodstream infection associated with various types of intravascular devices, and concluded that surgically implanted long-term central venous devices (i.e. cuffed tunneled catheters and ports) were associated with fewer infections, defined as bloodstream infection per 1000 intravascular devices-days.”

With all minuteness and rigorous septic technique, only 7 patients developed a superficial infection, and removal of PCA was done in one patient who was suspected to have septicemia, although blood culture was negative this removal consideration is required to avoid serious complication^.17

Although the reported rate for symptomatic thrombosis is around 5%, and 14-18% for asymptomatic thrombosis in patients with PCA¹⁸, many studies do not recommend using anticoagulants routinely ⁽¹⁹⁾. Several symptoms may be caused by thrombosis, and it may be associated with loss of catheter function, pulmonary embolism, with increased risk of infection, post-phlebitic syndrome of the upper limb²⁰. In the present study, we registered only 3 cases (3.2%) complicated with symptomatic thrombosis which was kept on anticoagulant for 3 months

The accidental arterial puncture was noticed in 4 patients who underwent PAC insertion without US guidance, and never happened with the use of US therefore we concluded that puncture of the right internal jugular vein (RIJV) under US guidance easier for the operator and considerably reduces the risk of complications, particularly accidental arterial puncture and pneumothorax²⁵.

Conclusion.

According to our data, it is safe and cost-effective to use PAC in cancer patients for antibiotic injections, blood transfusion, fluid administration together with chemotherapy and preventing peripheral vein complications and difficulties in getting venous access.

The results of our study enable us to state that PAC placement through the RIJV under US guidance appears to be a valid procedure in terms of technical success and one that is associated with fewer complications compared with other placement techniques. The complications we observed were comparable in terms of both incidence and type to those reported by other authors,

References

1) Brooks AJ, Alfredson M, Pettigrew B, Morris DL. Ultrasound-guided insertion of subclavian venous access ports. Annals of the Royal College of Surgeons of England. 2005 Jan;87(1):25. https://doi.org/10.1308/1478708051441 PMID: 15720903

2) Strum S, McDermed J, Korn A, Joseph C. Improved methods for venous access: the Port-A-Cath, a totally implanted catheter system. J Clin Oncol. 1986 Apr 1;4(4):596-603. https://doi.org/10.1200/JCO.1986.4.4.596 PMID: 3958769

3) Lenz H, Myre K, Draegni T, Dorph E. A Five-Year Data Report of Long-Term Central Venous Catheters Focusing on Early Complications. Anesthesiology Research and Practice. 2019;2019. https://doi.org/10.1155/2019/6769506

4) Mudan S, Giakoustidis A, Morrison D, Iosifidou S, Raobaikady R, Neofytou K, Stebbing J. 1000 Port-a-cath® placements by subclavian vein approach: single surgeon experience. World journal of surgery. 2015 Feb 1;39(2):328-34. https://doi.org/10.1007/s00268-014-2802-x. PMID: 25245435

5) Fornaro C, Piubeni M, Tovazzi V, Cosentini D, Gelmi M, Rota G, Berta B, Barucco W, Lombardi E, Moles L, Faustini T. Eight‐week interval in flushing and locking port‐a‐cath in cancer patients: A single‐institution experience and systematic review. European journal of cancer care. 2019 Mar;28(2):e12978. https://doi.org/10.1111/ecc.12978.

6) Herd F, Miller T, van Delft FW, Gabra HO. The peripheral portacath provides safe and convenient venous access in pediatric and adolescent patients. Journal of pediatric surgery. 2019 Jul 1;54(7):1449-52. https://doi.org/10.1016/j.jpedsurg.2018.07.026

7) Biffi R, Orsi F, Pozzi S, Pace U, Bonomo G, Monfardini L, Della Vigna P, Rotmensz N, Radice D, Zampino MG, Fazio N. Best choice of central venous insertion site for the prevention of catheter-related complications in adult patients who need cancer therapy: a randomized trial. Annals of Oncology. 2009 May 1;20(5):935-40.

8) Pittiruti M, Malerba M, Carriero C et al. Which is the easiest and safest technique for central venous access? A retrospective survey of more than 5,400 cases. J Vasc Access 2000; 1: 100–107.

9) Randolph AG, Cook DJ, Gonzales CA, Pribble CG. Ultrasound guidance for placement of central venous catheters: a meta-analysis of the literature. Crit Care Med 1996; 24: 2053–2058.

10) Noel-Lamy M. The Seldinger technique: a short history, and its applications 60 years later. University of Toronto Medical Journal. 2015;93(1):30-1.

11) Ramzi ZS, Abdulwahid RF. Health and safety management, Archivos Venezolanos de Farmacología y Terapéutica. 2021 Feb 21;40(2):165-170

12) Granic M, Zdravkovic D, Krstajic S, Kostic S, Simic A, Sarac M, Ivanovic N, Radovanovic D, Dikic S, Kovcin V. Totally implantable central venous catheters of the port-a-cath type: complications due to its use in the treatment of cancer patients. J BUON. 2014 Sep;19(3):842-6. PMID: 25261677

13) Hartkamp A, Van Boxtel AJ, Zonnenberg BA, Witteveen PO. Totally implantable venous access devices: evaluation of complications and a prospective comparative study of two different port systems. The Netherlands journal of medicine. 2000 Dec 1;57(6):215-23. https://doi.org/ 10.1016/s0300-2977(00)00083-8 PMID: 11099790

14) Ozyuvaci E, Kutlu F. Totally implantable venous access devices via subclavian vein: a retrospective study of 368 oncology patients. Adv Ther 2006;23:574-581.https://doi.org/DOI: 10.1007/bf02850046 PMID: 17050500

15) Pascual A, Cercenado E, Salavert M et al. Update on pathogenesis and diagnosis of intravascular catheter- related infections. Enferm Infecc Microbiol Clin 2011;4:16-21.https://doi.org/ 10.1016/S0213-005X(11)70032-5 PMID: 21458716

16) Slama M, Novara A, Savafian A et al. Improvement of internal jugular vein cannulation using an ultrasound-guided technique. Intensive Care Med 1997; 23: 916–919

17) Skelton IV WP, Franke AJ, Welniak S, Bosse RC, Ayoub F, Murphy M, Starr JS. Investigation of complications following port insertion in a cancer patient population: a retrospective analysis. Clinical Medicine Insights: Oncology. 2019 Apr;13:1179554919844770. https://doi.org/10.1177/1179554919844770

18) Schiffer CA, Mangu PB, Wade JC et al. Central venous catheter care for the patient with cancer: American Society of Clinical Oncology Clinical Practice Guideline.J Clin Oncol 2013;31:1357-1370. https://doi.org/10.1200/JCO.2012.45.5733 PMID :23460705

19) Lee AY, Kamphuisen PW. Epidemiology and prevention of catheter-related thrombosis in patients with cancer.J Thromb Haemost 2012;10:1491-1499. https://doi.org /10.1111/j.1538-7836.2012.04817.x PMID: 22703114

20) Frank DA, Meuse J, Hirsch D et al. The treatment and outcome of cancer patients with thromboses on central venous catheters. J Thromb Thrombolysis 2000; 10: 271–275. https://doi.org/ 10.1016/j.ejrnm.2015.06.004

21) Babu R, Spicer RD. Implanted vascular access devices (ports) in children: complications and their prevention. Pediatric surgery international. 2002 Jan 1;18(1):50-3. https://doi.org/10.1007/s003830200011

22) Ng F, Mastoroudes H, Paul E, Davies N, Tibballs J, Hochhauser D, Mayer A, Begent R, Meyer T. A comparison of Hickman line-and Port-a-Cath-associated complications in patients with solid tumours undergoing chemotherapy. Clinical oncology. 2007 Sep 1;19(7):551-6. https://doi.org/ 10.1016/j.clon.2007.04.003 PMID : 17517500

23) Fallon SC, Larimer EL, Gwilliam NR, Nuchtern JG, Rodriguez JR, Lee TC, Lopez ME, Kim ES. Increased complication rates associated with Port-a-Cath placement in pediatric patients: location matters. Journal of pediatric surgery. 2013 Jun 1;48(6):1263-8. https://doi.org/10.1016/j.jpedsurg.2013.03.020 PMID: 23845616

24) Samad AM, Ibrahim YA. Complications of Port A Cath implantation: a single institution experience. The Egyptian Journal of Radiology and Nuclear Medicine. 2015 Dec 1;46(4):907-11.

25) Biffi R, De Braud F, Orsi F et al. A randomized, prospective trial of central venous ports connected to standard open-ended or Groshong catheters in adult oncology patients. Cancer 2001; 92: 1204–1212.
