Significance estimation for the Kullback-Leibler divergence: the Poissonian case in seismological studies

Estimación de significatividad para la divergencia Kullback-Leibler: el caso Poissoniano en estudios sismológicos

F. A. Nava

Centro de Investigación y de Educación Superior de Ensenada, México

In many kinds of statistical studies, including seismological ones, it is a common task to compare some observed probability distribution P={p_j; j=1,…,M} with some reference distribution Π={π_j ; j=1,…,M}, and the difference between them is often measured by using the Kullback-Leibler divergence (K-L) κ:

(Kullback and Leibler, 1951; Eguchi and Copas, 2006). This measure is zero when P=Π, but it does not have a fixed upper limit; it can be infinite when one or more π_j ’s are zero and the corresponding p_j ’s are not (Lin, 1991; Shlens, 2007), but, for a reasonable reference distribution with no unbalanced zeros, how large can it be? It is necessary to have a reference value in order to assess the significance of any result other than zero.

In what follows, we will present a method for evaluating the confidence that can be had about two distributions being similar, based on a K-L measure, using a seismological example.

In assessing seismic hazard for a given region a common tool is to look for clustering or gaps in the times of occurrence of earthquakes above a given magnitude in the background seismicity, because those features may be precursors to a large earthquake. If the observed seismicity appears to show clusters or gaps, to assess their significance it is necessary to test whether they may be due to random concentrations in events occurring with uniform probability over time, i.e. to test the observations versus the null hypothesis.

One way to test the null hypothesis is to use the well known fact that if events are occurring randomly with uniform probability in time at a rate of λ events per unit time, then the number of events n occurring within intervals of a given length T are distributed according to the Poisson distribution:

(e.g. Mack, 1967; Dekking et al., 2005; Boxma and Yechiali, 2007), so we will compare the distribution of observed n’s with the Poisson distribution using the K-L divergence.

Suppose that the times of occurrence of N_e =160 earthquakes ocurred over a period N_y =60 years have been observed, as shown in Figure 1 (top), which gives an occurrence rate λ=2.6̅6̅6̅6̅6̅ events/year, and , for the sake of simplicity, let us consider yearly intervals so T=1.0 yr in (2). Figure 1 (middle) shows the number of events per year, n, for each observed year, and (bottom) the corresponding histogram, as well as the expected number of events from the Poisson distribution.

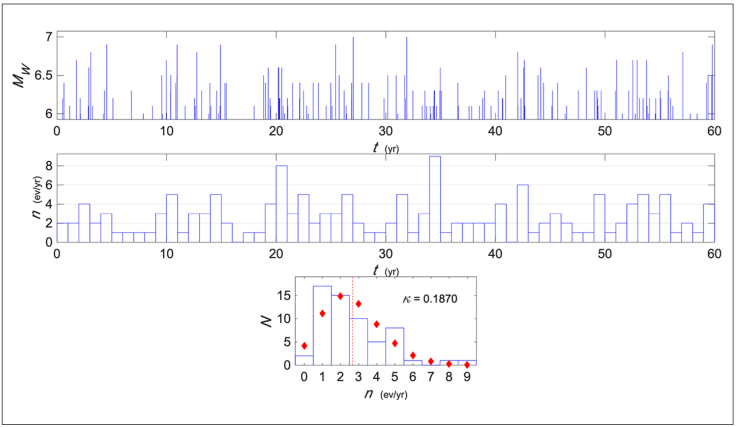

Figure 1
Times of occurrence 160 earthquakes with Gutenberg-Richter distributed magnitudes over a period of 60 years (top), number of earthquakes per year for each year (middle), and (bottom) histogram of numbers of earthquakes per year (blue line) and expected frequencies of earthquakes per year from the Poisson distribution.

The two distributions are not equal but, quantitatively, how different are they? We will measure their divergence using K-L. Observed probabilities are estimated from the histogram as

where N_n is the observed number of incidences of n events/ year and n_max is the maximum observed n. We will compare this observed probability distribution with the reference

as shown in Figure 2.

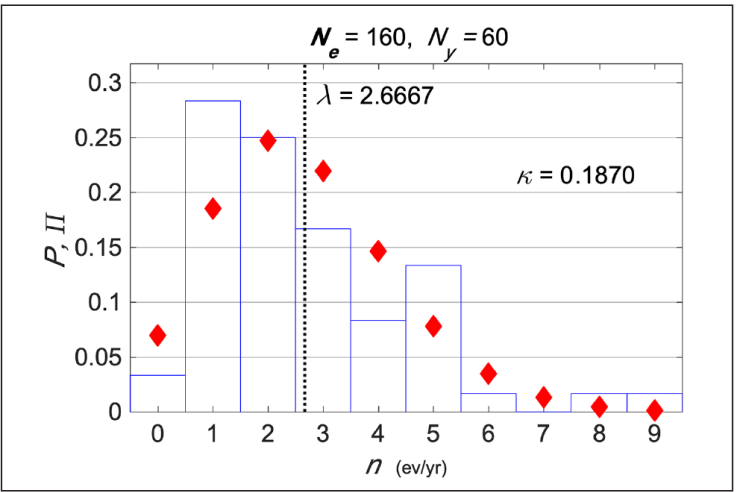

Figure 2
Observed distribution of n and corresponding values from the Poisson distribution (red diamonds) for λ=2.6̅6̅6̅6̅6̅ events/year indicated by the vertical dashed line. The K-L divergence between the two distributions is κ=0.1870.

To evaluate the K-L divergence between these two distributions, although the Poisson distribution is non-zero for an infinite number of terms, the summation in (1) is only done from 0 to n_max , because P can be considered equal to zero for n>n_max and terms with p_n =0 do not contribute to the summation.

The K-L evaluation yields κ=0.1870, but, what does this number mean (apart from the distributions not being equal)? Here, it must be considered that, as is common for seismological studies, particularly those involving large magnitudes, the observed distribution comes from only one very short realization consisting of only N_y =60 events.

Let us estimate how probable is the observed κ for samples of size N_y of a Poisson process. We will do this through a Monte Carlo simulation (Yakowitz, 1977; Rubinstein and Kroese, 2016) of N_r =100,000 realizations of synthetic samples of N_y Poisson distributed numbers n; the divergence κ between the resulting distribution P and Π from (3) is evaluated for each realization.

The probability distribution f(κ) resulting from the simulation is shown in Figure 3 (top), the distribution has mean μ_κ =0.1066 and standard deviation σ_κ =0.0499, and it is clear that the probability that a 60 samples long random realization of a Poissonian process actually results in κ=0 is extremely small. Indeed, if the sampled process were indeed Poissonian, instead of κ=0, a value around κ=0.082 would be much more probable.

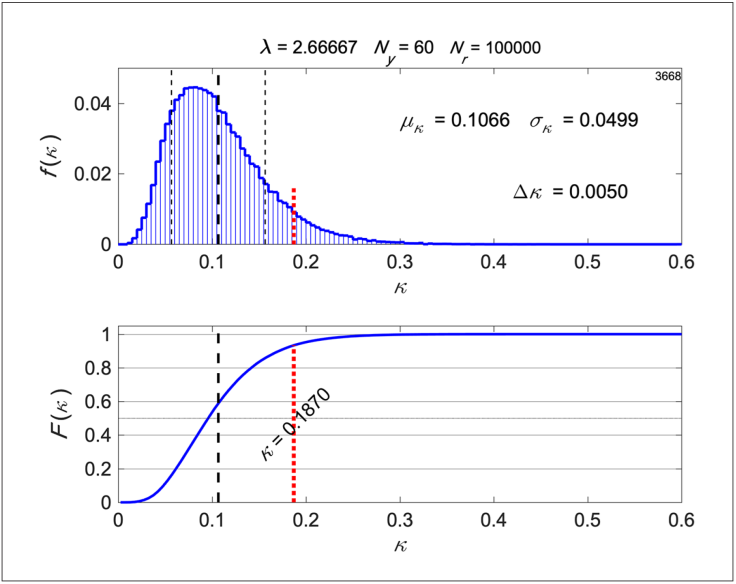

Figure 3
Distribution of κ values from the Monte Carlo simulation (top), ∆κ is the class width, the dashed thick vertical line indicates the mean μ_κ of the N_r =100,000 realizations, and the thin dashed vertical lines indicate plus/minus one standard deviation σ_κ from the mean. Cumulative κ distribution (bottom), the dashed black line is μ_κ , and the dotted red line indicates the observed κ=0.1870.

The cumulative F(κ) in Figure 3 (bottom) shows the observed κ=0.1870, and gives Pr(κ≥0.1870)=0.0664, so the possibility of the null hypothesis, that the observed seismicity occurred with uniform probability in time, can be rejected with 0.9336 confidence. This number constitutes a firm basis for the decision of whether to reject the null hypothesis or not; in this case the observed seismicity is, with high probability, not distributed uniformly in time, although the null hypothesis cannot be rejected at the widely used significance level of 0.05. It should be pointed out that this confidence estimation takes into account the sample length.

Other reference measures

We have presented a practical way for assessing the significance of a K-L measurement. Now, just for argument’s sake, let us consider two other reference measures.

First, consider the uniform distribution, which is a common reference because it has the highest entropy (Shannon, 1948), with probabilities

$p_n^U=\frac{1}{n_{\mathrm{m}\mathrm{a}\mathrm{x}}+1};n=\mathrm{0,1},\dots ,n_{\mathrm{m}\mathrm{a}\mathrm{x}},$(5)

shown as circles in Figure 4 (left). The K-L divergence between the uniform and Poisson distributions for n_max =9 is κ^U =1.22055, much higher than the value for our example distribution and has a probability value of nearly zero.

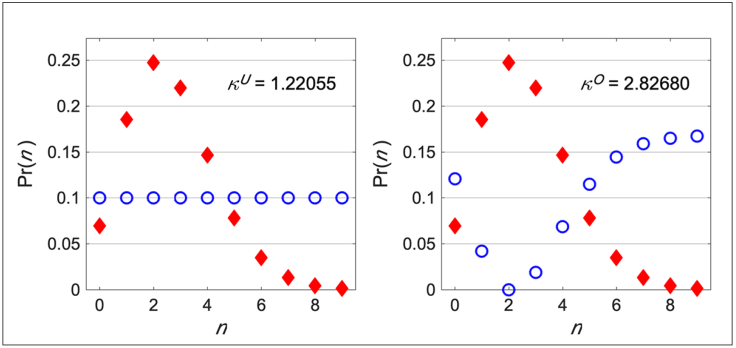

Figure 4
Poisson distribution for λ=2.6̅6̅6̅6̅6̅ events/year, and n_max =9, indicated by red diamonds, and the uniform (left) and opposite (right) reference distributions.

The second reference distribution is the “opposite” distribution to Poisson:

$p_n^0=\frac{{\pi }_{\mathrm{m}\mathrm{a}\mathrm{x}}-{\pi }_n}{\sum _{k=0}^{n_{\mathrm{m}\mathrm{a}\mathrm{x}}}\left({\pi }_{\mathrm{m}\mathrm{a}\mathrm{x}}-{\pi }_{\kappa }\right)};n=\mathrm{0,1},\dots ,n_{\mathrm{m}\mathrm{a}\mathrm{x}},$(6)

where π_max is the maximum value of the Poisson distribution. It is an inverted and normalized Poisson as shown by circles in Figure 4 (right). The K-L divergence for the opposite distribution is κ^O =2.82680, and it is considerably higher than the observed κ and the reference κ^U ; its divergence is not the highest possible between the Poisson distribution and another distribution of the same length, but it is the most different distribution in an intuitive way.

Of course, both reference values should be estimated for the same n range as that of the observed distribution (they increase with the length of the range), and may not be very useful because they have very large κ values with vanishingly small probabilities, but still they are better reference values than infinity.
