Model for estimating soil chemical properties with RGB drone images
Manuel Álava Bermeo malava7130@utm.edu.ec
Antony García Solórzano agarcia6793@utm.edu.ec
Henry Pacheco Gil henry.pacheco@utm.edu.ec
Cristhian Delgado Marcillo. cristhian.delgado@utm.edu.ec
Recepción: 09 Agosto 2024
Revisado: 02 Septiembre 2024
Aprobación: 09 Septiembre 2024
Agriculture is an essential activity for the survival of the human being, which significantly influences the economy of Ecuador with 10 % of GDP, promoting development and reducing poverty contributing 19 % to the generation of employment [1].
By using advanced spatial analysis tools, such as Geographic Information Technologies (GIT), agriculture and soil management specialists can make informed decisions to optimize agricultural practices [2].
Soil quality is fundamental for agricultural productivity, it is a complex ecosystem [3], it needs to evaluate chemical parameters such as organic matter (OM), hydrogen potential (pH) and electrical conductivity (EC) to improve its structure, retain water and nutrients [4].
Understanding pH, electrical conductivity (EC), and organic matter (OM) is crucial for assessing soil quality in agriculture. pH affects nutrient availability and plant growth, while EC indicates salt concentration, which can impact water and nutrient uptake. OM improves soil structure, water retention, and microbial biodiversity. Together, these parameters enable more precise soil management, optimizing conditions for healthy and sustainable crop development [5].
The limitation in determining the chemical variables of the soil lies in the constant need to evaluate the productive capacity of the soil through exhaustive laboratory analyses [6]. However, this practice faces several obstacles, as it is costly, time-consuming in processing samples and, in many cases, is not carried out due to a lack of knowledge on the part of producers [7].
To address this problem, it is proposed to use spectral calculation from the RGB bands (corresponding to the red, green and blue wavelengths), of aerial images captured by low-cost drones, with the aim of developing a model adapted to local conditions that provides reliable and fast data on key chemical properties of the soil. Such as pH, electrical conductivity and organic matter content [8].
The research by Krestenitis et al. [9] presents an innovative path planning method for UAVs in precision agriculture. The goal is to acquire high-quality data in the shortest possible flight time by adjusting the UAV's speed.
The integration of remote sensing technologies is presented as a promising tool to study the chemical properties of soil, offering accurate and relevant data [10].
Petrovic's research confirms that Agriculture 5.0 has now begun with the widespread use of robotic systems in various field operations, supported by the Internet of Things (IoT), autonomous self-driving devices (robots and drones), and artificial intelligence [11].
Precision agriculture in Ecuador is used in the floriculture, banana, and sugar sectors, mainly for the implementation of automated irrigation systems, pest monitoring and control, moisture management, and ventilation. In this context, drones are used for pest detection and monitoring, as well as for topographic surveys in order to optimize crop management [12].
The implementation of TIG in the study of soil chemical properties involves the acquisition, organization and analysis of detailed geospatial data on pH, EC and OM, through the use of specialized tools that allow the generation of layers of information and the performance of spatial analyses to identify patterns and distributions where modeling techniques are used to predict the distribution of soil properties in unsampled areas. In order to optimize agricultural practices, improve crop management and maximize productivity in an efficient and sustainable way [13].
UAV equipped with high-definition cameras and sensors like LiDAR, are essential tools in agricultural remote sensing. They enable georeferencing data and creating accurate maps of crop health, estimating bio-physical characteristics such as growth and yield. They offer an advanced alternative to traditional field exploration, providing detailed views at the plant and leaf level due to their high resolution and segmentation algorithms [14].
Mao et al. [15], point out that the use of low-end unmanned aerial vehicles (UAVs) has many advantages, such as low cost, high resolution, and considerable spatial coverage giving value to remote sensing data. Remote sensing is based on collecting data from various aerial photographs at different spectral ranges [16].
The next innovation in smart UAVs aims to transform agriculture with cost savings and increased yields. However, they face cybersecurity risks, which could be mitigated through Blockchain and 5G networks [17].
Tan et al. [18], highlights that drones equipped with hyperspectral sensors are crucial for agricultural monitoring, capturing changes in vegetation and soil, and providing spectral information to monitor salinity. The use of regression algorithms, such as Random Forest, has matured as an effective solution for predicting properties like soil salinity, handling nonlinear fitting problems and high-dimensional data.
In the context of soil analysis, the technology of RGB image analysis algorithms is effectively deployed. This approach involves the application of statistical and mathematical methods to the images acquired by a drone equipped with an RGB digital camera. Through this process, the precise identification and quantification of the wavelengths contained in the images is achieved, thus allowing a detailed analysis of soil properties in a non-invasive and reliable way [19].
Recent research by Lintes et al. [20] developed a radar method using two unmanned aerial vehicles in a bistatic system. This system irradiates the Earth's surface obliquely to create the Brewster effect, which enhances the reflection of radio signals from subsurface horizons, allowing for the determination of their physical and chemical parameters.
In a study by Ngabire et al. [21], in the Shiyang River basin, remote sensing was applied to analyze soil salinization in arid and semi-arid environments. A multiple linear regression model was used with 80 samples, divided for training and validation using the Kennard-Stone algorithm. Multicollinearity identification was performed with the variance inflation factor (VIF), adjusting covariates to ensure proper model specification. The results showed outstanding performance, with a coefficient of determination R2=0.898 and a mean square error (RMSE) of 1.653. These findings are of vital importance to support the integration of remote sensing into the analysis of soil chemical properties.
This soil analysis study focused on addressing the imperative need to efficiently estimate the chemical parameters of the soil through image geoprocessing techniques, taking advantage of remote sensing and RGB digital camera tools. This strategy is based on the precise determination and evaluation of electrical conductivity (EC), pH and organic matter content in the soil, thus offering a significant contribution to the advancement of sustainable management of agricultural resources [22].
A. Location of the study area

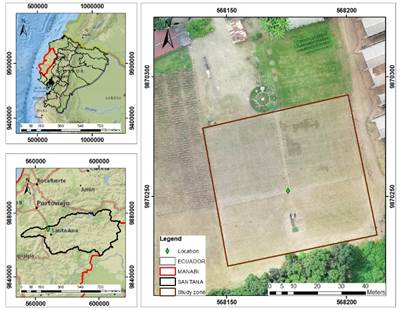

This study was carried out on a plot of 0.38 hectares, located in the Lodana parish of the Santa Ana canton belonging to the province of Manabí. Its geographical location is 80°23'13.60"W, 1°10'25.51"S [Fig. 1]. The average temperature is 27.6°C and its average annual rainfall is 83.60 mm [23].
B. On-site measurements and field sampling.

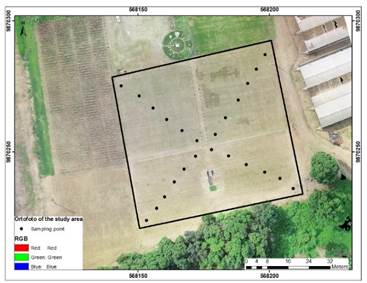

To define the sampling points systematically, a system of diagonal transects [24] was used in the study area as shown in [Fig. 2]. A total of 45 sampling points were surveyed Between July 20 and 22, 2023, coinciding with the end of the drought period in the area, which were georeferenced by means of a topographic implement called RTK (Real Time Kinematics) GPS model Topcon GR-5. With the coordinates generated by the RTK, a shapefile vector file was constructed, using ArcGIS software tools. Fields with the variables pH, EC and MO were added to the attribute table of the shapefile file with the data measured in the field and laboratory.
At each sampling point, the chemical parameters electrical conductivity (EC) and hydrogen potential (pH) were measured in situ using EC-pH meters [25] multiparameter sensors, which are equipment that have an automatic calibration and allow measuring pH on a scale of 0 to 14 with an accuracy of 0.01 pH units while for EC it performs it in a measurement range 0.1 μS/cm to 200 mS/cm with an accuracy of 0.01 μS/cm [Fig. 3].
Before the on-site measurements were made, the ground was prepared by tilling the soil, with a metal tip, to loosen the first 5 cm of the surface layer, thus facilitating the correct insertion of the sensor head. Once the sensor was inserted, it was waited for it to stabilize before proceeding to record the electrical conductivity (EC) and hydrogen potential (pH) data. Each parameter was measured in three replications and the average value obtained was recorded.
Field sampling involved the extraction of soil samples, each of approximately 500 gr, using a field drill to reach depths of 20 and 40 cm, which was mixed and homogenized to generate a composite sample at each sampling site. The samples were deposited in duly labeled sample holder sleeves, and transported to the water and soil laboratory of the Faculty of Agricultural Engineering of the Technical University of Manabí for the respective analyses.
C. Laboratory tests
The laboratory analysis consisted of the determination of soil organic matter (OM) content by means of the loss-on-ignition (LOI) or gravimetric method proposed by Schulte and Hopkins [26]. To determine OM, samples were kiln dried at 105°C for 24 hours, cooled in a desiccator and then weighed 5g of sample and placed in crucibles before being calcined at 600°C for 2h in a Lindberg/blue M muffle furnace. After combustion, the samples were cooled in a desiccator and re-weighed on an analytical balance. With these values, the percentage of OM was calculated using (1).
(1)Where PSS represents the dry weight of the soil and PSI the weight after ignition.
D. Aerial image processing with drone
The aerial image capture was done with the DJI Phantom 4 Pro drone, equipped with a 20 MPX RGB camera, capable of detecting the wavelengths of the color red, green, and blue in the visible electromagnetic spectrum [13]. The flight planning was carried out using the DJI GO4 software, this software allowed to define the region of interest, the flight height was 60 m, speed 3.3m/sec, the pixel resolution was 1.5 cm/pixel, the superposition of images, as well as the strategic choice of take-off and landing points.
The RGB images obtained with the drone were subjected to an analysis process using the PIX4Dmapper photogrammetry software. This process was carried out in the Scientific Model and Calculation laboratory of the Faculty of Agricultural Engineering of the UTM, with a high-end computer.
The processing methodology encompassed the import of images and coordinates of the control points, as well as the implementation of necessary adjustments in each phase of the process. These adjustments were executed in order to ensure exhaustive control over the quality of the data obtained through image processing by means of GIS [27], this process allowed the generation of quality photogrammetric products such as orthophoto, RGB bands, digital surface and terrain models, as well as the 3D point cloud.

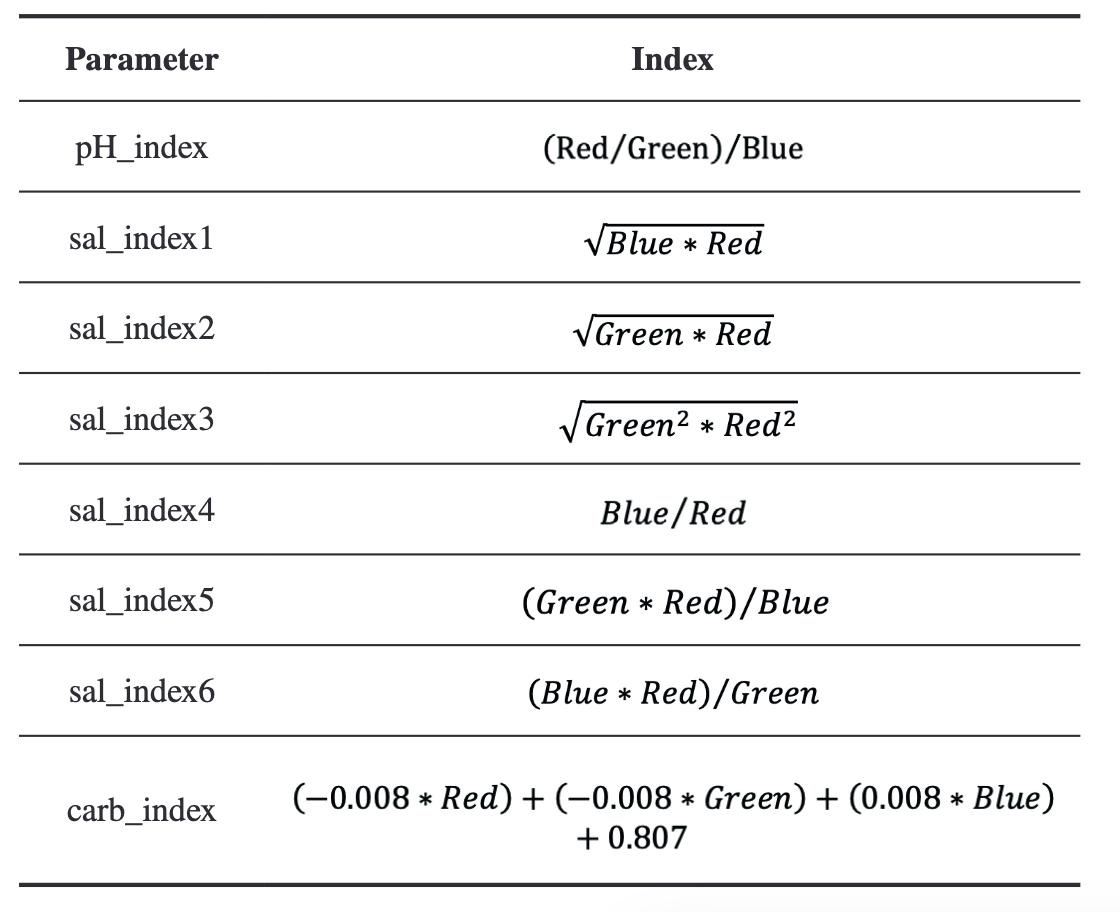

With the RGB spectral bands, the respective calculation of the indices shown in Table I was carried out. These have been reported in the literature as medium-power indices [28], [29] and [30], to determine chemical parameters of the soil (pH, salinity and organic matter), because they have only three bands of the electromagnetic spectrum [31].
E. Statistical analysis
IBM SPSS Statistics (Statistical Package for Social Sciences) statistical software tools were used to perform correlation and regression analyses, in order to model and relate the data obtained in the field and laboratory such as pH, EC, MO and spectral indices. Due to the nature of the data, Pearson's correlation was used, which varies between -1 and 1 evidenced in Table II, quantifies the strength and direction of the linear relationship between two continuous variables; it is preferred for analyses where a precise linear relationship between variables is anticipated [32].
1. Chemical parameters of the soil
Soil chemical parameters were determined, including pH, electrical conductivity (EC), and organic matter (OM) content. According to the values in the table indicated, the classification of electrical conductivity exhibits non-saline characteristics, with average values of 1.09 dS/m, belonging to the category of soils with low concentration of dissolved salts according to the classification of [33], shown in Table III.

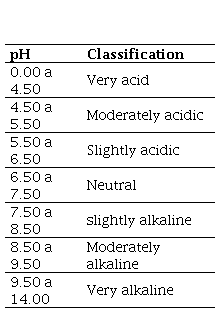

Based on the soil pH classification presented in Table IV, the soil was determined to be slightly acidic, with an average value of 5.86 according to the classification of [34]. This value indicates moderate acidity, which can influence nutrient availability and soil microbial activity, which are crucial for agricultural productivity and ecosystem health [22].
Regarding organic matter, an average of 5.19 % of organic matter was found in the soil, considered a medium-high percentage, according to the classification shown in Table V, [35], it is beneficial due to its positive effects on soil structure, water and nutrient retention, as well as on the promotion of microbiological activity [31].
2. Aerial images and spectral indices.

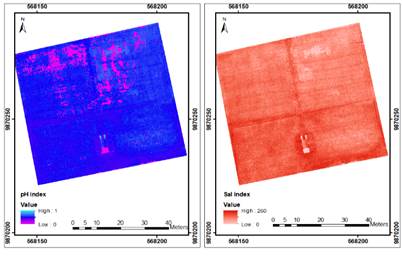

Fig. 4 shows the calculation of the spectral indices that yielded the best results. The pH_index stands out for indicating the degree of alkalinity of the soil, while the sal_index6 reflects the content of dissolved salts.
3. Orthophoto resolution and quality
The orthophoto acquired on July 20, 2023 at 10:30 AM presents a high quality thanks to its spatial resolution of 1.6 cm/pixel, which allows an exceptional level of detail in the representation of the terrain. The image covers an area of 0.44 hectares, captured under optimal atmospheric conditions, with clear skies, which ensures superior clarity and sharpness in the RGB bands used. In addition, the orthophoto is fully compatible and integrated with ArcGIS software because it is generated in a GEOTIFF format, facilitating its use in GIS applications and ensuring its efficiency in geospatial analysis.
4. Index statistics

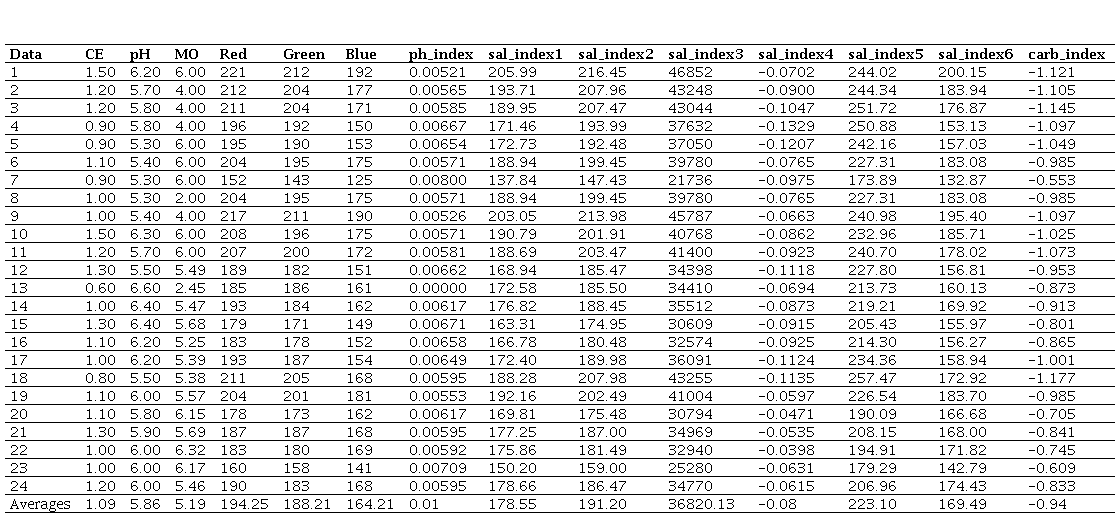

Table VI shows the soil data obtained in the field and laboratory, as well as the spectral indices calculated with the photogrammetric products.
5. Correlation analysis and regression models

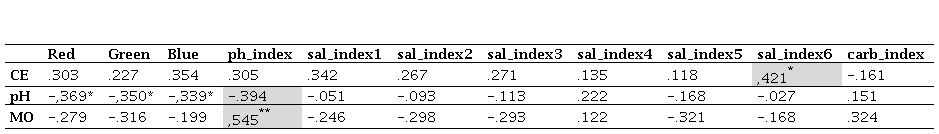

Pearson's correlation coefficients are shown in Table VII.

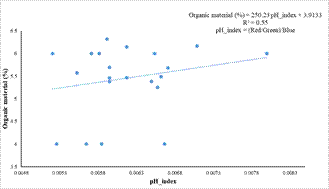

In relation to soil organic matter (OM) content, a strong correlation was observed with the pH index (pH_index), evidenced by a coefficient of determination R2=0.55 and RMSE 0.72 [Fig. 6]. This finding suggests that pH_index is closely related to the content of OM in the soil. The significance of the data obtained reinforces the usefulness of the pH_index as a reliable indicator to estimate the percentage of OM in the soil. This robust correlation highlights the importance of this index in the assessment of soil fertility and health, providing a valuable tool for agricultural management.

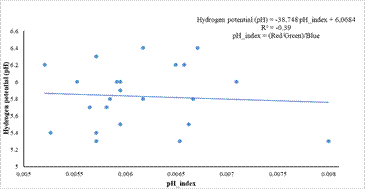

Regarding pH, a moderate correlation was observed, with an R.=-0.39 and RMSE 0.35 between pH and pH index [Fig. 7]. This indicates that an increase in pH is associated with a decrease in the pH index, revealing an inverse relationship that underscores the significant influence of pH on the characteristics assessed by the index.

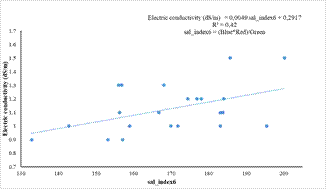

In relation to electrical conductivity (EC), a moderate correlation was observed with the salinity index (sal_index6), with a coefficient of determination R.=0.42 and RMSE 0.17[Fig. 8] . This result indicates a significant relationship between soil EC and sal_index6, suggesting that this index may be a useful indicator for estimating the soluble salt content of soil. The moderate correlation observed highlights the relevance of this index in the evaluation of soil chemical properties.
The simple linear regression estimation model presents some limitations that may be related to the presence of multicollinearity or outliers. To improve the implementation of these models, it is suggested to incorporate artificial intelligence algorithms, such as artificial neural networks [36].
The implementation of RGB spectral indices for soil analysis and estimation of their chemical properties has significant advantages over the most advanced multispectral techniques. RGB sensors are much cheaper and therefore accessible to a wide audience, from small farmers to researchers with limited budgets. In addition, these sensors are often available in common devices such as smartphones and drones, making them easy to use in various agricultural and research applications [37].
The use of this technique is simpler to implement, as these sensors are easier to handle, allowing users to capture and analyze images without the need for specialized equipment. Its accessibility translates into faster processing and analysis, as RGB data is less complex to manage than multispectral data. Algorithms for processing RGB images are simpler and less demanding in terms of computational resources [38].
The images generated by these technologies are easily integrated into common photo analysis platforms and tools, avoiding the need for specialized software, although they do not provide the same spectral depth as advanced sensors, they are effective in detecting visual changes in soil and crops, in addition, these cameras are less sensitive to environmental variations such as humidity and lighting, facilitating the capture of images in various conditions without constant adjustments [39].
The average electrical conductivity of the soil was 1.09 dS/m, indicating non-saline conditions. The soil was determined to be slightly acidic, with an average pH value of 5.86.
The organic matter presented an average of 5.19 %, which is considered within a medium-high range.
Photogrammetric flight generated a high-quality orthophoto with a resolution of 1.6 cm per pixel. Eight RGB spectral indices were calculated, of which only pH_index showed a strong correlation with organic matter, with a coefficient of determination R2=0.54
On the other hand, the sal_index6 and presented a moderate correlation with electrical conductivity (EC), with a coefficient of determination R2=0.42.
Additionally, a moderate negative correlation was observed between pH and pH_index, with an R2=-0.39.
The rest of the indices studied showed weak relationships with respect to the chemical properties of the soil.
Three models were proposed to estimate soil chemical properties from spectral indices as useful indicators that can result in time and money savings, as well as a decrease in the environmental impacts of agricultural activities.
The results obtained confirm the potential of drone-captured RGB images as a cost-effective and accessible alternative to traditional methods of soil chemical analysis.
It is essential to validate these models in various agricultural environments to ensure their applicability and accuracy under different agroecological conditions. This validation will extend the robustness and reliability of the proposed approach, allowing its widespread adoption in different productive areas.
