The samples of the known variety of C. sinensis, C. limon, and V. viniferawere collected from the local street vendor in the commonly used polythene bag. The samples were washed initially with tap water and then with distilled water to make the outer surface sterilized (Shaw et al., 1997).

The fresh orange (1000g), Lemon (500g), and grape (500g) after surface sterilization were gently pressed against the grater to remove the zest without removing any part of the white flesh. The peel of V. vinifera was obtained manually. Then the peels of V. vinifera and zest of C. sinensis and C. limon were transferred to round bottom flasks (RBF). After that water was added into the RBF along with porcelain chips to prevent splashing of the zest and peels to the neck and allow smooth boiling (Gelb et al., 1995; Malko and Wróblewska, 2016). The distillation process was proceeded at a temperature of 70°C. The distillate was collected after one and a half hours and then continuing the process again. The distillate was left undisturbed for about 20 minutes and then removed carefully using a pipette.

The crude essential oil rich in limonene isolated from zest of Citrus sinensis, Citrus limon, and Vitis vinifera were detected by comparing the odour of the pure limonene with that of the isolated samples. Furthermore, the detection of crude limonene was performed by comparing the pH with that of pure limonene (Lopez-sanchez and Pagliaro, 2014). For the detection of the crude limonene from the zest of C. sinensis (OIL), C. limon (LIL), and V. vinifera (GIL) biochemical assays such as Iodine test and Bromine test as described by Wang and Weller, 2006, and Asbahani et al., 2015, respectively.

The strains which include gram-positive (B.subtilis, M.luteus, and S. aureus), gram-negative (E.coli, K.pneumoniae, A.hydrophila, and P.pituda), and fungal (C. albicans, C. parapsilosis and S.cerevisiae) were obtained from microbial type culture collection (MTCC) (Lucchesi et al., 2004). All the bacterial and fungal cultures were initially revived in the nutrient broth and yeast extract peptone dextrose (YEPD) broth, respectively and growth was checked as per the method described by Bhattacharya et al., (2014).

After the revival of microbes the antimicrobial activity of the crude essential oils rich in limonene was determined by using Kirby Bauer’s disc diffusion method (Akhtar et al., 2017a; Akhtar et al., 2017b; Choudhury et al., 2017). In brief the microbes were grown overnight at 37°C and 28°C in Nutrient broth and YEPD broth for bacterial and fungal species respectively. Then 100 µl of the culture were spread on Nutrient agar and YEPD agar plates. Then, sterile filter discs containing different concentration of the essential oils rich in limonene extracted from zest of C. sinensis, C. limon and V. vinifera were placed on the plates. The plates were further incubated at 37°C for bacterial species and 28°C for fungal species. After the incubation, the zone of inhibition was measured. Ampicillin was used as control for bacterial species and Amphotericin B was used as control for fungal species.

Distillate obtained after Hydro-distillation is given in the table 1. The pH of the crude essential oils was almost the same as that of pure limonene. The color change during the biochemical assays such as Iodine test and Bromine water test also confirmed the presence of limonene in the crude essential oils (Figure 1 and Figure 2). The limonene content in orange zest, limonene zest, and grape peels were 2.0 mL, 2.7mL and 3.46mL for every 100 g of samples respectively.

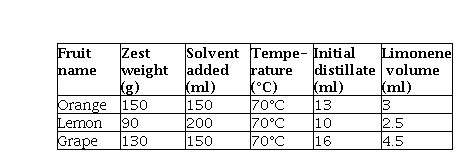

Table 1
Distillate obtained after Hydrodistillation

The maximum anti-microbial activity was shown by the pure limonene (97%) for all the tested strains. Among the ten strains, the maximum effect of pure limonene was found in the case of B. subtilis with a zone of inhibition (ZOI) measuring about 12mm. The minimum effect was revealed against C. albicans with ZOI measuring about 3mm (Karr, 1989). On comparing the results of three crude essential oil isolates the maximum effect was shown by the OIL and LIL against K. pneumoniae (7mm) and S. aureus (8mm) respectively. The crude essential oil rich limonene isolated from the grape peels showed good positive effects against E.coli (0.7mm) and B. subtilis (0.5mm) while it showed ZOI in the range of 1mm- 3mm against all other strains (Figure 3, 4, 5) (Bhattacharya et al., 2014) . However, GOl, was found to be ineffective against all the fungal strains. So, pure limonene showed the maximum anti- microbial activity in comparison to the three isolates, whereas, the OIL and LIL showed maximum effect against gram positive bacteria than those of gram negative bacteria. The effects shown by the limonene are given below (Table 2):

Figure 1
The antimicrobial activity of (i) pure limonene (PL), (ii) crude essential oil isolated from C. limon (LIL), against E. coli at different concentration- (a). 1:2 (b). 1:4 (c). 1:6 (d). 1:8

Figure 2
Antifungal activity of essential oils against C. parapsilosis (a). PL (b). OIL (c). LIL (d) GIL

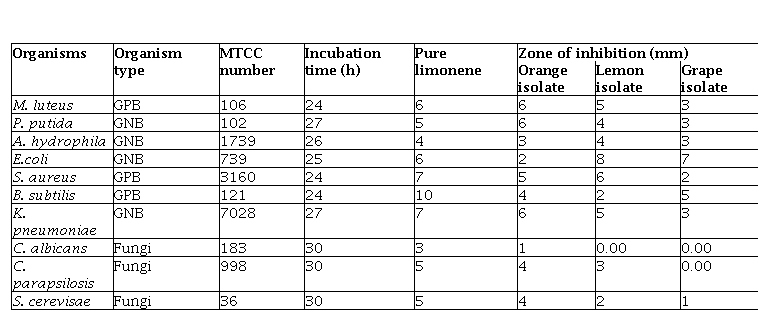

Table 2
Antimicrobial activity of essential oils against different bacteria and fungi

All those bacteria showing a zone of inhibition equal to 4mm or more were tested for determining the microbiostatic/microbicidal of a particular type of limonene. On the other hand, those with ZOI below 4mm were not tested (-). There was a continuous decrease in the ZOI of inhibition from less diluted sample to a more diluted sample (Figure 4 and 5). Besides the continuous decline in the ZOI, there were some unusual results shown by the P.putida for 1:2 and 1:4 LIL. Similar uncommon results were shown by E. coli and B. subtilis (Bold letters). Similar type of findings were reported in previous studies against

E. coli, P. putida, and S. aureus (Akhtar et al., 2017a, 2017b; Bilal Ahmad et al., 2020). C. parapsilosis and S. cerevisae showing ZOI equal to 4mm or more for OIL and PL respectively were tested using different dilutions of these two samples. C. albicans was not tested because it did show susceptibility without dilution. There was a continuous decrease in the ZOI from less diluted sample to more diluted samples. The summary of microbiostatic/microbiocidal effect of crude essential oils rich in limonene with different dilutions is given in Table 3.

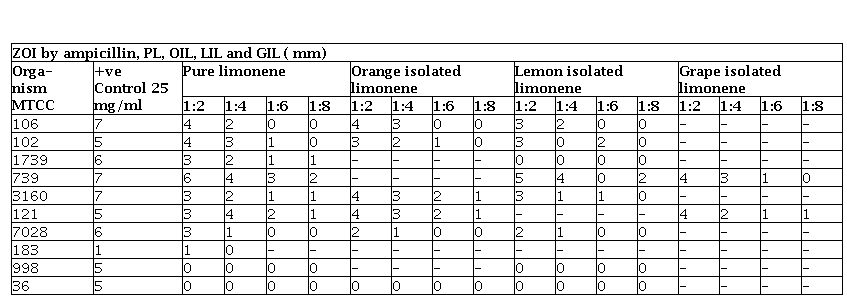

Table 3
MicrobiostaticMicrobicidal effect of limonene with different dilutions
