Relatives Geometries

Geometrías relativas

Armando M. V. Corro
Universidade Federal de Goiás, Brasil
Marcelo Lopes Ferro
Universidade Federal de Goiás, Brasil

Relatives Geometries

Selecciones Matemáticas, vol. 9, núm. 02, pp. 243-257, 2022

Universidad Nacional de Trujillo

Recepción: Septiembre , 23, 2022

Aprobación: Septiembre , 23, 2022

Abstract: In this paper we consider M a fixed hypersurface in Euclidean space and we introduce two types of spaces relative to M, of type I and type II. We observe that when M is a hyperplane, the two geometries coincides with the isotropic geometry. By applying the theory to a Dupin hypersurface M, we define a relative Dupin hypersurface M of type I and type II, we provide necessary and sufficient conditions for a relative hypersurface M to be relative Dupin parametrized by relative lines of curvature, in both spaces. Moreover, we provides a relationship between the Dupin hypersurfaces locally associated to M by a Ribaucour transformation and the type II Dupin hypersurfaces relative M. We provide explicit examples of the Dupin hypersurface relative to a hyperplane, torus, S1 × Rn−1 and S2 × Rn−2, in both spaces.

Keywords: Relative hypersurface, Relative Dupin hypersurface, Isotropic geometry, Ribaucour transformations.

Resumen: En este artículo consideramos M una hipersuperficie fija en el espacio euclidiano e introducimos dos tipos de espacios relativos a M de tipo I y tipo II. Observamos que cuando M es un hiperplano, las geometrías coinciden con la geometría isotropica. Aplicando la teoría a una hipersuperficie de Dupin M, definimos una hipersuperficie de Dupin relativa M de tipo I y tipo II, proporcionamos condiciones necesarias y suficientes para que una hipersuperficie relativa M sea Dupin relativo parametrizado por líneas relativas de curvatura, en ambos espacios. Además, proporcionamos una relación entre las hipersuperficies de Dupin asociadas localmente a M mediante una transformación de Ribaucour y las hipersuperficies de Dupin relativas M de tipo II. Proporcionamos ejemplos explícitos de la hipersuperficie de Dupin relativa a un hiperplano, toroide, S1 × Rn−1 y S2 × Rn−2, en ambos espacios.

Palabras clave: Hipersuperficie relativa, Hipersuperficie de Dupin relativa, geometría isotropica, Transformación de Ribaucour.

1. Introduction

The isotropic geometry introduced by Strubecker in [13], [14] and [15], and developed by several authors, study of the properties invariant by the action of the 6-parameter group G6 in R3.


where a, b, c, c1, c2, φ ∈ R.

In other word, G6 is the group of rigid motions. Notice that on the xy-plane this geometry looks exactly like the plane Euclidean geometry R2. The projection of a vector u = (u1,u2,u3) on the xy-plane is the top view of u and we shall denote it by u- = (u1,u2,0). The top view concet plays a fundamental role in the isotropic space I3, since the z-direction is preserved by the action of G6. A line with this direction is called an isotropic line and a plane that contained an isotropic line is said to be an isotropic plane. One may introduce a isotropic inner product between two vectors u, v as


from which the isotropic distance is defined as:


The inner product and distance above are just the plane Euclidean counterparties of the top views u and e ve. In addition, since the isotropic metric is degenerate, the distance from a point A = (a1, a2, a3) to v = (b1, b2, b3) is zero if . In this cases, one may define a codistance by:

Cdz(A, B) = |b3-a3|,

which is then preserved by G6. To study the geometry of a surface in isotropic space, it is considered a surface as a graph of a function, given by:

X(u1, u2) = (u1 , u2 , h(u1 , u2)).

The isotropic Gauss map, is given by NI = (−h,1 , −h,2 , 1).

The coefficients of the first and second fundamental forms are defined by:


In this work motivated by isotropic geometry, we generalize the idea of isotropic distance. Let Rn+1 be the Euclidean space with the usual metric <, > and consider M a hypersurface fixed in Rn+1, with Gauss map N. We introduce the space relative to M, as being


We define the space relative to M of the type I, as being the space , with the distance defined by

[1.1]

Where is the distance between p1 and p2, considering M as a metric space.

On the other hand, let q = p + tN(p) be a point in , we can consider , and we define the space relative to M of the type II, as being the space , with the metric defined by

[1.2]

where denotes the orthogonal projection of Vq on TpM.

Let M be a hypersurface in , locally, M can be parametrized by X : U ⊂ Rn

[1.3]

where h : U ⊂ Rn → R is a real function and Y : U → M is a local parameterization of the M. In this case, the function h is called the height function.

Let N be the Gauss map of the M. We define the relative Gauss map by

[1.4]

Considering M to be a hypersurface in the relative space of the type I, the coefficients of the first and second fundamental forms of the M relative to M are given by.

[1.5]

Moreover, we define the relative Weingartem matrix W of the , where B is the matrix of coefficients of the second fundamental form and G1 is the matrix of coefficients of the first fundamental form.

Analogously, considering M to be a hypersurface in the relative space of the type II, the coefficients of the first and second fundamental forms of the M relative to M are given by

[1.6]

We define the relative Weingartem matrix W of the , where B and G2 are, respectively, the matrices of the coefficients of the first and second fundamental forms of the M relative to M.

We observe that in the two relative spaces, M has the same relative normal map and the same second fundamental form, what are different are its first fundamental forms.

Ribaucour transformations for hypersurfaces, parametrized by lines of curvature, were classically studied by Bianchi [4]. They can be applied to obtain surfaces of constant Gaussian curvature and surfaces of constant mean curvature, from a given such surface, respectively, with constant Gaussian curvature and constant mean curvature. The first application of this method to minimal and cmc surfaces in R3 was obtained by Corro, Ferreira, and Tenenblat in [6]-[8].

Dupin’s surfaces in Euclidean space are classified. There are several equivalent definitions of Dupin cyclides, for example, in Euclidean space, they can be defined as any inversion of a torus, cylinder or double cone, i.e, Dupin cyclide is invariant under Mobius transformations. Classically the cyclides of Dupin were characterized by the property that both sheets of the focal set are curves. Another equivalent definition says that such surfaces can also be given as surfaces that are the envelope of two families at 1-parameter spheres (including planes as degenerate spheres). For more on Dupin cyclides see [2] and [3].

We consider M a fixed hypersurface in Euclidean space and we introduce two types of spaces relative to M, of type I and type II. We observe that when M is a hyperplane, the two geometries coincides with the isotropic geometry. By applying the theory to a Dupin hypersurface M, we define a relative Dupin hypersurface M of type I and type II, we provide necessary and sufficient conditions for a relative hypersurface M to be relative Dupin parametrized by relative lines of curvature, in both spaces. Moreover, we provides a relationship between the Dupin hypersurfaces locally associated to M by a Ribaucour transformation and the type II Dupin hypersurfaces relative M. We provide explicit examples of the Dupin hypersurface relative to a hyperplane, torus, S1×Rn−1 and S2×Rn−2, in both spaces. This work is organized as follows. In section 1, we provide the basic local theory of the Ribaucour transformation and Dupin hypersurface definition. In section 2, we provide a local characterization of the hypersurfaces relatives, to a fixed hypersurface parametrized by lines of curvature, in both types. Moreover, we provide the relative Weingarten matrix and a necessary and sufficient condition for a relative hypersurface M to be a relative Dupin parametrized by lines of relative curvature, in both types. In section 3, we highlight the type I relative Dupin hypersurfaces and we generate families of type I Dupin hypersurface relative to a hyperplane, a torus, S1 × Rn−1 and S2 × Rn−2. In section 4, we highlight the type II relative Dupin hypersurfaces, we provides a relationship between the Dupin hypersurfaces locally associated to M by a Ribaucour transformation and the type II Dupin hypersurfaces relative to M. Moreover, we generate families of type II Dupin hypersurface relative to a hyperplane, a torus, S1 × Rn−1 and S2 × Rn−2.

2. Preliminaries

This section contains definitions and basic concepts that will be used in later sections.

A sphere congruence is an n-parameter family of spheres whose centers lie on an n-dimensional manifold M0 contained in Rn+1. Locally, we may condider M0 parametrized by X0 : U ⊂ Rn → Rn+1. For each u ∈ U, we consider a sphere centered at X0(u) with radius r(u), where r is a differentiable real function. Two hypersurfaces M and are said to be associated by a sphere congruence if there is a difeomorphism ψ : M → , such that at corresponding points p and ψ(p) the manifolds are tangent to the same sphere of the sphere congruence. A special case occurs when ψ preserves lines of curvature.

Let M and be orientable hypersurfaces of Rn+1. We denote by N and Ne their Gauss map. We say that M and are associated by a Ribaucour transformation, if and only if, there exists a differentiable function h defined on M and a diffeomorphism.

(a) for all p ∈ M, p + h(p)N(p) = ψ(p) + h(p) (ψ(p)), where is the Gauss map of

(b) The subset p + h(p)N(p), p ∈ M, is a n-dimensional submanifold.

(c) ψ preserves lines of curvature.

We say that M and are locally associated by a Ribaucour transformation if, for all p ∈ M, there exists a neighborhood of p in M which is associated by a Ribaucour transformation to an open subset of . Similarly, one may consider the notion of parametrized hypersurfaces locally associated by a Ribaucour transformation.

A hypersurface M ⊂ Rn+1 is a Dupin submanifold if its principal curvatures are constant along the corresponding lines of curvature. Whenever, the principal curvatures are constant, M is a called an isoparametric submanifold.

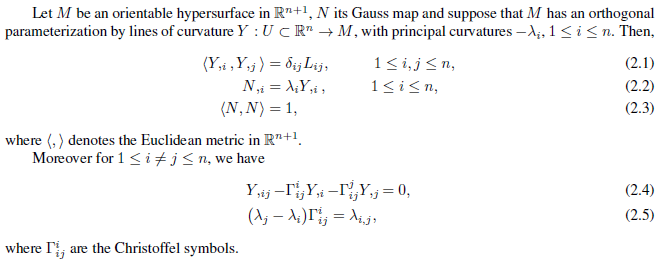

[2.1, 2.2, 2.3, 2.4, 2.5]

The Christoffel symbols in terms of the metric (2.1) are given by

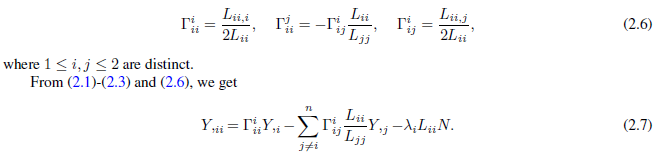

[2.6, 2.7]

3. Relative Weingarten matrix

In this section, we start with a local characterization of a relative hypersurface of the type I and (or) type II to a fixed hypersurface in Rn+1. We provide the relative Weingarten matrix and a necessary and sufficient condition for a relative hypersurface M has a parameterization by lines of relative curvature.

Theorem 3.1. Let M be an orientable hypersurface in Rn+1, N its Gauss map and suppose that M has an orthogonal parameterization by lines of curvature Y : U ⊂ Rn → M, with principal curvatures −λi, 1 ≤ i ≤ n. Let M be a hypersurface in of the type I or type II. Then M can be parameterized by

[3.1]

with the relative normal NR, given by

[3.2]

where Lrr = <Y,r , Y,r >. Moreover, the type I (or type II) relative Weingarten matrix of is given by

[3.3]

where are given by (2.6) and gjj are the coefficients of the first fundamental form of X given by (1.5), if type I and by (1.6), if type II.

Proof.

Let M be a hypersurface in . Since that Y : U ⊂ Rn → M is a parameterization by lines of curvature for M, we have that M can be parametrized by X = Y + hN, where N is a vector field normal to Y . Differentiating X with respect to ui and uj 1 ≤ i, j ≤ n, we get:

[3.4, 3.5]

where λi, 1 ≤ i ≤ n are the principal curvatures of the M.

In order, we will consider N the unit vector field normal to M given by

[3.6]

where


Since <X,i , Ni> = 0, for all 1 ≤ i ≤ n, using (3.4) we get


Substituting in (3.6), we have


Therefore the relative normal


is given by (3.2).

Finally, let be the type I (or type II) relative Weingarten matrix of X. Thus


where gjj are the coefficients of the first fundamental form of X given by (1.5), if type I and by (1.6), if type II. Using (3.2) and (3.5), we have (3.3).

Let M be an orientable hypersurface in Rn+1 and consider M a hypersurface in of the type I

(or type II). For each p ∈ M there exists a type I (or type II) relative orthonormal basis of TpM such that . The functions are called the type I (or type II) relative principal curvatures at p and the corresponding directions, that is, eiR are called type I (or type II) relative principal directions at p. We say that a hypersurface M in is parametrized by lines of relative curvature X of the type I (or type II), if for each , are type I (or type II) relative principal directions.

Theorem 3.2. Let M be an orientable hypersurface in Rn+1, N its Gauss map and suppose that M has an orthogonal parameterization by lines of curvature Y : U ⊂ Rn → M, with principal curvatures −λi, 1 ≤ i ≤ n. Then (3.1) is an orthogonal parameterization by lines of relative curvature of the type I (or type II) for a hypersurface M relative to M of the type I (or type II), if and only if, there exists nonvanishing functions Ω, Ωi and W, where h = Ω/W , such that

[3.7]

With and W(W + λiΩ) /= 0. Moreover X given by (3.1) becomes

[3.8]

Proof. From Theorem 1, the type I (or type II) relative Weingarten matrix of , is given by

(3.3). Therefore, if V is diagonal, then X is a parameterization by lines of relative curvature of the type I (or typeII). Thus, for Vij = 0, i/=j, we get h,

[3.9]

From Proposition 2.3 of [6], h is a solution of (3.9), if and only if, there exists nonvanishing functions Ω,

Ωi and W, where , which satisfy

[3.10]

with and W(W + λiΩ) /= 0.

Remark 3.1.

Let M be a hypersurface in of the type I (or type II), parametrized by lines of relative curvature of the type I (or type II), as in Theorem 2. Then the type I (or type II) relative Weingarten matrix, given by in the Theorem 1, can be rewritten as follows Vij = 0, 1 ≤ i /= j ≤ n and

[3.11]

where W and Ω satisfies (3.10).

Remark 3.2.

Let M be a hypersurface in of the type I (or type II), parametrized by lines of relative curvature of the type I (or type II). Then, the relative principal curvatures of M of the type I (or type II) λRi , are given by λRi = Vii, 1 ≤ i ≤ n.

Definition 3.1. A hypersurface is a relative Dupin submanifold of the type I (or type II) if its relative principal curvatures of type I ( or type II) are constant along the corresponding relative lines of curvature of type I ( or type II). Whenever, the relative principal curvatures of type I ( or type II) are constant, M is a called a relative isoparametric submanifold of type I ( or type II).

Using Remark 2 and Definition 1, we immediately get the corollary.

Corollary 3.1. Let M be a Dupin hypersurface in Rn+1 and suppose that M has an orthogonal parameterization by lines of curvature Y : U ⊂ Rn → M. Let M be a ypersurface in Rn+1 of the type I (or type II), and consider the relative Weingarten matrix of the type I (or type II), given by (3.11). Then M is a Dupin hypersurface in of the type I (or type II) if, and only if, Vii,i = 0.

Remark 3.3. If M is the hyperplane Rn, then the hypersurface M relative to M of the type I and type II is an isotropic hypersurface.

4. Relative geometry of the type I

In this section, we highlight the relative Dupin hypersurfaces type I. We start by providing a relationship between the Dupin hypersurfaces locally associated to Rn by a Ribaucour transformation and the type I Dupin hypersurfaces relative to Rn. We will generate families of type I Dupin hypersurfaces relative to a hyperplane, a torus, S1 × Rn−1 and S2 × Rn−2.

Let M be an orientable hypersurface in Rn+1, N its Gauss map and suppose that M has an orthogonal parameterization by lines of curvature Y : U ⊂ Rn → M, with principal curvatures −λi, 1 ≤ i ≤ n. Let M be a hypersurface in of the type I. Then M can be parametrized by


where h is a differentiable real function defined on M. Moreover, for (1.5), the coefficients of the first and second fundamental forms of X are given by


where the normal relative NR is given by (3.2).

The first theorem provides a relationship between the Dupin hypersurfaces locally associated to Rn by a Ribaucour transformation and the type I Dupin hypersurfaces relative to Rn.

Theorem 4.1. Let Rn be a hyperplane parametrized by Y (u1, ..., un) = (u1, ..., un, 0). Consider Mf the hypersurface locally associated to Rn by a Ribaucour transformation. Let M be a type I hypersurface relative to Rn, then M is a type I Dupin hypersurface relative to Rn, if and only if, Mf is a Dupin hypersurface.

Proof: From Corollary 1, M is a type I Dupin hypersurface relative to Rn if, and only if, Vii,i = 0, where


with functions W and Ω satisfying (3.10).

On the other hand, from [9], Mf locally associated to Rn by a Ribaucour transformation, is a Dupin hypersurface, if and only if, Ti,i = 0, where


with functions W and Ω satisfying (3.10).

Since the principal curvatures of Y are λi = 0 and the metric Lij = δij, for 1 ≤ i,j ≤ n, it follows from equation (3.10) that


where fi(ui) are differentiable functions. Therefore, Vii,i = 0, if and only if, Ti,i = 0.

Remark 4.1. When M is the hyperplane Rn, the geometry of coincides with the isotropic geometry. Then in the theorem 3, we show that the hypersurface Mf locally associated to Rn by a Ribaucour transformation is a Dupin hypersurface, if and only if, the hypersurface M is an isotropic Dupin hypersurface. Moreover, M is the hypersurface of center of the Ribaucour transformation.

In the next results, we provide families of type I Dupin hypersurfaces relative to a hyperplane, a torus, S1 × Rn−1 and S2 × Rn−2.

Proposition 4.1. Consider the hyperplane in the Euclidean space Rn+1, parametrized by Y (u1,...,un) = (u1,...,un,0). Then M is a type I Dupin hypersurface relative to Rn+1, if and only if, M can be parametrized by

[4.1]

Proof. Since the principal curvatures of Y are λi = 0 and the metric Lij = δij, for 1 ≤ i,j ≤ n, it follows from equation (3.10) that


where fi(ui) are differentiable functions. In order, to obtain type I Dupin hypersurface relative to Rn, we consider Vii given by (3.11),


From Corollary 1, M parametrized by , where en+1 = (0,0,...,0,1) is a unit vector field normal to Rn, is a type I Dupin hypersurface relative to Rn, if and only if, Vii,i = 0. Therefore, fi(ui) = ci2u2i + ci1ui + ci0, with ci2, ci1, ci0 ∈ R and from (3.8), X is given by (5.2).

Proposition 4.2. Consider the torus in R3, parametrized by


Then M is a Type I Dupin hypersurface relative to torus, if and only if, M can be parametrized by

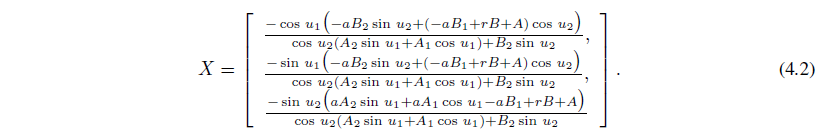

[4.2]

where Bi, Ai, A and B are real constants.

Proof. The principal curvatures of the torus and coefficients of the metric of the torus are


Using (3.10), we obtain


where A, B are constants and f1, f2 are differentiable functions of u1 and u2, respectively.

Consider Vii given by (3.11). Thus

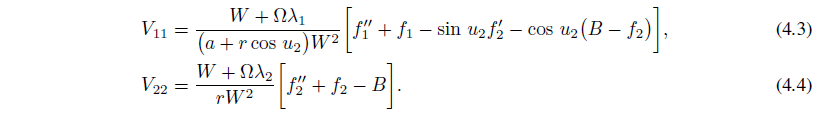

[4.3, 4.4]

From Corollary 1, M parametrized by (3.8) is a type I Dupin hypersurface relative to torus, if and only if, Vii,i = 0 for all 1 ≤ i ≤ 2.

Since and , we conclude that Vii,i = 0, if and only if,

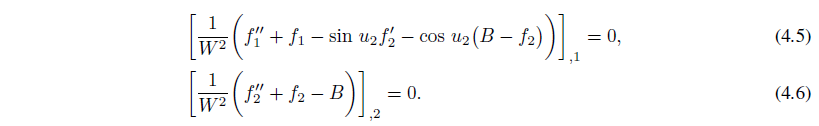

[4.5, 4.6]

If , then we have V11,1 = 0. Then suppose Since (4.6), we get


This last equation can be rewritten as

[4.7]

Differentiating with respect to u1, we get


As W, and W, , then if , we get Substituting in (4.7) and using that W, , we obtain a contradiction. Therefore, we have . Thus

[4.8]

Substituting (4.8) in (4.5), we obtain

[4.9]

Thus


This last equation can be rewritten as

[4.10]

Differentiating with respect to u2, we get


As W, and W, , then if , we get and


Hence , since (4.8). Thus , which is a

contradiction, since (4.10 and W = −cos u2 f1 − f2 + B. Therefore, we have . Substituting in (4.10), we get , since W,1 6= 0. Thus

[4.11]

On the surface above we have a type I Dupin surface relative to torus, with a = 4, r = 1, A = 3, B = −2, A2 = B2 = 1, B1 = −1 and A1 = B = −2.
Figure 4.1
On the surface above we have a type I Dupin surface relative to torus, with a = 4, r = 1, A = 3, B = −2, A2 = B2 = 1, B1 = −1 and A1 = B = −2.

Finally, considering the unit vector field normal to Y


and substituting f1, f2, Ω and W in X = Y + WΩ N we obtain (5.3).

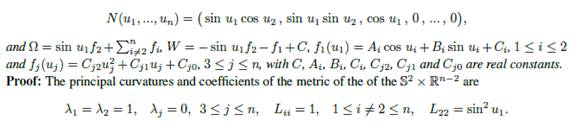

Proposition 4.3. Consider the submanifold S2 × Rn−2 in Rn+1, parametrized by


Then M is a type I Dupin hypersurface relative to Y , if and only if, M can be parametrized by


where



with C, Ai, Bi, Cj2, Cj1 and Cj0 are real constants.

Proof. The principal curvatures and coefficients of the metric of the of the S2 × Rn−2 are


Using (3.10), we obtain


where C is constant and fi are differentiable functions of ui, 1 ≤ i ≤ n.

Consider Vii given by (3.11). Thus

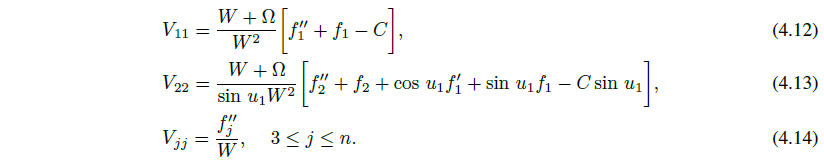

[4.12, 4.13, 4.14]

From Corollary 1, M parametrized by (3.8) is a type I Dupin hypersurface relative to S2 × Rn−2 , if and only if, Vii,i = 0 for all 1 ≤ i ≤ n.

Proceeding similarly to the proof of Proposition 2, we obtain that Vii,i = 0, 1 ≤ i ≤ 2, if and only if, f1 and f2 are given by

[4.15]

Figure 4.2
Figure 4.2
Figure 4.2

On the surface above we have a type I Dupin surface relative to S2, with B2 = 0, B1 = 2, A1 = −1 and C = 1.

Without loss of generality, can be considered A2 = 0. In fact, substituting f1 and f2 given above into the expressions of W and Ω, we have that W and Ω do not depend on A2.

Moreover, since that (4.14) and W,j = 0, we conclude that fj, 3 ≤ j ≤ n are given by

[4.16]

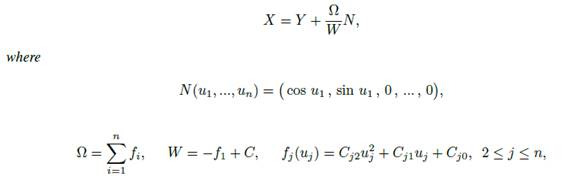

Proposition 4.4. Consider the submanifold S1 × Rn−1 in Rn+1, parametrized by


Then M is an isotropic Dupin hypersurface relative to Y , if and only if, M can be parametrized by

and f1 satisfies , with C, C1, Cj2, Cj1 and Cj0 are real constants.


Proof. The principal curvatures and coefficients of the metric of the of the S1 × Rn−1 are


Using (3.10), we obtain


where C is constant and fi are differentiable functions of ui, 1 ≤ i ≤ n.

Consider Vii given by (3.11). Thus

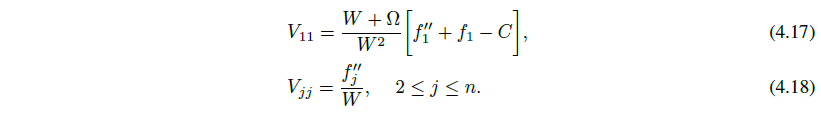

[4.17, 4.18]

From Corollary 1, M parametrized by (3.8) is a type I Dupin hypersurface relative to S1 × Rn−1, if and only if, Vii,i = 0 for all 1 ≤ i ≤ n.

Since and W = C − f1, we conclude from Vii,i = 0 that the functions fj are given by


and f1 satisfies . where C1, Cj2, Cj1 and Cjo are real constants.

On the surface above we have a type I Dupin surface relative to cylinder S1 × R, with C21 = 0, C22 = −1, C20 = 1, C = C1 = 1 and f1 = 2.
Figure 43
On the surface above we have a type I Dupin surface relative to cylinder S1 × R, with C21 = 0, C22 = −1, C20 = 1, C = C1 = 1 and f1 = 2.

5. Relative geometry of the type II

In this section, we highlight the relative Dupin hypersurfaces of the type II. We start by providing a relationship between the Dupin hypersurfaces locally associated to a fixed Dupin hypersurface M by a Ribaucour transformation and the type II Dupin hypersurfaces relative M. We will generate families of type II Dupin hypersurfaces relative to a hyperplane, a torus, S1 × Rn−1 and S2 × Rn−2.

Let M be an orientable hypersurface in Rn+1, N its Gauss map and suppose that M has an orthogonal parameterization by lines of curvature Y : U ⊂ Rn → M, with principal curvatures −λi, 1 ≤ i ≤ n. Let

M be a hypersurface in of the type II. Then M can be parametrized by


where h is a differentiable real function defined on M. From (1.6), the coefficients of the first and second fundamental forms of X are given by


where δijLii =<Y,i , Y,j > and the normal relative NR is given by (3.2). Moreover, since that X is a parameterization by lines of relative curvature, then the relative Weingarten matrix of is given by Vij = 0, 1 ≤ i /= j ≤ i, and

[5.1]

where Ω and W satisfies (3.10).

Theorem 5.1. Let M be a Dupin hypersurface and suppose that it has a parameterization by lines of curvature Y : U ⊂ Rn → M, with principal curvatures −λi, 1 ≤ i ≤ n. Consider the hypersurface locally associated to M by a Ribaucour transformation. Let M be a type II hypersurface relative to M, then M is a type II Dupin hypersurface relative to M, if and only if, Mf is a Dupin hypersurface.

Proof. From Corollary 1, M is a type II Dupin hypersurface relative to M if, and only if, Vii,i = 0, where


with functions W and Ω satisfying (3.10).

On the other hand, from [9], Mf locally associated to M by a Ribaucour transformation, is a Dupin hypersurface, if and only if, Ti,i = 0, where


with functions W and Ω satisfying (3.10).

Since M is a Dupin hypersurface, we have (W + λiΩ),i = 0. Therefore, Vii,i = 0, if and only if, Ti,i = 0.

In the next results, we provides families of type II Dupin hypersurfaces relative to a hyperplane, a torus, S1 × Rn−1 and S2 × Rn−2.

Proposition 5.1. Consider the hyperplane in the Euclidean space Rn+1, parametrized by Y (u1,...,un) = (u1,...,un,0). Then M is a type II Dupin hypersurface relative to Rn+1, if and only if, M can be parametrized by

[5.2]

where fi(ui) = ci2u2i + ci1ui + ci0, 1 ≤ i ≤ n, and c /= 0, ci2, ci1, ci0 ∈ R.

Proof. Since the principal curvatures of Y are λi = 0 and the metric Lij = δij, for 1 ≤ i,j ≤ n, it follows from equation (3.10) that


where fi(ui) are differentiable functions. In order, to obtain type II Dupin hypersurface relative to Rn+1, we consider Vii given by (5.1),


From Corollary 1, M parametrized by , where en+1 = (0,0,...,0,1) is a unit vector field normal to Rn, is a type II Dupin hypersurface relative to Rn, if and only if, Vii,i = 0. Therefore, fi(ui) = ci2u2i + ci1ui + ci0, with ci2, ci1, ci0 ∈ R and from (3.8), X is given by (5.2).

Remark 5.1. In Proposition 5, one observes that the type II Dupin hypersurface X relative to Rn is an isotropic Dupin hypersurface.

Proposition 5.2. Consider the torus in R3, parametrized by


Then M is a type II Dupin hypersurface relative to Y , if and only if, M can be parametrized by

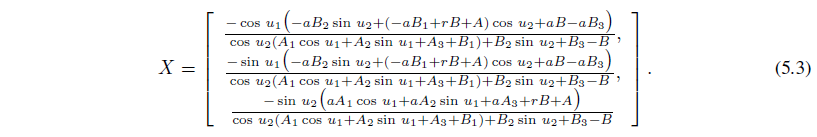

[5.3]

where Bi, Ai, A and B are real constants.

Proof. The principal curvatures of the torus and coefficients of the metric of the torus are


Using (3.10), we obtain


where A, B are constants and f1, f2 are differentiable functions of u1 and u2, respectively. Consider Vii given by (5.1). Thus

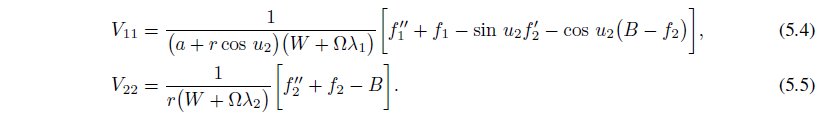

[5.4, 5.5]

From Corollary 1, M parametrized by (3.8) is a type II Dupin hypersurface relative to torus, if and only if, Vii,i = 0 for all 1 ≤ i ≤ 2.

Since , we conclude from Vii,i = 0 that the functions fi are given by f1(u1) =A1 cosu1+A2sinu1+A3, f2 =B1cosu2+B2sinu2+B3.

Finally, considering the unit vector field normal to Y


and substituting f1, f2, Ω and we obtain (5.3).

On the surfaces above we have a type II Dupin surface relative to torus with a=4, r=1, A=10,  B= −3,  A2= B2=0,  B1=B3=1,  A1=−1 and A3=−2
Figure 5.1
On the surfaces above we have a type II Dupin surface relative to torus with a=4, r=1, A=10, B= −3, A2= B2=0, B1=B3=1, A1=−1 and A3=−2

Proposition 5.3. Consider the submanifold S2 × Rn−2 in Rn+1, parametrized by


Then M is a type II Dupin hypersurface relative to Y , if and only if, M can be parametrized by


where


Using (3.10), we obtain


where C is constant and fi are differentiable functions of ui, 1 ≤ i ≤ n.

Consider Vii given by (5.1). Thus

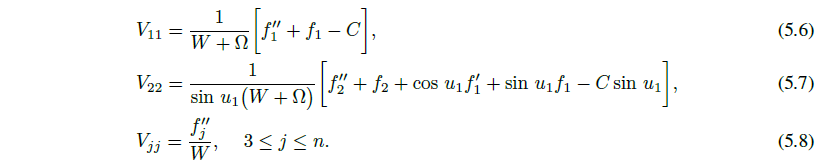

[5.6, 5.7, 5.8]

From Corollary 1, M parametrized by (3.8) is a type II Dupin hypersurface relative to S2 × Rn2, if and only if, Vii,i = 0 for all 1 ≤ i ≤ n.

Since and W,r = 0, 3 ≤ r ≤ n we conclude from Vii,i = 0 that the functions fi are given by


where Ai, Bi, Ci, Cj2, Cj1 and Cj0 are real constants.

Proposition 5.4. Consider the submanifold S1 × Rn−1 in Rn+1, parametrized by


Then M is a type II Dupin hypersurface relative to Y , if and only if, M can be parametrized by


Where

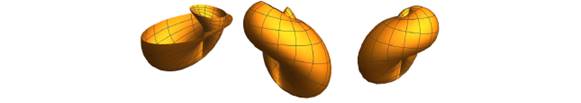

On the surfaces above we have a type II Dupin surface relative to S2, with A2 = B2 = 0,  B1 =2, A3 = 4, A1 = −1, B3 = −2 and C = 1.
Figure 5.2
On the surfaces above we have a type II Dupin surface relative to S2, with A2 = B2 = 0, B1 =2, A3 = 4, A1 = −1, B3 = −2 and C = 1.


and fj(uj) = Cj2u2j +Cj1uj + Cj0, 2 ≤ j ≤ n, with C, A1, B1, C1, Cj2, Cj1 and Cj0 are real constants.

Proof: The principal curvatures and coefficients of the metric of the of the S1 × Rn−1 are


Using (3.10), we obtain


where C is constant and fi are differentiable functions of ui, 1 ≤ i ≤ n.

Consider Vii given by (5.1). Thus

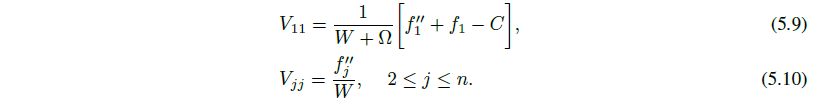

[5.9, 5.10]

From Corollary 1, M parametrized by (3.8) is a type II Dupin hypersurface relative to S1 x Rn−1, if and only if, Vii,i = 0 for all 1 ≤ i ≤ n.

Since and W,r = 0, 2 ≤ r ≤ n we conclude from Vii,i = 0 that the functions fi are given by


where A1, B1, C1, Cj2, Cj1 and Cj0 are real constants.

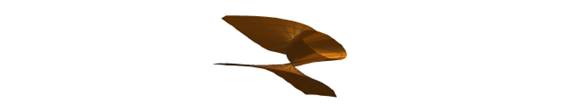

On the surface above we have a type II Dupin surface relative to cylinder S1 × R, with  C21 =B1 = 0, C1 = 3, A1 = −2, C22 = −1, C20 = 2 and C = 1.
Figure 5.3
On the surface above we have a type II Dupin surface relative to cylinder S1 × R, with C21 =B1 = 0, C1 = 3, A1 = −2, C22 = −1, C20 = 2 and C = 1.

6. Conclusions.

From the results obtained in this work we can make the following conclusions: For each fixed hypersurface M in Euclidean space and we introduce two types of spaces relative to M, of type I and type II. We observe that when M is a hyperplane, the two geometries coincides with the isotropic geometry.

References

[1] Aydin ME, Ergut M. Isotropic geometry of graph surfaces associated with product production functions in economics. Tamkang J. Math. 2016; 47:433-443.

[2] Berger M. Geometry II. Springer; 1987.

[3] Berger M, Gostiaux B. Differential geometry: manifolds, curves, and surfaces. Springer; 1988.

[4] Bianchi L. Lezioni di geometria Differenziale. Terza Edicione. Nicola Zanichelli Editore; 1927.

[5] Chen BY, Decu S, Verstraelen L. Notes on isotropic geometry of production models. Kragujevac J. Math. 2014; 38:23-33.

[6] Corro AMV, Ferreira WP, Tenenblat K. On Ribaucour transformations for hypersurfaces. Mat. Contemp. 1999; 17:137-160.

[7] Corro AMV, Ferreira WP, Tenenblat K. Ribaucour transformations for Constant mean curvature and linear Weingarten surfaces. Pacific Journal of Mathematics. 2003; 212(2):265-296.

[8] Corro AMV, Ferreira WP, Tenenblat K. Minimal surfaces obtained by Ribaucour transformations. Geometriae Dedicata, Nettherlands. 2003; 96(1):117-150.

[9] Corro AMV, Tenenblat K. Ribaucour transformation revisited. Comum. Geom. 2004; 12(5):1055-1082.

[10] Da Silva LCB. The geometry of Gauss map and shape operator in simply isotropic and pseudo-isotropic spaces. J. Geom. 2019; 110:31. DOI: 10.1007/s00022-019-0488-9

[11] Da Silva LCB. Rotation minimizing frames and spherical curves in simply isotropic and pseudo-isotropic 3-spaces. Tamkang Journal Of Mathematics. 2020; 31(1):1-23.

[12] Pottmann H, Opitz K. Curvature analysis and visualization for functions defined on Euclidean spaces or surfaces. Comput. Aided Geom. Des. 1994; 11:655-674.

[13] Strubecker K. Differentialgeometrie des isotropen Raumes, I. Theorie der Raumkurven. Sitzungsber. Akad.Wiss.Wien. Math.-Naturw. Kl. IIa. 1941; 150:1-53.

[14] Strubecker K. Differentialgeometrie des isotropen Raumes II. Die Flächen konstanter Relativkrümmung K = rt-s2. Math. Z. 1942; 47:743-777.

[15] Strubecker K. Differentialgeometrie des isotropen Raumes. III. Flächentheorie. Math. Z. 1942; 48:369-427.

Información adicional

How to cite this article: Corro VA, Ferro ML. Relatives Geometries. Selecciones Matem´aticas. 2022;9(2):243–257. http://dx.doi. org/10.17268/sel.mat.2022.02.03

HTML generado a partir de XML-JATS4R por
