Antibacterial property of cancrinite-type zeolites exchanged with silver and copper cations

Propiedad antibacteriana de zeolitas tipo cancrinita intercambiadas con iones plata y cobre

Cancrinites are special zeolites conformed by small cages (e-cages) distributed in a hexagonal structure and a big channel of 12 rings along the direction of the hexagonal . axis of the structure, forming one-dimensional rectilineous channels along this axis. Access to these channels occurs through windows formed by 12 member rings [1]. Usually, anionic species such as: nitrate, sulfate, oxalate, thiosulfate, etc., are found inside of the big channel of the structure compensating the positive charge generated by sodium cations placed in the e-cages [2-4]. Due to the blocking of pores by anions inside of the cancrinite´s structure, few pharmaceutical or industrial applications have been reported in the literature [5-7].

Sodium-zeolite, per se, do not have bactericide effect but several ion-exchanged cations in its structure are active as bactericidal agents. Due to the fact that cancrinite-type zeolites show a Si/Al ratio close to 1, they could be good candidates to be exchanged with cations such as Ag. or Cu²⁺ which are recognized antibacterial agents.

Likewise, Rivera-Garza [8] studied a mexican natural zeolite (clinoptilolite-heulandite) exchanged with different Ag. proportions. These modified zeolites were tested as antibacterial agents in contaminated waters withEscherichia coli and Streptococcus faecalis. Results showed that both bacteria could be eliminated at the highest used silver amount after 2 h of contact time.

Milán [9] modified natural clinoptilolites with different heavy metals (Ni²⁺, Zn²⁺, Fe³⁺ and Cu²⁺). These zeolites were tested on pure cultures of E. coli and P. aeruginosa. Results established a decreasing order of the bactericidal capacity being Cu²⁺>Fe³⁺>Zn²⁺>N^i2+.

Otherwise, Inoue [10] found that silver-loaded zeolites had a strong bactericidal activity against E. coli. Dissolved oxygen in the culture medium was an essential factor for the occurrence of the bactericidal activity because it was only observed under aerated condition.

Other zeolites and cations have also been used in medical applications [11, 12], environmental management in shrimp aquaculture [13] and bactericidal agents for water disinfection [14, 15]; however, cancrinite-type zeolites have been few mentioned for this last purposes [16, 17], basically because they have a low ion-exchange capacity. Their low ion-exchange capacity is due to the blocking of pores by anions inside of the main channels. However, this can be profitable taking into account that several cations, such as silver, can act as bactericide even at low concentrations. Therefore, it could reduce the reactant amount and avoid environmental troubles.

Although zeolites act as metal carriers they do not show per se antibacterial effects. The metallic load depends on the Si/Al ratio: zeolites A and X have a high exchanged capacity because their Si/Al ratio is closed to 1; cancrinite-type zeolites have a Si/Al ratio close to 1 also, but they have a low exchanged capacity, this could be interesting because these antibacterial metals act at low concentrations saving costs and avoiding damages to the environment.

The aim of this paper was to modify cancrinitetype zeolites with silver, copper, and a silver-copper mixture and then test them as possible antibacterial agents against E. coli and .. aeruginosa. Likewise, an exchanged zeolite A with the same cations was also used as reference. Antibacterial properties of these solids depend on the Si/ Al ratio which is the same for both zeolites.

Synthesis of sodium-nitrate cancrinite

A nitrate cancrinite-type zeolite was synthesized according to the previously reported procedure [18]: 7.5 g NaNO. were dissolved into 50 mL of distilled water in a teflon reactor. Then, 10 g NaOH were added and dissolved and finally 5 g zeolite X were also added to this solution forming a slurry. This reactor was sealed and put in a convection oven at 80 ºC for 110 h. Samples were filtered and washed with enough distilled water until a pH near 7.

Ion-exchange procedure

The synthesized nitrated-sodium cancrinite was ion-exchanged with silver, copper and a mixture of silvercopper cations. 15 mL of solution (0.02M) of Ag., Cu²⁺ or and Ag.-Cu²⁺ mixture were added to 5 g of sodium-nitrate cancrinite forming a slurry. This slurry was agitated at 80 ºC for 24 h in nitrogen atmosphere in the absence of light. The slurries were filtered off and supernatants were discarded. The filtered solids were kept for a new ionexchange. This procedure was repeated three times. After that, solids were washed up with abundant distilled water, filtered and dried for 110 h at 80 ºC.

Characterization of modified cancrinites

Ion-exchanged cancrinites with Ag+, Cu2+ and a Ag+-Cu2+ mixture were characterized by powder-X-ray diffraction (XRD), Fourier transformed infrared spectroscopy (FT-IR), chemical analysis and scanning electron microscopy (SEM).

XRD analyses were carried out by using a Siemens 5000 difractometer with a CuKα radiation (1.542 Å) for crystalline phase detection between 5 and 50º (2θ). The presence of functional groups and evaluation of solids purity were achieved by FTIR; spectra were recorded in a Perkin-Elmer 283 spectrometer in the 4000-400 cm-1 range. Samples were prepared by mixing the solids with KBr to form a thin pastille. The morphology of the products was observed on a Hitachi FEG-4500 scanning

electron microscope (SEM) with 10 KeV of acceleration. Samples were dispersed over a conductive surface and covered with a thin gold film.

Assay of bactericidal activity

E. coli and P. aeruginosa were used to assess the bactericidal activity of Ag+, Cu2+ and Ag+-Cu2+ modified cancrinites and zeolites A. These bacteria were collected from the Department of Microbiology (University of Carabobo). Brain-heart infusion was used as an aerobic growing medium for both microorganisms at 35 ºC. Once microorganisms reached the exponential growing phase of cultures (after 18 h), an aliquot of this suspension was diluted in a Mueller-Hinton culture medium to get approximately 1.5x108 units of colonies per plate (CFU). Then, 0.001 mL from this suspension was inoculated in 9.999 mL of Mueller-Hinton culture medium to get a 1x10-4 dilution factor (1.5 x106 CFU). In order to determine the CFU, 100 μL from this medium were spread on a Mueller-Hinton agar plate and incubated at 35 ºC for 24 h [19].

Influence of zeolite mass

Among 2.5 and 125 mg of modified zeolites were mixed with 2 mL from a 10-4 diluted solution containing E. coli or P. aeruginosa. Samples were horizontally agitated for 6 h and then, slurries were kept in static condition for 24 h. After that, an aliquot of 100 μL, was spread on a Mueller-Hinton agar plate and incubated at 35 ºC for 24 h. Finally, the CFU was determined after contact with modified zeolites.

Influence of contact time

To study the contact time among modified zeolites and the microorganisms 5 and 20 mg of modified zeolites were mixed with 2 mL of a 10-4 diluted solution containing E. coli or P. aeruginosa.

Samples were horizontally agitated during different contact times (14-1440 min), and aliquots of 100 μL were spread on a Mueller-Hinton agar plate and incubated at 35 ºC for 24 h. Finally, the CFU was determined for each contact time.

Characterization of sodium-nitrate cancrinite

XRD analysis (Fig 1) showed reflections attributed to the nitrated-cancrinite zeolite that were consistent with the P63 spatial group [20]. This diffraction pattern shows intense peaks corresponding to (110), (101), (210), (300), (211), (400), (311), (102) and (330) planes which are representatives of the nitrated-cancrinite zeolites (PDF 46-1332) [21, 22]. Other phases such as sodalite were not present in the synthesized sample.

Fig. 2 shows the FTIR spectrum of the synthesized cancrinite-type zeolite. A series of characteristic bands could be identified [23, 24]: A band between 3500 and 3400 cm-1 corresponds to OH- groups from water molecules entrapped inside of the framework. While the band at 1639 cm-1 corresponds to water molecules inside of the framework.

A band at 1424 cm-1 was assigned to occluded nitrate anions as counter-anion in the internal cavities of the cancrinite zeolite. Bands in the region between 1122 and 974 cm-1 have been assigned to Si-O-Al asymmetric stretch vibrations of framework species. Three bands between 687 and 574 cm-1, called “cancrinite fingerprint” correspond to Si-O-Al symmetric stretch vibration bonds.

SEM analysis of the synthesized zeolite showed the presence of small hexagonal prismatic crystallites (~2 μm) of cancrinite zeolite (Fig. 3). These prismatic crystallites correspond to the cancrinite zeolite in agreement with Barnes [25].

Escherichia coli

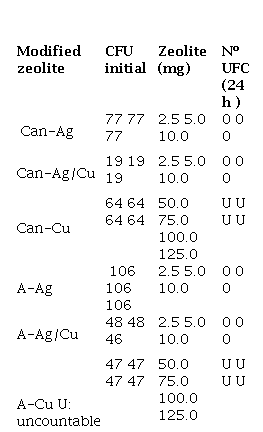

Tables 2 and 3, shows the CFU of E. coli and P.aeruginosa determined on Mueller-Hinton agar plates before and after contact with different amounts of modified cancrinite zeolite or zeolite A. Results showed that those ion-exchanged zeolites with Ag+ or Ag+-Cu2+ were more effective than those exchanged with Cu2+. 2.5 mg of these modified Ag+ zeolites were enough to kill the whole bacteria population after 24 h of contact (Fig 4a); while 50 mg or more (125 mg) of Cu2+ modified zeolites were not able to control the proliferation of E. coli. It is probably that, at the assayed concentrations, the presence of Cu2+ cations does not have effect against E. coli population (Fig 4b). Ag+ and Cu2+ cations have been reported as antibacterial materials [8, 9].

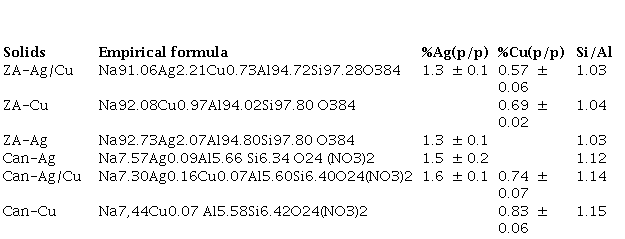

The Si/Al ratio and formula of zeolites were determined by chemical analyses (Table 1). A Si/Al ratio ≈ 1 was obtained for both zeolites (cancrinite and zeolite A) which agree the revised literature [1].

Figure 4. a) Bacterial growth on the agar plates con- This Si/Al ratio was higher for the cancrinite zeolite than for the zeolite A. Experimental errors could be associated to these results. A similar Ag+ and Cu2+ ionexchange amount was obtained for both zeolites. These results allowed a better comparison for these solids when they were used as antibacterial materials. The amount of exchanged Ag was superior to that of Cu. These results are associated to the cation oxidation state. For each Al3+ ion from the Al-O-Si zeolite framework as possible to exchange one Ag+ cation while two Al3+ were replaced for one Cu2+ ions in order to get the neutrality of the framework. Likewise, the metal ion-exchanged percentage (Ag+ or Cu2+) was very low. This result is due to the blocking of the pores in the cancrinite zeolite and the small pore size of the zeolite A structure as was previously mentioned [1]. taining 2.5 mg of Ag zeolites, after 24 h incubation b) 50 mg of Cu2+ modified zeolites, after 24 h incubation. However, several microorganisms show an increasing tolerance to copper, which is induced by resistance mechanisms, where copper resistant species appear [9]; moreover, low Cu2+ concentrations in the culture medium are also necessary as a micronutrient for bacteria [19] According to our results, Cu2+ cations, from Cu- loaded zeolites, do not have effect against E. coli or, on the contrary, helps the vitality of this organism. Likewise, Ag+ cations were very effective against this organism even in presence of Cu2+ cations which, according to our results, Importar tabla

could be considered as essential microelements. Ag+ ions can polarize thiol, nitrogen and oxygen groups from proteins producing the precipitation and irreversible inhibition of enzymes and others important proteins. The deactivation of these enzymes produces the death of these bacteria [26, 27]. On the other hand, Cu is a bacterial nutrient, required as a cofactor by enzymes that catalyse electron transfer processes, for instance in aerobic and anaerobic respiration. To date, the inward flow of this metal ion as a nutrient and its insertion into target cuproenzymes has been reported [28]. Without these transition metal cations, a sophisticated cellular biochemistry is not possible. As a consequence, Cu2+ has to be imported into the bacterial cytoplasm [29].

The metallic concentration is an important factor when a bactericide should be evaluated due to its cost and environmental impact. The Ag content in zeolites such as clinoptilolites, A and X is relatively high (16.6 and 31.4 % w/w respectively) [8, 30] in comparison to cancrinites (1.5% w/w). This represents an important saving of Ag and is ecofriendly due to the Ag content must be monitored in water bodies according to Venezuelan normative [31].

On the other hand, no difference was observed in the antibacterial activity between modified cancrinitetype zeolite and zeolite A. Antibacterial properties of these solids depend on the Si/Al ratio which is the same for both zeolites.

Pseudomonas aeruginosa

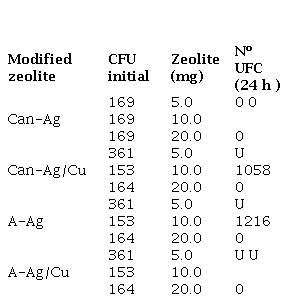

Antibacterial assays were also carried out using P. aeruginosa. This microorganism is frequently responsible of microbial contaminations in hospitals. Table 3 reports results using different amounts of Ag+ or Ag+-Cu2+ modified cancrinites and zeolites A. The Cu modified solids were not assayed because they were not effective against E. coli which is a microorganism much more sensible to antibacterial agents than P. aeruginosa. Results showed an important antibacterial effect using cancrinites modified with Ag+. 5 mg were enough to reduce to zero the bacteria population while 20 mg were necessary for the rest of modified zeolite to reach the same result. These results showed that this bacterium is more resistant to antibacterial action than E. coli, probable due to its cellular wall which is much thicker than E. coli. Contrary to the results obtained with Ag+ modified cancrinite, Ag+ modified zeolite A was less effective against P. aeruginosa. These results could be attributed to a low liberation of Ag+ cation from zeolite A in comparison with modified Ag+ cancrinite. The Ag+-Cu2+ modified zeolites showed a less effectiveness than the modified Ag cancrinite. The presence of Cu2+ cation could be helping in the development of this microorganism due to its importance as an essential microelement. Table 3. CFU P. aeruginosa determined on Mueller-Hinton culture medium agar plated before and after contact with different amounts of modified cancrinite zeolite or zeolite A.

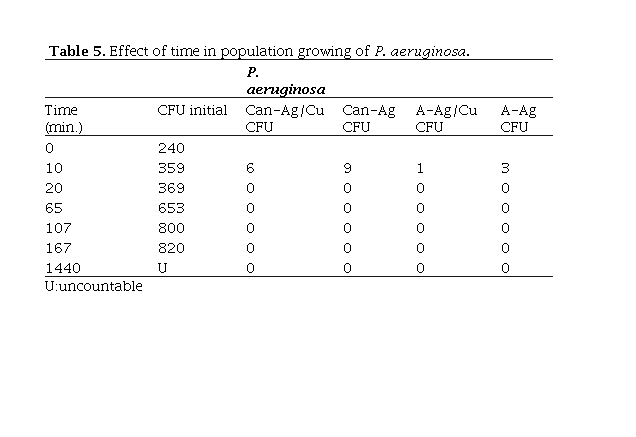

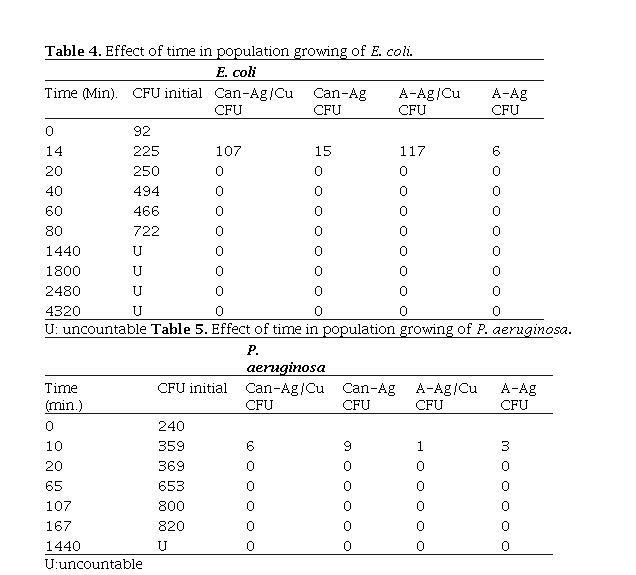

Tables 4 and 5 shows the relationship between the CFU and the contact time using E. coli and P. Aeruginosa. 2.5 mg (E. coli) and 20 mg (P. aeruginosa) of modified zeolites were used for these experiments, because they were the minimal amounts of solids that inhibited the bacterial

The contact time was varied between 14 min and 4320 min for E. coli while for P. aeruginosa ranged between 10 min and 1440 min. Table 4 shows an antibacterial effect almost instantaneous against E. coli and a contact time of 20 min is enough to bring down to zero the content of viable cells. These results are interesting, taking into the account that the studied solids showed bactericidal activity not only at short time incubations but at long time treatments (three days: 4320 min).

A less value of CFU is observed in Ag-modified zeolites in comparison to those containing Ag+ and Cu2+. As we have explained before, Cu2+ can act as an essential microelement in the nutrition of these microorganisms.

Similar results were obtained using P. aeruginosa. In this case, 20 min were also enough to kill the bacterial population, however a larger amount of modified zeolites had to be used (20 mg). Evidently, this bacterium is more resistant to the assayed solids than E. coli as it was explained before.

Sodium-nitrate cancrinite and zeolite A were ion-exchanged using: Ag+, Cu2+ and a Cu2+-Ag+ mixture. Ag+ and Cu2+-Ag+zeolites showed bactericidal action against E. coli and P. aeruginosa using low Ag concentrations (5 mg) and short contact time (20 min). Ag+ binds to tissue proteins and brings structural changes in the bacterial cell membranes and cytosolic components leading to cellular distortion and death. Cu2+ zeolites did not show bactericidal activity, and they did not modify the growth of the reference bacterial cultures. Cu is a bacterial nutrient, required in cellular biochemistry of bacteria and in small quantities it acts as a trace element in the metabolism of the bacteria, the bactericidal effect was not observed under the used experimental conditions.

Authors are grateful to CDCH-UC and FONACIT for its financial support. Many thanks to Prof. Dr. Oscar Valbuena for checking our article.
