Varying outcomes of anticancer treatment for the same tumor histology and site have led to new insights in cancer biology and oncological research. Heterogeneity between individual patients, their biology and tumors itself gave rise to the concept of precision oncology – aiming to tailor the treatment and give “the right patient or the right tumor the right treatment”. However, heterogeneity is not only present between different tumors but also within a tumor and is recognized as a possible factor for resistance to anticancer treatment [1]. Medical images nowadays play a crucial role in oncology – not only for diagnostic but also for therapeutic purposes and are often acquired at multiple consecutive timepoints during a patient`s course of disease. Besides the anatomy of the tumor and of normal tissue, additional information and data are captured in the images. A strong relationship between the macroscopic phenotype of a tumor, seen on these medical images, and the underlying cancer biology has been shown [2, 3]. However, the human eye is not capable of capturing all the subtle differences and shades. This information can be extracted in form of features, referring to as “Radiomics”. Taking it all together, radiomics is a promising method to display the spatial and temporal heterogeneity within tumors. Furthermore, in contrast to radiological reports, which nowadays are still descriptive and written in unstructured text form without many measurements, radiomics is able to perform a quantitative image analysis aiming at a comprehensive and reproducible characterization of medical images. By integrating these data with clinical variables, radiomics models have the potential to be used in a clinical decision support system (CDSS) to guide clinical decision-making. This mini review aims to give a very brief and short introduction to the concept of radiomics. Notably, even though this review focusses on its application in oncology, radiomics is also used in non-malignant disorders [4]. More detailed information on the individual workflow steps and a comprehensive overview has already been published [5, 6].

Radiomics workflow

Radiomics analysis, more precisely the working steps of preprocessing of images and feature extraction, is done using specific software. There are some open-source or commercially available software programs. However, many institutions use in-house developed software. Apparently, to develop such software on its own, coding skills are required. It is useful if the software can handle all types of imaging data such as CT, MRI or PET and is not limited in its scope. The software has to fulfill some standard criteria and is ideally benchmarked according to the Image Biomarker Standardization Initiative (IBSI) [7]. Fig. 1 gives an overview of a radiomics workflow.

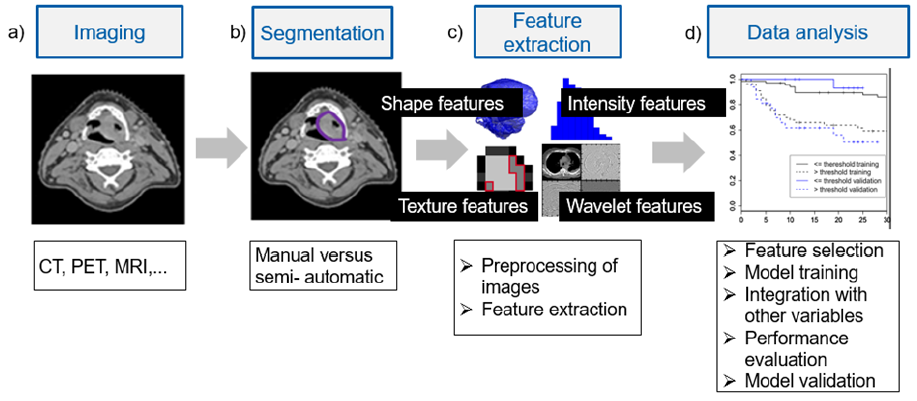

Imaging (Fig. 1a): A great advantage of radiomics is that medical images, the mainstay of a radiomics analysis, are regular part of the clinical routine. Yet, the use of routinely acquired images poses also a challenge as variability in scanner, scanning methods or image

Figure 1.
Traditional clinical procedures.

reconstruction methods influence the results of a radiomics analysis [8]. However, imaging will remain nonstandardized, asking for correction and harmonization procedures that use for example information acquired from phantom studies [9].

Segmentation (Fig. 1b): Segmentation, i.e. definition of regions of interest (ROI) is a critical step in radiomics as features are extracted from these segmented areas. Intraand interobserver variability in contouring ROIs is a well-known issue and influences results of radiomics analysis – therefore, ideally the ROI is segmented by different observers in order to extract only stable features irrespective of differences in segmentation [10]. Semi-automatic and automatic contouring methods were developed in the last years to escape this issue and to reduce the immense workload related to segmentation of structures [11]. However, (semi-)automatic contouring is prone to errors, especially in regions with artifacts or much noise and in case of an uncommon appearance of the ROI (e.g. anomaly).

Preprocessing of images (Fig. 1c): The routinely acquired images first have to undergo a preprocessing workflow. One step is the resampling of images to equally sized voxels using different interpolation methods such as linear or cubic interpolation. The images can either be up-sampled to smaller voxel sizes – or down-sampled to larger voxel sizes. Image discretization refers to grouping the intensity-levels of an image into a predefined interval (i.e. bin), where one can choose to either fix the bin size or the number of bins and is performed in order to reduce noise while simultaneously preserving relevant features. To limit the analysis to the tissue interested in, e.g. to remove air and bone, a range of Hounsfield units can be applied.

Feature extraction (Fig. 1c): A clear definition, nomenclature and standardization of the features is a prerequisite for the reproducibility of a quantified image analysis by radiomics and is given by the IBSI [7, 12]. The extracted features are typically divided in four subgroups: shape, intensity, texture and wavelet features. Shape features quantify the geometry of the segmented lesion. Intensity features look at the image intensities –represented by a histogram. Texture features describe how these intensities change from voxel to voxel. Finally, wavelet features are derived from filtered reconstructions of the images. By applying various filters, numerous wavelet features can be generated.

Feature selection (Fig. 1d): As stated above, a large number of features can be calculated from one single ROI, asking for a method, which allows to identify the relevant features for the clinical question. Use of all calculated features would lead to overfitting, which means that the generated radiomics model represents too closely the data set and fails on new, so far unseen, data. One predictor per ten events is considered to be the maximum for logistic and Cox models [13, 14]. Consequently, there is a need to remove redundant features and reduce dimensionality, aiming to capture the essence of the data in a lower dimensional space. This is done by removing features with a lot of missing values or low variance and remove highly correlated features, i.e. feature selection. Additionally, a transformation algorithm to further reduce dimensionality is often applied, for instance principal component analysis [15].

Outcome modelling and integration with other variables (Fig. 1d): After selection of relevant features, a mathematical model is built with the aim to generate a predictive or prognostic model for a defined “clinical event” by combining the radiomics features with clinical, pathological or other parameters – thereby being able to support clinical decision-making. Different statistical or machine learning algorithms can be used for this purpose: e.g. linear regression, Cox proportional hazards model, support vector machines etc. [16, 17].

Performance evaluation (Fig. 1d): The performance of the generated radiomics model can be assessed using different methods, e.g. the area under receiver operator characteristic curve (AUC), sensitivity, specificity or accuracy. The distinct models can be compared by conventional statistical tests such as student t-test, Wilcoxon signed-rank test or others, depending on the metrics used. If multiple testing was performed, one should correct for that by applying one of the correction methods [18]. Additionally, the agreement between observed outcome and predicted outcome should be assessed – referred as calibration. For more details please refer to comprehensive literature on that topic [16, 19].

Model validation (Fig. 1d): The generated model should be validated on unseen data, preferably on an independent data set. Whenever possible, the model should be validated on a data set from a different institution (external validation) as this would be the reality if the model was applied in clinical routine and therefore enhances the credibility of a prediction model [20].

However, more commonly, the data set stems from the same institution (internal validation).

Outlook

A prerequisite for successful implementation of radiomics as a prognostic or predictive model into clinical routine in the future is standardization of the methodology. Studies performed should follow some important principles as provided by a checklist for the transparent reporting of a multivariable prediction model for individual prognosis or diagnosis (TRIPOD) and the radiomics quality score (RQS) [6, 19]. However, as not all of the radiomics steps can be standardized, compensation strategies have to be implemented. Imaging for example will remain non-standardized, which means that correction and harmonization procedures are needed, using information acquired from phantom studies [9] . Another key step before release of a radiomics model as a validated decision support tool is validation of its performance on a prospective patient cohort. In conclusion, radiomics has the potential to play a key role in a clinical decision support tool in precision oncology in future – however, the road to realize this vision is still a long one.
