Use of disaccharides and activated carbon to preserve cellulolytic ruminal bacterial consortiums lyophilized

Uso de disacáridos y carbón activado para preservar consorcios de bacterias ruminales celulolíticas liofilizadas

Javier Texta Nogueda javier_tex_ta@hotmail.com

Universidad Autónoma de Guerrero, México

Paulino Sánchez-Santillán sanchezsantillanp@gmail.com

Universidad Autónoma de Guerrero, México

David Hernández Sánchez sanchezd@colpos.mx

Colegio de Postgraduados, México

Nicolás Torres-Salado nivigas@yahoo.com.mx

Universidad Autónoma de Guerrero, México

María Crosby Galvan maria@colpos.mx

Colegio de Postgraduados, México

Rafael Rojas-García rogarcia_05@hotmail.com

Universidad Autónoma de Guerrero, México

Jerónimo Herrera-Pérez mvzjero@hotmail.com

Universidad Autónoma de Guerrero, México

María Maldonado-Peralta angelitam_02@hotmail.com

Universidad Autónoma de Guerrero, México

This work is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International.

Microorganisms are fundamental in biogeochemical cycles. Their preservation is vital in microbiology laboratories because of their biotechnological potential. Microbial resources need to be kept in good physiological and genetically stable condition (1). The main conservation methods are continuous growth, dehydration and freezing. Lyophilization is widely used to conserve and transport biological products, and is important in scientific research (2). However, protein denaturation and DNA damage may occur during the process due to osmotic shock and membrane injury, consequently decreasing cell viability (3). Preservatives are required to mitigate the osmotic pressure and stress induced by frostbite and dehydration because individual microorganisms and even strains of a given species vary in their viability after lyophilization (2). Only limited information is available on the use of preservatives during lyophilization of ruminal microorganisms (4).

There are three general categories of preservatives. One kind penetrates both the cell wall and the cytoplasmic membrane to make the membrane more plastic and prevent formation of ice crystals inside the cell during freezing. Another penetrates only the cell wall to induce cell plasmolysis prior to freezing. And a third does not interact directly with the cell wall or cytoplasmic membrane at all, but forms a viscous layer that inhibits the ice formation rate by increasing solution viscosity (5).

As preservatives, sugars act on cell membranes by inhibiting phase changes detrimental to low hydration, and reducing gel transition temperatures to the fluid phase (6). Disaccharides are used as preservatives because they stabilize lipid membranes due to the temperature difference between the vitreous transition and formation of the sugar in a vitreous state (2). For example, lactose (1 to 10%) has been used as a preservative in Lactococcus lactis, providing better protection than with glycerin in cultures stored at -70 °C (7). Maltose in combination with glycerol has been used in the preservation of Scenedesmus spp.

Activated charcoal exhibits characteristics of reversible physical adsorption, and adsorption in liquid phase without elimination by simple desorption and porosity, allowing its use as a microorganism preservative (4). When used to preserve a cellulolytic bacteria consortium it reduced crystalline cellulose degradation compared to a preservative without activated carbon (4).

Studies involving microorganism conservation using preservatives are generally based on preservative viability at rehydration, while others measure preservative effect during microorganism fermentation (4,8,9,10). The hypothesis of the present study is that lactose, maltose and activated charcoal can function as preservatives of cellulolytic bacteria consortia without affecting their potential growth during in vitro fermentation. The study objective was therefore to evaluate in vitro fermentation of cellulolytic ruminal bacteria consortia conserved by lyophilization and using activated charcoal, maltose and lactose as preservatives.

Study site. The study was carried out in the Laboratory of Animal Nutrition of the Faculty of Veterinary Medicine and Animal Husbandry No. 2 of the Autonomous University of Guerrero, located in the municipality of Cuajinicuilapa, in the state of Guerrero, Mexico (16°08” N; 98 °23” W). At an altitude of 50 masl, climate is mostly warm sub- humid with summer rains, an average annual precipitation of 1200 mm and an annual average temperature of 25°C (11).

Ethical concerns. The cellulolytic bacteria consortia were obtained from ruminal fluid extracted from a female water buffalo. The donor animal was handled following the internal bioethics and welfare regulations of the Autonomous University of Guerrero and the federal regulation addressing animal experimentation (NOM-062-ZOO-1999) (12).

Culture medium. The medium contained 30 mL clarified ruminal fluid [i.e. fresh bovine ruminal fluid centrifuged for 10 min at 12,857 x g and sterilized (All American ^® 1941X, USA) for 15 min at 121 °C and 15 psi]; 5 mL mineral solution I [6 g K₂HPO₄ (J.T. Baker ^® ) in 1000 mL distilled water]; 5 mL mineral solution II [6 g KH₂PO₄ (J.T. Baker ^® ) + 6 g (NH₄)2SO₄ (J.T. Baker ^® ) + 12 g NaCl (Meyer ^® ) + 2.45 g MgSO₄ (Meyer ^® ) + 1.6 g CaCl-2H₂O (Meyer ^® ) in 1000 mL distilled water]; 0.1 mL 0.1% resazurine (Sigma-Aldrich ^® ); 0.2 g soy peptone (MCD Lab ^® ); 0.1 g yeast extract (BD Bioxon ^® ); 2 mL cysteine-sulfide solution [2.5 g L-cysteine (Sigma-Aldrich ^® ) in 15 mL 2N NaOH (Meyer ^® ) + 2.5 g Na₂S-9H₂O (Meyer _® ) buffered in 100 mL distilled water]; 5 mL 8% Na₂CO₃ solution (J.T. Baker ^® ) and 52.6 mL distilled water. The medium was sterilized for 15 min in an autoclave at 121°C and 15 psi (4).

Cellulolytic bacteria consortium. Ruminal fluid was extracted from a water buffalo (Bubalus bubalis) cow using an esophageal probe. Before sampling, the cow (500 Kg LW) had been grazing in a pangola grass (Digitaria decumbes) pasture at 56 days regrowth, without feed supplements. The fluid was centrifuged for 3 min at 1.157 x g (Metrix Velocity 14, USA), and the supernatant recovered for use as an inoculum. Under a biosafety hood (Labconco ^® , USA) at low CO₂ flow, 9 mL sterile culture medium were added to test tubes (Pirex ^® , Mexico; 18 x 150 mm) containing 0.05 g mulatto grass (Brachiaria hybrid cv. CIAT 36087) at 65 d of sterile regrowth, and kept for 24 h at 39°C in an incubator (Ecoshel 9082, Mexico) to verify sterility. For each tube, 1 mL inoculum was added in triplicate and incubated for 72 h at 39°C. One milliliter of this inoculated medium was transferred to another tube containing sterile medium and grass, and incubated for 72 h at 39°C. Five transfers were done to obtain the cellulolytic bacteria consortium (CBC).

Preservatives. Culture medium (27 mL), cellobiose (0.1% of medium; Sigma-Aldrich ^® ) and sterile carboxymethylcellulose (0.1% of medium; Meyer ^® ) were placed in serological vials (60 mL). These were left to rest under constant CO₂ flow for 24 h at 39°C to confirm sterility. The vials were inoculated with 3 mL of the product resulting from the fifth transfer and incubated for 72 h at 39°C. Four preservatives were tested: 1) NP, no preservative, as a control; 2) AC, activated charcoal, 1 mL 30% AC solution (Hycel ^® ) (p/v; 30 g 100 mL-1 distilled water); 3) LA, lactose, 1 mL 30% lactose solution (Meyer ^® ) (p/v; 30 g 100 mL-1 distilled water); and 4) MA, maltose, 1 mL 30% maltose solution (Meyer ^® ) (p/v; 30 g 100 mL-1 distilled water). The vials were inclined at 25° to extend the contact surface during lyophilization, initially frozen to -38°C, and then lyophilized at -49°C and 0420 mBar for 24 h (Labconco ^® , Freezone 6 L, USA).

CBC reactivation. Under CO₂ flow, 9 mL culture medium, and sterile cellobiose (0.1%) and carboxymethylcellulose (0.1%) were added to sterile test tubes (18 x 150 mm) and incubated for 24 h to confirm sterility. Ten tubes were inoculated with 0.05 g of lyophilized NP, AC, LA or MA, and incubated under CO₂ flow for 72 h at 39°C. Using sterile serological (120 mL) vials, 45 mL culture medium, and sterile cellobiose (0.1%) and carboxymethylcellulose (0.1%) were incubated under CO₂ flow for 24 h to confirm sterility. These were inoculated with 5 mL of one of the reactivated CBC (NP, AC, LA or MA) and incubated for 48 h at 39°C to produce an inoculum for use in the in vitro gas production test.

In vitro gas production. Substrate was mulatto grass harvested at 63 d regrowth and dehydrated at 60°C to constant weight in a stove (Felisa ^® FE-293A, Mexico). Particle size was reduced in a Thomas-Wiley mill (Thomas Scientific ^® , Swedesboro, NJ, USA) with a 1 mm sieve. Substrate crude protein (CP), ash (As) and organic matter (OM) contents were quantified using AOAC techniques (13). Neutral detergent fiber (NDF) and acid detergent fiber (ADF) were measured with the ANKOM Technology Method, according to Van Soest et al (14) (Table 1).

Table 1
Table 1. Proximate composition of mulatto grass in dry base.

The biodigesters were serological glass vials (120 mL) containing 0.5 g mulatto grass and 45 mL culture medium. The biodigesters were kept under anaerobic conditions with CO₂, hermetically sealed with a neoprene plug (20 mm Ø) and an aluminum ring. The biodigesters were then sterilized for 15 min at 121°C and 15 psi, and incubated for 24 h at 39°C to confirm sterility (15). After sterilization they were inoculated with NP, LA, MA or AC (10 independent replicates) and incubated for 72 h at 39°C. Biogas production was measured at 6, 12, 24, 48 and 72 h incubation (16), based on displacement of the plunger in a glass syringe (50 mL; BD Yale ^® , Brazil). In addition, at 24, 48 and 72 h incubation, measurements were taken of pH, total bacteria, ammoniacal nitrogen, cellulase activity, dry matter and neutral detergent fiber degradation.

pH. Medium pH was measured with a potentiometer (Hanna ^® HI2211, Italy; calibration: pH 7 and 4).

Total bacteria count. Medium (1 mL) from the middle portion of the biodigester was mixed with 0.25 mL formaldehyde (Sigma-Aldrich ^® ) at 10% in a test tube. Total bacteria count was done by direct counting in a Petroff-Hausser chamber (4,15).

Ammoniacal nitrogen (NH₃-N). Medium (1 mL) from the biodigester was mixed with 0.25 mL metaphosphoric acid (Meyer ^® ) at 25% (4:1 ratio), the mixture centrifuged for 25 min at 3,500 x g and the supernatant recovered in 2 mL vials. Supernatant (20 µL) was mixed with 1 mL phenol solution [10 mg Na₂ [Fe(CN)₅NO]*2H₂O (Meyer ^® ) + 10 g phenol crystals (Meyer ^® ) completed to 1000 mL with distilled water] and 1 mL hypochlorite solution [7.5 g NaOH (Reasol ^® ) + 21.3 g Na₂HPO₄ (Meyer ^® ) + 15 mL hypochlorite (5%; Reasol ^® ), completed to 1000 mL with distilled water]. The mixture was incubated for 30 min at 37°C in a water bath, 5 mL distilled water added to dilute it, and it was then mixed with a vortex agitator (Genie 2 G-560, USA). Absorbance was measured at 630 nm in a UV-VIS spectrophotometer (Jenway ^® 6850, USA) calibrated with an ammoniacal nitrogen concentration method (r² = 0.9994) (17).

Cellulase enzymatic activity. This was measured with the reducing sugars concentration method (18). Culture medium (2 mL) was centrifuged for 25 min at 9.710 x g and 4°C and the supernatant used as an enzymatic extract. The substrate was 0.5% carboxymethylcellulose (2.5 g carboxymethylcellulose in 500 mL 50 mM citrate buffer, at pH 4.8) (Meyer ^® ). The standard curve was prepared with a 10 mM glucose solution [0.18 g dextrose (Merck ^® ) 100 mL^-1 50 mM citrate buffer, at pH 4.8] (r² = 0.9994). The reaction mixture for each sample contained 1.8 mL substrate and 0.2 mL enzymatic extract. Incubation was done in test tubes, in two replicates, for 60 min at 50°C, 3 mL DNS were added, the samples boiled for 5 min and immediately cooled on ice. Absorbance was measured at 540 nm. A blank was prepared for each sample with 1.8 mL substrate. These were incubated for 60 min at 50°C, 3 mL DNS and 0.2 mL enzymatic extract added, the mixture boiled for 5 min and immediately cooled on ice. Again, absorbance was measured at 540 nm. One unit (U) was defined as the amount of enzyme released by 1 µmol min^-1 glucose under the above reaction conditions.

Dry matter (DMD) and neutral detergent fiber degradation (NDFD). The sample remaining in the biodigester was filtered through filter bags (ANKOM ^® 541) to constant weight and moisture eliminated by drying at 60°C for 24 h in a kiln. Calculation of DMD was done with the formula DMD (%) = (initial sample – residual sample/initial sample) * 100 (16). The filter bags were heat sealed and NDF content quantified (14). Degradation of NDF as a percentage (% NDFD) was calculated with the formula NDFD (%) = (initial NDF – residual NDF/initial NDF) * 100 (16).

Results analysis. A completely randomized design was used to analyze biogas production at 6, 12, 24, 48 and 72 h, and accumulated production at 72 h (10 independent samples). Means were compared with the Tukey test (p≤0.05). The statistical model was Y_ij = μ + τ_i + ε_ij; where: Y_ij = response variable in the i-th preservative and j-th repetition; μ = general mean; Τ_i = effect of the i-th preservative; and Ε_ij = random error, normally distributed with a mean of 0 and σ² variance.

Cellulase enzymatic activity (3 independent samples), DMD, NDFD (6 independent samples), NH₃-N, bacteria count (5 independent samples) and pH (10 independent samples) were analyzed with a completely randomized design with a 4 x 3 factorial arrangement. Factors were the four tested preservatives (NP, AC, LA and MA) and three fermentation times (24, 48 and 72 h). The means were adjusted by least squares using the PROC LSMEANS in the SAS ^® package (19), and were compared with the adjusted Tukey test. The statistical model was Y_ijk = Μ + A_i + B_j + AB_ij + Ε_ijk; where Y_ijk = response variable; Μ = general average; A_i = effect of preservative factor; B_j = effect of incubation time factor; AB_ij = effect of preservative and incubation time interaction; and Ε_ijk = random error.

The LA preservative produced the highest (p≤0.05) accumulated biogas value at 72 H. Compared to the control (NP), biogas production was 31.9% in the LA treatment and 16.8% higher in the AC (p≤0.05). Accumulated biogas production at 72 h did not differ (p>0.05) between the MA and NP treatments (Table 2). At 6 h, the AC treatment exhibited the highest (p≤0.05) biogas production, but from 12 h on production was highest in the LA treatment (p≤0.05) (Table 2). Compared to the control (NP), biogas production in LA increased 52.3% at 48 h and 81.8% at 72 h (p≤0.05). Production in the AC treatment did not differ (p>0.05) from NP at 48 or 72 h. Finally, in the MA treatment production increased (p≤0.05) 19.4% at 48 h and 39.5% at 72 h (Table 2).

Table 2

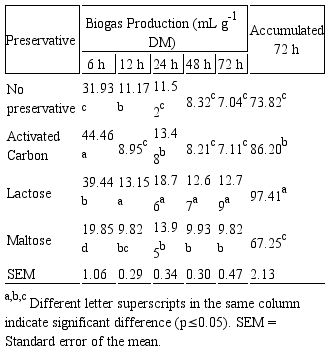

Table 2. Biogas production (mL g^-1 DM) up to 72 h incubation of mulatto grass with lyophilized ruminal cellulolytic consortia with and without disaccharides and activated carbon as preservatives.

Because in vitro fermentation was done at different times, analyses were done of the main factors and their interactions (Table 3) to document any changes as fermentation time increased (Table 4). In the NP treatment (control) dry matter degradation (DMD) values did not differ (p>0.05) between the evaluated fermentation times (Table 4). None of the four preservative treatments (NP, LA, MA and AC) exhibited differences (p>0.05) in DMD at 72 h incubation. Likewise NDFD did not differ (p>0.05) between the three incubation times in any of the treatments (Table 4); it averaged 3.7% at 24 h, 5.0% at 48 h and 6.4% at 72 h.

Table 3
Table 3. Significance (p values) for fermentation characteristics at 24, 48 and 72 h incubation of mulatto grass with lyophilized ruminal cellulolytic bacteria consortia with and without disaccharides and activated carbon as preservatives.

Table 4.

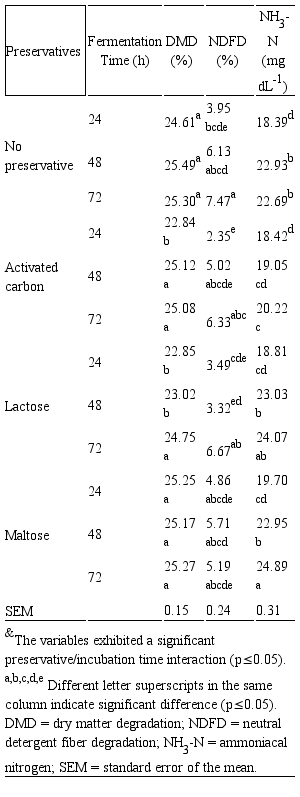

Table 4. Ammoniacal nitrogen concentration, and dry matter and neutral detergent fiber degradation at 24, 48 and 72 h incubation of mulatto grass with lyophilized ruminal cellulolytic bacteria consortia with and without disaccharides and activated carbon as preservatives^&.

At 24 h incubation, all treatments exhibited no differences (p>0.05) in biodigester NH₃-N concentration (Table 4), averaging 18.8 mg dL^-1. Concentrations also did not differ (p>0.05) between 48 and 72 h in the NP, AC and LA treatments. However, these treatments did increase (p≤0.05) NH₃-N concentration between 24 h and 48 h incubation: 24.0% in NP; 6.5% in AC and 25.19% in LA. Concentration in the MA treatment increased (p≤0.05) with incubation time.

Cellulase enzymatic activity did not differ between preservatives (p>0.05), averaging 90.33 mU mL^-1. Among the incubation times, this activity was 3.6% higher (P≤0.05) at 24 h than at 48 h; but at 72 h activity did not differ (p>0.05) from the other incubation times (Table 5).

Table 5
Table 5. Cellulase enzymatic activity, total bacteria count and pH at 24, 48 and 72 h incubation of mulatto grass with lyophilized ruminal cellulolytic bacteria consortia with and without disaccharides and activated carbon as preservatives.^&

Total bacteria count did not differ (p>0.05) from the control (NP) in the three preservative treatments (Table 5). However, counts did increase (p≤0.05) 166.8% between the 24 and 48 h incubation times, and 74.7% (p≤0.05) from 48 to 72 h (Table 5). Finally, pH ranged from 6.91 to 6.98, near neutral, regardless of treatment (Table 5).

Microorganism conservation is important in many research fields, and genetic consistency is crucial in the conserved bacteria (3). Partial biogas production values indicate the carbohydrate fermentation trajectory; cell content is fermented during the first 24 h and structural carbohydrates are fermented thereafter (15). For all the evaluated preservatives the present biogas production values were lower than previously reported for the same preservatives tested with a CBC from a water buffalo cow inoculated into cobra grass (15); cumulative production in this study was 103.4 mL g-1 DM. These differences in biogas production values can be attributed to variations in nutrient availability in mulatto and cobra grasses (20), microorganism efficiency in use of grass, origin of the ruminal CBC and microorganism density (21).

Differences also existed between biogas production at different times in the control (NP) in the present study and those reported previously (61.7 mL g^-1 DM at 9 h, 14.3 at 12 h, 6.7 at 24 h, 11.2 at 48 h and 9.5 at 72 h) (15); DMD values also differed between the controls in the present and the previous study. In the present study the CBC were reactivated after lyophilization. This technique can damage cell wall structures, cell membranes and DNA, causing diminished cell viability after CBC reactivation (3). However, in the previous study the CBC had not been lyophilized (15). The discrepancy between this study and the present study is particularly notable in the LA treatment in which biogas production increased beginning at 24 h. This probably occurred because lactose stabilizes cell membranes due to the difference in the vitreous transition temperature (2), and inhibits adverse phase changes at low hydration (6).

None of the tested preservatives drastically improved dry matter degradation capacity (DMD). This contrasts with previous studies in which addition of preservatives is reported to protect bacteria during the freezing and drying of the lyophilization process (2,3,5,6,7,8). However, use of these preservatives has only been studied in terms of bacteria viability, without addressing their variable effects on in vitro fermentation, which did form part of the present study. Slight increases (P ≤ 0.05) in DMD were observed in the LA treatment from 24 to 72 h (8.3%), and the AC treatment between 24 and 48 h (10.1%). Even these slight increases are noteworthy since structural carbohydrate fermentation begins at 24 h (15), and in the CBC evaluated in the present study DMD improved beginning at 24 h (Table 3). Nonetheless, DMD values higher than those for the NP, LA, MA and AC treatments at 72 h have been reported in two previous studies (4,15); DMD was reported as 29.65% in cobra grass inoculated with a CBC, and 32.75% on Whatman Paper ^® + crystalline cellulose inoculated with a lyophilized CBC and activated charcoal as a preservative. Discrepancies between these results and the present values may be attributed to CBC origin and type, CBC microbial population profile, CBC donor species, and/or substrate nutrient composition (20).

Use of lactose, activated charcoal and maltose as preservatives during CBC lyophilization did not improve or decrease NDFD upon CBC reactivation for in vitro fermentation with mulatto grass. However, the overall NDFD rate did increase from 24 to 72 h incubation: 6.7% in MA; 89.1% in NP, 91.1% in LA, and 169.4% in AC. A study using CBC from a water buffalo cow reported a rate slightly higher than the MA treatment when using cobra grass (10.67%) but lower with corn stover (3.94%) (15). Dry matter and neutral detergent fiber degradation by CBC are attributed to the need of bacteria to interact with other microorganisms by cross-feeding (4,15,22), and their capacity for catabolic repression in the presence of glucose or other compounds in the medium that inhibit enzymatic synthesis (15,23). This has been confirmed by improved degradation rates of CBC when cultivated with ruminal bacteria (15).

Cellulolytic bacteria use ammoniacal nitrogen (NH₃-N) as their sole nitrogenous source (24,25), and concentration depends on the degradability of the nitrogen fractions in the diet (26). When using only mulatto grass, soy peptone and yeast extract in the biodigesters, NH₃-N levels responded to CBC behavior during the 72 h incubation period (Table 4). Use of lactose and maltose as CBC preservatives had no affect (p≤0.05) on NH₃-N concentration over time. In contrast, activated charcoal lowered NH₃-N concentration. Nonetheless, with all the evaluated preservatives and incubation times NH₃-N concentrations (Table 4) remained within reported ranges (27). Similar results (18.26 mg dL^-1) were reported in a study using cobra grass in biodigesters inoculated with water buffalo CBC (15). A lower concentration (14.7 mg dL^-1) was found in the rumen of water buffaloes fed rice straw and a concentrate (0.3% of body weight) (28).

None of the preservative treatments affected cellulase enzyme production or total bacteria count in the lyophilized and reactivated CBC. Other studies have found increased activity: 5.32 U mL^-1 with Clostridium thermocellum incubated at 37°C and pH 7.2 (29); and 0.38 U mL^-1 with Providencia sp. incubated at 37°C for 24 h (9). The low cellulase yield in the present study can be attributed to anaerobic fermentation conditions (29), since temperature and pH are the most important factors influencing cellulose hydrolysis and production (9), as well as substrate type and composition preceding the CBC (29), and incubation time in the enzymatic activity determination method (30).

The increased estimated bacteria population observed here at different incubation times was due to proliferation of cellulolytic bacteria beginning at 24 h, since these ferment structural carbohydrates (15), and that the inoculum used was a CBC. However, the growing microbial population contradicts the cellulose activity results since the cellulase concentration did not increase in response to the bacterial population. Growth in the bacterial population in the present study may also be attributed to the pH values being within the range for correct functioning, since pH values lower than 6.0 inhibit enzymatic activity (15,10). A study of cobra grass and corn stover inoculated with CBC found pH values similar to the present results but lower total bacteria counts (15).

Overall the present results suggest that lactose is an effective preservative of cellulolytic ruminal bacterial consortia. This is supported by the LA treatment’s partial and accumulated biogas production results, its increased (p≤0.05) dry matter and neutral detergent fiber degradation rates from 24 to 72 h, and the absence of changes in NH₃-N content, medium pH and total bacteria count compared to the control CBC. Maltose and activated charcoal also exhibited positive results in certain variables of in vitro fermentation. Further research is needed to determine if lactose is an effective preservative under other conditions, and if maltose and activated carbon could function better as preservatives of ruminal cellulolytic bacterial consortiums.

Conflict of interests.

The authors declare no conflict of interest with publication of this manuscript.

The research reported here was financed by the Consejo Nacional de Ciencia y Tecnología via Project 253275, Ciencia Básica CB-2015-01, “Elaboración de un probiótico a partir de bacterias celulolíticas aisladas de búfalos de agua y bovinos para mejorar la degradación in vitro de los principales forrajes usados en la alimentación de rumiantes”.
